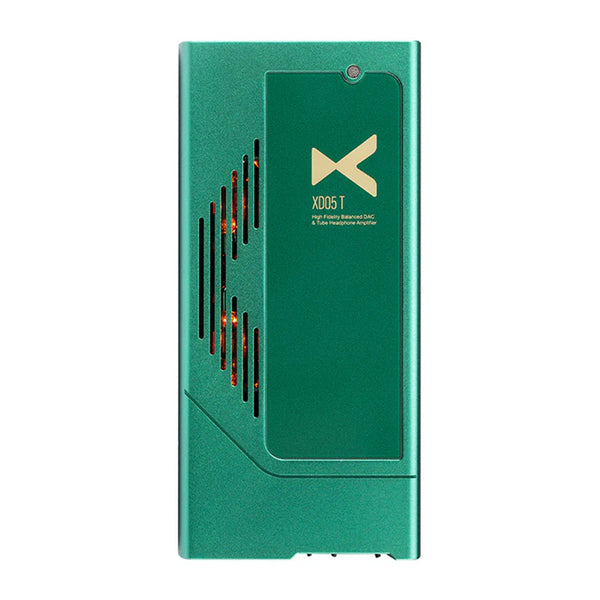

xDuoo XD05T Dual ESS ES9039Q2M Portable DAC & Headphone Amplifier

Sale price₹ 52,990Regular price ₹ 66,999

    Vintage 1960s Vacuum Tubes for Warm, Analog Sound

    556mW Output @ 300Ω with Hybrid Tube Circuitry

    Dual ESS ES9039Q2M DAC Chips & XMOS XU316 USB Chip

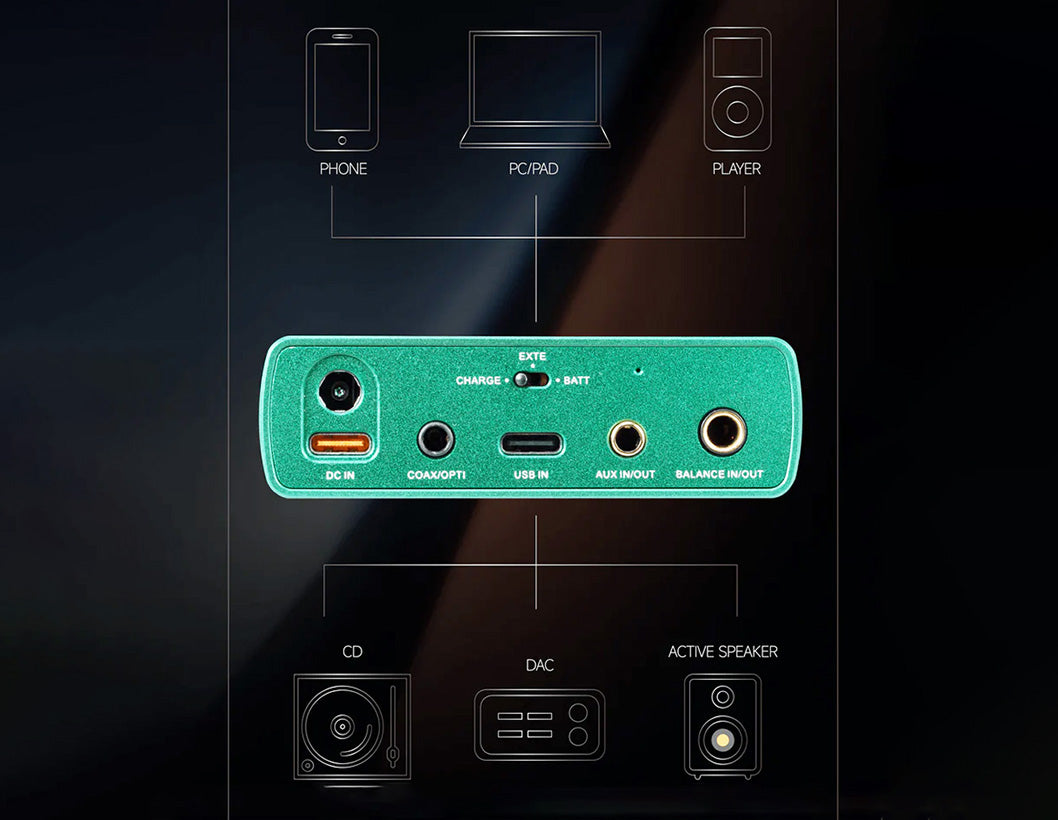

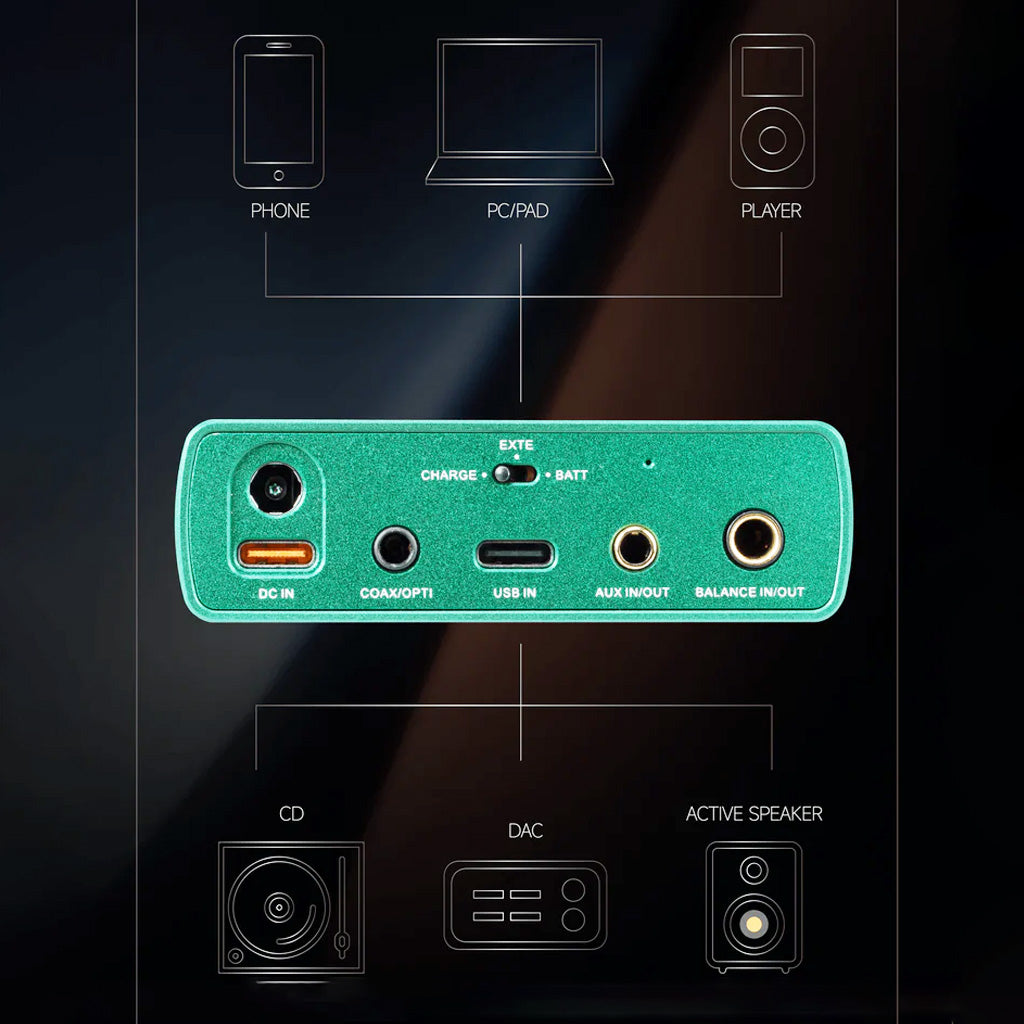

    Desktop + Portable Modes & Versatile 8 Mode Connectivity

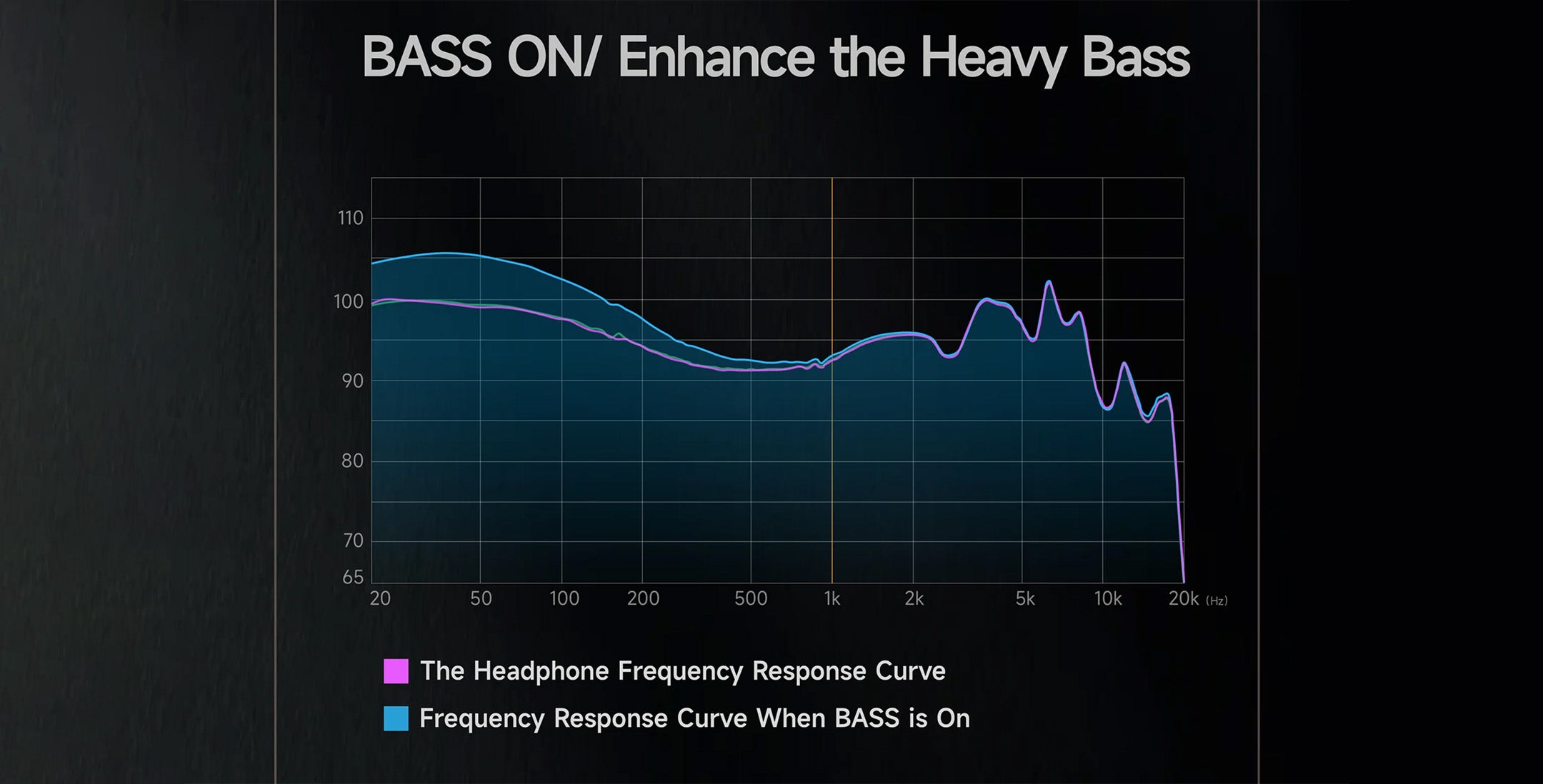

    99-Step Digital Volume Adjustment and Bass Enhancement Mode

    Three Gain Levels & Supports SBC, AAC, APTX, APTX_LL, APTX_HD, LDAC

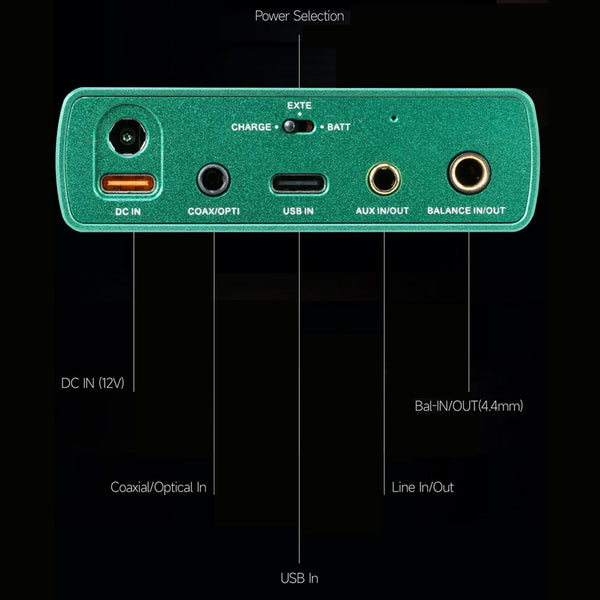

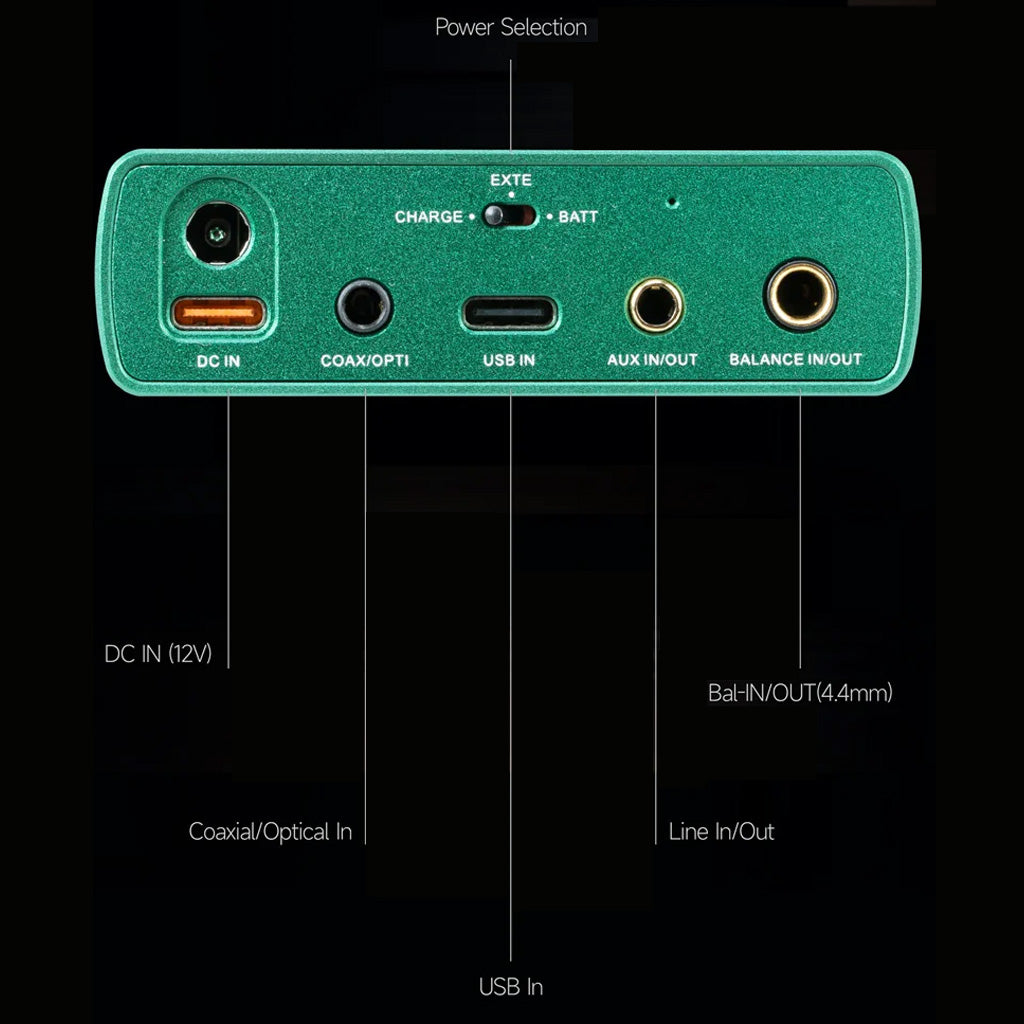

    Multiple input/output Support USB, Bluetooth 5.1, AUX, SPDIF t

Out of stock

Pickup currently unavailable at Naraina, New Delhi

Description

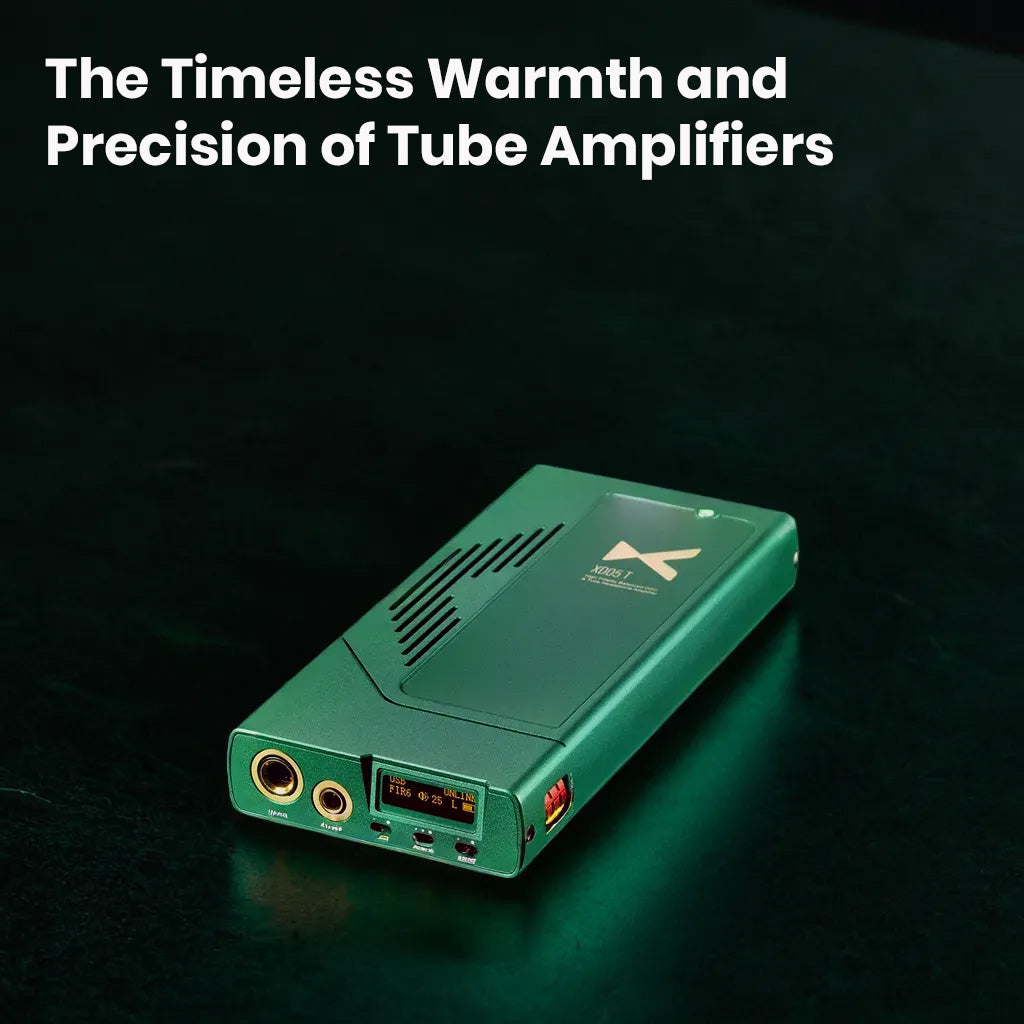

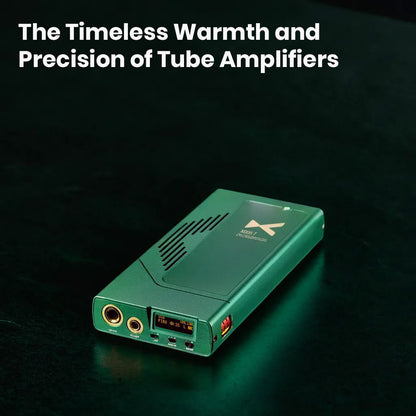

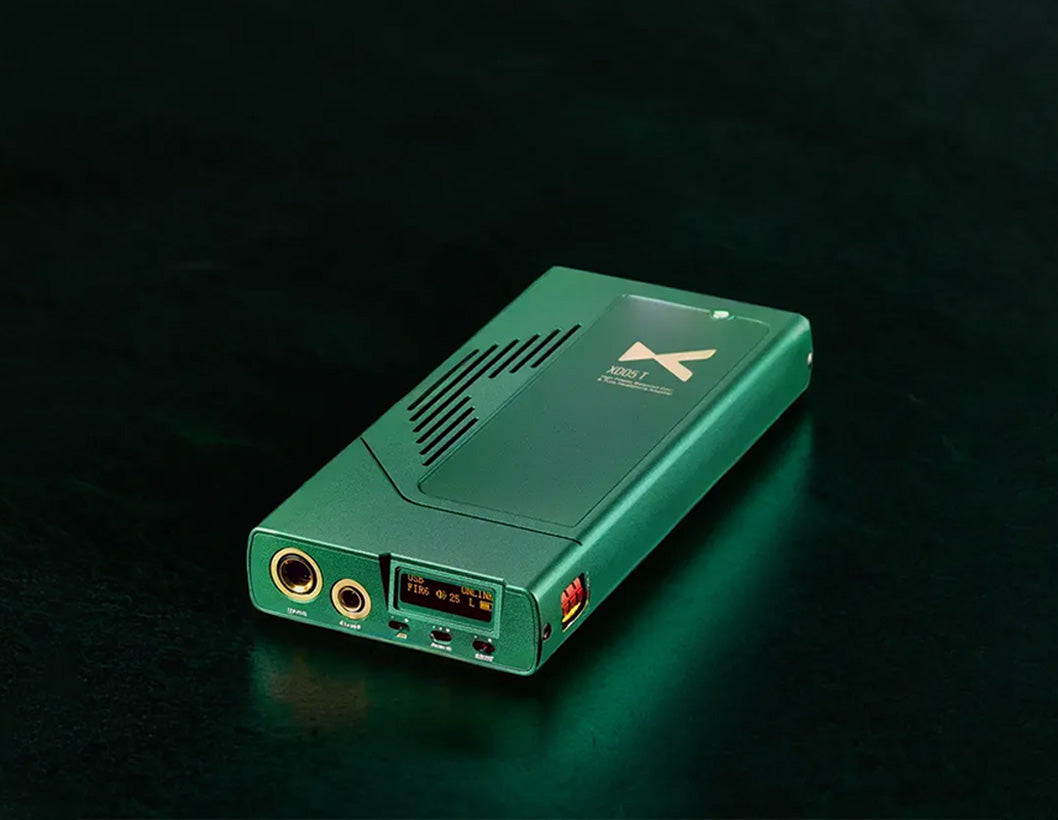

xDuoo XD05T Vintage Warmth, Modern Performance – High-Performance DAC/Amp with Hi-Res Audio and Bluetooth Support

The xDuoo XD05T combines modern technology with vintage charm. It features carefully selected vintage tubes from the 1960s, which produce a warm, analog sound characterized by even-order harmonics, adding depth and a nostalgic feel. The portable dac is particularly well-suited for genres like classical music, jazz, and vocals, where the tube amplifier's ability to capture subtle nuances and emotional depth shines. high-performance DAC and headphone amplifier that seamlessly blends wired and wireless connectivity. It supports a wide range of high-resolution audio formats, including PCM 32Bit/768kHz, MQA, DSD512, 24Bit/192kHz, and DSD64. Additionally, its Bluetooth capabilities support APTX, APTX_LL, APTX_HD, and LDAC codecs, ensuring high-quality wireless audio transmission. This versatile device is the perfect companion for audiophiles on the go, delivering exceptional sound quality and convenience.

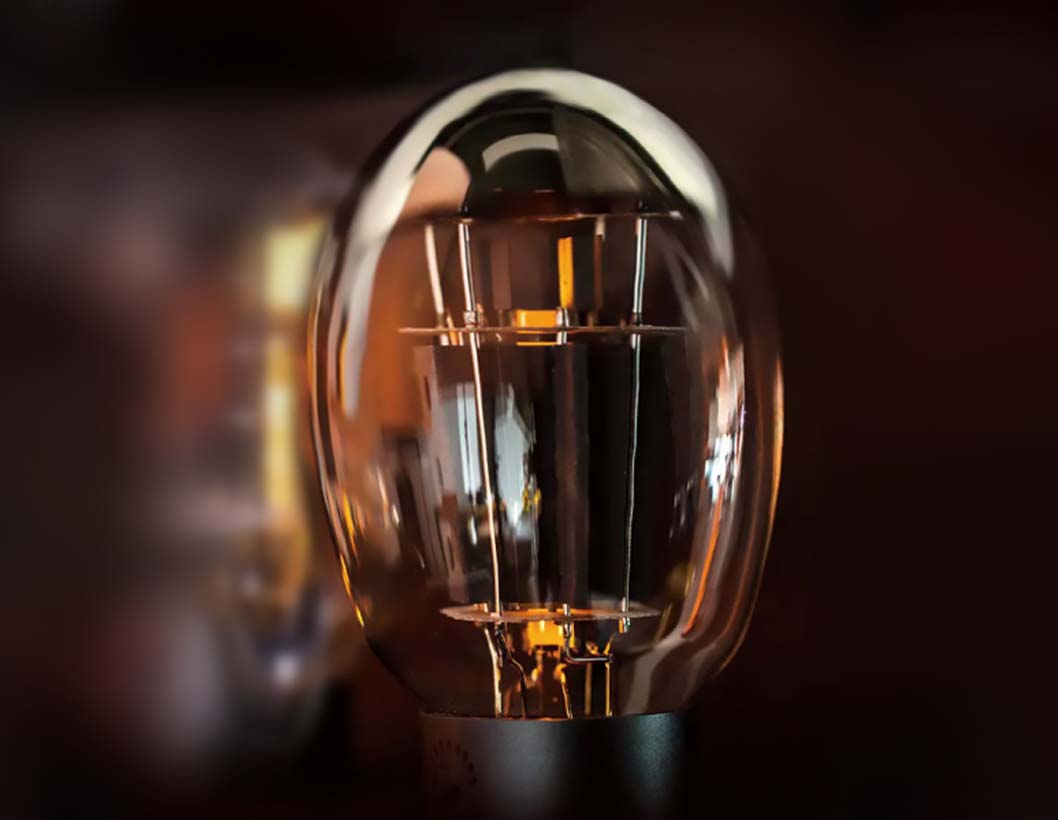

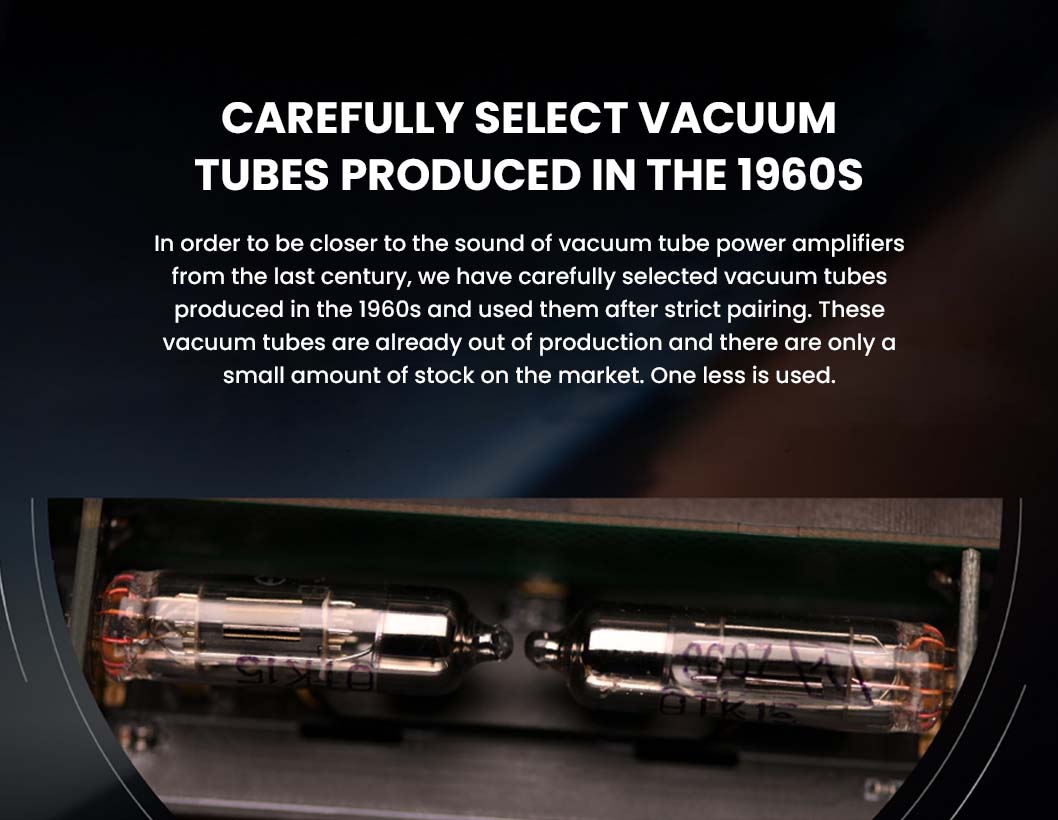

DUAL 1960S MINIATURE TUBES FOR SMOOTH, RICH SOUND

The XD05T digital to analog converter features two carefully selected miniature tubes from the 1960s in its amplifier circuit. These tubes give the audio a warm, smooth, and rich character, softening the sound and adding depth and emotion. This design helps create a more natural and enjoyable listening experience, bringing a touch of vintage warmth to your music.

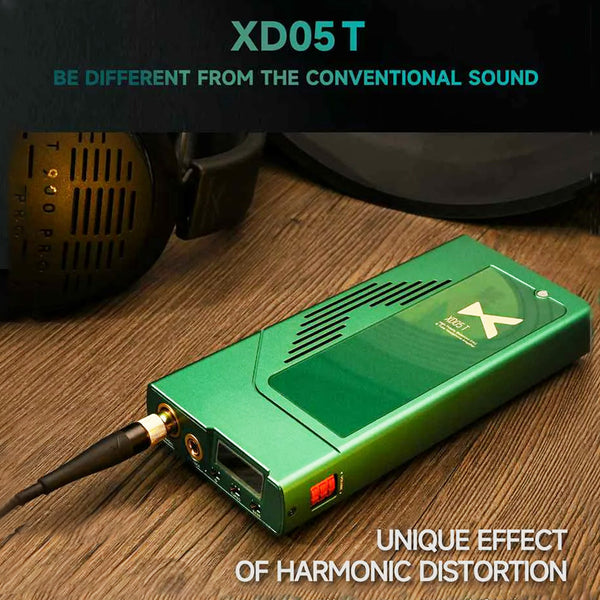

A HYBRID FUSION OF TUBE WARMTH AND TRANSISTOR POWER

The xDuoo XD05T portable DAC leverages a hybrid circuit design to deliver precise audio. the warmth and character of tubes and the power and precision of transistors. A vacuum tube is integrated into the preamplifier stage to impart a rich, analog sound, while handle high-impedance headphones with ease. When driving a 300-ohm load, it delivers up to 556mW of power, fully unlocking the potential of these demanding headphones. This versatile design ensures excellent compatibility with a wide range of music genres, delivering a rich, detailed, and immersive listening experience.

DUAL ES9039Q2M DACS AND 1500MW HIGH OUTPUT POWER

The XD05T DAC for IEM feature an impressive dual ES9039Q2M DAC chip configuration, renowned for their exceptionally low noise floor and high resolution. This powerful combination ensures pristine audio quality, faithfully reproducing every nuance of your music. With a generous output power of up to 1500mW per channel, the XD05T effortlessly drives a wide range of headphones and IEMs, delivering a dynamic and immersive listening experience.

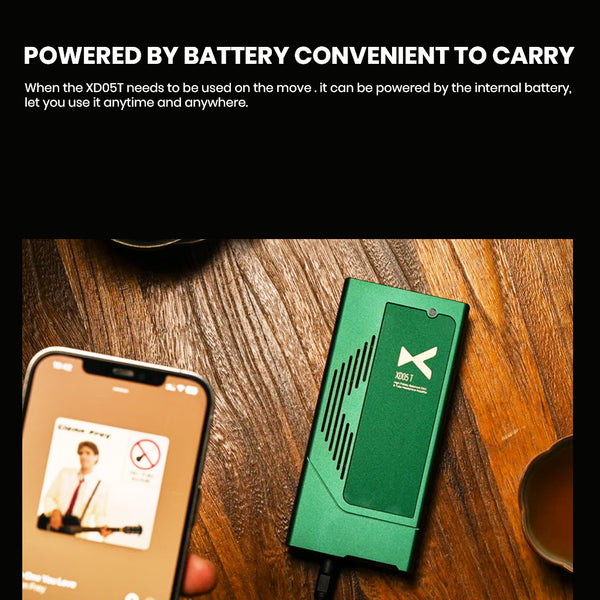

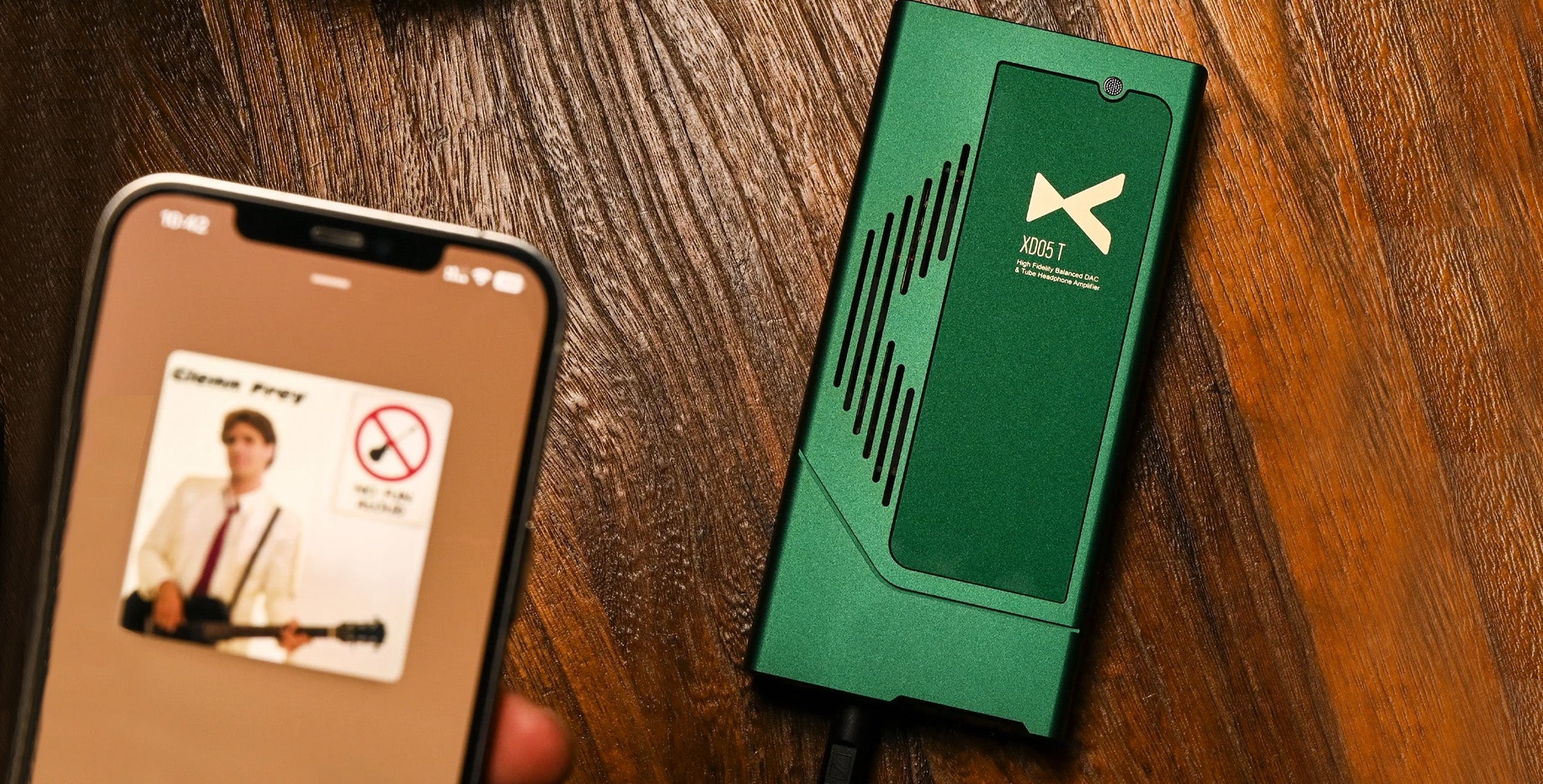

FLEXIBLE POWER OPTIONS - DC AND BATTERY MODES FOR PORTABLE AND DESKTOP USE

The XD05T Portable DAC offers flexible power options, including DC power and battery-powered modes. The battery mode makes it easy to carry and use on the go, while the external DC power option is perfect for indoor use, transforming the device into a desktop setup for enhanced power and dynamic output. This versatile feature caters to those who want both portability and desktop performance in one device.

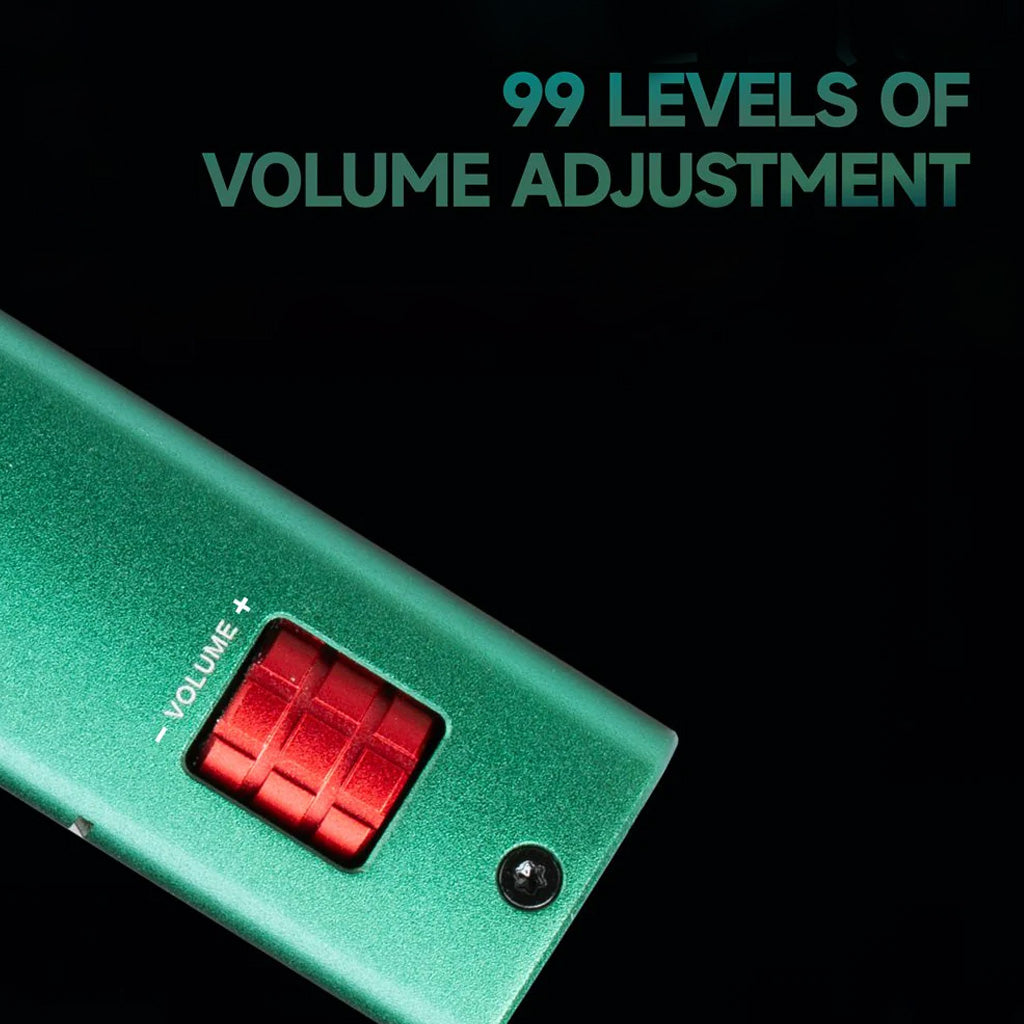

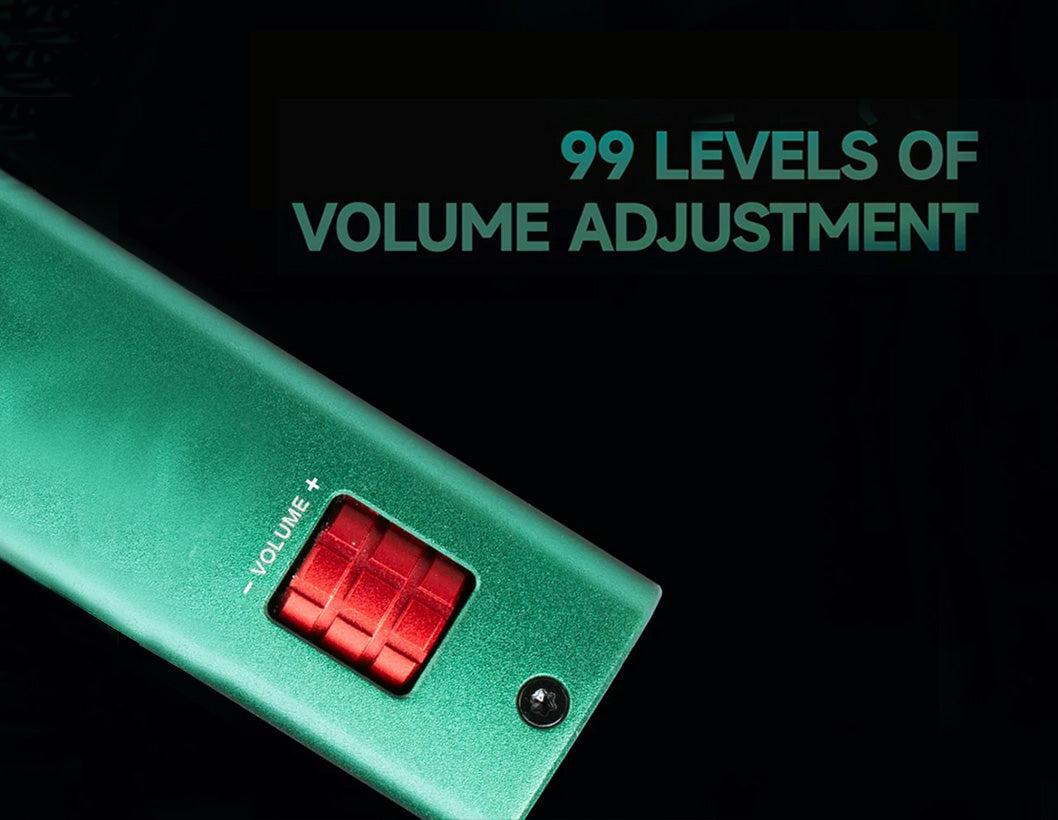

99 LEVELS PRECISE DIGITAL VOLUME CONTROL FOR COMFORTABLE LISTENING

The XD05T features a digital chip with 99-step volume adjustment, giving you precise control over the sound. This allows for fine-tuned audio customization, ensuring the perfect volume even with sensitive In-Ear Monitors (IEMs). You can enjoy a comfortable listening experience without worrying about the volume being too loud.

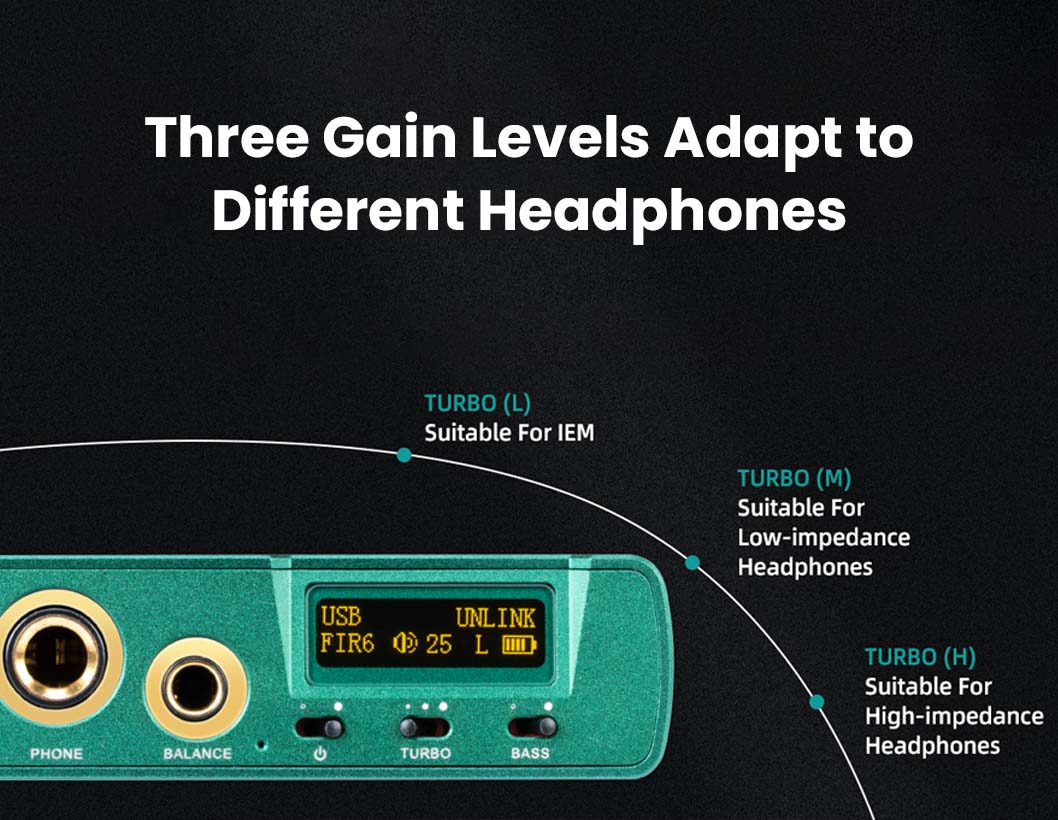

ADAPTIVE GAIN CONTROL - THREE LEVELS FOR OPTIMAL PERFORMANCE

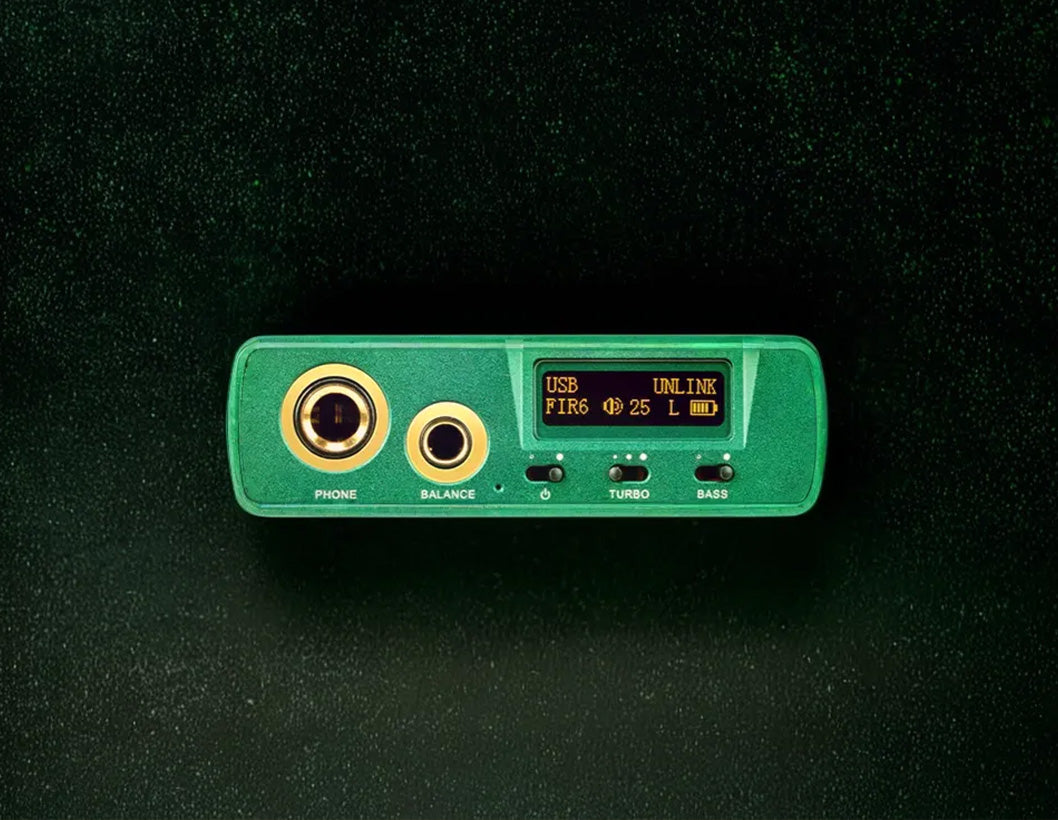

The XD05T headphone amplifier offers three adjustable gain levels to suit different types of headphones: TURBO (L) for In-Ear Monitors (IEMs), TURBO (M) for low-impedance headphones, and TURBO (H) for high-impedance headphones. This flexibility ensures optimal sound quality and performance, allowing you to enjoy rich, detailed audio no matter what type of headphones you use.

Specifications

Brand Name
xDuoo
Model
XD05T
DAC Chip
Dual ESS ES9039Q2M
USB Chip
XMOS XU316
USB Support Formats
PCM 16-32Bit / 44.1kHz-768kHz, DSD64-512, MQA 1-8X
Bluetooth Chip
QCC5125, Bluetooth 5.1
Bluetooth Formats
SBC, AAC, APTX, APTX_LL, APTX_HD, LDAC
Unbalanced Output
Output Power: 32Ω @ 750mW (THD+N < 5%), 300Ω @ 83mW (THD+N < 5%)
Output Impedance: <0.2Ω
Peak Voltage: 15Vpp (TURBO)
Frequency Response: 20Hz~20KHz (±0.5dB)
Crosstalk: ≥75 dB
THD+N: 0.5%
SNR: ≥114 dB
Balanced Output
Output Power: 32Ω @ 1500mW (THD+N < 5%), 300Ω @ 565mW (THD+N < 5%)
Output Impedance: <0.2Ω
Peak Voltage: 26Vp-p (TURBO)
Frequency Response: 20Hz~60KHz (±0.5dB)
Crosstalk: ≥105 dB
THD+N: 0.5%
SNR: ≥116 dB
AUX OUT Parameters
Output Level: 2.0V
THD+N: 0.00065%
SNR: ≥120 dB
Crosstalk: ≥100 dB
BAL-LO Parameters
Output Level: 4.0V
THD+N: 0.00065%
SNR: ≥124 dB
Crosstalk: ≥100 dB
Applicable OS
Windows, Linux, Mac OS, iOS, Android
Protection Circuits
Overheating, Overload, DC protection
Battery
3.7V / 6000mAh
Battery Life
USB IN/SPDIF IN ≥ 4H, AUX IN ≥ 4.5H
Charging Time
About 3.5 hours (fast charging), 10 hours (slow charging)
Size
16.8 x 7.8 x 2.3 cm
Weight
0.4 kg

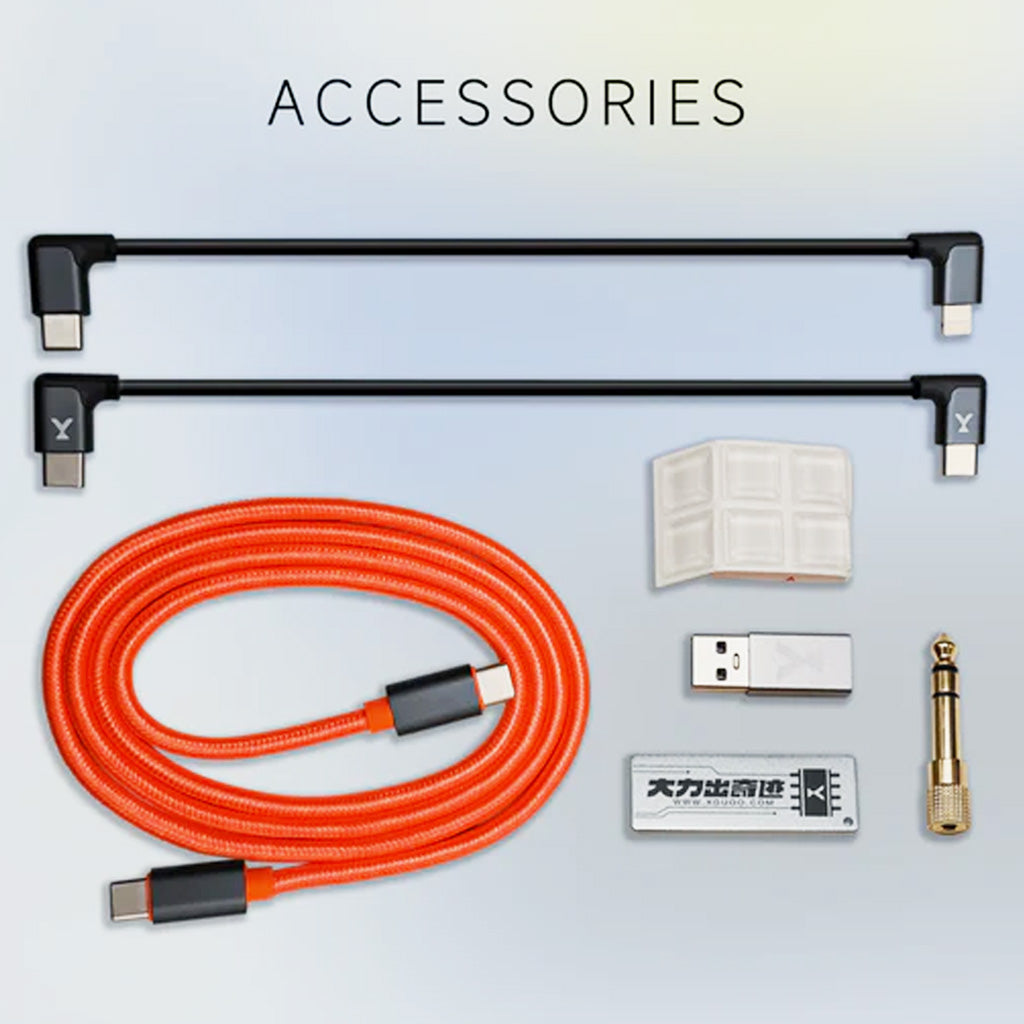

Box Content

    What will you get
  • 1x XD05T DAC
  • 1x USB-C to Lightning Dongle
  • 1x USB-C to C Dongle
  • 1x USB-A Adapter
  • 1x 3.5mm Adapter

Warranty

1 YEAR WARRANTY

Don't worry, xDuoo XD05T Portable DAC & Headphone Amplifier comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
