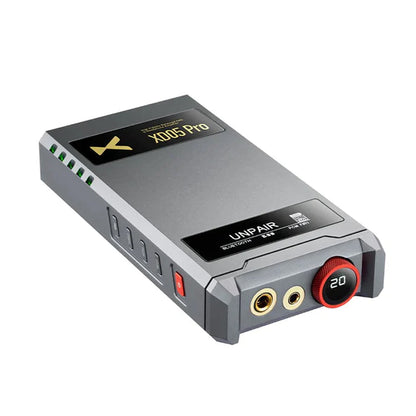

xDuoo – XD05 Pro ES9039SPro Portable DAC & Headphone Amplifier

xDuoo

amps & dacs under 100000

  • Flagship 4th Gen ES9039S Pro DAC Chipset

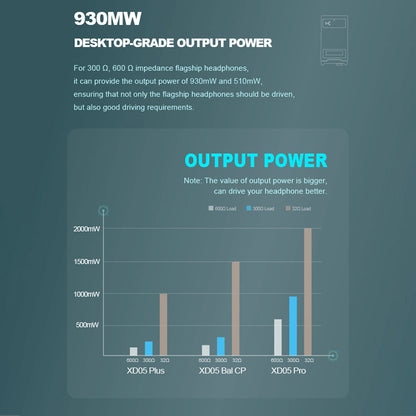

  • High Output Power up to 930mW and 510mW
  • Latest-Generation XMOS XU316 USB Processor
  • Easily Replaceable DAC and OPAMPs Chips
  • Double Screen Display (OLED)
  • Supports LDAC, AptX HD, AptX LL, AptX, AAC, SBC Codecs.

₹ 74,990 ₹ 83,999 Save ₹ 9,009

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery


Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

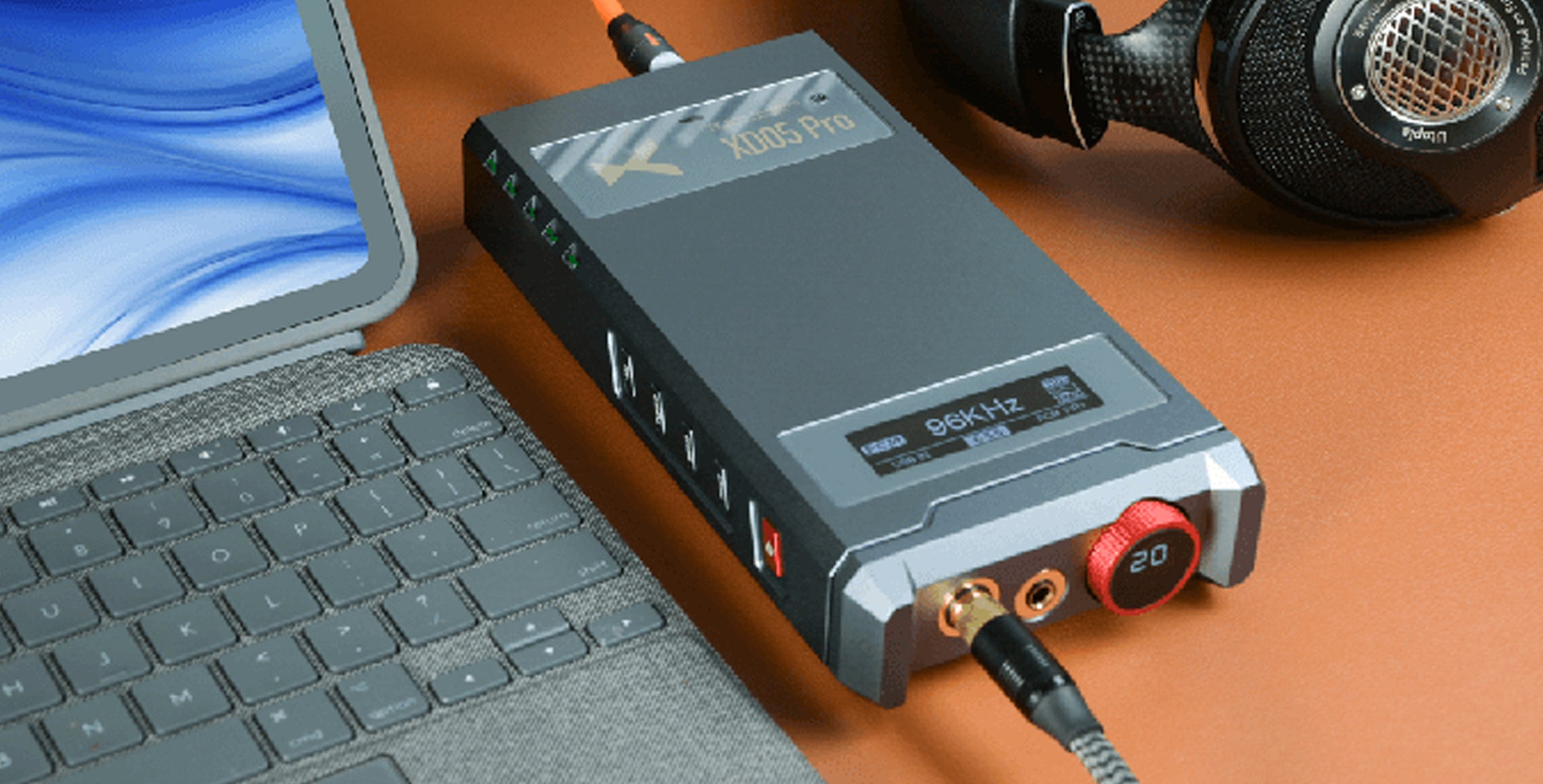

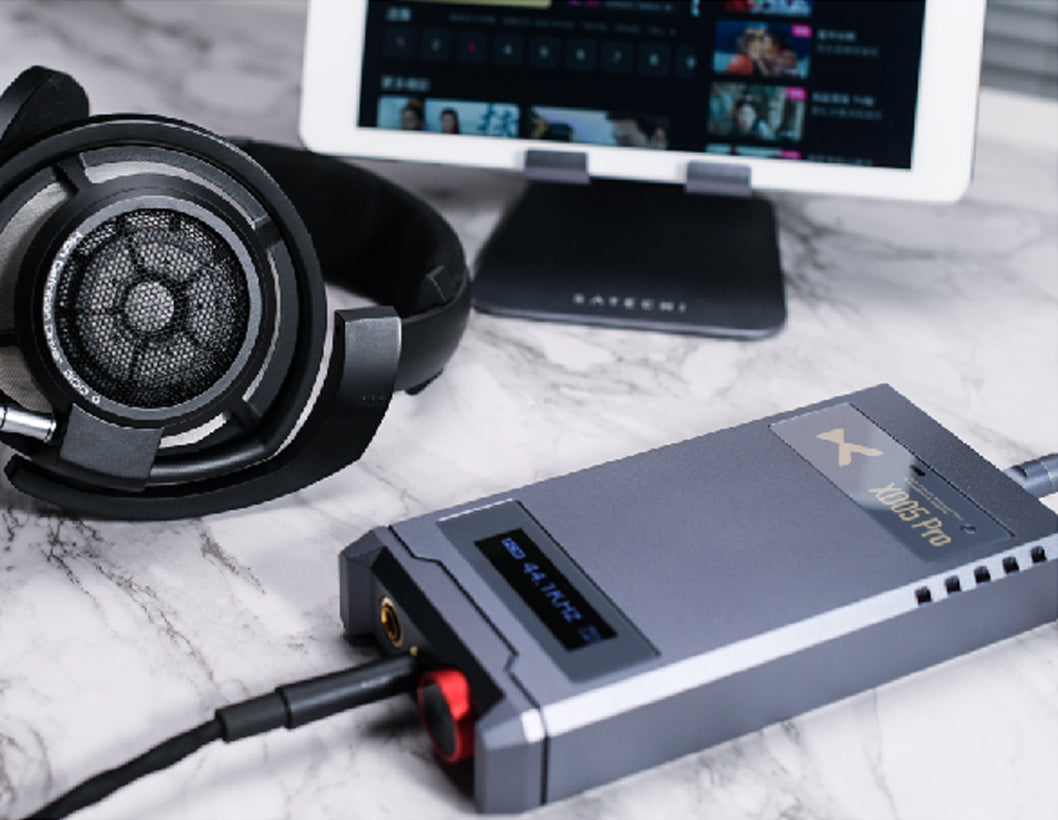

Elevate Your Sound Experience On-The-Go and Beyond with xDuoo XD05 Pro

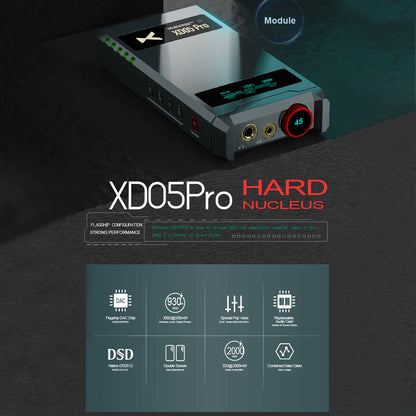

XDUOO XD05 PRO – FLAGSHIP PERFORMANCE WITH MODULAR INNOVATION

xDuoo XD05 Pro is a high-end portable USB DAC/AMP that pushes the boundaries of sound performance. With the powerful XD05 Pro, your favorite headphones can truly see the light. The point of the thing is that its modular audio design allows users to effortlessly customize the DAC and OPAMP chips to suit their ears. The XD05 Pro comes with ESS's flagship ES9039S Pro DAC chipset card as standard. So right from the start, the XD05 Pro guarantees top-tier sound quality, elevate your audio setup with the versatile XD05 Pro, suitable for both on-the-go and desktop use.

Xduoo xd05 pro es9039spro portable dac   headphone amplifier 2 1

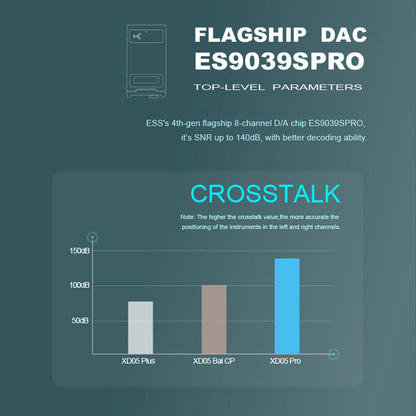

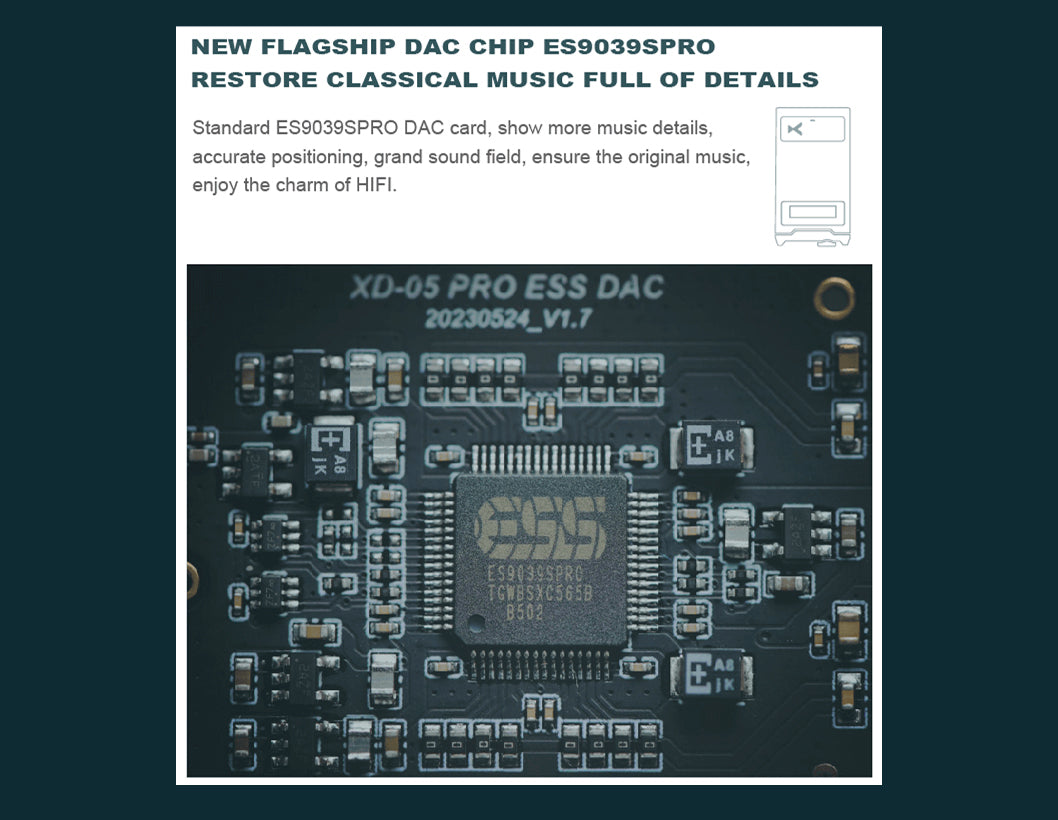

LATEST ES9039S PRO DAC CHIPSET

This flagship ESS Sabre's 4th-generation DAC chipset offers top-level decoding characteristics, resulting in excellent sound quality. It provides a best-in-class Signal-to-Noise ratio, ensuring minimal background noise and high clarity in audio playback. The ultra-low Total Harmonic Distortion plus Noise (THD+N) performance contributes to delivering accurate and detailed sound reproduction without unwanted distortions.

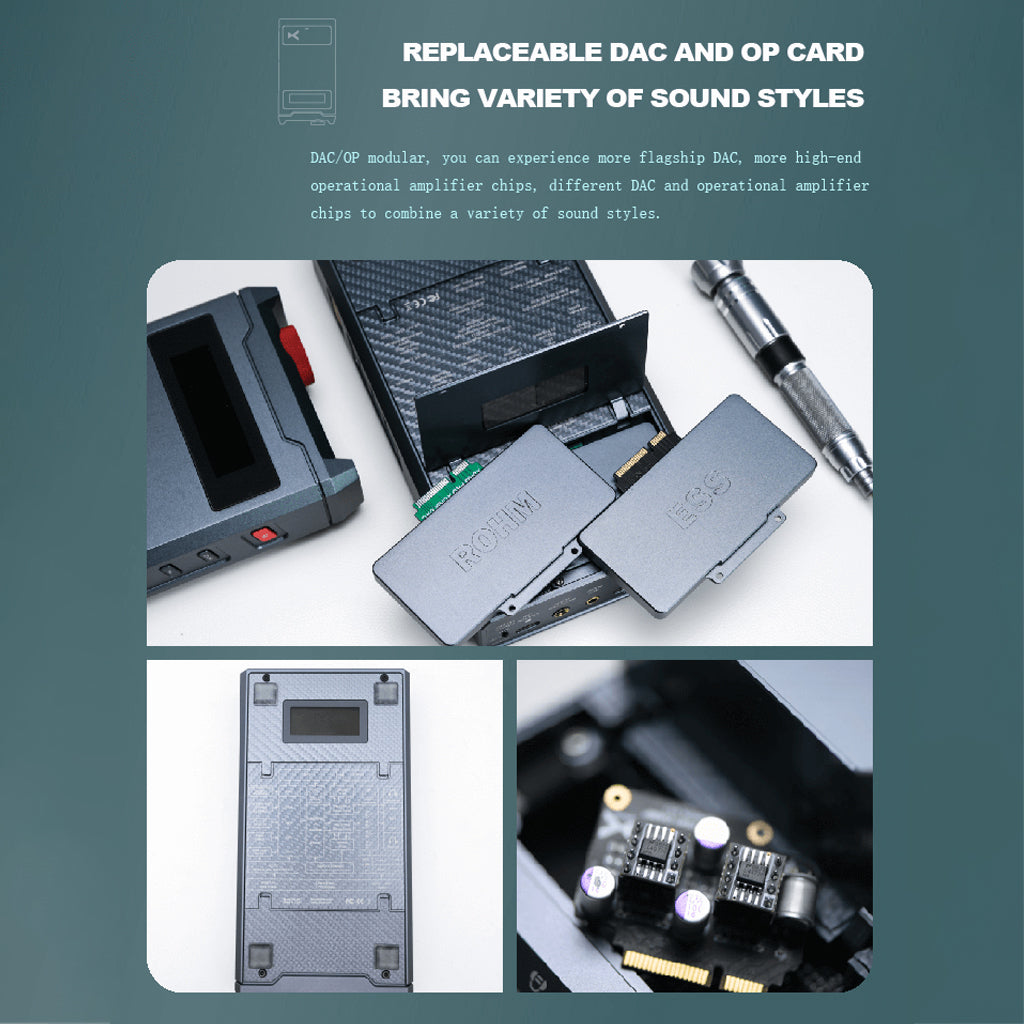

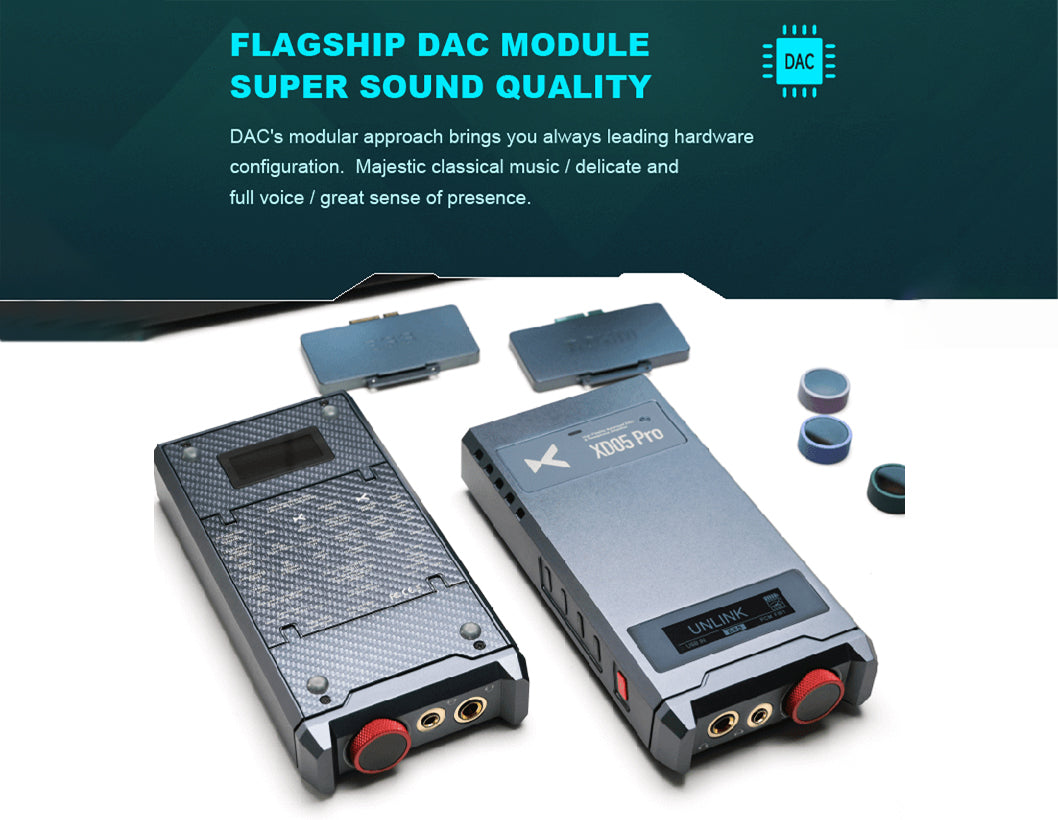

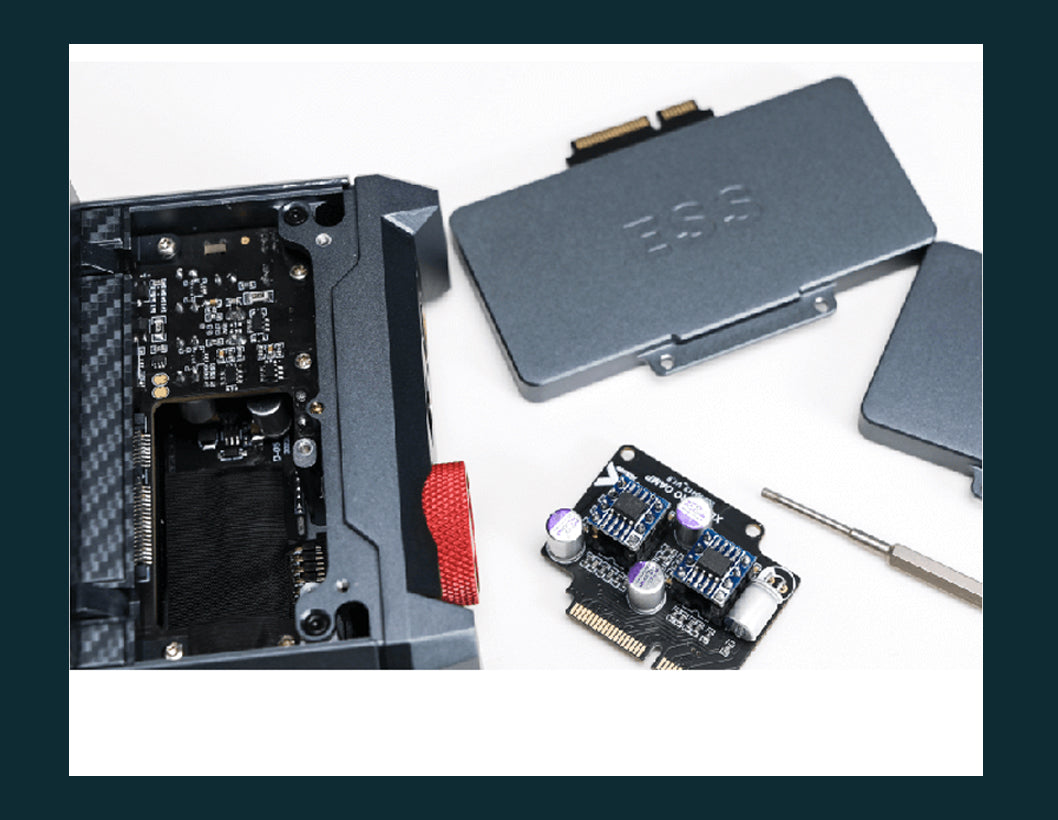

EASY CUSTOMIZATION WITH REPLACEABLE AUDIO CARDS

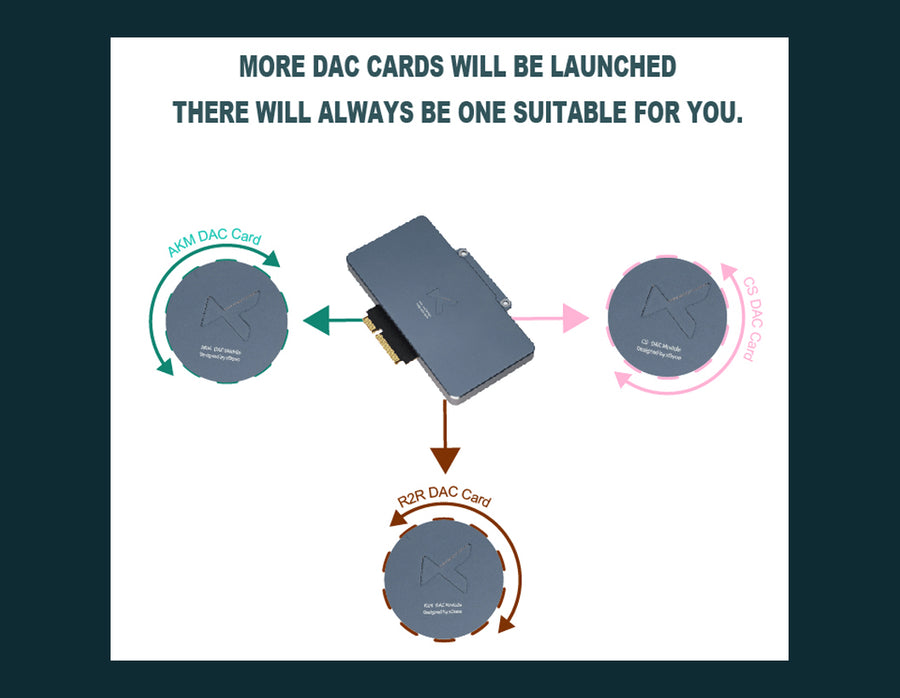

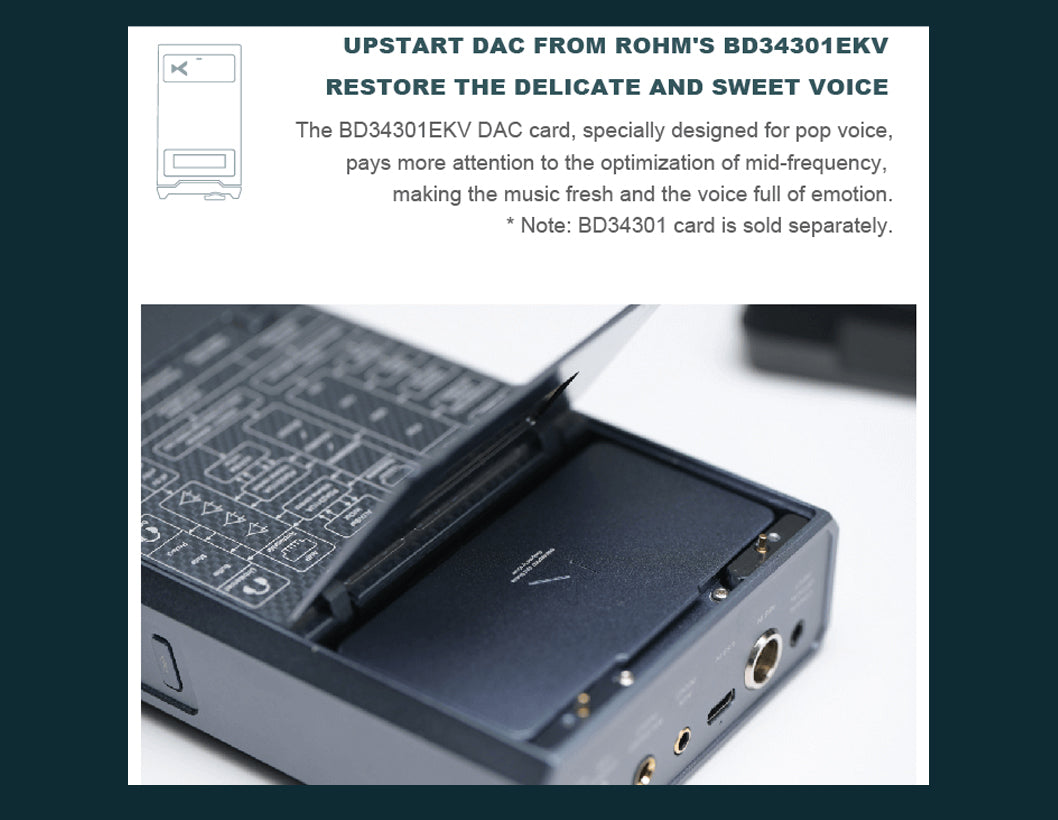

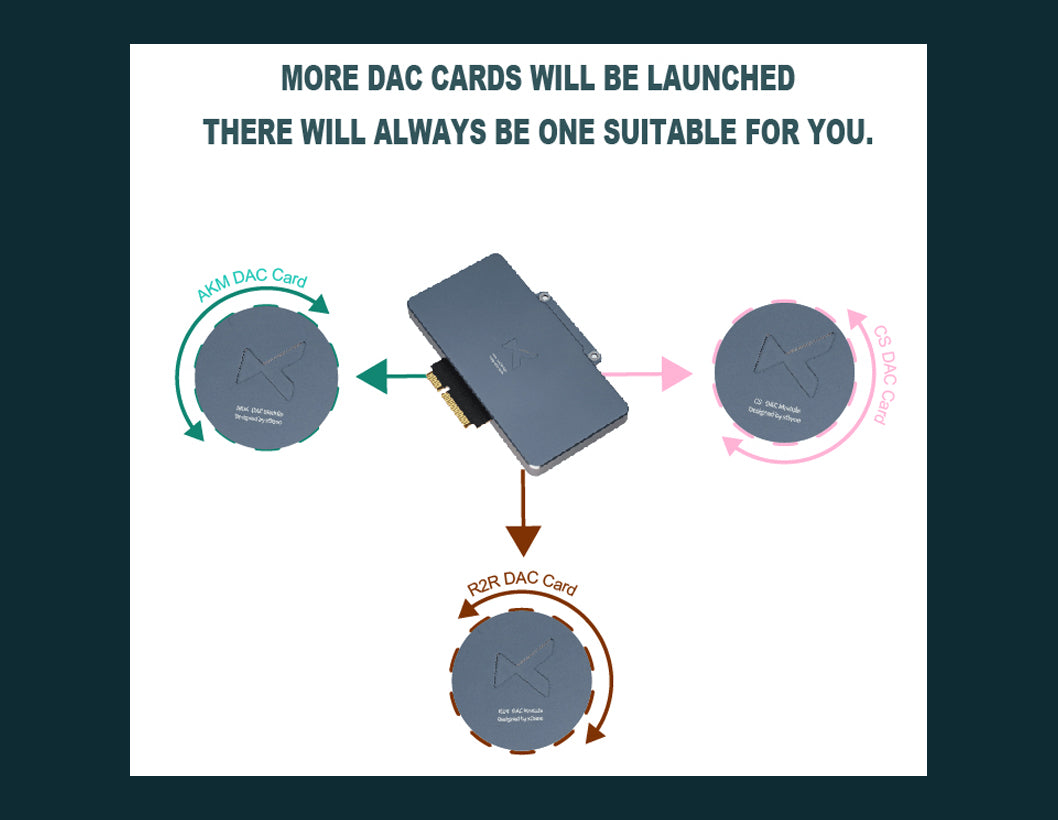

The xDuoo XD05 Pro offers a convenient feature that enables users to customize their sound experience by replacing the audio card. This includes the primary DAC chipset, providing users with the flexibility to achieve their preferred sound signature effortlessly. Currently, there are two available DAC cards: the ES9039S Pro (included with the device) and the ROHM BD34301 EKV (available for separate purchase). Additionally, users have the option to replace the OPAMPs to further tailor the sound to their liking. xDuoo is actively developing AKM and R2R-based DAC cards for the XD05 Pro, expanding the range of customization options available to users.

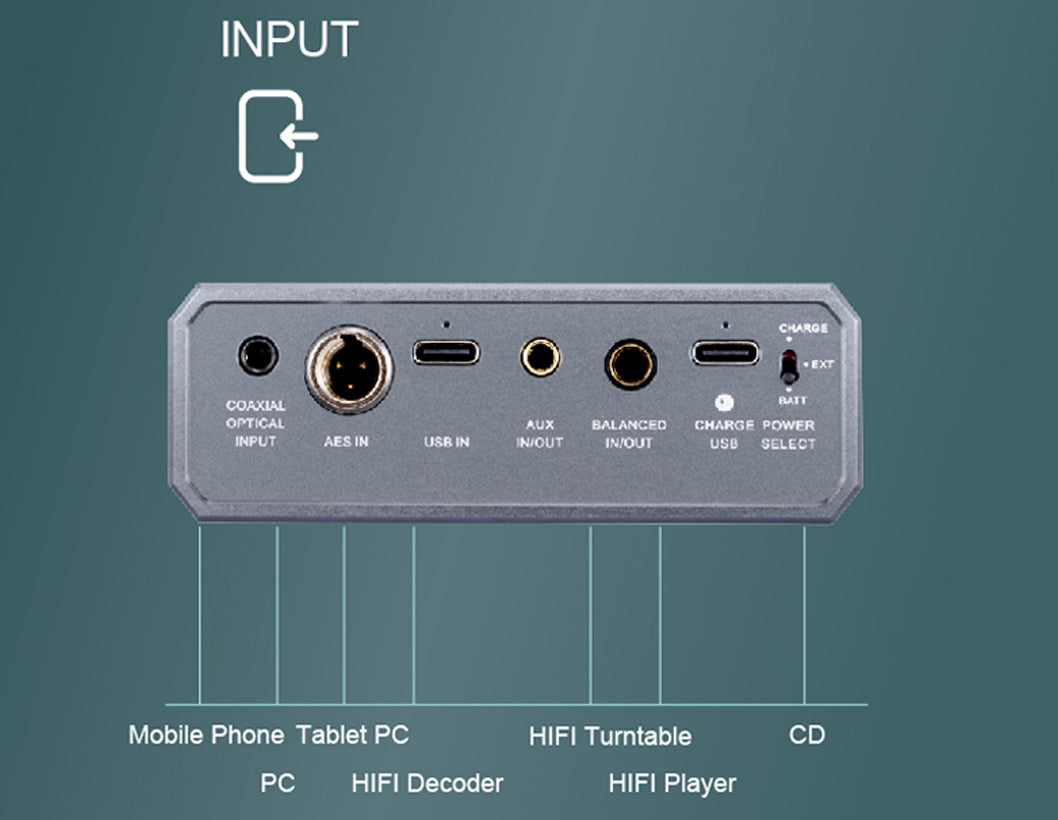

PREMIUM USB & BLUETOOTH 5.1 INTERFACE

To make sure the XD05 Pro delivers the best performance, xDuoo has added top-quality hardware. They've included a powerful XMOS XU316 USB chip and Qualcomm's advanced QCC5125 Bluetooth chip. This means you get super clean sound when using USB and a strong, reliable Bluetooth connection. Plus, the XD05 Pro supports high-quality audio formats for a great listening experience, ensuring clean signal transmission and stable Bluetooth connectivity for seamless audio streaming.

SUITABLE FOR A WIDE RANGE OF HEADPHONES, FROM LOW TO HIGH SENSITIVITY

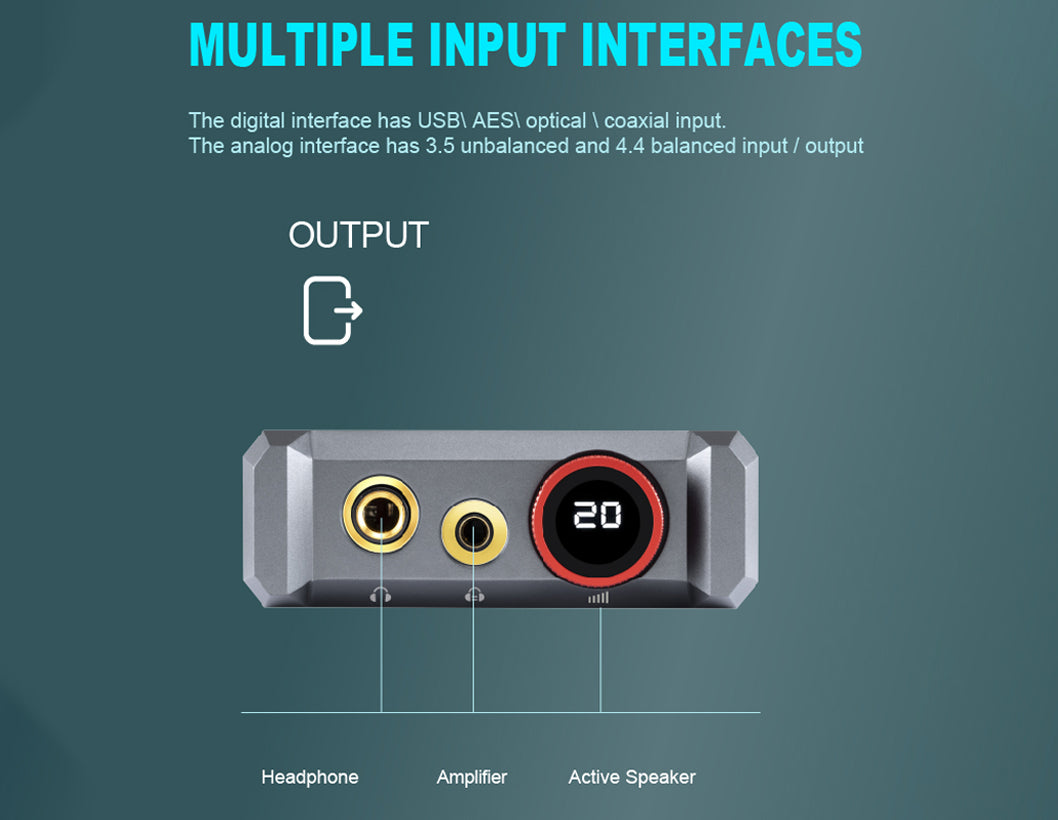

The xDuoo XD05 Pro features a meticulously crafted Class A amplification circuit that delivers a steady, high-power output, making it an excellent match for various IEMs and headphones. With dual analog outputs—6.35mm single-ended and 4.4mm balanced—the XD05 Pro offers users effortless pairing with their IEMs and headphones. Its three-level gain adjustment ensures seamless compatibility with both high-sensitivity and low-sensitivity IEMs/headphones. Impressively, the XD05 Pro boasts a maximum rated output power of up to 2W, providing ample power for an outstanding audio experience.

Xduoo xd05 pro es9039spro portable dac   headphone amplifier 2 3

HIGH-CAPACITY BATTERY WITH RAPID CHARGING CAPABILITY

The xDuoo XD05 Pro comes with an impressive 13600mAh battery, offering exceptional battery life for prolonged usage. In Auxiliary (Aux) mode, it can last up to an extraordinary 20 hours on a single charge. When utilizing the device in Digital-to-Analog Converter (DAC) mode with USB connections, it provides up to 11 hours of continuous playback. Additionally, the battery supports fast charging, ensuring quick and convenient recharging when needed.

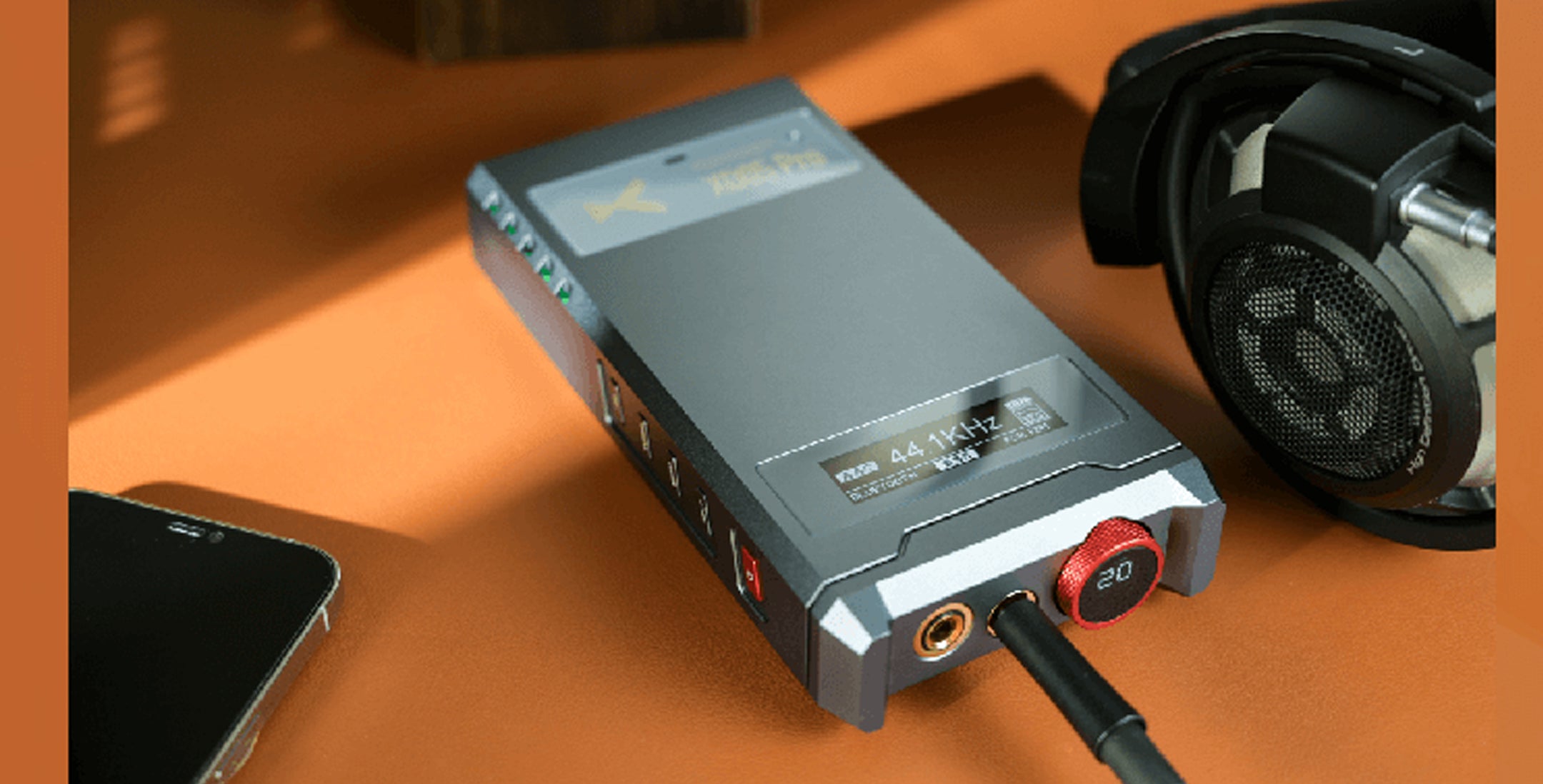

TWO OLED REAL TIME DISPLAY SCREEN

Primary Screen – The main display provides essential information such as the current working mode, sampling rate, battery status, and access to the menu settings. Secondary Screen – The secondary screen is dedicated to showcasing the volume level, allowing users to easily monitor and adjust audio output without disrupting the main display's information flow.

Xduoo xd05 pro es9039spro portable dac   headphone amplifier 2 2

Specifications

Brand
xDuoo
Model Name
XD05 Pro
Configuration
Applicable OS: Windows, Linux, Mac OS, iOS, Android system
Battery: 3.87V/13600mAh
Battery Life: USB IN ≥11H |SPDIF IN≥11H I AUX IN≥20H (ECO Mode)
Charging Time: ≤6 hours (fast charging) |≤10 hours (slow charging)
Size: 18.5x9.5x3.3 (cm)
Weight: 0.78kg
Unbalanced Output Parameters
Output Power: 2000mW (32Ω, THD+N<1%)
240mW (300Ω, THD+N<1%)
Output Impedance: ≤0.2Ω
Peak Voltage: 23.8Vp-p (TUBRO)
Frequency Response: 20Hz 20KHz (±0.5dB)
Crosstalk: ≥72dB
THD+N: 0.0007%
S/N: ≥120dB
Balanced Output Parameters
Output Power: 2000mW (32Ω, THD+N<1%)
930mW (300Ω, THDHN<1%)
Output Impedance: ≤0.4Ω
Peak Voltage: 47.2Vp-p (TUBRO)
Frequency Response: 20Hz 20KHz (±0.5dB)
Crosstalk:≥105dB
THD+N: 0.0007%
SIN: ≥120dB

Box Content

    What will you get
  • 1x XD05 Pro
  • 1x XDUOO Nameplate
  • 1x 6.35 to 3.5 Converter
  • 1x 3.5mm audio cable
  • 1x 4.4mm audio cable
  • 1x AES cable
  • 1x Type-C USB extension cable
  • 1x Type-C to Type-C USB cable
  • 1x lron box (contains two OP chips)
  • 1x USB A to Type-C Converter
  • 1x Rubber Foot
  • 1x T6 Screwdriver
  • 1x User Manual
  • 1x Warranty Card
