xDuoo - XD05 Basic Portable Headphone Amplifier - 1

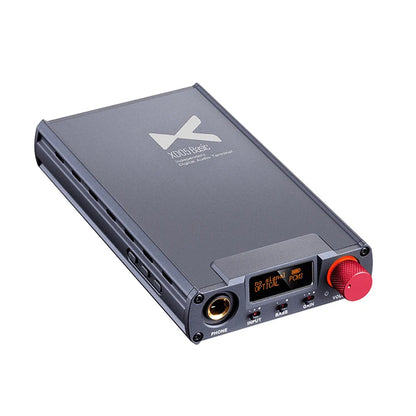

xDuoo - XD05 Basic Portable Headphone Amplifier

xDuoo

amps & dacs under 20000

Delivers High Quality Audio in a Compact Design

Compatible with PC, PS4, XBOX, and other gaming platforms

Built in ES9018K2M DAC

OP+ClassA amplifier circuit deliver 500mW power

Offers 2PCM and 4DSD digital filters

0.91-inch OLED display

₹ 14,990 ₹ 19,999 Save ₹ 5,009

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery


Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Cash on Delivery Available Info Cash on delivery applicable for order from ₹ 500 to 15000

Cash on Delivery Available Info Cash on delivery applicable for order from ₹ 500 to 15000

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Add a heading

Add content using the options to the left

Description

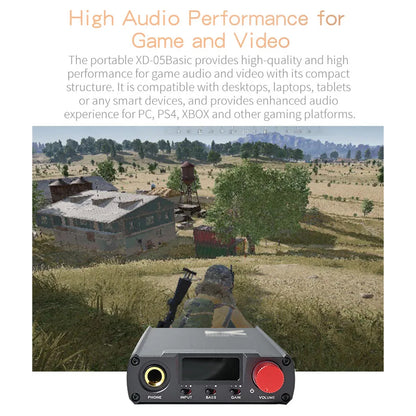

HIGH AUDIO PERFORMANCE FOR GAME AND VIDEO

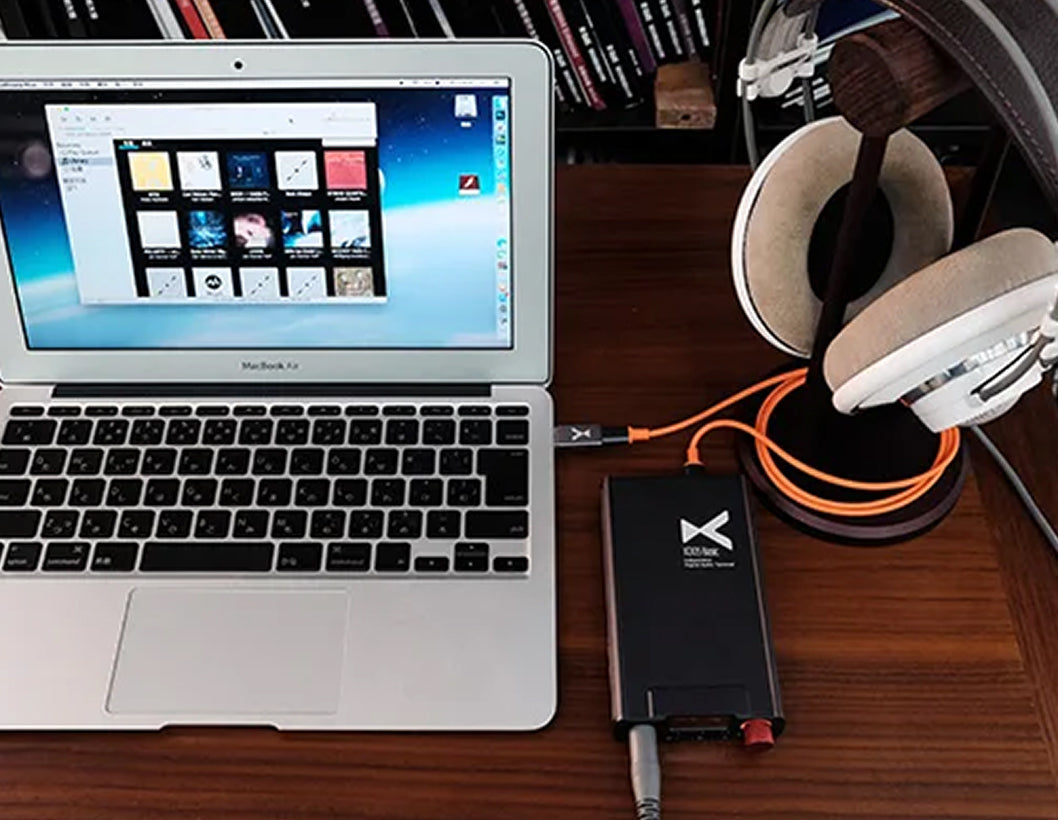

The portable XD-05 Basic delivers high-quality audio performance for gaming and video in a compact design. It enhances audio on desktops, laptops, tablets, and smart devices, and is compatible with PC, PS4, XBOX, and other gaming platforms.

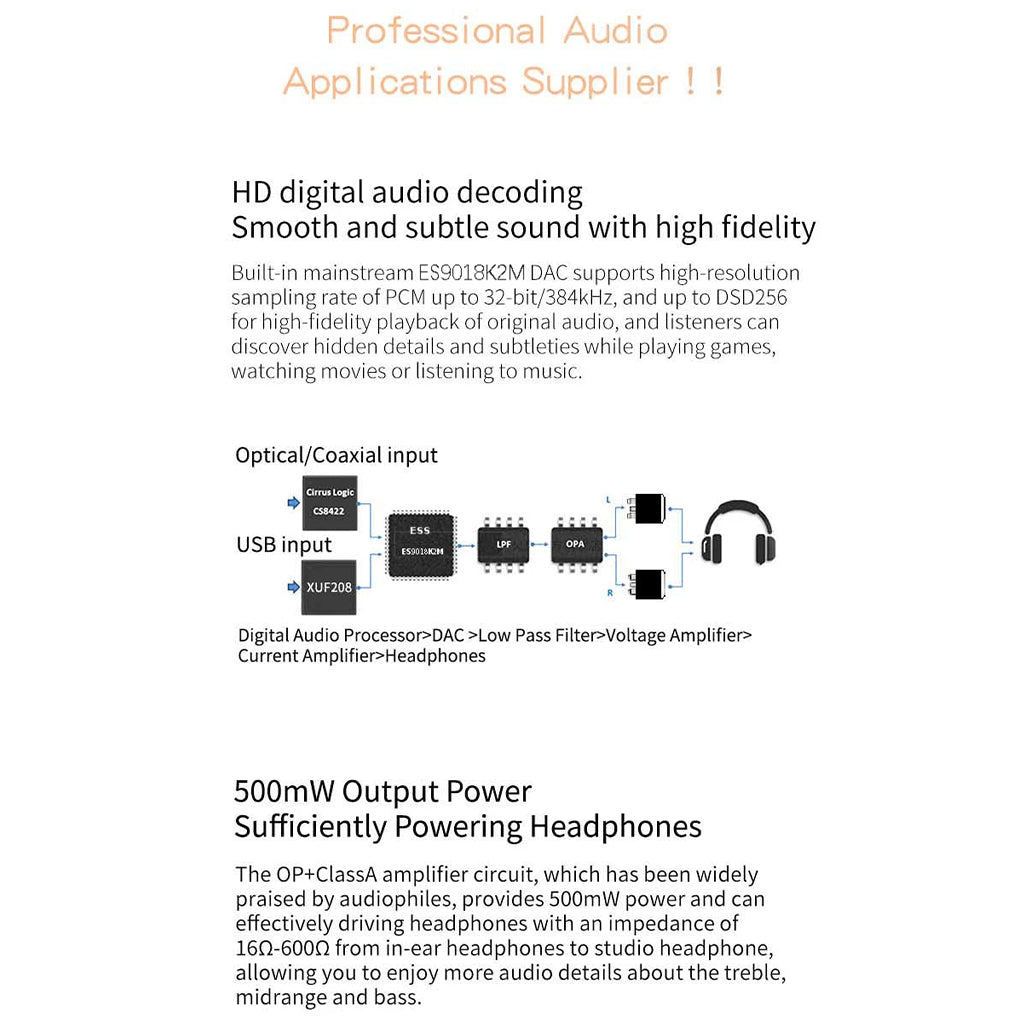

HD DIGITAL AUDIO DECODING

xDuoo XD-05 featuring a built-in ES9018K2M DAC, the XD-05 Basic supports high-resolution PCM up to 32bit/384Khz and DSD256, delivering smooth, high-fidelity audio. It reveals hidden details in games, movies, and music for an immersive listening experience.

500MW OUTPUT POWER SUFFICIENTLY POWERING HEADPHONES

The OP+ClassA amplifier circuit, which has been widely praised by audiophiles, provides 500mW power and can effectively driving headphones with an impedance of 160-6000 from in-ear headphones to studio headphones, allowing you to enjoy more audio details about the treble, midrange and bass.

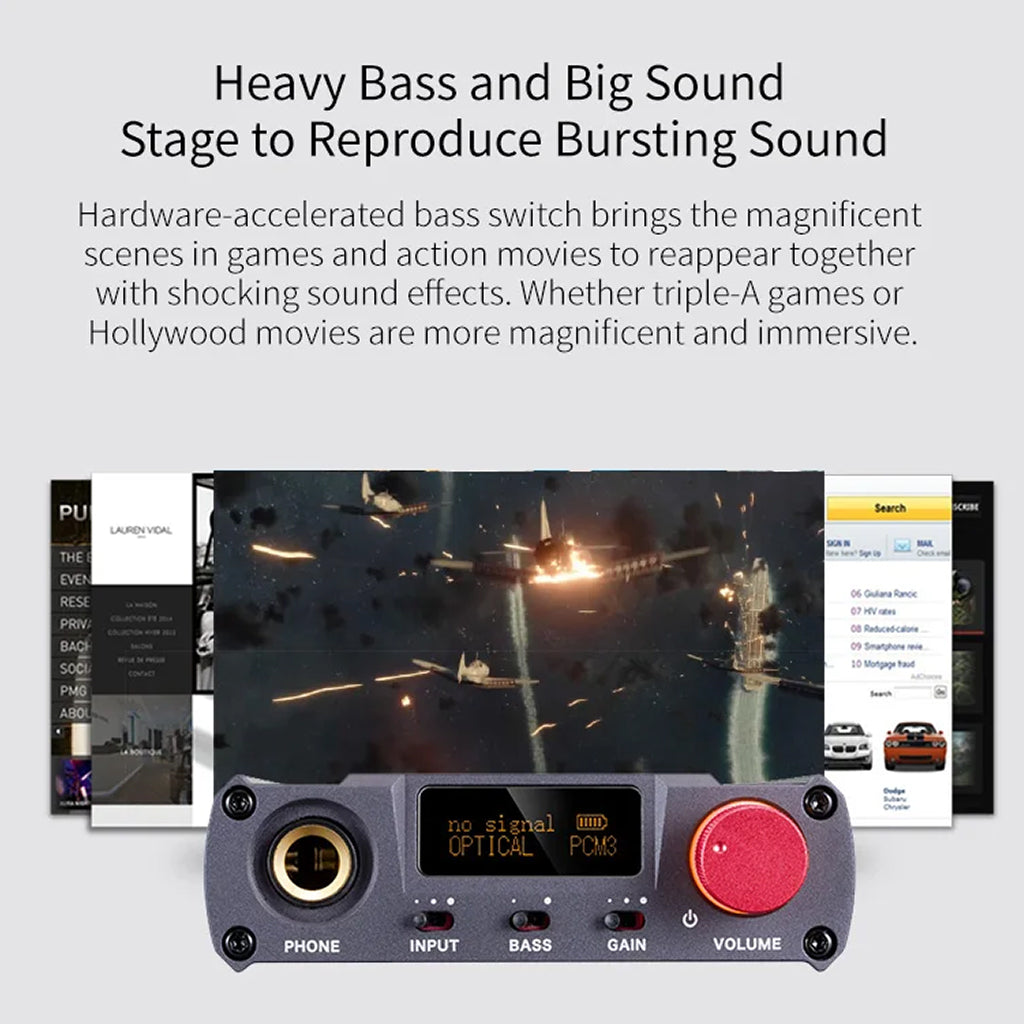

ENHANCED BASS AND SOUND STAGE

The XD-05 Basic features a hardware-accelerated bass switch, enhancing bass and expanding the sound stage to deliver immersive, powerful sound effects for both AAA games and Hollywood movies.

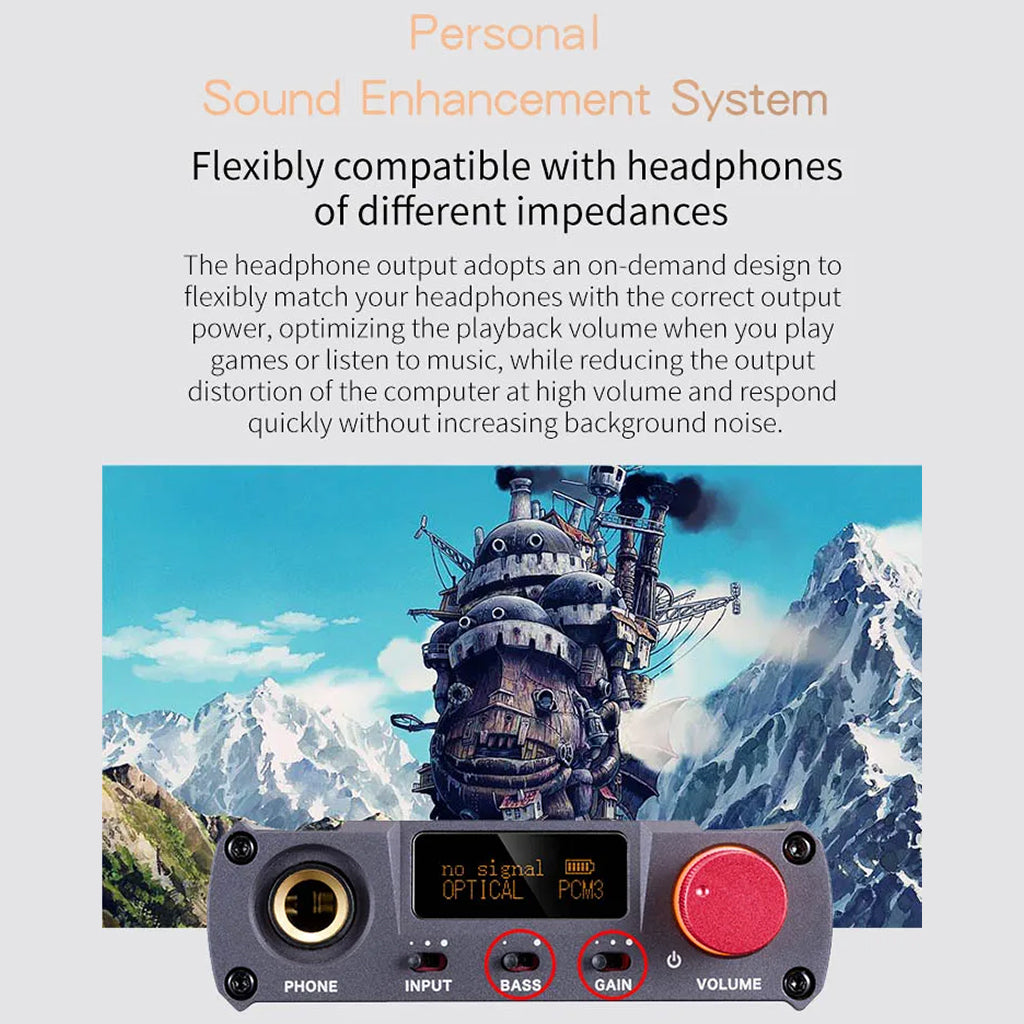

FLEXIBLE COMPATIBLE WITH HEADPHONES OF DIFFERENT IMPEDANCES

The headphone output adopts an on-demand design to flexibly match your headphones with the correct output power, optimizing the playback volume when you play games or listen to music, while reducing the output distortion of the computer at high volume and respond quickly without increasing background noise.

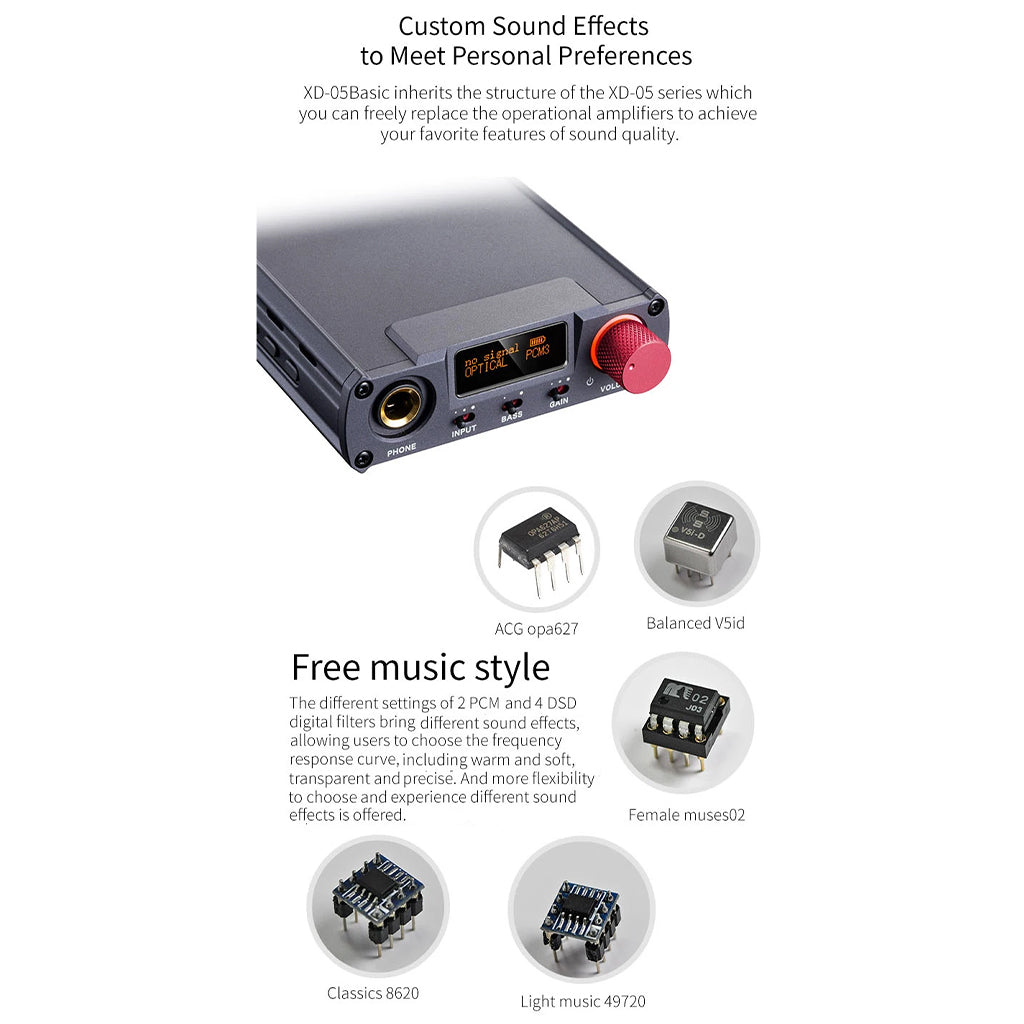

CUSTOMIZABLE SOUND EFFECTS

The XD-05 Basic allows users to replace operational amplifiers, enabling personalized sound quality to meet individual preferences.

VERSATILE SOUND OPTIONS

The XD-05 Basic offers 2PCM and 4DSD digital filters, allowing users to select various sound effects and frequency response curves, from warm and soft to transparent and precise, for a flexible listening experience.

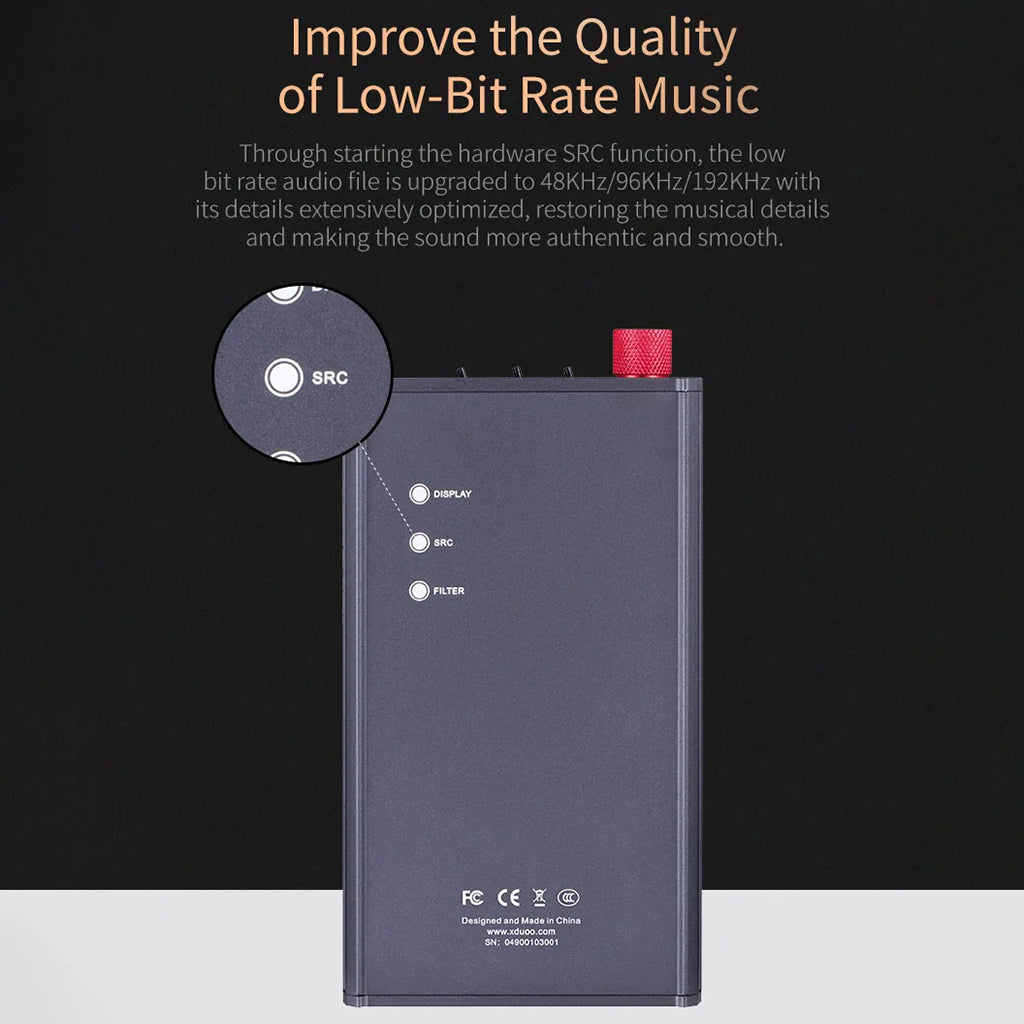

ENHANCED LOW-BIT RATE MUSIC

The XD-05 Basic's hardware SRC function upgrades low-bit-rate audio to 48Khz/96Khz/192Khz, optimizing details and restoring authenticity for a smoother, more refined sound.

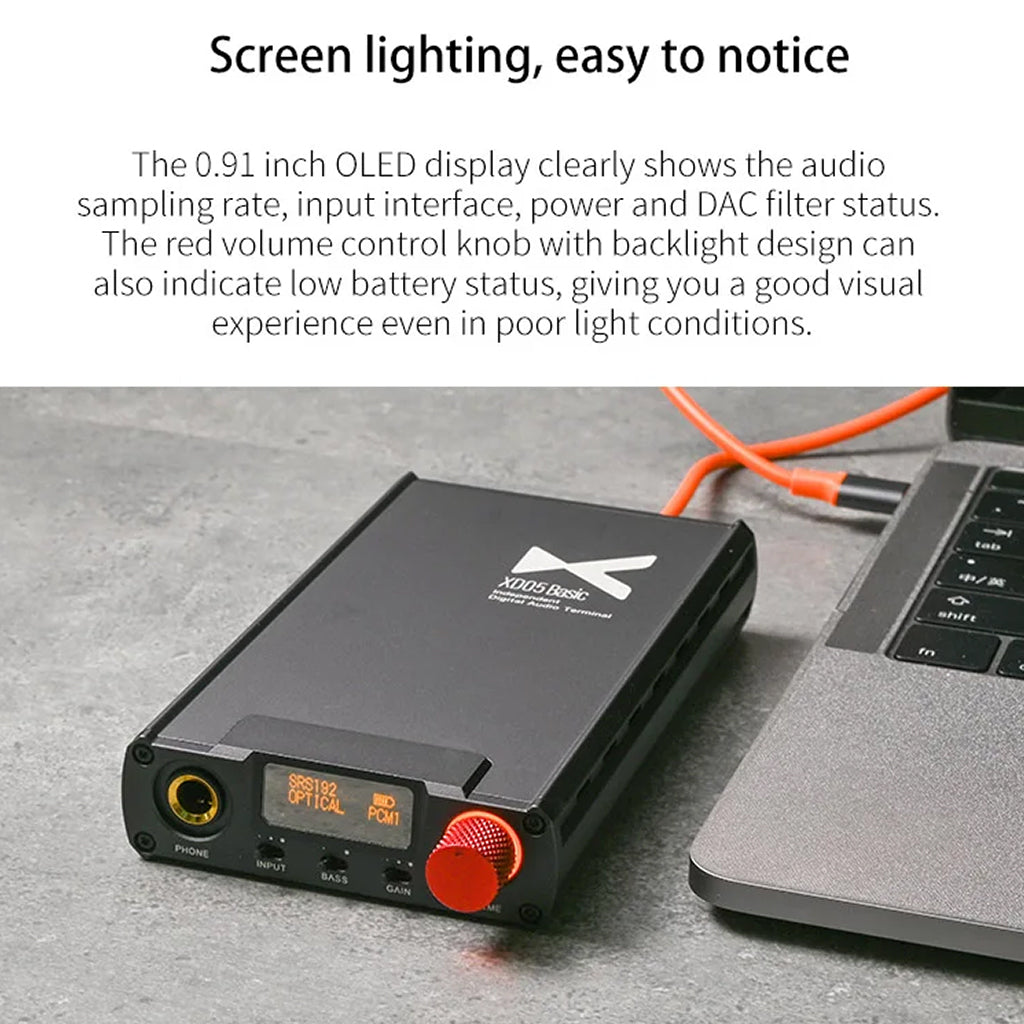

SCREEN LIGHTING, EASY TO NOTICE

The 0.91-inch OLED display clearly shows the audio sampling rate, input interface, power, and DAC filter status. The red volume control knob with a backlight design can also indicate low battery status, giving you a good visual experience even in poor light conditions.

DUAL POWER SUPPLY

The XD-05 Basic features a built-in 3.7V/4000mAh battery for up to nine hours of portable use, and can switch to an external power source like a power bank or USB when indoors for extended use.

Specifications

Brand Name
xDuoo
Model Name
XD05 Basic
Product Name
xDuoo XD05 Basic Portable Headphone Amplifier
DAC Chip
ES9018K2M
Gain
6dB/9dB/16dB
SNR
115dB
Bass Boost
0/+6dB
Frequency Response
USB/Optical/Coaxial: 20Hz~20Khz (+0.5dB)
Amp
10Hz~60Khz (+0.5dB)
THD+N
USB: 0.0025%@1kHz
Optical fiber: 0.0025%@1kHz
Coaxial:0.0025%@1kHz
AUX IN: 0.0018%@1kHz
Output Power: 500mW (320 load)
Crosstalk: ≥75dB
Charging Time: fast charging 1.2A≤5 hours, slow charging 500MA≤11 hours
Playback Time: USB IN≥9H AUX IN≥16H coaxial/optical fiber≥12H
USB Sampling Rate
PCM:16-32bit/44.1-384kHz
DSD: DOP/NATIVE mode, DSD64-256
DXD:24-32 bit/352.8-384kHz
Optical/coaxial Sampling Rate PCM: PCM: 16-24bit/44.1-192kHz
Applicable system: Win7、Win8、Win10、Mac OS X, IOS,Android system
 

Box Content

    What will you get
  • 1x XD-05 Basic Headphone Amplifier
  • 1x USB Type C Cable
  • 1x USB Type-C to Type-C OTG Cable
  • 1x USB C to Micro USB OTG Cablel
  • 1x USB Type A to Type C Plug
  • 1x 6.5mm to 3.5mm Jack Plug
  • 1x Magic Glue
  • 10x Silicone Feet
  • 1x User Manual
  • 1x Warranty Card
