Sale price₹ 20,990Regular price ₹ 24,999

    Hi-Res Performance ES9039Q2M DAC Chip

    Enjoy Classic Balanced Class A Amplifier Sound

    Support High-Definition 5.1 Bluetooth Connectivity

    MQA Up to 8x Expansion 32bit/384kHz

    ELNA High-End Capacitor for High-Fidelity Audio

    Support Multi Music Formats MQA / DSD / PCM / DXD

    High Fidelity USB, HD COAXIAL & OPTICAL Audio Input

    Powerful Dual Headphone Output (6.35mm & 4.4mm)

Estimated Delivery within 4 to 6 weeks.

Description

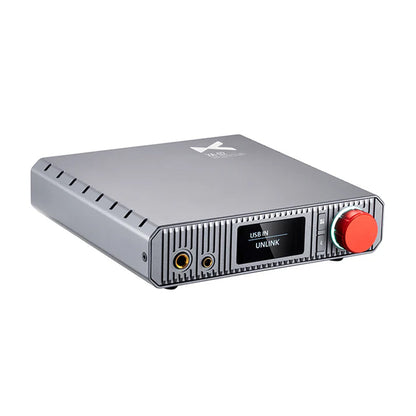

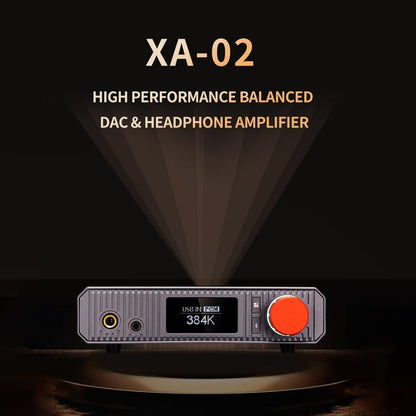

xDuoo XA-02 is a high-performance desktop DAC and headphone amp featuring the ES9039Q2M DAC chip and a Class A buffer amplifier. It supports high-resolution audio (up to 32-bit/384kHz PCM, DSD256, MQA), delivering 910mW (6.35mm) and 2000mW (4.4mm) output for powerful headphone driving. With ultra-low distortion (THD+N 0.0005%) and a 121 dB signal-to-noise ratio, it offers clear, detailed sound. It includes multiple inputs (USB, coaxial, optical, Bluetooth), digital volume control, and relay protection. The sleek design of this DAC & Amp features an OLED display and a colour-shifting volume knob backlight.

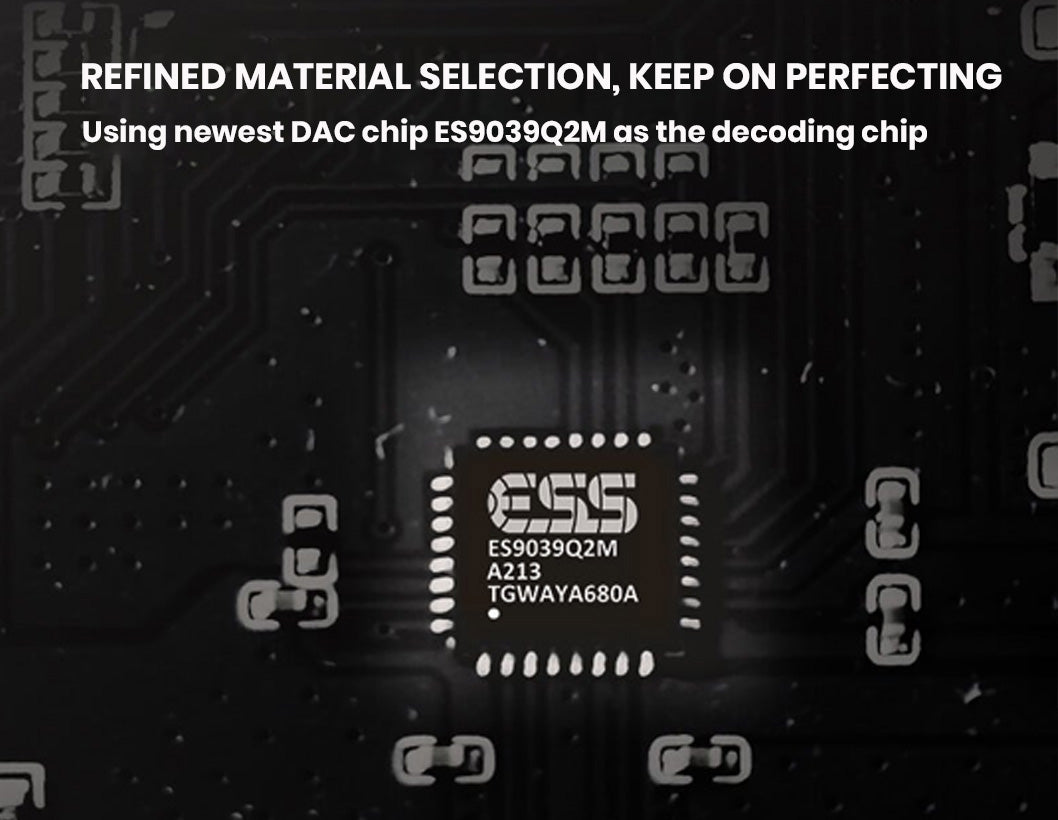

UPGRADED ES9039Q2M DAC CHIP WITH CLASS A AMPLIFIER

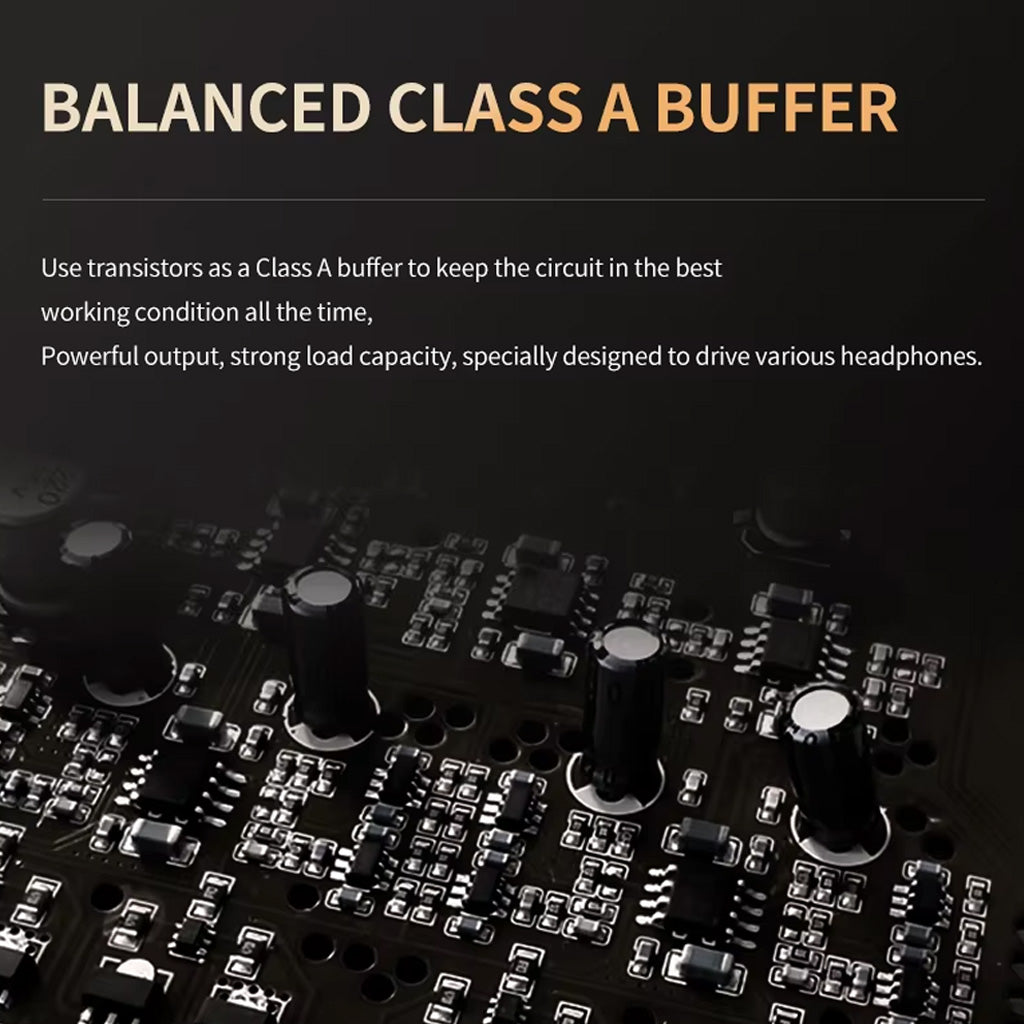

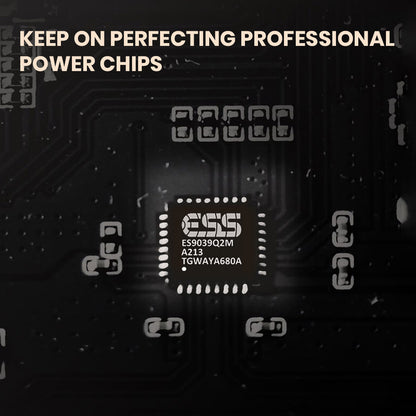

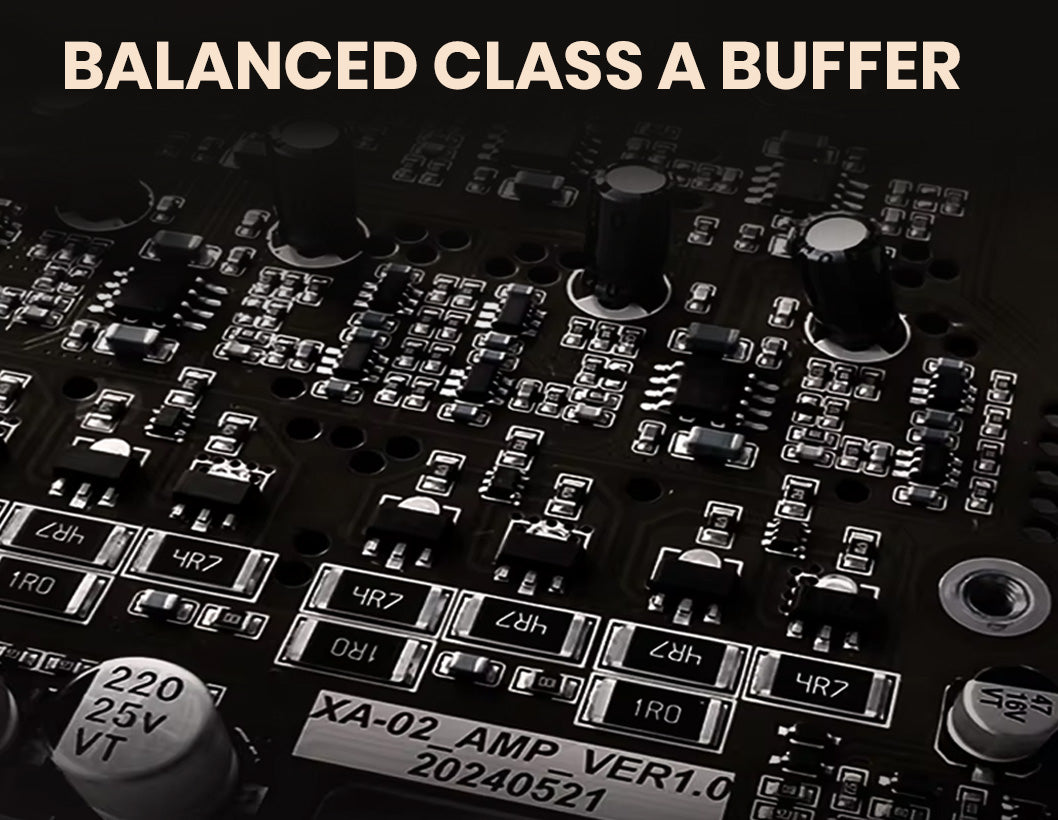

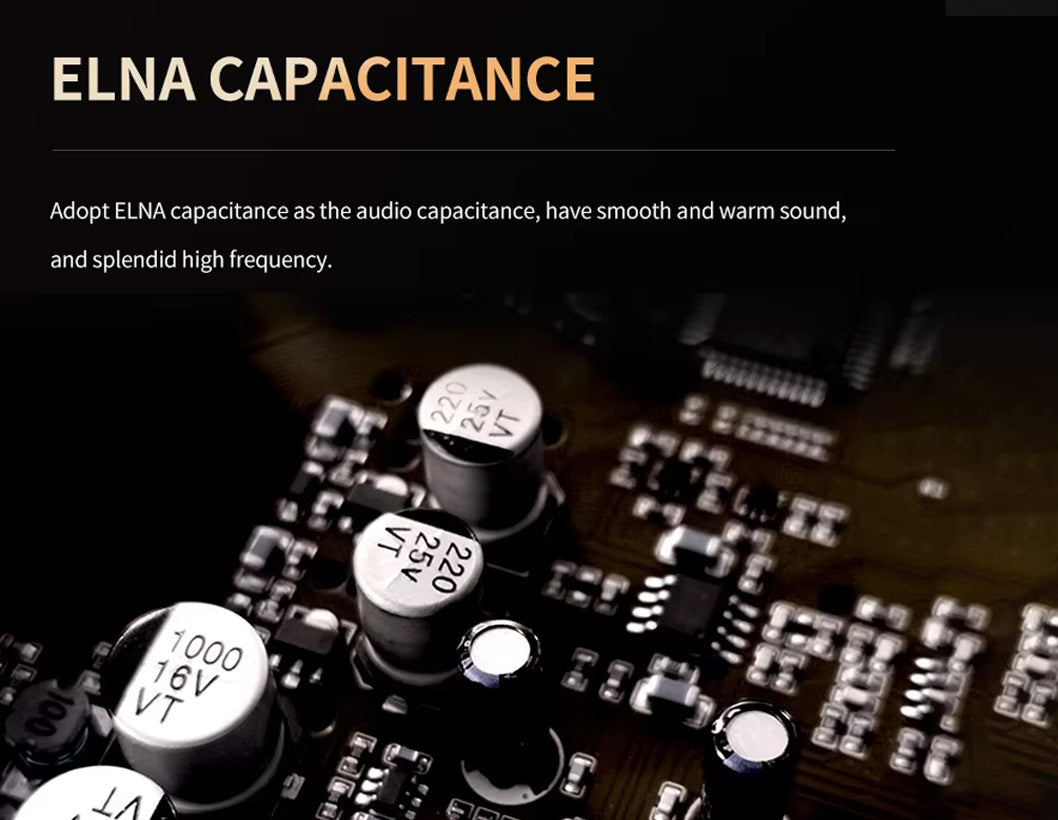

xDuoo XA-02 Desktop DAC & headphone amp features premium components, including Class A buffer amplifier transistors for strong load capacity and powerful output. Its high-end capacitor design and imported power chips ensure high-fidelity audio. The advanced ES9039Q2M DAC chip enhances sound quality, while ELNA capacitors provide smooth, warm sound with clear high frequencies, making it ideal for driving various headphones.

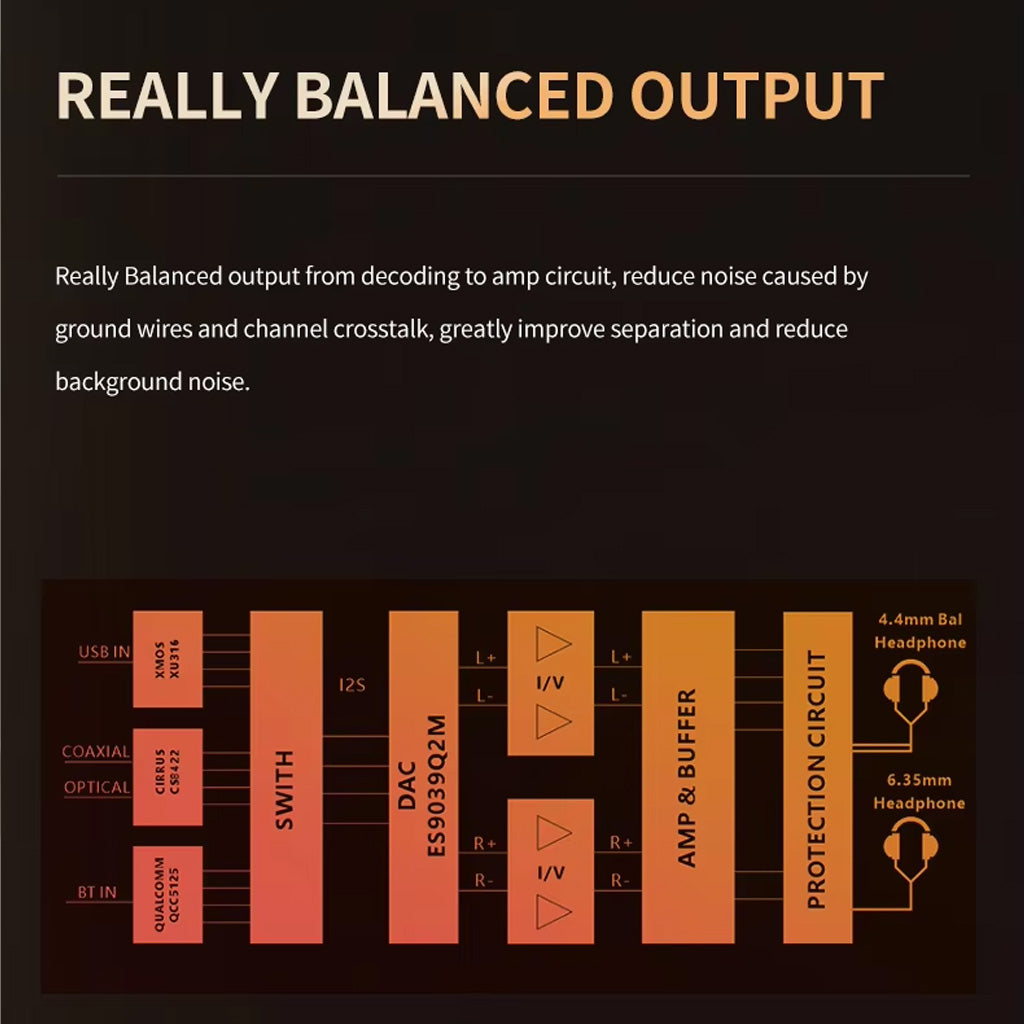

TRULY BALANCED OUTPUT WITH OUTSTANDING SOUND QUALITY

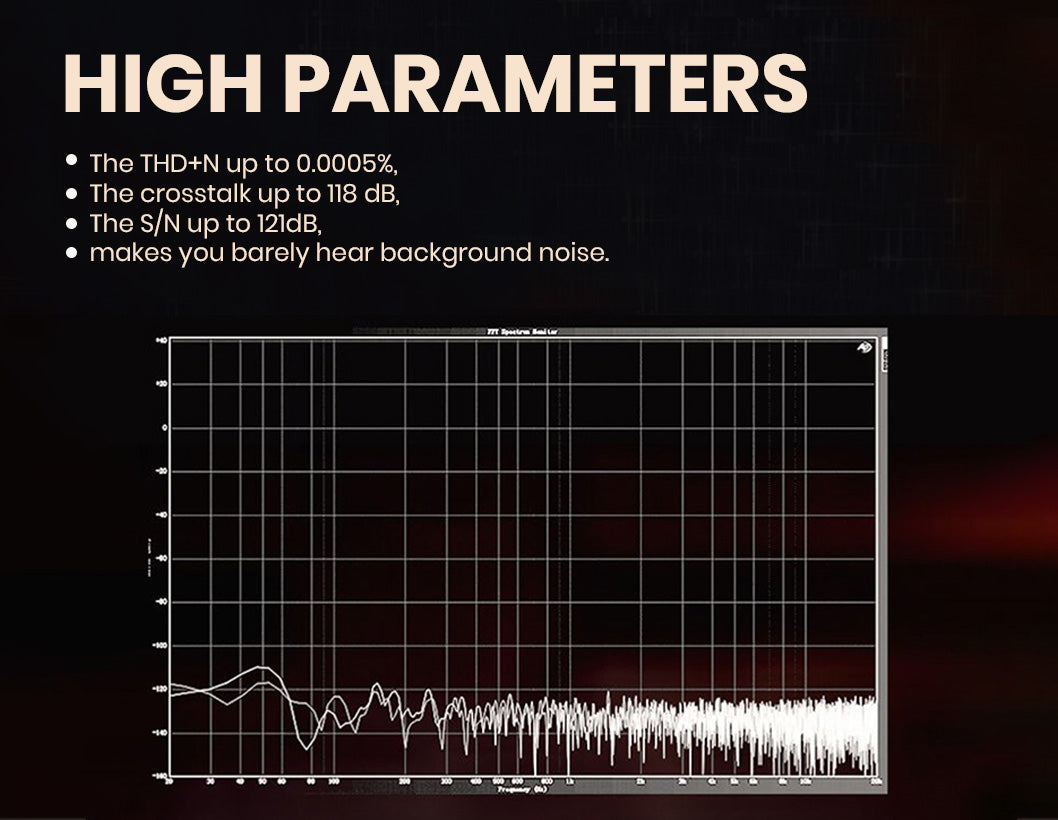

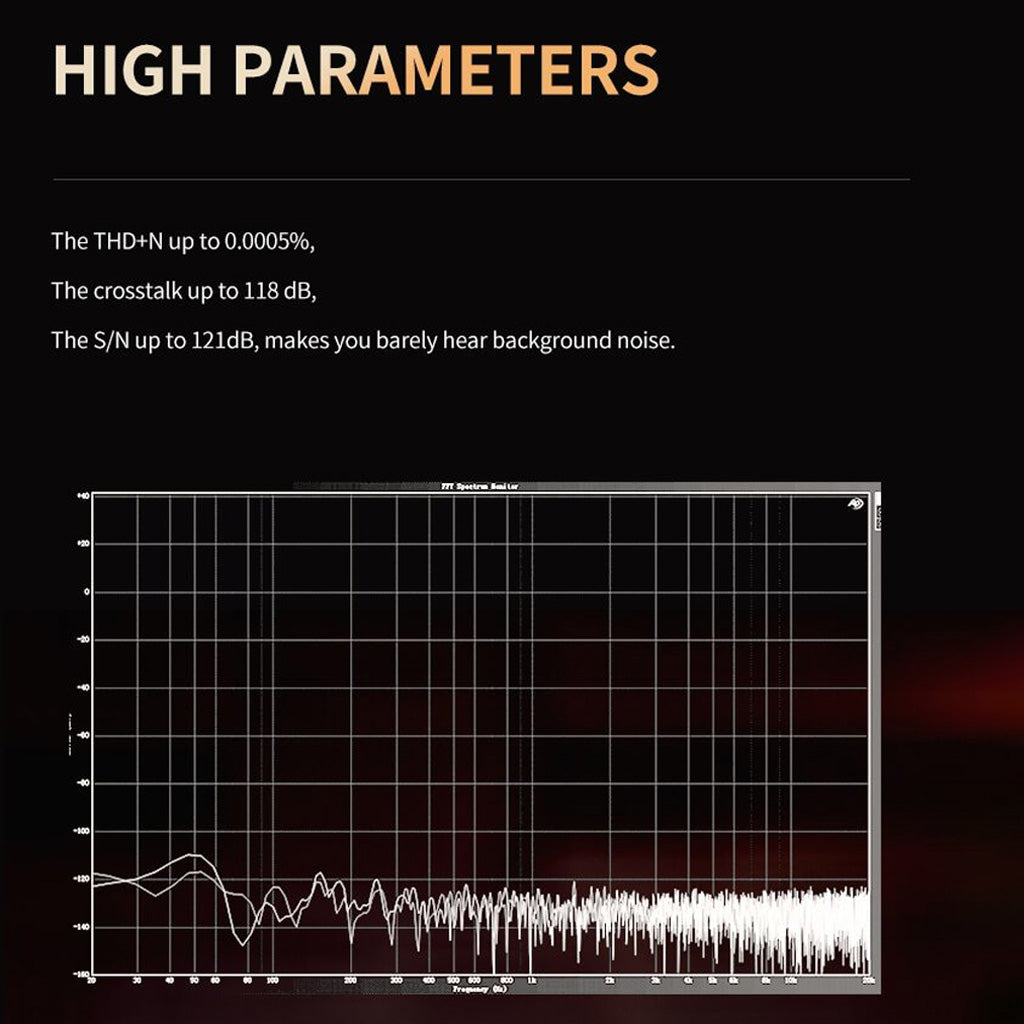

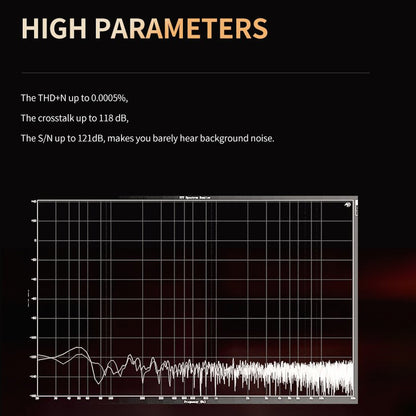

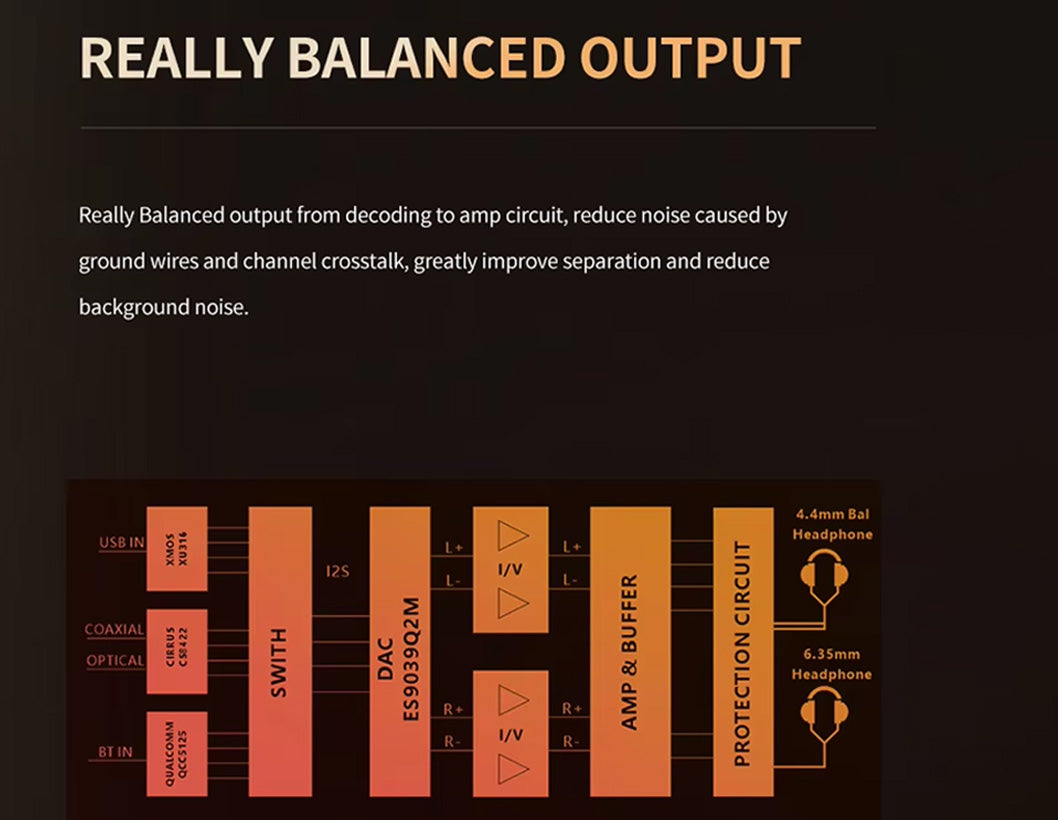

The xDuoo XA-02 DAC & Amp features an advanced amplifier circuit that delivers outstanding sound performance, ensuring a truly balanced output by minimizing noise from ground wires and reducing channel crosstalk. It produces crystal-clear audio with an ultra-low total harmonic distortion plus noise (THD+N) of 0.0005%, crosstalk reaching up to 118 dB, and a signal-to-noise ratio (S/N) of up to 121 dB. This combination provides superior separation and exceptionally clean sound.

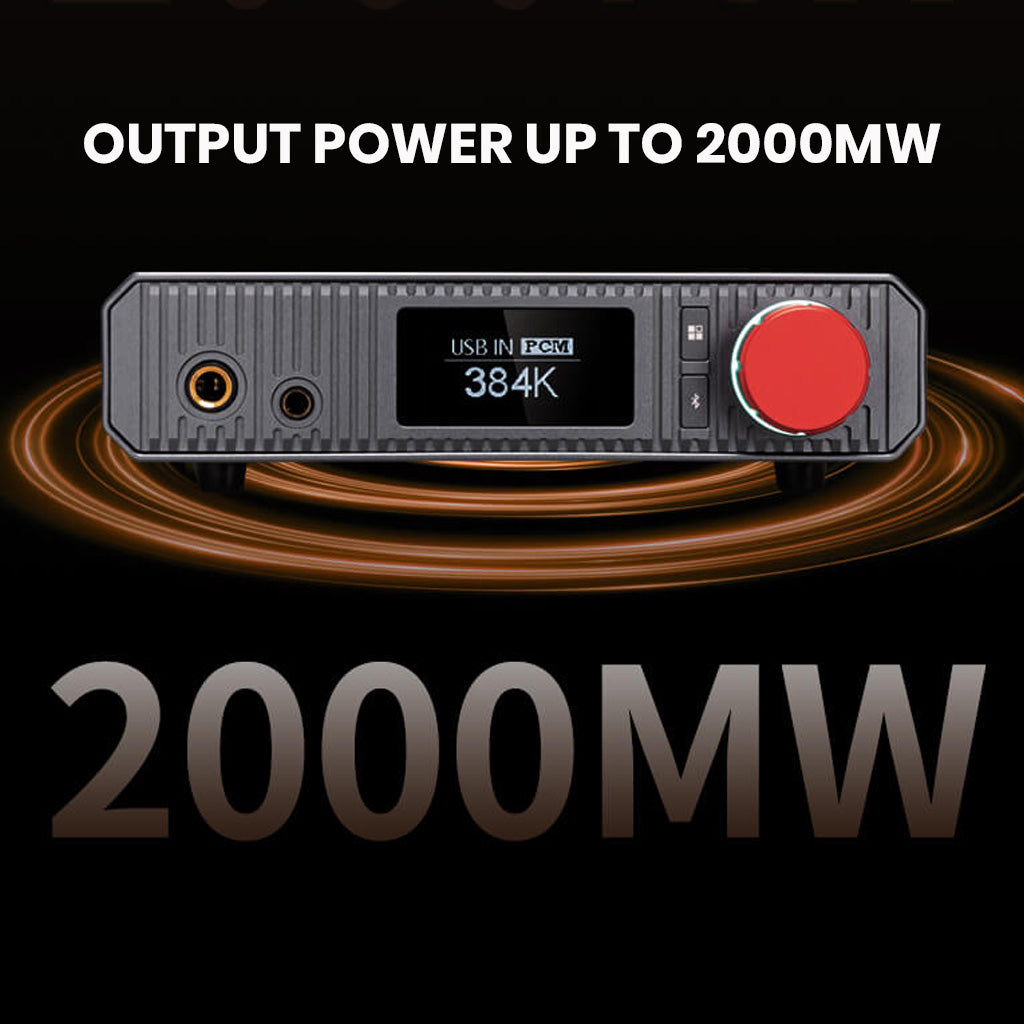

HIGH-POWER OUTPUT UP TO 2000MW

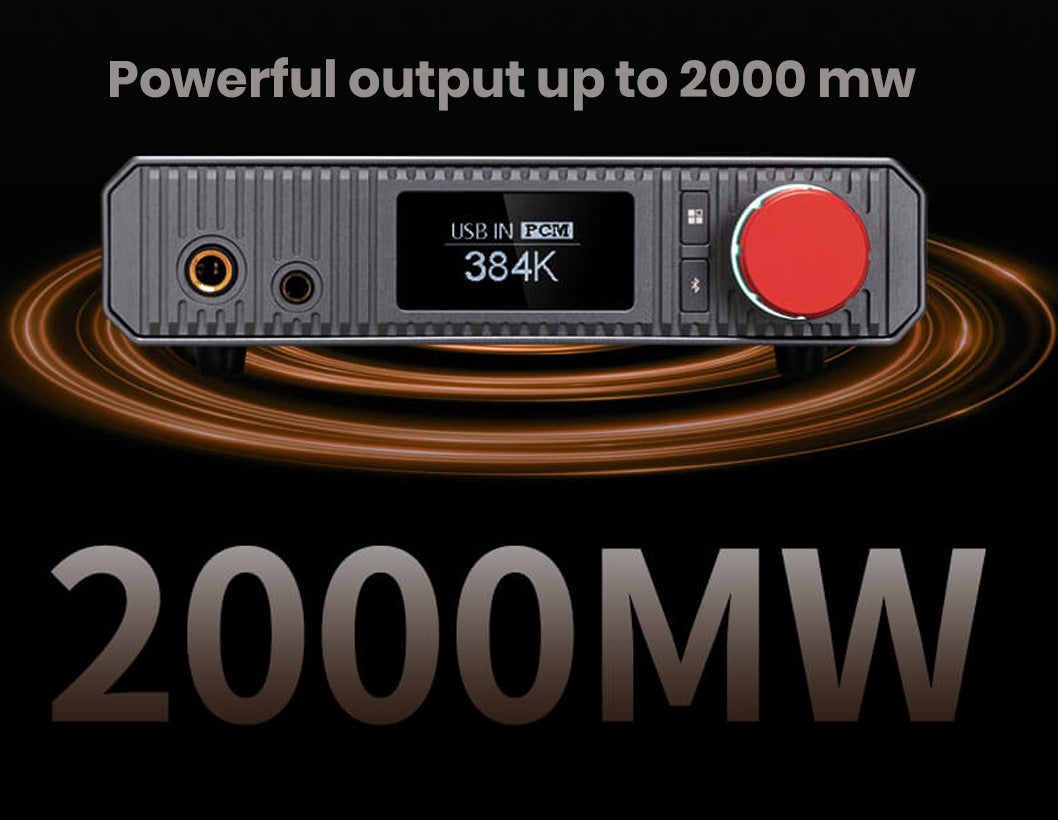

xDuoo XA-02 Desktop DAC & Amp is equipped with powerful 6.35mm and 4.4mm audio output ports, delivering an immersive and impressive listening experience. It provides 910mW output via the 6.35mm port and 2000mW through the 4.4mm balanced output, ensuring it can drive any headphones with high power and energy.

HIGH-RESOLUTION AUDIO & MULTIPLE INPUT OPTIONS

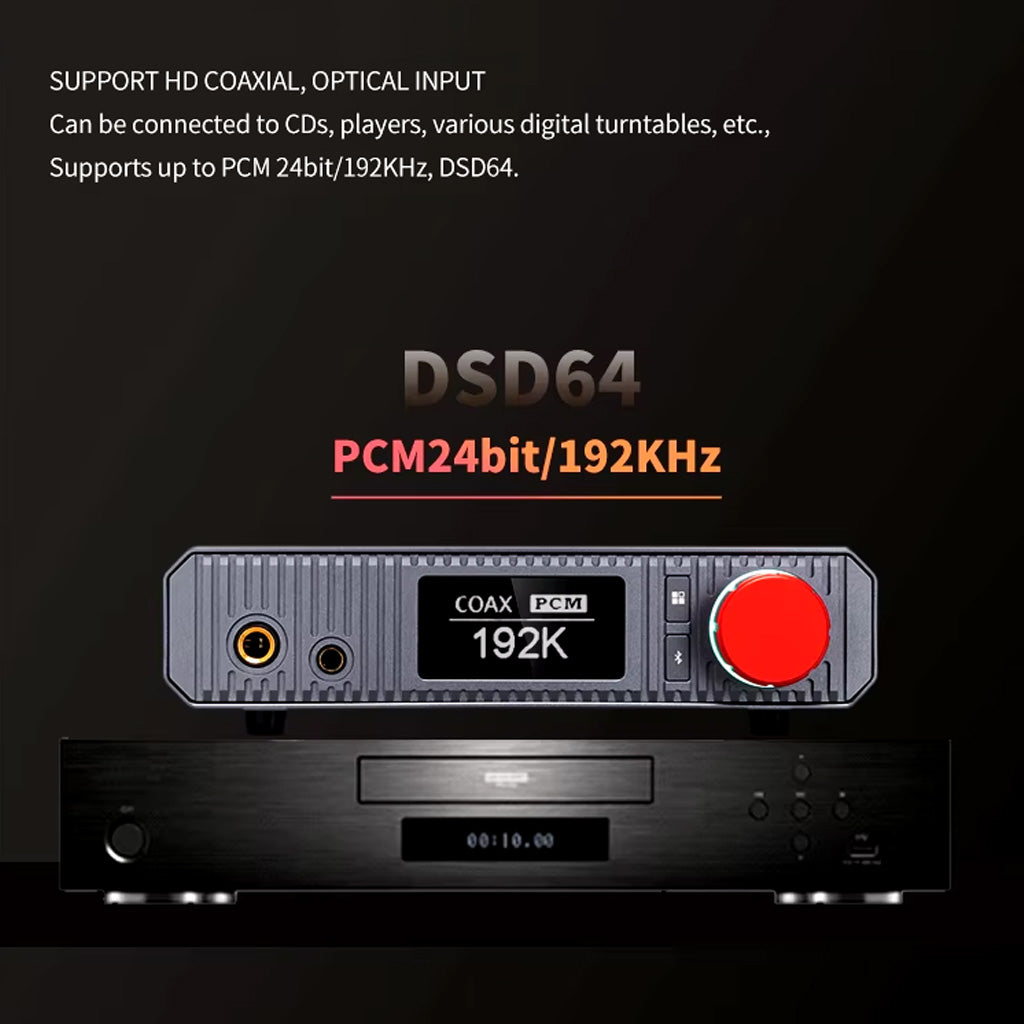

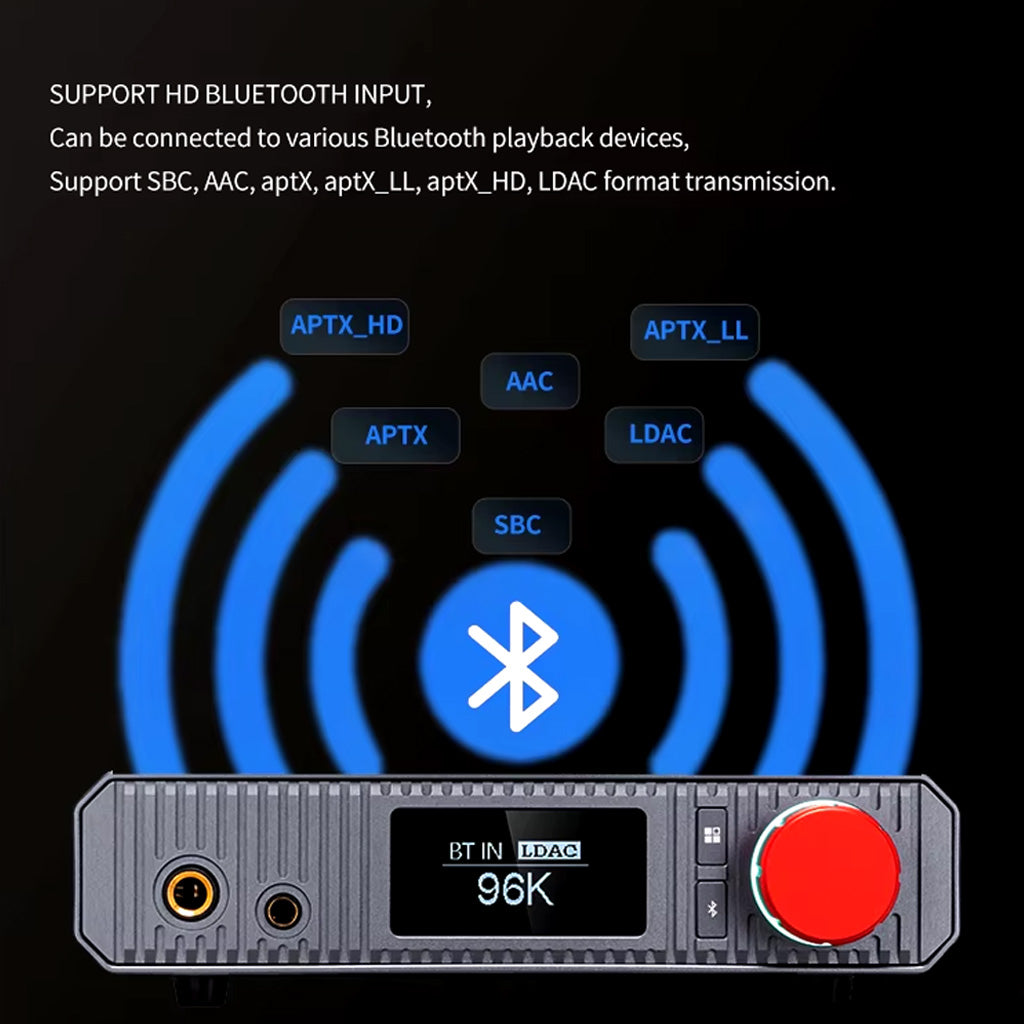

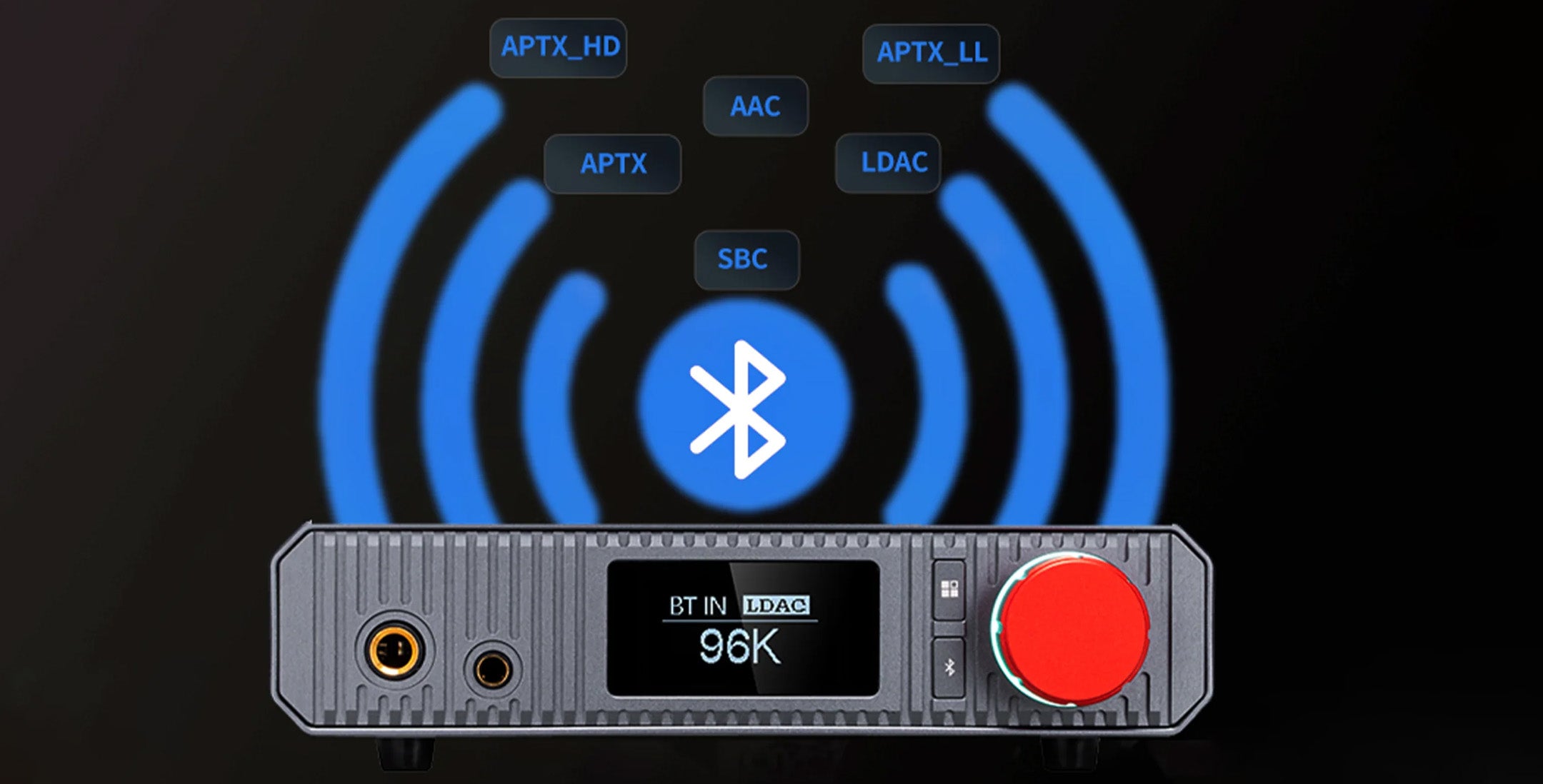

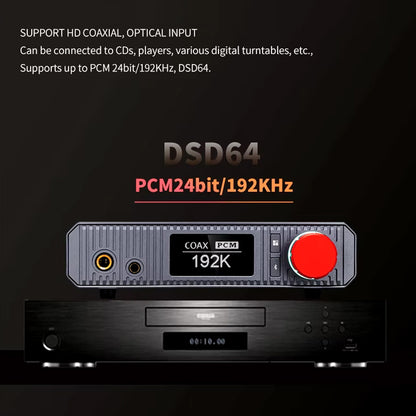

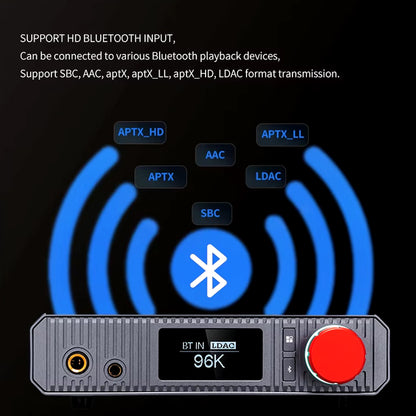

XA-02 Desktop DAC & Headphone Amp offers versatile input options, including high-definition USB audio for PCs, mobile devices, tablets, and HiFi players. It supports PCM audio at resolutions up to 32-bit/384kHz. Additionally, the DAC features HD coaxial and optical inputs, compatible with CD players, digital turntables, and more, supporting PCM audio up to 24-bit/192kHz and DSD64. The unit also provides high-definition Bluetooth connectivity, supporting multiple formats such as SBC, AAC, aptX, aptX-LL, aptX-HD, and LDAC.

SUPERIOR SOUND WITH FULL MQA, DSD256, AND PCM SUPPORT

This premium desktop DAC and headphone amp supports high-resolution audio formats, including full MQA with up to 8x unfolding (32-bit/384kHz), DSD up to DSD256, and PCM. With DXD support up to 32-bit/384kHz, it delivers a superior listening experience with exceptional clarity and detail.

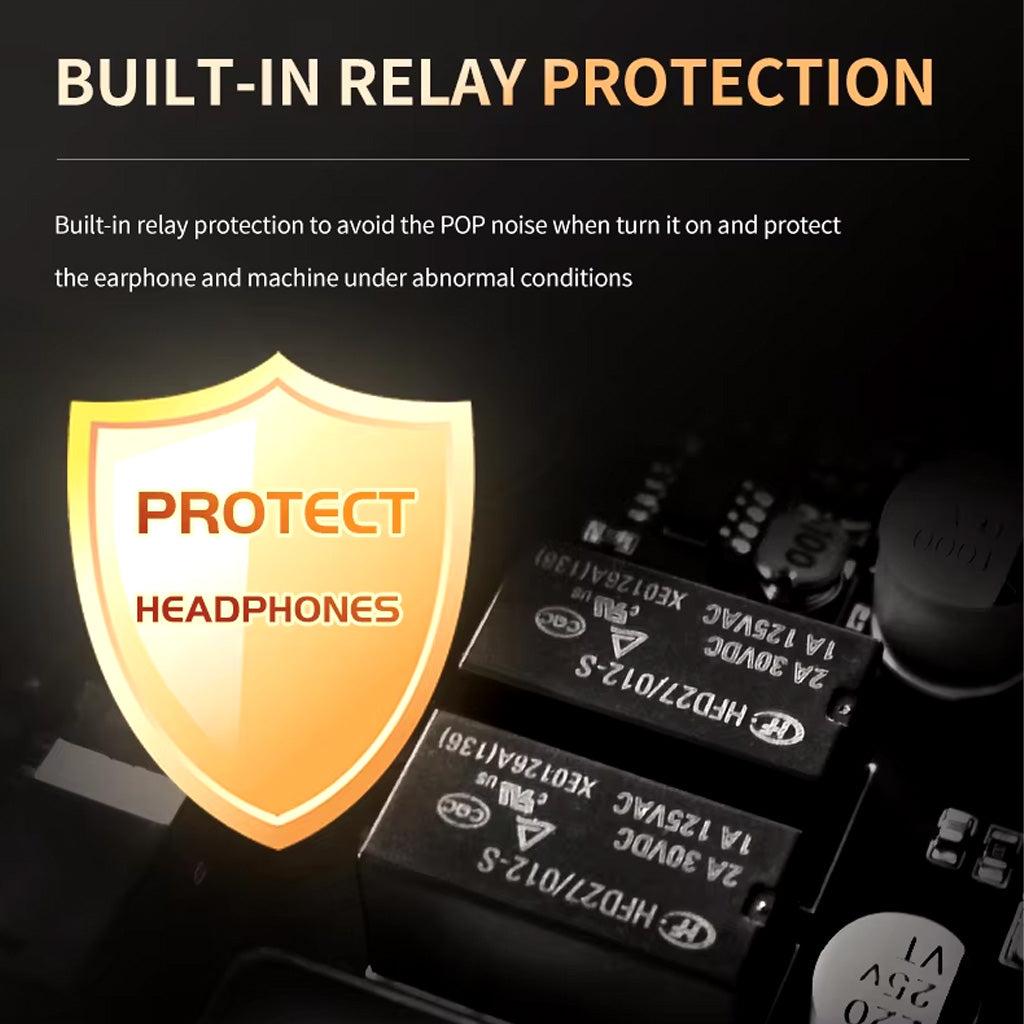

PREMIUM BUILD WITH ADVANCED PROTECTION & DIGITAL VOLUME CONTROL

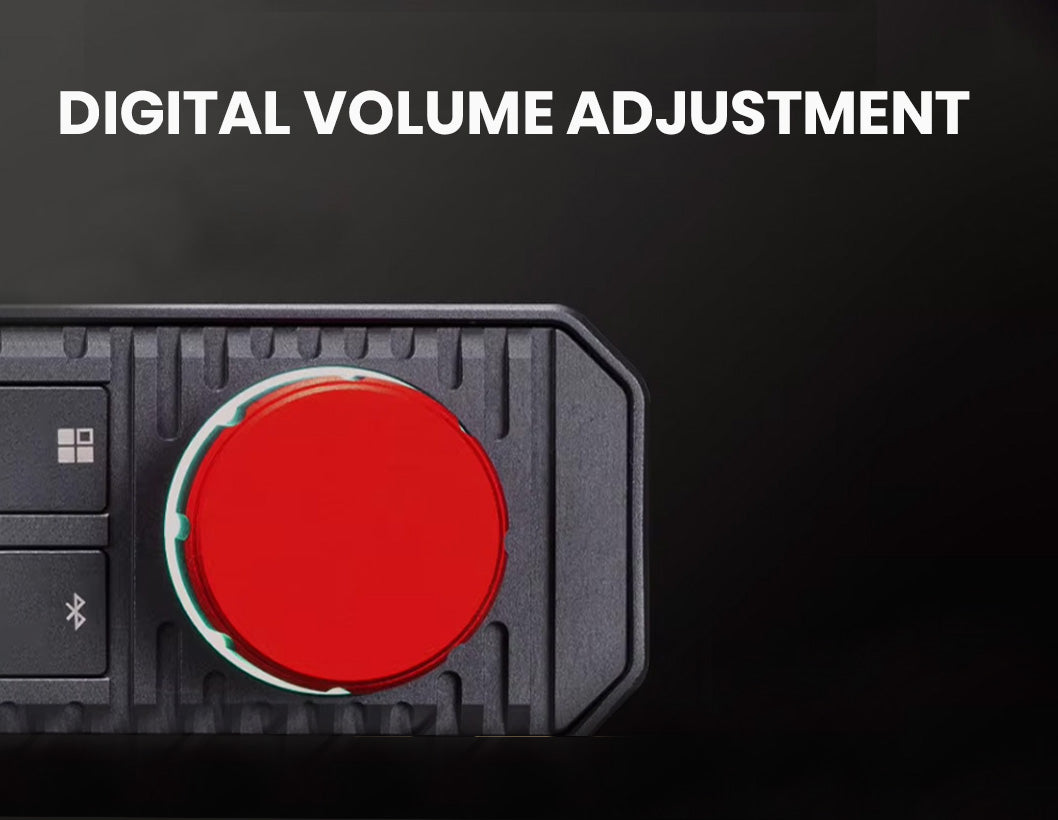

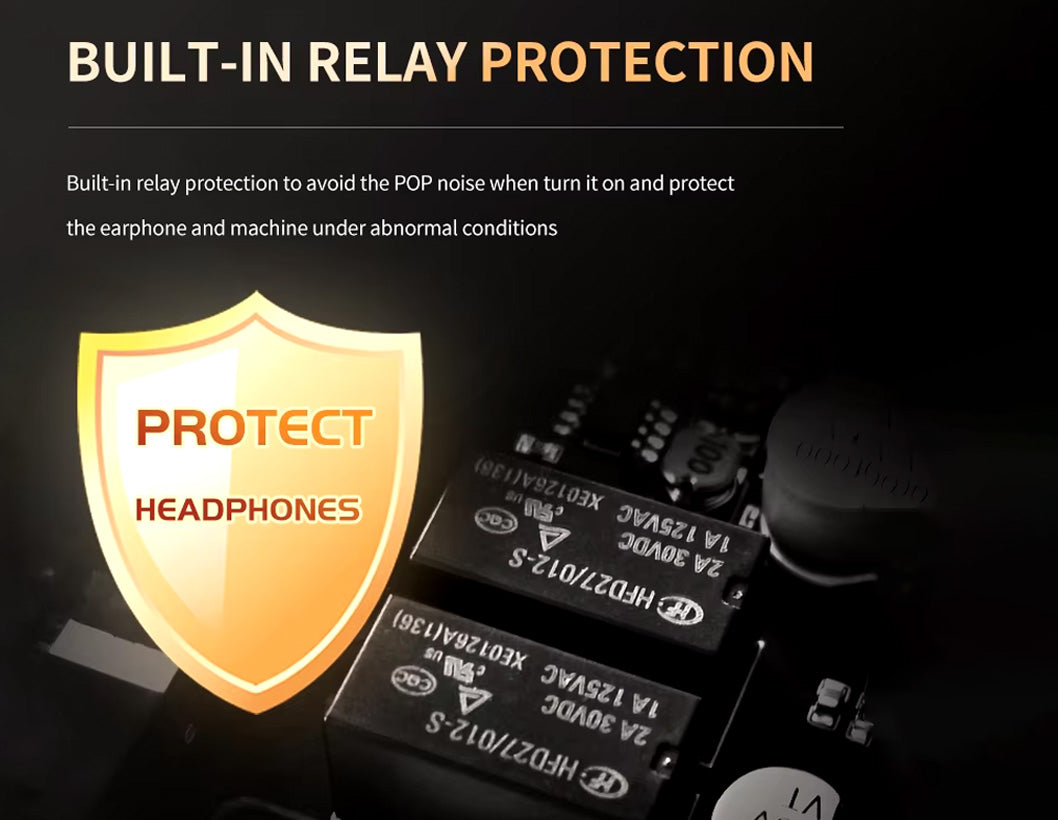

The xDuoo XA-02 DAC & Amp features high-quality relay protection to prevent "POP" noise during startup, safeguarding both your earphones and the device. It offers precise digital volume control for balanced sound at low levels and includes an elegant color-shifting backlight that indicates the volume, allowing you to check levels before connecting your headphones.

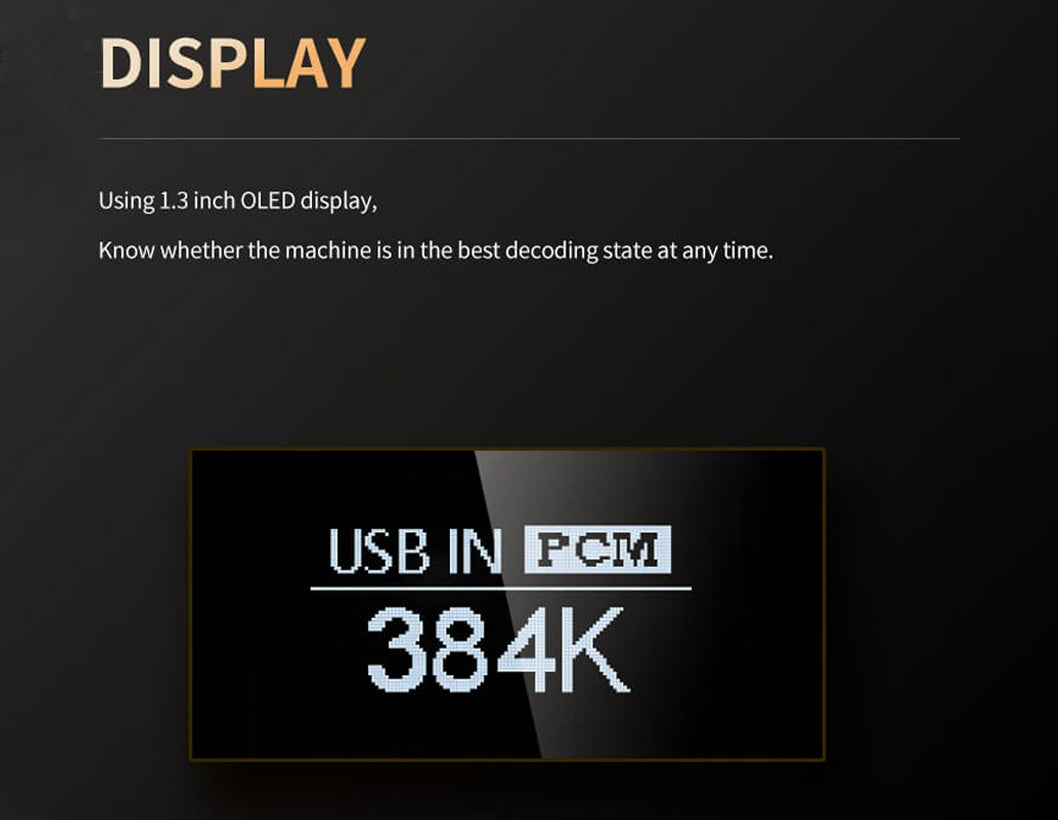

COMPACT DESKTOP DESIGN WITH INTUITIVE DISPLAY

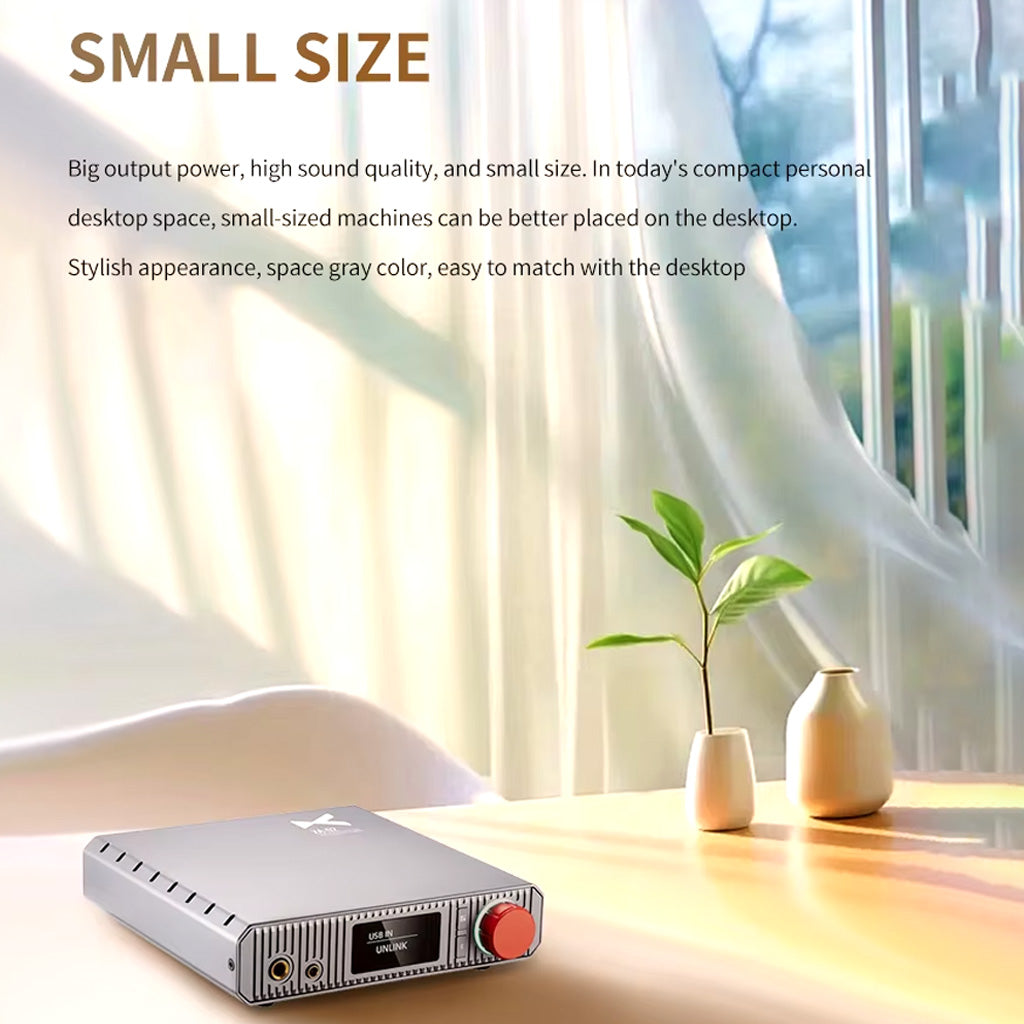

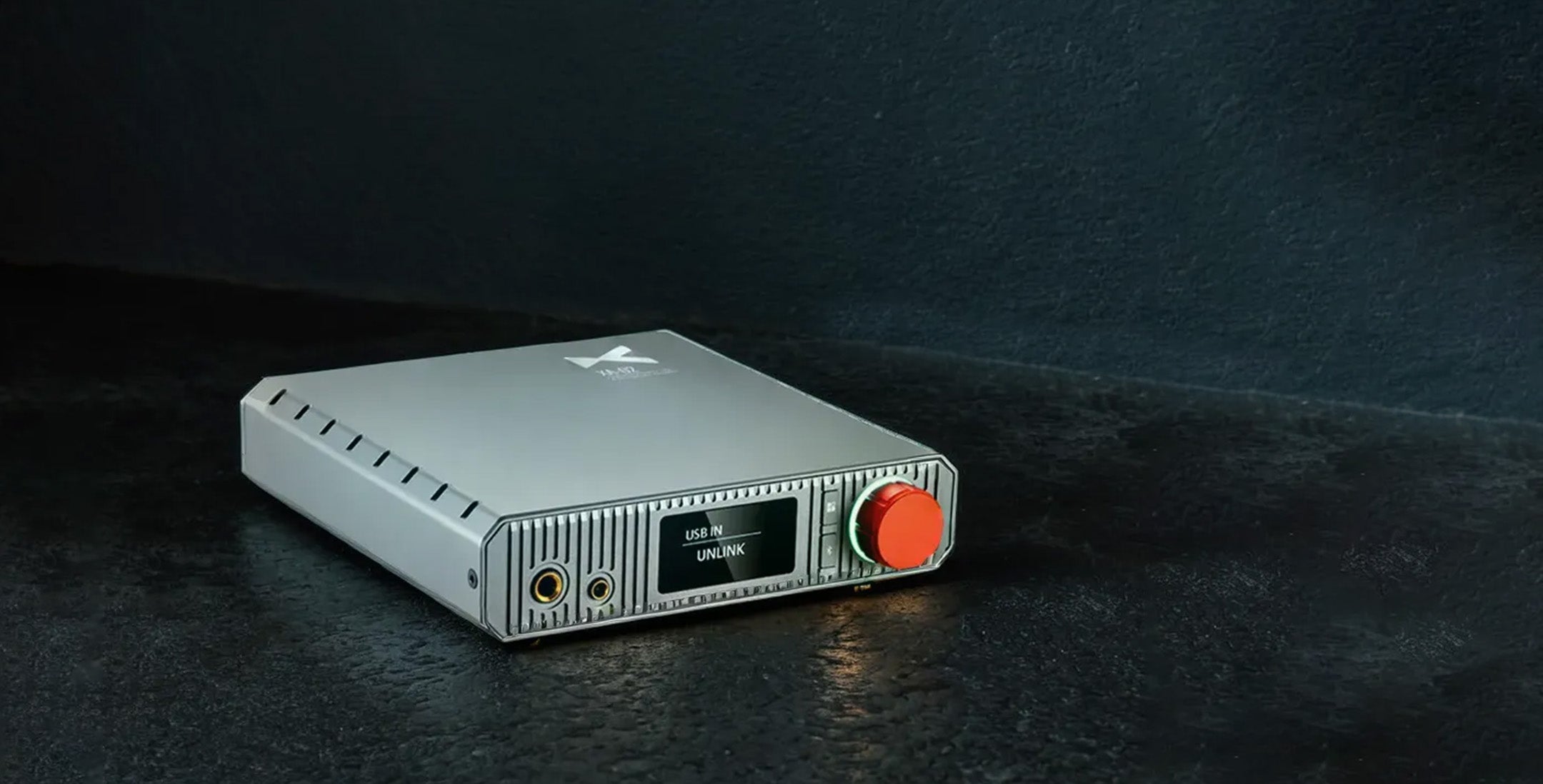

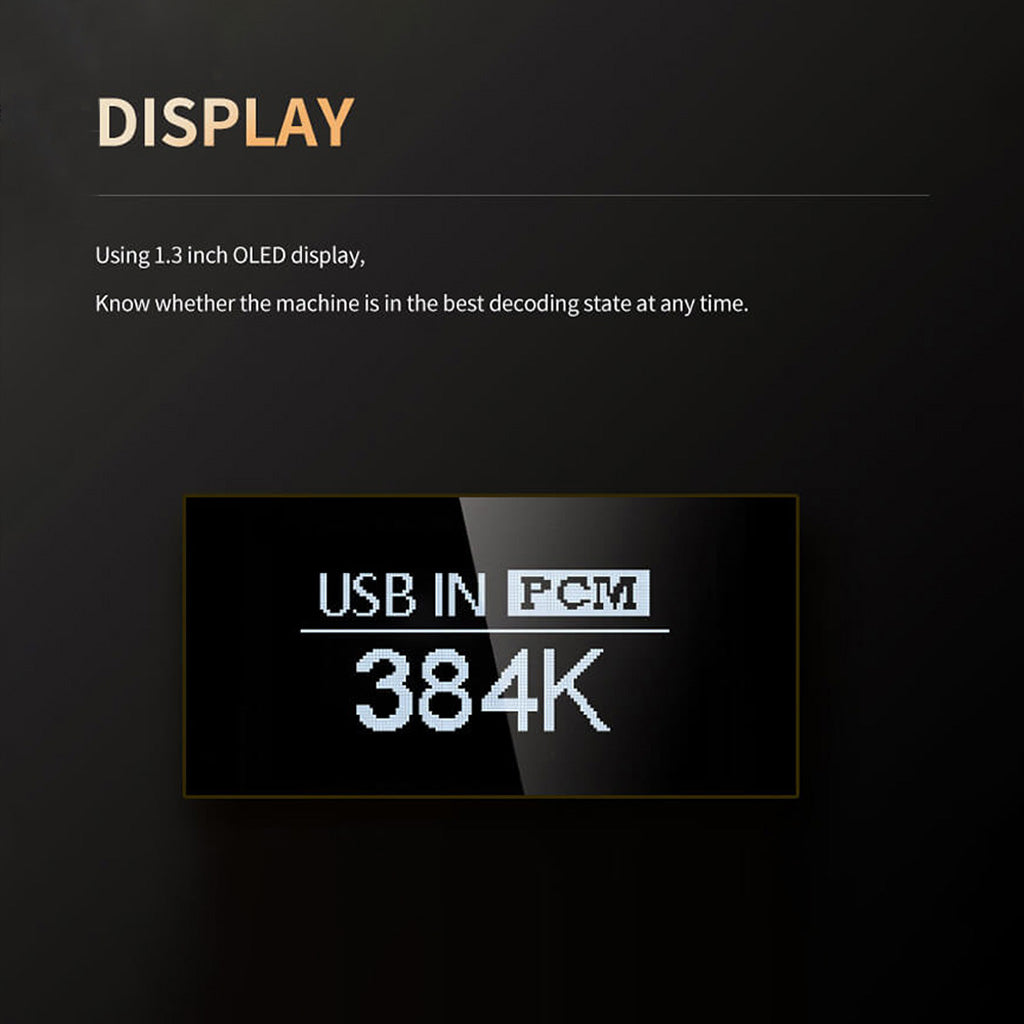

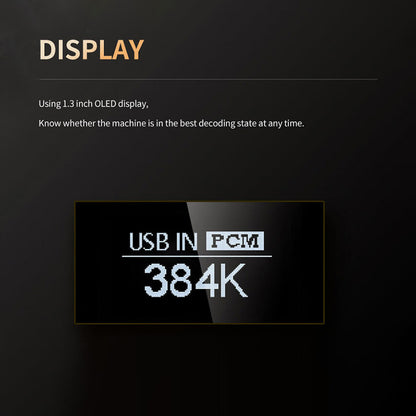

The xDuoo XA-02 DAC & Amp comes with a 1.3-inch OLED display, allowing you to easily monitor its decoding status at all times. Despite its compact size, it delivers powerful output and high sound quality, making it an ideal choice for modern personal desktop environments. Its stylish design, featuring a space grey colour, ensures it blends seamlessly into any desktop setup.

Specifications

Brand Name
xDuoo
Model
XA-02
Product Name
Desktop DAC & Headphone Amp
DAC Chip
ES9039Q2M
Power Supply
AC 100-240V
USB Sampling Rate Support
PCM: 16-32bit/44.1k-384kHz;
DSD: DSD64~DSD256;
MQA: 44.1k-384kHz
COA/OPT Sampling Rate Support
PCM: 16-24bit/44.1k-192kHz;
DSD: DSD64 (DoP)
Bluetooth Support Formats
SBC, AAC, aptX, aptX LL,
aptX HD, LDAC
6.35mm Headphone Output Parameters
Output Power: 910mW (32Ω load)
Frequency Response: 20Hz~60kHz (±0.5dB)
Crosstalk: ≥71dB
SNR: 119 dB (A-weighted)
THD+N: 0.002%
4.4mm BAL Headphone Output Parameters
Output Power: 2000mW (32Ω load)
Frequency Response: 20Hz~60kHz (±0.5dB)
Crosstalk: ≥118dB
SNR: 121dB (A-weighted)
THD+N: 0.0004%
AUX Out Parameters
Output Level: 2.6Vrms
Frequency Response: 20Hz~60kHz (±0.2dB)
Crosstalk: ≥118dB
SNR: 121dB (A-weighted)
THD+N: ≤0.0004%
Suitable Headphone Impedance
16Ω~600Ω
Compliant OS
Windows, Linux, Mac OS X, iOS, Android system
Screen
1.3-inch OLED screen

Box Content

    What will you get
  • 1x xDuoo XA02 DAC & Amp
  • 1X AC Cable
  • 1x USB Cable
  • 1x 6.5mm to 3.5mm Converter
  • 1x User Manual

Warranty

1 YEAR WARRANTY

Don't worry, xDuoo XA02 Desktop Balanced DAC & Headphone Amp comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
