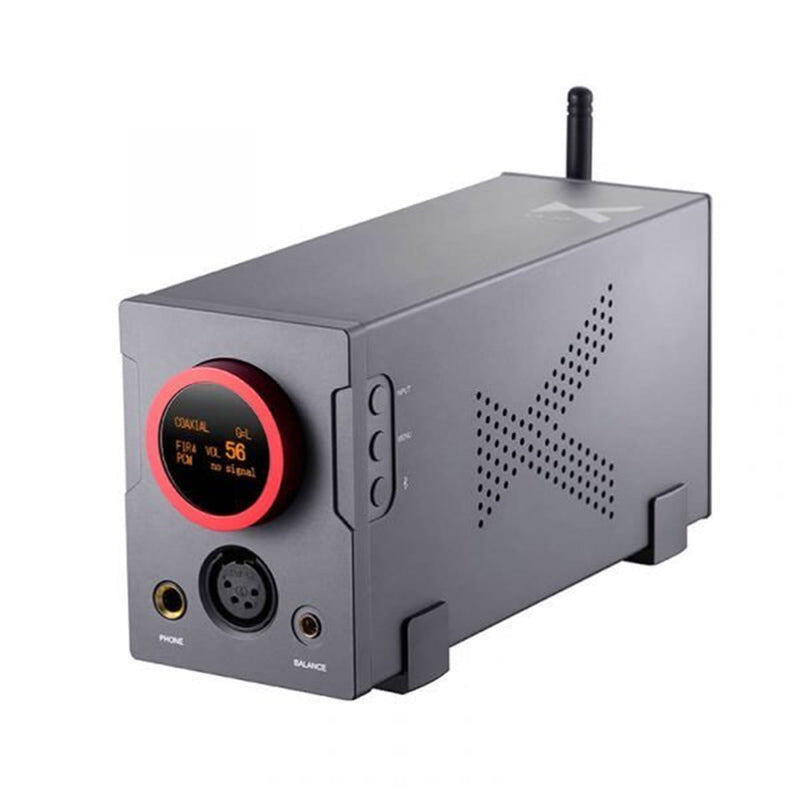

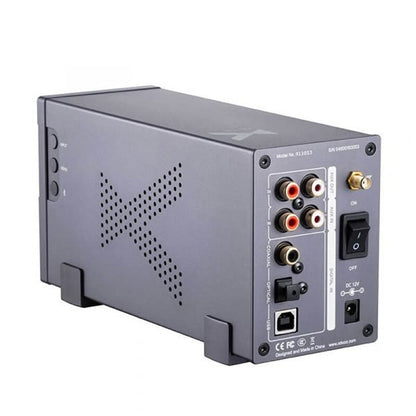

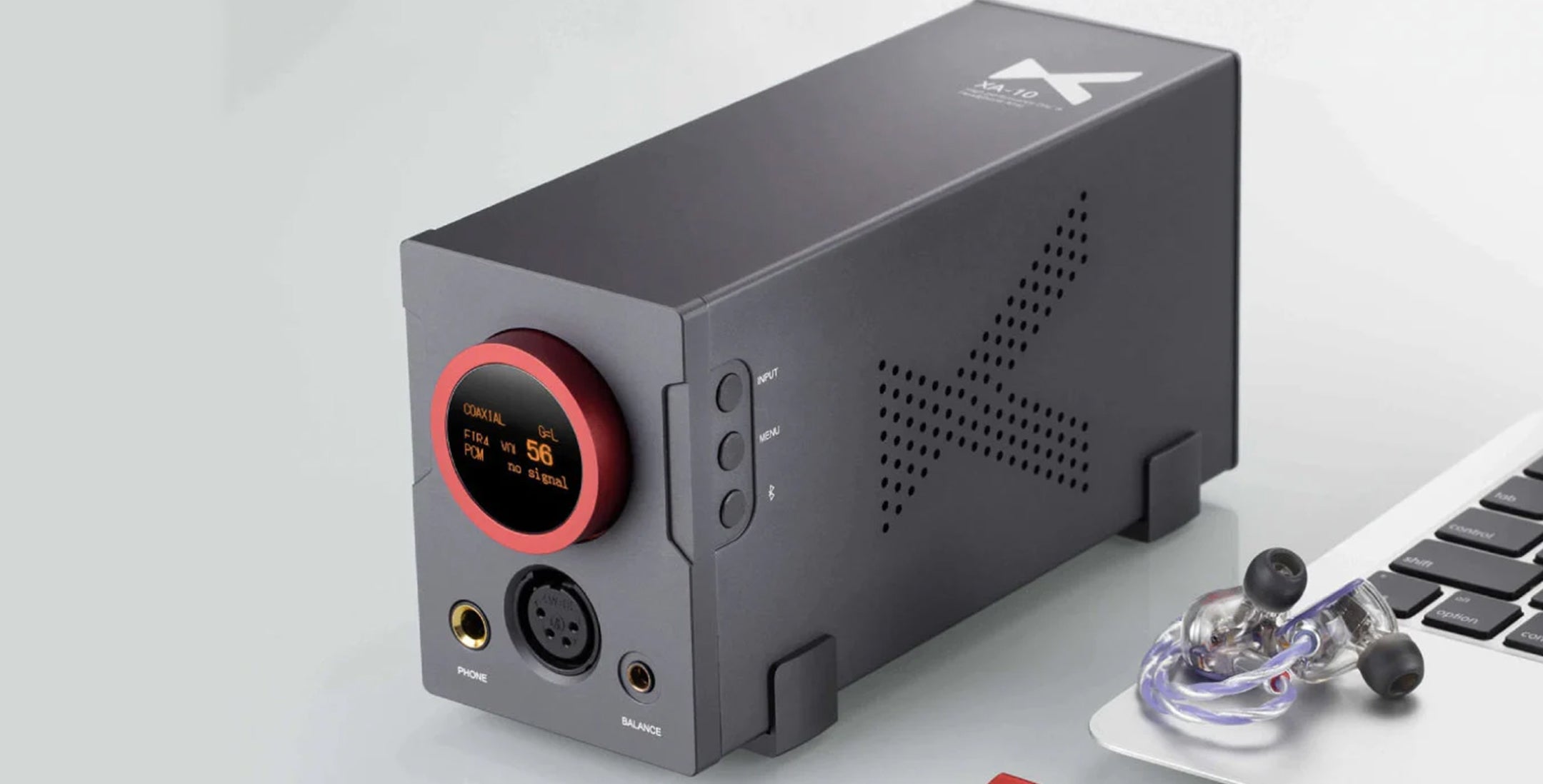

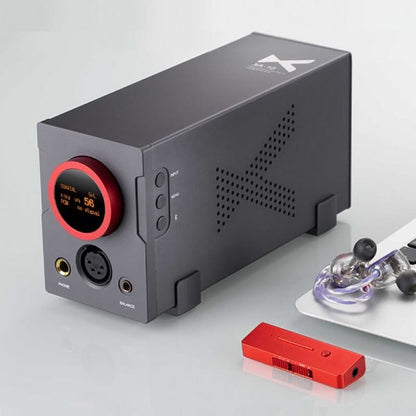

xDuoo - XA-10 Balanced DAC & Headphone Amplifier - 1

xDuoo - XA-10 Balanced DAC & Headphone Amplifier

xDuoo

amps & dacs under 50000

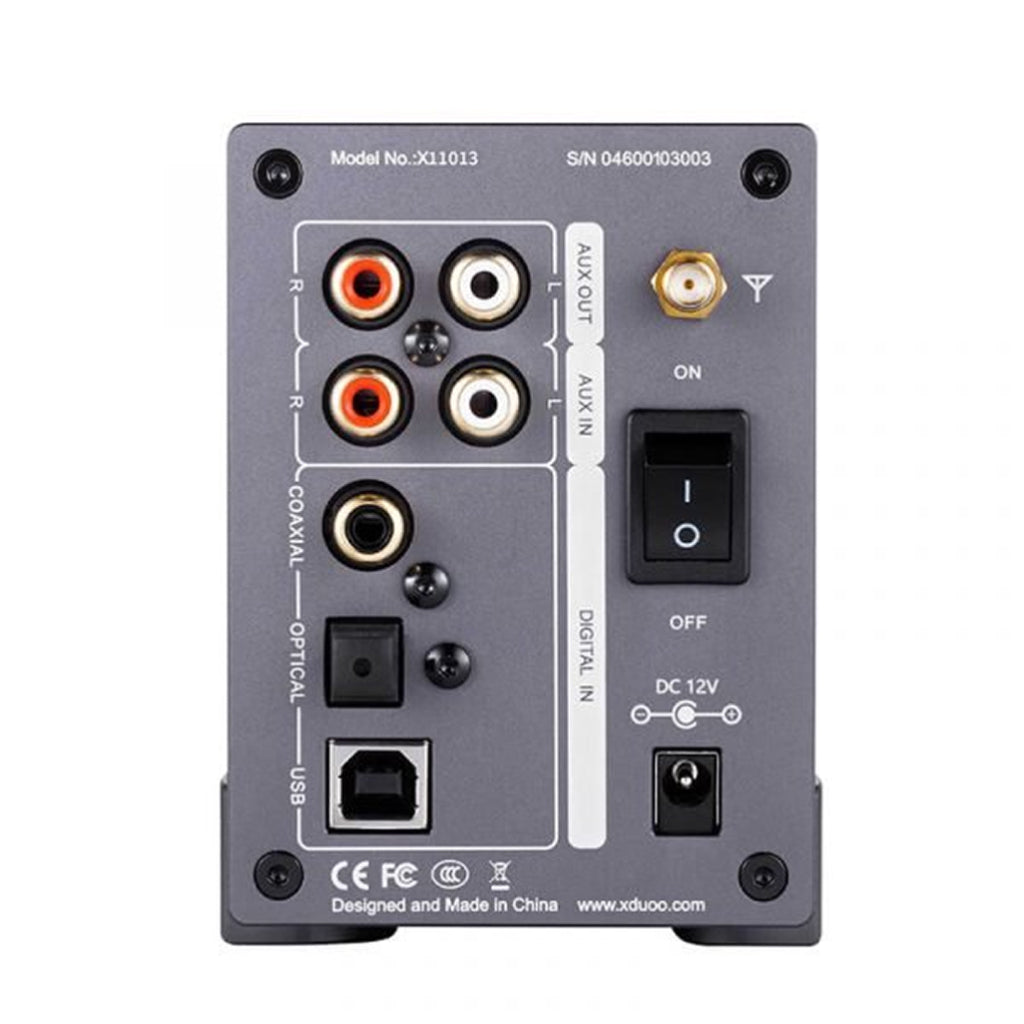

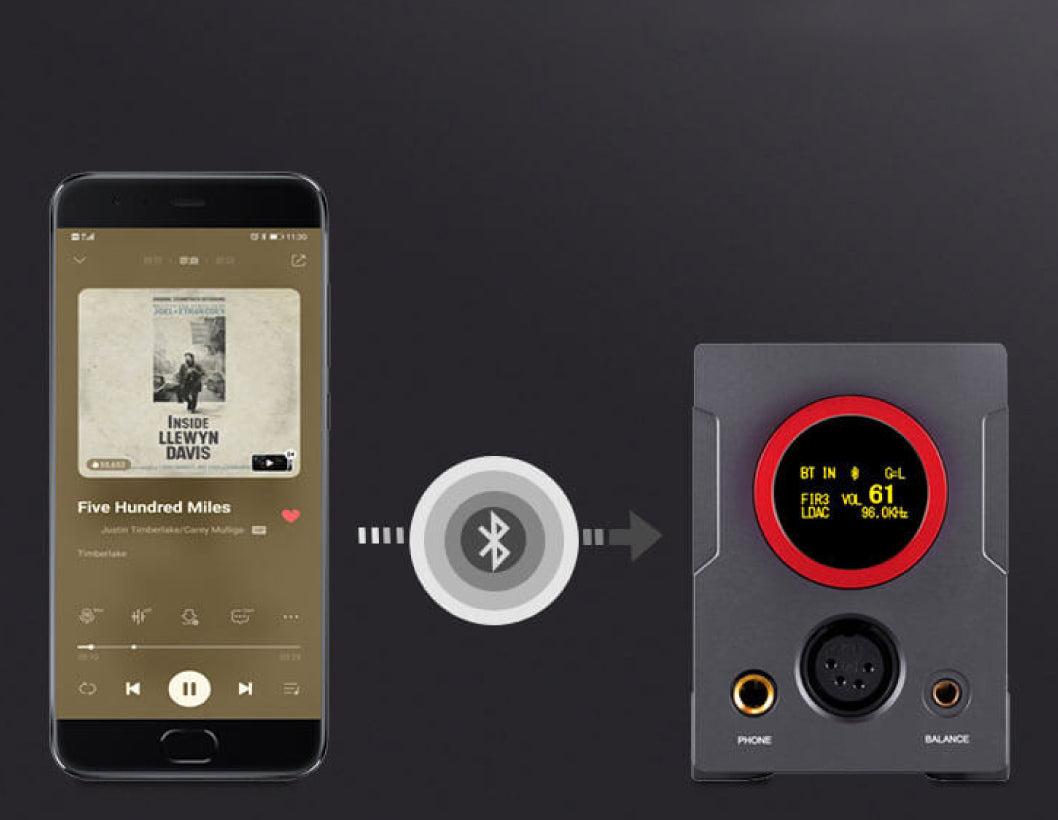

High-Performance Dual-DAC Chipset(2*AK4493) | Hi-Res Audio Signal Decoding | Supports PCM Decoding Up To 32-Bit/768khz, And DSD512 Natively | Full MQA Decoding Support | Fully Balanced Architecture | Multiple Audio Signal Input Options, USB, Optical, Coaxial, Bluetooth | Hi-Res Wireless Codec Support Such As LDAC, Aptx HD, Aptx LL, And More | Balanced Class A Amplification Buffer | Multiple Headphone Outputs (Balanced 4-Pin XLR/4.4mm, And Single-Ended 6.35mm) | High-End Chipset Components | Digital Volume Adjustment(100 Levels) | 0.96” High-Definition OLED Display | Built-In Relay Protection

₹ 32,990 ₹ 41,990 Save ₹ 9,000

Tax & Shipping Included

Tax IncludedShipping Included

Description

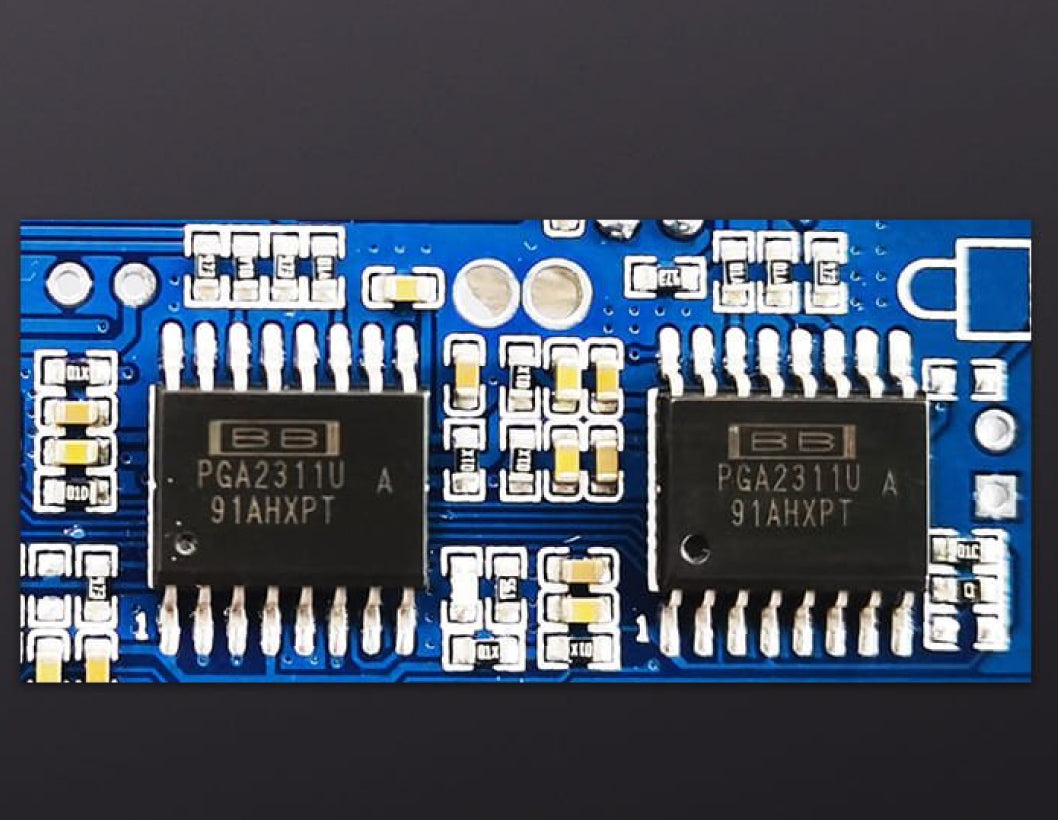

COMPLETE BALANCED CHIPSET DESIGN

The XA-10 by xDuoo features a fully balanced chipset architecture that incorporates dual DAC chips and two separate amplifiers. This design delivers unparalleled high-quality audio performance characterized by exceptional clarity, minimal distortion, and an incredibly clean background, accompanied by impressive high SNR ratings.

Concept kart xduoo xa 10 balanced dac headphone amplifier grey 1 2

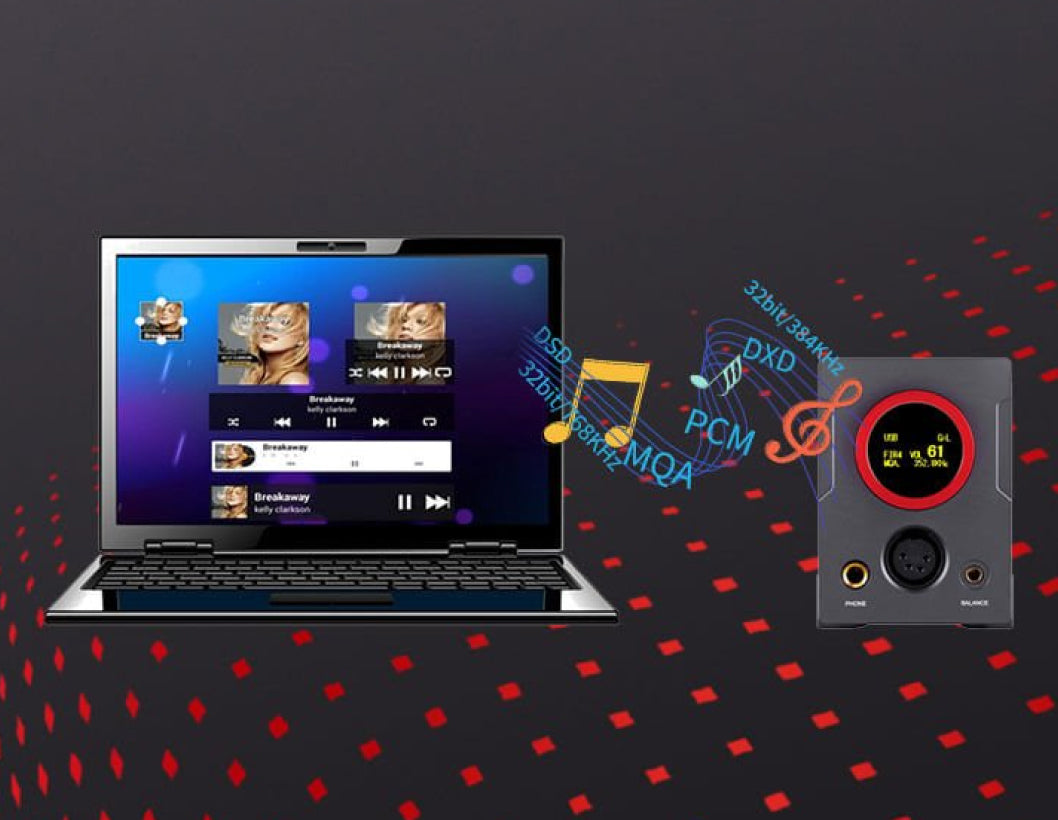

TOP-TIER AKM DAC CHIPS FOR EXCEPTIONAL PERFORMANCE

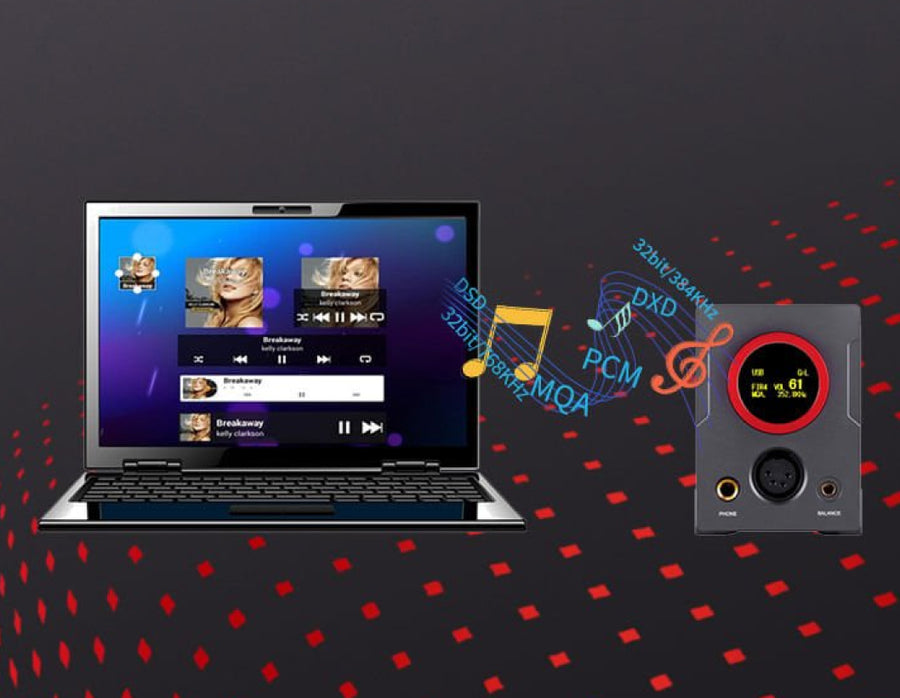

Featuring advanced DAC technology, xDuoo's XA-10 employs high-performance DAC chips sourced from AKM technologies. The device integrates dual AK4493 DAC chips, further enhanced by the inclusion of the premium XMOS XU216 USB signal receiver for accurate high-resolution audio signal decoding. The XA-10 showcases comprehensive compatibility, supporting full MQA decoding, PCM decoding with capacities up to 32-Bit/768kHz, and native DSD playback up to DSD512.

CLASS A AMPLIFICATION BUFFER

Utilizing high-quality transistors as a class A buffer, the XA-10 keeps the circuit in the best working condition at all times. The device is tested to delivers high-quality distortion-free output even at heavy loads with demanding headphones. It provides a super-clean output with ultra-low distortion ratings of 0.0008% bringing out the best for your headphones.

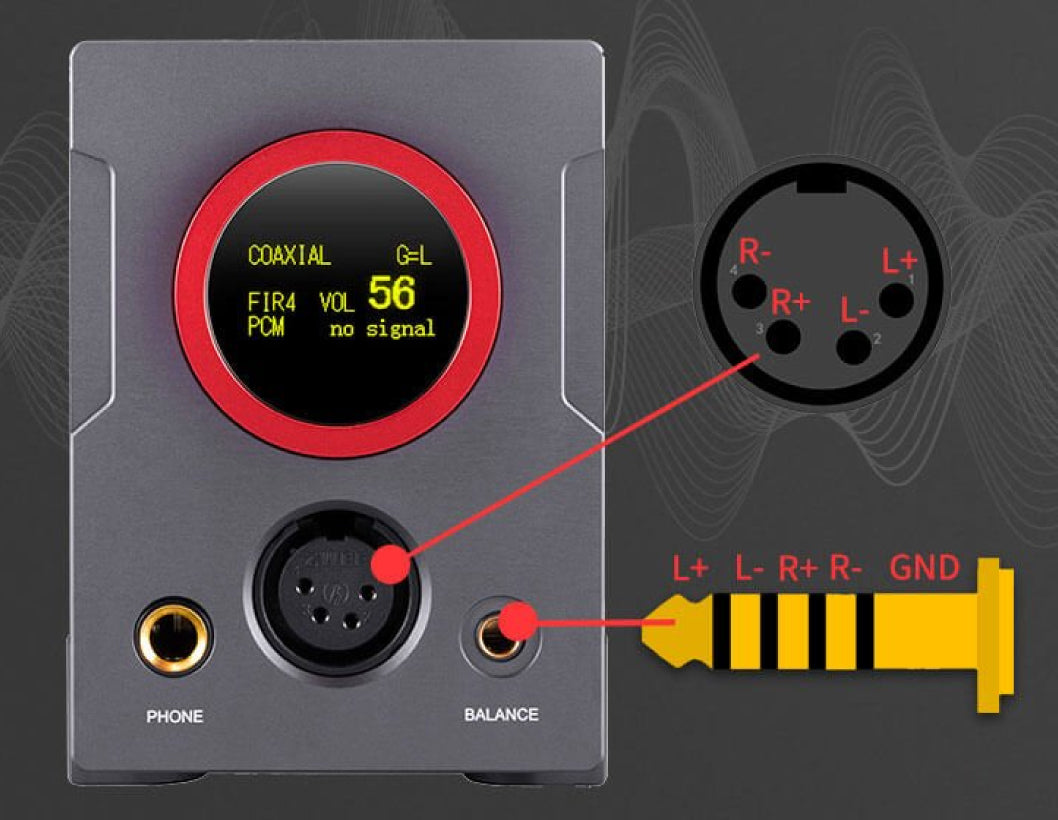

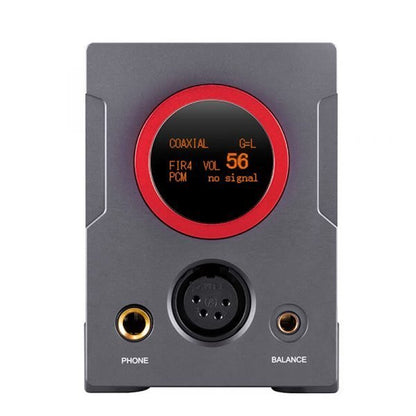

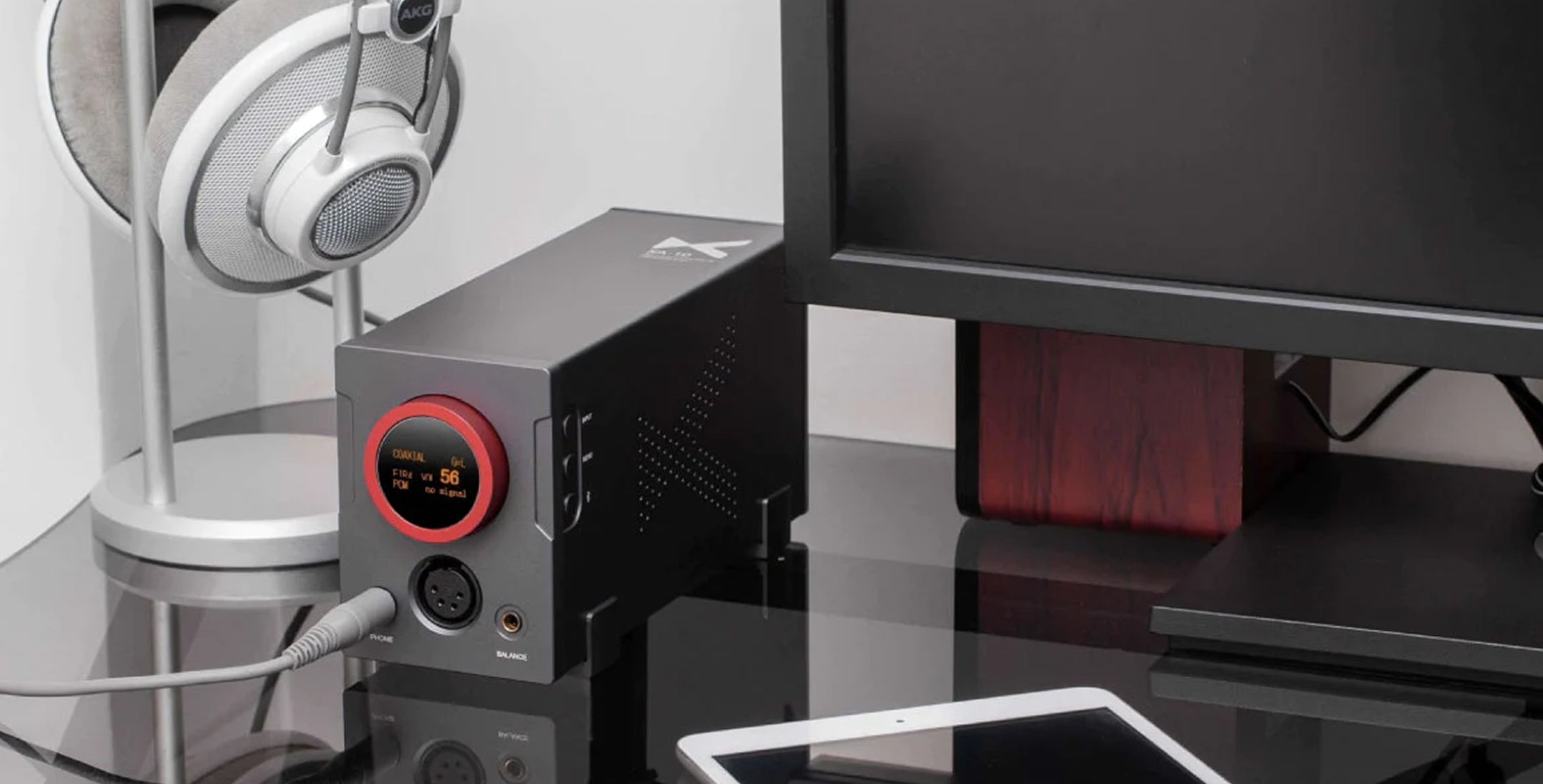

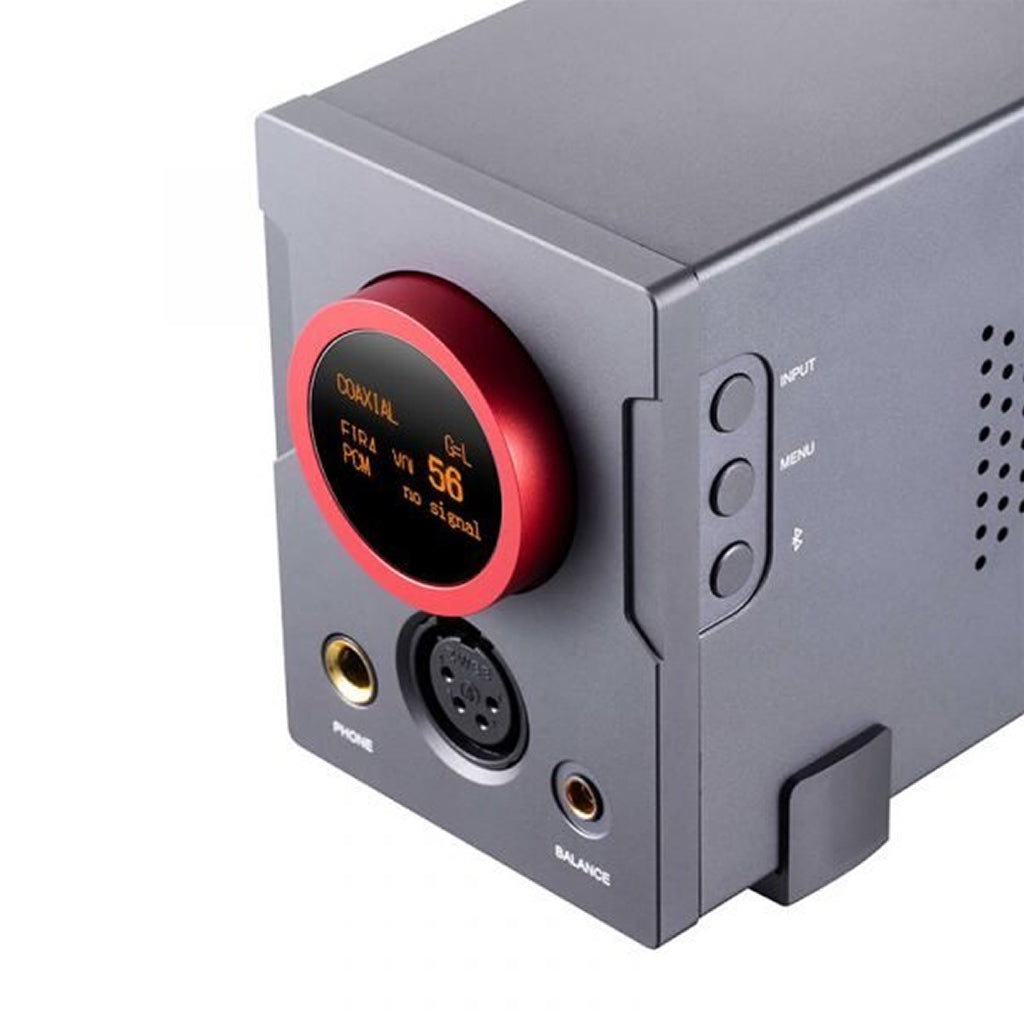

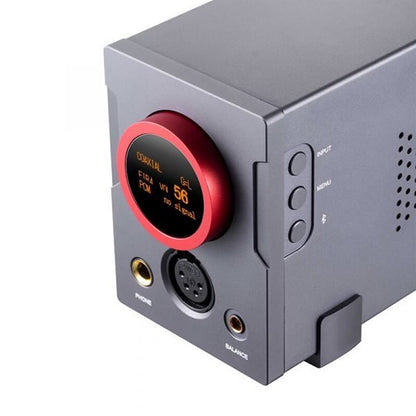

POWERFUL BALANCED HEADPHONE OUTPUT

The xDuoo XA-10 features a comprehensive fully balanced headphone output configuration, including both 4-pin XLR and 4.4mm balanced headphone output ports. Each of these ports is equipped with an impressive output power capacity of up to 4000mW @ 32Ω load. In addition to these balanced options, the XA-10 also offers a single-ended 6.35mm headphone output, delivering a remarkable output power of up to 3000mW @ 32Ω load. This substantial power allocation effortlessly unlocks the optimal potential of your most demanding headphones.

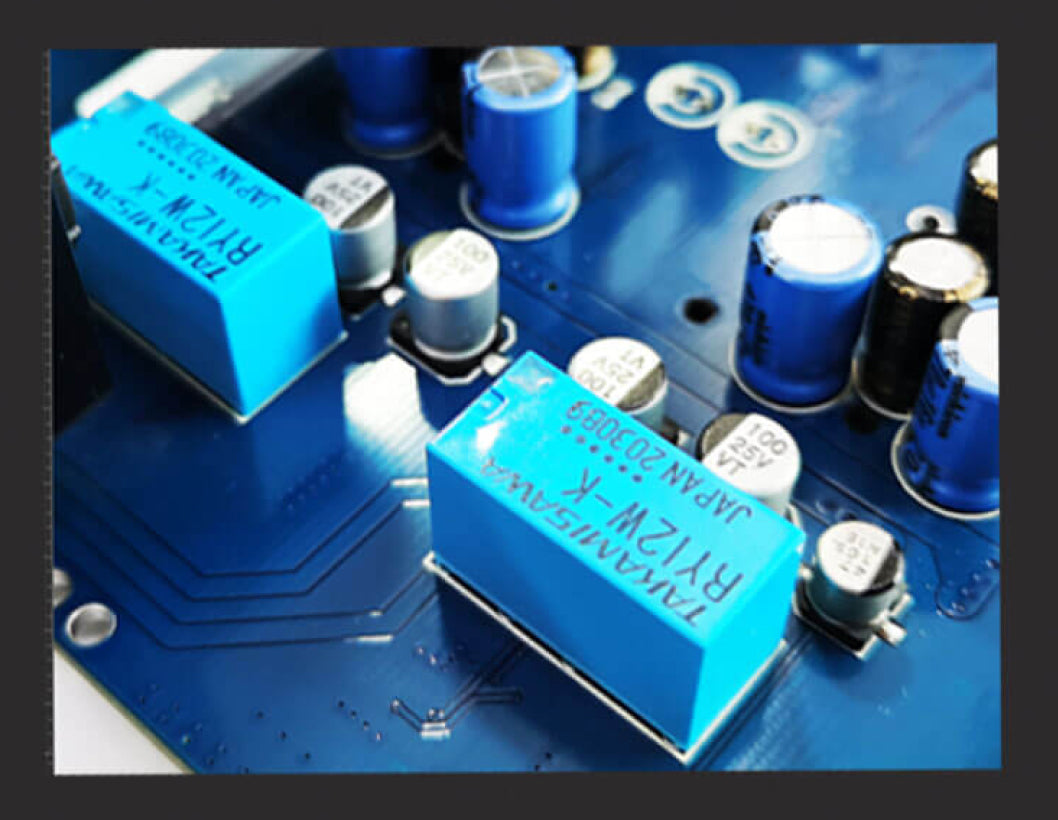

BUILT IN RELAY PROTECTION

The XA-10 desktop DAC/AMP systems by xDuoo feature an integrated relay protection mechanism. This innovative design prevents the occurrence of POP noise during device startup, ensuring the safeguarding of connected headphones/earphones and the device itself against abrupt voltage fluctuations and other irregular conditions.

Concept kart xduoo xa 10 balanced dac headphone amplifier grey 1 1

Specifications

Brand Name
xDuoo
Model Name
XA-10
Product Name
xDuoo XA-10 Balanced Headphone DAC & Amp
THD+N
0.000008
SNR(Balanced)
120dB
SNR(Single Ended)
115dB
Crosstalk(Balanced)
108dB
Crosstalk(Single Ended)
73dB
Screen
0.96 Inch OLED
Headphone Impedance
16-600Ω
Output Power
Balance: 4000 MW (32Ω@1 KHz)
Single-Ended
115Db
Crosstalk
Balance: 108dB
Single-Ended
73dB
THD+N
0.000008
Output Power
500 MW (32Ω Load)
Gain
Volume Value
100 Levels
USB IN
PCM 16-32 Bit/44.1k - 768kHz, DSD64-512
DXD
24-32 Bit/352.8k - 384kHz
MQA
16-32 Bit/44.1k-384kHz
Optical/Coaxial IN
PCM 16-24 BIT/44.1-192kHz, DSD64
Bluetooth Format
SBC, AAC, AptX, AptX HD, AptX LL, LDAC
Power Supply
DC12V/3A

Box Content

    What will you get
  • 1x xDuoo XA-10 Balanced Headphone DAC & Amp
