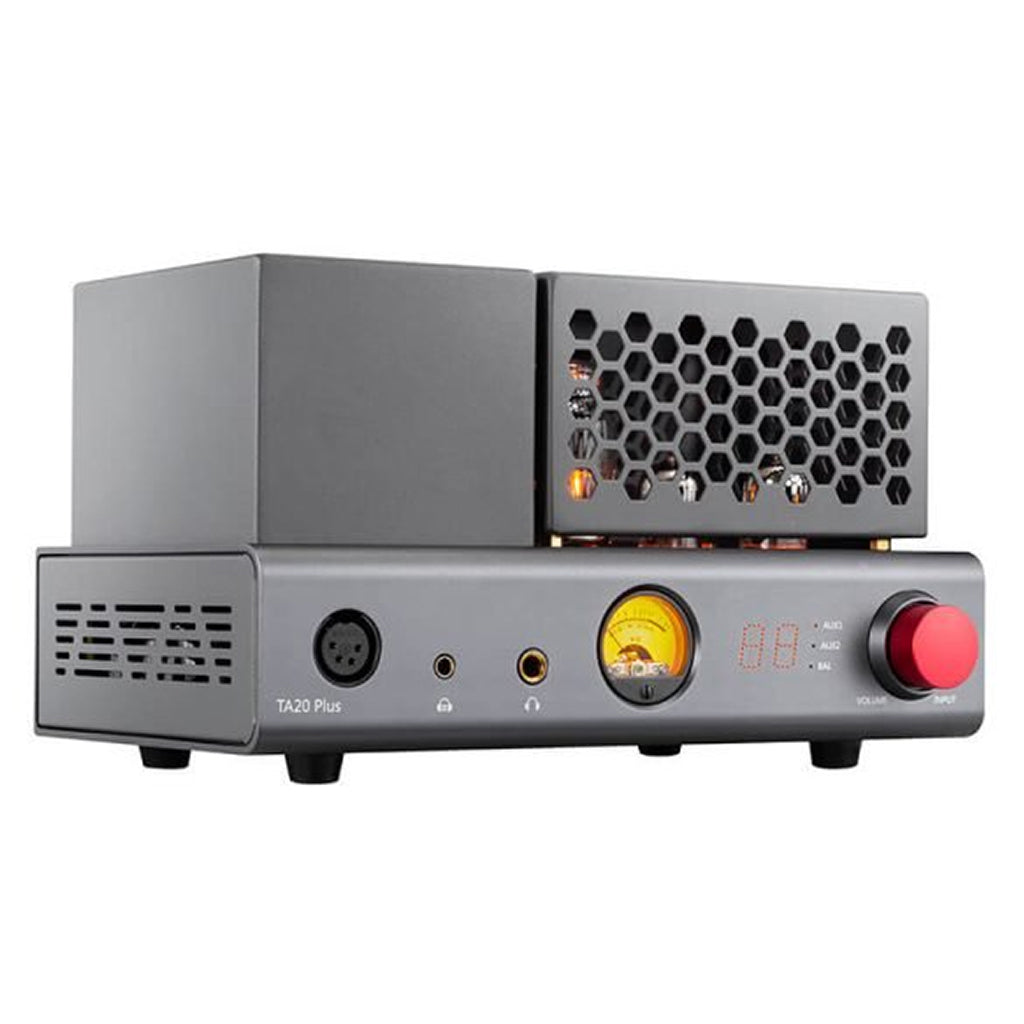

xDuoo – TA 20 Plus Balanced Tube Headphone Amplifier

xDuoo

amps & dacs under 100000

  • 5Z4P Tube Rectification and Dual 12AU7 Tubes
  • High Output Power Upto 2000mW
  • Tube Rectification for Vintage Warmth
  • Double Tube Amplification & Dynamic VU Meter
  • Class A Buffer with Tube + Transistor Hybrid Structure
  • Versatile Output/ Input Options

₹ 51,990 ₹ 57,999 Save ₹ 6,009

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery

Estimated Delivery within 2 to 4 weeks.

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

The TA20 Plus is a versatile desktop-balanced tube headphone amplifier with multiple inputs (RCA, XLR) and outputs (6.35mm unbalanced, 4.4mm balanced, 4-pin balanced). It uses a 5Z4P tube rectification and double 12AU7 tubes for amplification, delivering a sweet and refined sound. With strong output power up to 2000mW making it suitable to drive headphones with impedances ranging from 16 to 600Ω. and high-quality Japanese capacitors (ELNA SILMIC and NICHICON FW), it provides a transparent, warm, and detailed audio experience.

Xduoo ta 20 plus balanced tube headphone amplifier 1  1

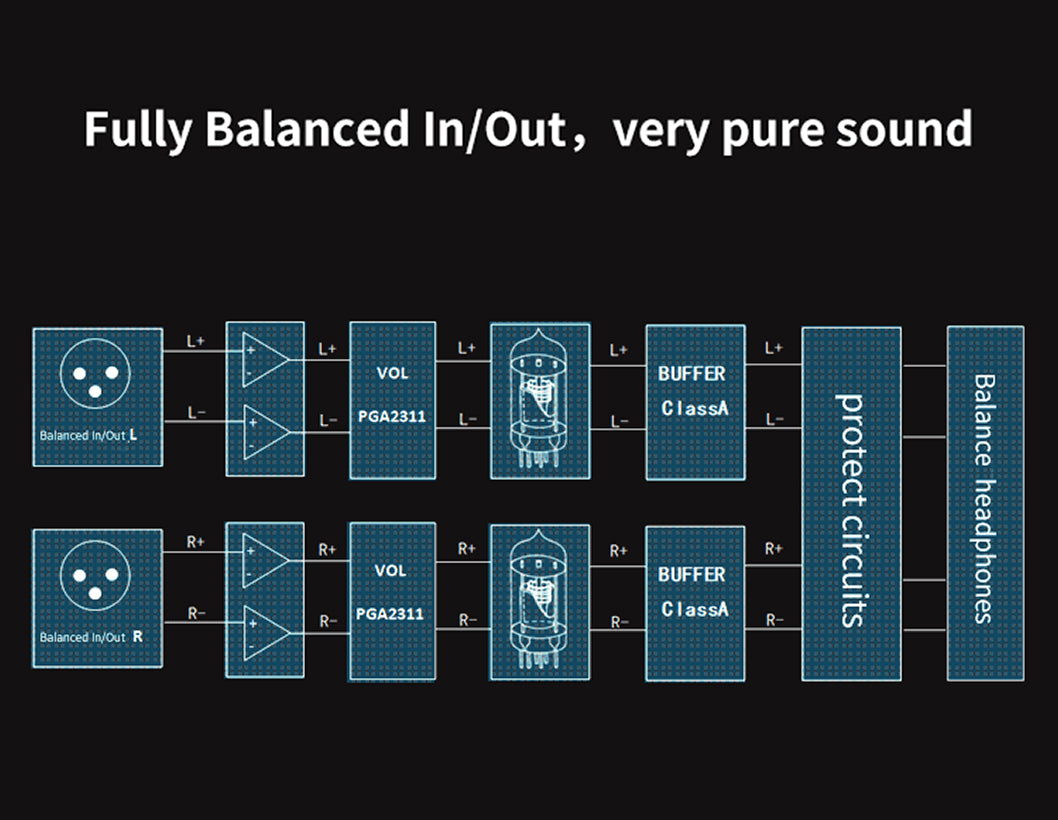

IMMERSE IN BALANCED PERFECTION WITH TA-20 PLUS TUBE HEADPHONE AMPLIFIER

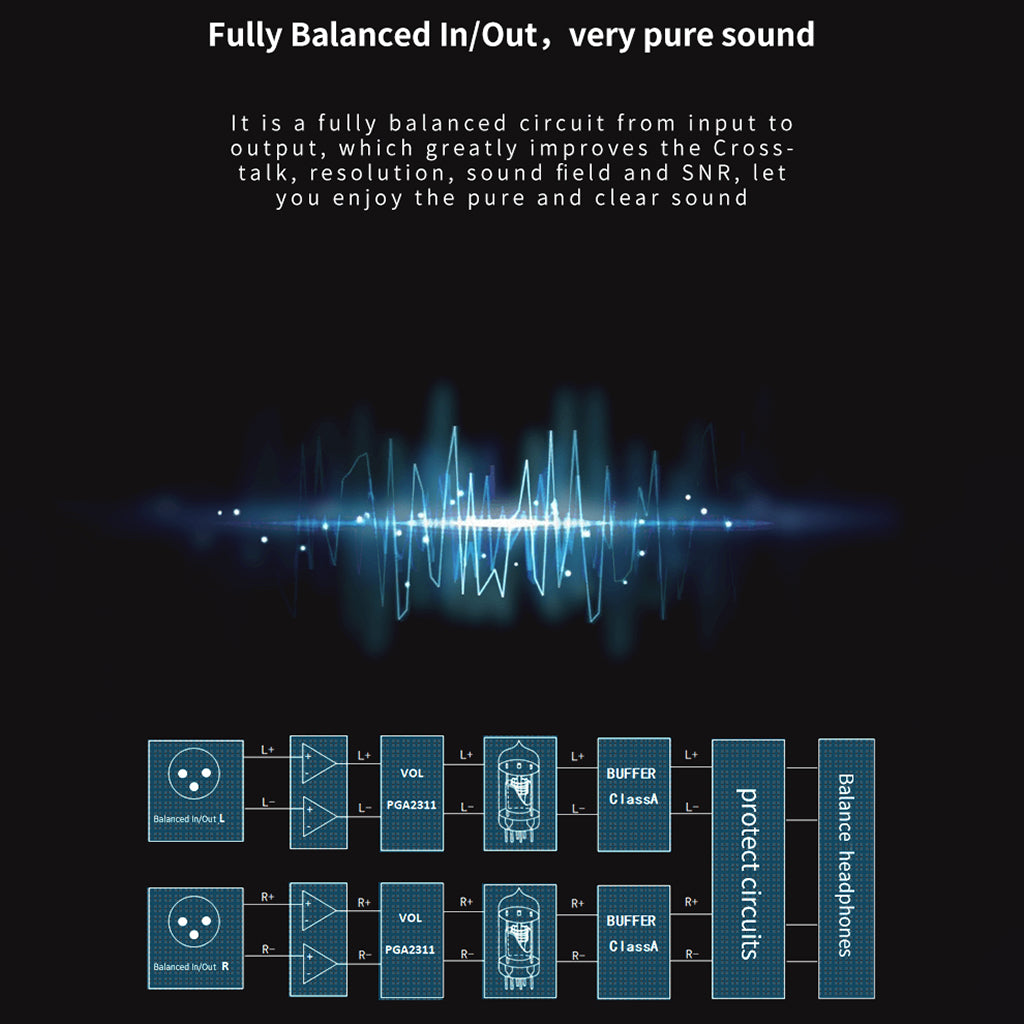

The TA-20 Plus features a completely balanced circuit from input to output, enhancing crosstalk, resolution, and SNR. This balanced design delivers a captivating, clear sound that envelops you in rich audio quality.

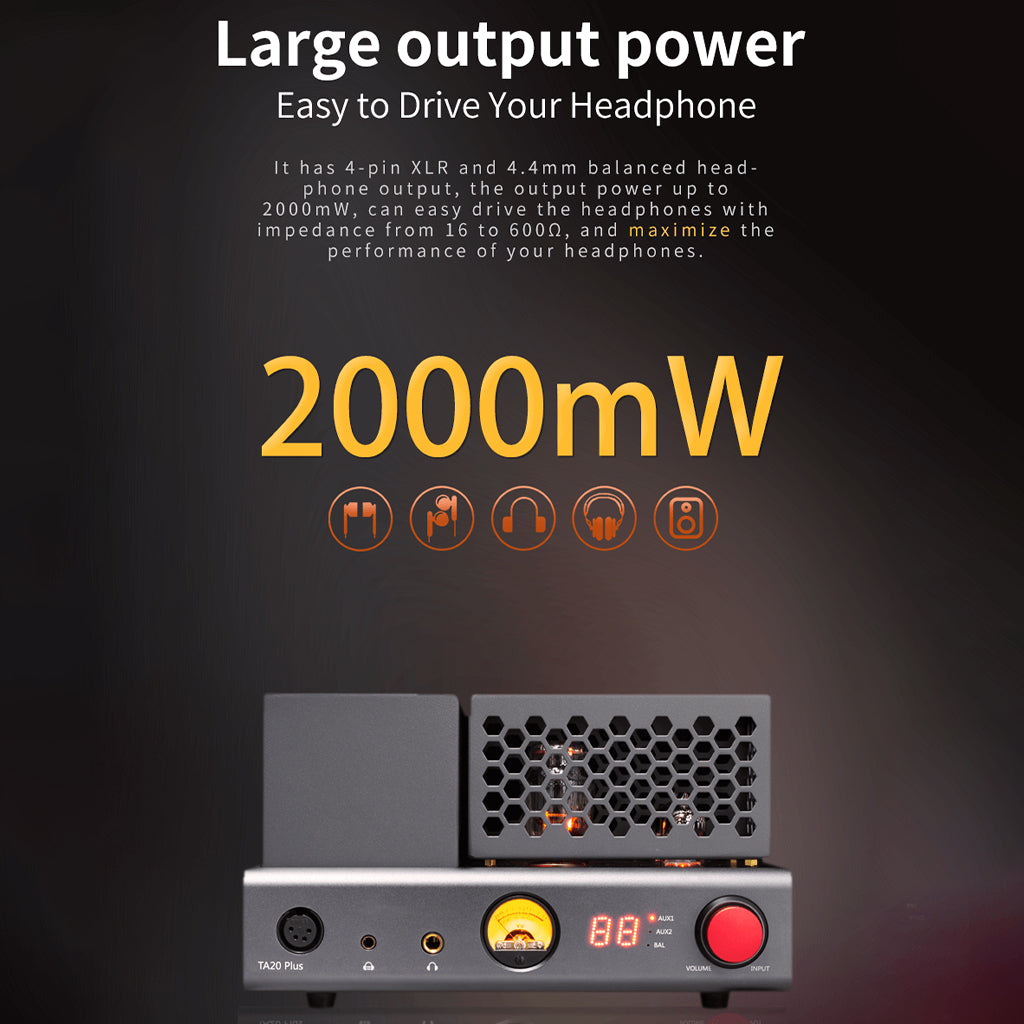

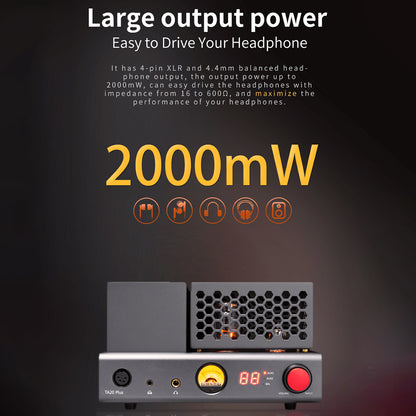

COMPACT POWERHOUSE PERFORMANCE

Despite its compact size, the TA-20 Plus DAC/Amp delivers up to 2000mW of power, effortlessly driving headphones with impedances from 16 to 600Ω. Optimize your listening experience by switching between the 4-pin XLR and 4.4mm balanced headphone outputs.

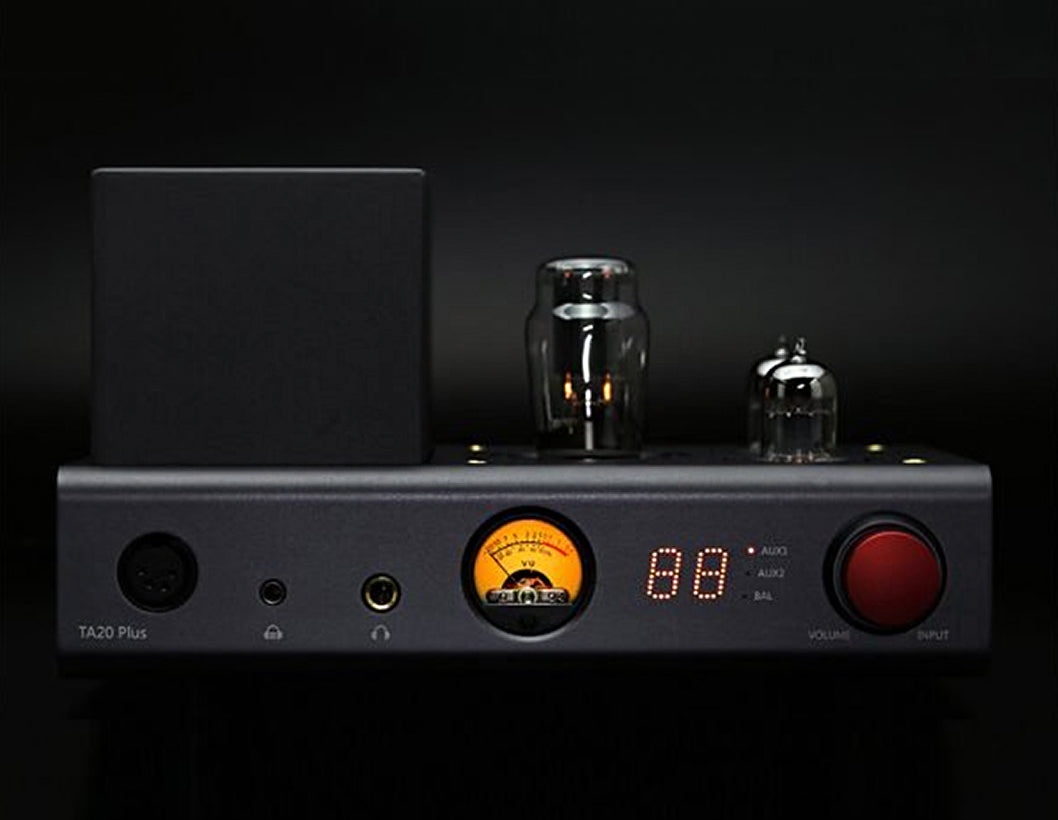

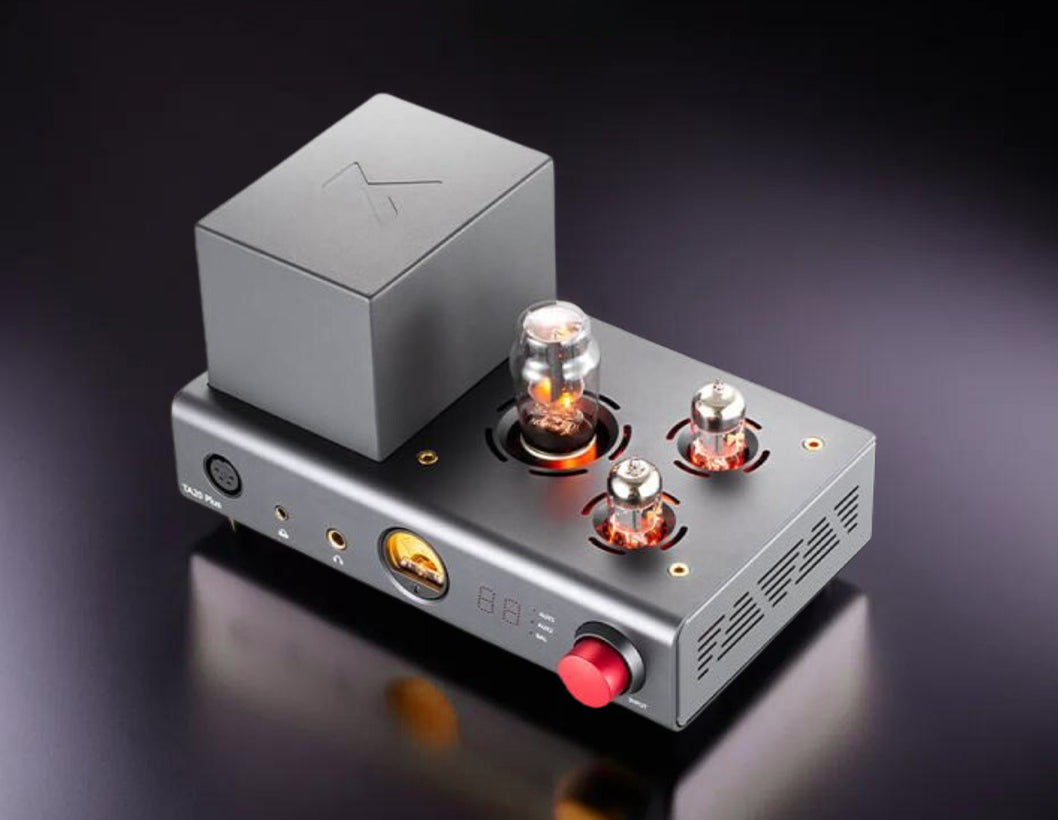

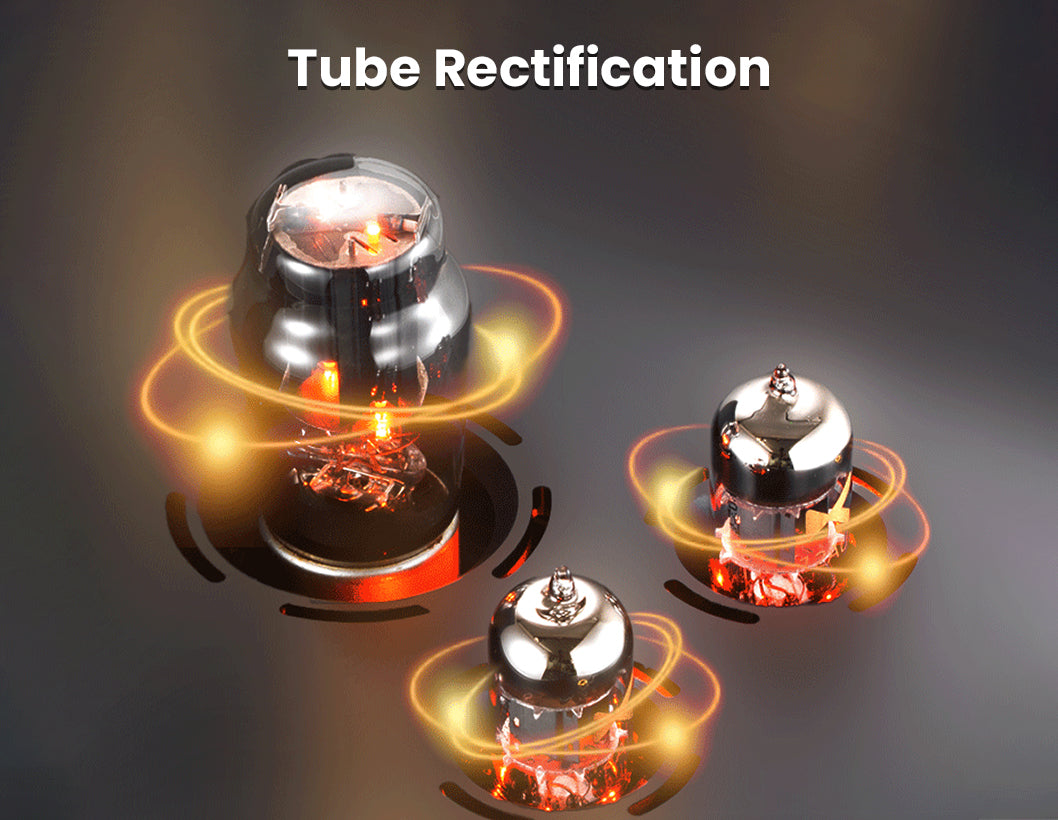

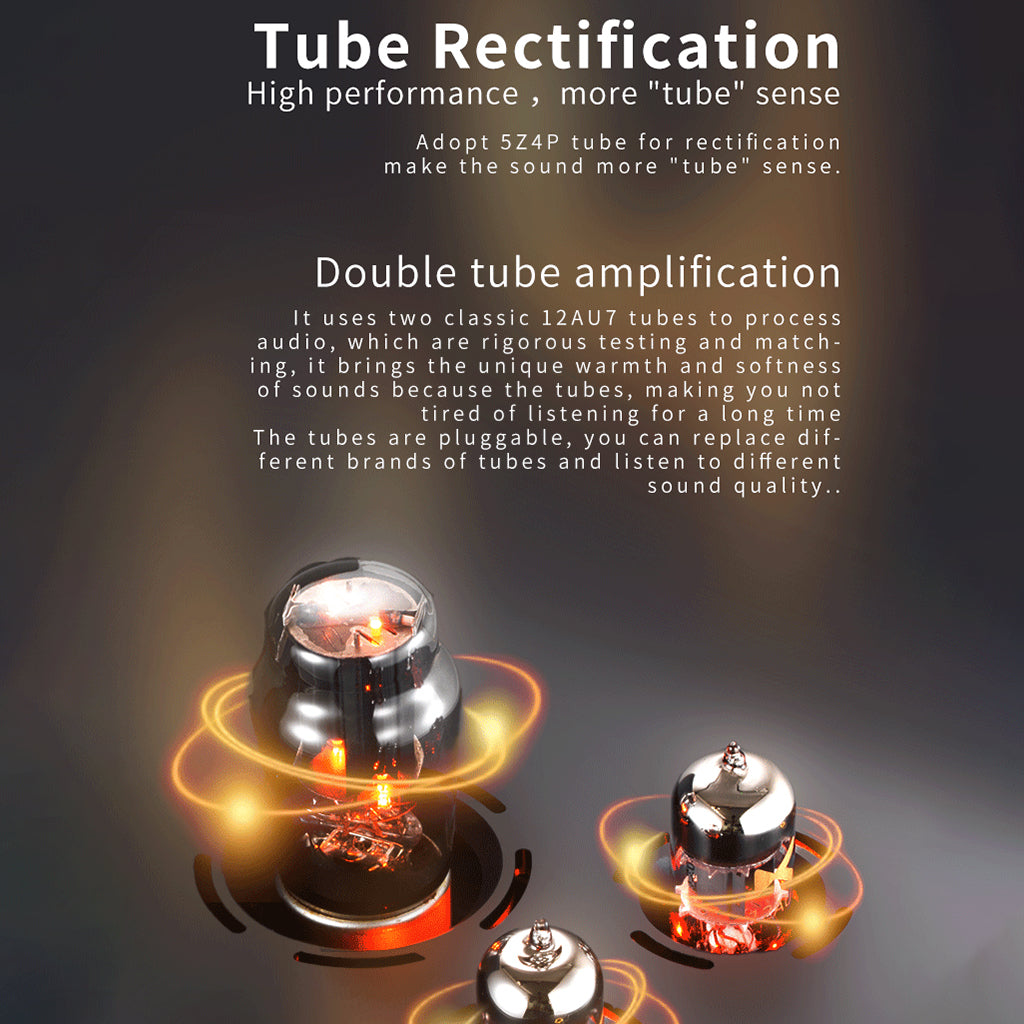

MODERN PERFORMANCE AND VINTAGE WARMTH WITH TUBE RECTIFICATION & DUAL TUBE AMPLIFICATION

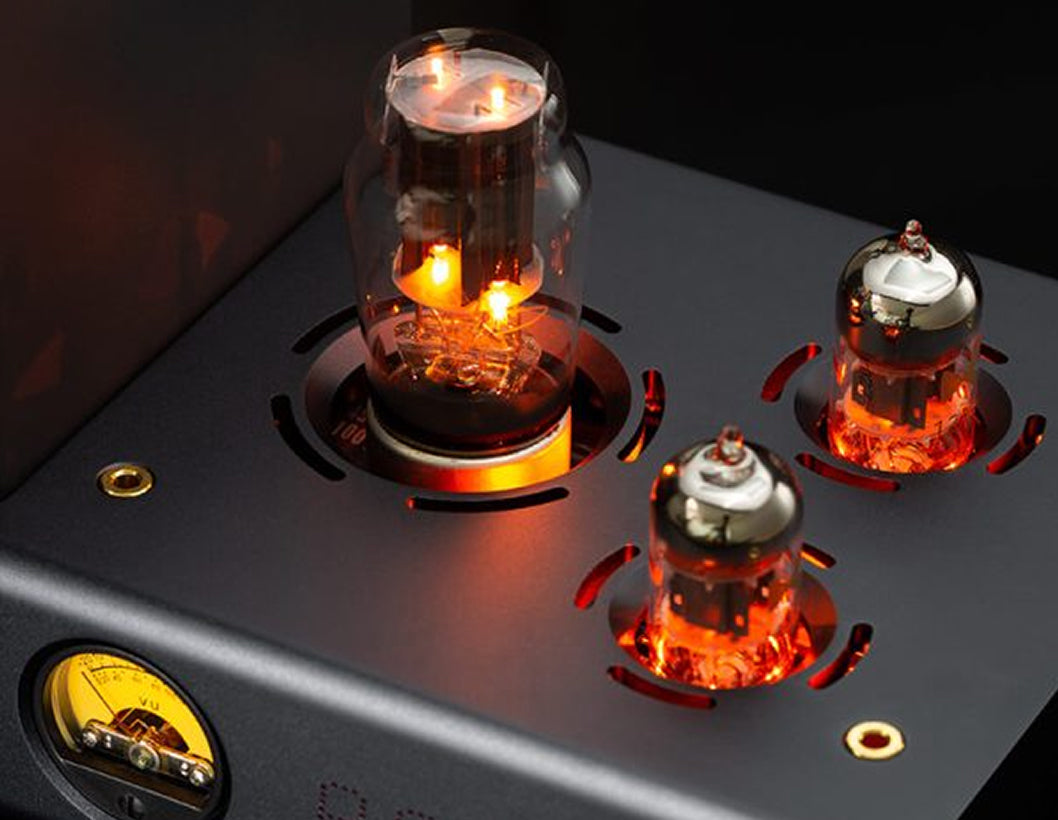

Tube Rectification enhances performance with a richer "tube" character. By employing the 5Z4P tube for rectification, it intensifies the classic tube sound. This amplifier features dual 12AU7 tubes for audio processing, meticulously tested and matched to deliver distinctive warmth and smoothness in sound. This tube-driven design ensures extended listening comfort without fatigue. Moreover, the tubes are interchangeable, allowing users to explore various brands for different sonic qualities.

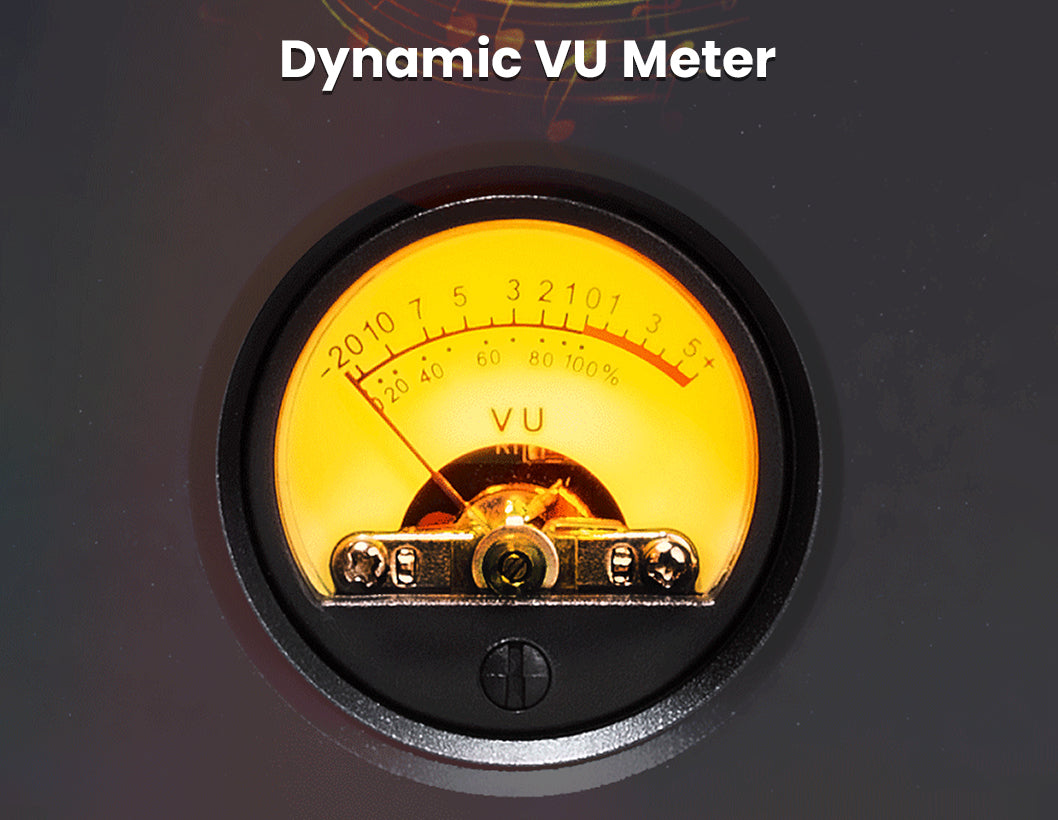

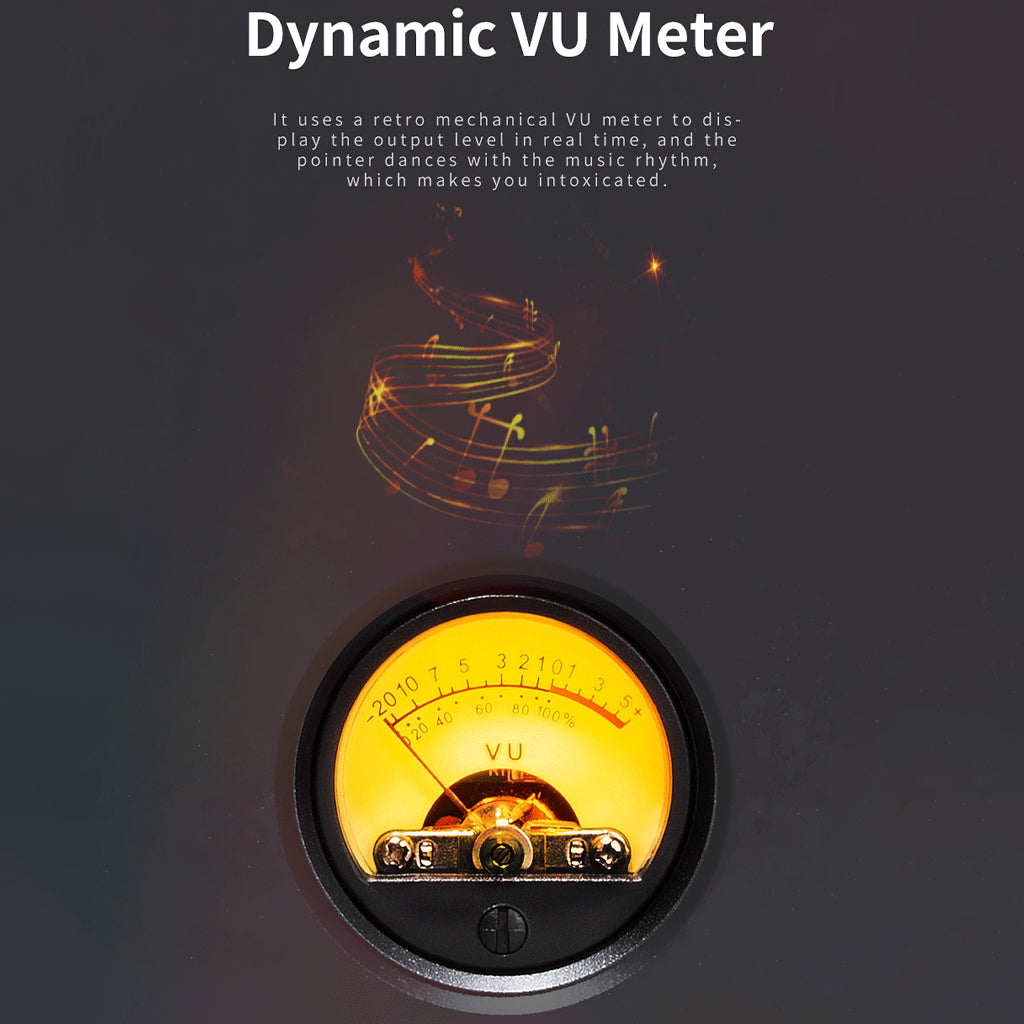

REAL-TIME MUSIC VISUALS WITH THE RETRO MECHANICAL VU METER

It uses a vintage mechanical VU meter to show the output level live, and the needle moves in sync with the music, which adds to the enjoyment. makes your audio setup more enjoyable.

Xduoo ta 20 plus balanced tube headphone amplifier 1  2

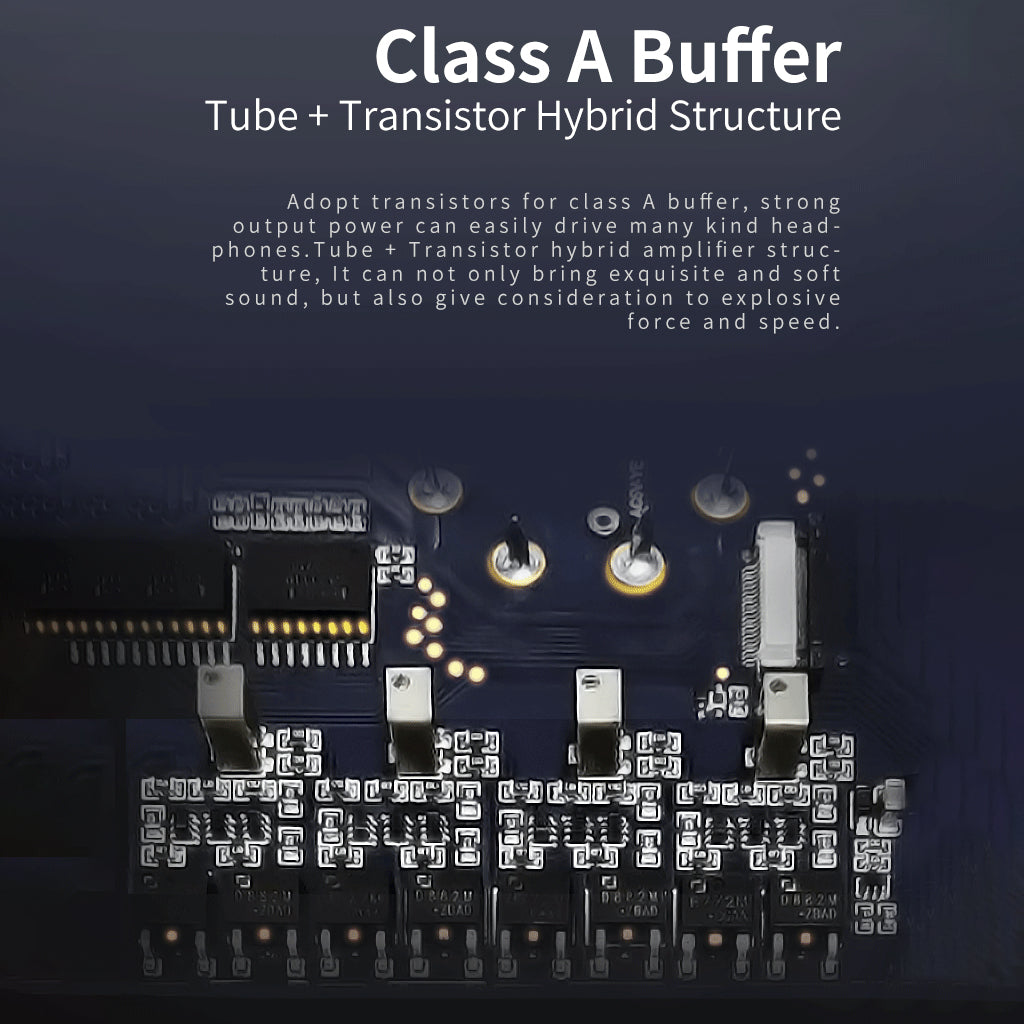

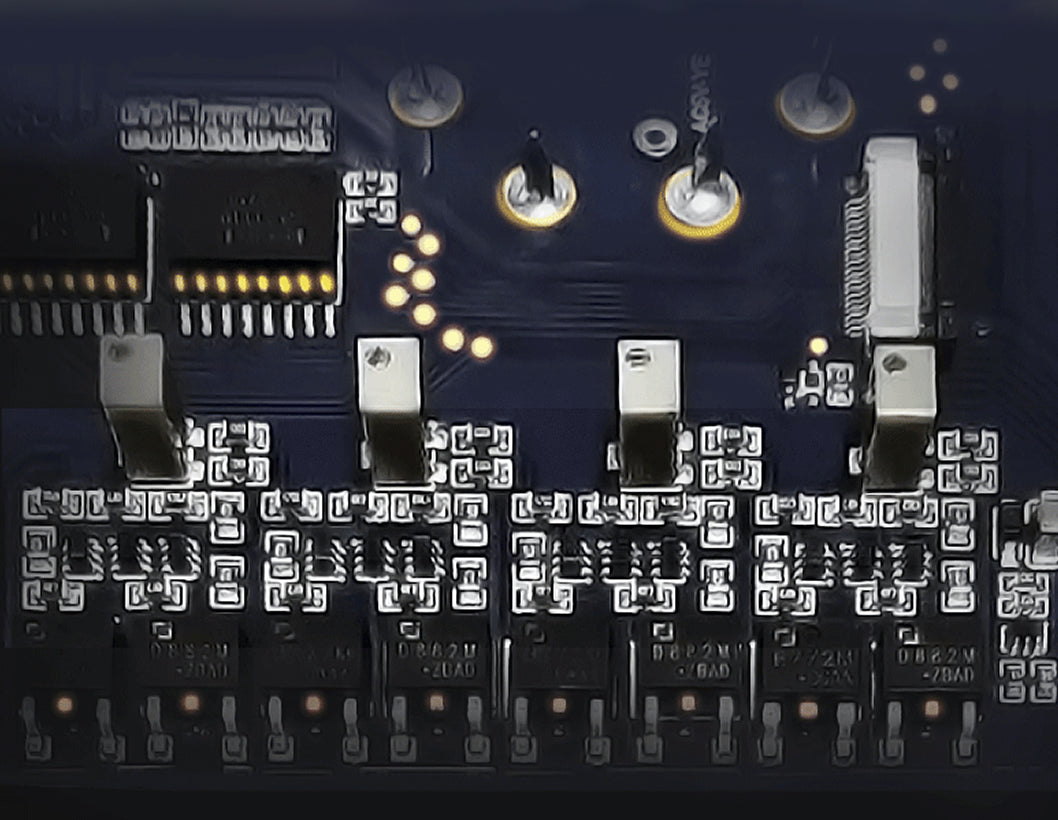

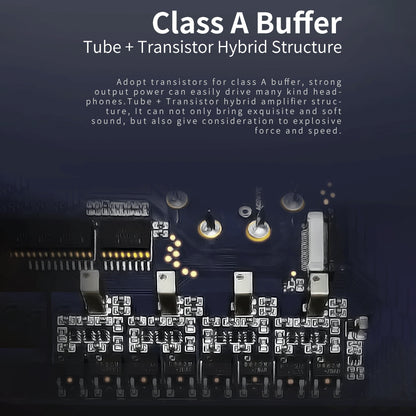

HYBRID CLASS A BUFFER FOR POWERFUL HEADPHONE AMPLIFIER

This hybrid amplifier combines tube and transistor technologies to create a powerful Class A buffer amplifier. It can drive various headphones well and keeps the delicate details and nuances in the sound intact.

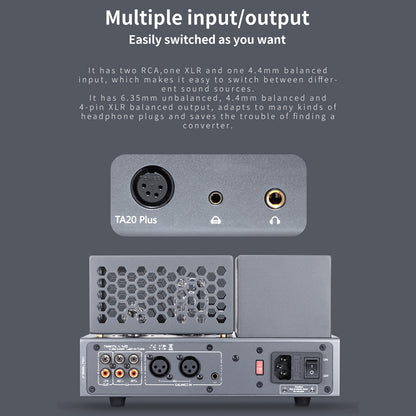

VERSATILE INPUT/OUTPUT OPTIONS

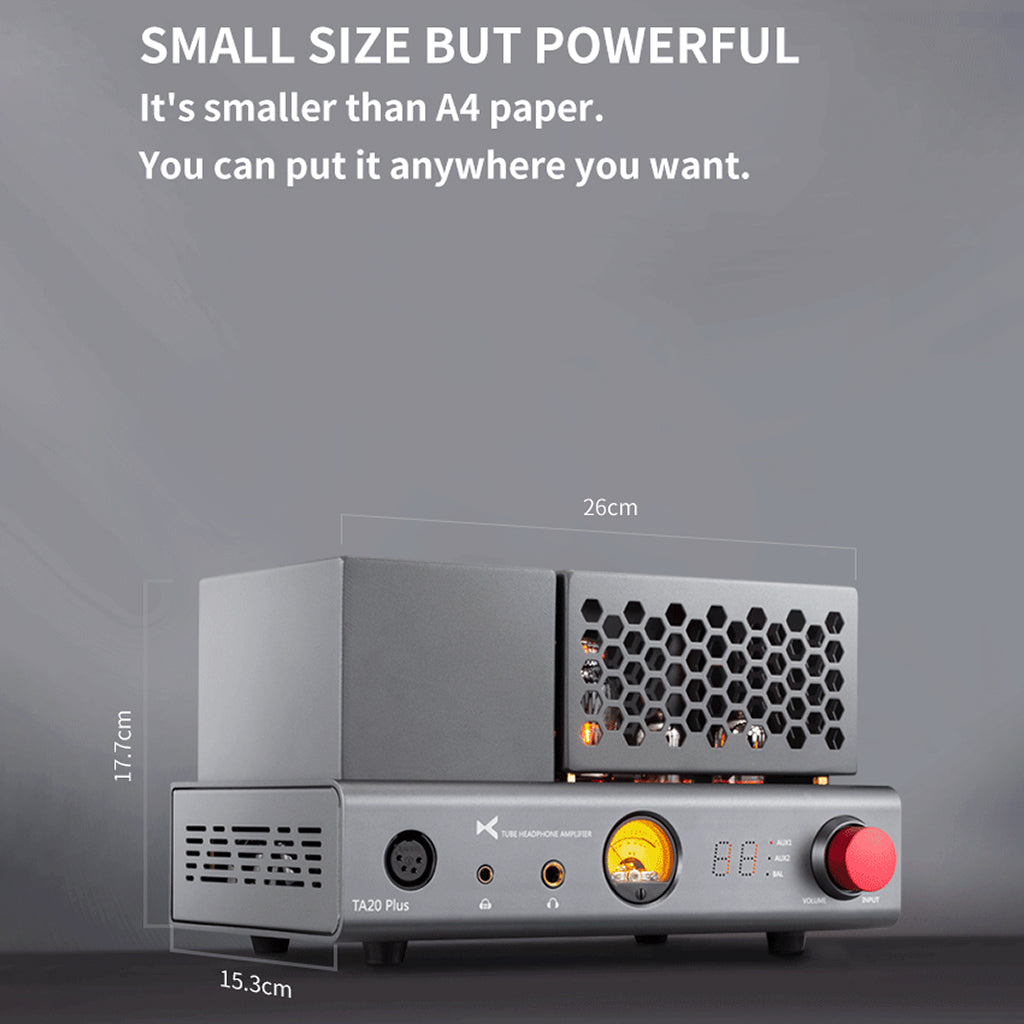

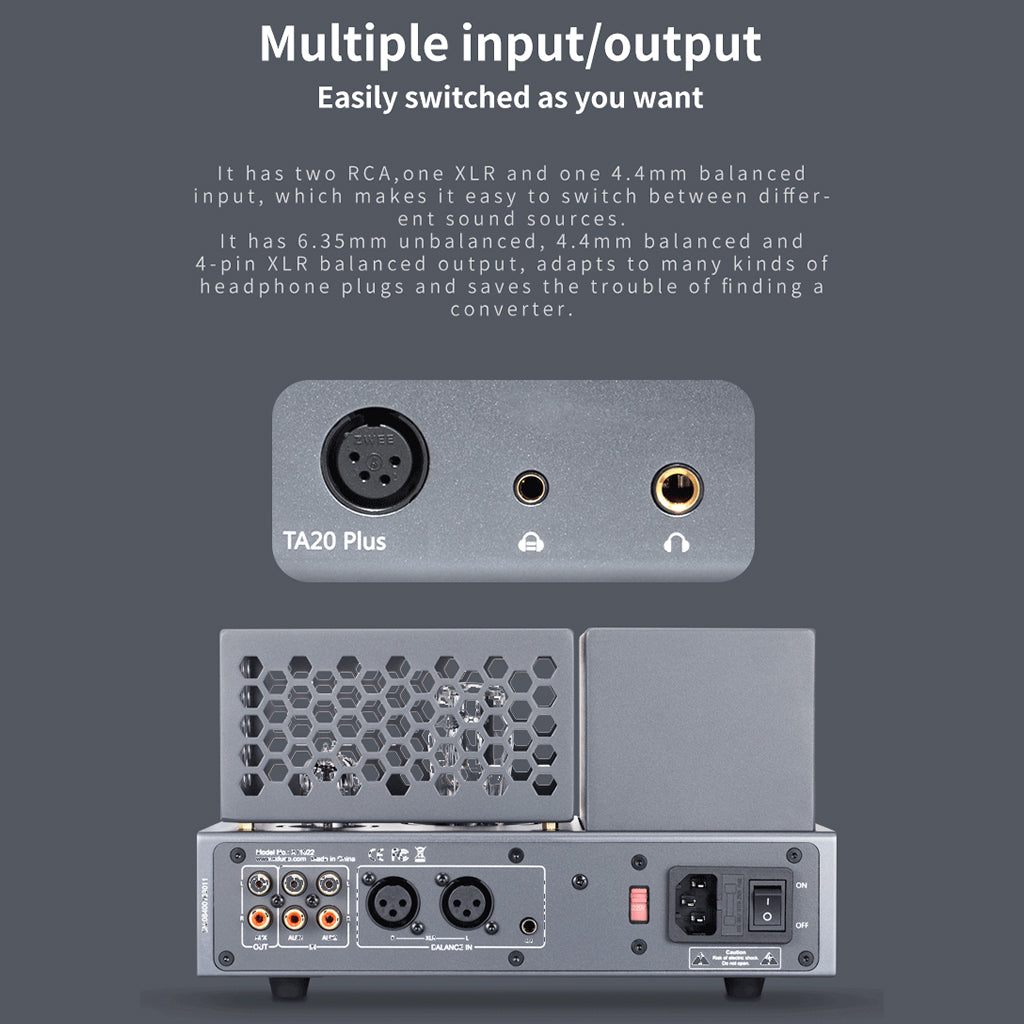

This compact unit is smaller than an A4 sheet of paper and offers multiple inputs (two RCA, one XLR, and one 4.4mm balanced) and outputs (6.35mm unbalanced, 4.4mm balanced, 4-pin XLR balanced). It's designed to be adaptable for various audio setups, making it a versatile choice.

Xduoo ta 20 plus balanced tube headphone amplifier 1  3

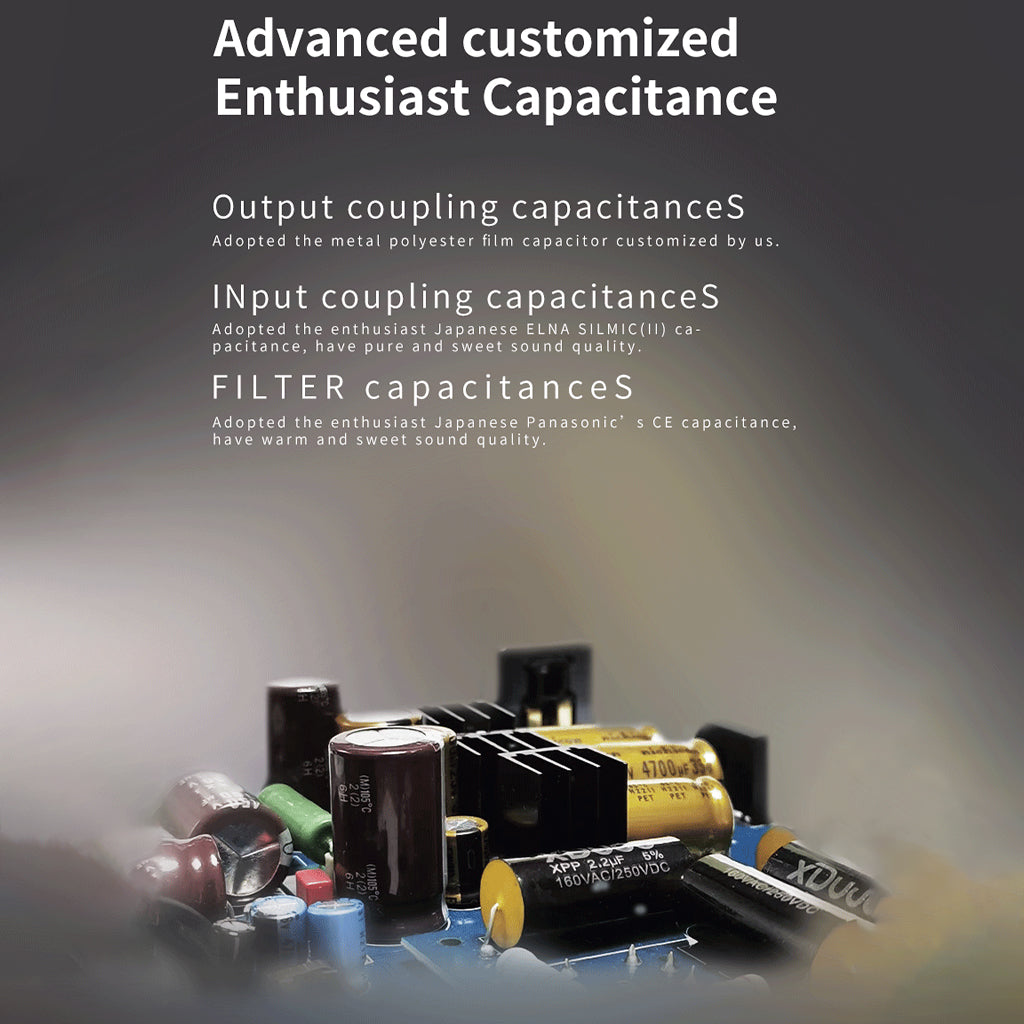

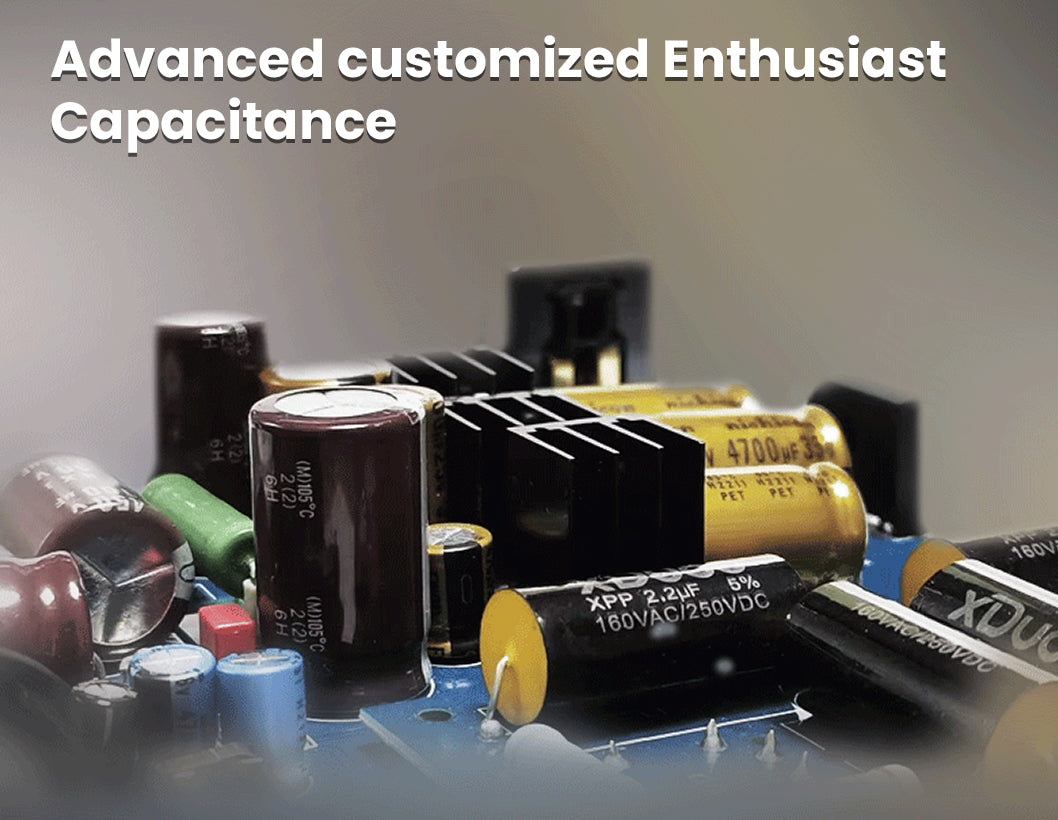

ADVANCED CUSTOMIZED ENTHUSIAST CAPACITANCE

Superior Capacitors for Pure Sound For the true enthusiasts, we’ve got customized HIFI capacitors that enhance the audio output and provide pure, sweet sound quality. Output Capacitance uses custom metal polyester film capacitors. Input Capacitance features Japanese ELNA SILMIC(II) capacitors for clear and sweet sound reproduction. The Filter Capacitance utilizes Japanese Panasonic CE capacitors, providing a warm and pleasant audio experience.

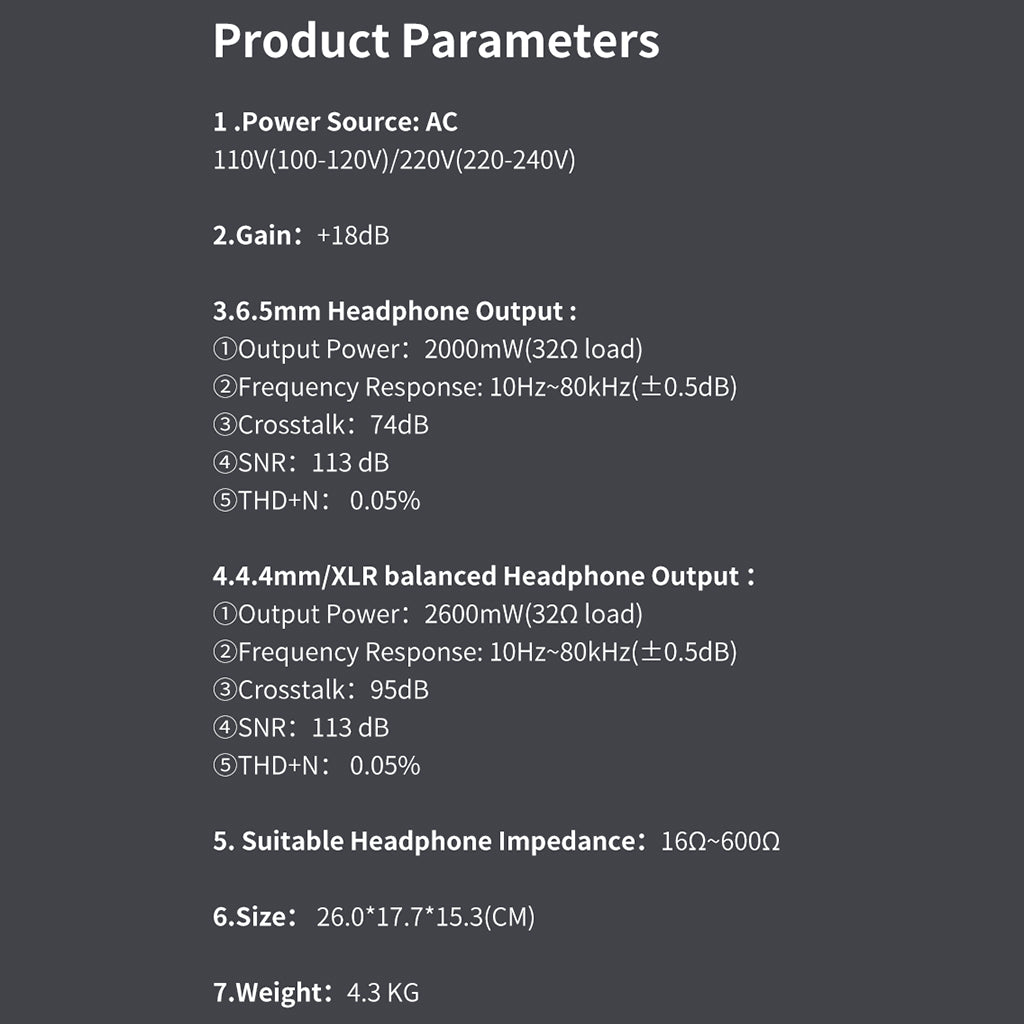

Specifications

Brand
xDuoo
Model
TA-20 Plus
Product Type
Tube Headphone Amplifier
Power supply
AC [External AC110V (110-120V)/220V (220-240V)]
Gain
18dB
Suitable Headphone Impedance
16Ω~600Ω

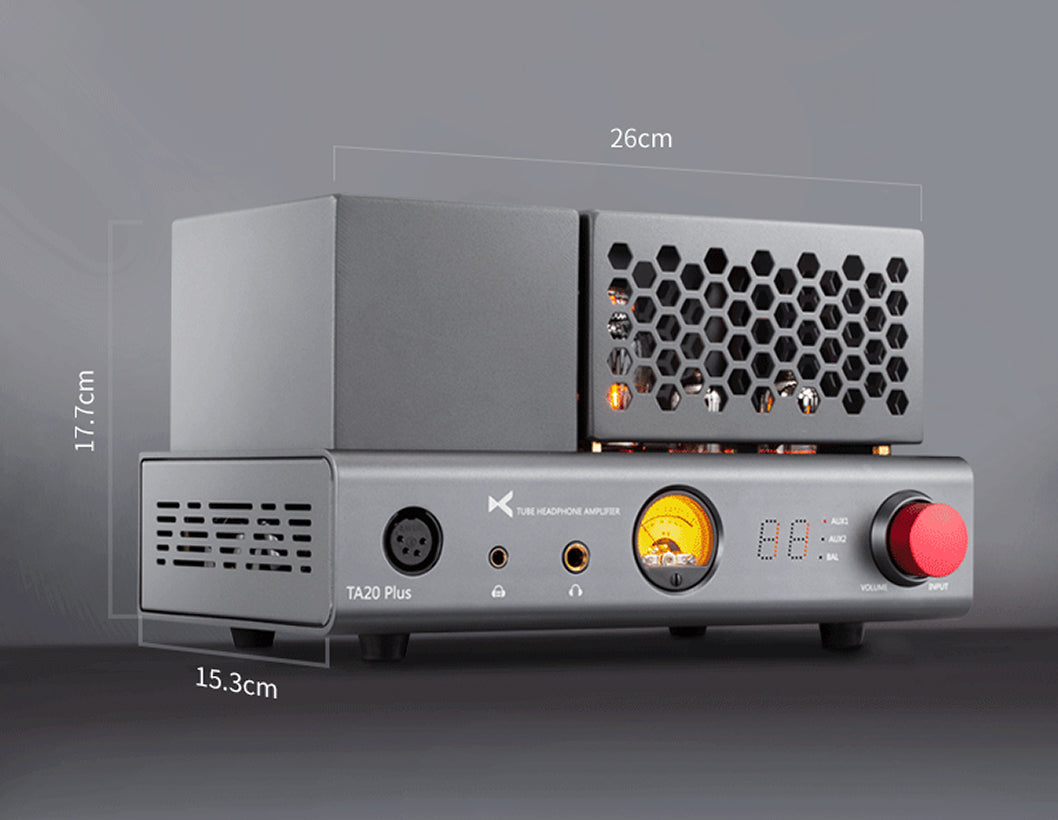

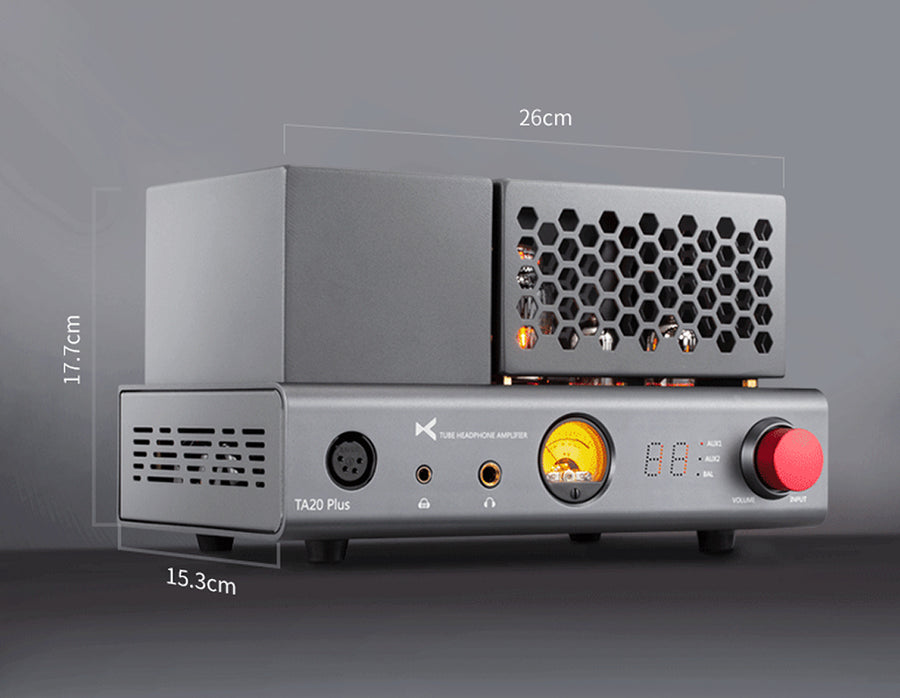

Size
26X17.7X15.3cm
Single-Ended Headphone Output Performance Parameters
Output power: 2000mW (32Ω load)
Frequency response range: 10Hz~80KHz (±0.5dB)
Separation: ≥74dB
Signal-to-noise ratio: 113dB
Harmonic distortion: 0.05%
Balanced Headphone Output Performance Parameters
Output power: 2600mW (32Ω)
Frequency response range: 10Hz~80KHz (±0.5dB)
Separation: ≥95dB
Signal-to-noise ratio: 113dB
Harmonic distortion: 0.05%
Weight
4.3KG

Box Content

    What will you get
  • 1x TA20 PLUS
  • 1x Charging Cable
  • 1x 6.35 Plug
  • 1x User Manual
