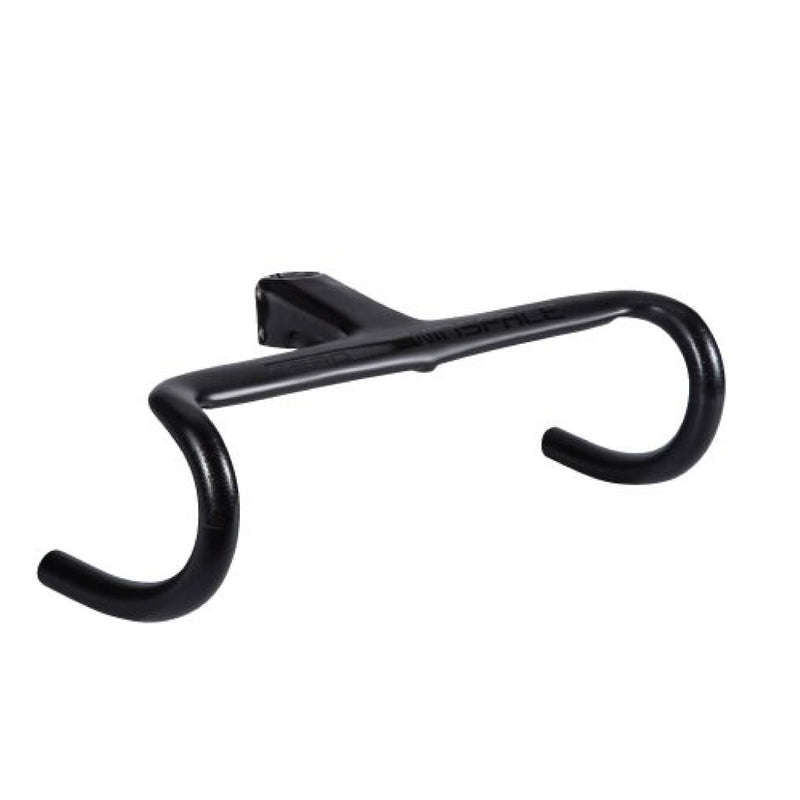

Winspace - Zero Integrated Bar and Stem Handlebar

BRAKE CABLE SET INSIDE THE HANDELBAR: 3 Internal routing to protect brake lines and reduce daily wear, reduce the occurrence of accidents, and provide you with safer travel; Integrated design Mtb handlebar for the competition that installation and removal steps easy, very suitable for competition use.

SUPPORT ELECTRONIC KIT: One Molded Carbon Fiber, Beautiful and exquisite; lightweight, high strength, breaking wind ergonomic design, easy to install and remove; can be installed Speedometer/Stopwatch holder.

BENDING ANGLE IS SUITABLE FOR HOLDING: Drop Handlebar has Lighter in weight. Much more beautiful in appearance and Carbon Fiber Compares to Aluminum alloy, brighter in color. Stronger in pressure resistant. Anti-Shock. Has Proper elasticity, Improving your bicycle’s class in minutes.

LIGHTWEIGHT: One molded carbon fiber, beautiful and exquisite; Light weight, high strength, comfortable and tough.

SWEEP BACK DESIGN: 41° sweep angle makes it an ergonomic replacement to the flat handlebars as it helps relieve hand and wrist pain caused by the unnatural grip of straight bars.

SIZE: L (Stem Length)- 95/105/115mm, W (Width Center to Center) – 380/400/420mm, R= 75mm D= 125mm A=10Degree E= 6Degree. All Stem length and bar width combinations available.

SUPPORTS: Supports Shimano “A” Junction Box. Supports fitting of Shimano RS910 Junction box.

OUT FRONT GPS MOUNT: Adjustable length supports up to Garmin 1030-Sized head units. Compatible with Garmin and Garmin-Compatible head units. (Bryton, XPlova, XOSS etc.)

FEATURES OF CARBON INTEGARTED HANDELBAR: The importance of a winspace integardted handlebar can't be overstated. As you ride along, it's one of the first things to hit the air. It's where you steer your integrated handlebar road bike, so it needs to be well designed. You have to shift and brake with your hands at this point; So, ergonomics is important. It's also where you get a lot of power from in your sprint, and your sprint can make or break your race, so stiffness is important. Winspace Zero is not meant to be a show-queen; placed on a bike on a display stand and never ridden, it's meant to be raced...HARD. As we designed the Winspace Zero, we were focused primarily on aerodynamics and stiffness, and using our 10+ years of carbon composite experience, we engineered the bar to exceed industry standards for stiffness and safety.

USEFUL PRACTICES OF INTERNAL ROUTING CABLE INSTALLATION:

1. To make it simpler, get about a foot length of nylon tubing 2 or 3 mm in diameter. Poke it through the elongated hole nearest the center and look for the end of it at the other hole. Grab it with a pair of needle nose pliers and pull it through. Then thread the cable through and slide off the nylon tubing. Repeat this for other brake or shifter cable so you have a pair of cables running through.

2.Using the cable as a guide, slide the brake outer sleeve on first, again from the center hole. This is the tricky bit because the hole is near the bend so the sleeve doesn't naturally run into the exit hole. You had to pull the cable tight so the end of the sleeve was up against the inside of the hole and with a small screwdriver under the cable, levered it up so the sleeve aligned with the whole then pulled it through. Repeat this for the smaller shifter outer sleeve.

REMINDER:

1. Highway Road bike handlebar Do not enter the mountain road; the wrong cycling will crash the road handlebar.
2. Install the product correctly, please follow the specified tightening torque (4Nm).
3. 3.Tighten the screws. Since it is made of carbon, we recommend tightening the body to support it by tightening with your hands. Cracks can occur when strong tensions occur.

SPECIFICATION:

Brand Name: Winspace

Model Name: Zero

Size: L (Stem Length)- 95/105/115mm, W (Width Center to Center) – 380/400/420mm

Material: Carbon Fiber

Stem Length: 95/105/115mm

Width Length: 380/400/420mm

PACKAGE CONTENT:
