Winspace - SLC 2.0 Frameset

Winspace

Ultra Lay-Up Super-Stack Technology | Embedded Head Tube With I-Style Embedded And Headtube 2.0 | EPS TECH For Smooth Interior And Exterior Surfaces And Improved Rigidity-Weight Ratio | Asymmetric Fork And BB86 For Enhanced Rigidity And Stability | Direct Mount Rim Or Flat Mount Disc Brake Option | Max Tire Clearance Of 700C*28C | Front Derailleur Brazed On | Derailleur Routing For Mechanical, Di2, Or Campy EPS | Axle Options Of 9mm QR F100mm R130mm Or 12mm Through Axle F100mm R142mm | Suitable For Continuous Attack, Sprinting, Climbing, Or Long-Distance Riding

₹ 129,999.00 ₹ 155,999.00 Save ₹ 26,000

Tax & Shipping Included

Tax IncludedShipping Included

Name: Disc Brake
Rim Brake
Disc Brake
Size: 490mm
470mm
490mm

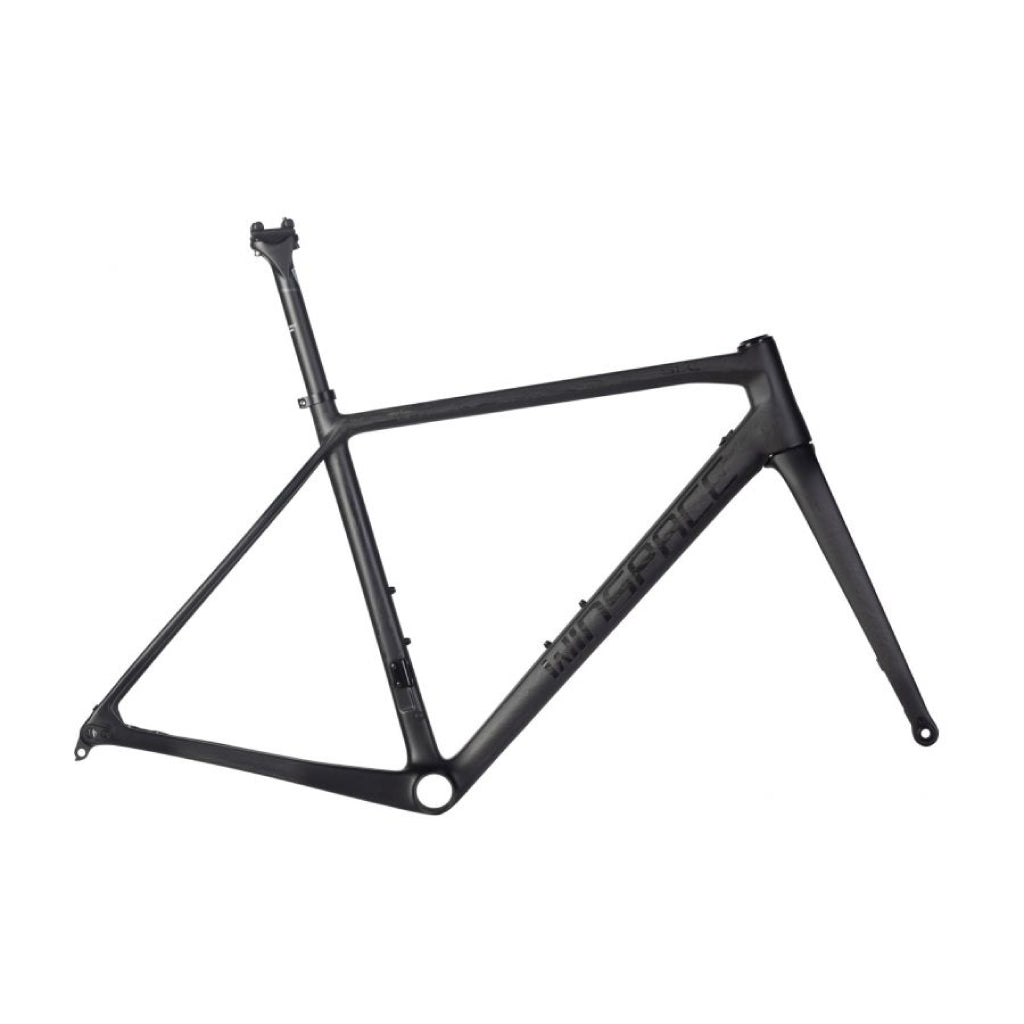

Color: Super Light Black
Concept-Kart-Winspace-SLC-2.0-Frameset-1-_3

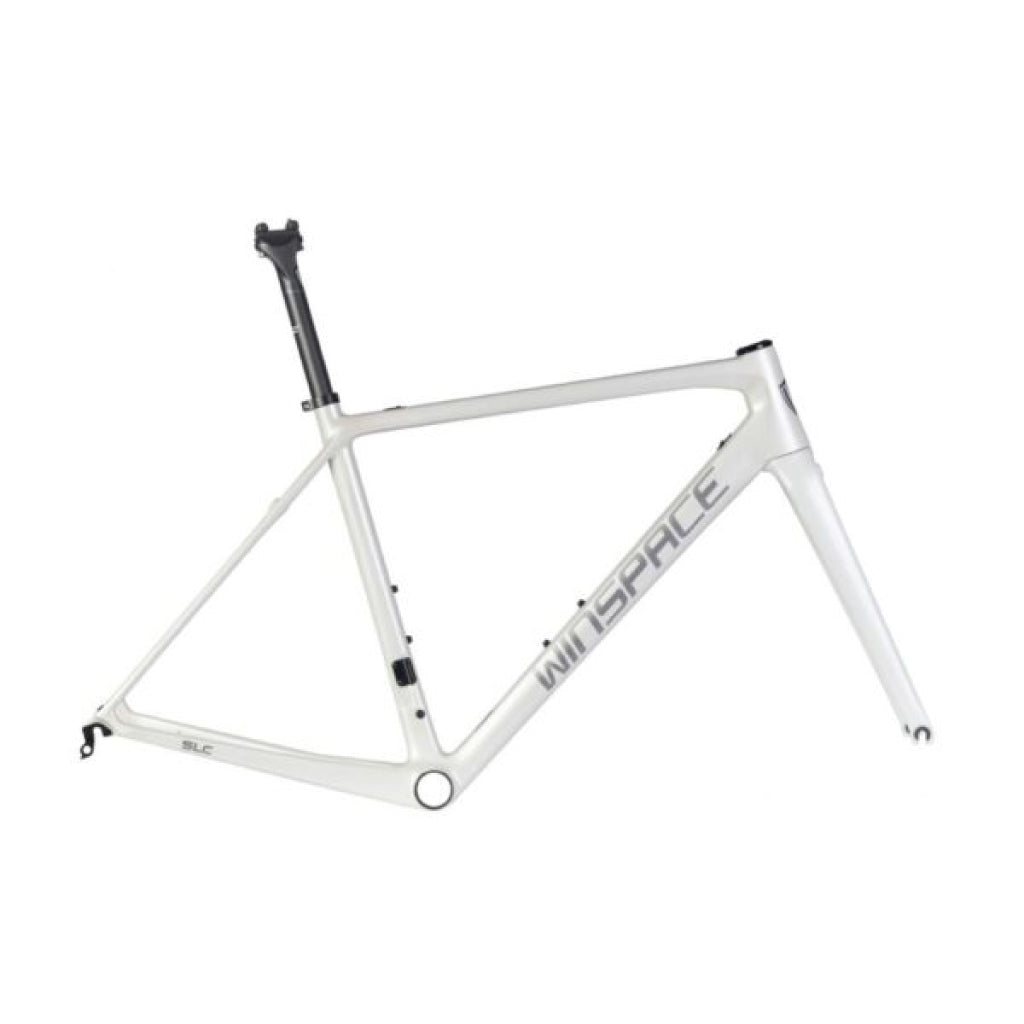

Glacier White

Shipping Icon Shipping & Delivery


Delivery might be delayed in areas affected by the farmer's protests

Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

3 Year Manufacturer's Warranty

Description

SUPER LIGHT CLIMBER

The Winspace SLC 2.0 is designed for climbers and riders who value a lightweight and efficient bike. With a weight of 780g for a M-size frame, the SLC 2.0 is one of the lightest frames available on the market, making it easy to assemble a complete bike under 6.7kg.

ULTRA LAYUP TECHNOLOGY

The SLC 2.0 features ultra layup technology, which uses a combination of high modulus carbon fiber and 45-degree carbon yarn to achieve the perfect balance between stiffness and cushioning. This technology also allows for the optimal combination of row stack to enhance the frame's performance.

ASYMMETRIC FORK DESIGN

The SLC 2.0 has an asymmetric fork design that considers the differences in forces between the chainring and non-chainring sides. This design ensures that both chain stays and the chain are combined to form a stable and balanced transmission structure, providing stability and rigidity for high-speed bending or high-power sprint.

DIRECT MOUNT BRAKE

The SLC 2.0 has a direct mount braking system that offers better stability and a more optimized layout for pulling cables. This design enhances the brake pinching feel of fluency and increases braking efficiency by 15%, giving riders a more relaxed ride experience.

EPS TECH TECHNOLOGY

The SLC 2.0 features EPS TECH technology, which makes the inside and outside of the frame even and smooth, preventing carbon fiber wrinkles and insufficient bonding of the carbon fiber and epoxy resin. This technology also improves the rigidity-weight ratio and strength of the frame, providing better durability and performance.

ASYMMETRIC BB86

The SLC 2.0 has an asymmetric full carbon bottom bracket designed to enhance the rigidity of the key parts of the frame's rigidity-weight ratio, bringing more stable physical properties.

EMBEDDED HEAD TUBE

The SLC 2.0 features an embedded head tube, which is 1-1/8-inch and 1/2-inch in size, and a large-caliber classic conical headset to increase the diameter of the bottom area, improving rigidity and ride stability. The upper front fork and tapered integration provide a perfect fit.

MAX TIRE CLEARANCE

The SLC 2.0 has a maximum tire clearance of 700C*28C, allowing riders to choose the tire width that best suits their needs.

DERAILLEUR ROUTING

The frame can accommodate mechanical, Di2, or Campy EPS derailleur routing, giving riders the flexibility to choose their preferred drivetrain.

Add a heading

Add content using the options to the left

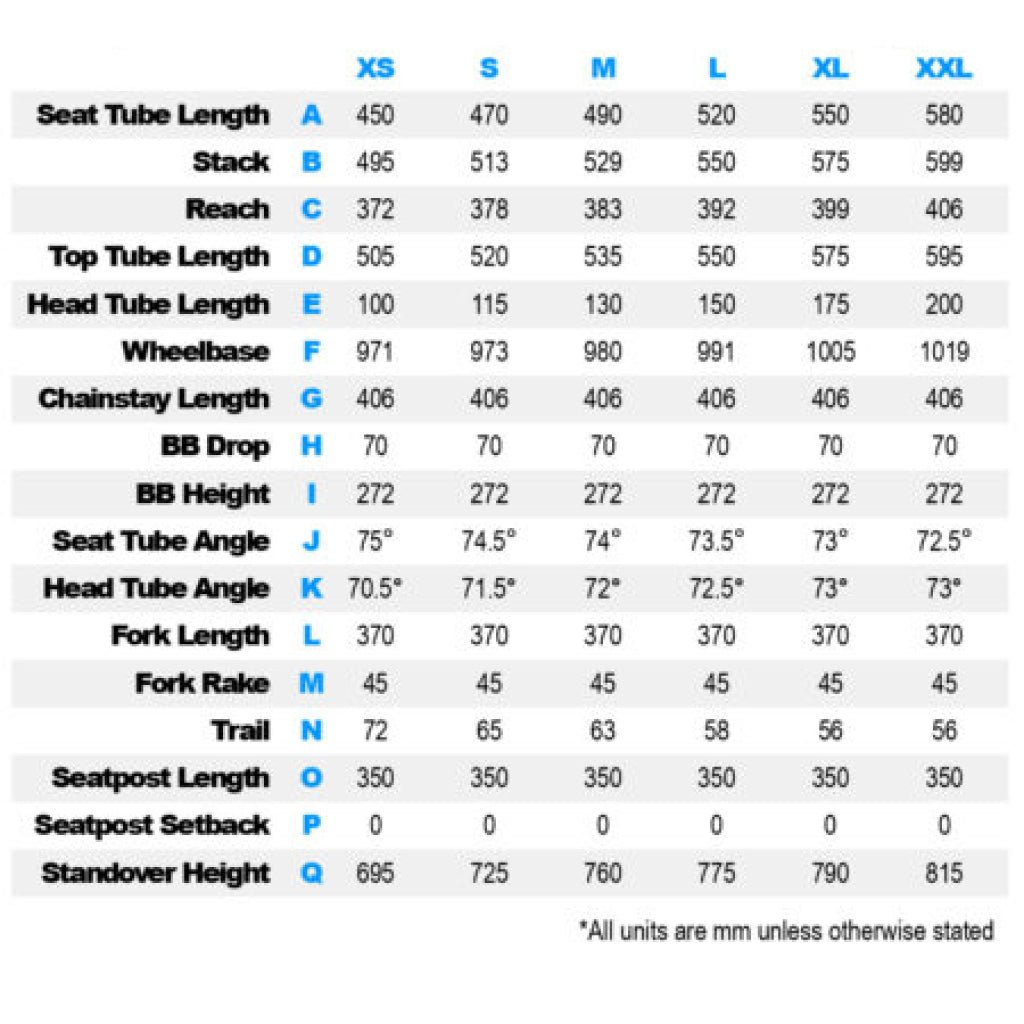

Specifications

Brand Name
Winspace
Model Name
SLC 2.0
Product Name
Winspace - SLC 2.0 Frameset
Sizes
Seat Tube 490mm (Disc Brake), 470mm (Rim Brake)
Headtube
1 1/8”-1 1/2”;
BB
BB86
Seat post
27.2mm
Brake
Direct mount rim brake or flat mount disc brake
Front Derailleur
brazed on
Derailleur routing
mechanical/Di2/Campy EPS
Tyre clearance
Max. 700C*28C
Axle
9mm QR F100mm R130mm or 12mm through axle F100mm R142mm
Carbon fiber
Toray T800 and T700, UD
Weight
1, Gloss logo on matt finish without paint about 780g+/-50g for M size
2, Full painting usually adds about 100~150g:950g+/- 50g for M size.
Components
Frame, Fork, Seat post, Headset, Spacers, Di2 Cable stoppers

Box Content

    What will you get:
  • 1x Winspace - SLC 2.0 Frameset

Warranty

3 YEAR WARRANTY

Don't worry, Winspace - SLC 2.0 Frameset comes with a 3 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
