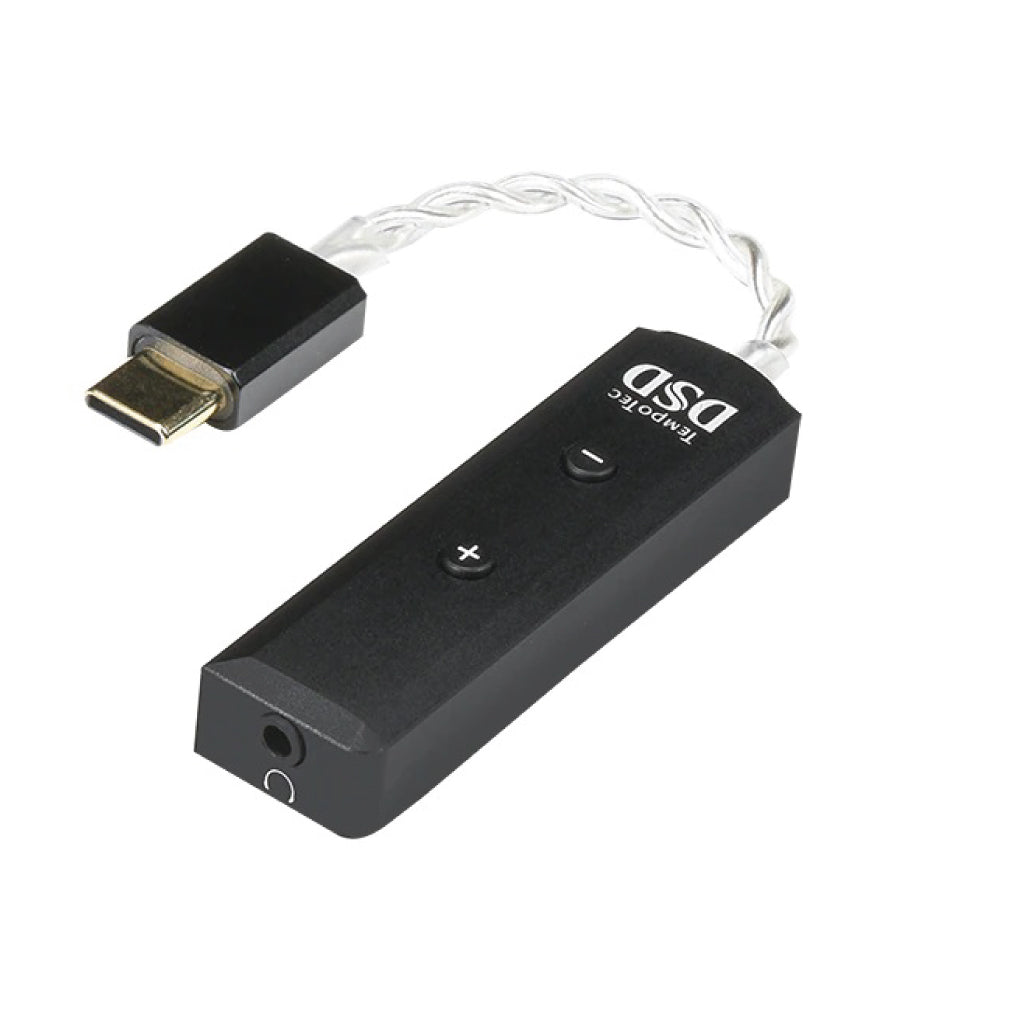

[PRODUCT NAME] SONATA BHD, Type C port, 2.5mm headphone jack,Real Balance output,DSD256 for Android Phone&PC&MAC Headphone Amplifier, not support iPhone

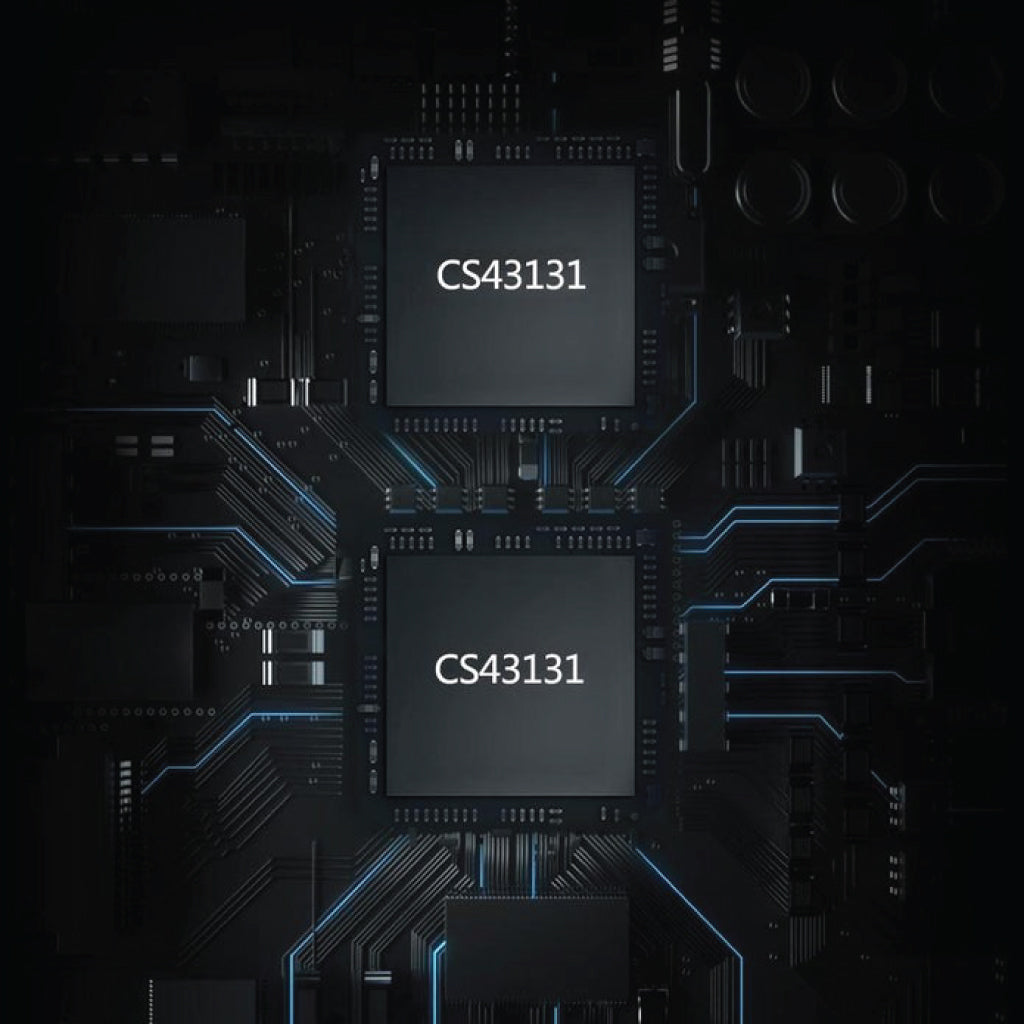

[DUAL CS43131 DECODING CHIP] Two CIRRUS LOGIC low-power high-resolution decoding chips. SNR: 129dB, THD+N: -113dB, HP Out: 120MW/32ohms 20MW/600ohms
[PURE HARDWARE VOLUME CONTROL] Sonata BHD provides PREAMP pure hardware volume control which is independent of the volume control by software on the mobile phone. Realize the hardware decoding of DSD audio source.

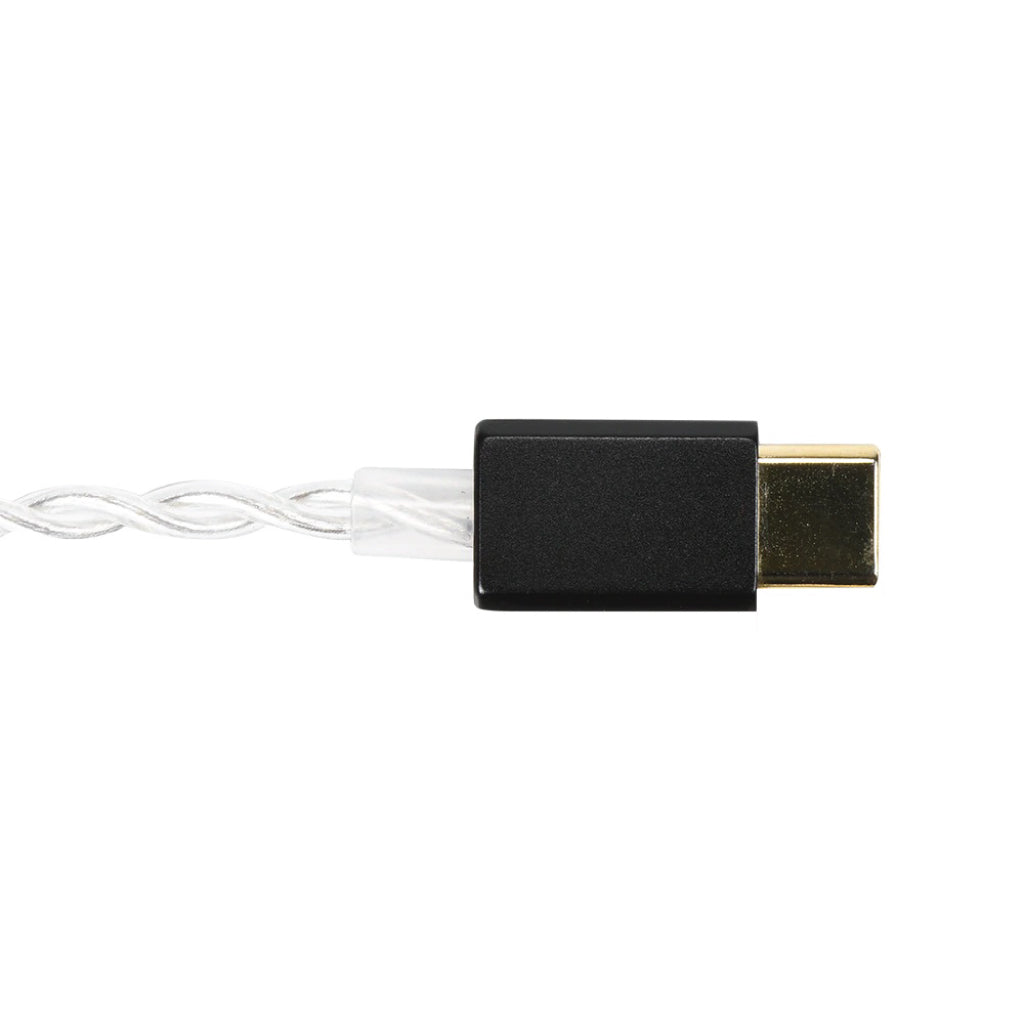

[WITH SINGLE CRYSTAL COPPER SILVER-PLATED WIRE] In order to fully improve the transferring accuracy of the digital signal, Sonata BHD uses a customized gold-plated TYPE C connector
[SUPPORT MULTIPLE SYSTEMS] Sonata BHD can not only support various types of Android phones with TYPE C interface, but also support PC. Please make sure that you have turned the “OTG function" and “USB debugging mode” on of your android phone. Please find these two switches under “developer options” on your phone first.

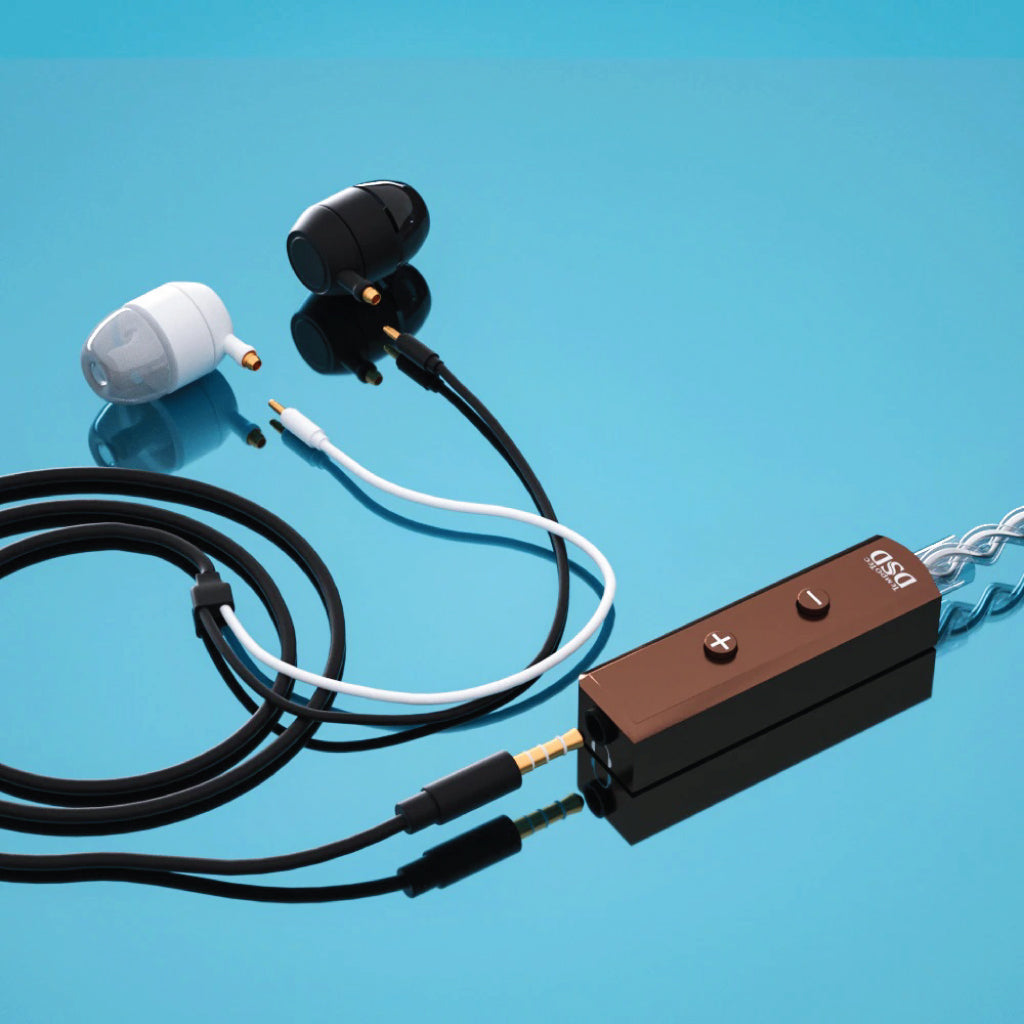

Dual CS43131 decoding chip / 2.5mm headphone jack / Real Balance output

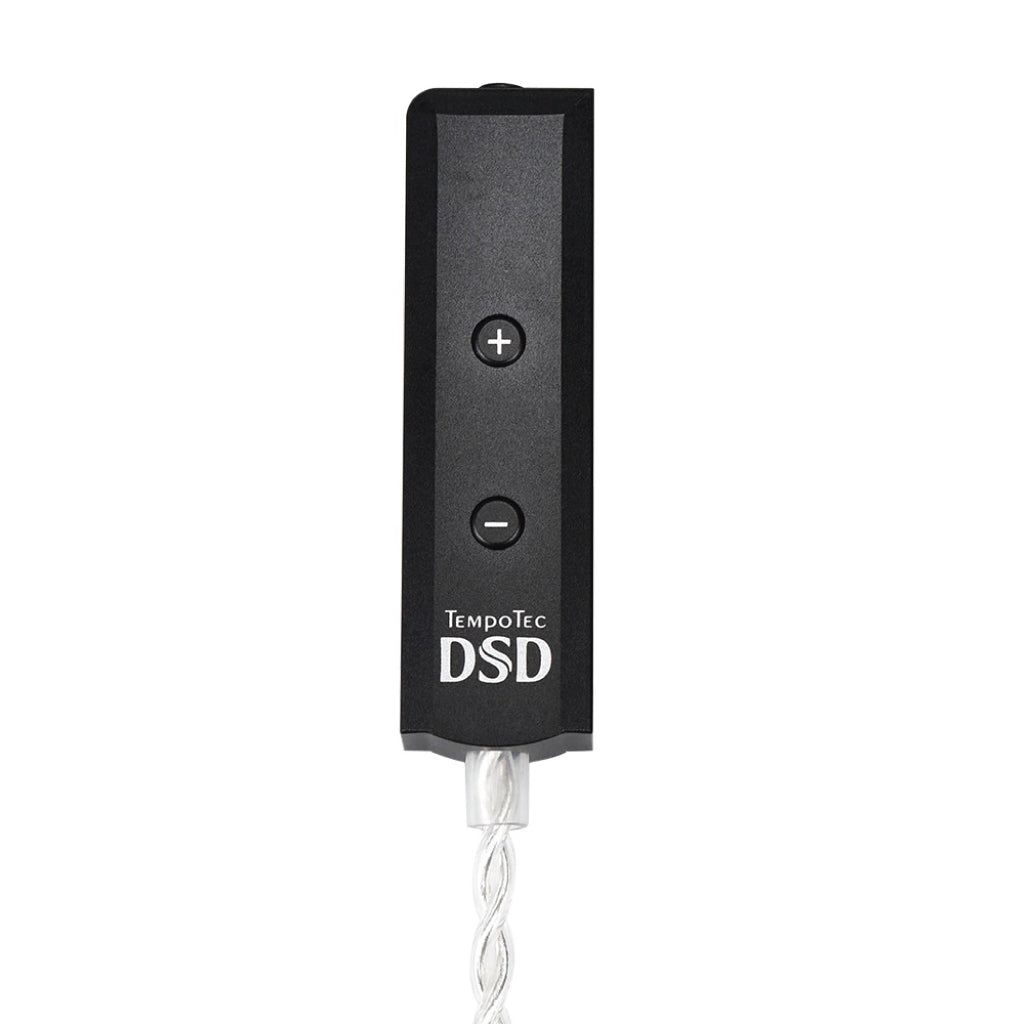

Volume Button, native DSD decoding

SPECIFICATIONS:

Level: 2VRMS
Crosstalk: greater than 118dB (32 ohms)
PCM: up to 32bit/384kHz

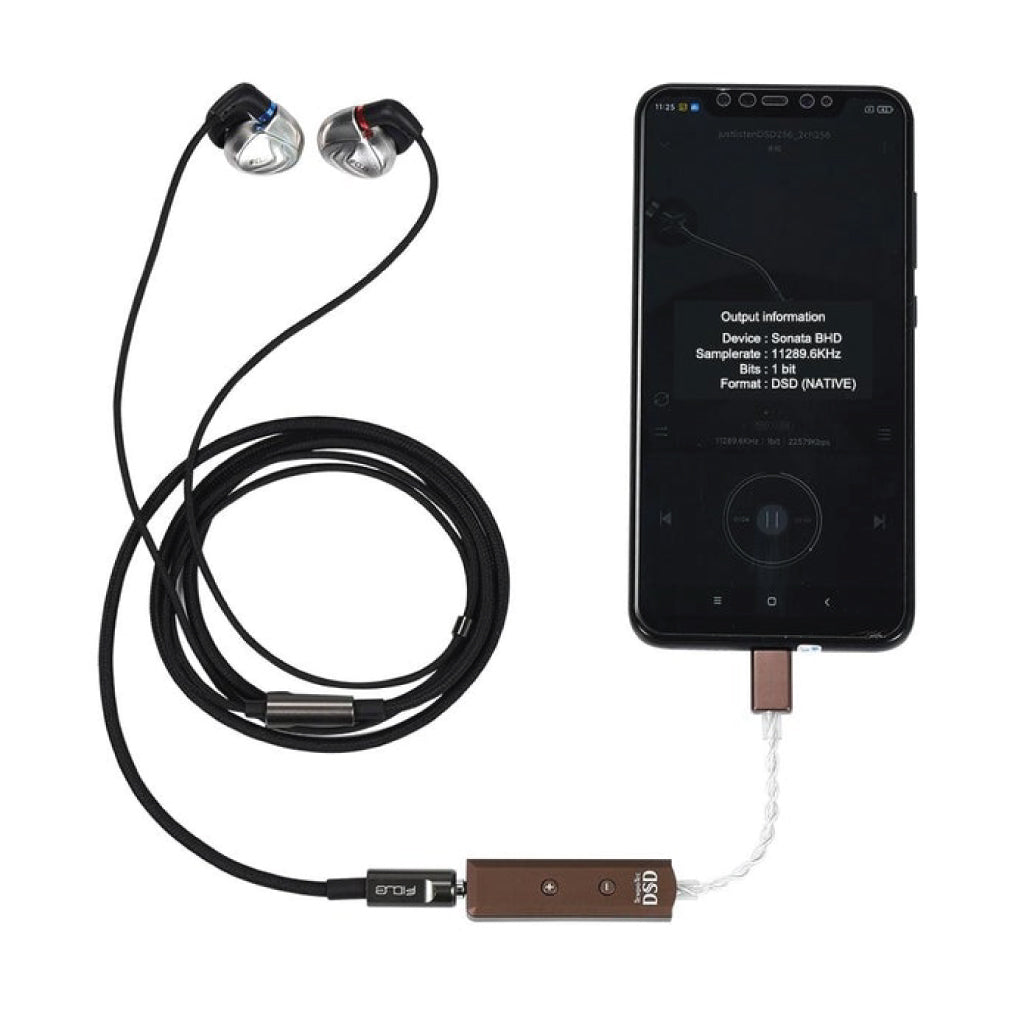

DSD: to DSD256 (NATIVE) DSD128 (DOP)
Hiby Music APP: Support exclusive
PC: Exclusive ASIO driver
Volume control: independent hardware volume control

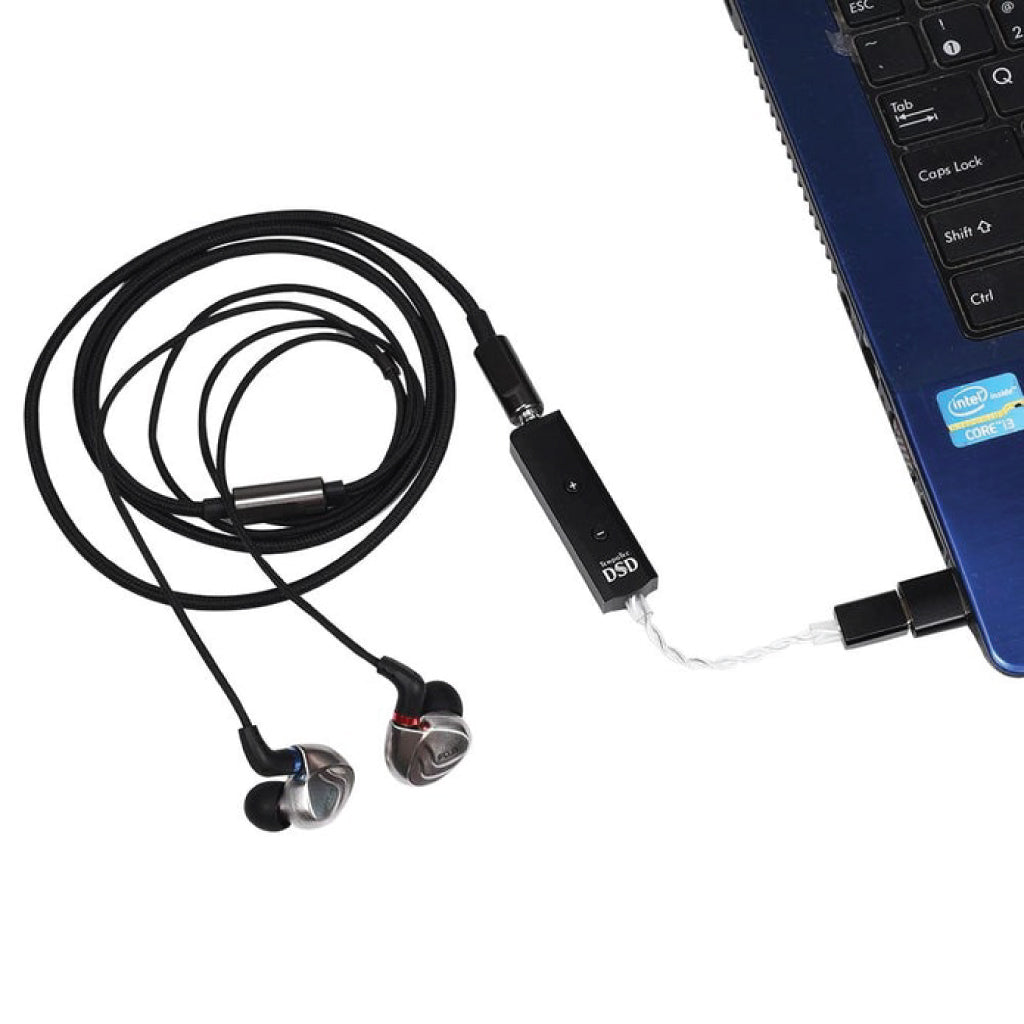

SUPPORT MULTIPLE SYSTEMS:

Sonata BHD can not only support various types of Android phones with TYPE C interface, but also support PC.
According to its standard USB architecture, Sonata BHD can work on MAC operating system without installing any USB audio driver.
We have professional USB Audio driver and ASIO driver which can process PCM and DSD audio files on WINDOWS system, just enjoy music when you are ready.

INSTRUCTIONS:

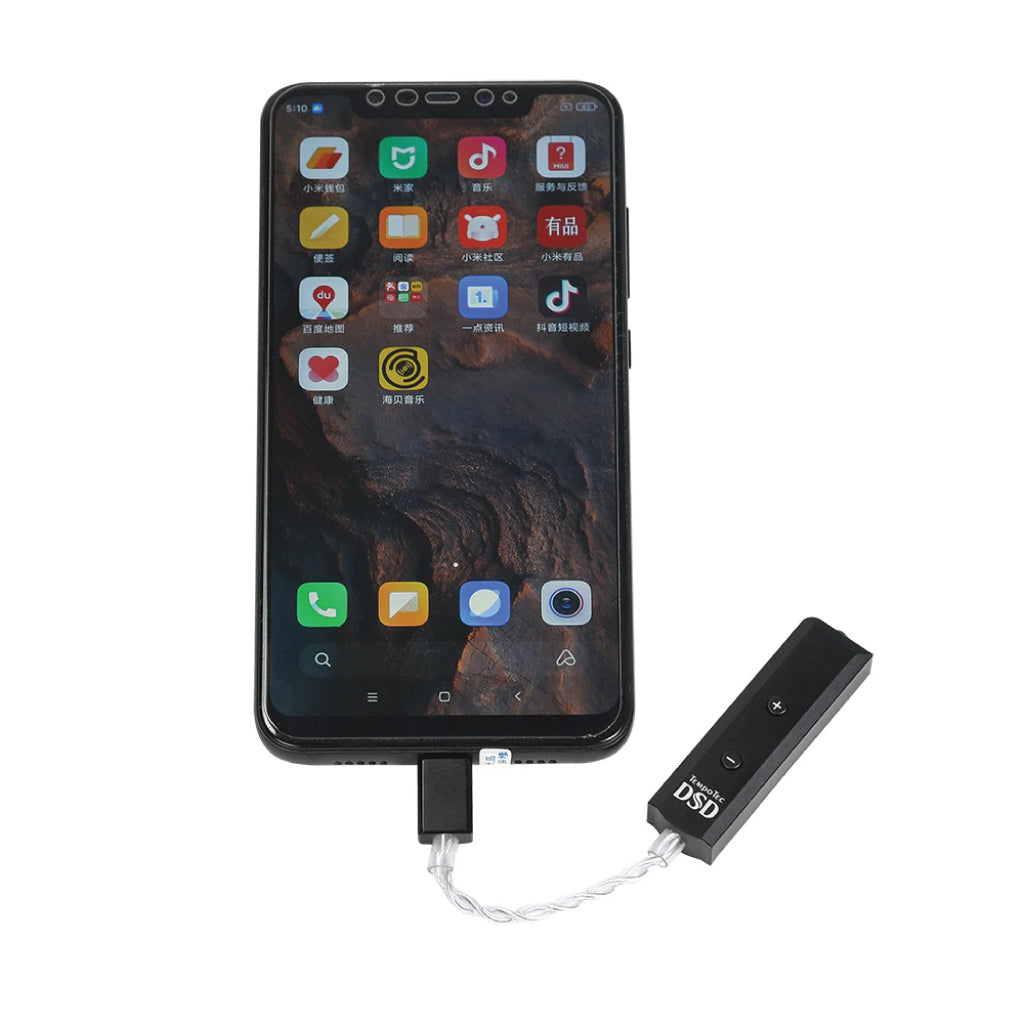

1. Sonata BHD can be compatible with most of the Android phones which has TYPE C interface on the market. Please make sure that you have turned the “OTG function" and “USB debugging mode” on of your android phone. Please find these two switches under “developer options” on your phone first.
2. Sonata BHD is a plug-and-play device on the Apple computer system, please select it as the default audio output device in the "MIDI device" after connecting the product
3. Sonata BHD can work directly on windows system which is latter than WINDOWS 10 (version 1.073) without installing any USB audio driver. But if your operating system us Windows 7 or Windows 8, you have to install our professional USB audio driver to enjoy music, especial DSD music. (It is strongly recommended that you install our ASIO driver to feel every detail of the music)

PACKING INCLUDED:

1* Sonata BHD
1* Adapter (female type-c to male USB-A)
1* Leather Case for Sonata BHD
