TECPHILE - TDL-2025 PIR Motion Sensor Switch

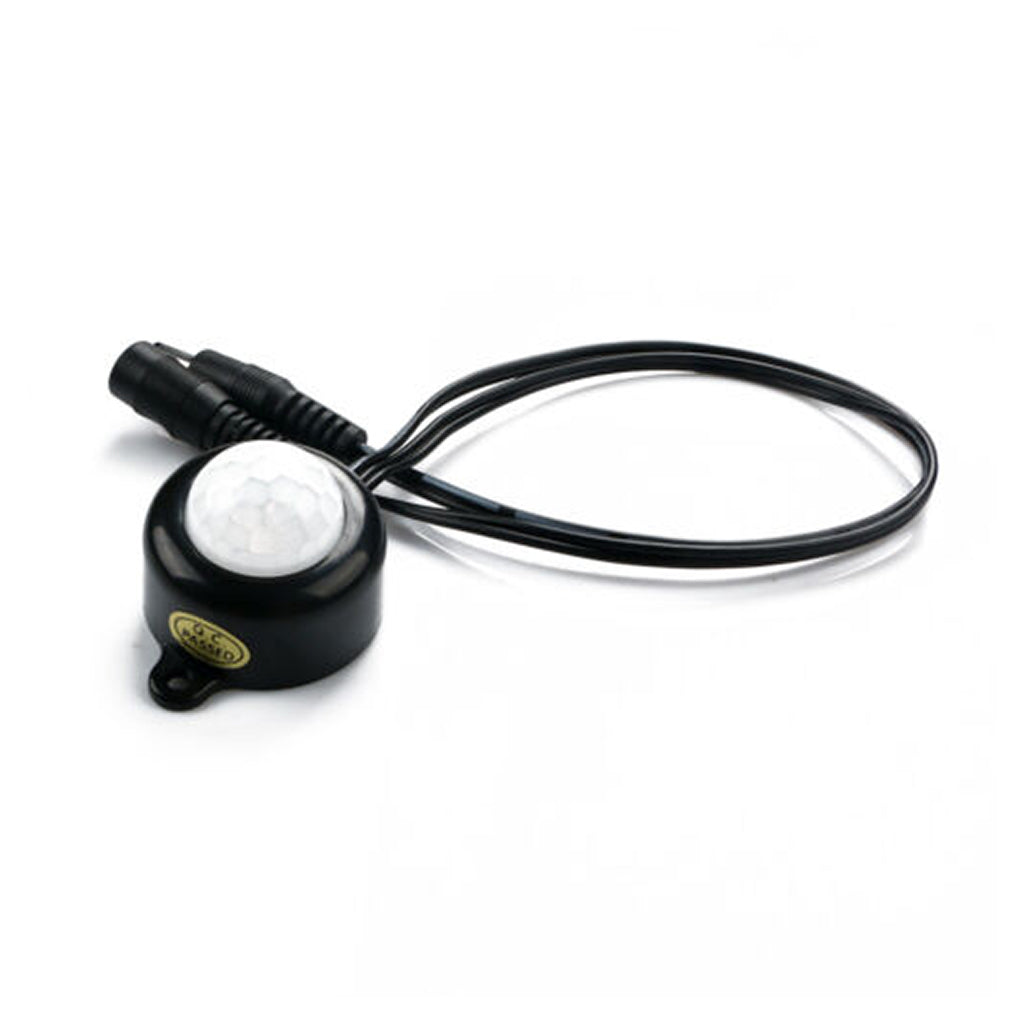

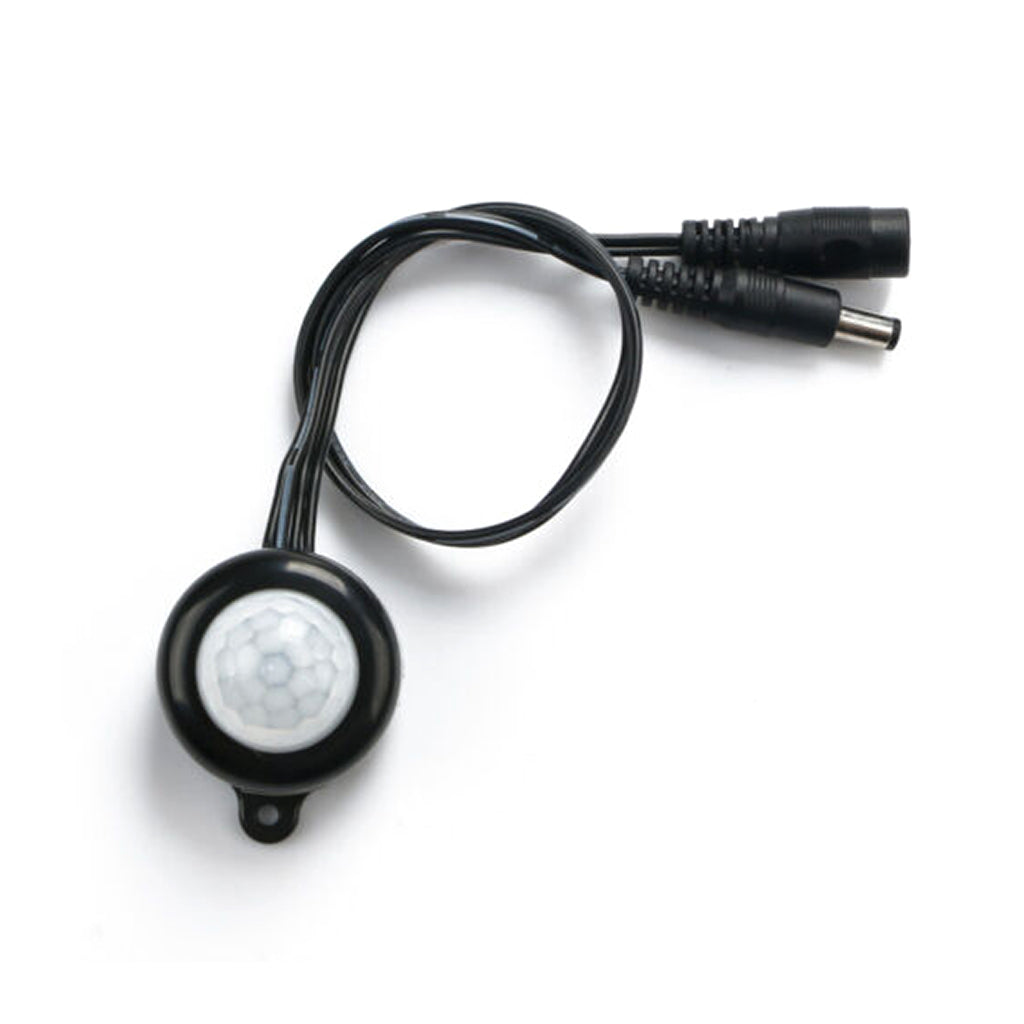

PIR MOTION SENSOR: The DC 6V-24V, 5A PIR motion sensor is equipped with a passive infrared (PIR) motion sensor, which is able to detect human body movement. When the sensor detects motion, it will activate the connected device, such as LED lights or appliances.

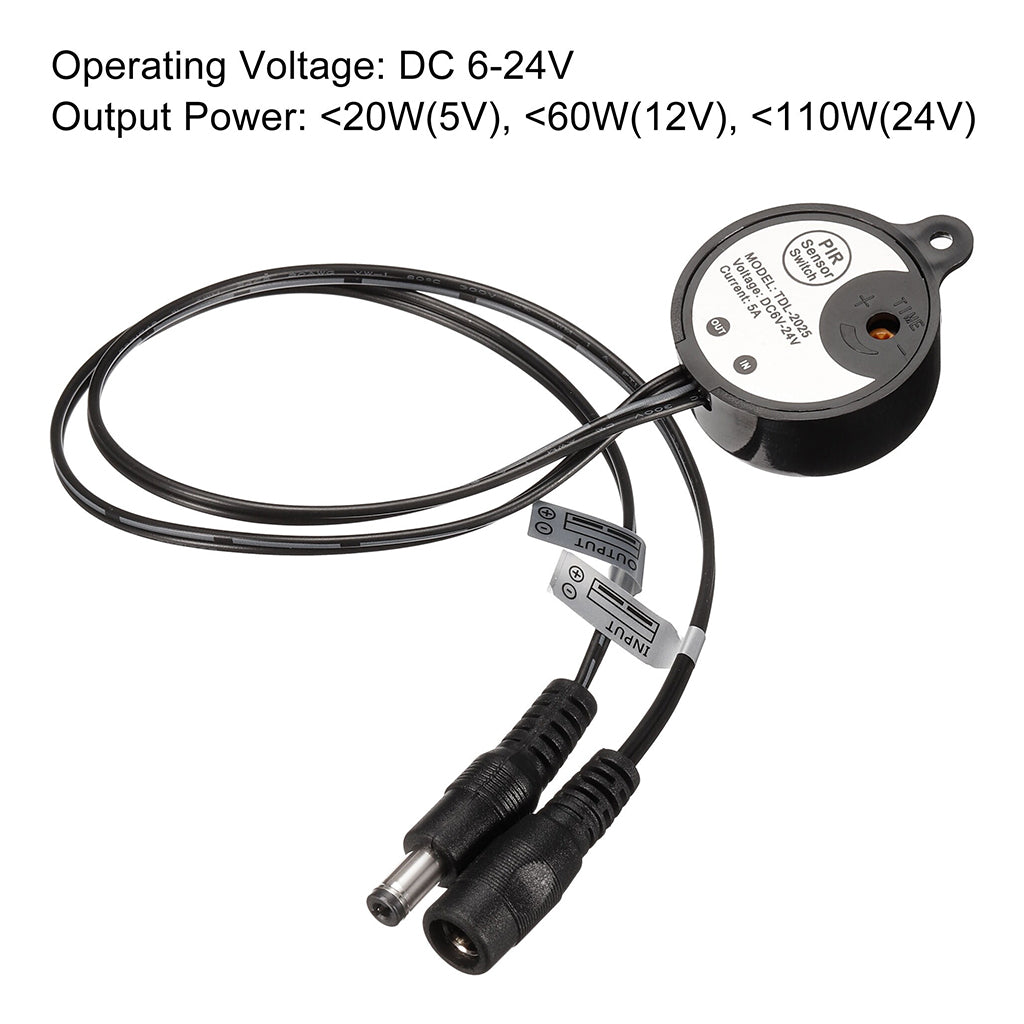

VOLTAGE RANGE: This PIR motion sensor is suitable for use with a DC voltage range of 6V-24V. This makes it compatible with a variety of devices and power sources.

MAXIMUM OUTPUT CURRENT: The maximum output current for this PIR motion sensor is 5A. This means it is capable of powering devices that require up to 5A of current.

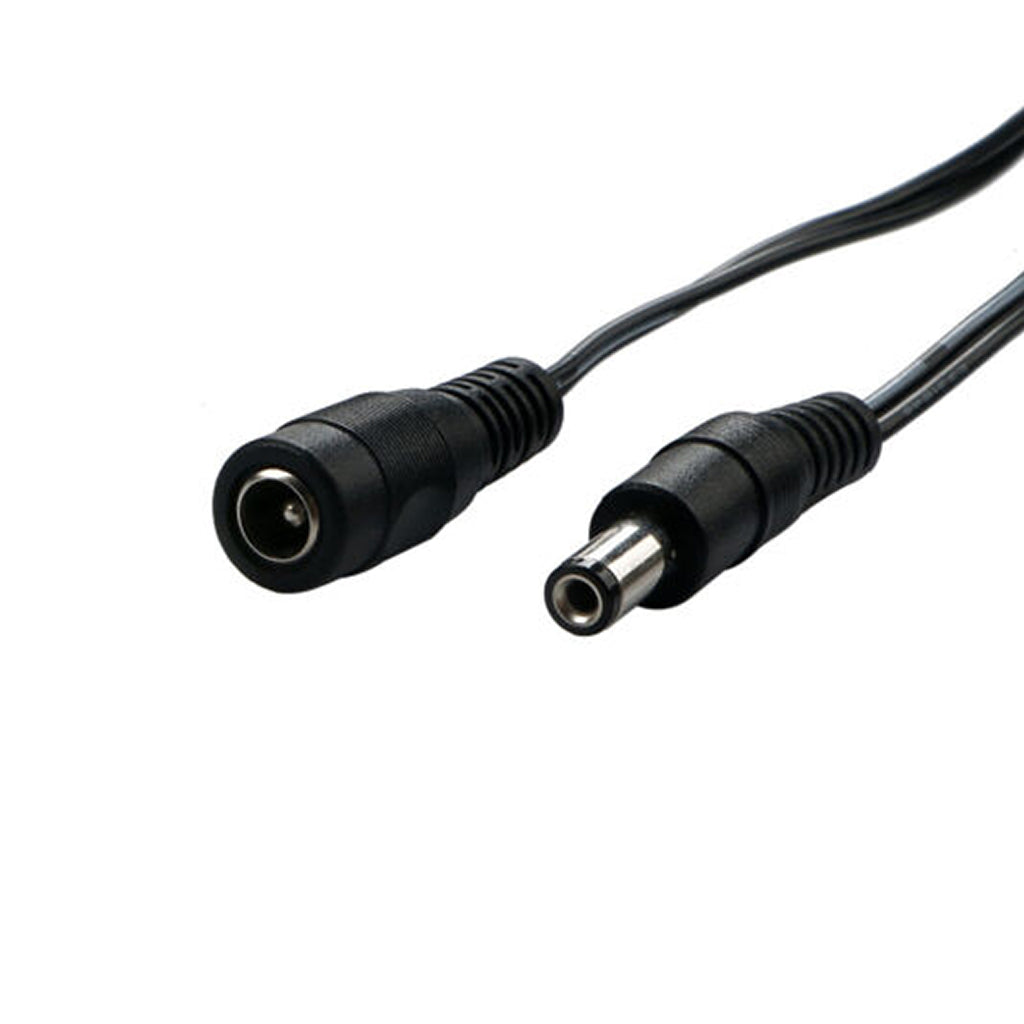

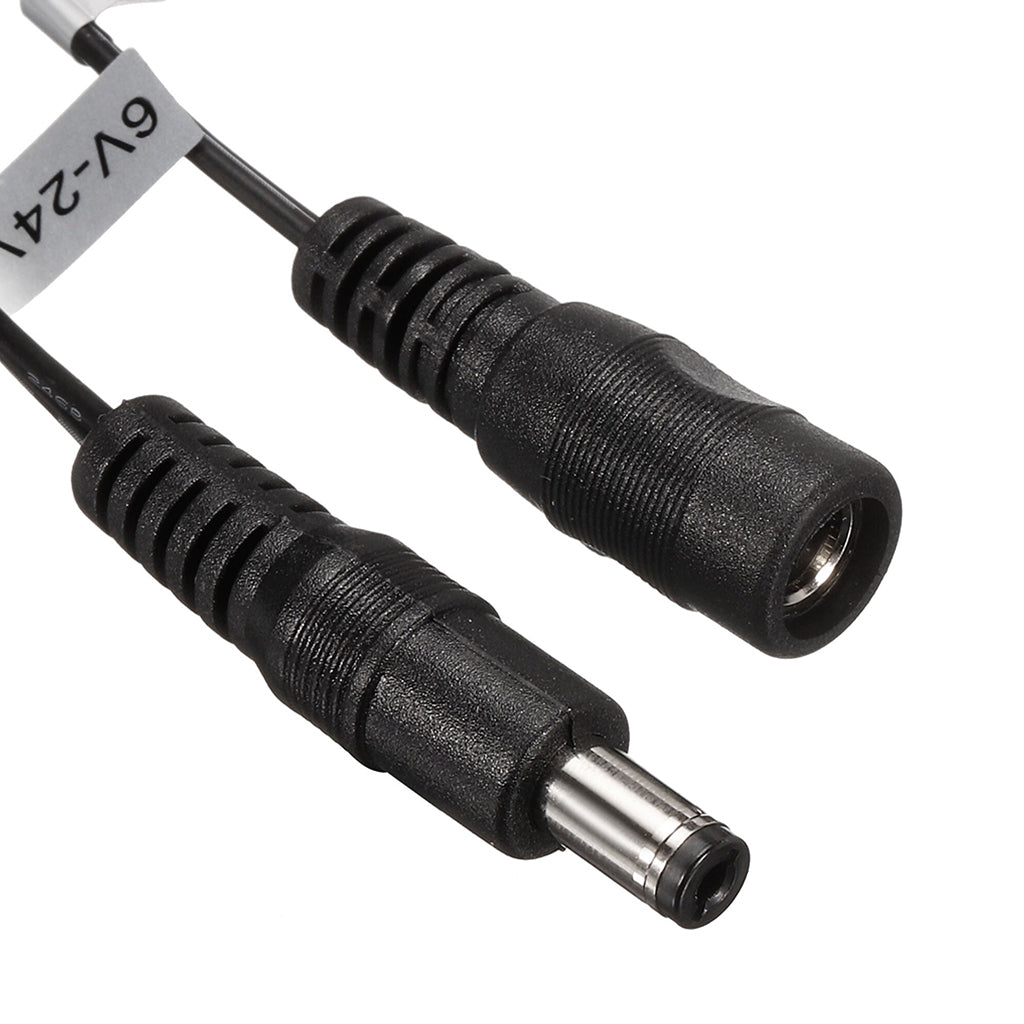

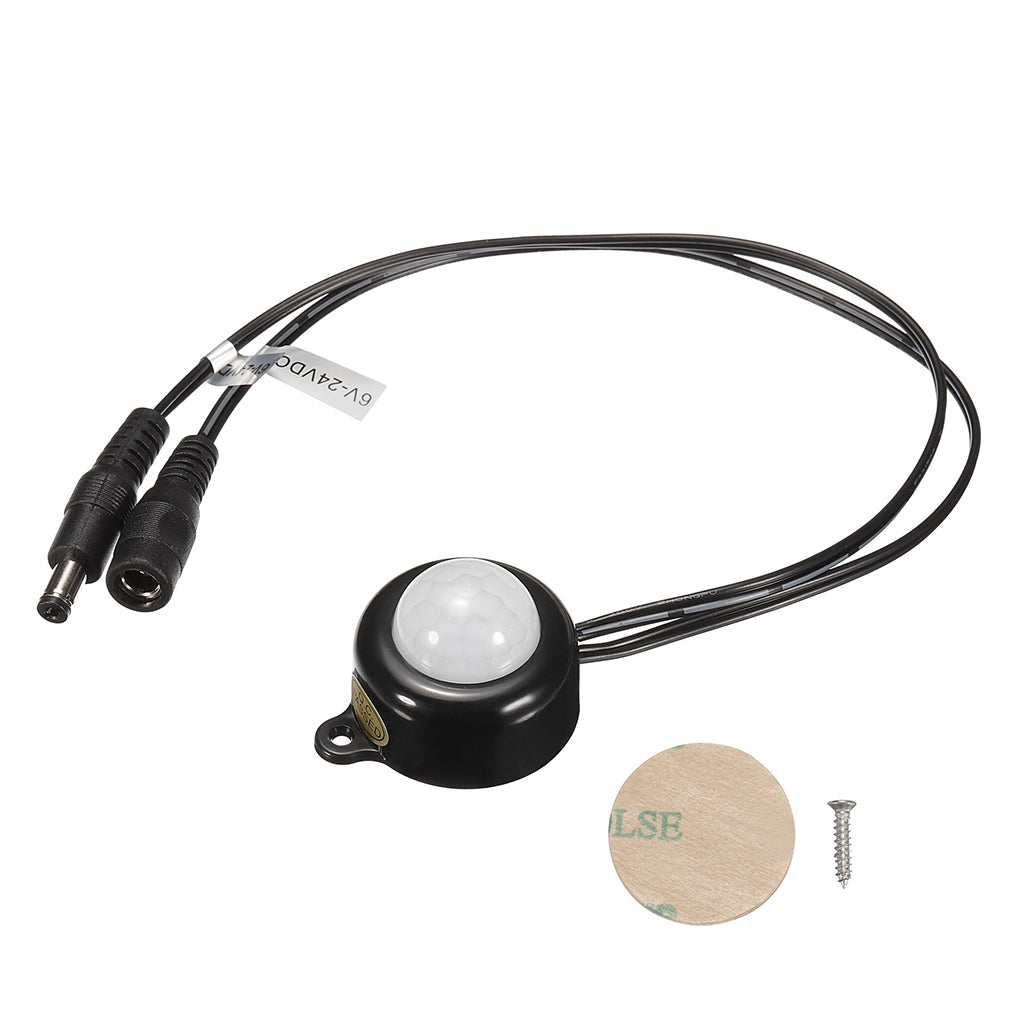

DC CABLE: The PIR motion sensor comes with a DC cable for easy installation. This makes it simple to connect the sensor to the power supply and the device that it will be controlling.

AUTOMATIC INDUCTION: This PIR motion sensor features automatic induction, which means that it will activate the connected device when motion is detected. This is a convenient feature that can save energy and make using the device more user-friendly.

LIGHT SENSOR: The PIR motion sensor is equipped with a light sensor, which enables it to be used in low-light conditions. This means that the sensor will only activate the connected device when it is dark enough to require the use of the device.

DETECTION RANGE: The detection range for this PIR motion sensor is 0-7 meters, and it has high sensitivity. This means that it is able to detect motion from a relatively far distance, making it suitable for a variety of applications.

TIMING SETTING: The PIR motion sensor has an adjustable timing setting, which can be set between 15s and 360s. This means that the connected device will stay on for the set amount of time after motion is detected, making it customizable for a variety of situations.

APPLICATIONS: This PIR motion sensor can be used for a variety of applications, including home or outdoor monitoring, automatic lighting, advertising lighting, and more. It is ideal for security and protection, entryway lighting, kitchen/cabinet/pantry/closet lighting, and human/pet monitoring.

NOTE: The light sensor of TDHL-2025 W/B is very sensitive to variable currents. It is recommended to use with single color LED Strip, if used with flashing LED Strip, please adjust its mode to be static color or use greater than 3A(<6A) for your LED Strip. Otherwise, it may not work

Product Tips

1. Please try to use DC 6V-24V Voltage. When using voltage of DC 5V, may affect the stability of the product work.
2. When the indoor temperature is close to human body temperature, the sensitivity of the product will decrease.
3. With Light Sensor: Work only in dark light or at night, not during the day; Without Light Sensor: Support Day and night use, if you do not want to use during the day, please turn off the power.
4. If your LED Strip connect with mini RGB/RGBW(<2A) Controller, please adjust it mode to be static color or use controller greater than 4A for your LED Strip, otherwise it may affect its normal work.
