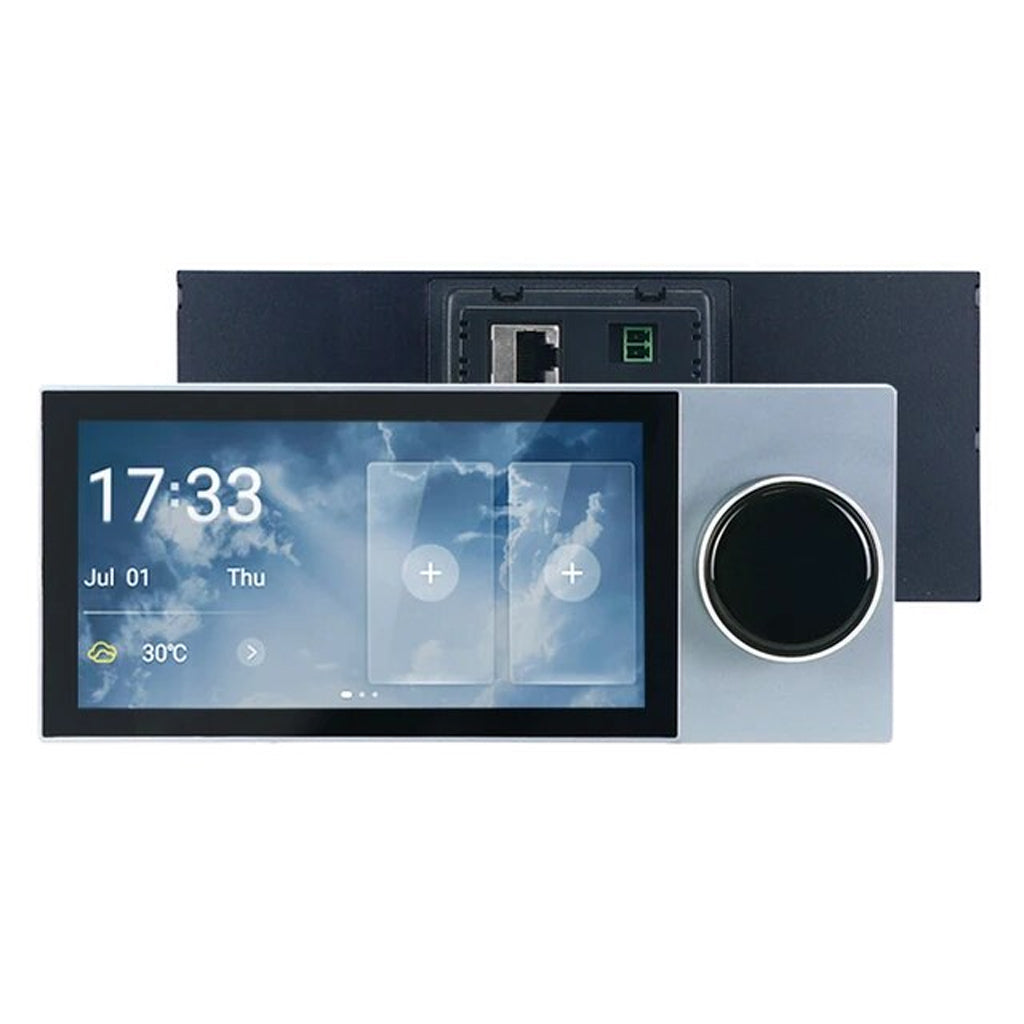

TECPHILE 6'' Smart LCD Control Panel For Zigbee Devices - 1
badgechat

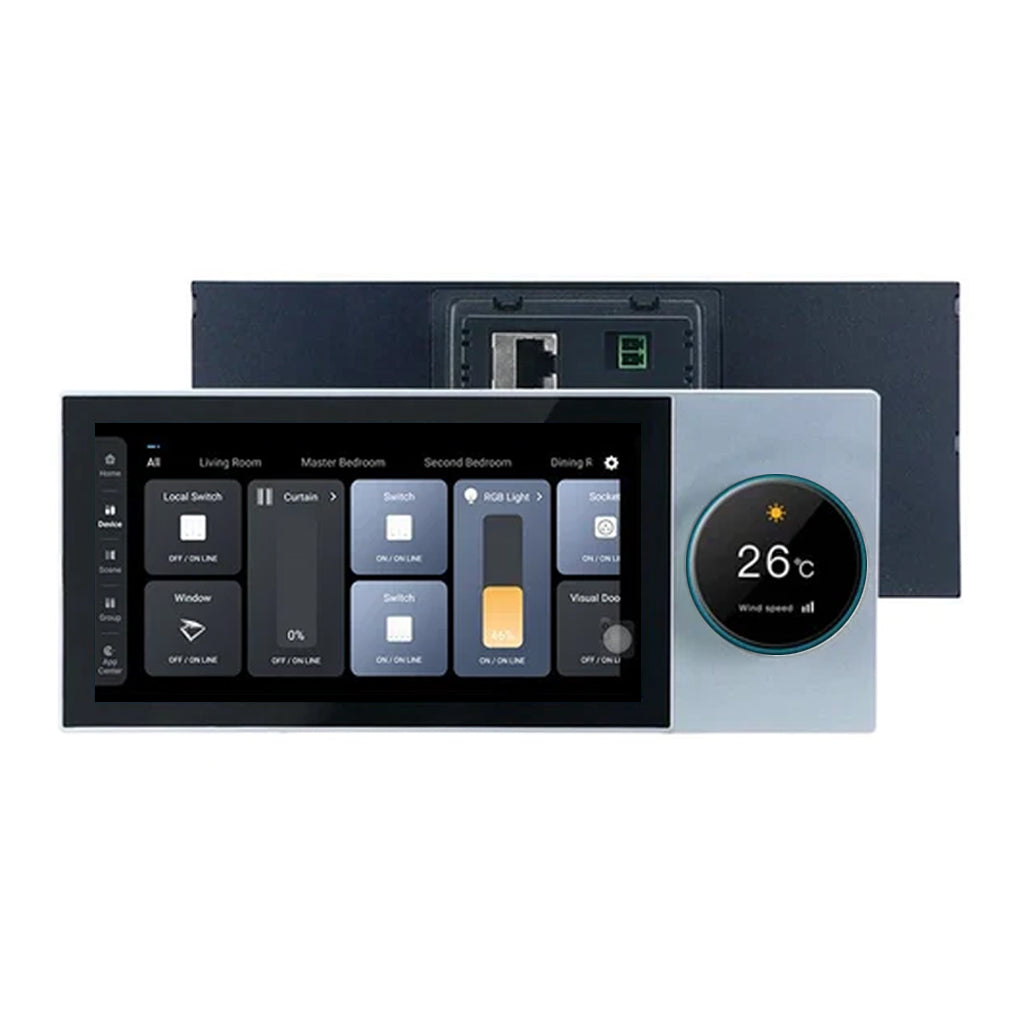

TECPHILE 6'' Smart LCD Control Panel For Zigbee Devices

TECPHILE

  • 6 Inch LCD Touch Panel
  • Built-In 1W Mono Speaker
  • Quadruple Microphone Setup
  • Auto Light Sensor
  • Supports Up To 100+ Zigbee Sub-Devices
  • Real-Time Weather Display

₹ 19,990.00 ₹ 26,999.00 Save ₹ 7,009

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery


Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

INTUITIVE DESIGN AND SMART FEATURES

The device features a state-of-the-art display system, including a 6-inch HD LCD with IPS technology, offering a responsive and visually vibrant multi-touch screen interface. The sound is awesome too, thanks to the four microphones that make sure you can be heard loud and clear. Plus, the screen automatically adjusts its brightness based on how bright or dark the room is, which is pretty smart and saves energy. All of these things make the device easy to use and fit right into your smart home.

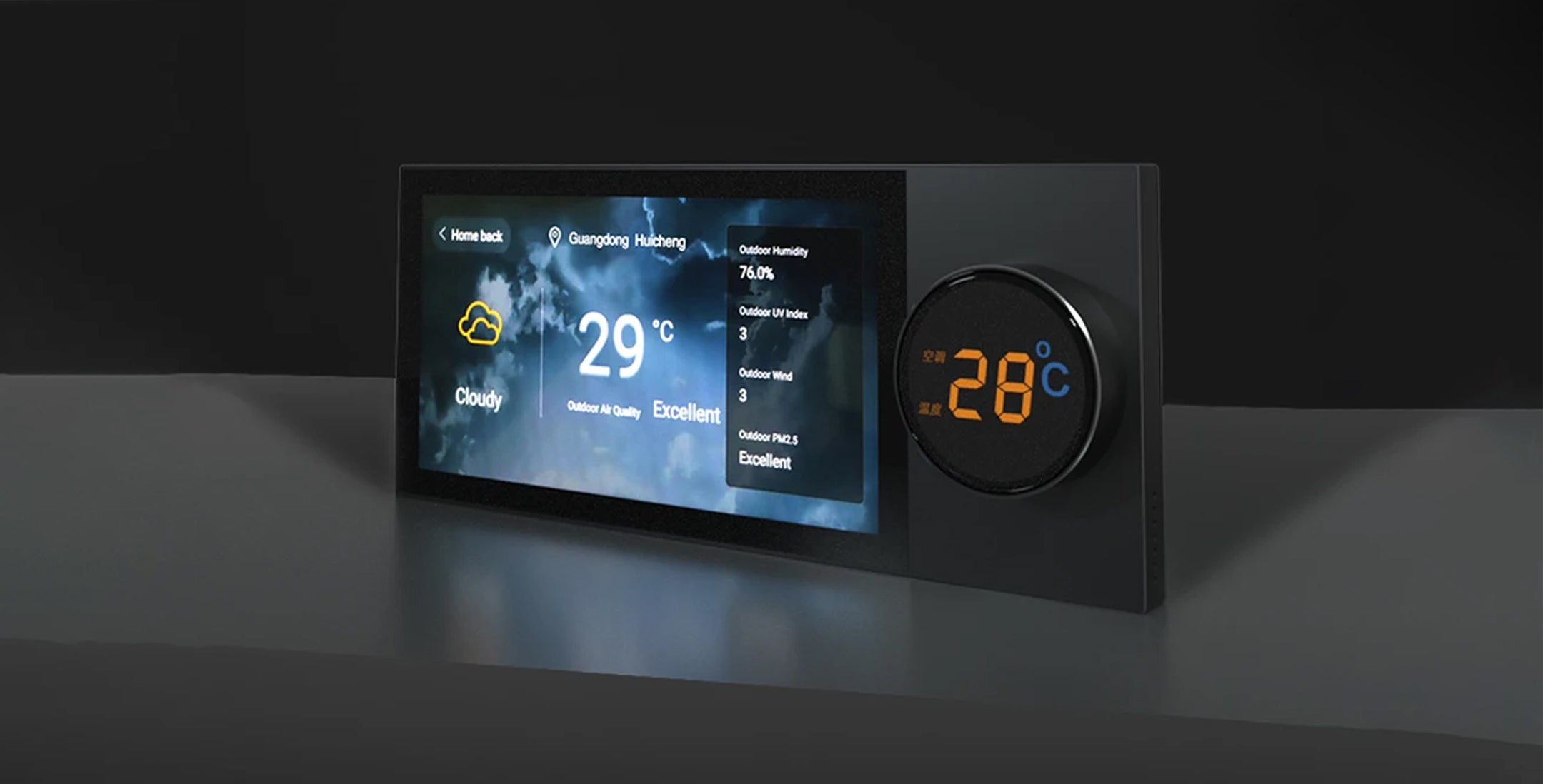

Concept kart tcphl gw008 cntrl panl blk 2 1

ADVANCED GATEWAY FUNCTIONALITY

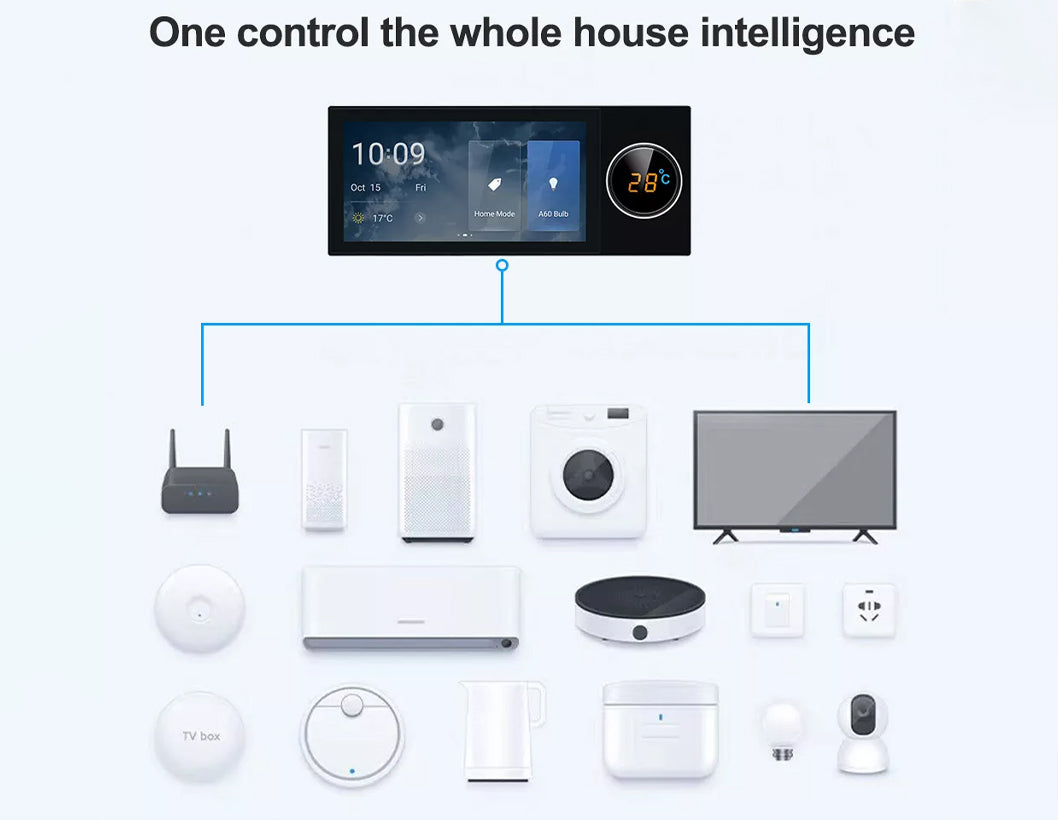

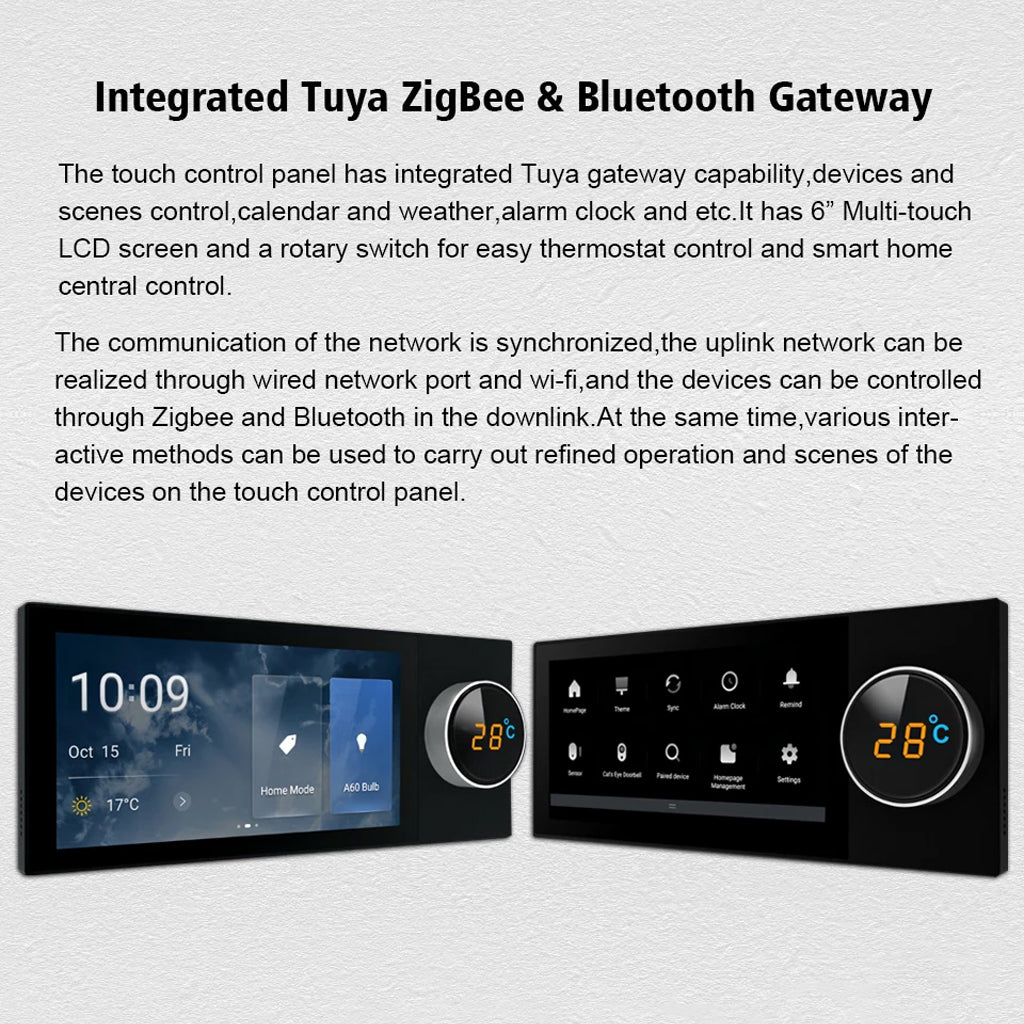

This smart device effortlessly becomes part of your home setup, acting as a ZigBee gateway for Tuya smart devices. You can control your devices remotely through the user-friendly Smart Life APP, making management a breeze from anywhere. What's even better is its adaptability – it can smoothly take the place of another Tuya ZigBee gateway at home, simplifying things for you. The control panel adds an extra layer of cleverness, letting you directly add and control Tuya ZigBee devices without extra fuss. Plus, it's got the capacity to handle over 100 ZigBee sub-devices, offering you a seamlessly and complete solution for a smart home experience.

CONTROL AND CUSTOMIZATION

This device offers control over various smart home elements, ranging from lights and curtains to air conditioners. Its intuitive functionality extends to scene configuration within the dedicated app, providing users with the convenience of easy one-touch activation for preset scenarios. Adding practicality to its features, the device comes equipped with built-in 2 relays, allowing for local control specifically for the room lights. This combination of versatility and localized control enhances the overall user experience, ensuring an informative and efficient management of various smart home devices.

ENHANCED LISTENING EXPERIENCE

The device presents a sophisticated audio framework designed to elevate the auditory experience. Equipped with a built-in 1W Mono speaker, it ensures the delivery of clear and resonant sound, contributing to a refined acoustic ambiance. Users benefit from the capability to customize their audio environment through the integration of local music sources, allowing for a tailored and immersive listening experience. Additionally, the device offers the versatility of optional access to online music sources, expanding the spectrum of entertainment choices.

BEYOND THE BASIC USER JOURNEY

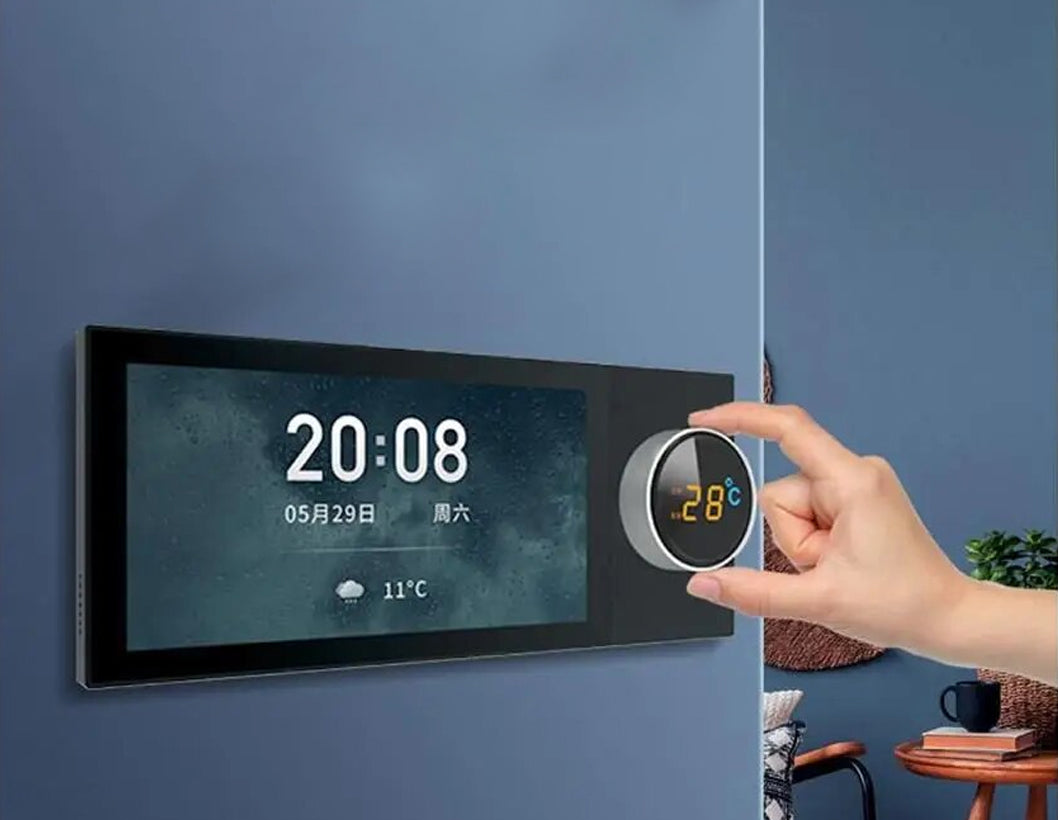

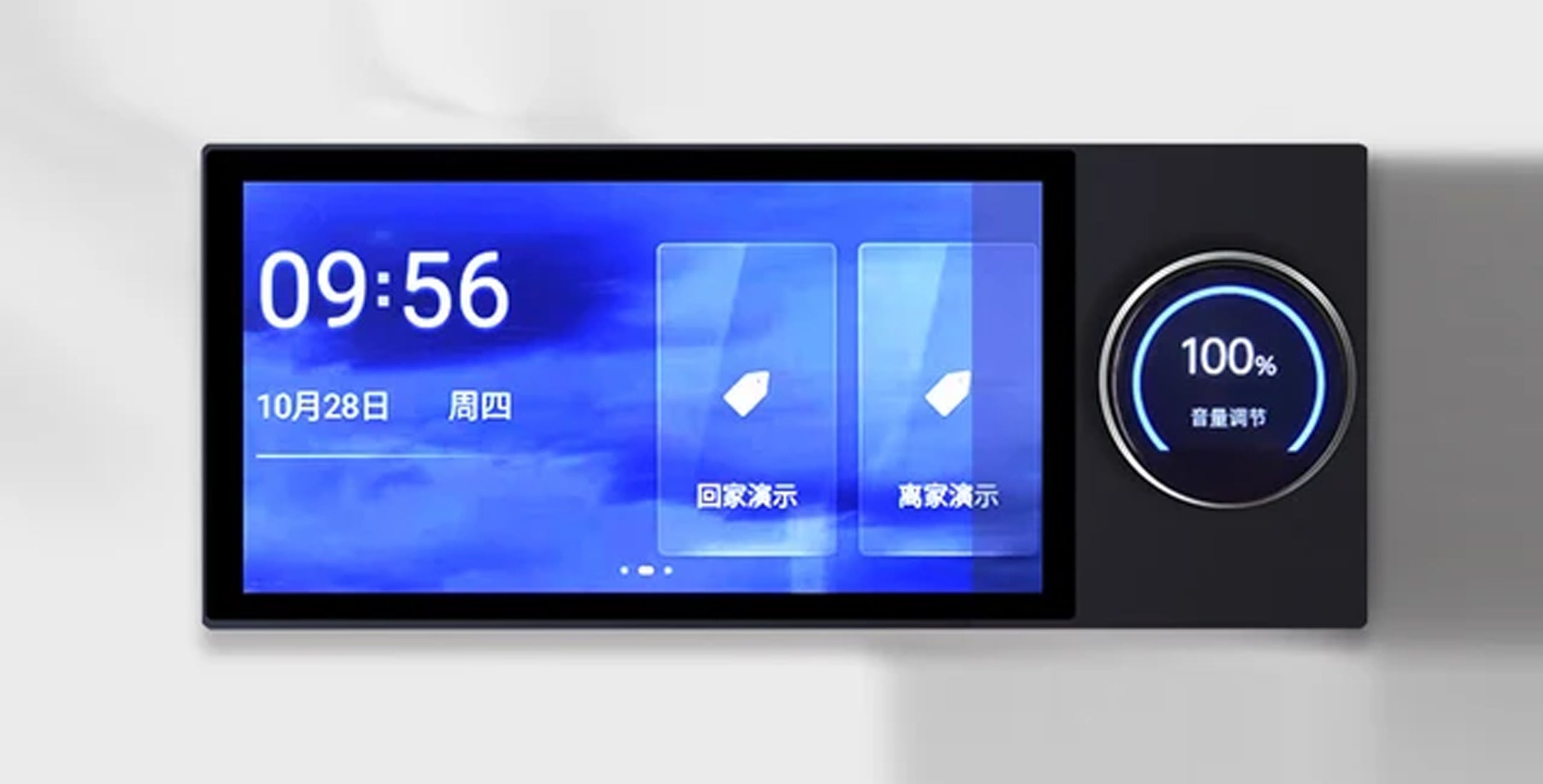

This smart device goes beyond the basics with a rotary switch that makes picking scenes and devices super easy. Plus, there are some extra goodies to make things even better. The built-in clock shows you the time and date in a snap, adding a touch of convenience. You can even check out the real-time weather display, pretty handy for making quick decisions.

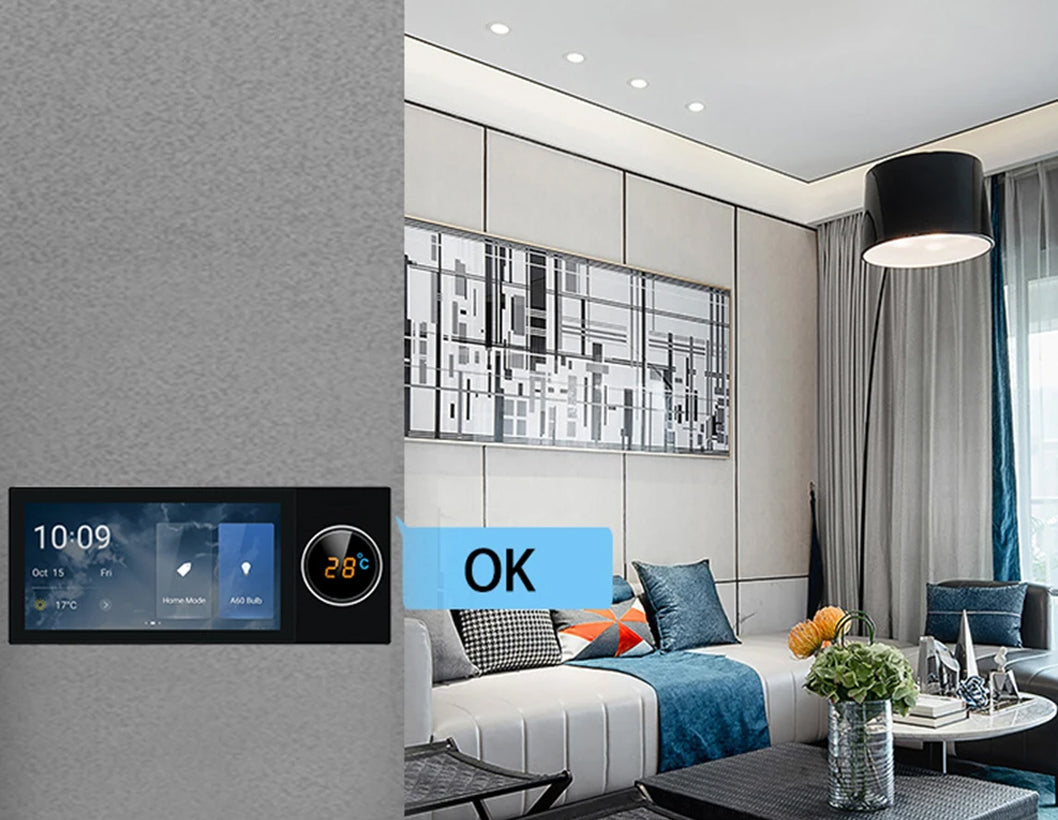

Concept kart tcphl gw008 cntrl panl blk 2 2

INSTALLATION

1. Turn off the main power in the electricity box and double-check with a test pencil to make sure there's no electricity.
2. Take off the Smart Switch's base and put it in the wall box.
3. Check the wires, making sure they're touching the terminals well and there are no exposed copper wires.
4. Use screws to attach the base to the wall box and then attach the Smart Switch back to the base.
5. Be careful not to tighten the screws too much during installation to avoid damaging the screen and hardware.
6. If the Smart Switch doesn't sit flat after installation, don't push the screen hard. First, check the wall box and the base installation.

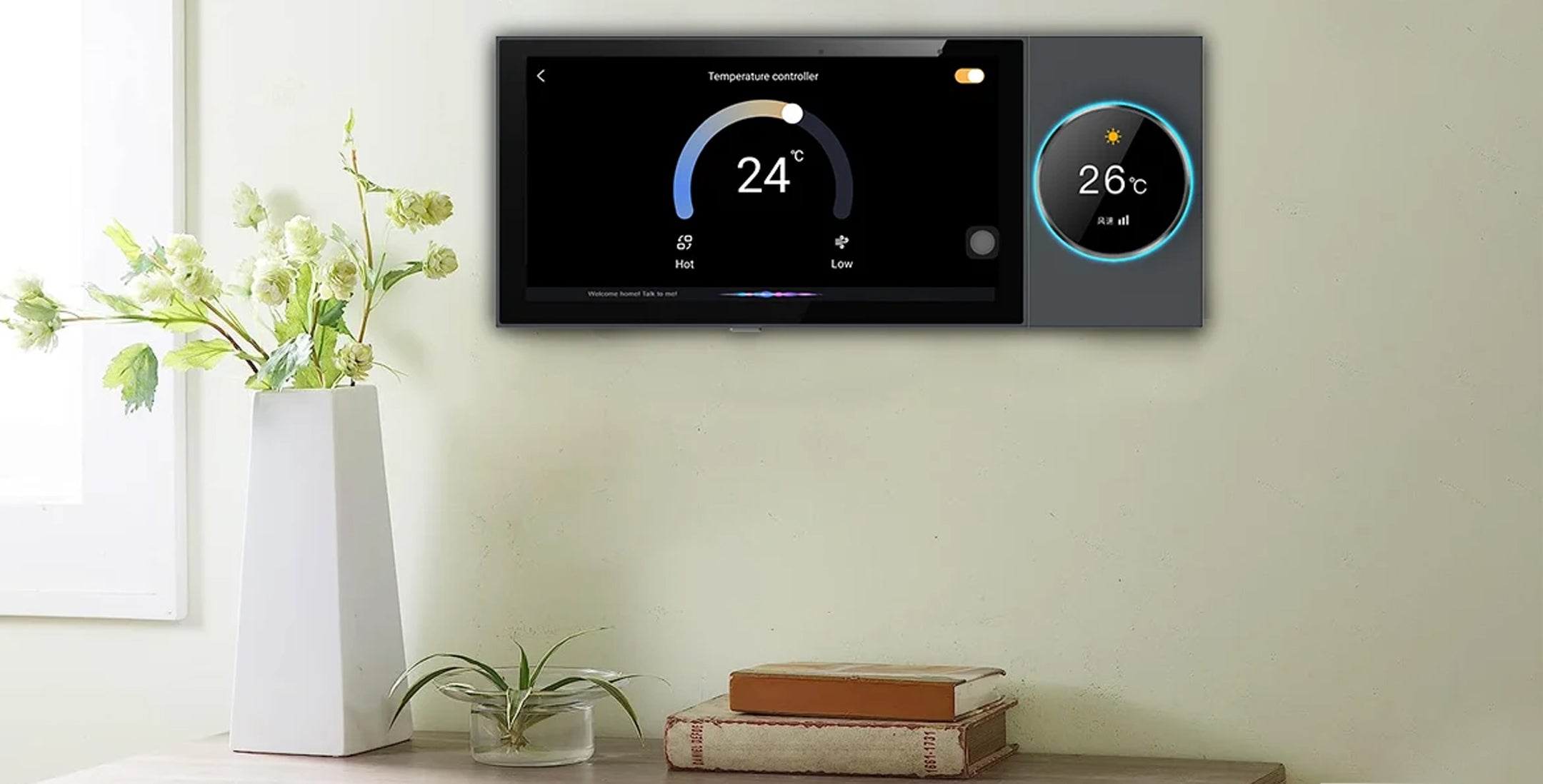

Concept kart tcphl gw008 cntrl panl blk 2 4

Specifications

BRAND
TECPHILE
Model
GW0018
CPU
Quad- core Cortex 1.5GHZ
RAM
2G
ROM
8G
Wired Network
10M/100M Adaptive Ethernet
WiFi
802.11b/g/n wireless protocol 150Mbps 2.4GHz
Power Input
AC100~240V 50/60Hz
Output impedence
4-8ohm
Product Size
208*86*55.3mm
Knob Screen
1.28 inch knob color screen
Frequency response
20Hz-20Khz
SNR
98dB
Wireless Protocol
Wi-Fi, Bluetooth, Zigbee
Operating Temprature
0~40 degree celcius
Operating Humidity
5% to 90% RH non-condensing
Firmware
Android 8.1
Screen
6-inch 1440*720 multi-touch
Relay
Single channel<2*200W
RS485
Half-duplex 3.5mm interface terminal
Zigbee
802.15.4 PHY/MAC Zigbee network protocol stack

Box Content

    What will you get
  • 1x TECPHILE GW0018 Control Panel
  • 1x User Manual
  • 2x bolt

Warranty

1 YEAR WARRANTY

Don't worry,TECPHILE – GW0018 6-Inch Smart LCD Control Panel comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
