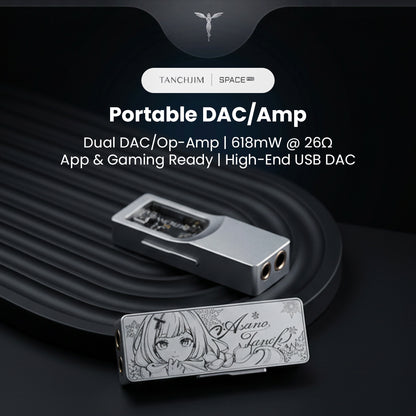

TANCHJIM Space Pro portable DAC & AMP with dual USB ports
TANCHJIM Space Pro high-performance portable DAC & AMP with circuit details

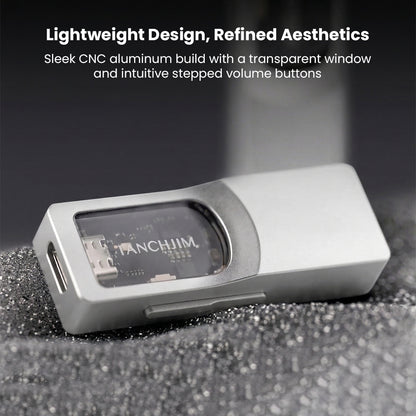

TANCHJIM Space Pro lightweight aluminum DAC & AMP with transparent window
Dual CS43198 DACs on circuit board for high-fidelity audio
High-output portable USB DAC & AMP with detailed graph
Headphone amplifier with gain modes and high SPL
High-resolution decoding with detailed stereo sound
Audio measurement screen showing harmonic distortion and noise levels for the TANCHJIM Space Pro DAC & AMP
High-Resolution Decoding portable DAC & AMP with anime design

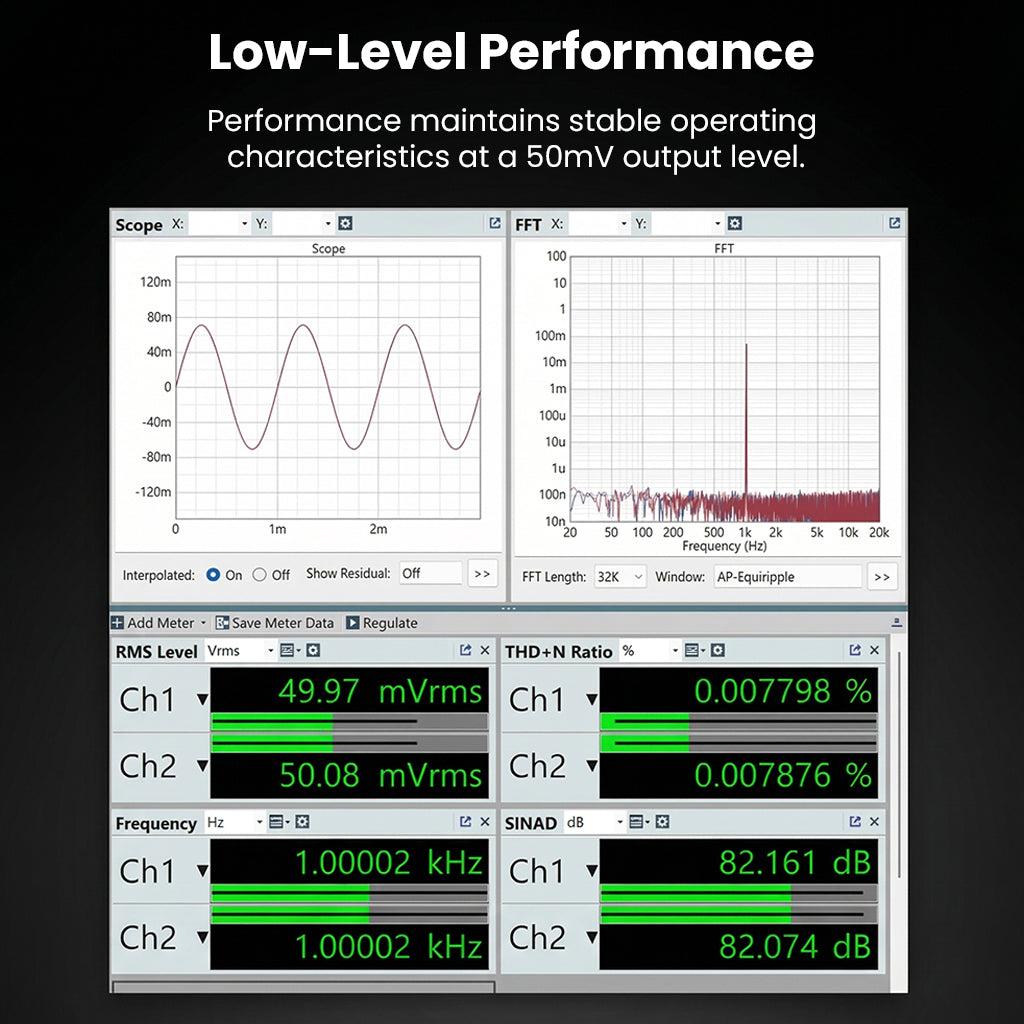

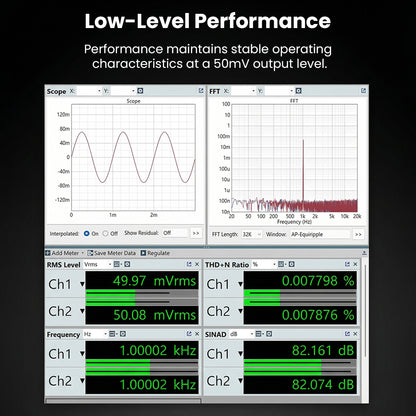

Audio performance graphs for DAC & AMP
Mobile app interface for DAC output stage modes
Microphone input support for gaming communication
Game audio optimization system interface
Game audio optimization system interface with tactical sound settings
Game preset selection on smartphone screen for one-touch game audio setup
Virtual 5.1/7.1 surround sound processing on smartphone for immersive gaming audio
Audio community profile sharing with PEQ presets for precise tuning
Detachable Type-C USB cable with stylish design connecting to laptop for audio device
High-quality silver-plated USB cable with shielding for stable transmission and durability

TANCHJIM

TANCHJIM- Space Pro Dual CS43198 Portable USB DAC & AMP

Sale price₹ 9,959Regular price ₹ 15,999

    Dual CS43198 DAC + Dual OP-AMP Architecture for High-Fidelity Sound

    Dual CS43198 DAC Chips with Fully Balanced Four-Channel Decoding

    Dual Gain Modes with Up to 4Vrms for IEMs & Headphones

    Switchable Class AB & Class H Modes for Performance & Efficiency

    3.5mm & 4.4mm Outputs with Mic Support & Balanced Audio

    App Support with Gaming Optimization, 10-Band PEQ & Virtual Surround

Estimated Delivery within 4 to 6 weeks.

Description

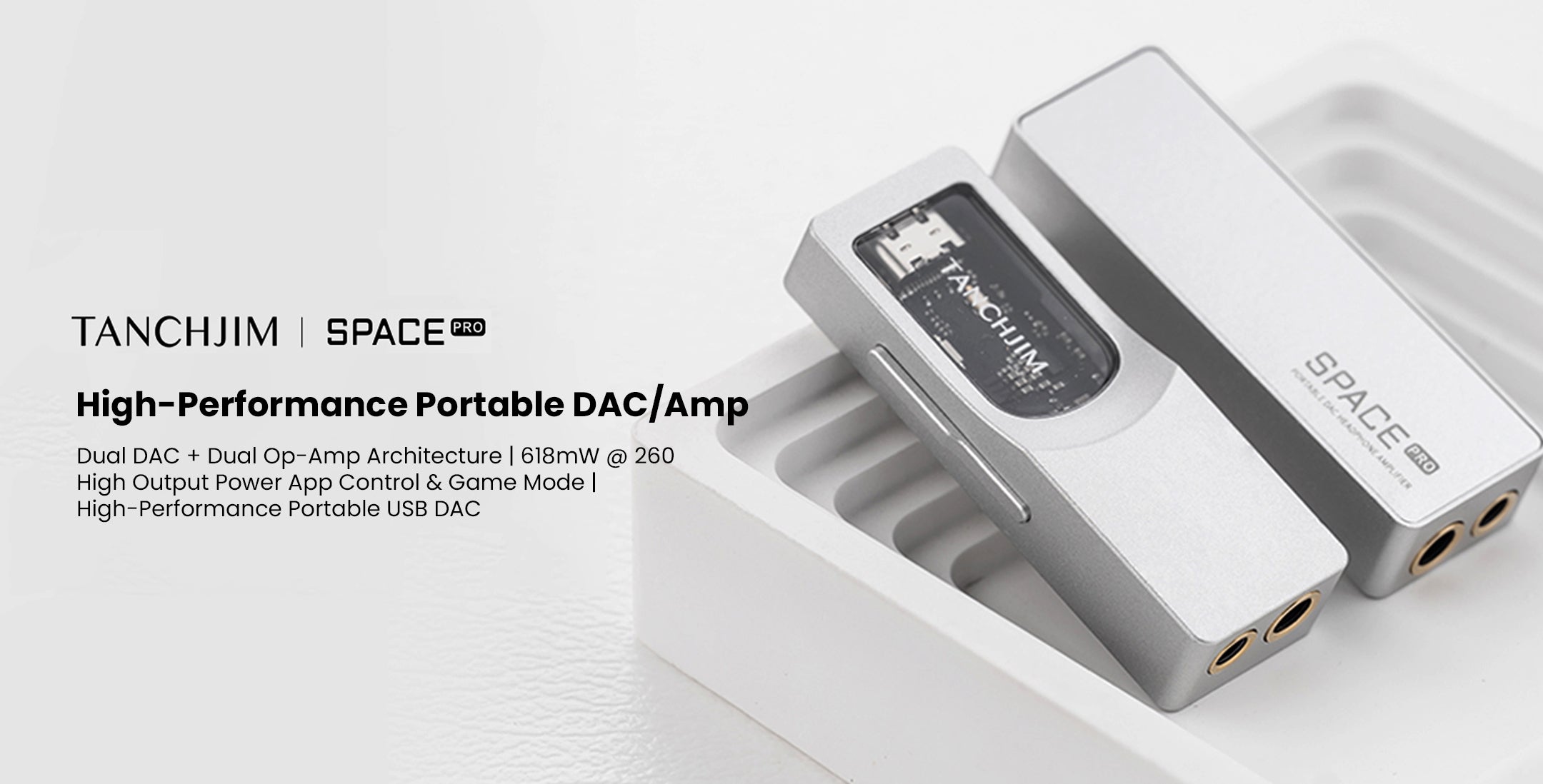

Introducing the Tanchjim Space Pro – High-Resolution Portable DAC/AMP

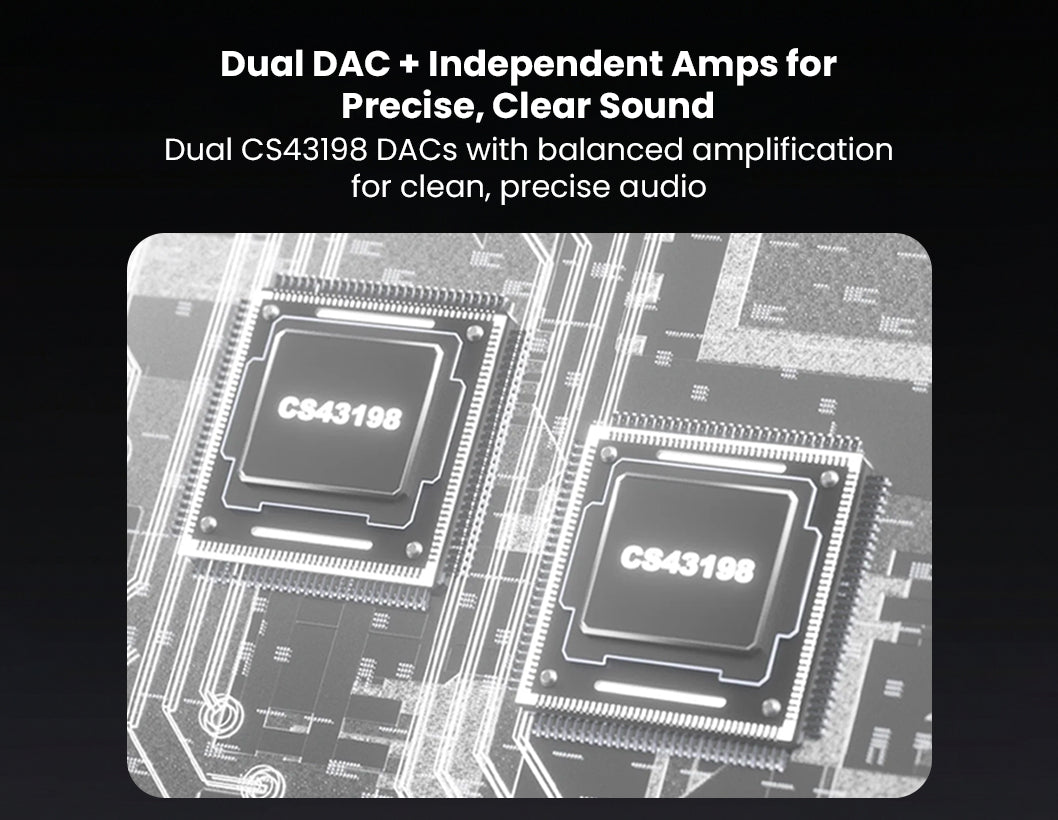

Tanchjim has unveiled its latest high-performance portable DAC/AMP, the Space Pro, designed to deliver exceptional audio fidelity. Built with a newly engineered dual DAC and dual independent op-amp architecture, it ensures outstanding sound clarity with high SNR, DNR, and ultra-low THD+N levels. At its core, the Space Pro features dual CS43198 DAC chips paired with dual ES8262 amplification chips, enabling a powerful and refined audio output. It delivers an impressive output of up to 618mW per channel, making it suitable for both sensitive IEMs and power-hungry headphones.

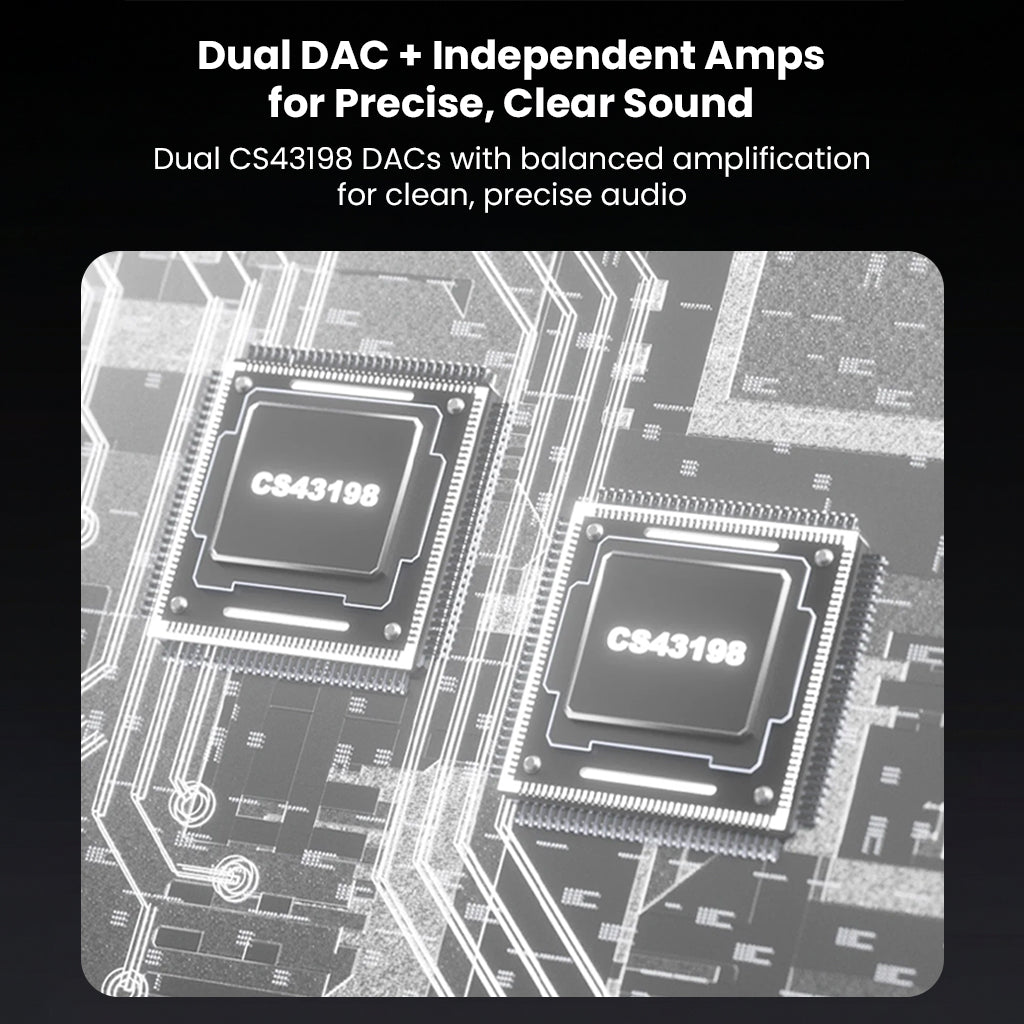

ADVANCED DUAL DAC + DUAL OP-AMP DESIGN

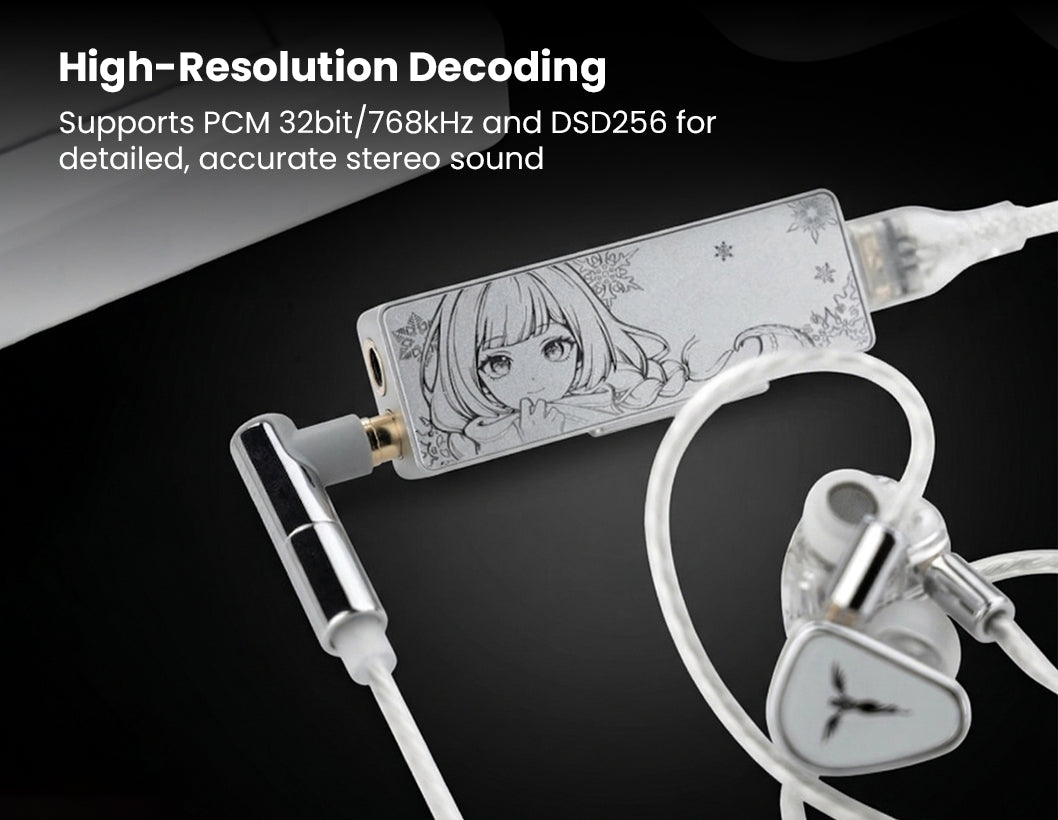

The Space Pro DAC/Amp is engineered with a fully balanced four-channel decoding architecture, combining dual DACs and dual independent op-amps. This setup produces a wide soundstage, enhanced detail retrieval, and a rich tonal character. It supports high-resolution audio formats, including native DSD256 and PCM up to 32bit/768kHz, ensuring precise and accurate signal processing.

POWERFUL OUTPUT WITH CLEAN PERFORMANCE

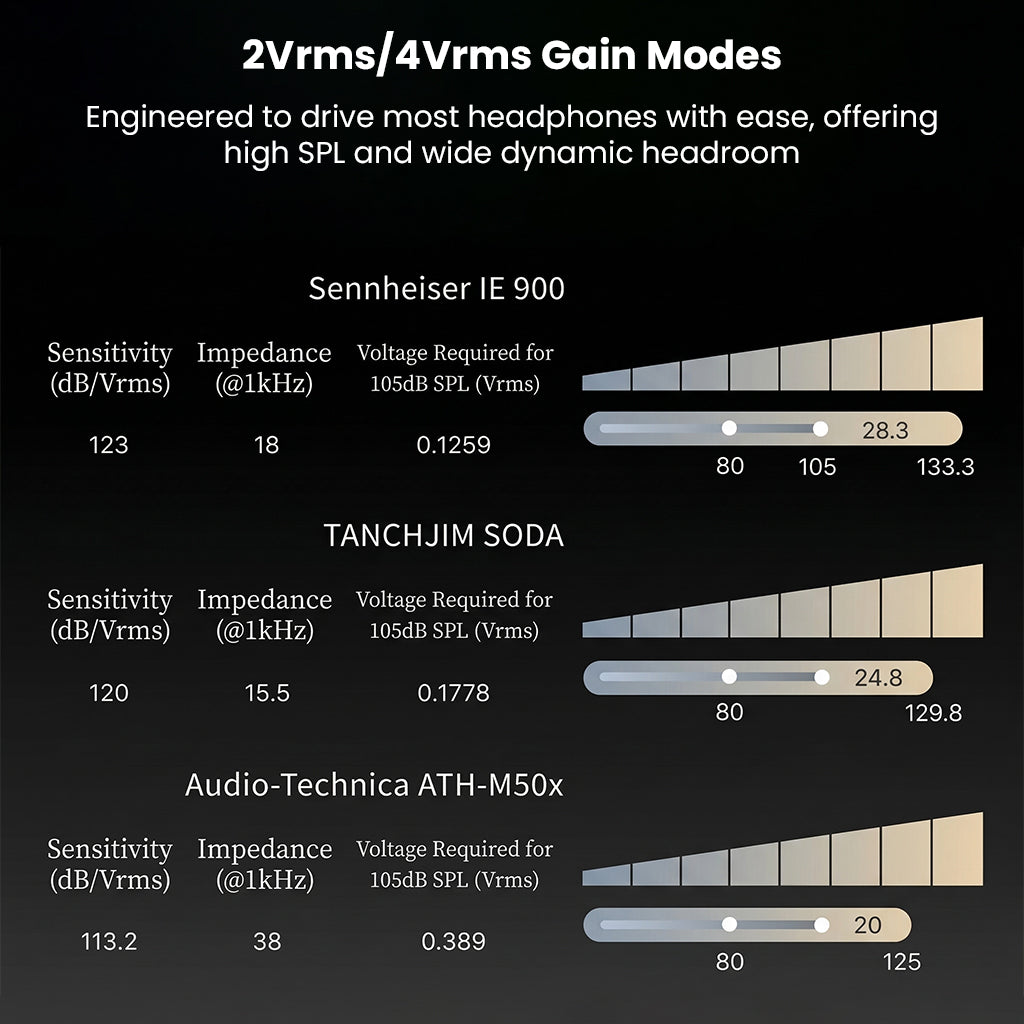

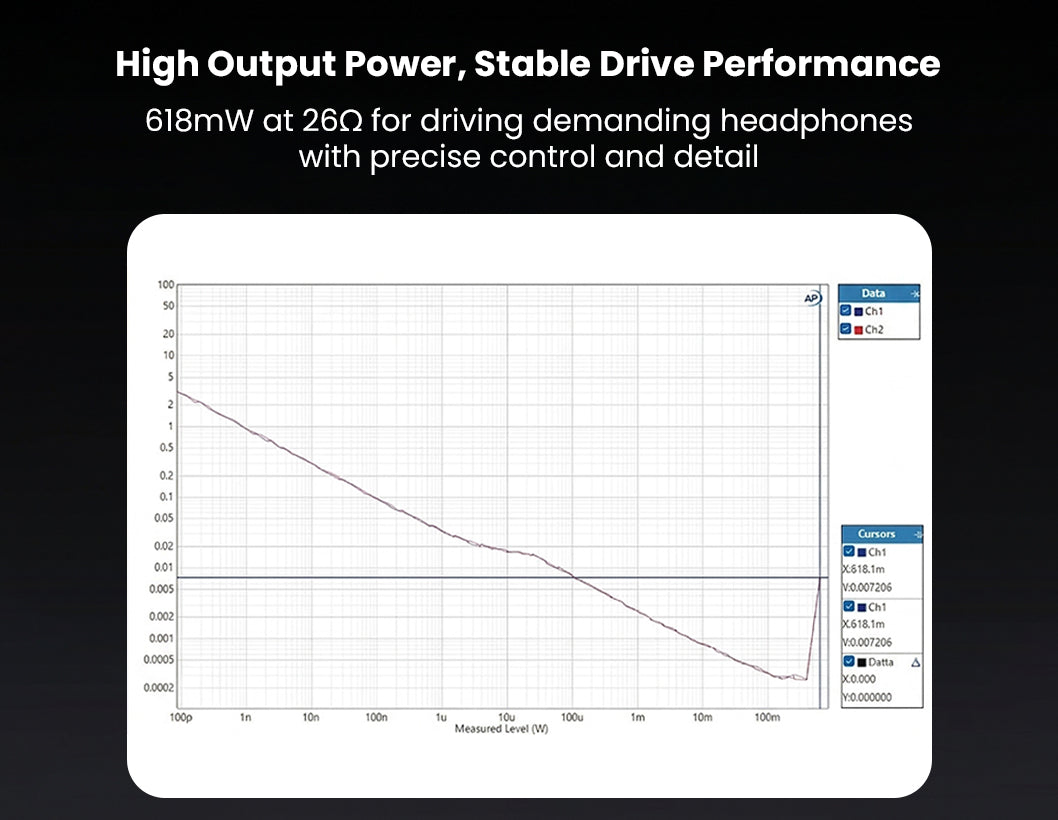

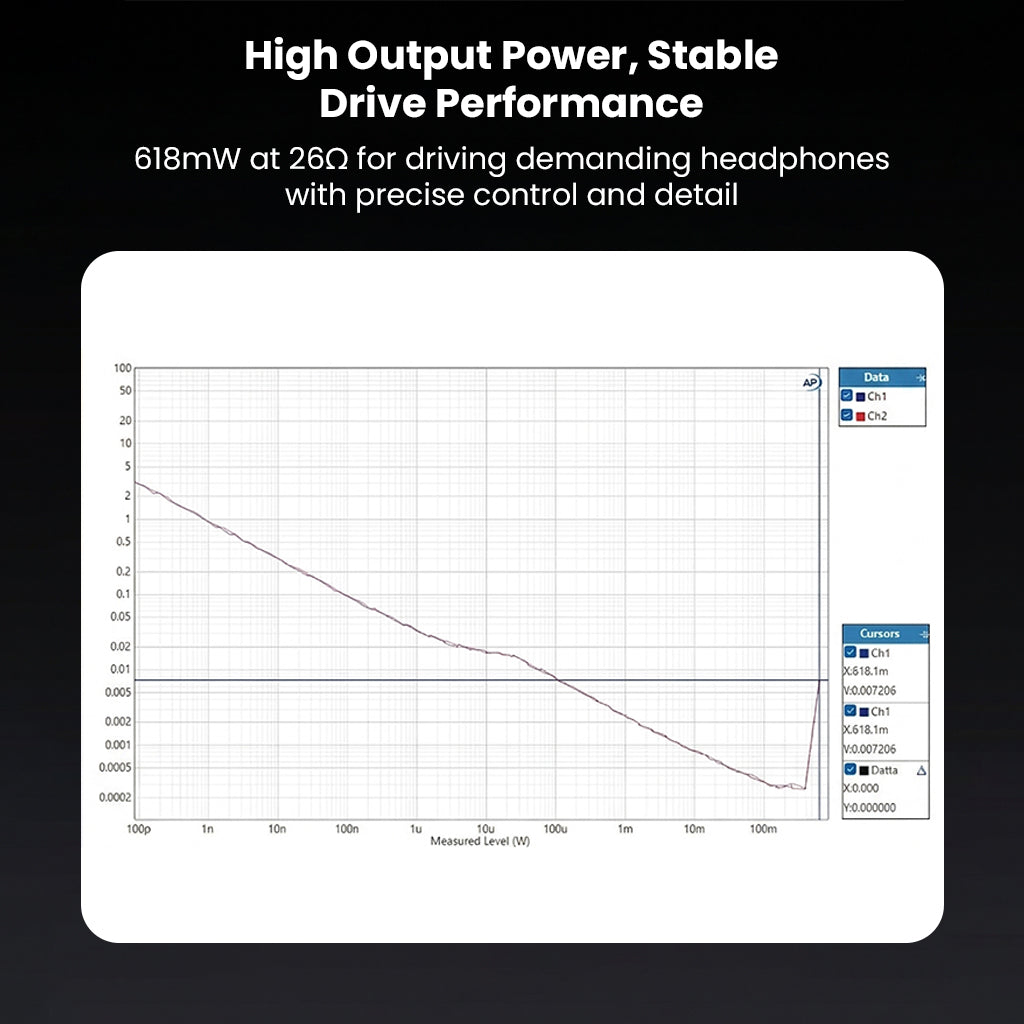

Thanks to its dual op-amp configuration, the Space Pro dac & amp delivers strong and stable output performance, reaching up to 618mW at 26Ω. The sound remains clean with a dark background and minimal distortion. With a maximum output level of 4Vrms and dual gain modes (low/high), users can easily adapt the device for different audio gear.

SWITCHABLE OUTPUT MODES

The device offers two DAC output stage modes:

1. Class AB Mode for stable, linear, and traditional high-fidelity performance
2. Class H Mode for improved efficiency and smoother output, ideal for low-current devices

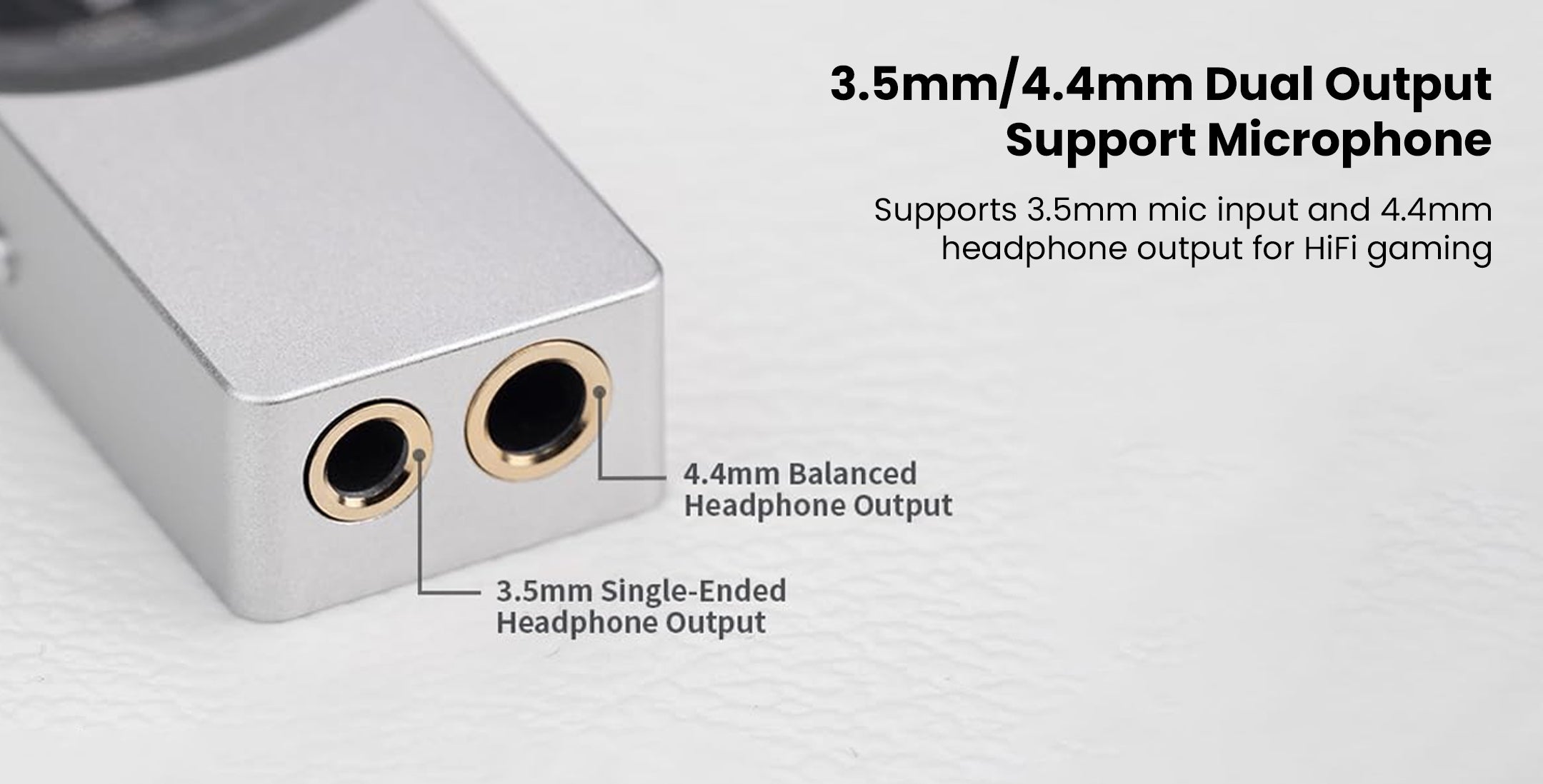

DUAL HEADPHONE CONNECTIVITY

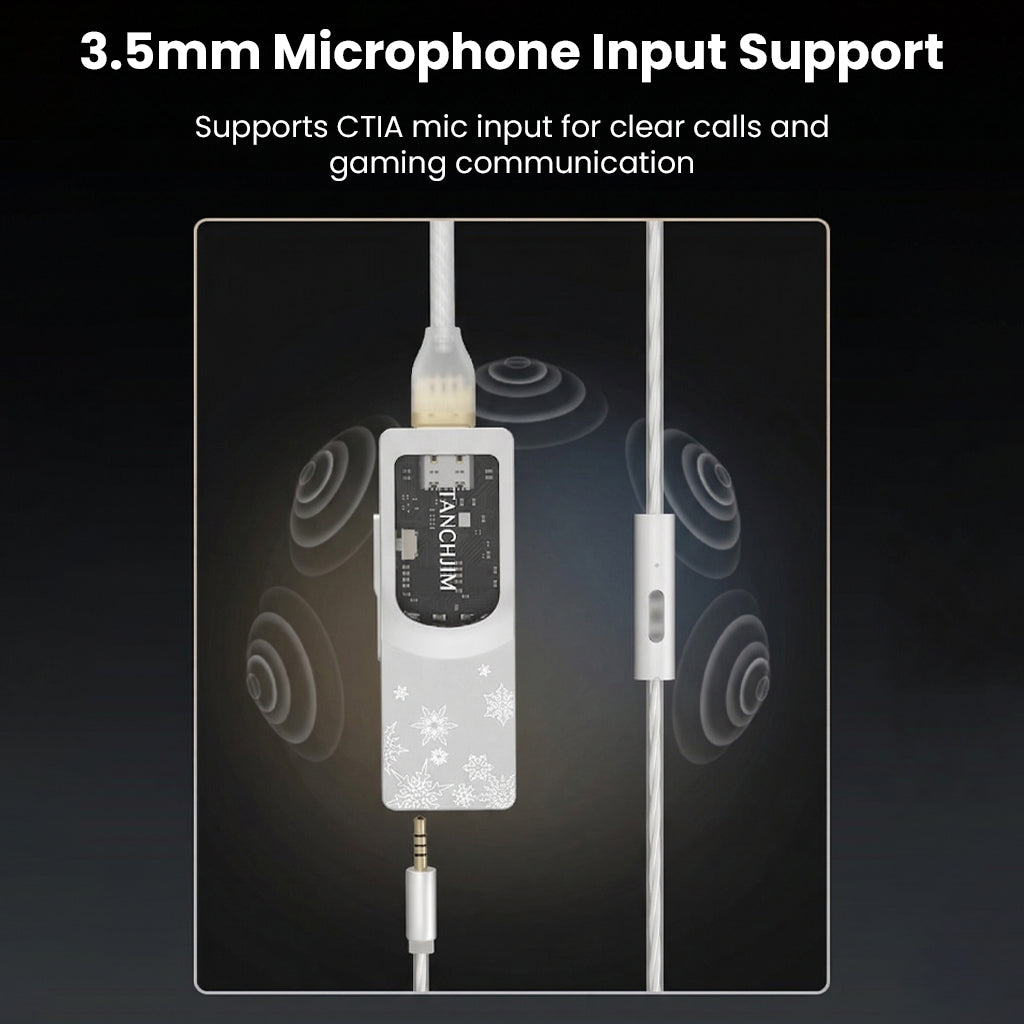

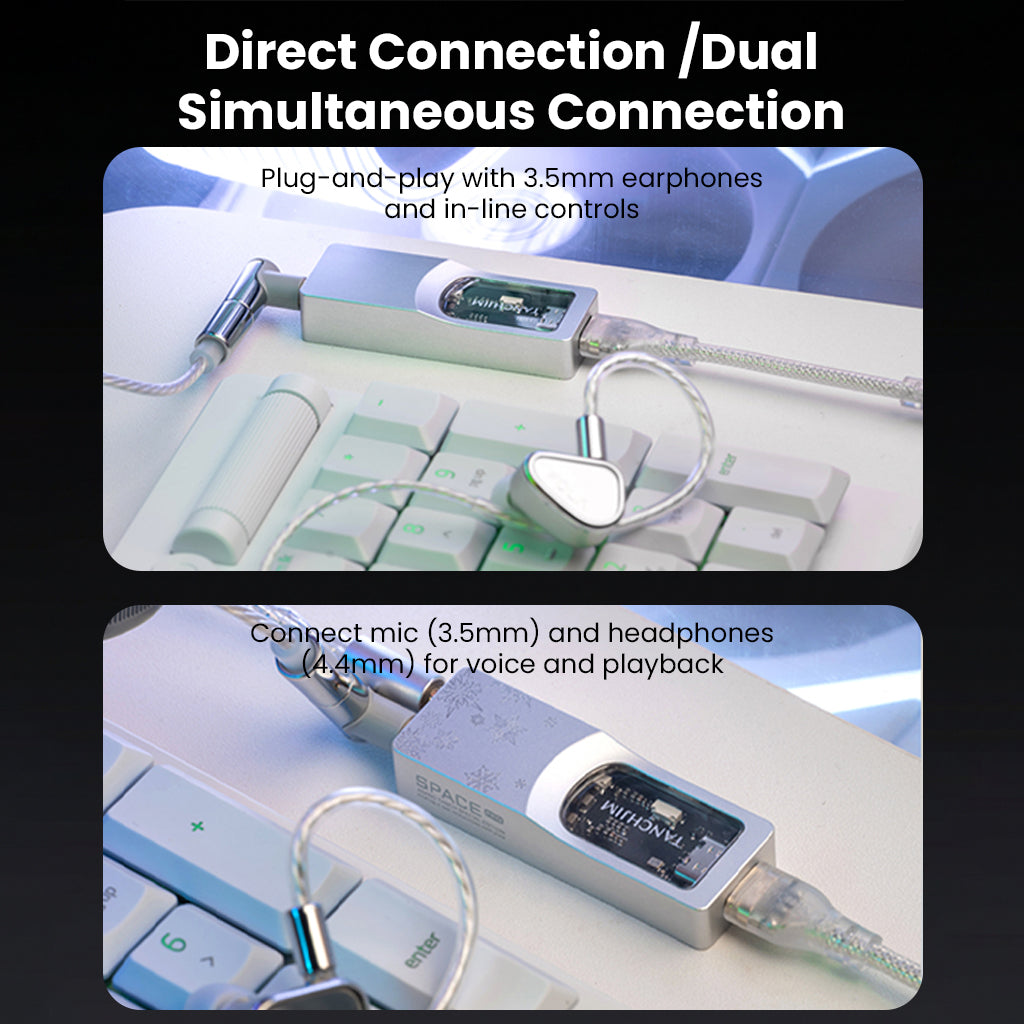

The Space Pro includes both 3.5mm single-ended and 4.4mm balanced headphone outputs. The 3.5mm port supports CTIA-standard in-line microphones, and users can simultaneously use it for mic input even when listening through the 4.4mm output.

SMART APP INTEGRATION & GAMING FEATURES

With full integration into the Tanchjim app, users gain access to advanced features such as:

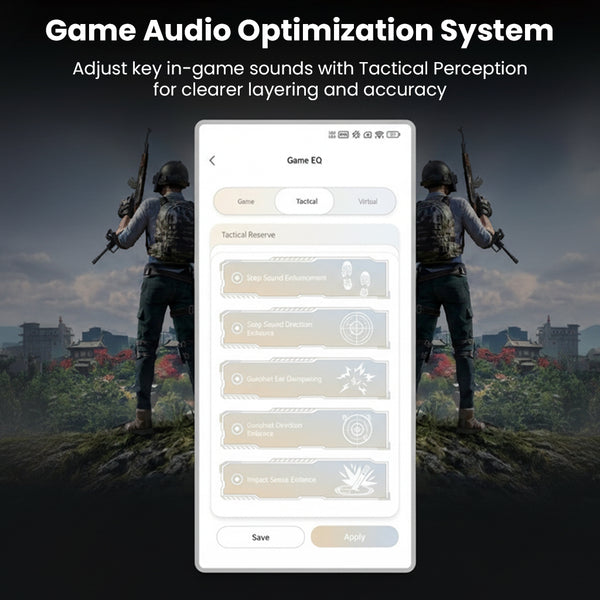

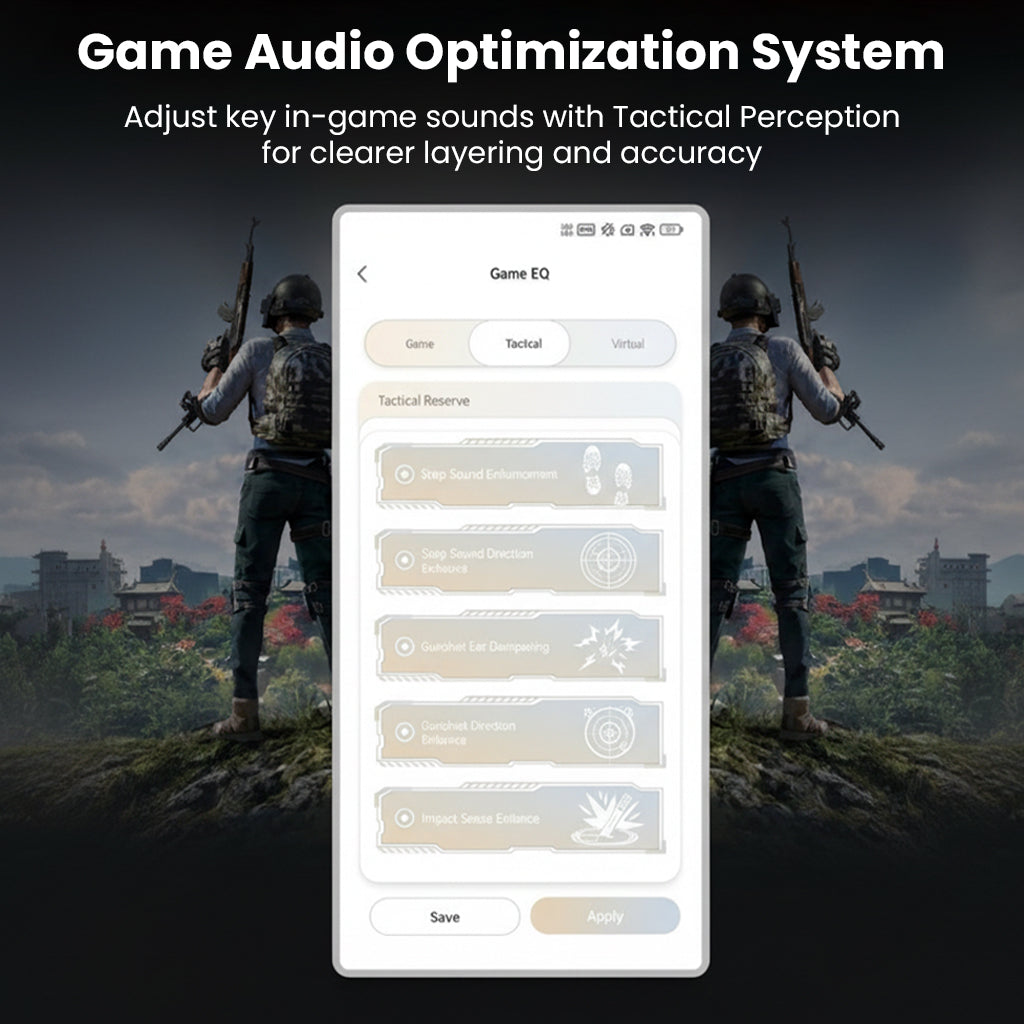

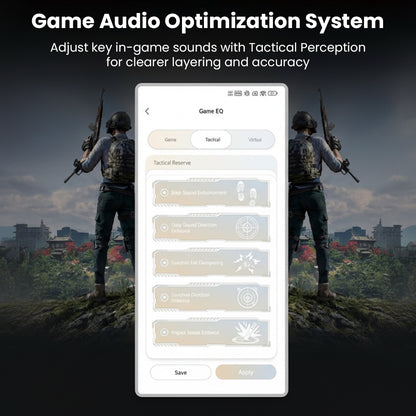

1. Dedicated game audio optimization system
2. Customizable sound parameters for in-game elements like footsteps and gunshots

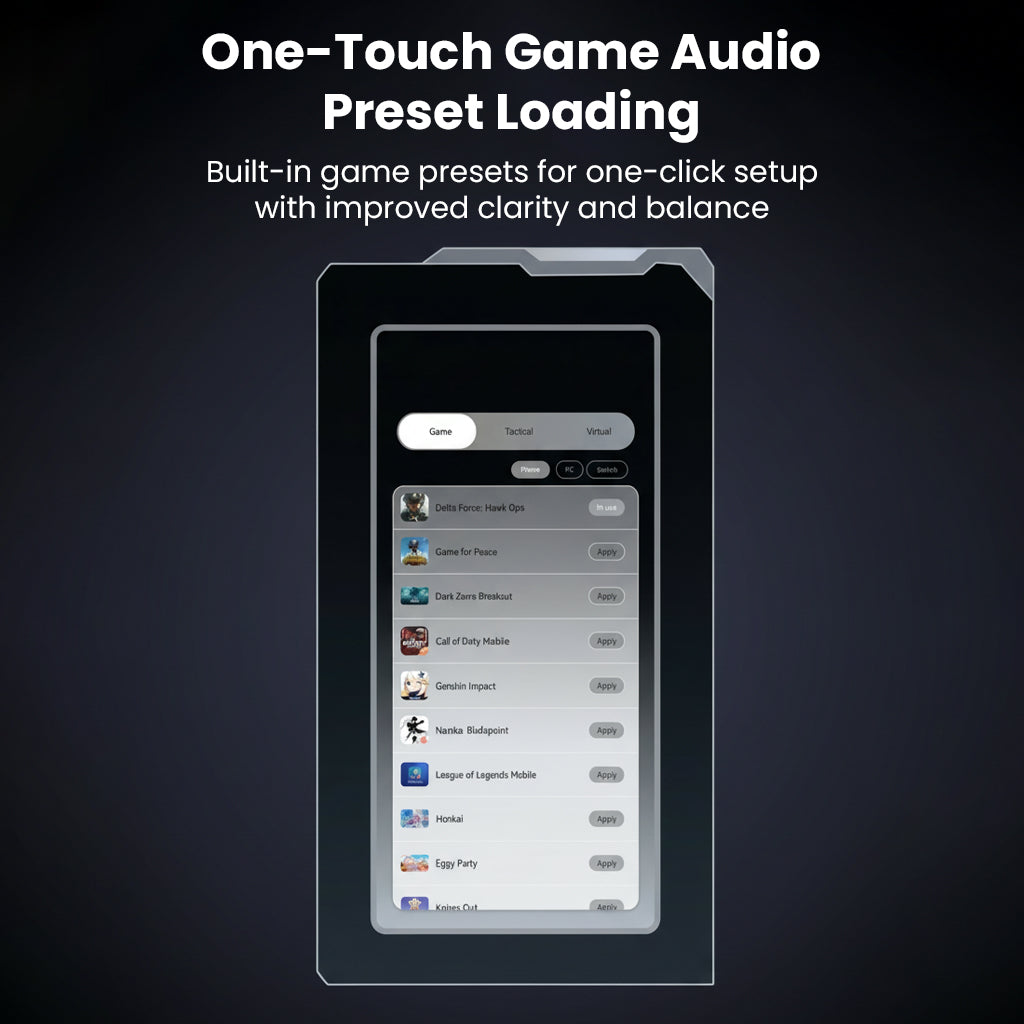

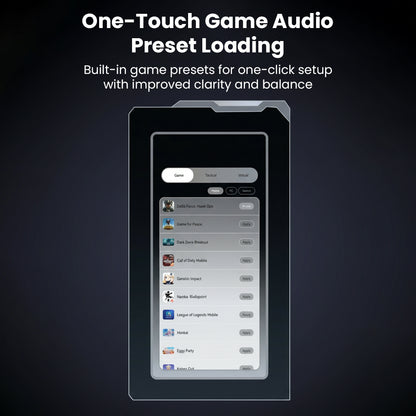

3. Multiple gaming presets for popular titles

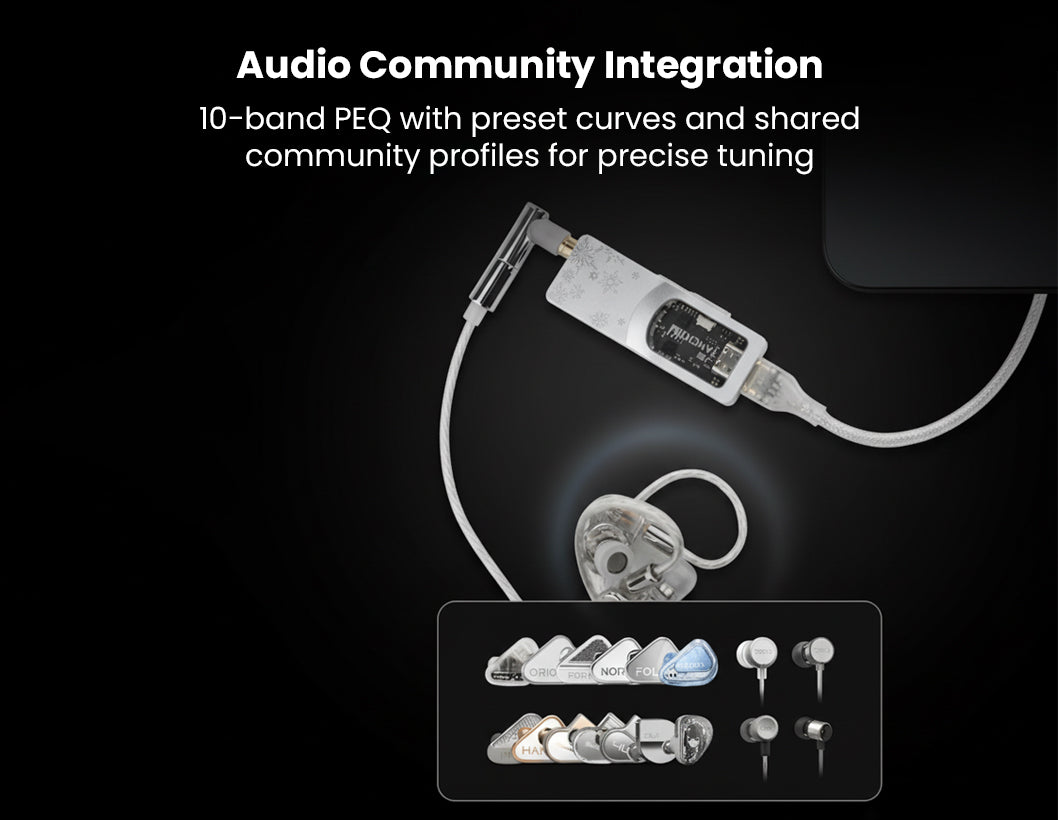

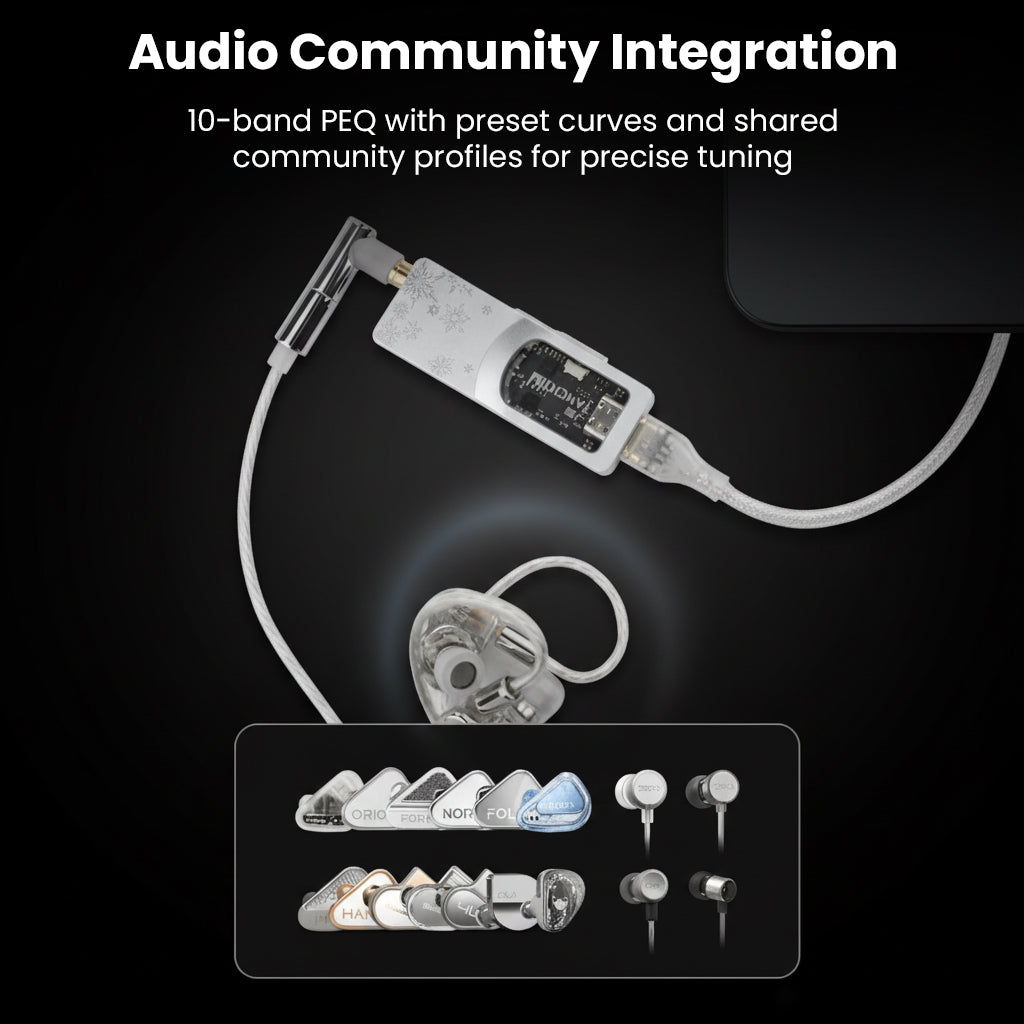

4. 10-band parametric EQ with community sharing

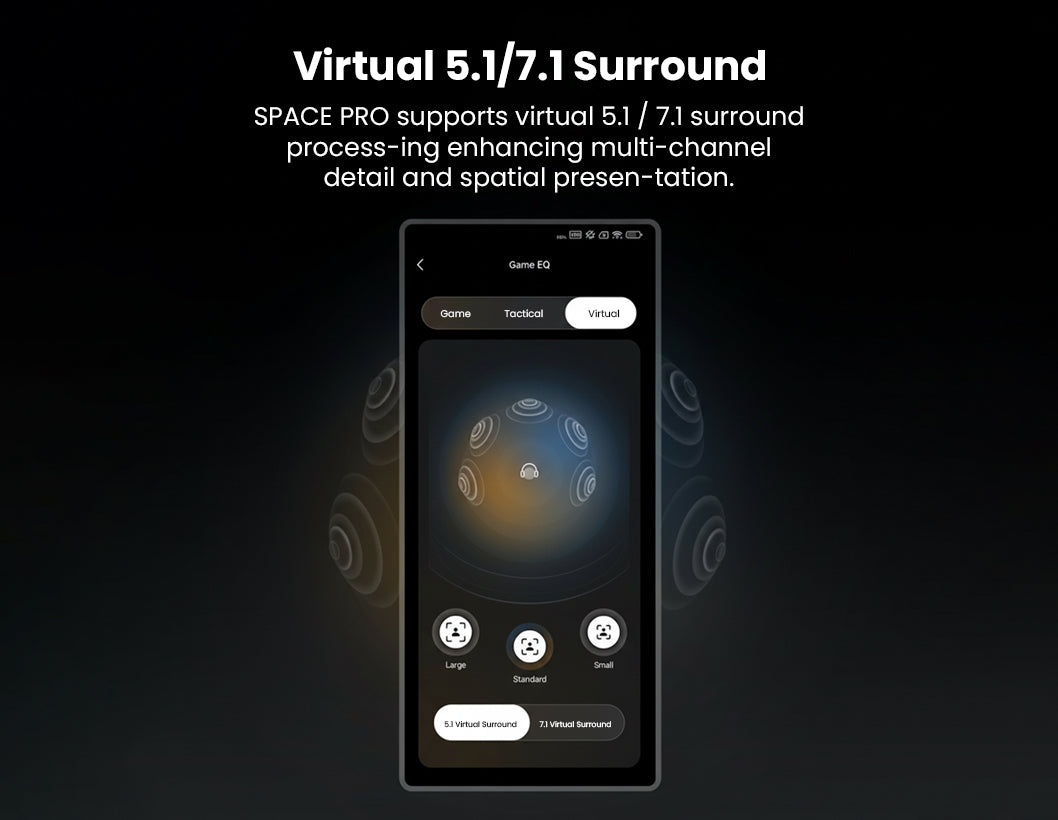

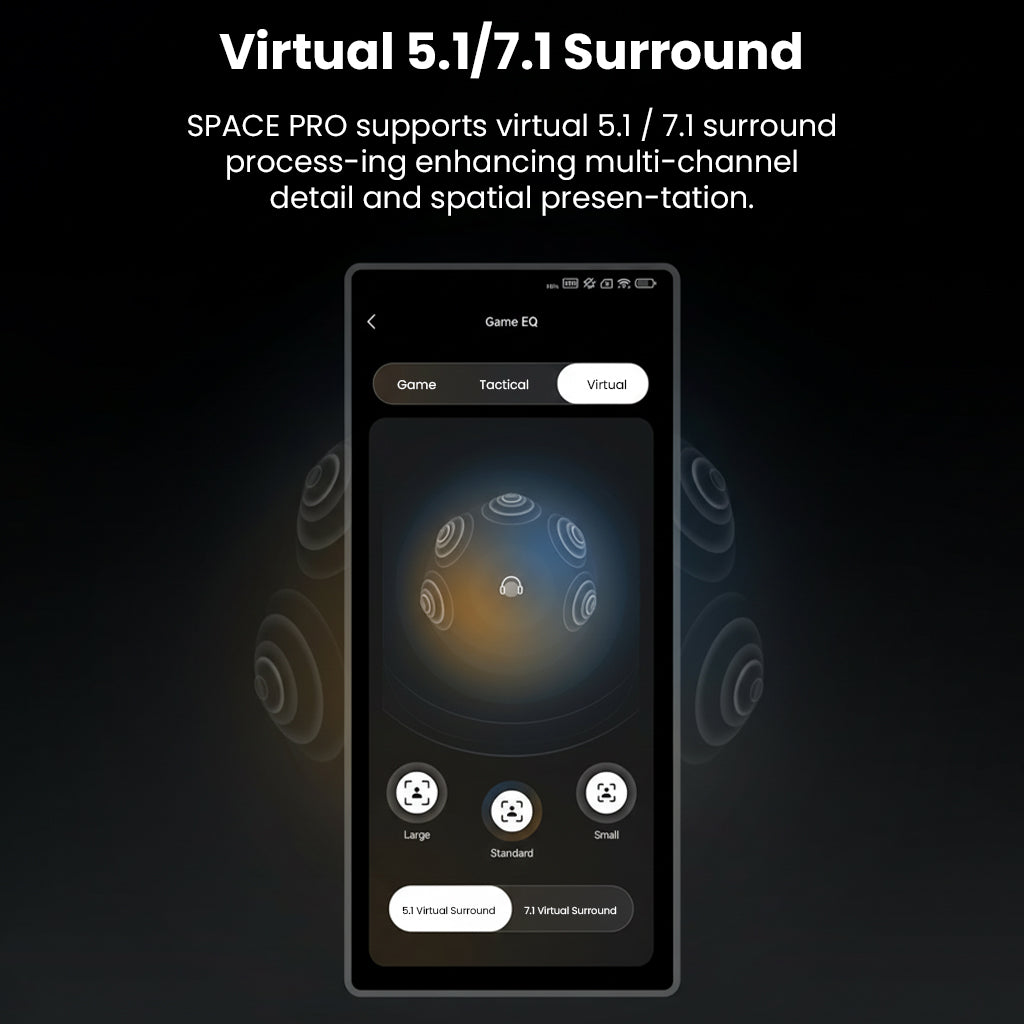

5. Virtual 5.1/7.1 channel surround sound for enhanced spatial audio

COMPACT DESIGN WITH PREMIUM BUILD

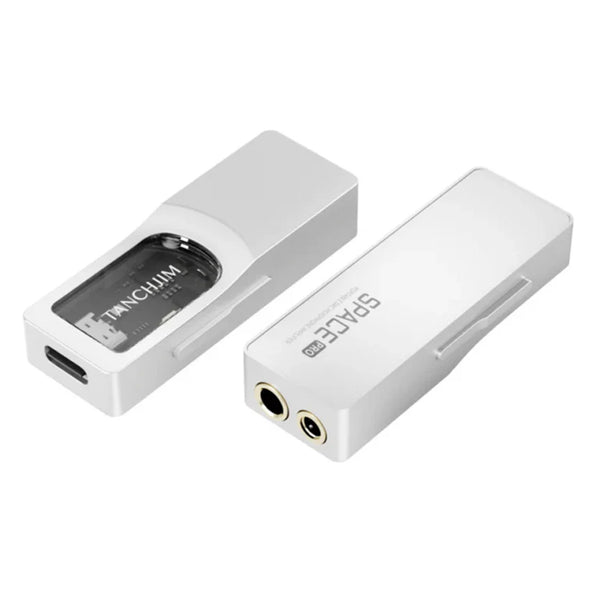

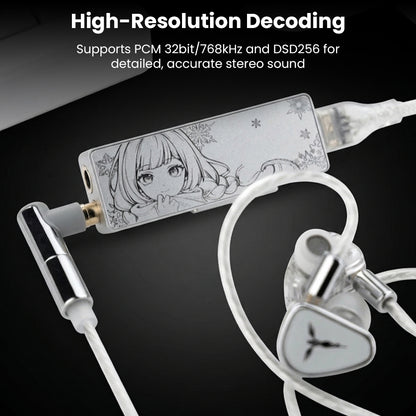

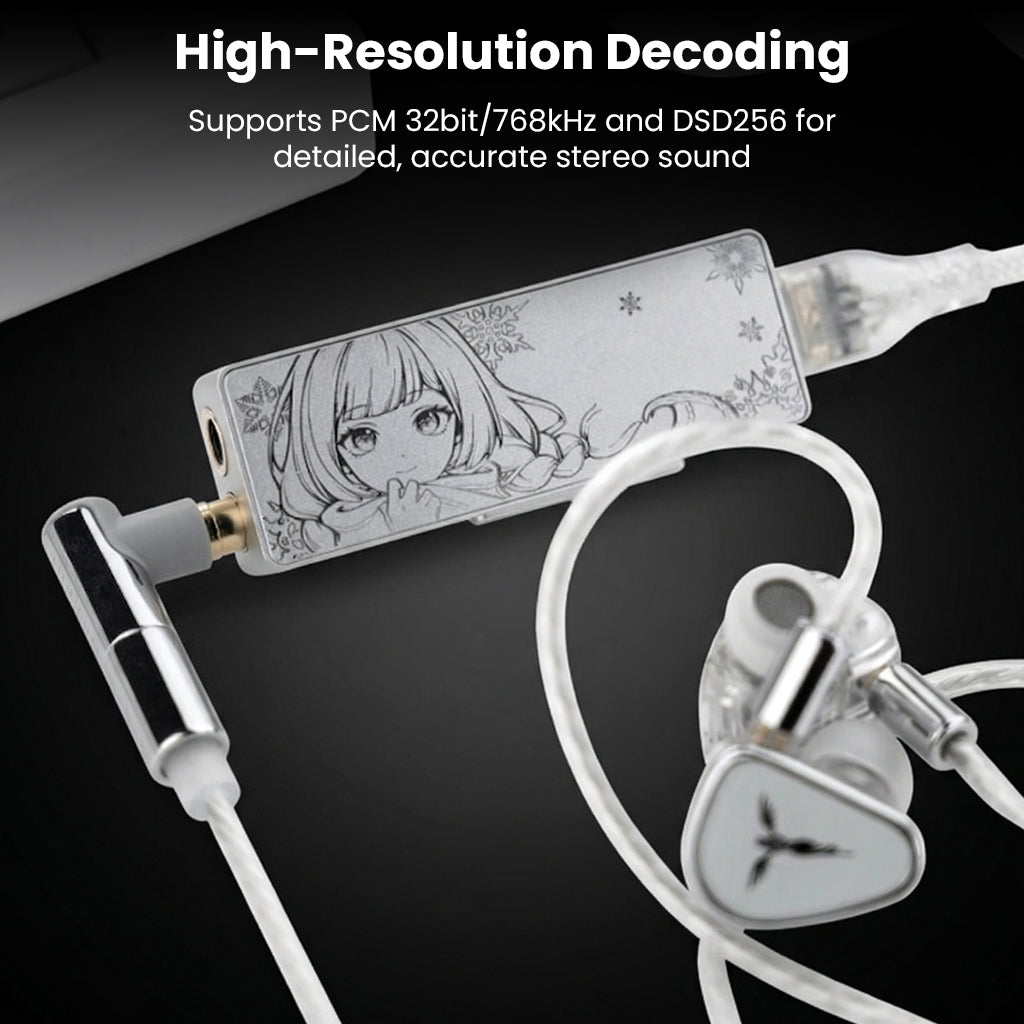

Continuing the Space series legacy, the Space Pro features a sleek, lightweight design crafted from CNC-machined aerospace-grade aluminum alloy. It includes a transparent window for a modern aesthetic. The standard version offers a clean look, while the Snowfall Edition adds intricate laser engravings for a more premium finish.

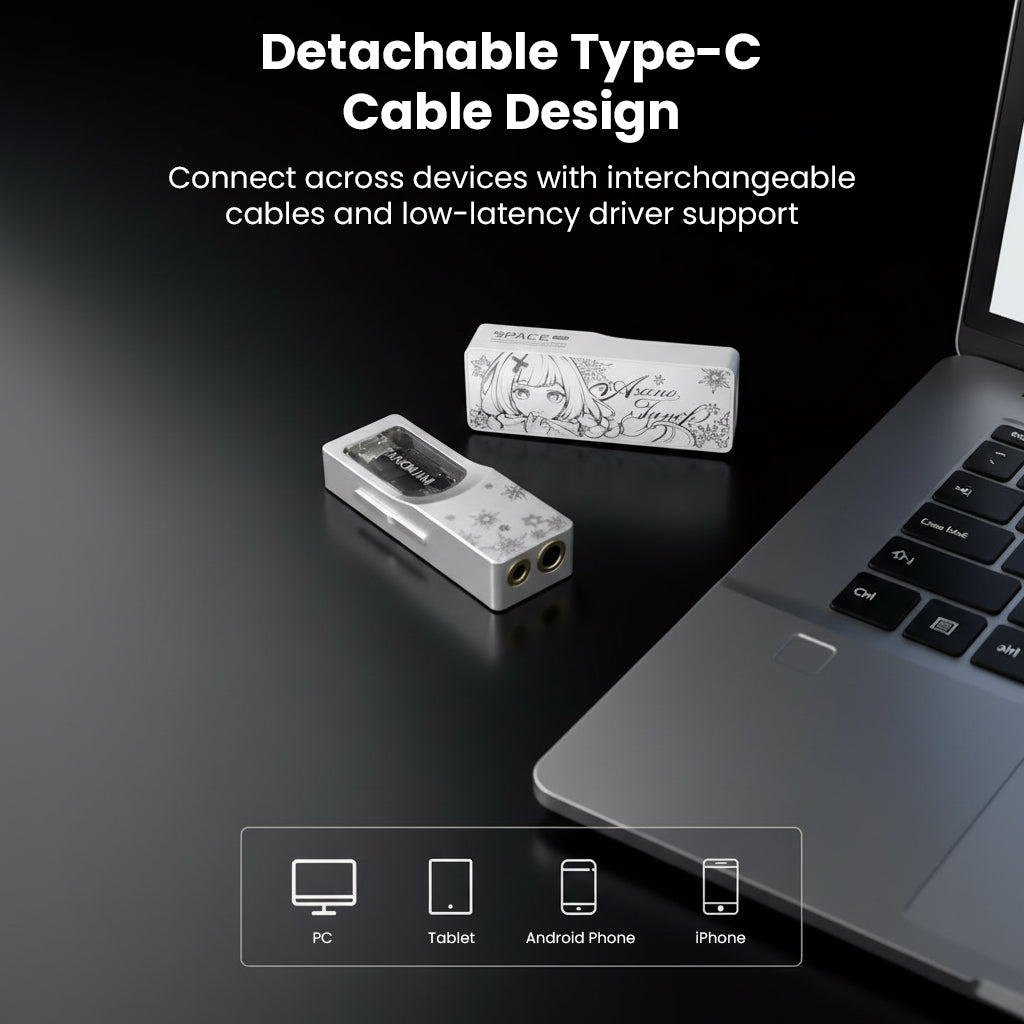

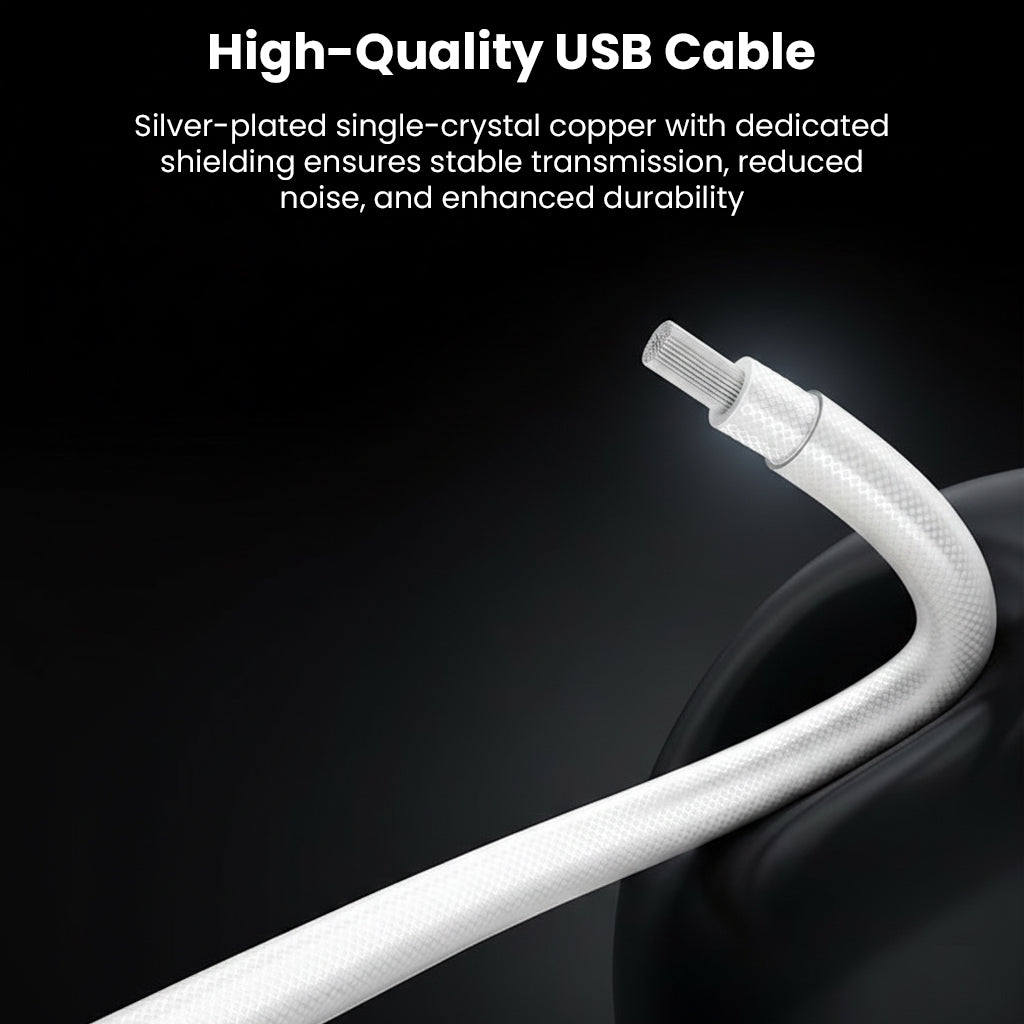

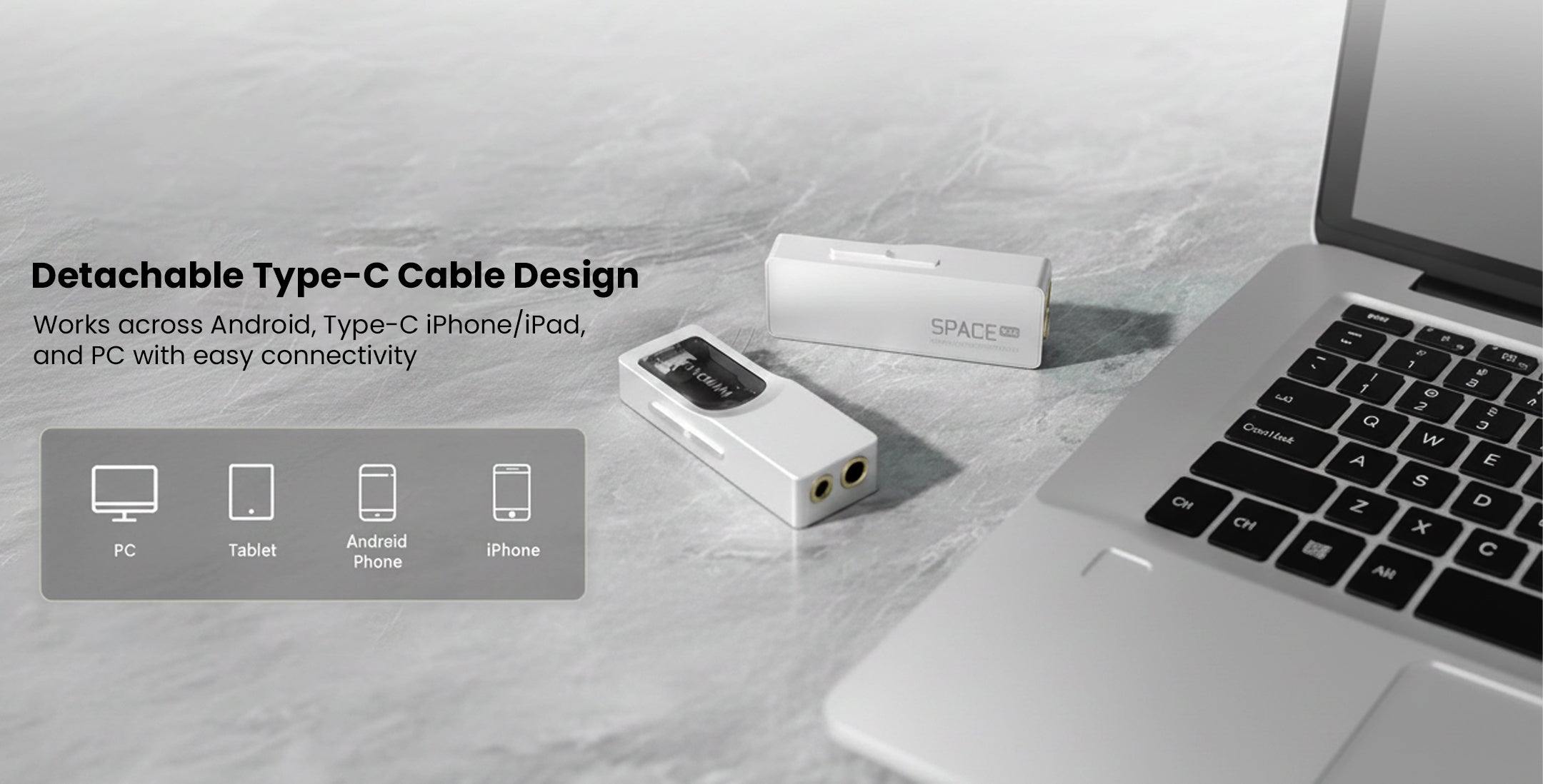

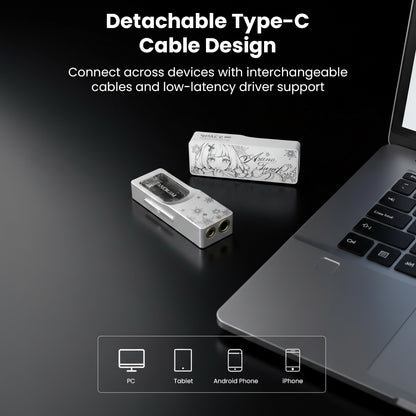

The device comes with a detachable high-quality Type-C to Type-C cable made from silver-plated single-crystal copper, ensuring reliable and high-quality signal transmission.

Specifications

Brand Name
Tanchjim
Model Name
Space Pro
Headphone Output
3.5mm + 4.4mm
Frequency Response
8Hz – 80kHz

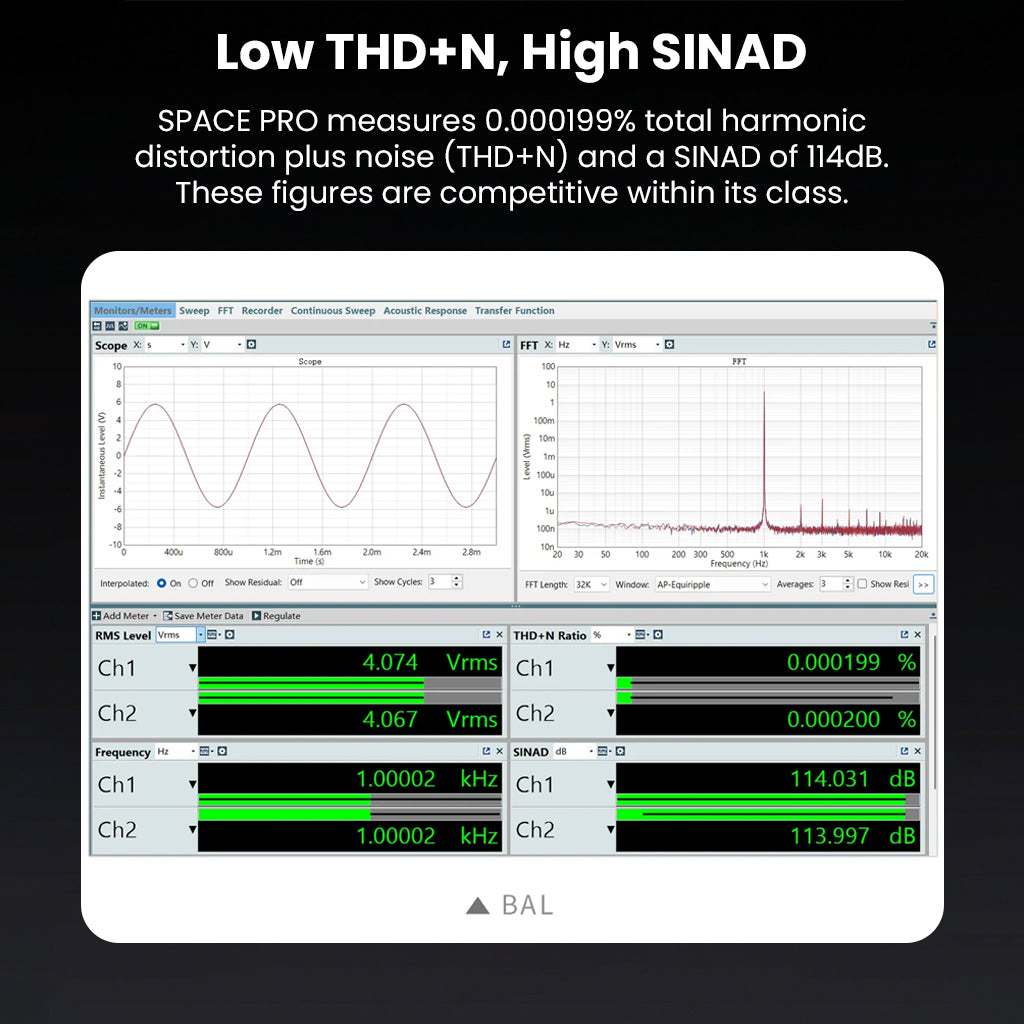

THD+N
0.000206%
Noise Floor
≤1.14uVrms
Dynamic Range
131dB
SNR
131dB
SINAD
113.7dB
Output Power
Up to 618mW
Output Level
4Vrms (Balanced) / 2Vrms (Single-Ended)

Box Content

    What will you get
  • 1x Space Pro DAC/Amp
  • 1x Type-C to Type-C Cable
  • 1x Type-C to USB-A Cable
  • 1x User Manual
