SMSL - SH-6 Mini Desktop Headphone Amplifier

SMSL

Desktop amps & dacs under 20000

Ultra-Low Distortion Linear Feedback Circuit | THD+N as low as 0.00006% | Powerful Output Power | Classic toggle Switch Design | Two-Level Gain Switch | Pop Free Noise Design | Ultra Low Noise Power Supply Design | Hi-Res Audio Certified

₹ 11,490 ₹ 13,788 Save ₹ 2,298

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery


Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Cash on Delivery Available Info Cash on delivery applicable for order from ₹ 500 to 15000

Cash on Delivery Available Info Cash on delivery applicable for order from ₹ 500 to 15000

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

ULTRA-LOW DISTORTION LINEAR FEEDBACK CIRCUIT

SMSL SH-6 is mini desktop headphone amplifier with excellent sound quality. SMSL Ultra-Low Distortion Linear Feedback Circuit allows it to produce extremely clear output signals with ultra-low distortion and high SNR. This device is ultra-low distortion, with a 0.00006% distortion rating, ensuring a clean output. An ultra-clean amplifier such as the SH-6 will allow your HiFi headphones to shine. The SH-6 has been certified as Hi-Res Audio due to its exceptional performance.

PREMIUM COMPONENTS FOR UNMATCHED AUDIO PERFORMANCE

SMSL SH-6 features highest quality of audio components to deliver excellent sound quality. SH-6 adopts an ultra-low noise power supply so that the output noise is as low as 1.3uV. Sh-6 also equipped with high precision low-temperature drift resistor which allows the device to operate optimally at any temperature. You also find high-quality relays and pop-free noise circuitry design to elevate the performance even further.

AMPLE OUTPUT POWER TO DRIVE THE MOST DEMANDING HEADPHONES EASILY

SMSL SH-6 delivers clean, powerful sound. With its 6.35mm headphone output, it can deliver 2.6W of power at 16Ω of load. At 32Ω of headphone load, the SH-6 achieves 1.3W of output power rating adequate to drive demanding headphones with ease. This power giving you the ability to drive sensitive IEMs and even full-sized headphones. The device has a 2-level gain switch, the low gain has 0dB gain, and the high-gain provides 15.5dB of signal gain.

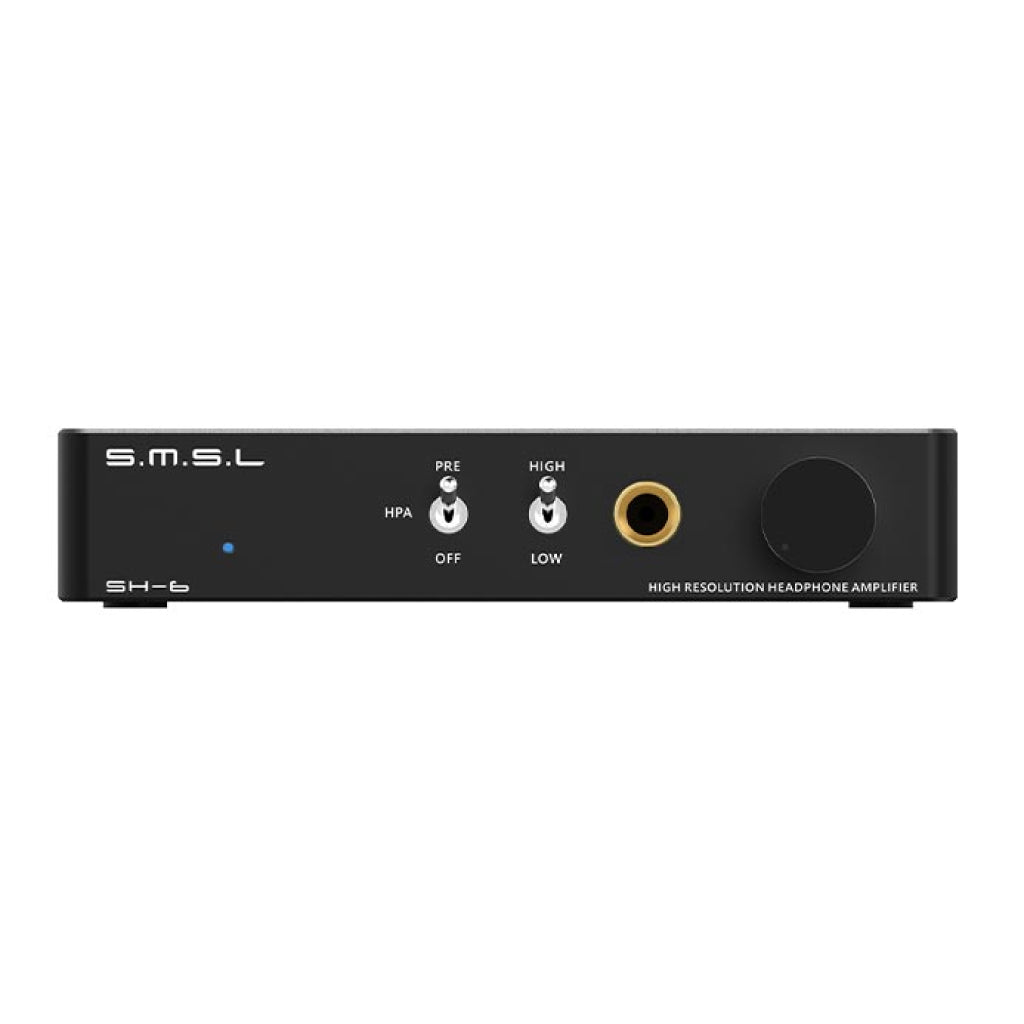

ROBUST BUILD AND SHOWCASE A CLASSIC WITH TOGGLE SWITCHES

The SMSL SH-6 is designed for HiFi performance and features a high-quality metal casing and classic toggles. The two gain settings are controlled by toggle switches on the front, offering user freedom to choose between two available gain settings. High gain for 15.5dB and low for 0dB. This makes it possible to toggle between the desired gain setting at will.

Add a heading

Add content using the options to the left

Specifications

Brand Name
SMSL
Model Name
SH-6
Product Name
SMSL - SH-6 Mini Desktop Headphone Amplifier
Input
1x Unbalanced
Headphone Output
1x 6.35mm Unbalanced
Pre-Out
1x Unbalanced
Output Power
2.6W X 2 @ 16Ω
1.3W X 2 @ 32Ω
SNR
134dB
Output Noise
1.3uV
THD+N
-123dB, 0.00006% (1kHz, 32Ω)
THD+N
-118dB, 0.00012% (20Hz-20kHz, 32Ω, 0dB)
THD
-125dB, 0.00006%
Input Impedance
47kΩ
Amp Output Impedance
Near 0Ω
Pre-Out Impedance
22kΩ
Frequency Response
20Hz-500kHz (-3dB)
Gain
Low (0dB)
High (15.5dB)
Power Consumption(EN60065)
<30W
Power Consumption in Standby Mode
<0.1W

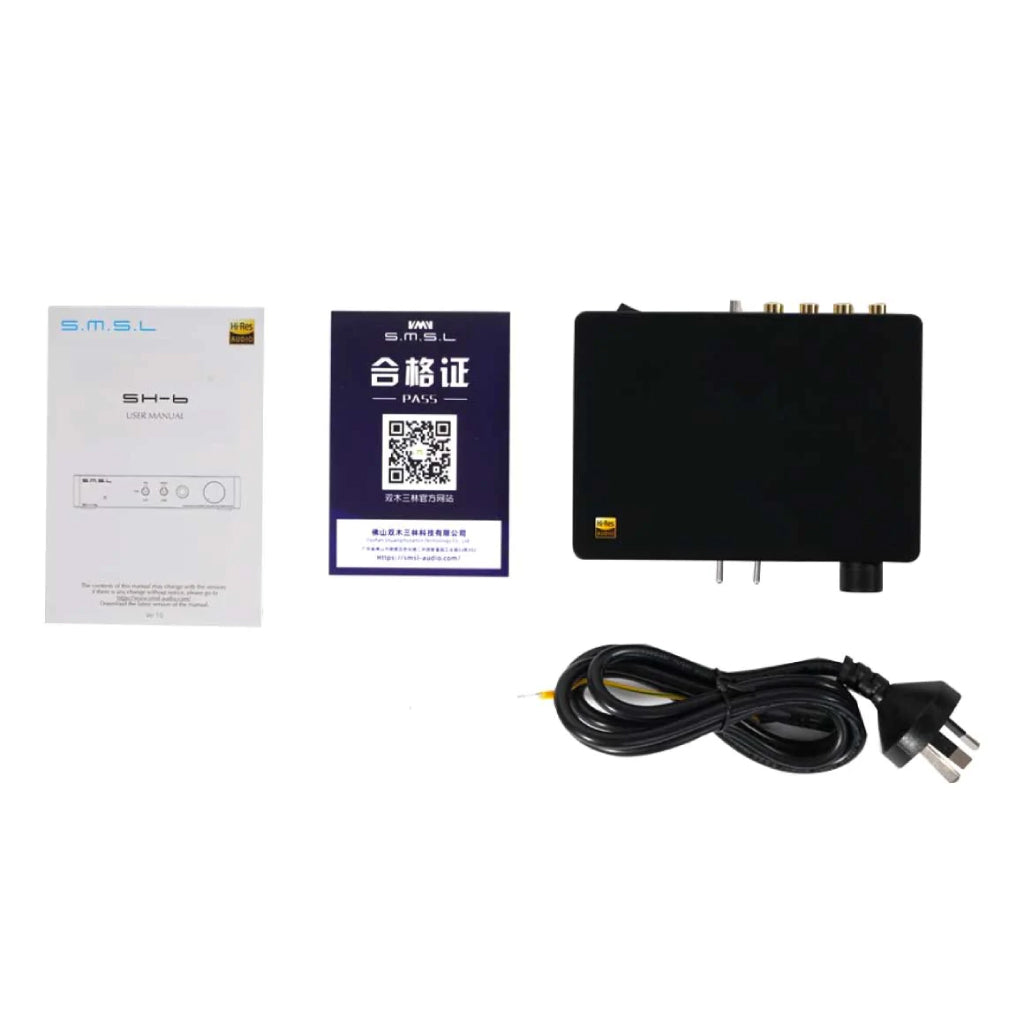

Box Content

    What will you get:
  • SMSL - SH-6 Mini Desktop Headphone Amplifier
  • Power Cord
