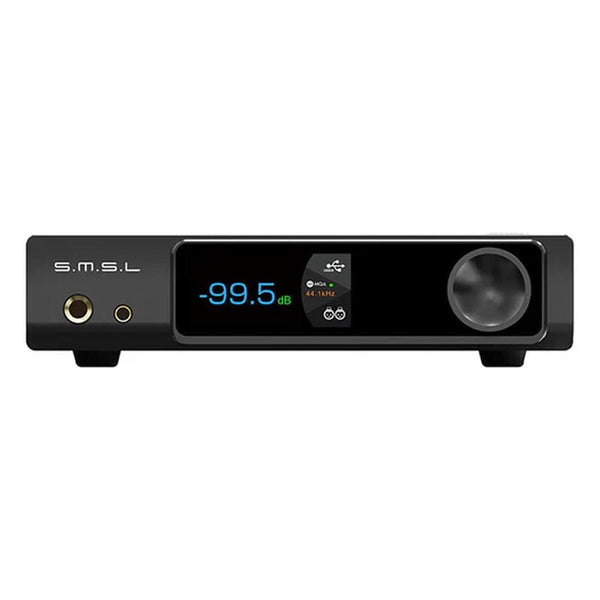

SMSL RAW - MDA1 Desktop Bluetooth DAC & Headphone Amplifier

SMSL

Desktop amps & dacs under 30000

    High-Performance Next-Gen Dual ES9039Q2M DAC Chips

    High-Power Six OPA1612A Amplification Chip

    Advanced 3rd-gen XMOS XU316 USB Processor

    High-Resolution Bluetooth V5.1 Input with LDAC, aptX HD, and aptX Support

    Dual Headphone Outputs (6.35mm + 4.4mm) with USB1.1 and USB2.0 Modes

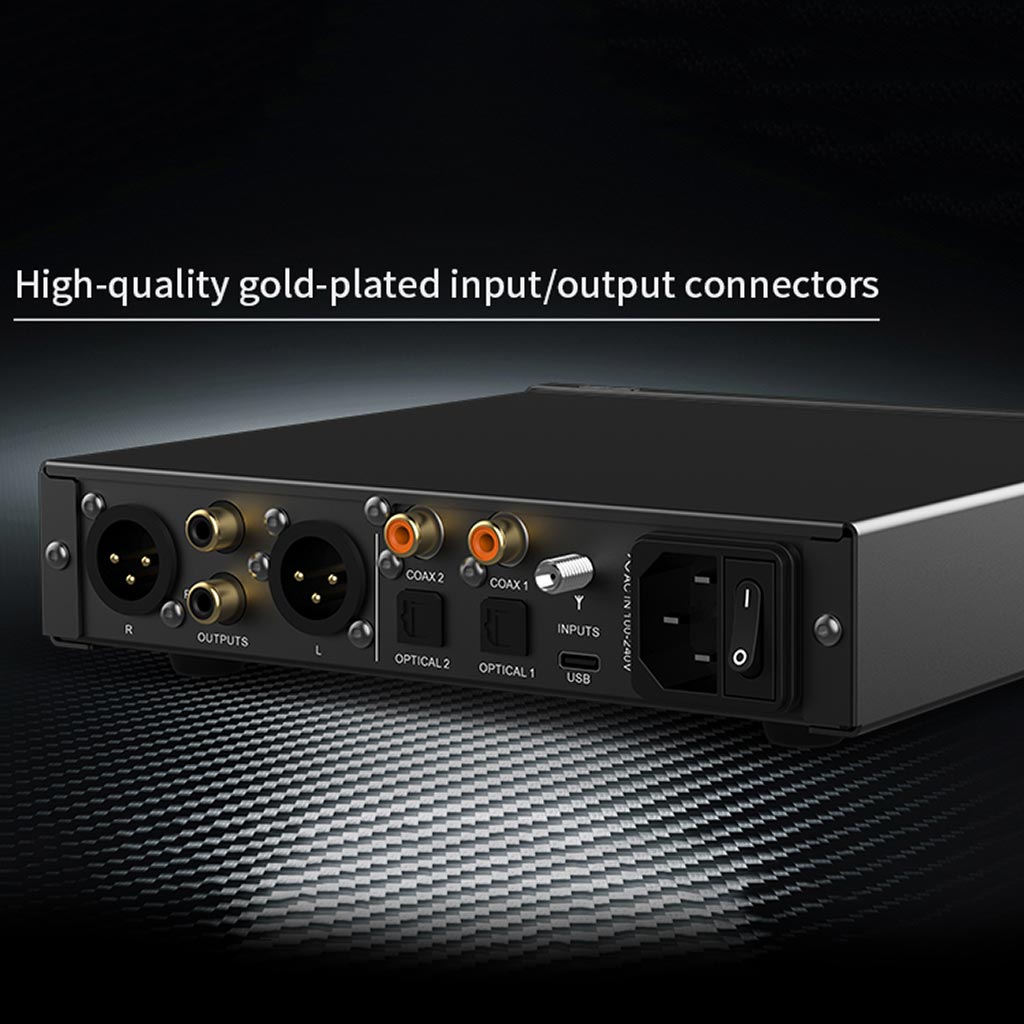

    Premium Gold-Plated Input and Output Connectors

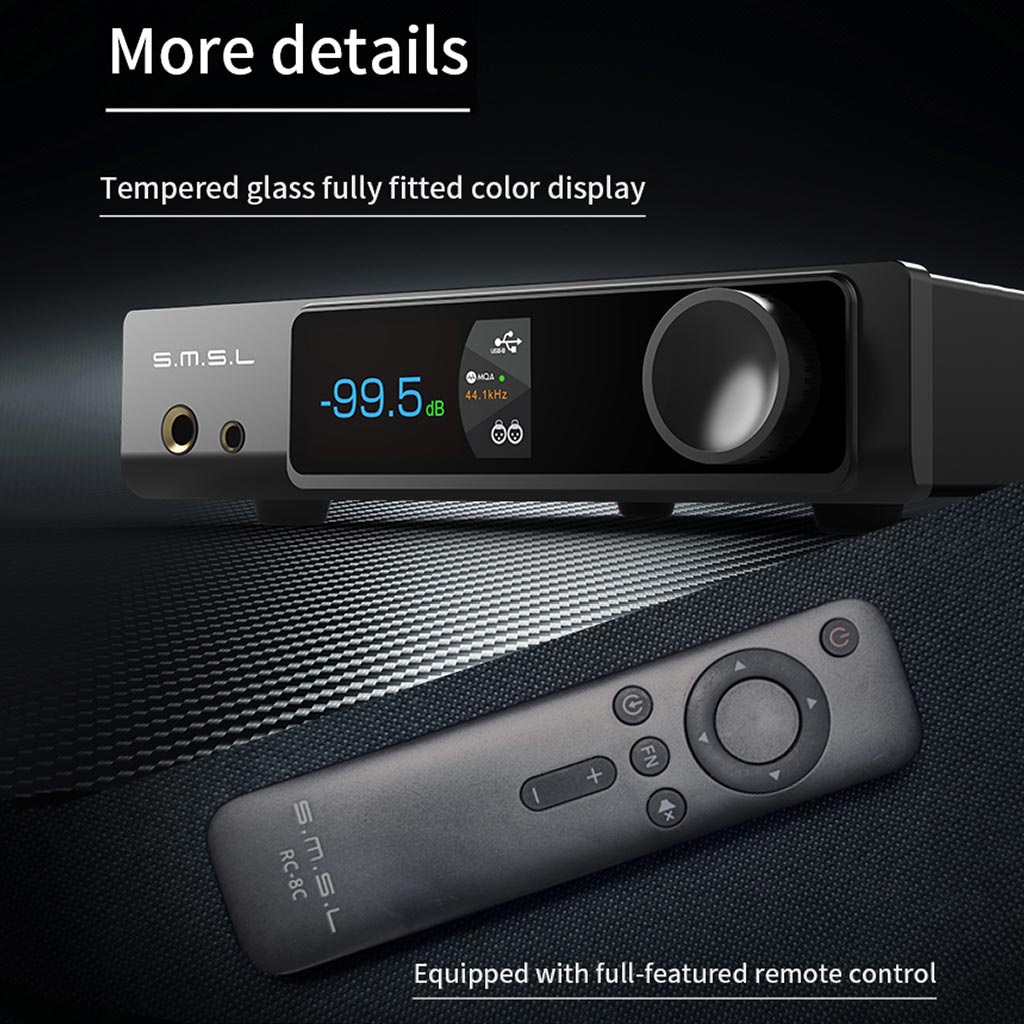

    Vibrant Display Screen with Full-Featured Remote Control

₹ 26,990 ₹ 31,999 Save ₹ 5,009

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery


Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

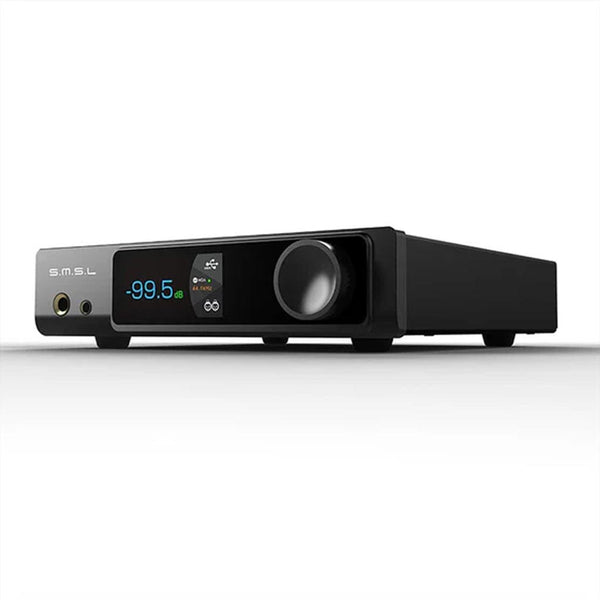

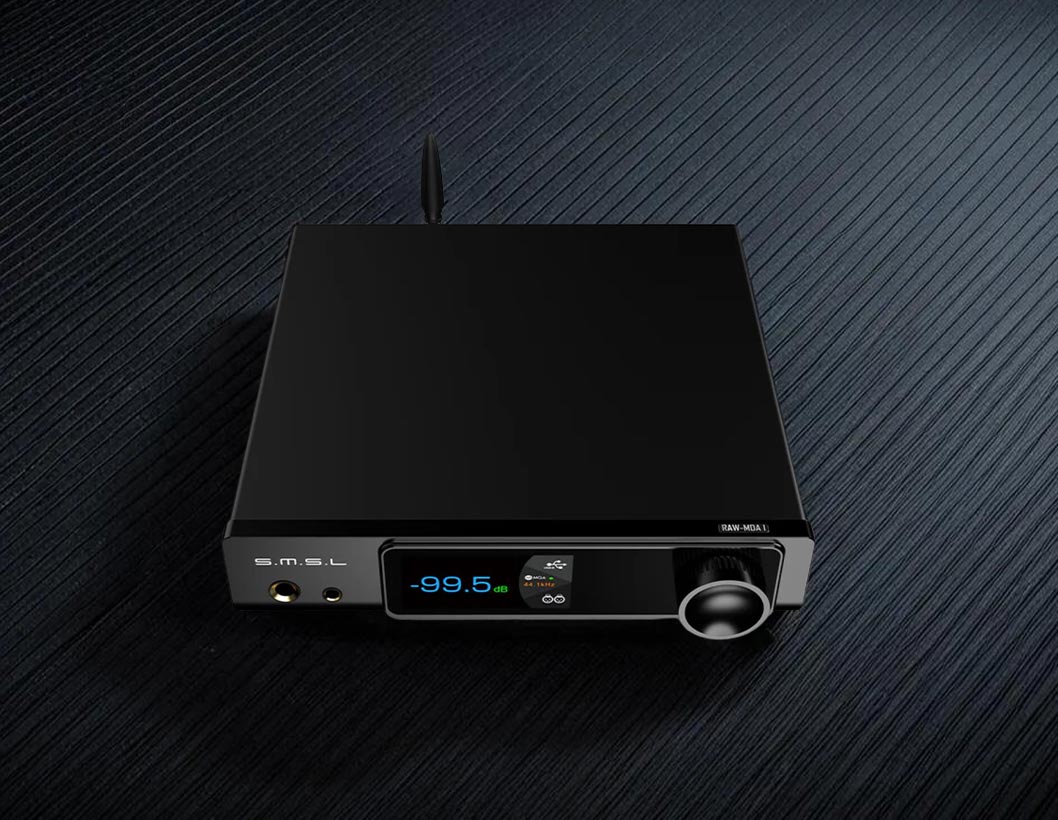

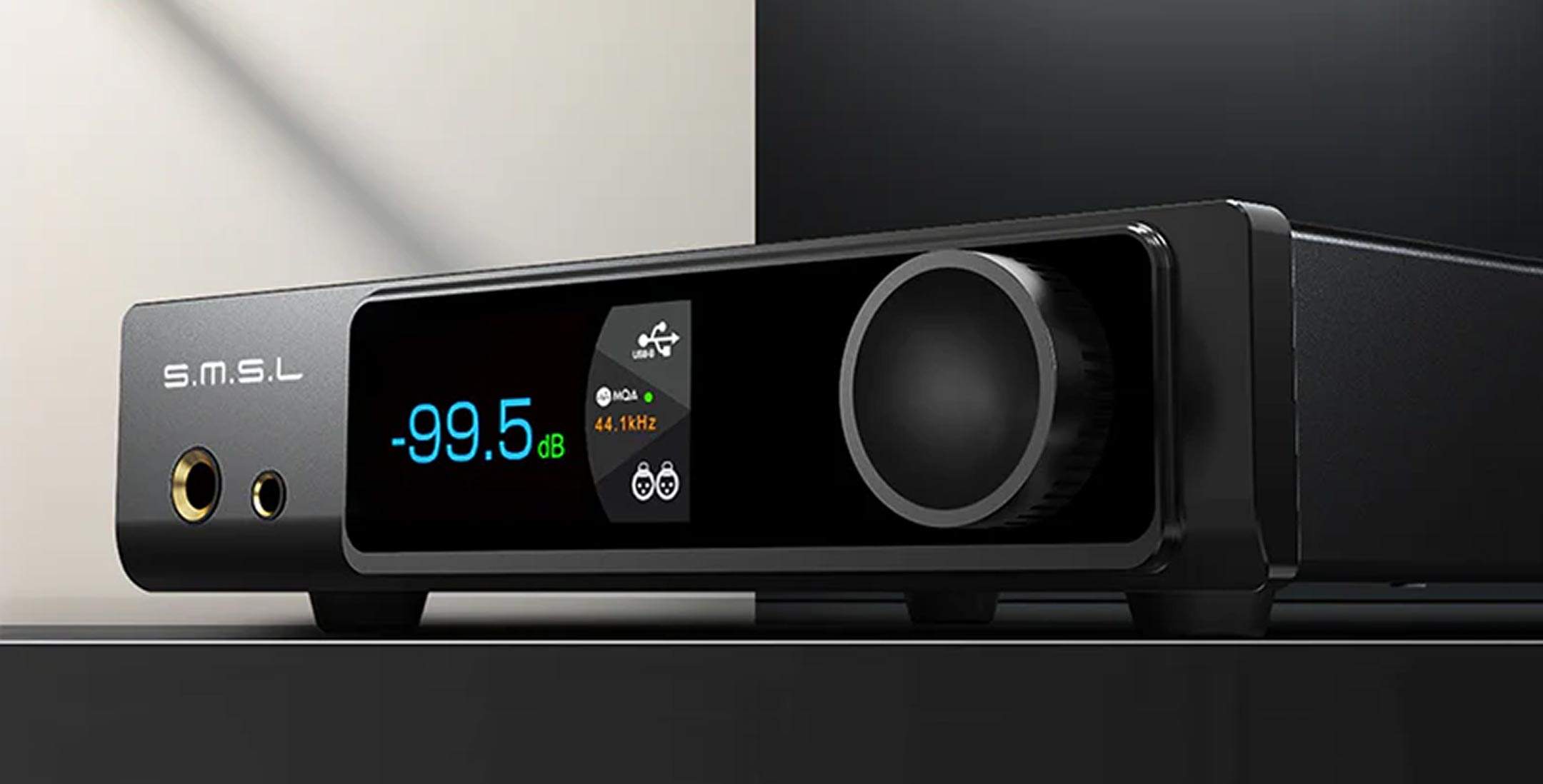

The SMSL RAW-MDA1 Desktop DAC/AMP brings the latest in audio technology with its cutting-edge ES9039Q2M Dual DAC setup, delivering pristine sound quality and high-resolution audio decoding. Featuring six OPA1612A OPAMPS, the RAW-MDA1 ensures clean, noise-free audio with an output power of up to 2.5W through its balanced headphone connection. Whether you're decoding PCM up to 32-bit/768kHz, native DSD512, or MQA and MQA-CD, the RAW-MDA1 elevates your listening experience with ultra-low distortion and exceptional performance.

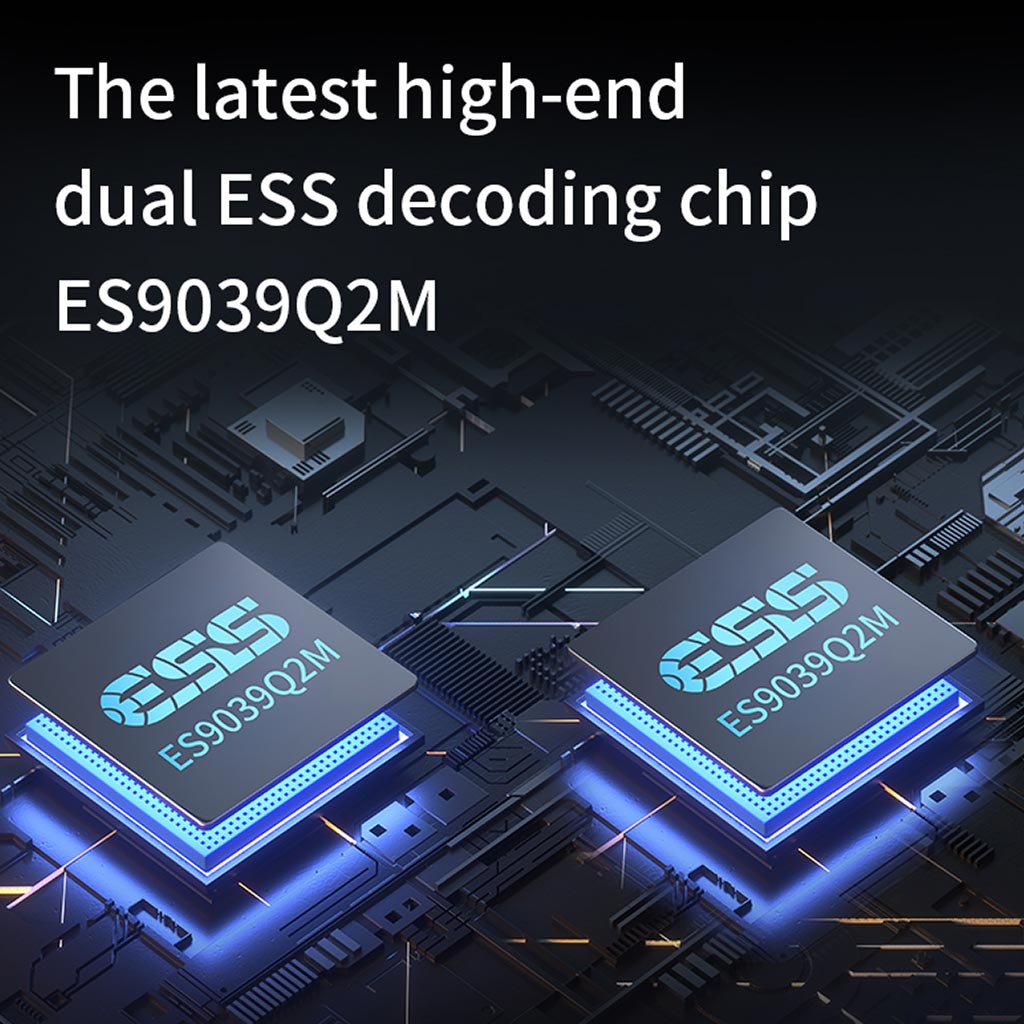

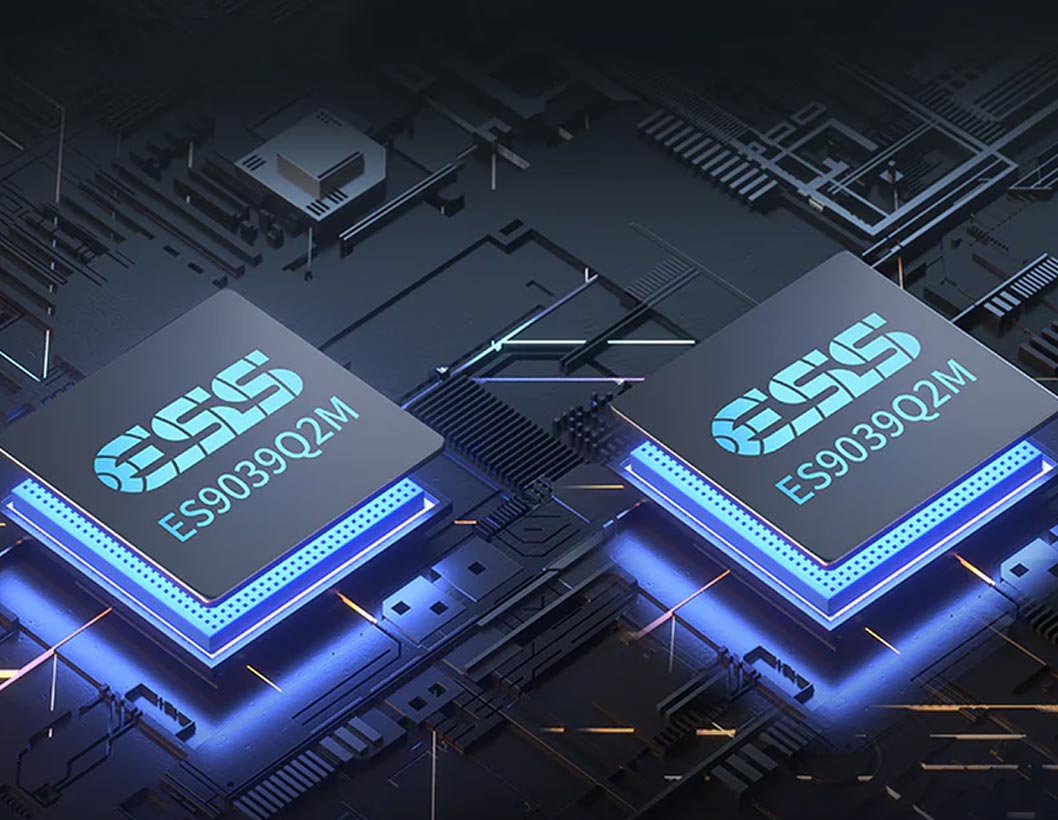

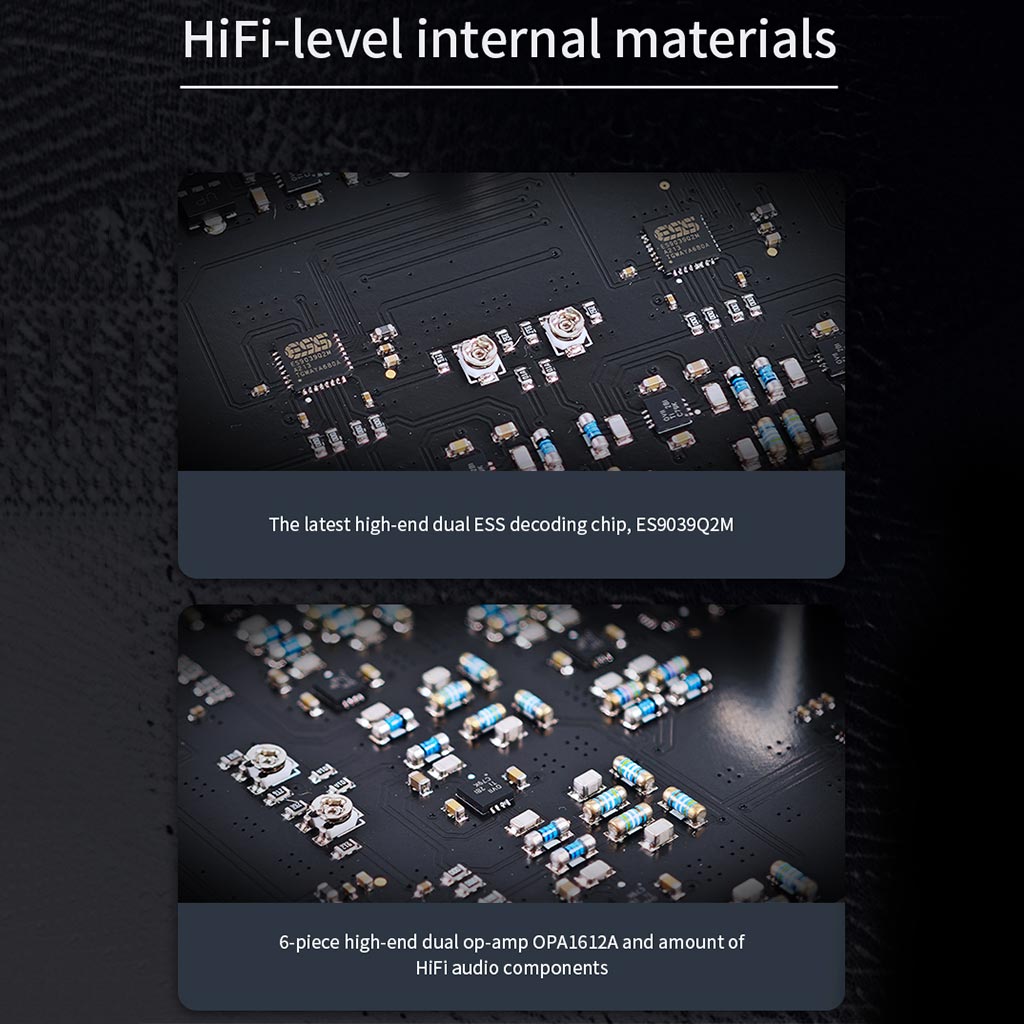

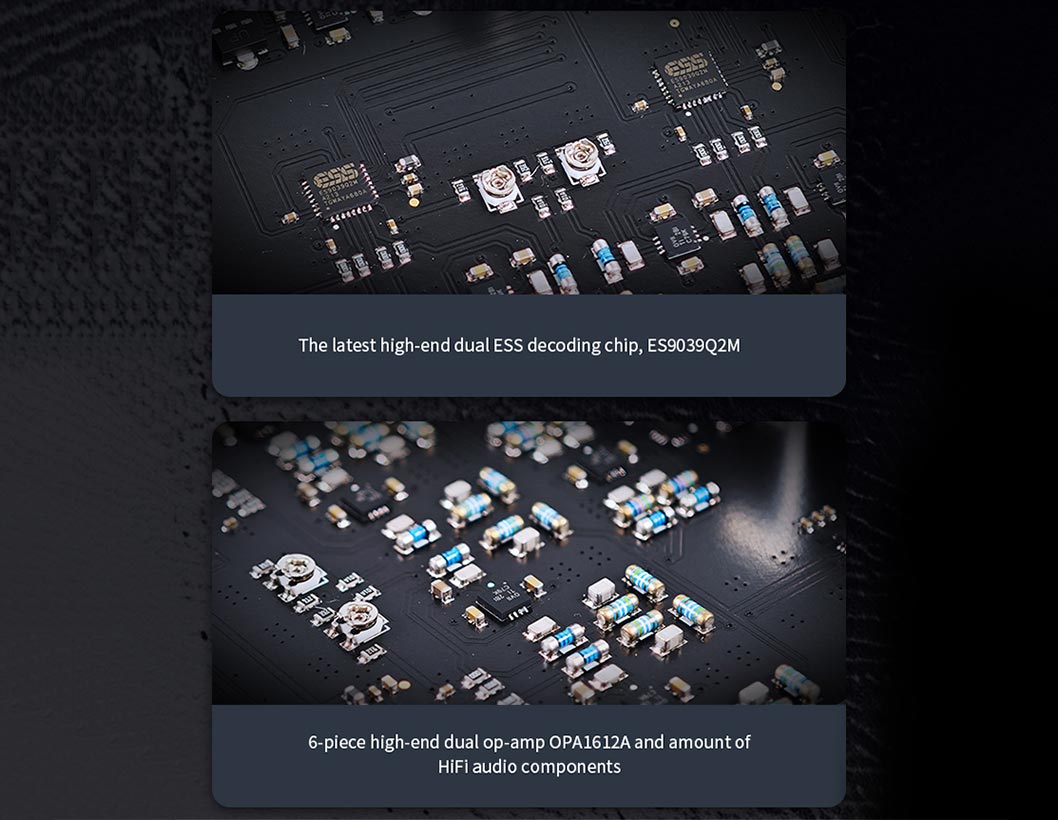

HIGH-PERFORMANCE NEXT-GEN DUAL ES9039Q2M DAC CHIPS

The SMSL RAW-MDA1 features a latest-generation dual-DAC chipset with two ESS Sabre ES9039Q2M DAC chips. As a top-tier USB DAC and digital-to-analog converter, it excels in high-resolution audio processing with ultra-low distortion. This versatile device serves as a powerful DAC & amp, USB audio decoder, and headphone amplifier, delivering crystal-clear sound and dynamic richness for an unparalleled listening experience.

Smsl raw mda1 dac amp black 01 1

HIGH-POWER SIX OPA1612A AMPLIFICATION CHIP

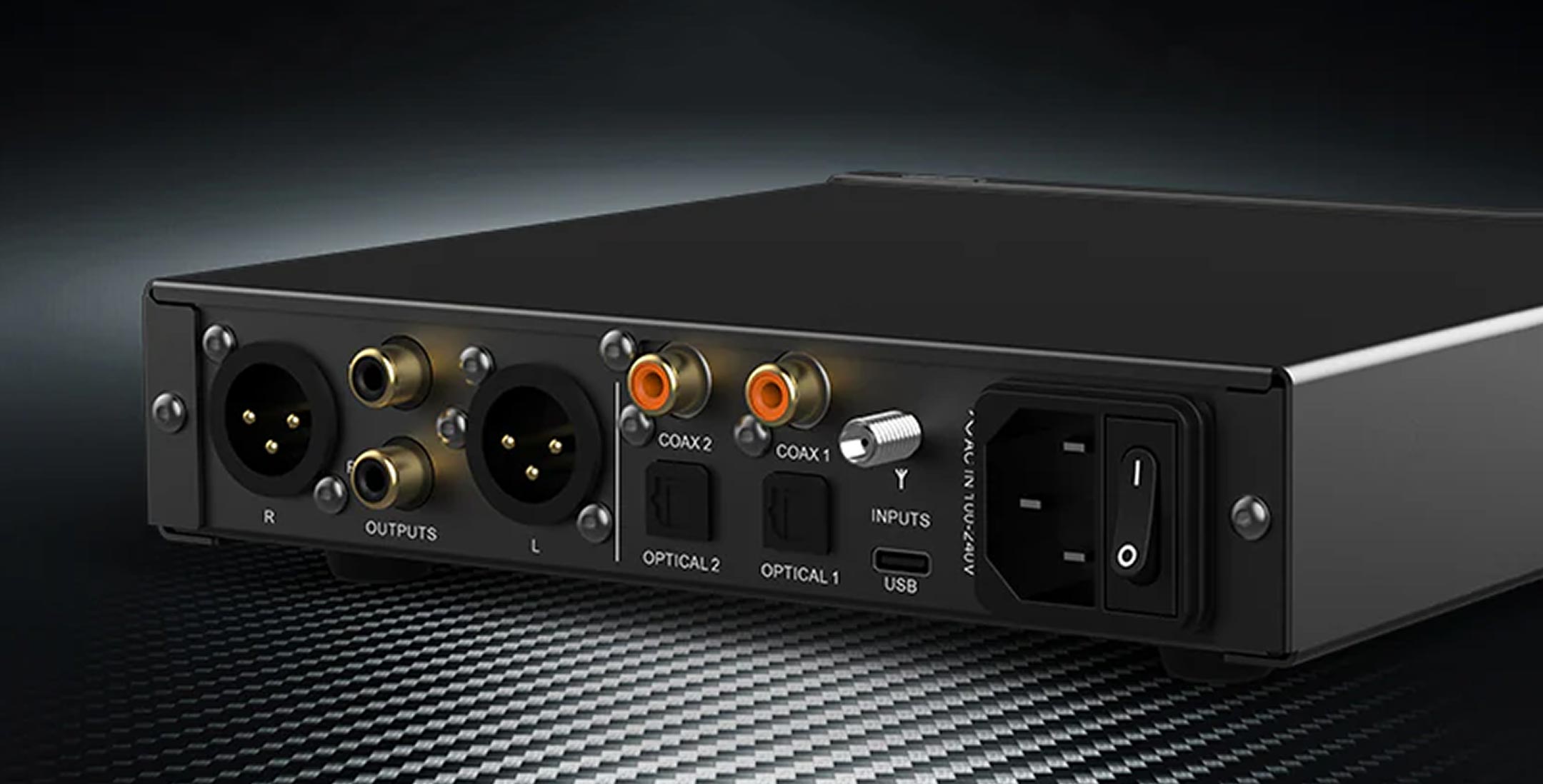

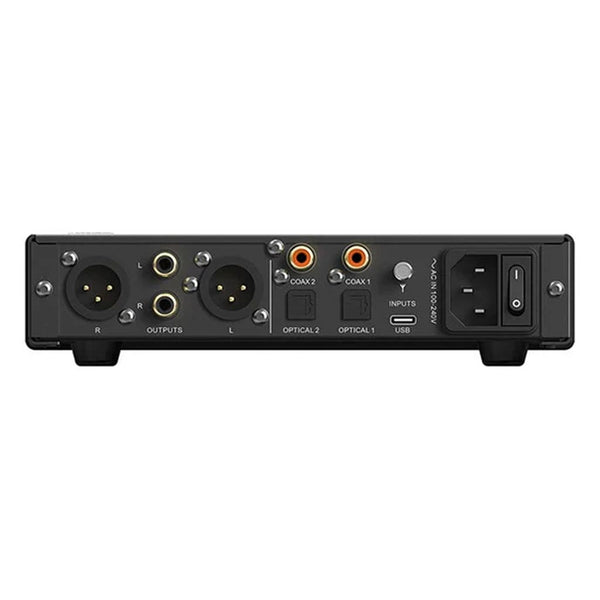

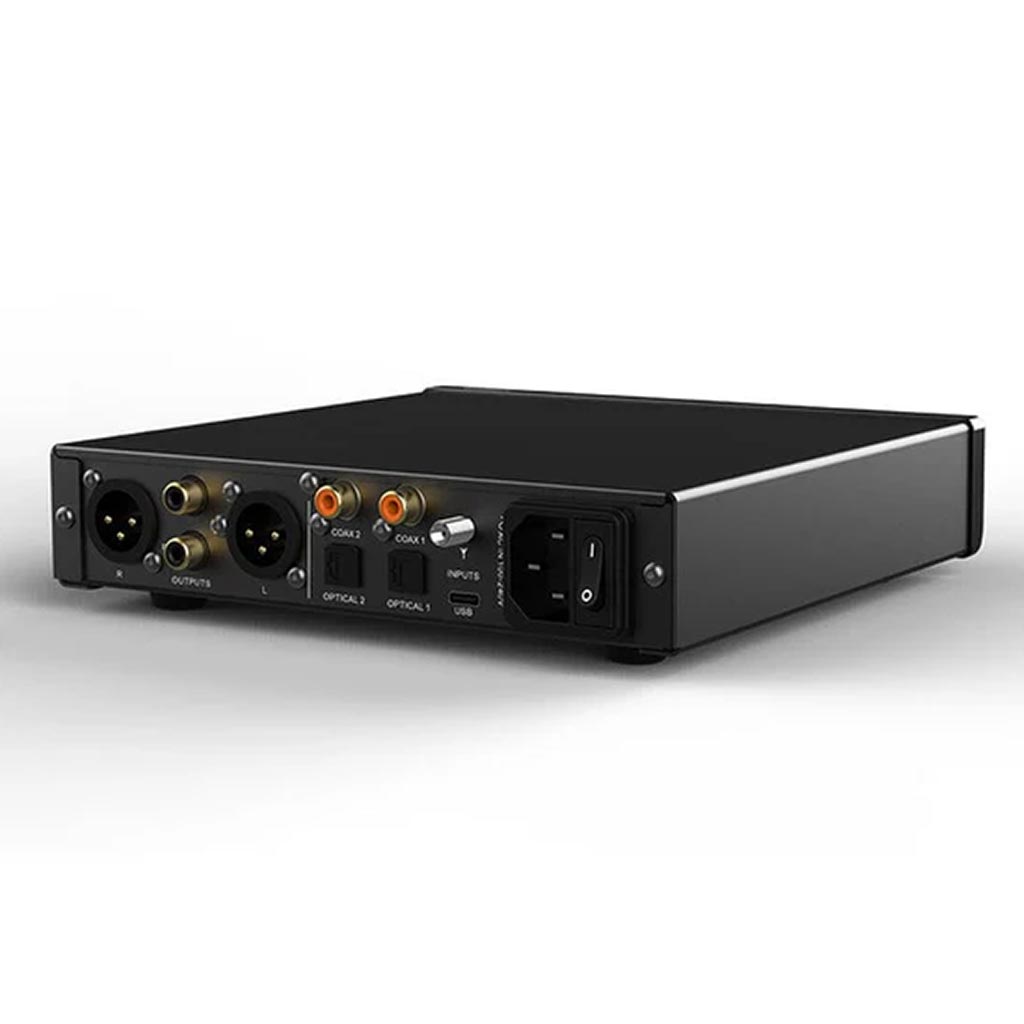

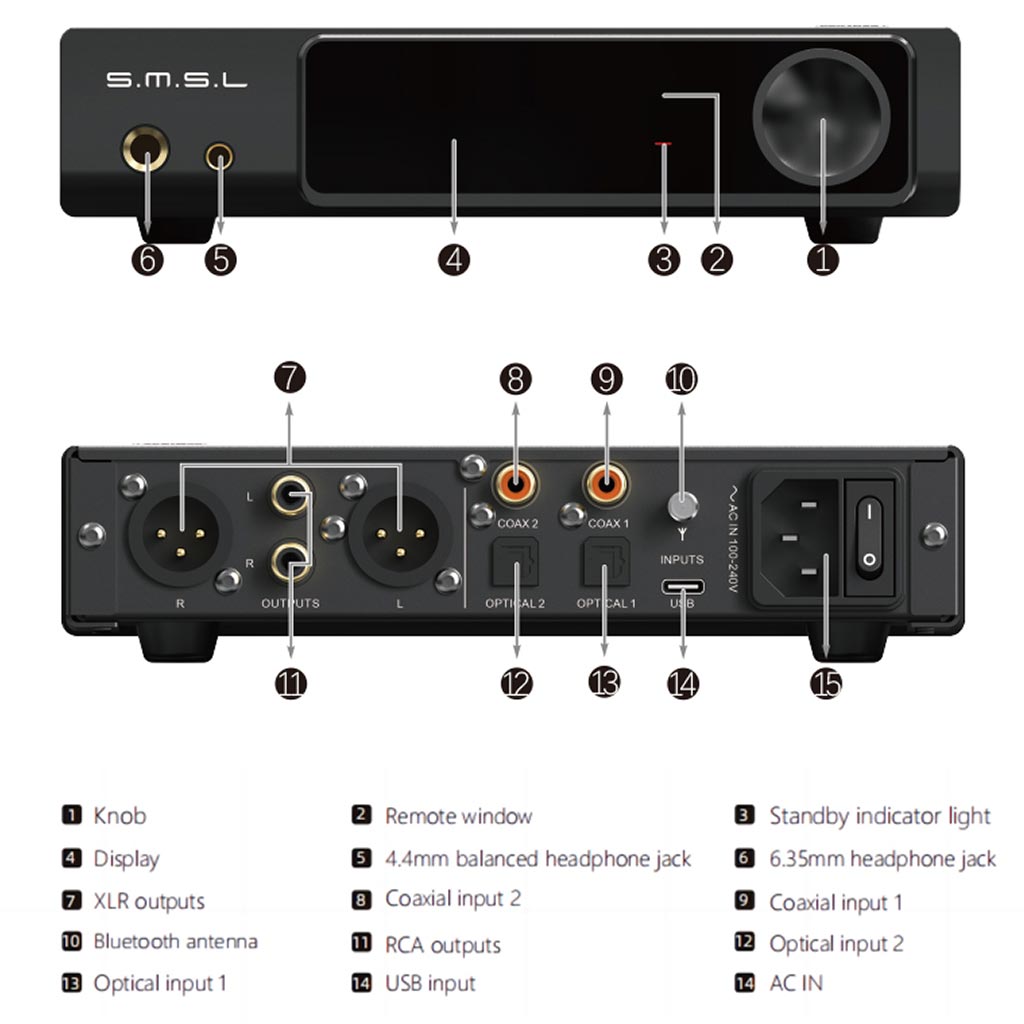

Experience the roaring heart of your audio with the SMSL RAW-MDA1, a USB DAC and headphone amplifier, with six OPA1612A chips to deliver 2.5W per channel through its 4.4mm balanced output. This compact DAC & amp features 6.35mm single-ended and 4.4mm balanced outputs, plus XLR and RCA line-outs, making it the perfect portable DAC for those seeking high-power amplification and pristine sound.

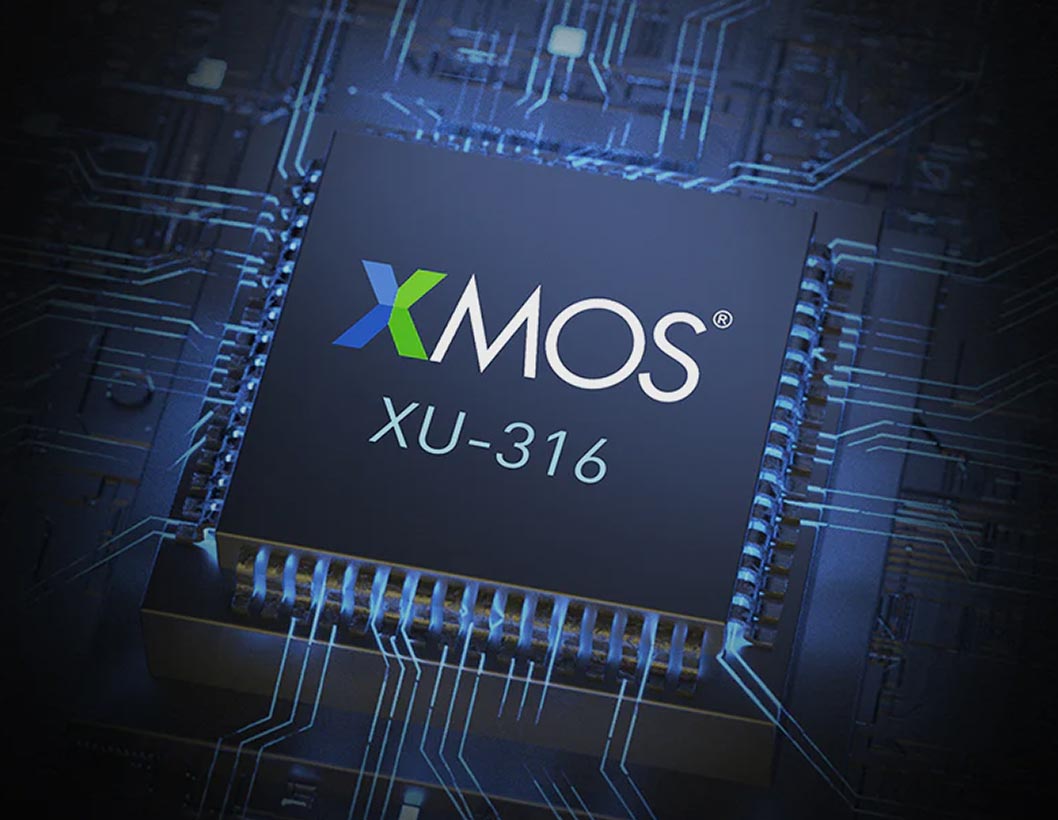

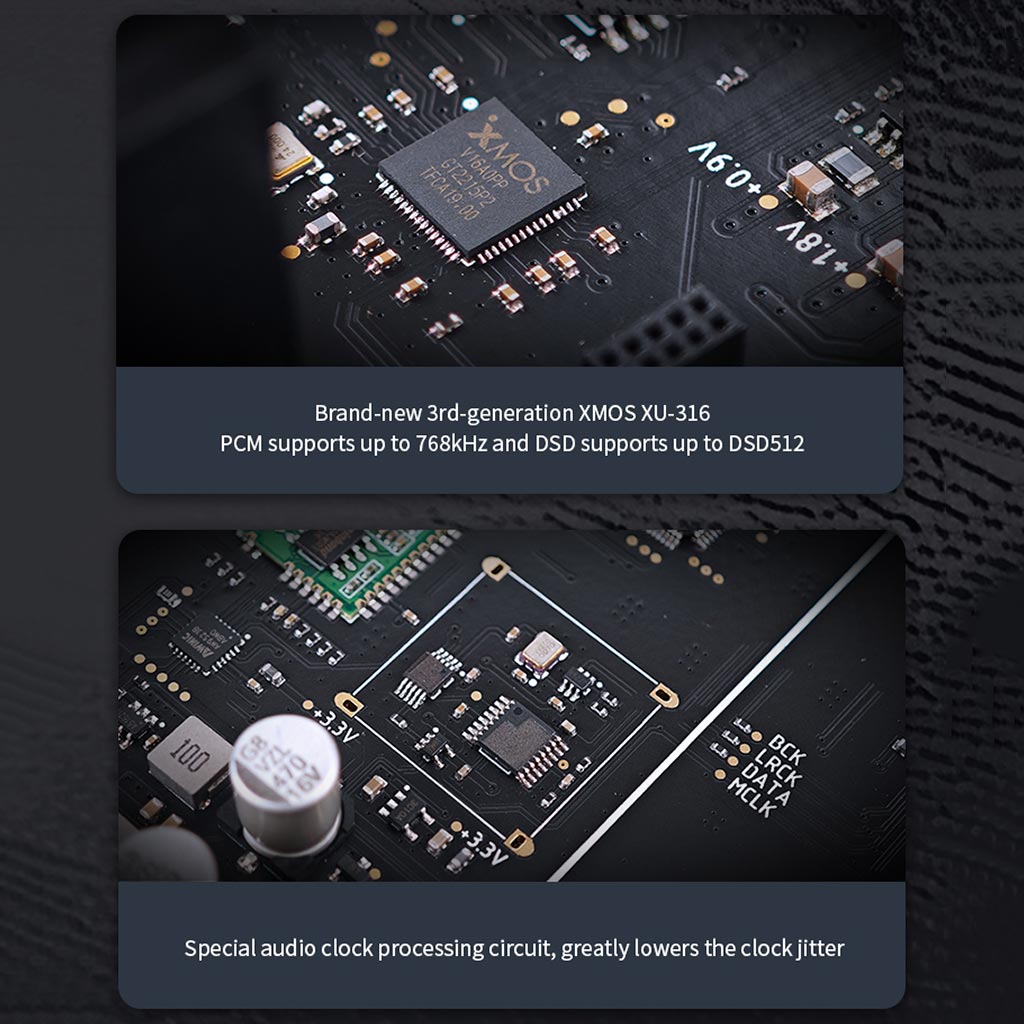

ADVANCED 3RD-GEN XMOS USB PROCESSOR

The SMSL RAW-MDA1 incorporates a 3rd-Gen XMOS XU316 16-core USB processor, serving as a high-performance USB DAC and digital-to-analog converter. This sophisticated processor excels in decoding PCM 32-Bit/768kHz and DSD512 audio signals, ensuring superior sound quality. The RAW-MDA1 also functions as a DAC & amp, USB audio decoder, and headphone amplifier, offering versatile connectivity with USB1.1 and USB2.0 dual modes. Additionally, its Type-C to 3.5mm DAC capability enhances compatibility with various devices, including gaming consoles, delivering exceptional audio performance across the board.

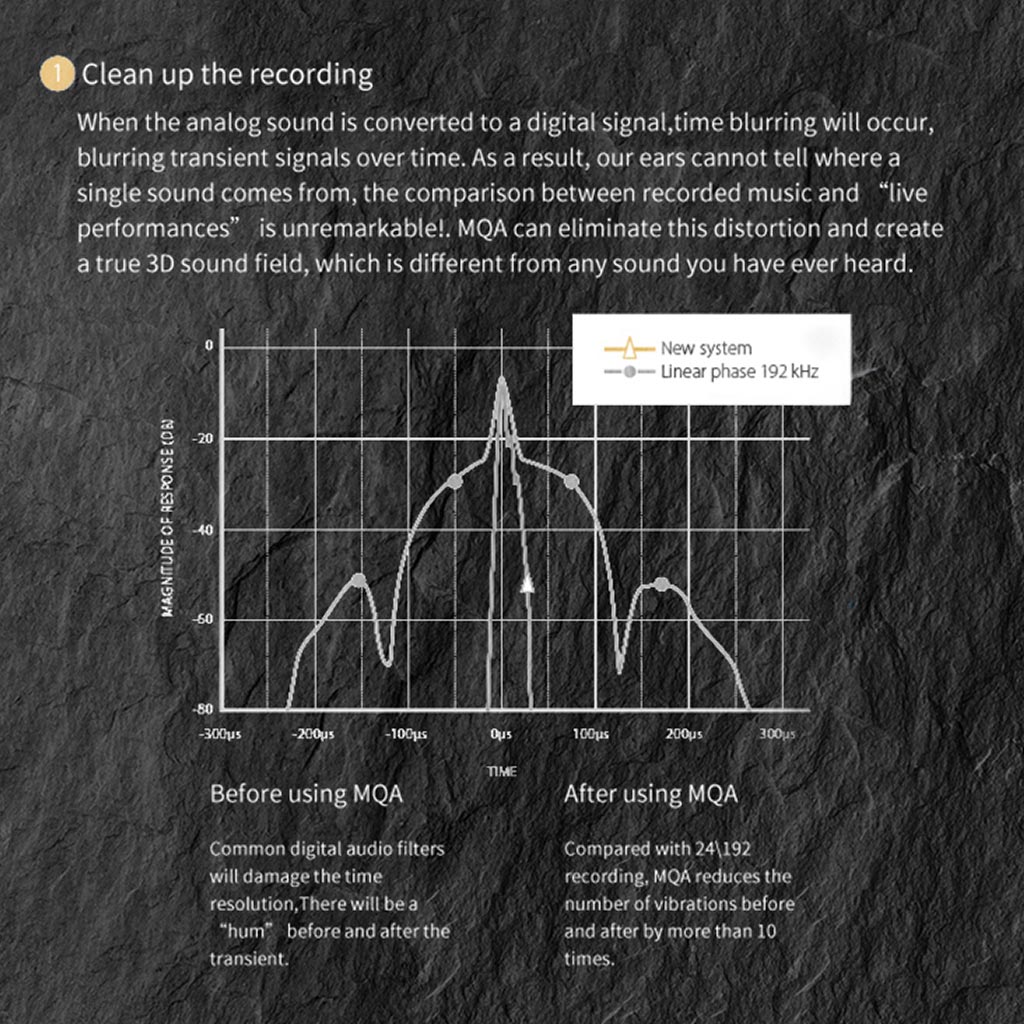

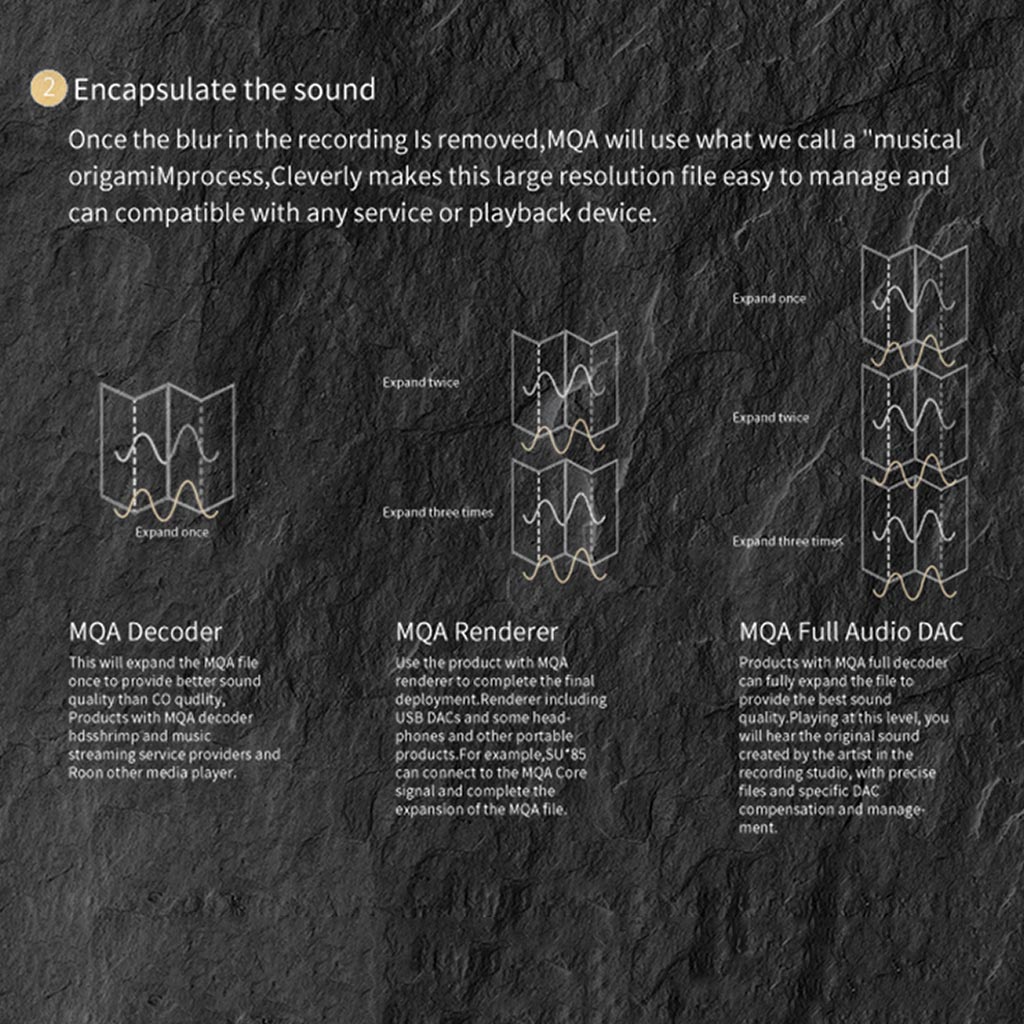

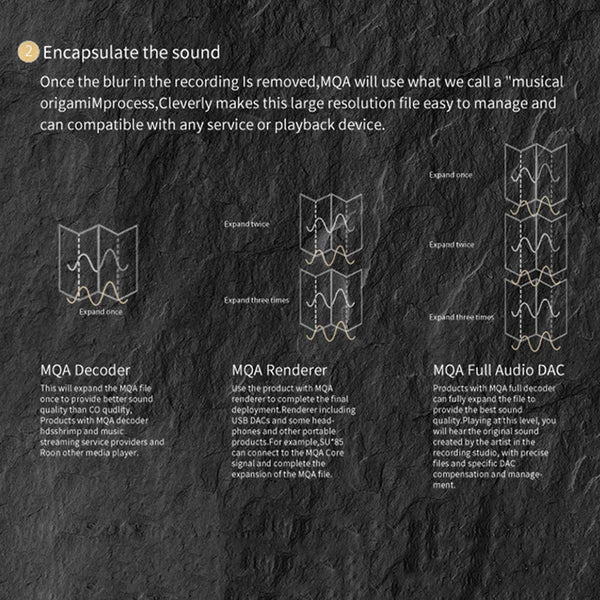

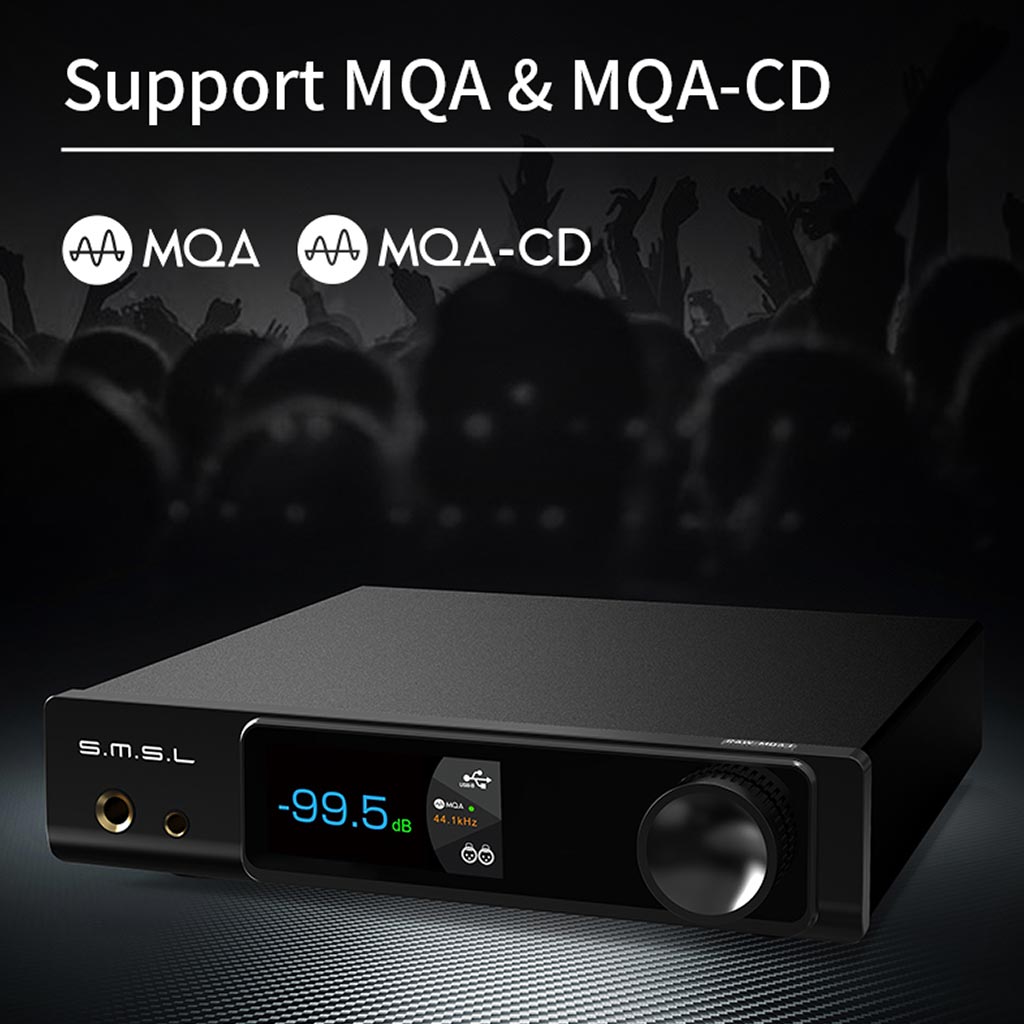

CERTIFIED MQA AND MQA-CD DECODING FOR STUDIO-LEVEL SOUND UNLEASHED

The SMSL RAW-MDA1, fully certified for MQA and MQA-CD decoding, transforms your listening experience into studio-quality sound. Pair it with an MQA CD-Player, and it delivers the artist's original intent with unmatched clarity and precision. Experience the true depth of your music with the RAW-MDA1, bringing studio-level sound into your home. Perfect for audiophiles seeking the highest quality playback.

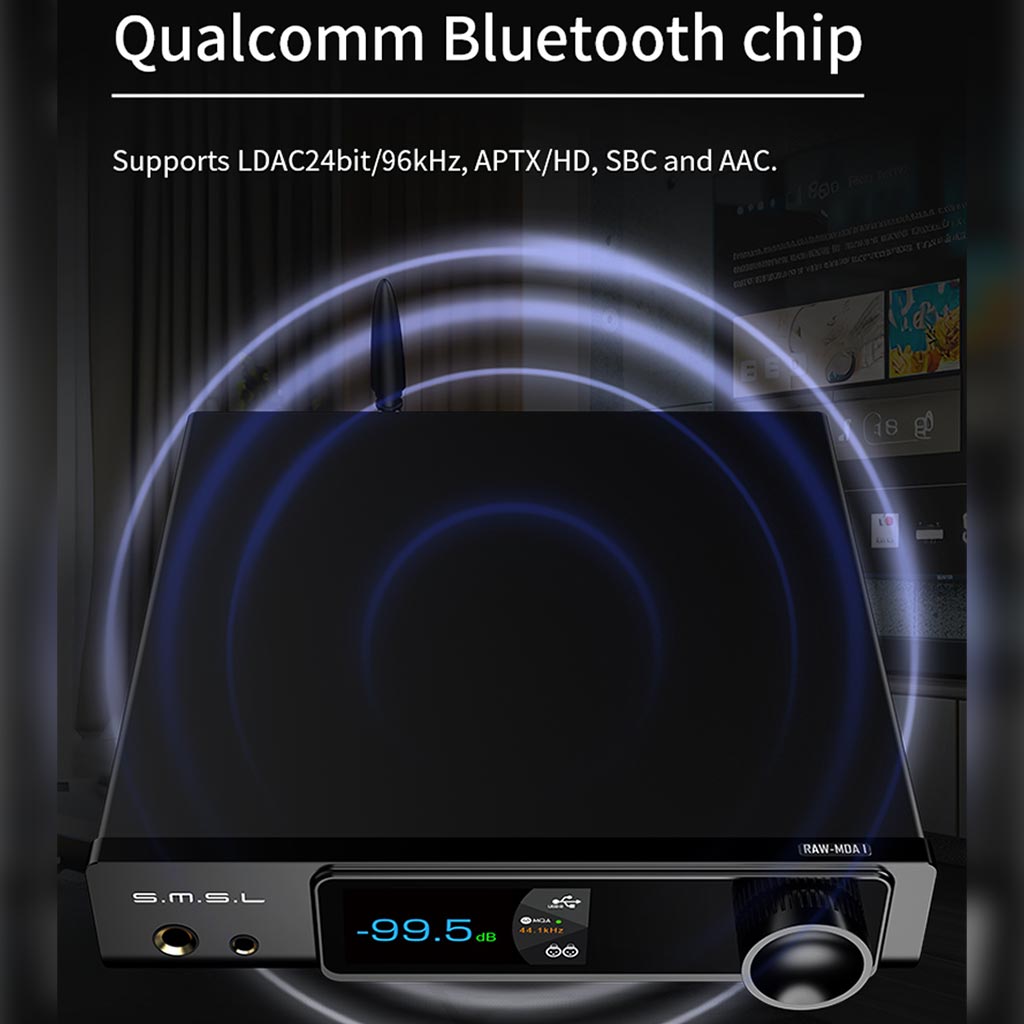

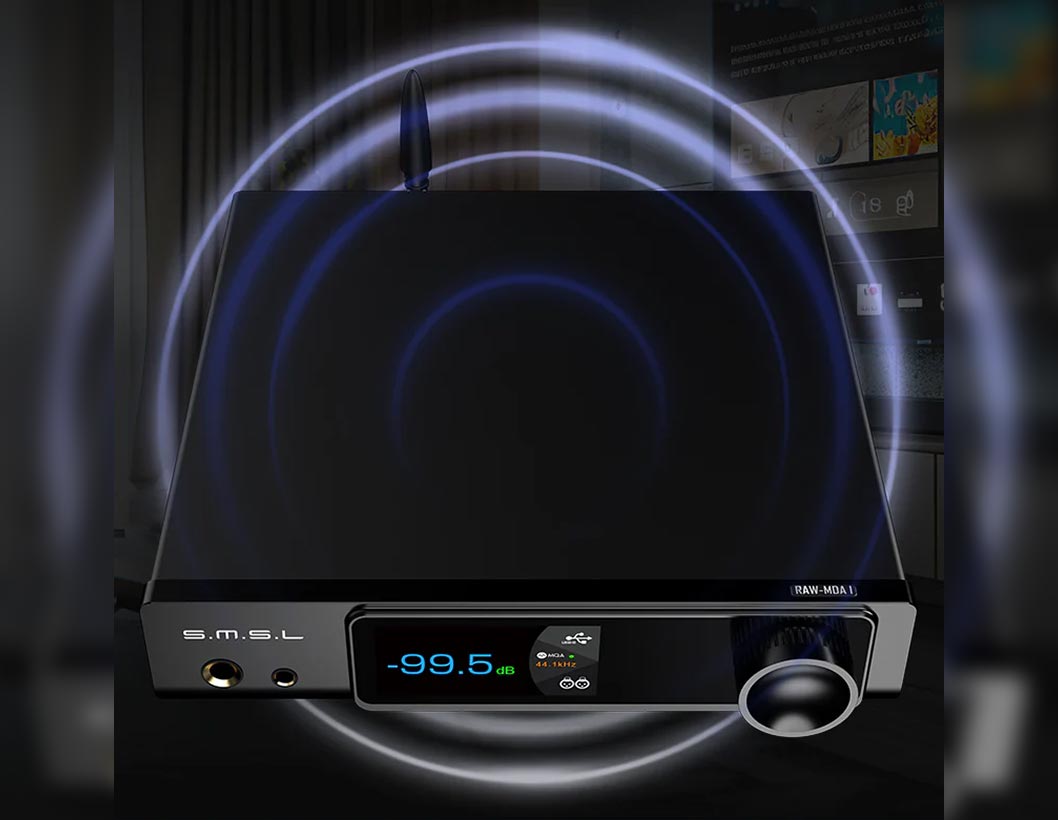

HIGH-DEFINITION BLUETOOTH CONNECTIVITY

Break free from the tangle of wires with the SMSL RAW-MDA1, a USB DAC and headphone amplifier featuring a high-performance Qualcomm Bluetooth chipset. This digital-to-analog converter (DAC & amp) offers seamless Bluetooth V5.1 connectivity, ensuring smooth, high-resolution wireless signal input. Supporting advanced transmission protocols like LDAC, AptX HD, and AptX Adaptive, the RAW-MDA1 acts as a versatile USB audio decoder, delivering every note with stunning clarity. As a portable DAC, it combines wireless freedom with exceptional sound quality, making it an ideal choice for audiophiles seeking both convenience and high-fidelity audio.

Smsl raw mda1 dac amp black 01 3

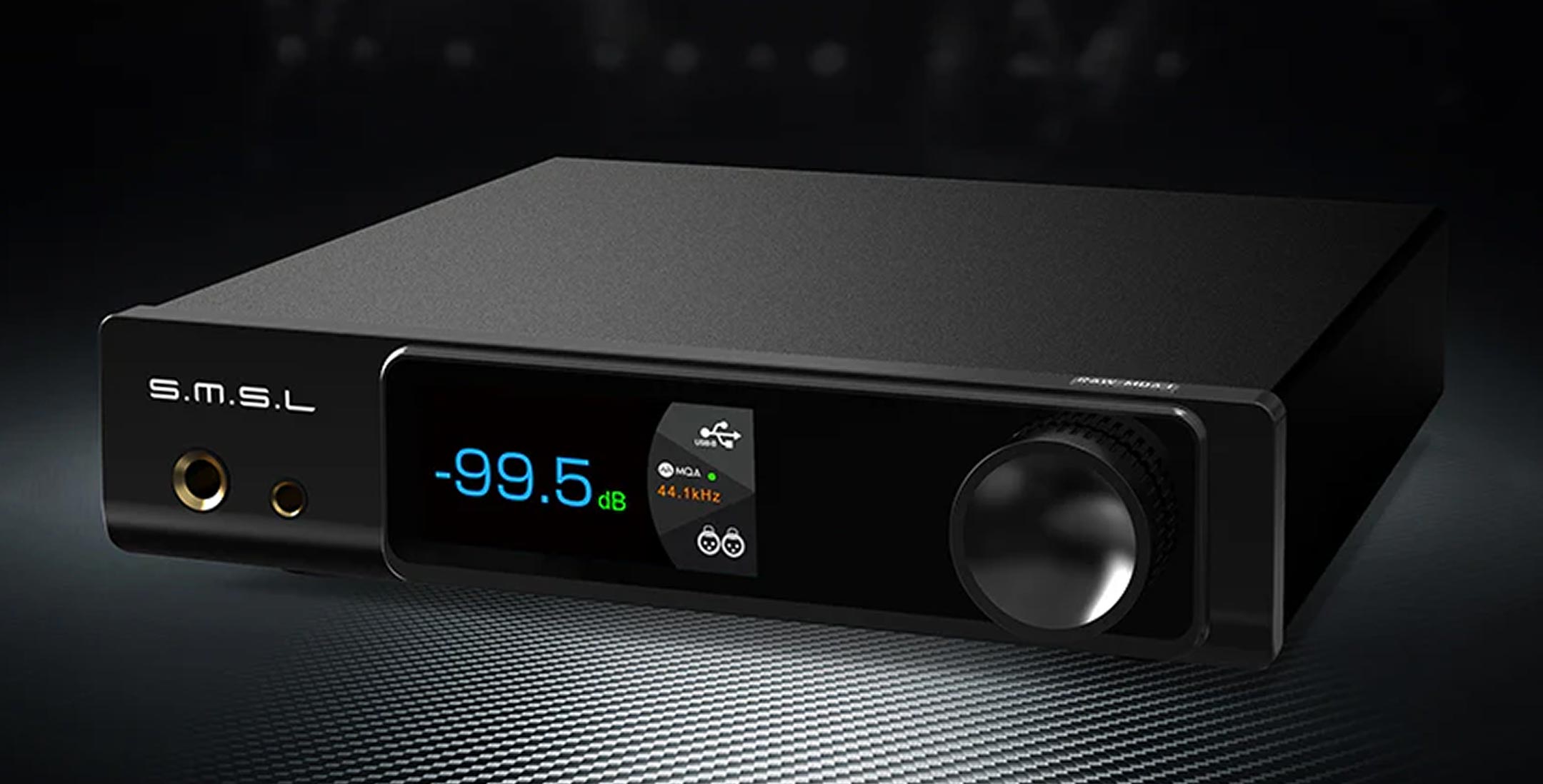

Smsl raw mda1 dac amp black 01 2

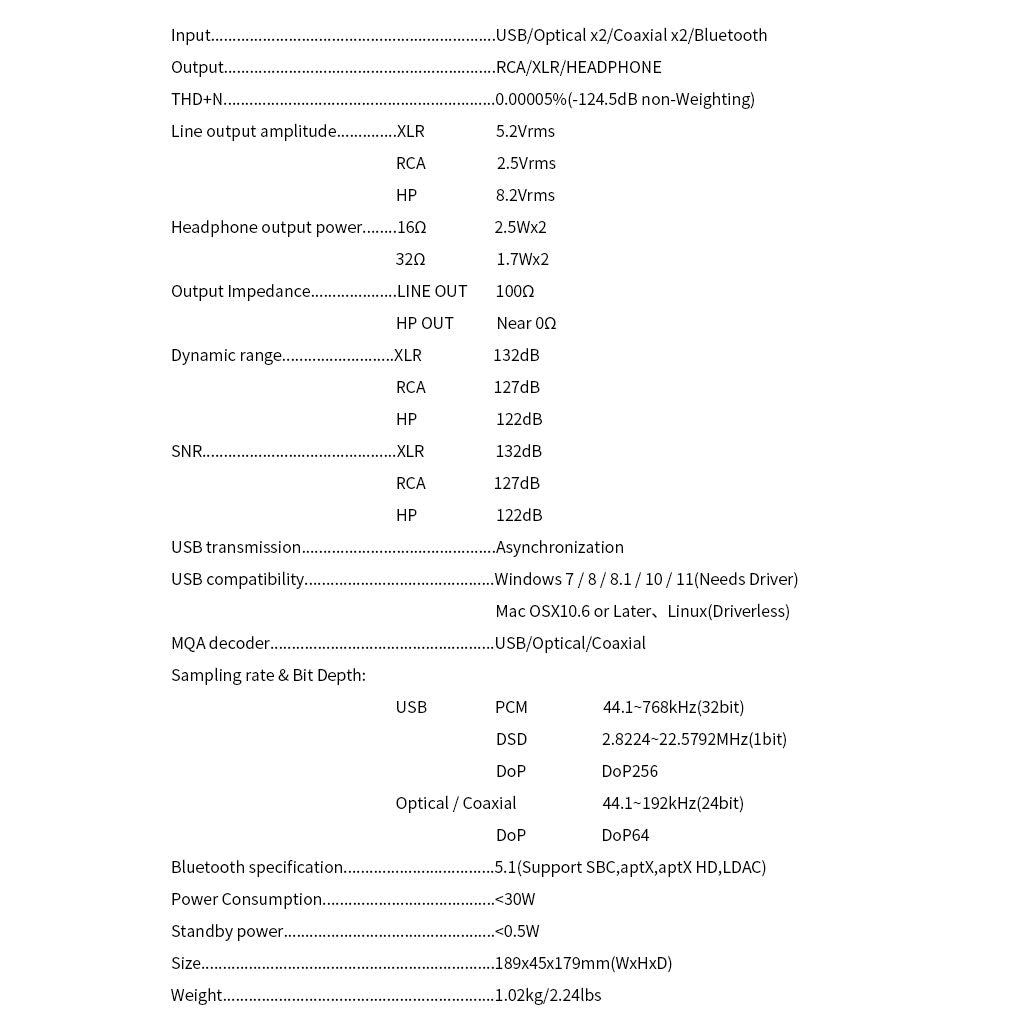

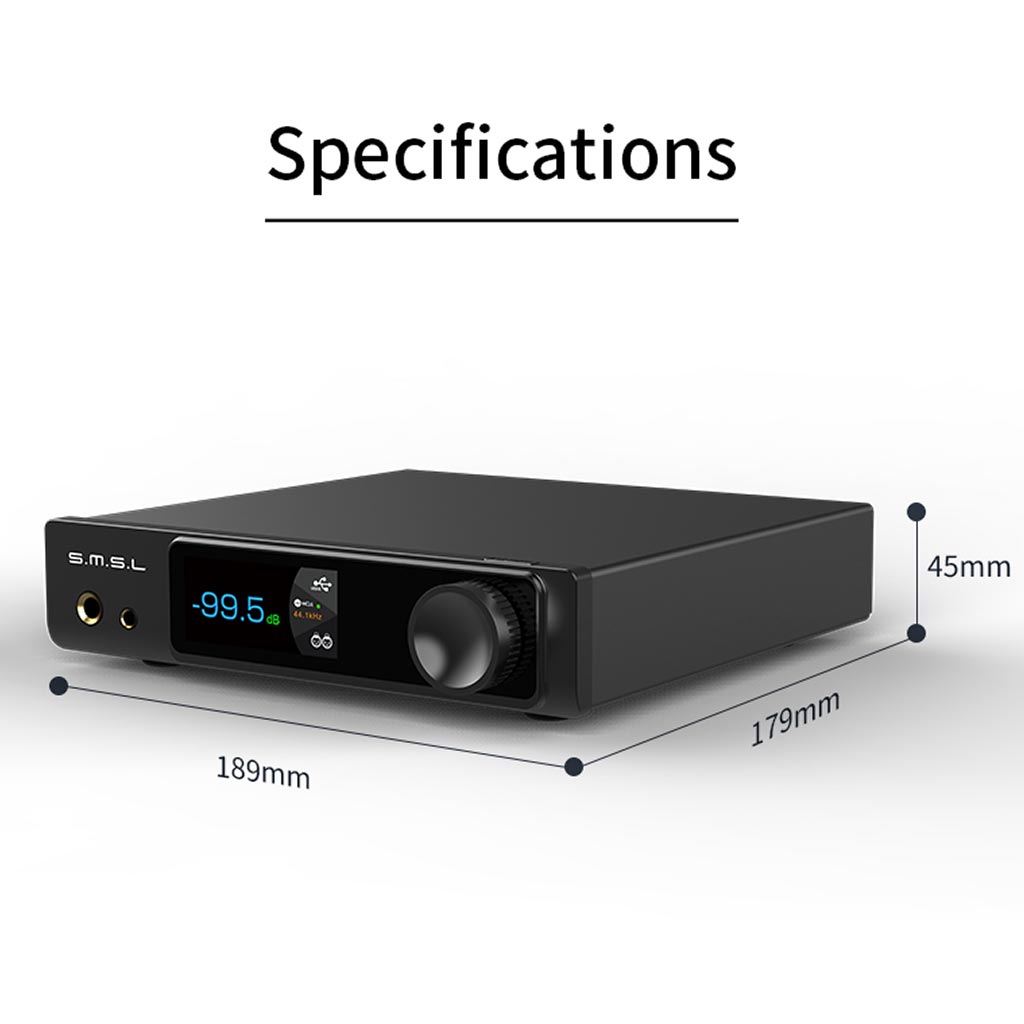

Specifications

Brand Name
SMSL
Model
RAW MDA1
DAC Chip
ES9039Q2M

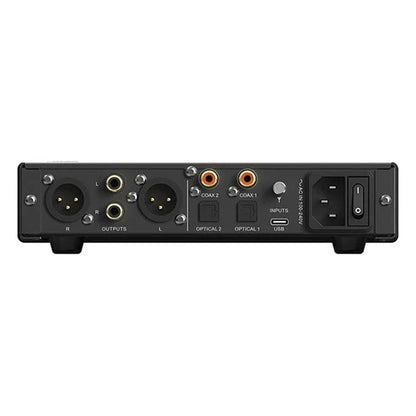

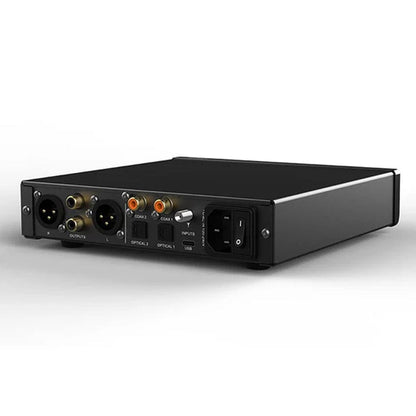

Input
USB/Optical x2/Coaxial x2/Bluetooth
Output
RCA/XLR/HEADPHONE
THD+N
0.00005%(-124.5db non-Weighting)
Line output amplitude
XLR 5.2Vrms
RCA 2.5Vrms
HP 8.2Vrms
Headphone output power
16Ω 2.5Wx2
32Ω 1.7Wx2
Output lmpedance
LINE OUT 100Ω
HP OUT Near 0Ω
Dynamic range
XLR 132dB
RCA 127dB
HP 122dB
SNR
XLR 132dB
RCA 127dB
HP 122dB
USB transmission
Asynchronization
USB compatibility
Windows 7/8/8.1/10/11(Needs Driver)
Mac 0SX10.6 or Later、Linux(Driverless)
MQA decoder
USB/Optical/Coaxial
Sampling rate & Bit Depth
USB
PCM 44.1~768kHz(32bit)
DSD 2.8224~22.5792MHz(1bit)
DoP DoP256
Optical / Coaxial
44.1~ 192kHz(24bit)
DoP DoP64
Bluetooth specification
5.1(Support SBC,aptX,aptX HD,LDAC)
Power Consumption
<30W
Standby power
<0.5W

Box Content

    What will you get
  • 1x SMSL RAW MDA1 DAC & Amp
  • 1x Remote
  • 1x Power Cable
  • 1x Manual
