Description

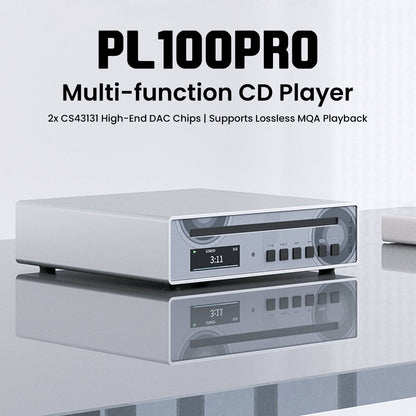

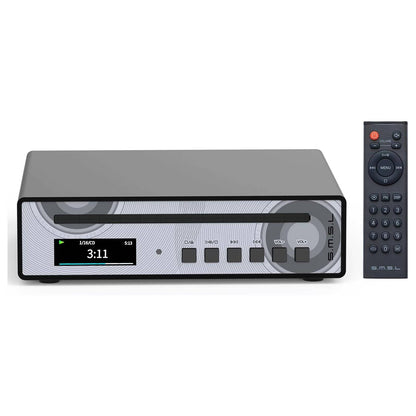

SMSL PL100 Pro is a multifunction CD player designed for audiophiles seeking premium sound quality and versatile connectivity in a compact form factor. Equipped with dual CS43131 high-end DAC chips, it delivers detailed and dynamic CD playback with support for both standard CDs and MP3 discs. Featuring balanced XLR, RCA, optical, and coaxial outputs, along with 3.5mm and 4.4mm headphone ports, the PL100 Pro easily integrates into desktop, home, and portable audio systems. Its automotive-grade anti-vibration slot-in mechanism, premium aluminium-alloy chassis, IPS display screen, and built-in preamp functionality make it a stylish and reliable all-in-one music playback solution.

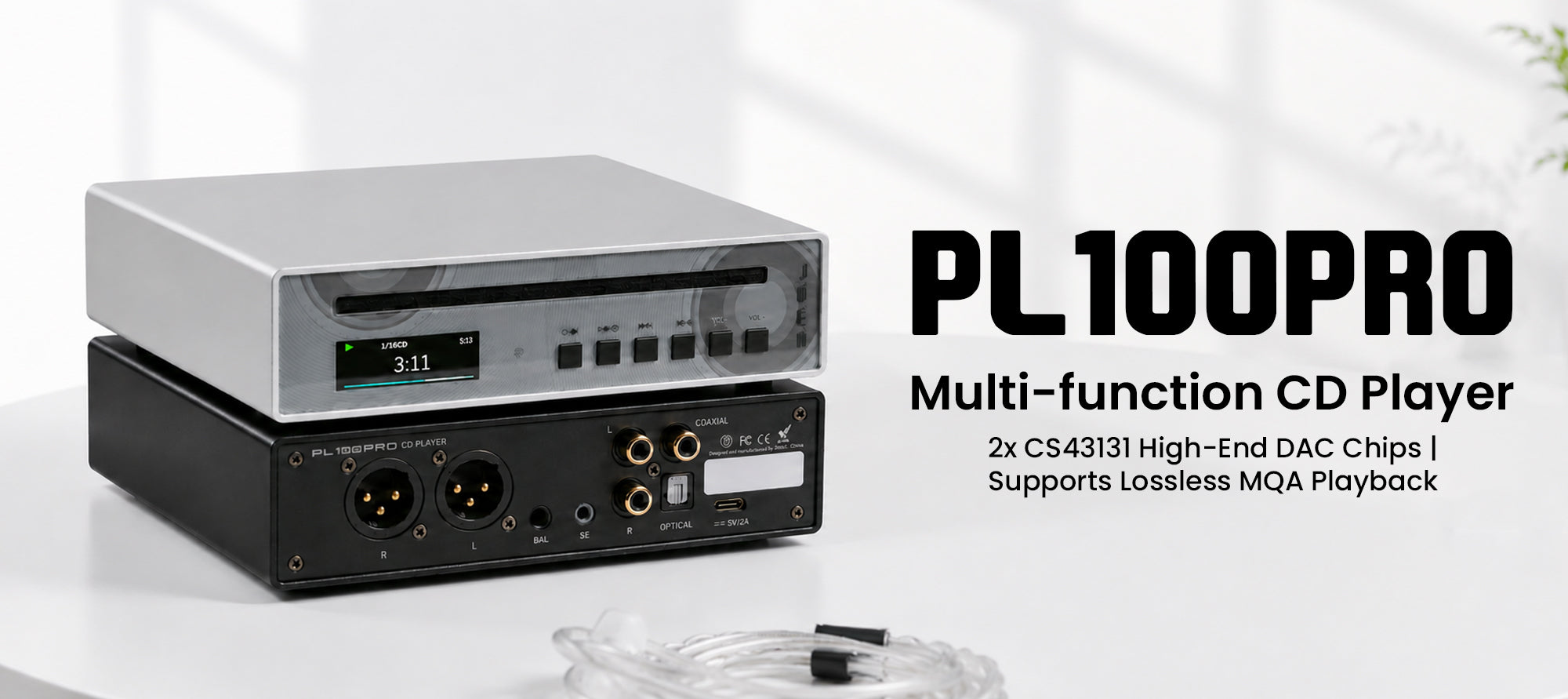

Desktop Banner

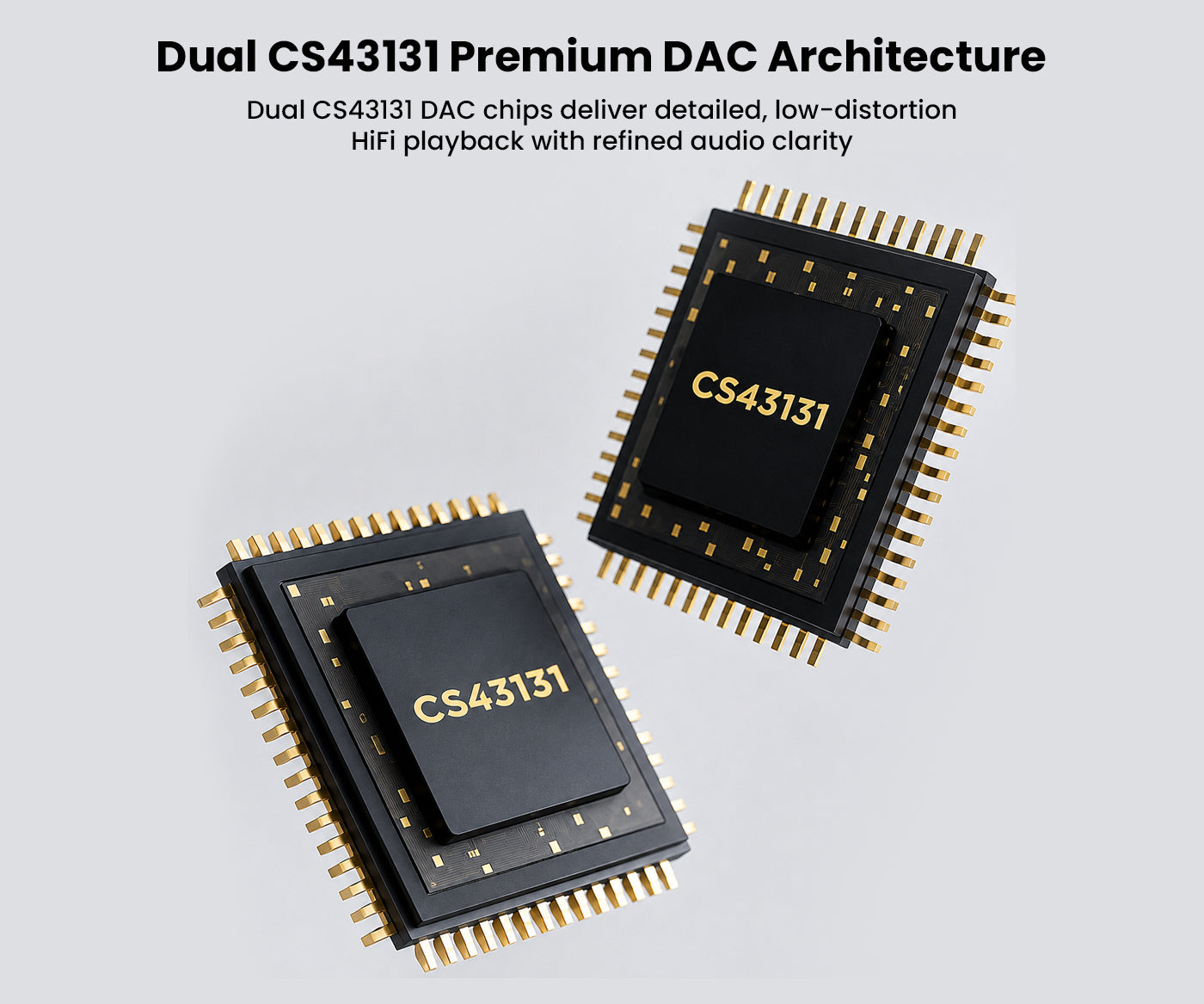

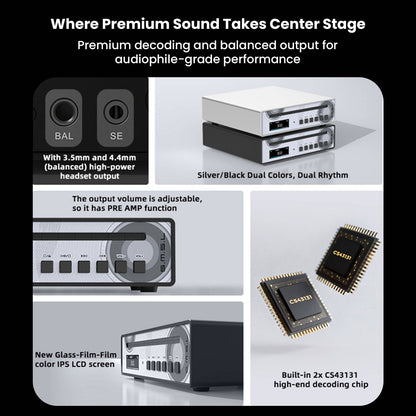

DUAL CS43131 HIGH-END DAC ARCHITECTURE

Built with dual premium CS43131 decoding chips, the PL100 Pro delivers exceptional CD playback performance with enhanced detail, low distortion, and rich musical accuracy. The advanced DAC configuration ensures a refined listening experience
for both casual listeners and demanding audiophiles.

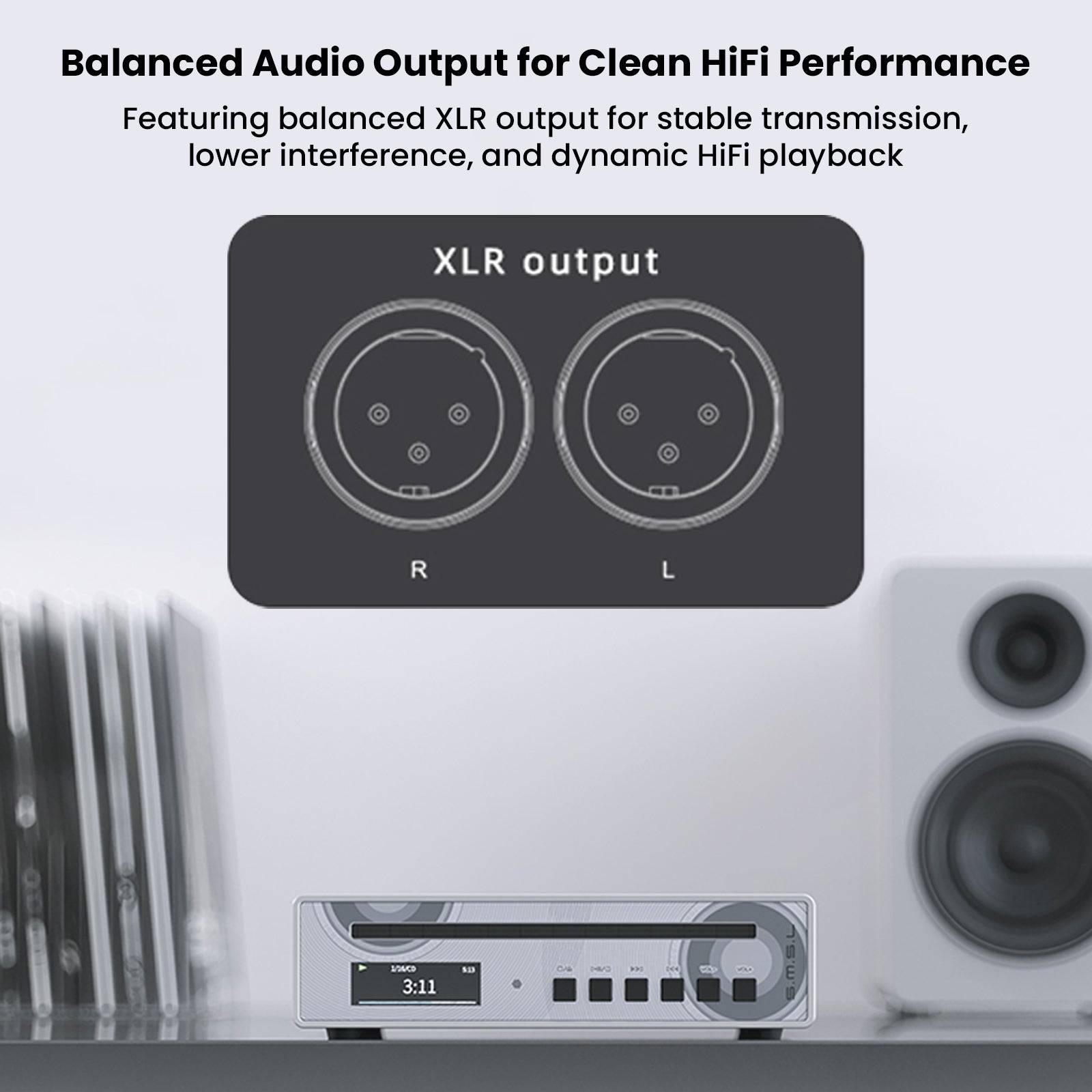

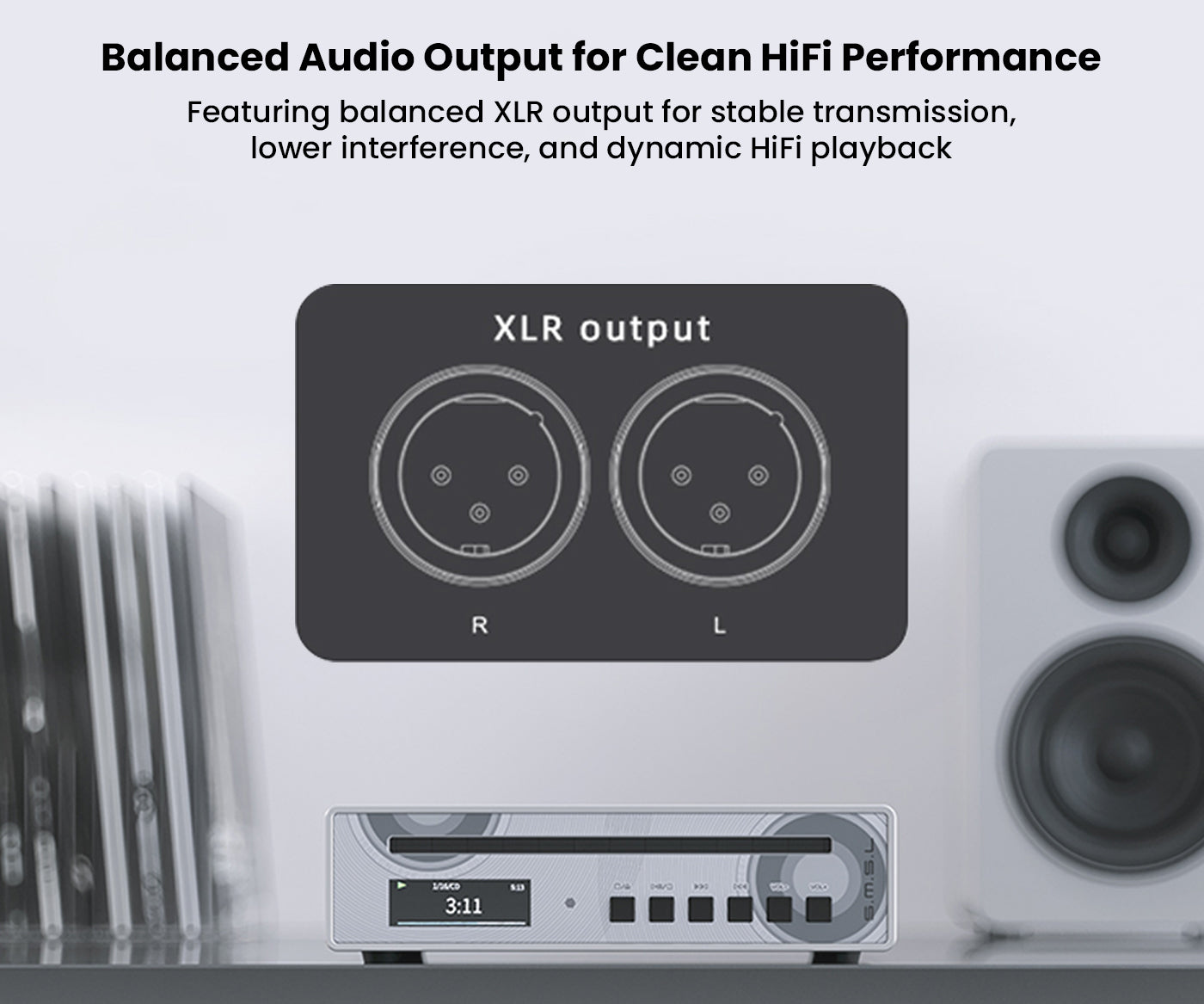

BALANCED AUDIO OUTPUT FOR PURE SOUND PERFORMANCE

Equipped with balanced XLR outputs alongside standard analog connections, the PL100 Pro easily integrates into high-end desktop or home audio systems. Its balanced signal transmission improves channel separation and minimizes interference for
cleaner, more dynamic sound reproduction.

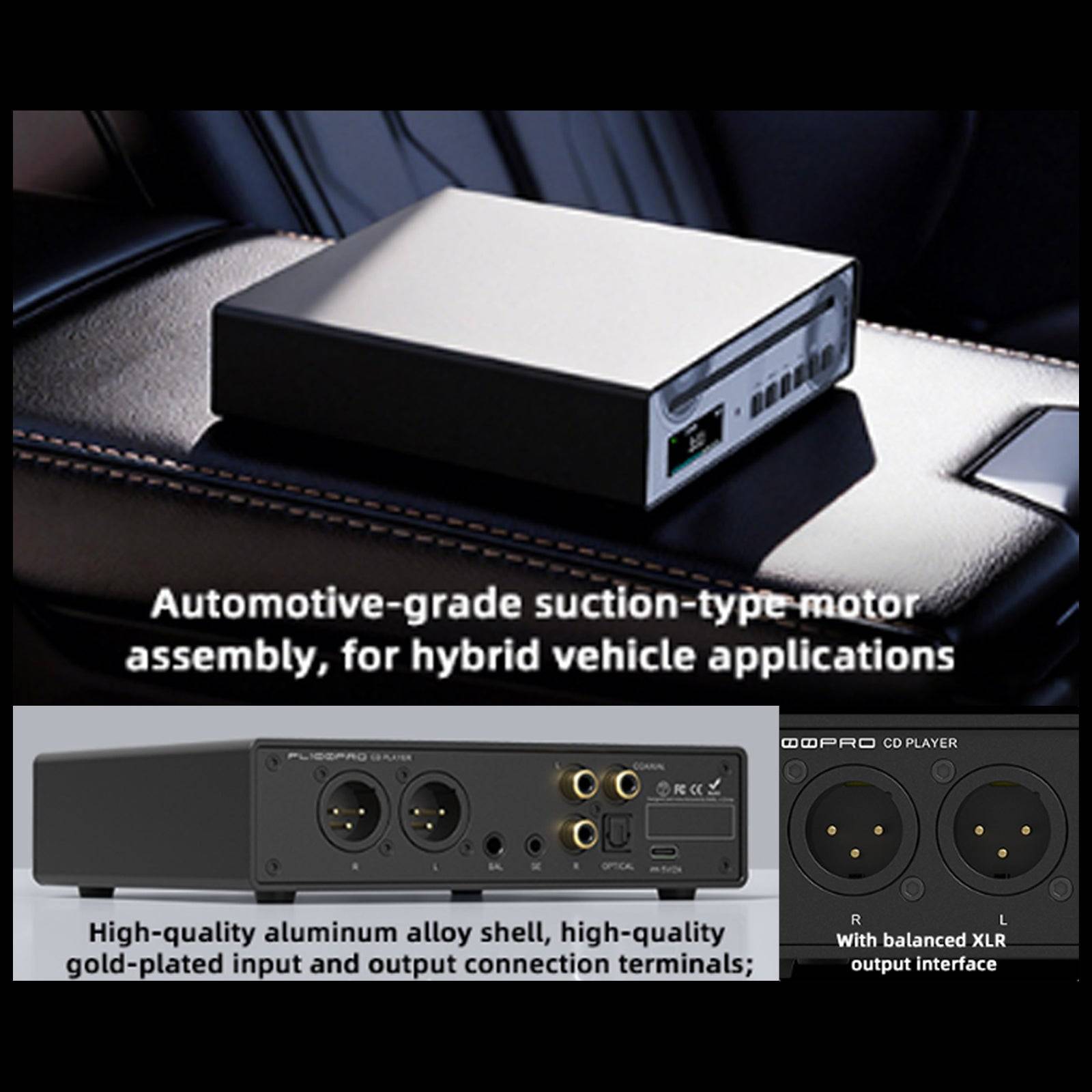

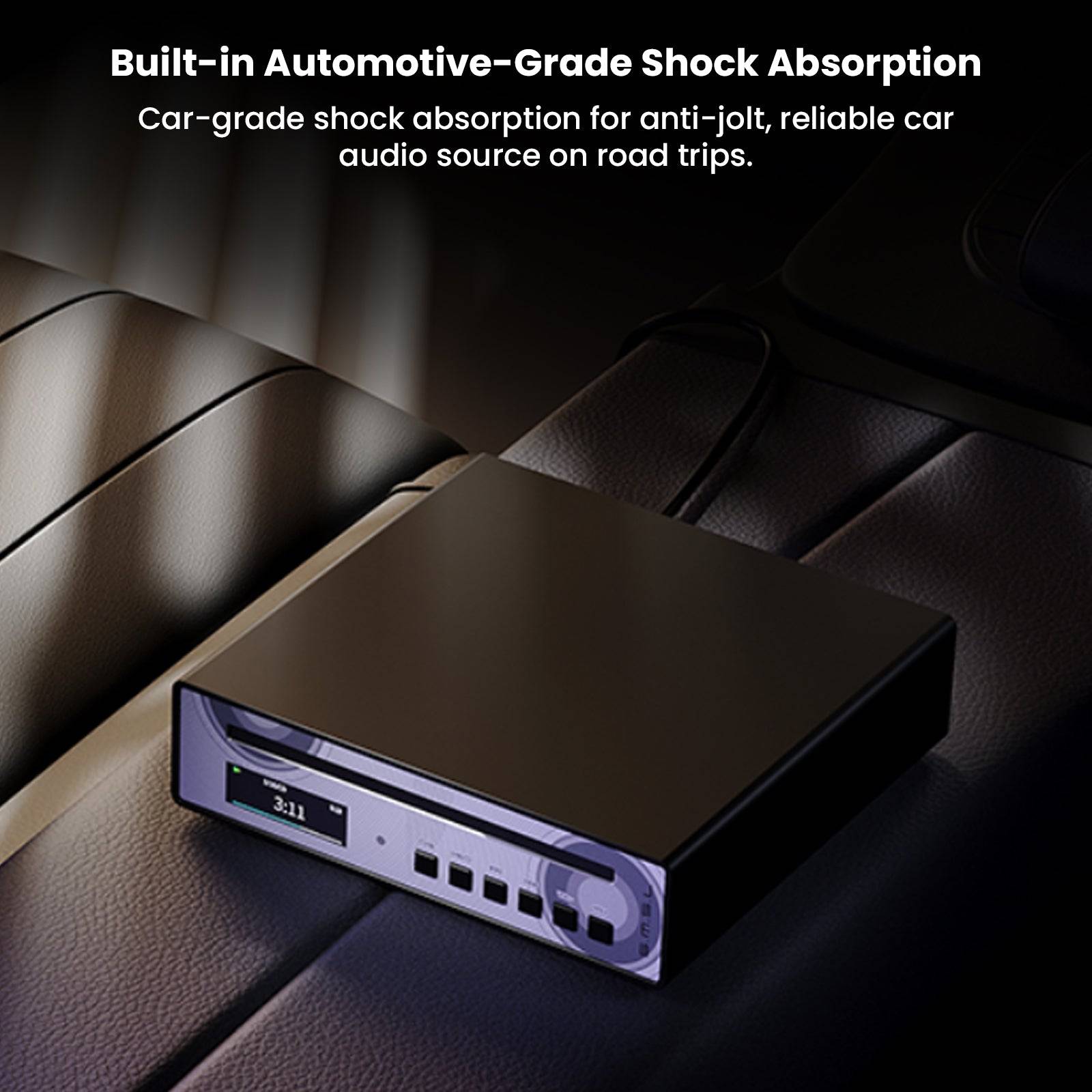

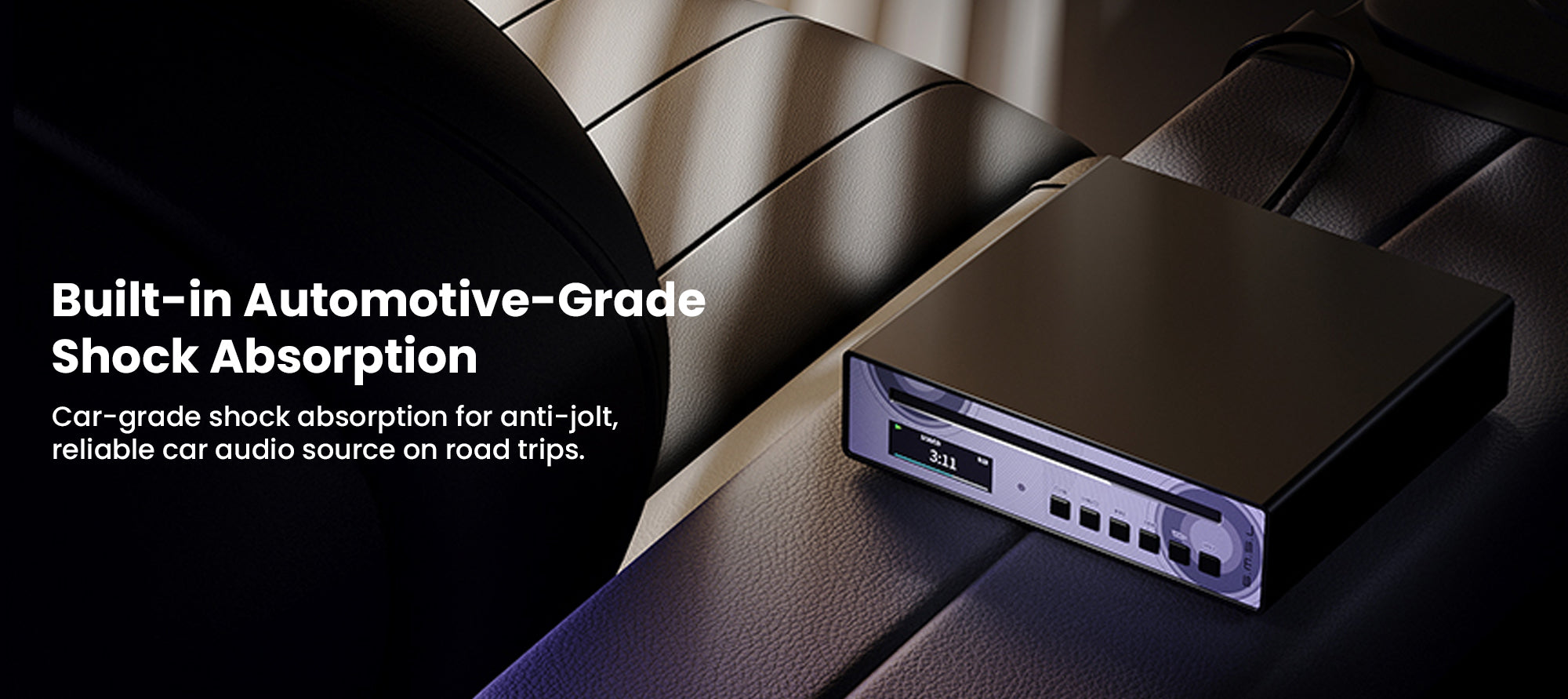

AUTOMOTIVE-GRADE SLOT-IN CD MECHANISM

Designed with a durable automotive-grade slot-loading mechanism and anti-vibration structure, the PL100 Pro maintains stable playback performance even in mobile environments. Its reliable design makes it suitable for both home installations and in-vehicle audio applications.

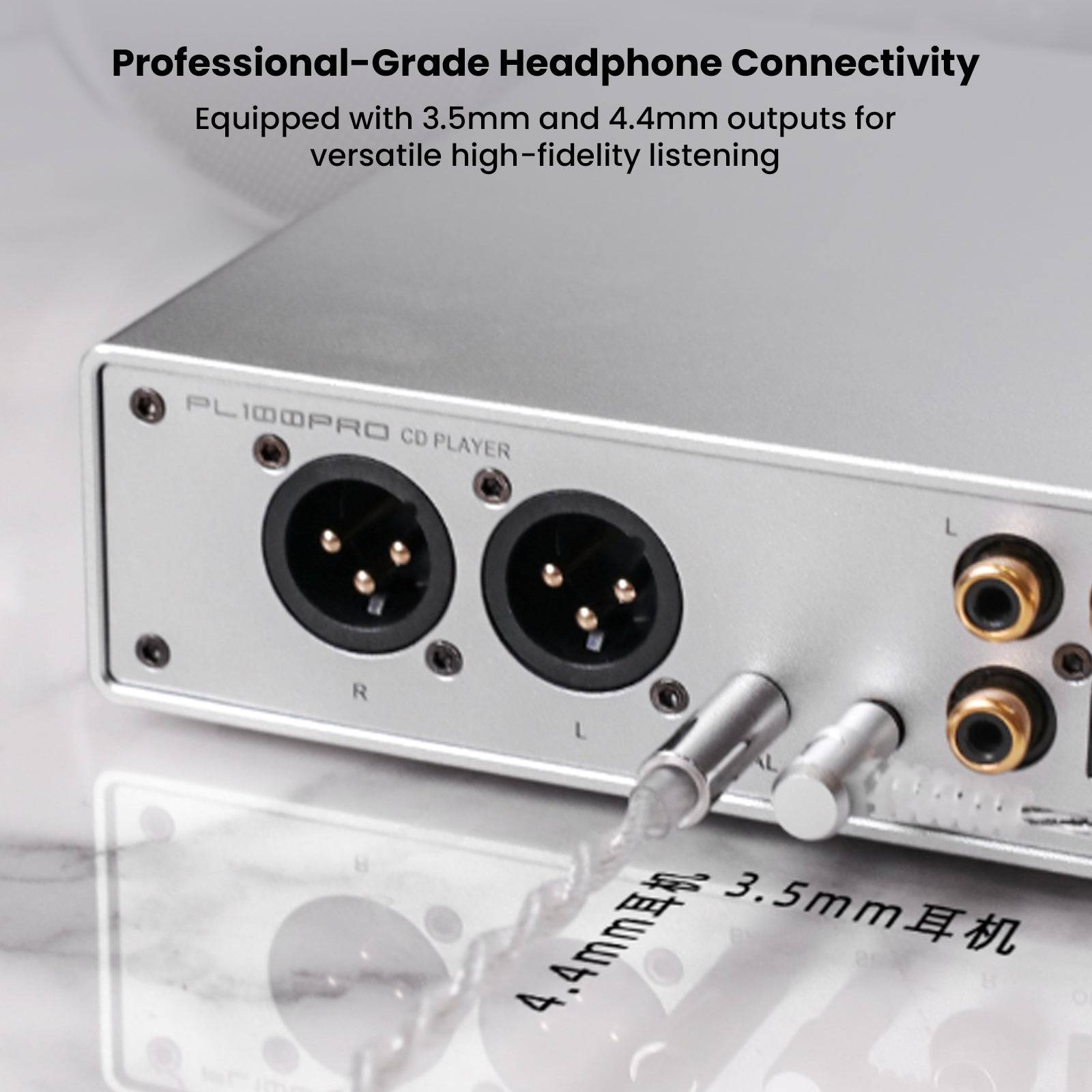

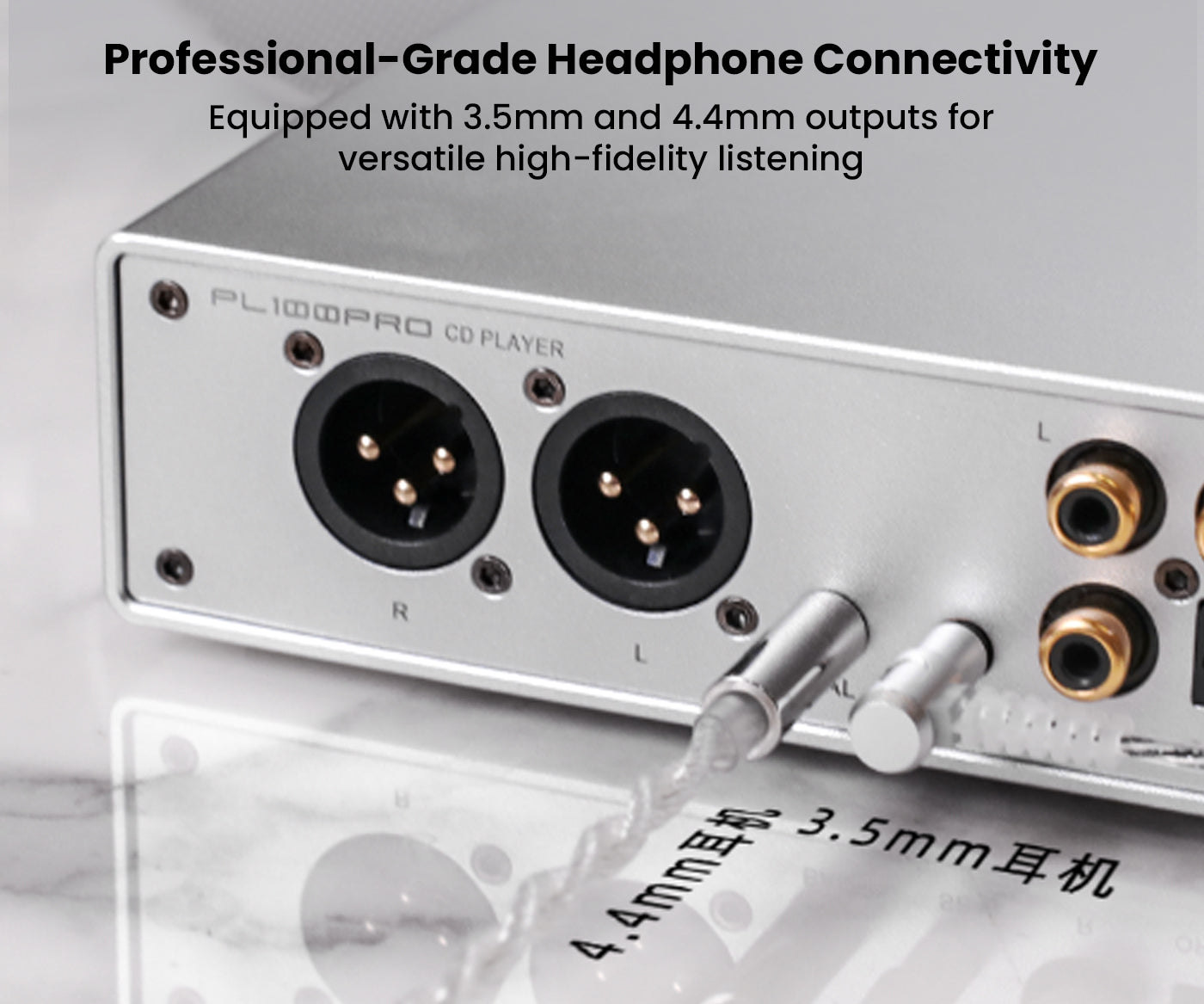

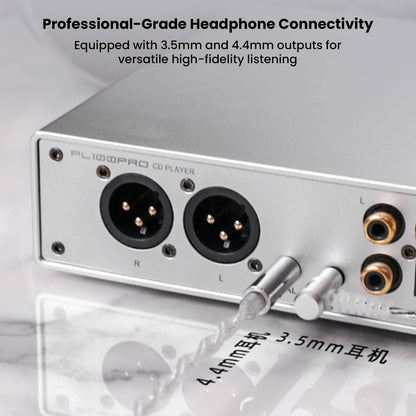

VERSATILE HEADPHONE LISTENING EXPERIENCE

Featuring both 3.5mm single-ended and 4.4mm balanced headphone outputs, the PL100 Pro supports a wide range of earphones and professional headphones. The built-in high-power headphone amplification delivers excellent driving capability with spacious sound staging and precise audio detail.

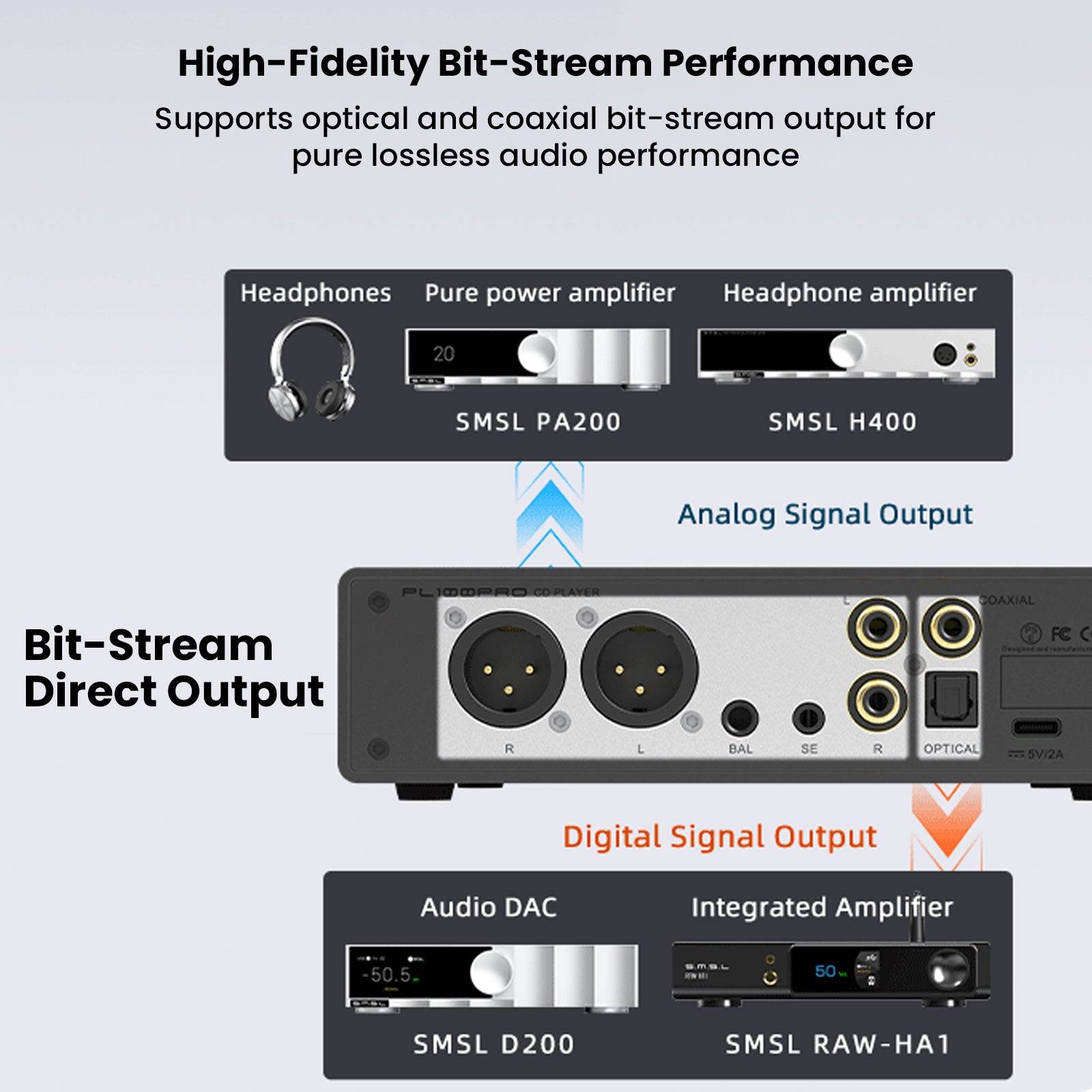

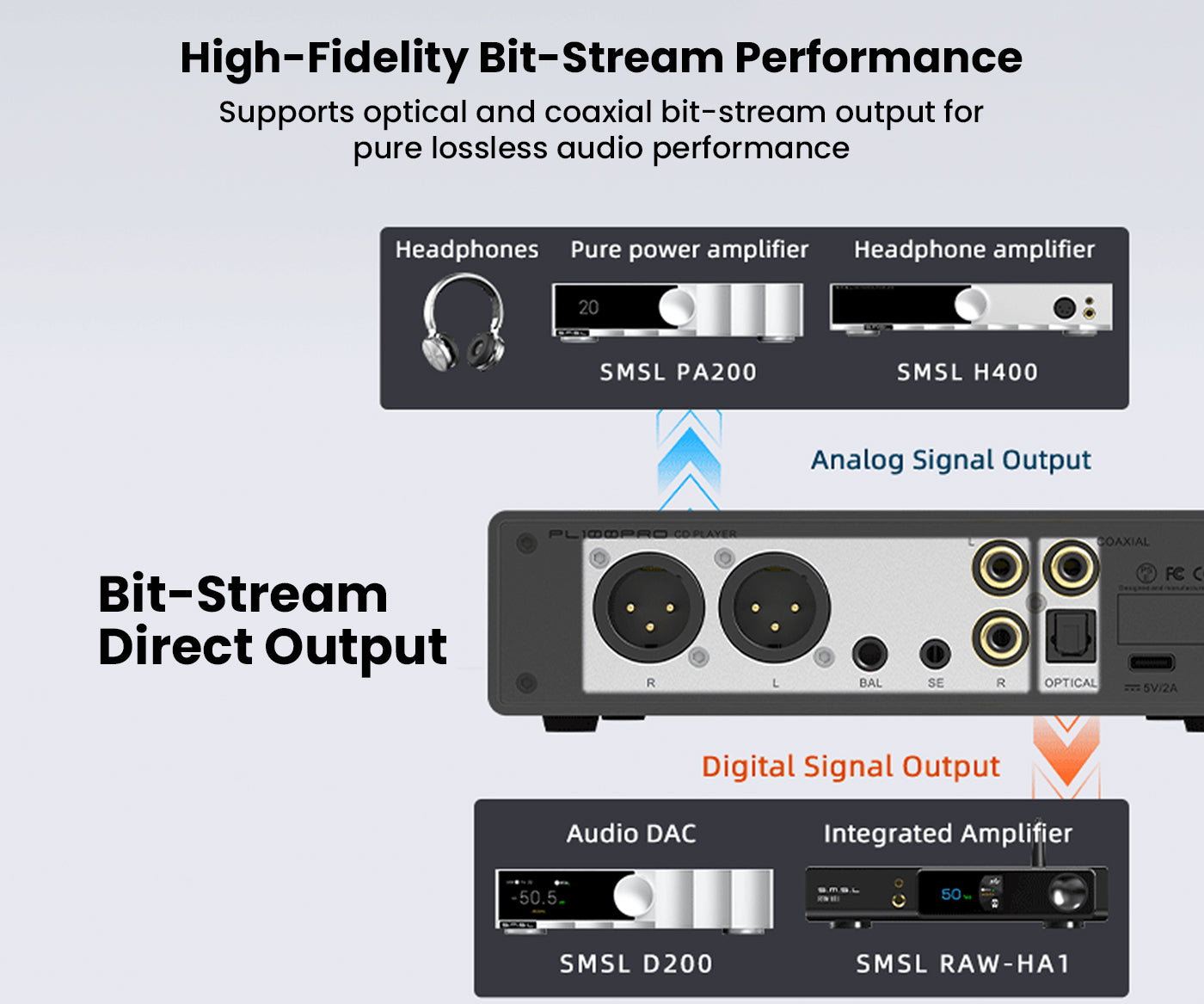

OPTICAL & COAXIAL DIGITAL BIT-STREAM OUTPUT

The PL100 Pro supports optical and coaxial RAW digital outputs for lossless signal transmission to external DACs and audio systems. Compatible with external MQA decoding setups, it provides an ideal foundation for future audio upgrades and high-resolution playback systems.

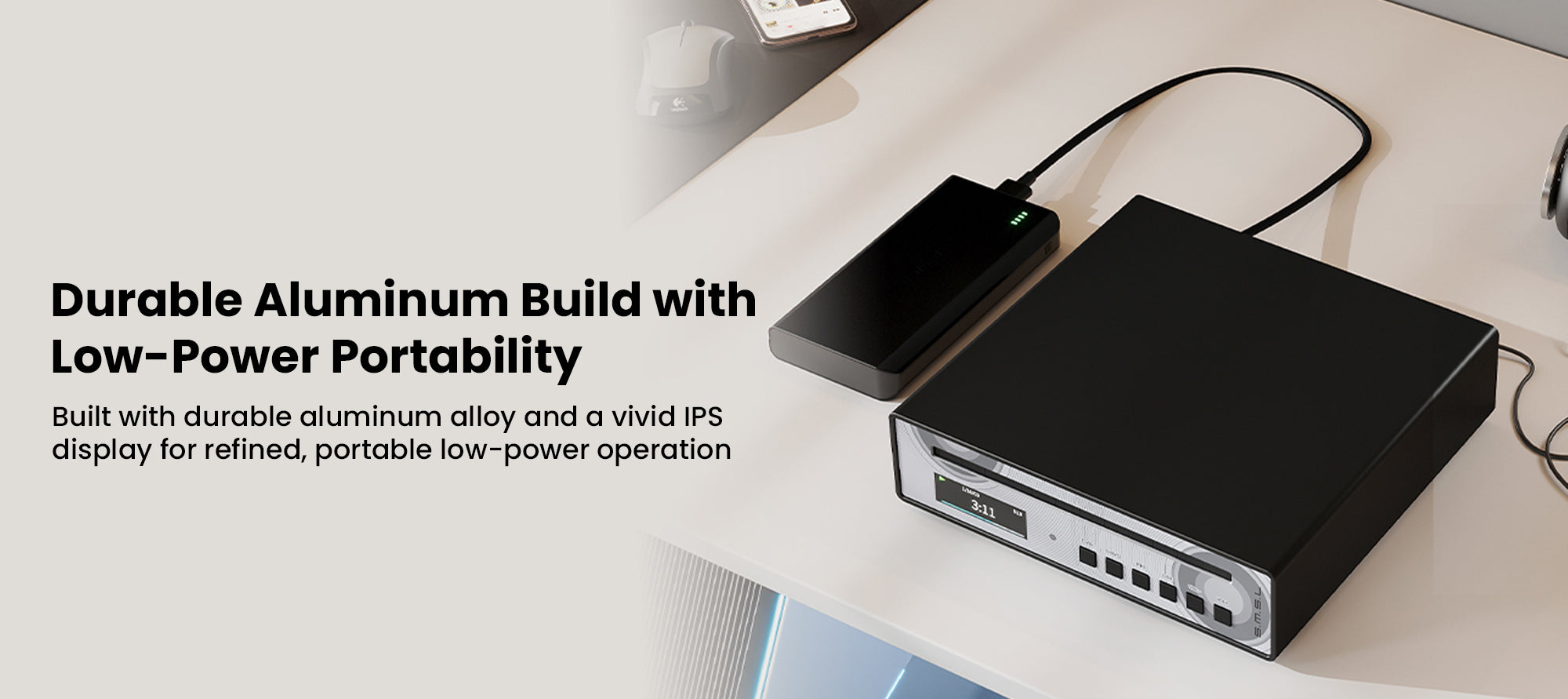

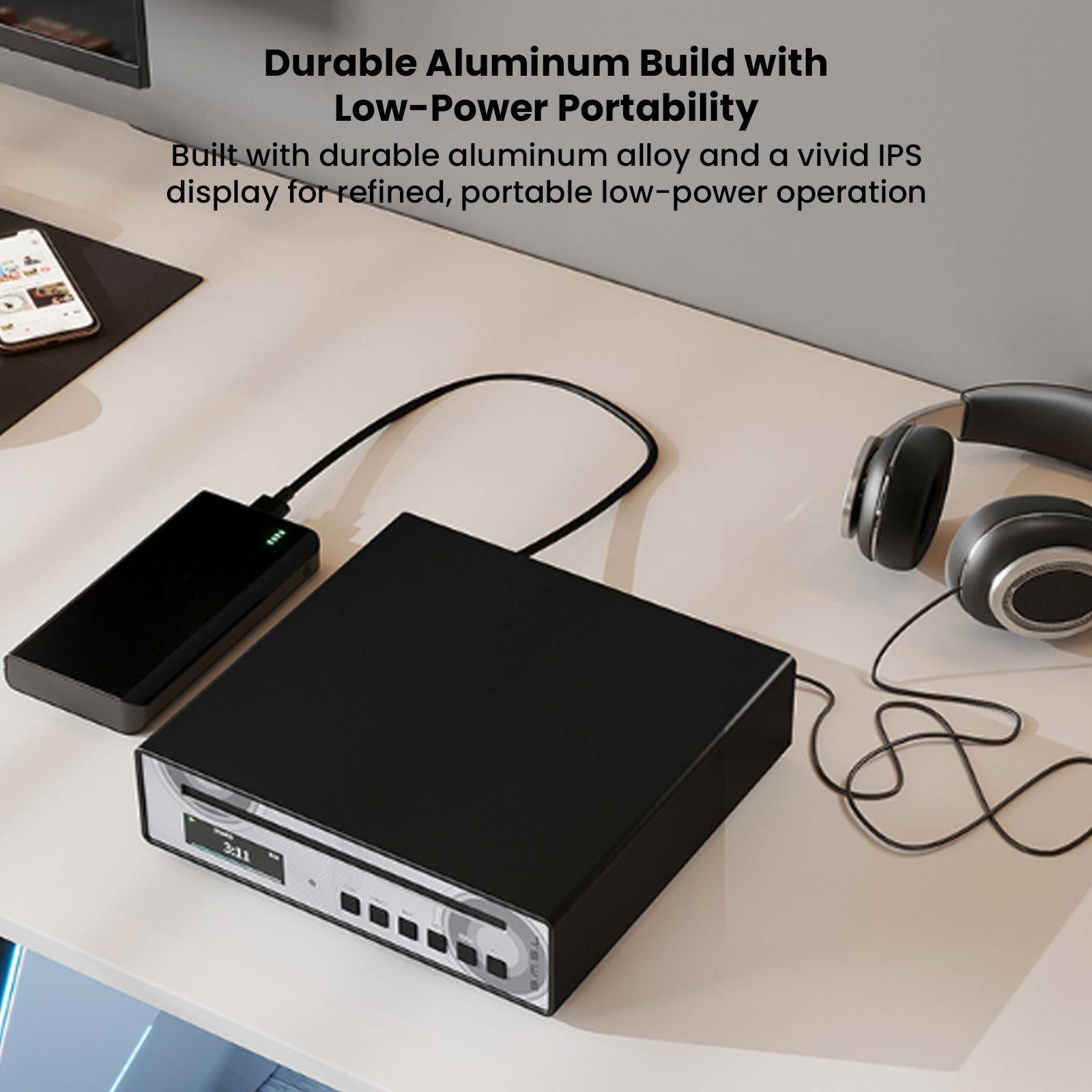

PREMIUM ALUMINUM BUILD WITH PORTABLE LOW-POWER DESIGN

Constructed with a high-quality aluminum alloy chassis, gold-plated connectors, and a glass-covered IPS color display, the PL100 Pro combines durability with elegant styling. Its low-power design supports operation via portable power banks for flexible listening anywhere



Specifications

🔖
Model Name
PL100 Pro
🎛️
Input
CD
📀
CD Type

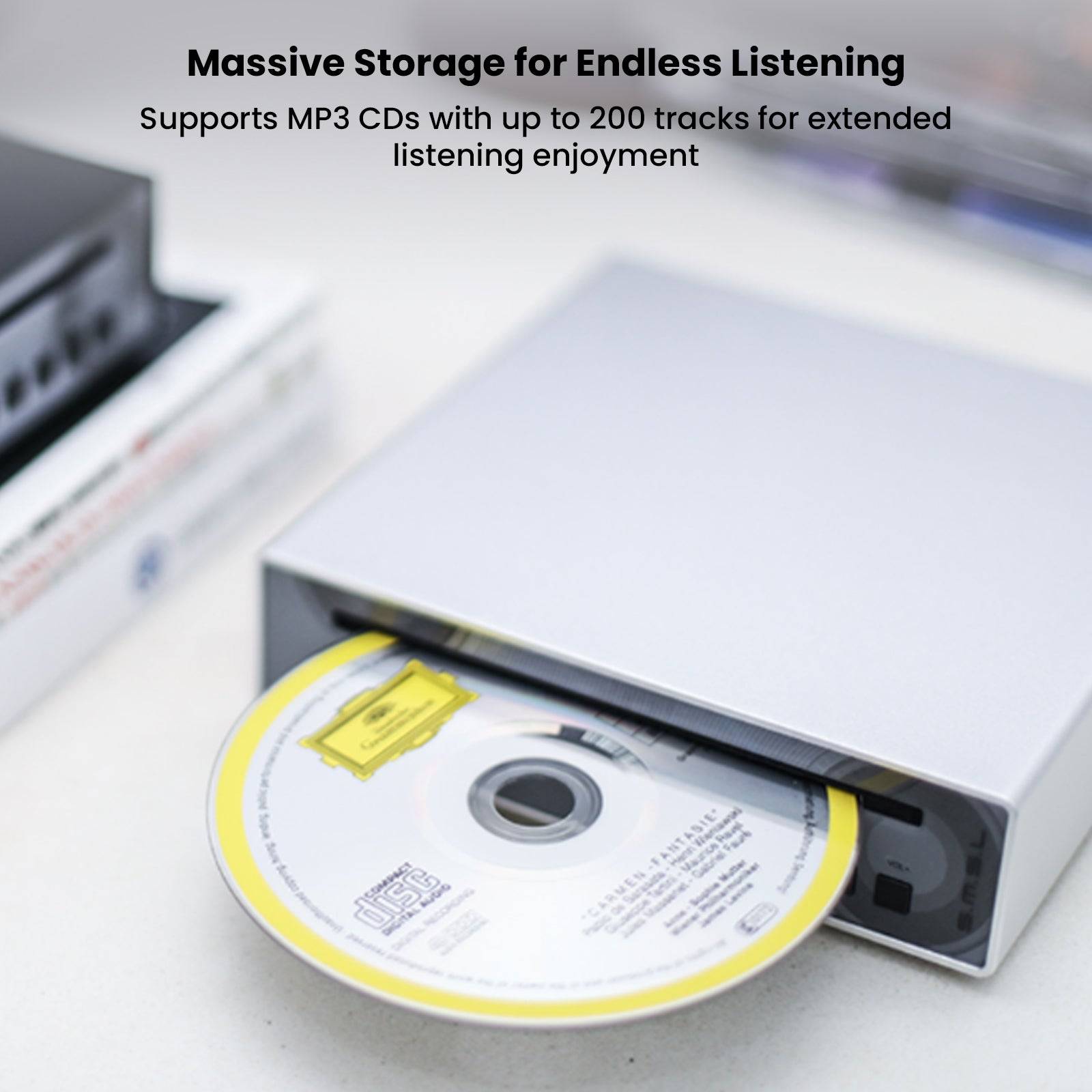

CD/CD-R/CD-RW / Mp3 CD
Output Level
RCA: 2Vrms
🎚️
THD+N
0.001%
SNR
110dB
🔋
Standby Power
<0.4W
📐

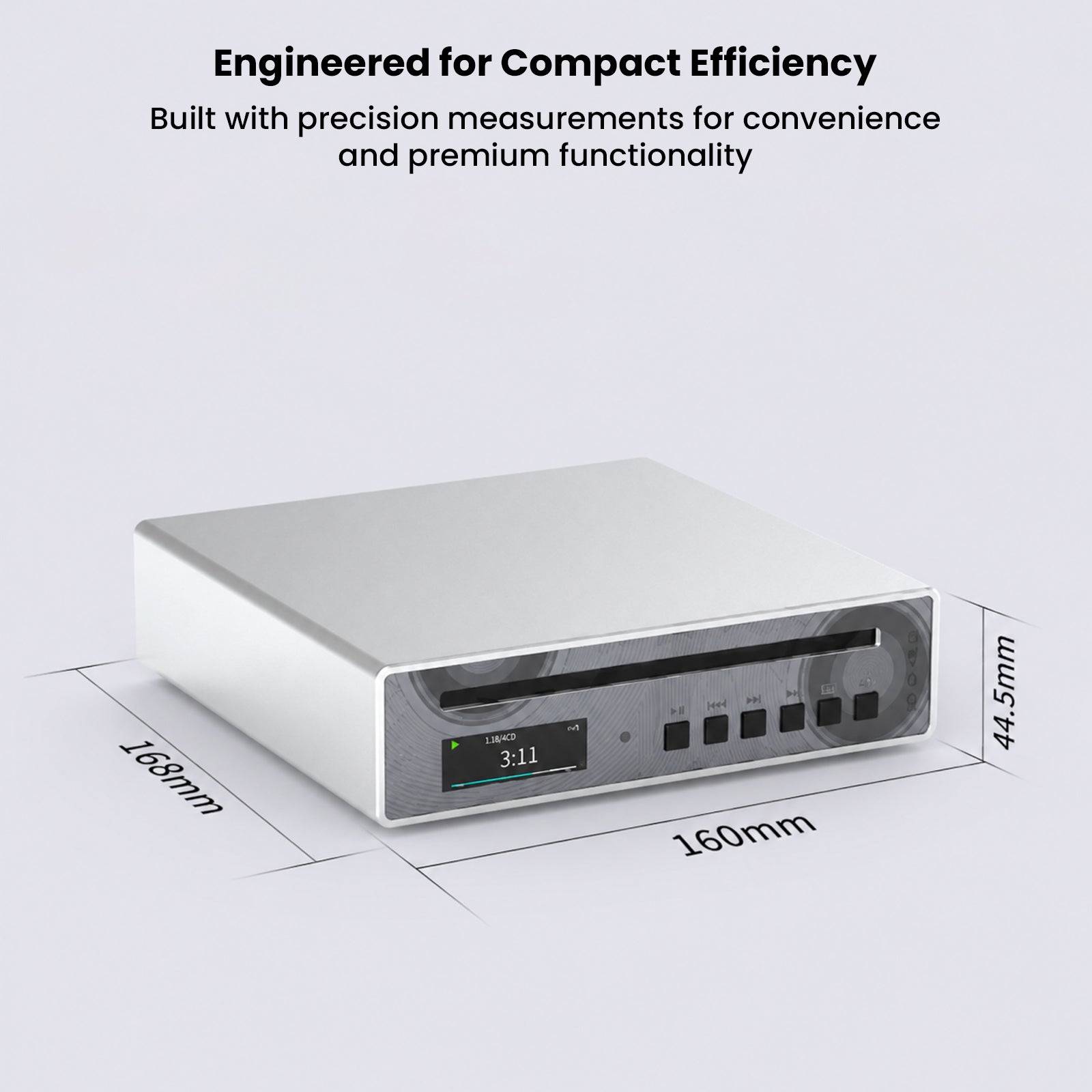

Dimensions & Weight
160 × 44.5 × 160 mm
🔊

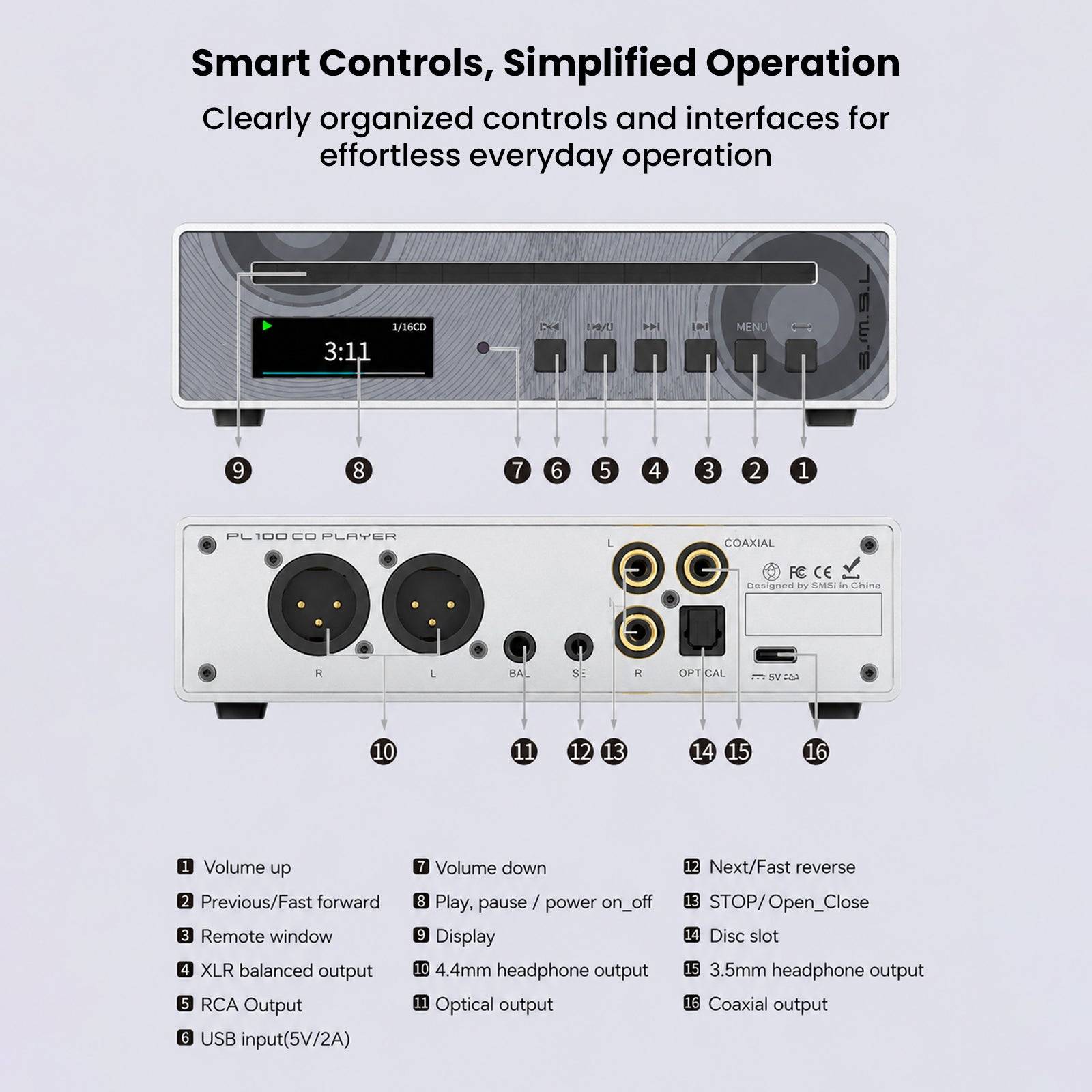

Output
XLR/RCA/4.4 or 3.5 mm headphone/Optical/Coaxial
🎧
Headphone Output Power (Balanced)
100mW (16Ω), 200mW (32Ω) , 160mW (64Ω), 85mW (150Ω), 53mW (300Ω), 25mW (600Ω)
🎧
Headphone Output Power (Unbalanced)
58mW (16Ω), 58mW (32Ω), 45mW (64Ω), 23mW (150Ω), 12mW (300Ω), 6mW (600Ω)

Box Content

1x SMSL PL100 Pro CD Player

1x SMSL PL100 Pro CD Player

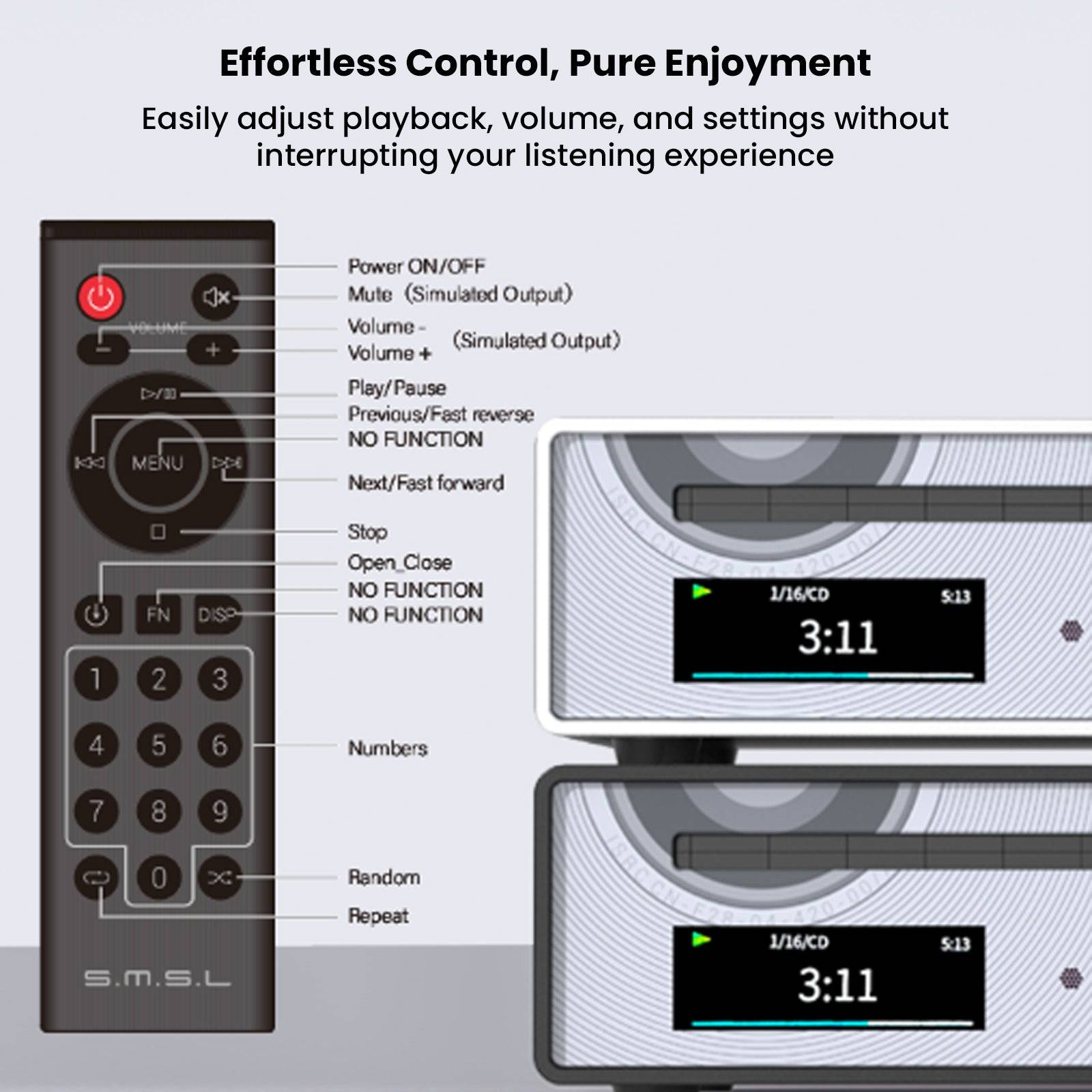

1x Remote

1x Remote

1x USB-C Cable

1x USB-C Cable

1x User Manual

1x User Manual
