SHANLING - ONIX Mystic XP1 Dual AKM Portable DAC & Amp - 1

SHANLING - ONIX Mystic XP1 Dual AKM Portable DAC & Amp

SHANLING

amps & dacs above 100000

Dual AKM AK4499EX + AK4191EQ DAC Chipset

Powerful Amplification with the TPA6120A2 Chipset

Bluetooth with LDAC, aptX HD, aptX Support

Upto 2TB of External Storage

Upto 10 Hours of Battery Life

Vintage-style dot-matrix OLED display

₹ 129,990 ₹ 144,999 Save ₹ 15,009

Tax & Shipping Included

Tax IncludedShipping Included

Estimated Delivery within 2 to 4 weeks.

Pre-Order

Shipping Icon Shipping & Delivery

Estimated Delivery within 2 to 4 weeks.

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

INTRODUCING THE ONIX MYSTIC XP1

The ONIX Mystic XP1 is a portable DAC & Amp designed to deliver exceptional audio quality. It features high-performance dual AKM AK4499EX DACs and AK4191EQ and a powerful amplifying TPA6120A2 chipset, providing up to 2.4W of power at 32 ohms for various headphones. With a robust 7000mAh battery and external power mode, it offers extended playback time and flexibility. Supporting Bluetooth 5.0, LDAC, and MicroSD card playback, it ensures versatile connectivity options. The device also includes a user-friendly OLED display for intuitive navigation and offers three headphone outputs (3.5mm, 6.5mm, and 4.4mm) for compatibility with different headphone types.

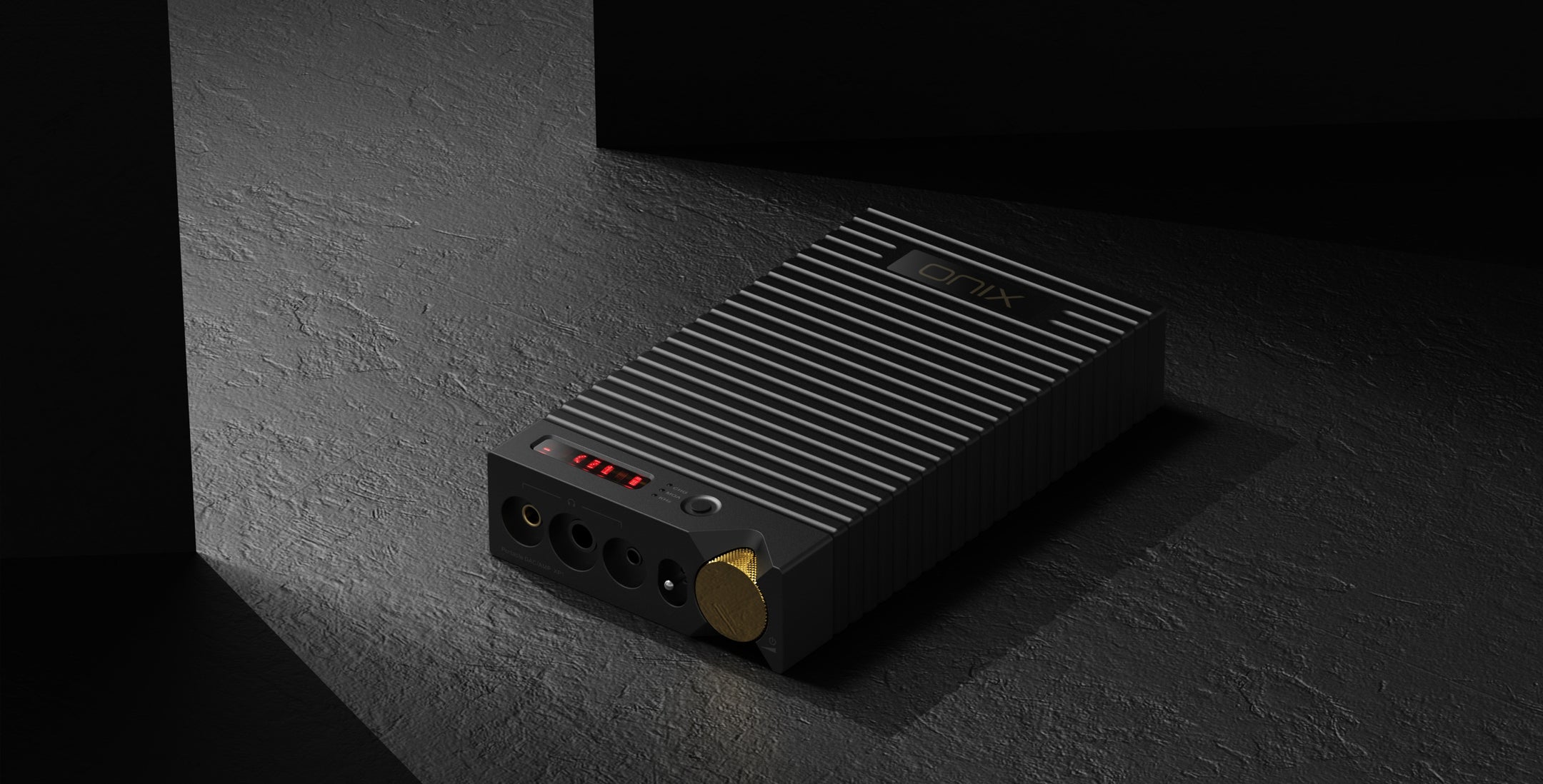

Concept kart shanling onix xp1 dac amp black 01 2

HIGH-FIDELITY DAC FOR EXCEPTIONAL AUDIO PERFORMANCE

The ONIX Mystic XP1 utilizes two AKM AK4499EX DACs and an AK4191EQ modulator for high-fidelity digital-to-analog conversion. It supports PCM files up to 768kHz/32bit and DSD512, delivering exceptional audio clarity. With coaxial and optical inputs supporting PCM 192kHz/24bit, it seamlessly integrates with various audio sources for pristine sound quality.

EXPERIENCE ENHANCED AMPLIFICATION WITH TPA6120A2 CHIPSET

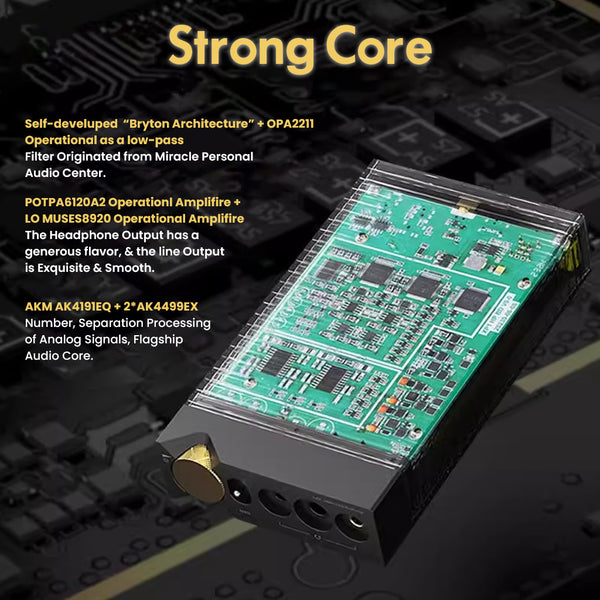

The ONIX Mystic XP1 features amplification powered by the TPA6120A2 chipset and ONIX's proprietary "Brighton" Architecture. With a unique I/V conversion stage derived from the Miracle Streamer, it ensures optimal synergy between DACs and amplifiers for exceptional audio quality. The Mystic XP1 delivers precise detail and dynamic range, making it an ideal choice for audiophiles seeking premium sound performance.

VERSATILE HEADPHONE OUTPUT OPTIONS FOR ENHANCED FLEXIBILITY

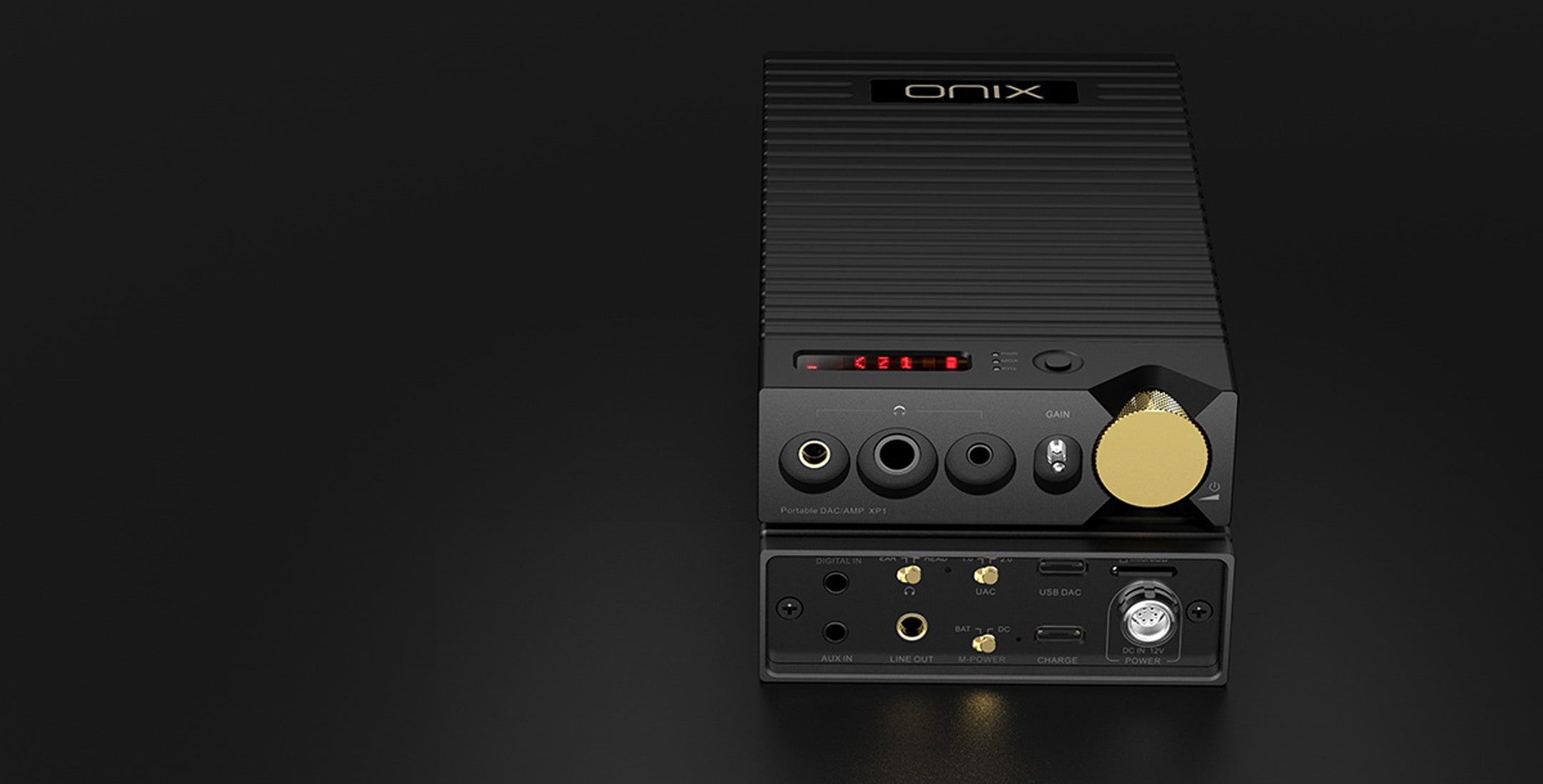

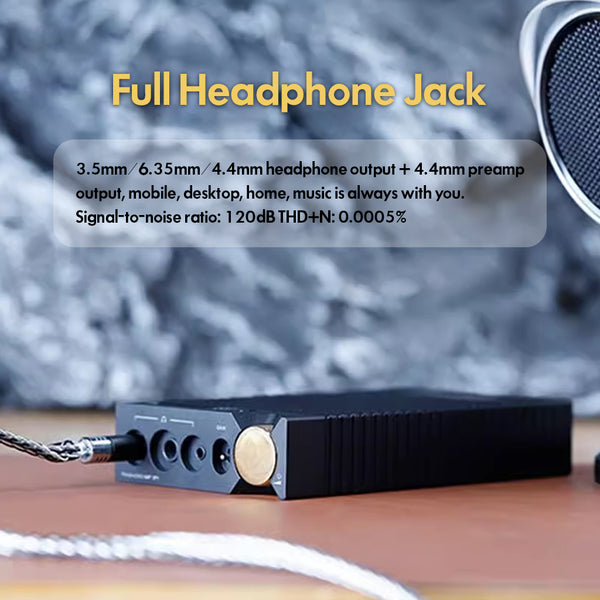

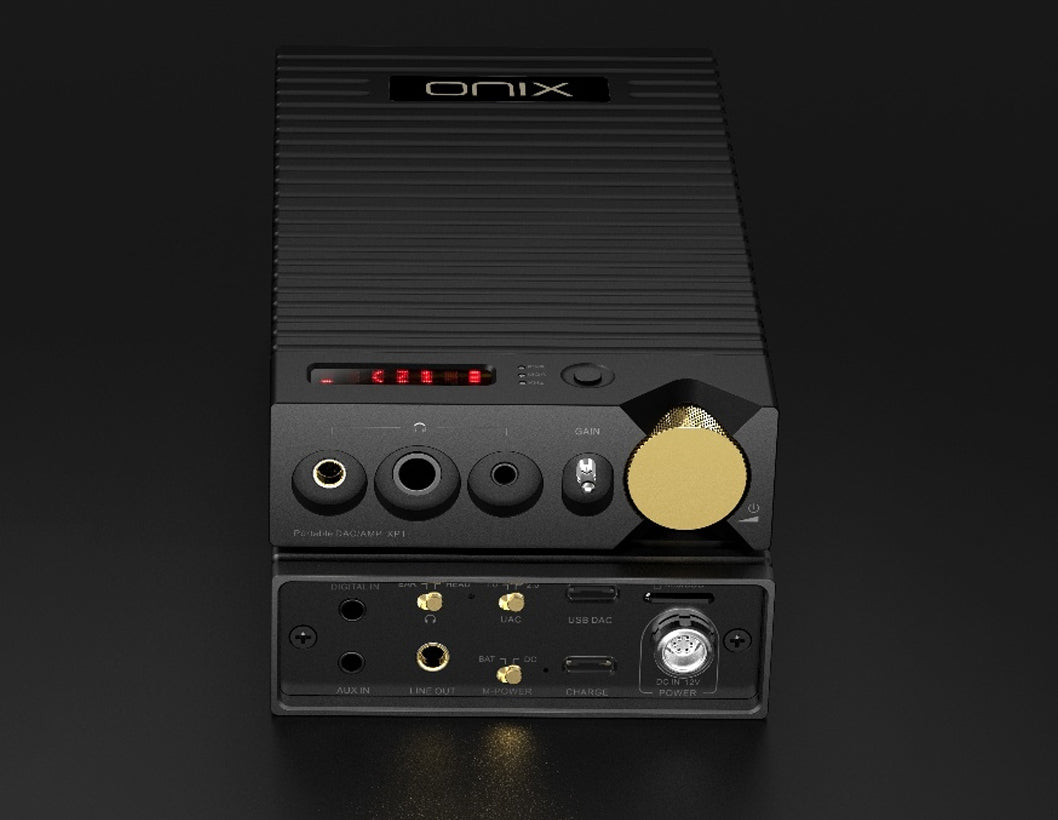

The ONIX Mystic XP1 offers three headphone output options: 3.5mm, 6.35mm, and 4.4mm, catering to various headphone plug sizes and types. It also features a 4.4mm balanced line-out/preamp for integration into larger setups. This comprehensive selection accommodates any headphone variant, providing convenience and flexibility for users.

FLEXIBLE CONNECTIVITY WIRED AND WIRELESS OPTIONS

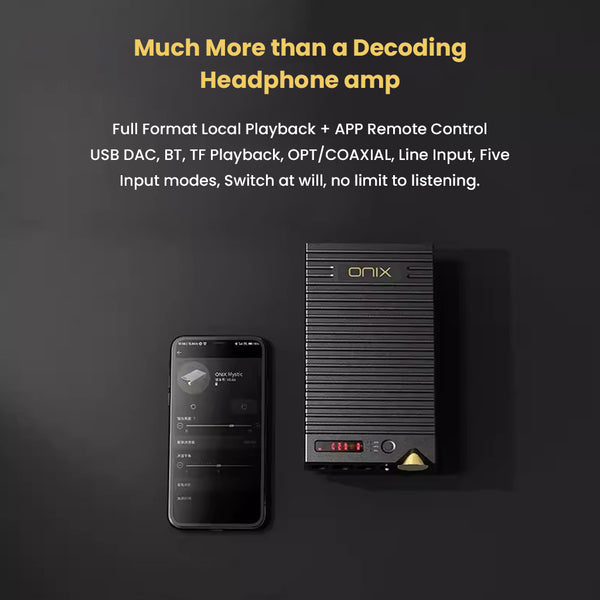

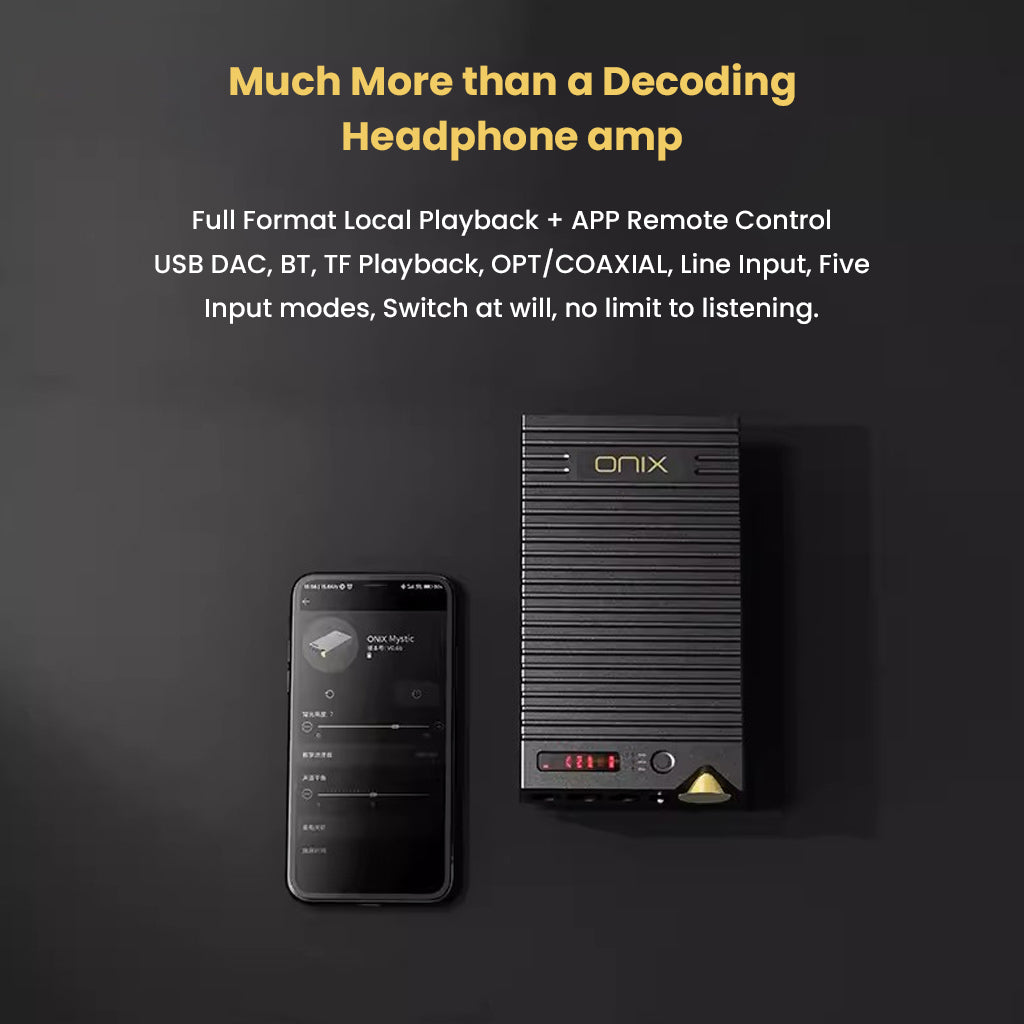

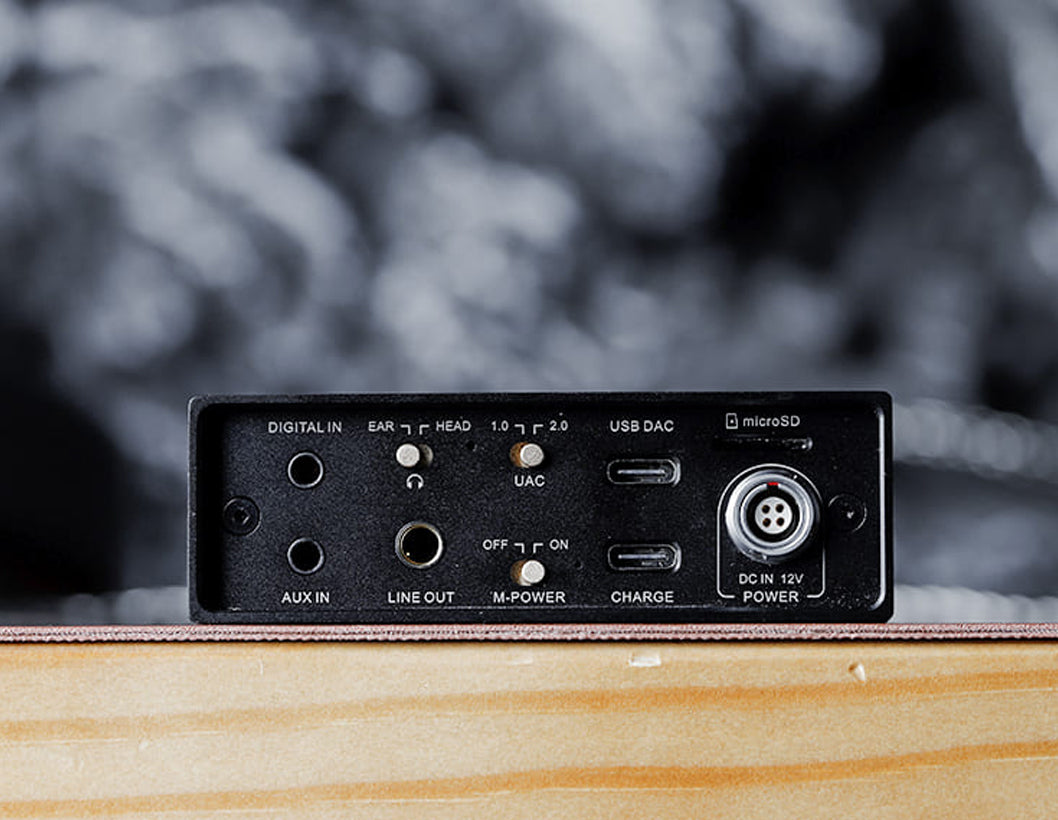

The ONIX Mystic XP1 DAC & Amp offers versatile connectivity with wired and wireless options. It features USB input with XMOS XU316 for high-fidelity audio, Bluetooth 5.0 with LDAC and aptX HD support for wireless streaming, and a 3.5mm Analog input for amplifier mode. Additionally, it provides combined coaxial/optical input for added versatility.The ONIX Mystic XP1 DAC & Amp offers versatile connectivity with wired and wireless options. It features USB input with XMOS XU316 for high-fidelity audio, Bluetooth 5.0 with LDAC and aptX HD support for wireless streaming, and a 3.5mm Analog input for amplifier mode. Additionally, it provides combined coaxial/optical input for added versatility.

Concept kart shanling onix xp1 dac amp black 01 2

LONG LASTING BATTERY LIFE AND POWERFUL PERFORMANCE

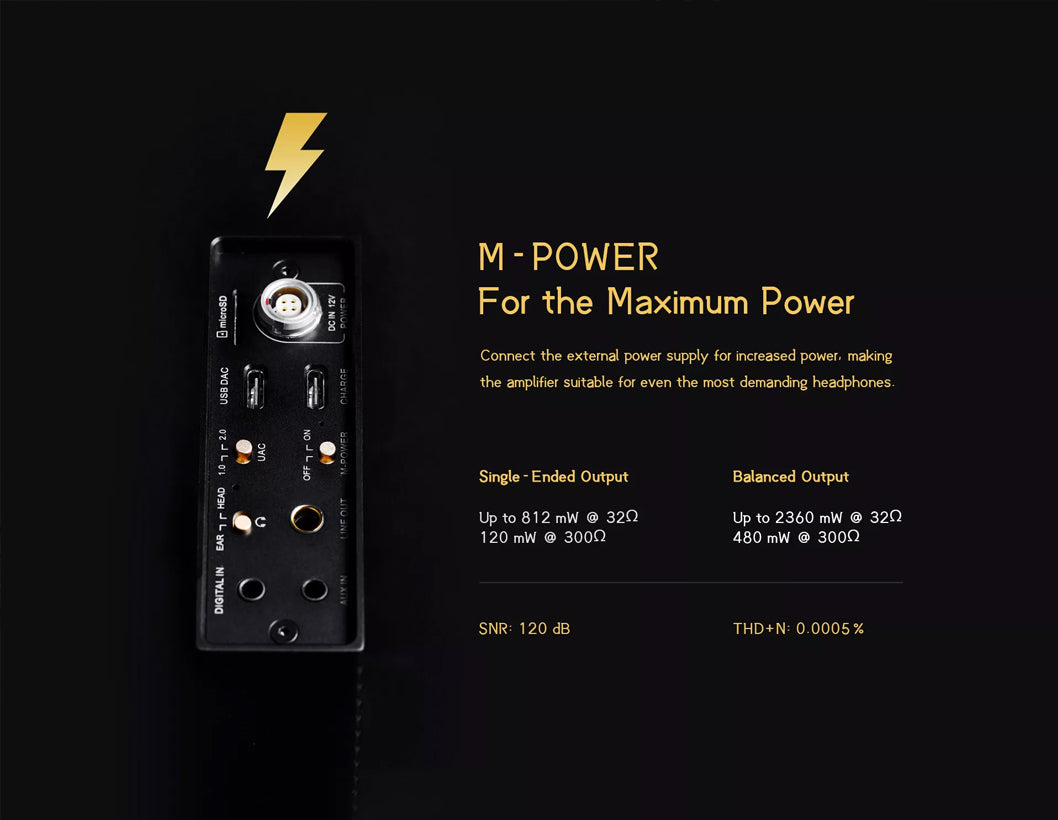

The ONIX Mystic XP1 features a durable 7000mAh battery with USB-C charging, offering up to 10 hours of uninterrupted music playback. It features an external power mode for power-hungry headphones, ensuring effortless driving even for demanding models. With single-ended output delivering up to 812mW at 32 ohms and balanced output providing up to 2360mW at 32 ohms, it guarantees exceptional audio performance. Additionally, it maintains an impressive signal-to-noise ratio (SNR) of 120dB and low total harmonic distortion plus noise (THD+N) of 0.0005%, ensuring pristine sound quality for an immersive listening experience.

MICROSD CARD SLOT SUPPORTING UP TO 2TB OF STORAGE

The ONIX Mystic XP1 Portable DAC features a MicroSD card slot supporting up to 2TB of storage, with various audio formats including DSD, APE, FLAC, WAV, and more. Additionally, it is complemented by the Eddict Player Android/iOS app for convenient playback control. This rich connectivity suite ensures seamless integration with a wide range of audio devices and sources.

Concept kart shanling onix xp1 dac amp black 01 3

CRAFTSMANSHIP AND DESIGN EXCELLENCE OF THE ONIX MYSTIC XP1

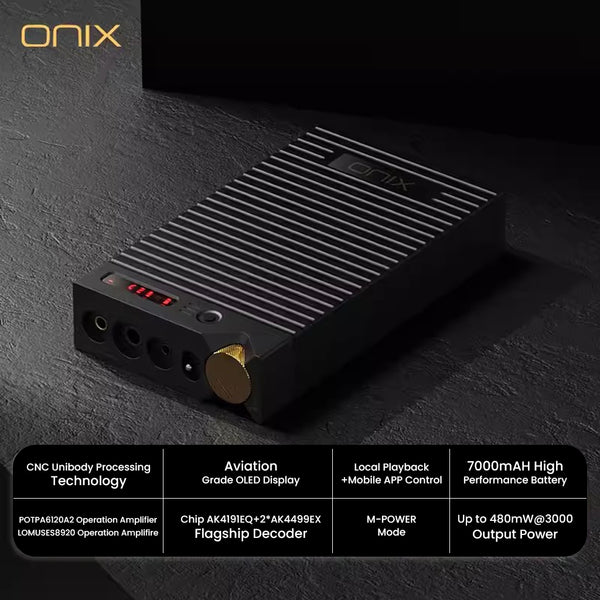

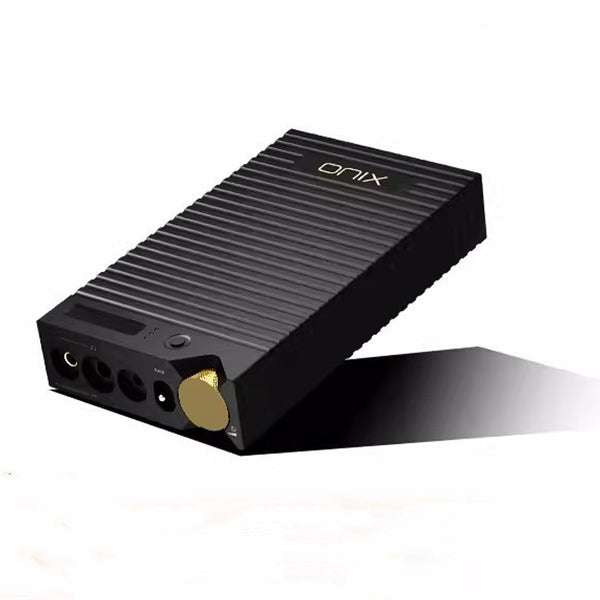

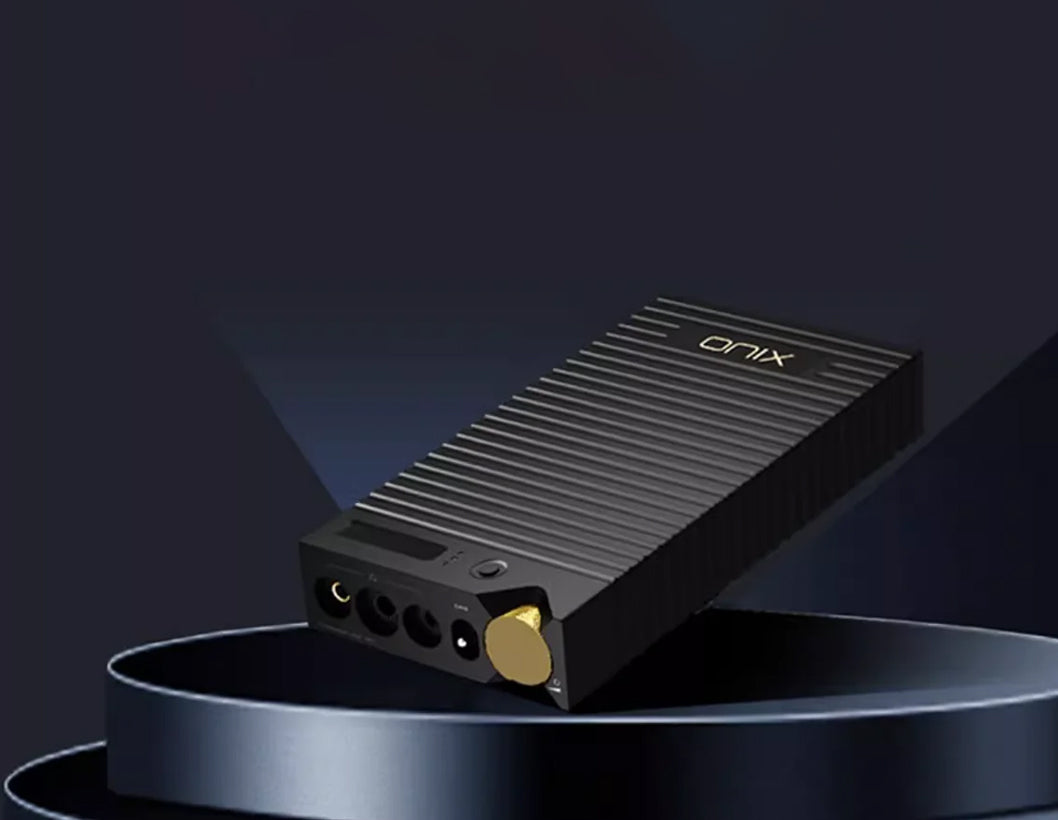

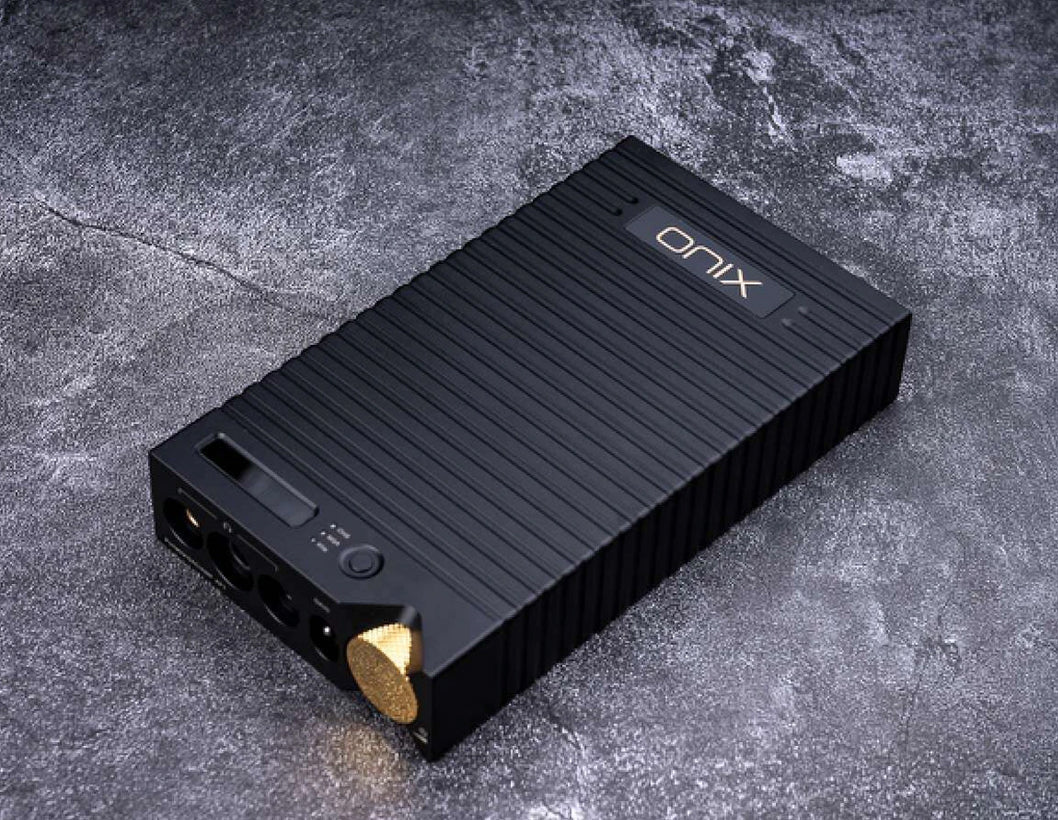

The ONIX Mystic XP1 DAC showcases meticulous design aesthetics, featuring a sleek build with a prominent LED screen for enhanced visibility and user interaction. Crafted with precision using CNC machines, its unibody design ensures durability and quality in every aspect. The gold-plated volume wheel adds both luxury and precision to volume control. Furthermore, its portable design incorporates a vintage-style dot-matrix OLED display, blending nostalgia with modern functionality for an elegant user experience.

Specifications

Brand
SHANLING
Model Name
ONIX - Mystic XP1
Product Name
DAC and Amplifier
System Platform
Ingenic X2000
DAC Chip
Dual AKM AK4499EX + AK4191EQ
Headphone Outputs
3.5mm & 6.5mm Single-Ended, 4.4mm Balanced
Analog Output
4.4mm Balanced, with pre-out function
Analog Input
3.5mm Jack
Bluetooth Codec Support
LDAC / aptX HD / aptX / SBC / AAC
Hi-Res File Support
PCM 768kHz / 32bit, DSD512
Optical Input
PCM 192kHz / 24bit
charging port
TPYE-C
3.5mm & 6.5mm Single-Ended Output
OUTPUT POWER
HEADPHONE MODE, HIGH-GAIN : 2.6V@32Ω (211mW@32Ω) (THD+N<0.023%)

WITH EXTERNAL POWER, HEADPHONE MODE: 5.1V@32Ω (812mW@32Ω) (THD+N<1%)

HIGH-GAIN :6V@300Ω (120mW@300Ω) (THD+N<0.002%)

FREQUENCY RESPONSE: 20Hz-40kHz (-0.5dB)

THD+N: 0.0019% @ 32Ω (A-Weight)

DYNAMIC RANGE: 119dB @ 32Ω (A-Weight)

CHANNEL SEPARATION: 75dB

SIGNAL-TO-NOISE RATIO: 119dB @ 32Ω (A-Weight)

NOISE: 114dB @32Ω (A-Weight)

OUTPUT IMPEDANCE: 4.7Ω

Battery
7000 mAh
Battery life
Up to 10 hours
4.4mm Balanced Output
OUTPUT POWER HEADPHONE MODE, HIGH-GAIN: 4.9V@32Ω (750mW@32Ω) (THD+N<0.01%)

WITH EXTERNAL POWER, HEADPHONE MODE: 8.7V@32Ω (2360mW@32Ω) (THD+N<1)

HIGH-GAIN: 12V@300Ω (480mW@300Ω) (THD+N<0.002%)

FREQUENCY RESPONSE: 20Hz-40kHz (-0.5dB)

THD+N: 0.0005% @32Ω (A-Weight)

DYNAMIC RANGE: 120dB @32Ω (A-Weight)

CHANNEL SEPARATION: 101dB

SIGNAL-TO-NOISE RATIO: 120dB @32Ω (A-Weight)

NOISE: 111dB @32Ω (A-Weight)

OUTPUT IMPEDANCE: 6.6Ω

Box Content

    What will you get
  • 1x ONIX Mystic XP1
  • 1x Power Adapter
