SHANLING – ONIX Alpha XI1 CS43198 Portable USB DAC & Amp - 1

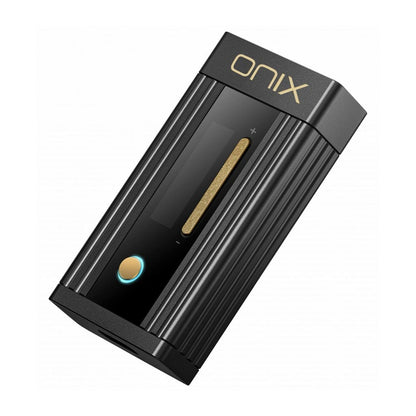

SHANLING – ONIX Alpha XI1 CS43198 Portable USB DAC & Amp

SHANLING

Portable amps & dacs under 10000

    High Performance Cirrus Logic Dual CS43198 Chipset

    Balanced SGM8262 Amplifiers for Smooth & Clean Sound

    Eddict Player App Support & Dual Gain Switch

    500mW High-Power Output for Efficient Power Management

    Ultra Low Background Noise & Dual Headphone Outputs Support

    Supports Upto 32bit/768KHz PCM & DSD256

₹ 9,990 ₹ 12,999 Save ₹ 3,009

Tax & Shipping Included

Tax IncludedShipping Included

Add a heading

Add content using the options to the left

Description

ONIX, a well-known UK brand, has launched the Alpha XL1, a new portable DAC & Amp. This digital-to-analog converter uses two high-quality Cirrus Logic CS43198 DACs to deliver great sound. It has a balanced design with two special SGM8262 headphone amplifiers, providing up to 500 mW of power at 32 Ohms. The Alpha XL1 features a small 0.87-inch black-and-white screen for easy settings access and works with many different systems. It also has three buttons to control volume and playback. Deep black combined with golden yellow elements, in a sturdy body, combining elaborately machined aluminum, glass and smooth fake leather back.

HIGH-PERFORMANCE BALANCED PORTABLE DAC WITH DUAL CS43198 CHIPS

The Alpha XL1 portable USB DAC & amp Features CS 43198 chipset from Cirrus Logic, this compact powerhouse brings unparalleled clarity and richness to your music. The DAC chip is renowned for its precision and high-resolution audio support, enabling it to handle 32-bit/384kHz PCM streams and native DSD up to DSD256 through its USB-C input. Whether you're a casual listener or an audiophile, it ensures every note, beat, and harmonic nuance is rendered with astounding fidelity, transforming any audio experience into a breathtaking musical journey.

DUAL SGM8262 OP-AMPS FOR VERSATILE HEADPHONE AMPLIFICATION

The Onix Alpha XI1 USB DAC is equipped with two SGM8262 operational amplifiers, which handle headphone amplification with precision. These low-noise, low-distortion op-amps deliver ample power, providing up to 180mW through the 3.5mm jack and up to 500mW at 32 ohms via the balanced 4.4mm jack. This ensures compatibility with a wide range of headphones and earphones. Additionally, the low output impedance of 0.4/0.8 ohms enhances its versatility.

CUSTOMIZABLE SOUND CONTROL WITH EDDICT PLAYER APP

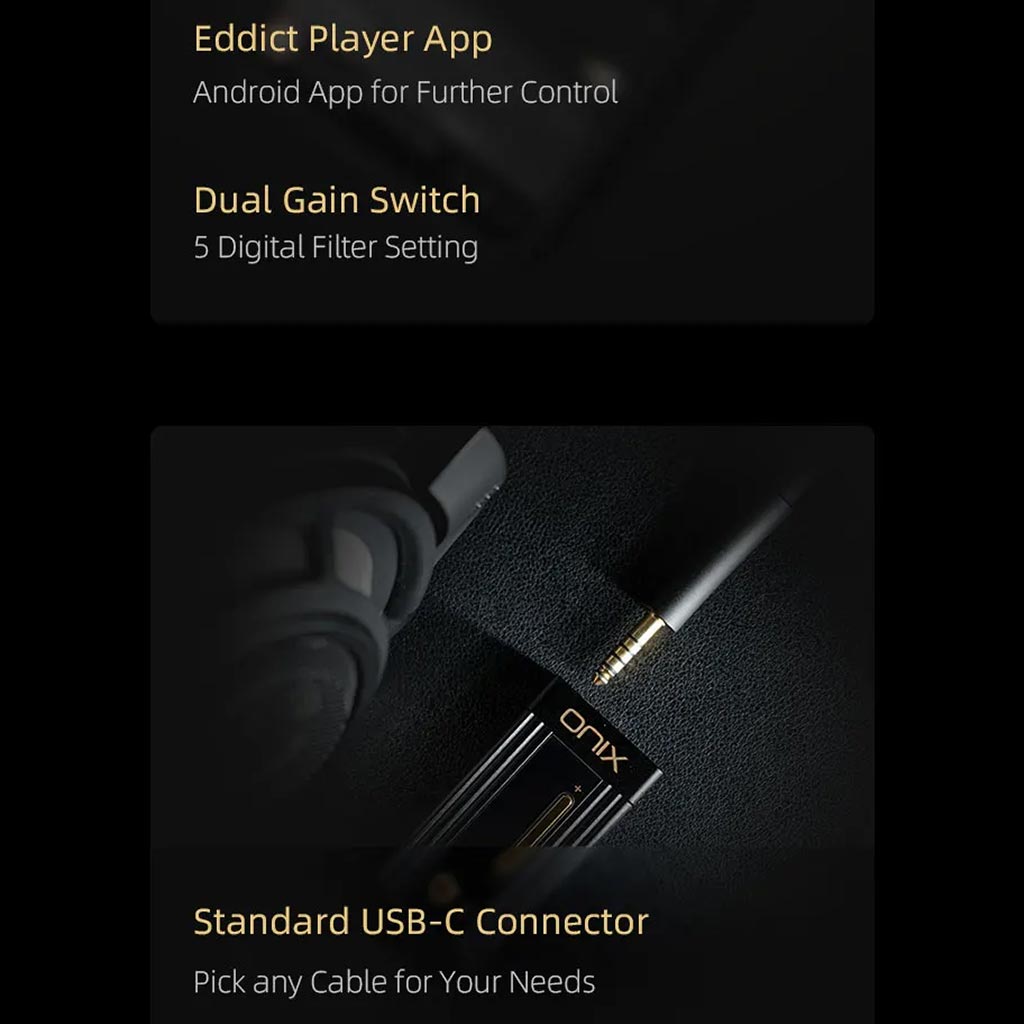

The Eddict Player app enhances your experience with the Shanling Onix Alpha XI1 DAC, providing an easy-to-use interface that allows for full control of the headphone amplifier. It offers the ability to fine-tune your audio with five selectable sound filters, ensuring you can tailor the sound to your exact preferences for a personalized listening experience.

POWERFUL AUDIO AMPLIFICATION WITH DUAL HEADPHONE OUTPUT

The Onix Alpha XI1 type C DAC delivers clean and crisp audio amplification with a powerful output of up to 500mW at 32Ω impedance, providing exceptionally low background noise. It delivers up to 500mW at 32Ω through its balanced 4.4mm output and 3.5mm output produces 2.4V at 32Ω (180mW) with a THD+N of 0.0004%, a dynamic range of 125dB, and an SNR of 126dB. In comparison, the 4.4mm balanced output offers 4.0V at 32Ω (500mW) with a THD+N of 0.0005%, a dynamic range of 129dB, and 99dB channel separation, ensuring top-notch audio performance.

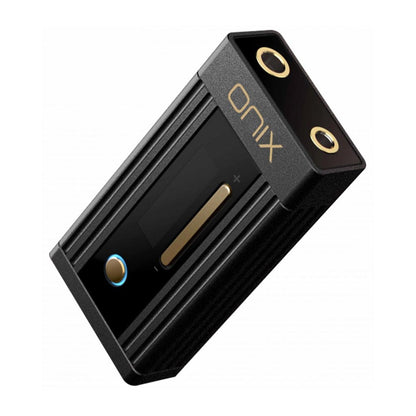

COMPACT DAC/AMP WITH PREMIUM BUILD AND USER-FRIENDLY INTERFACE

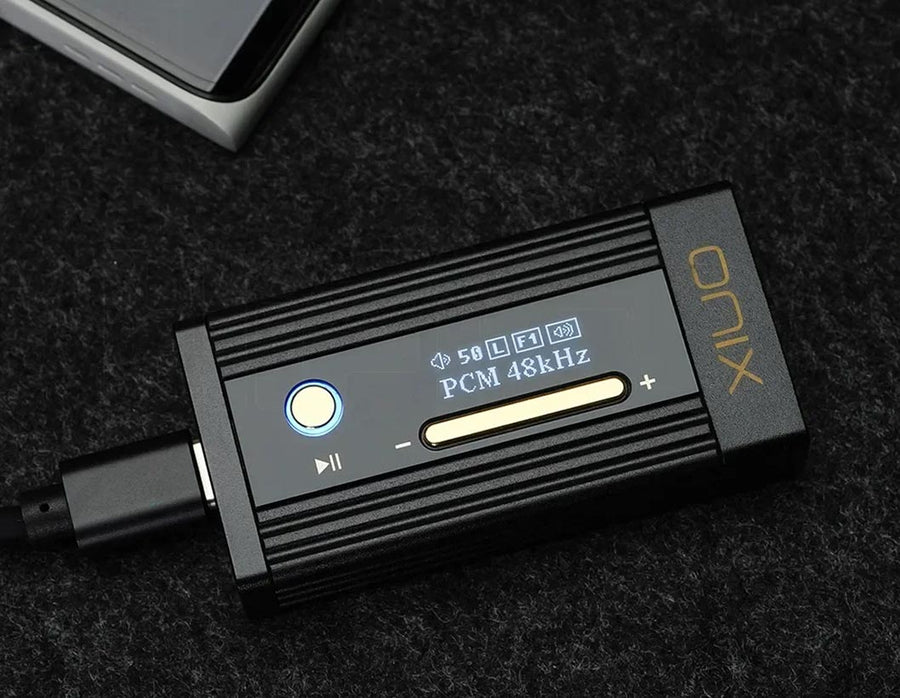

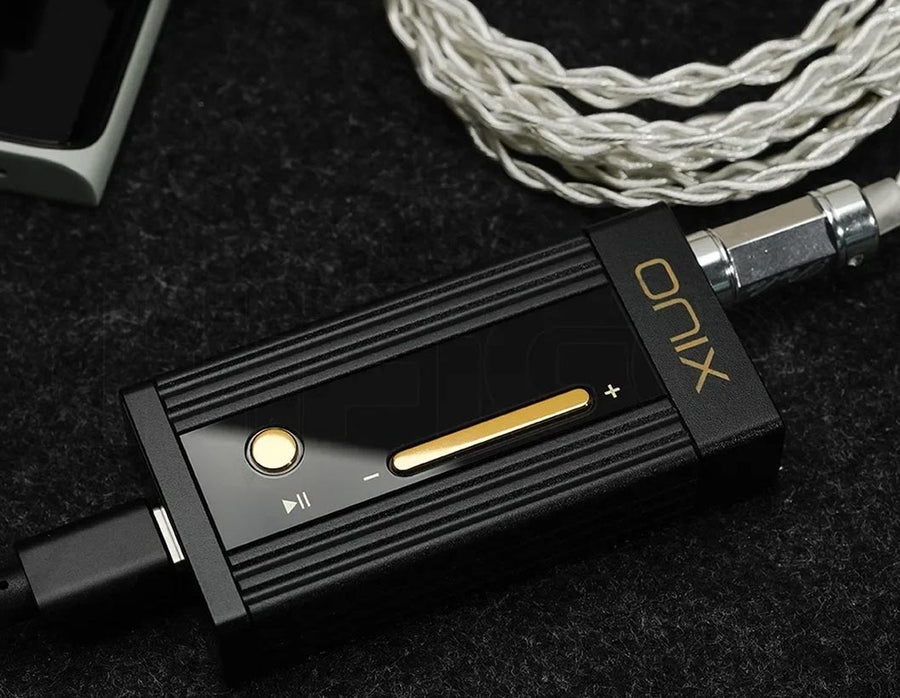

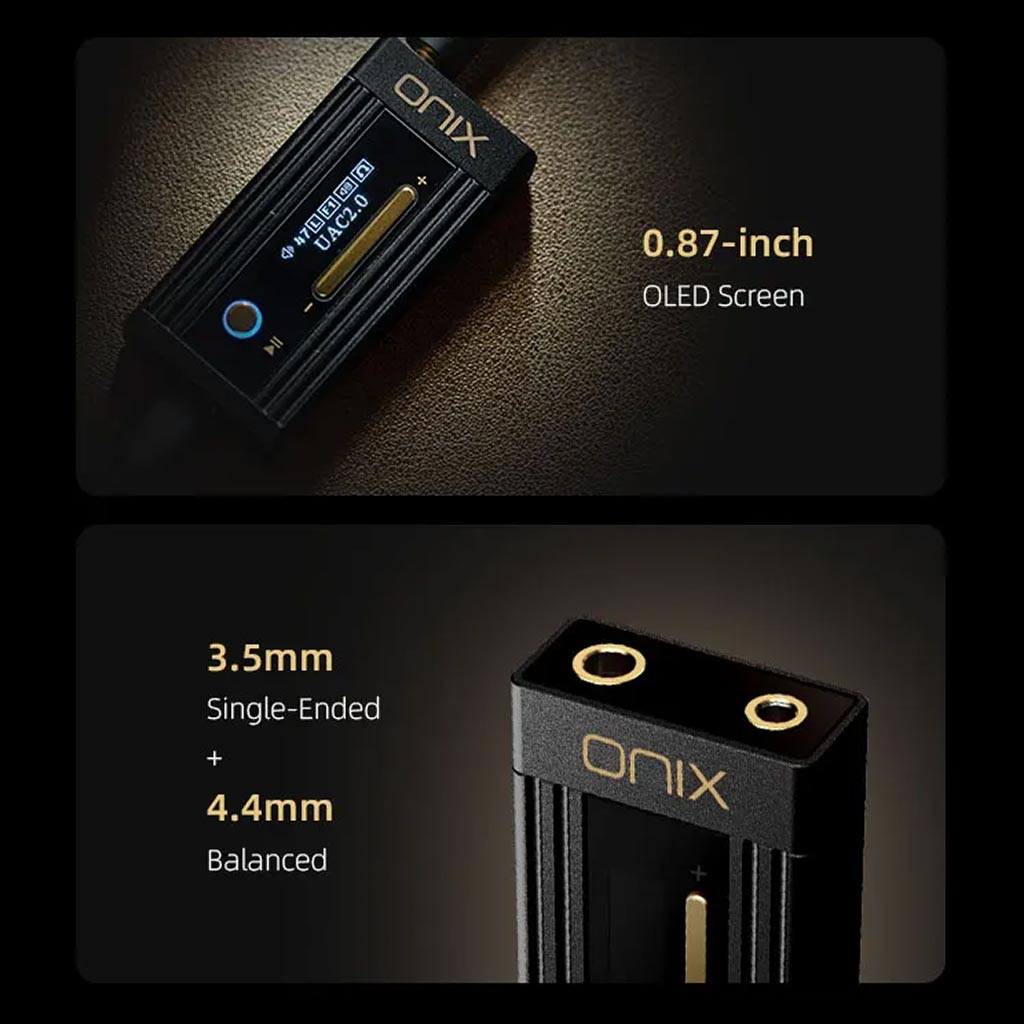

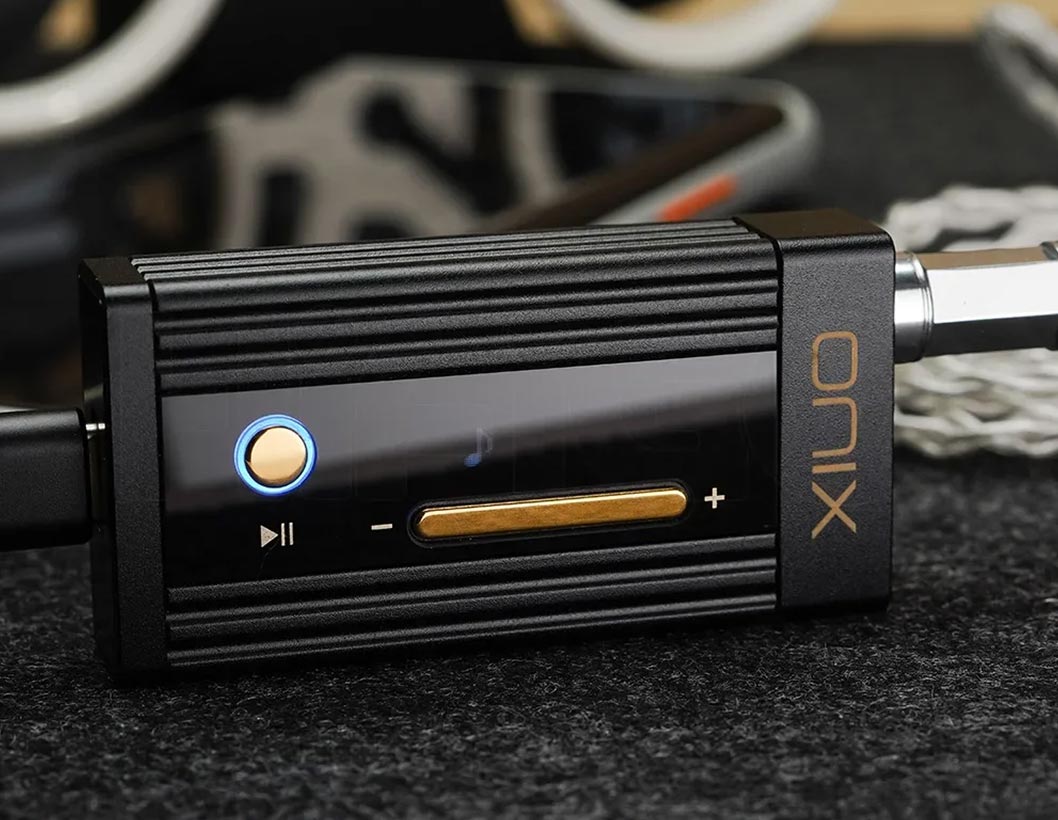

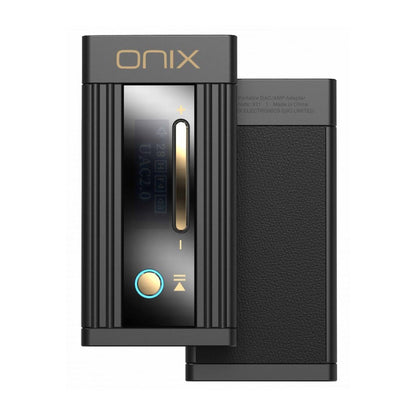

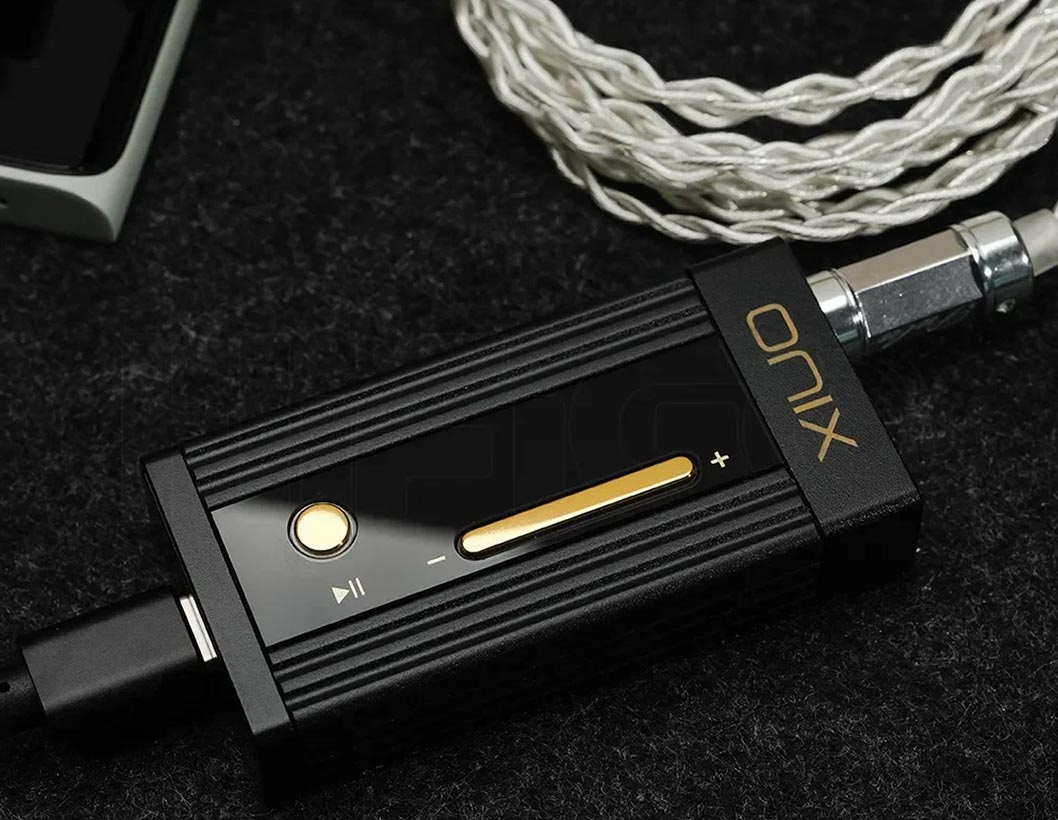

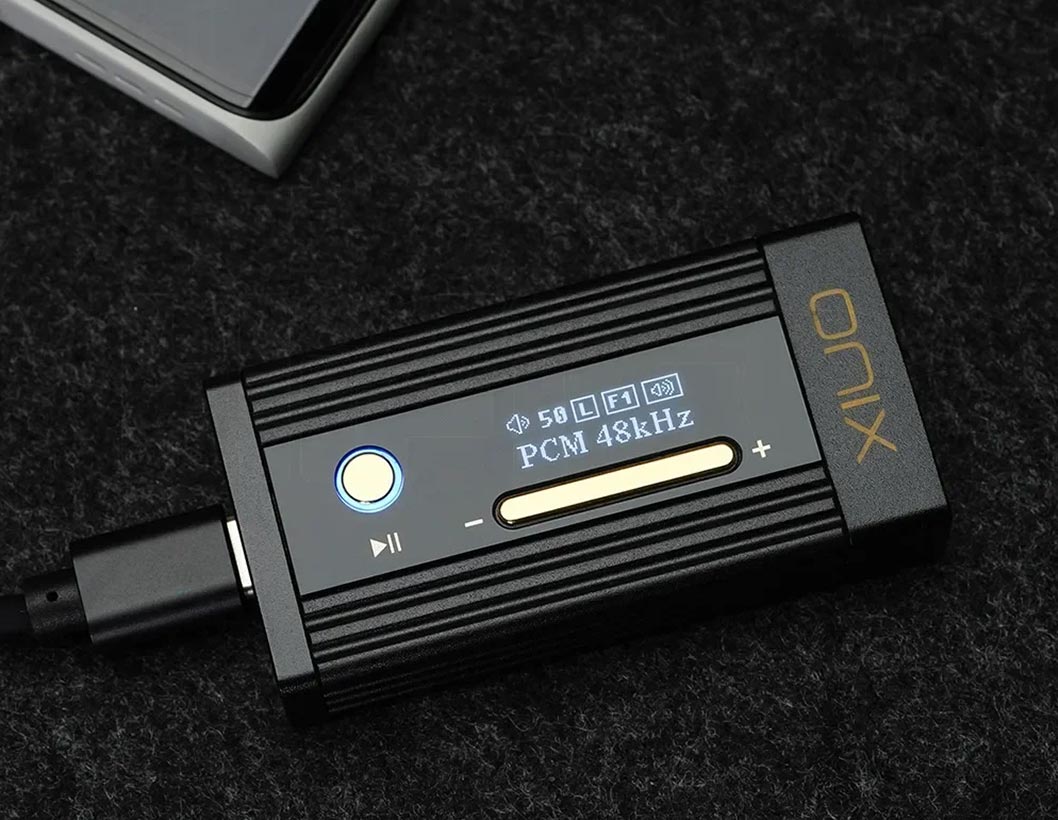

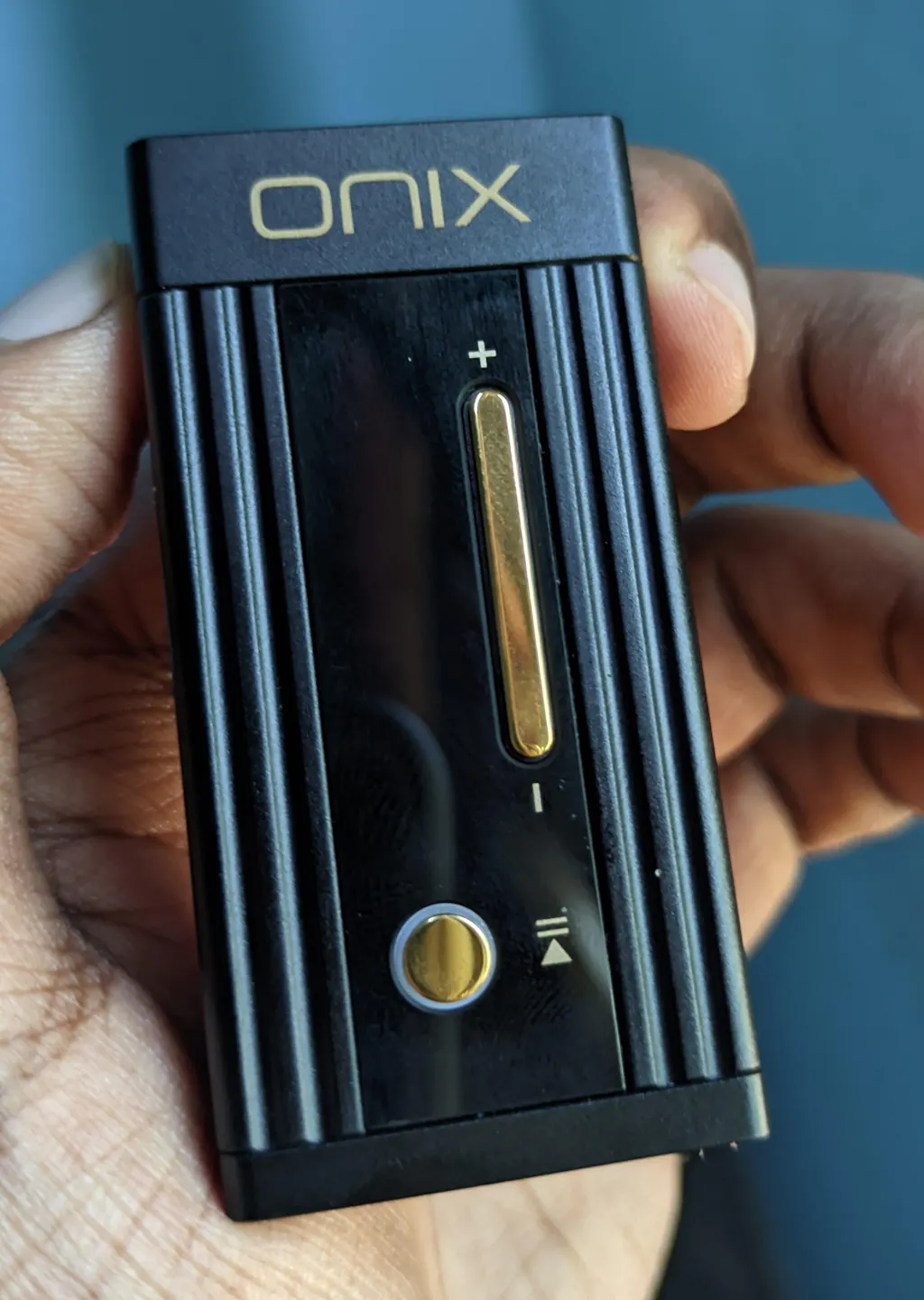

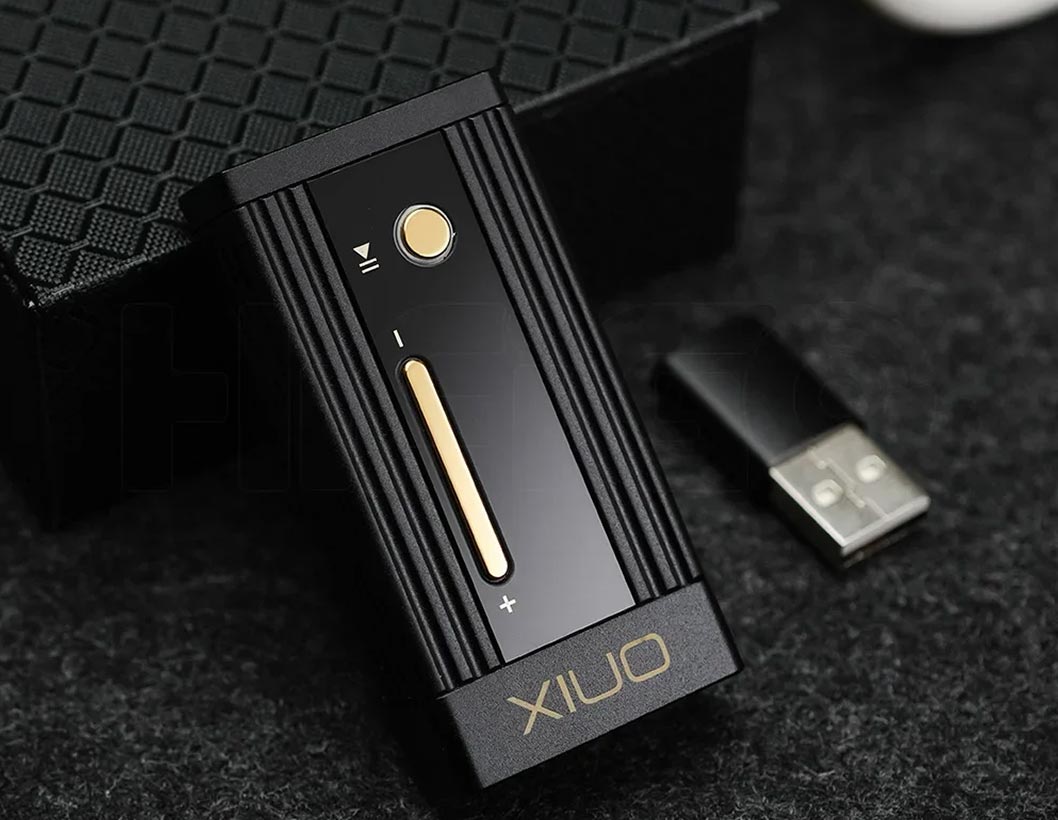

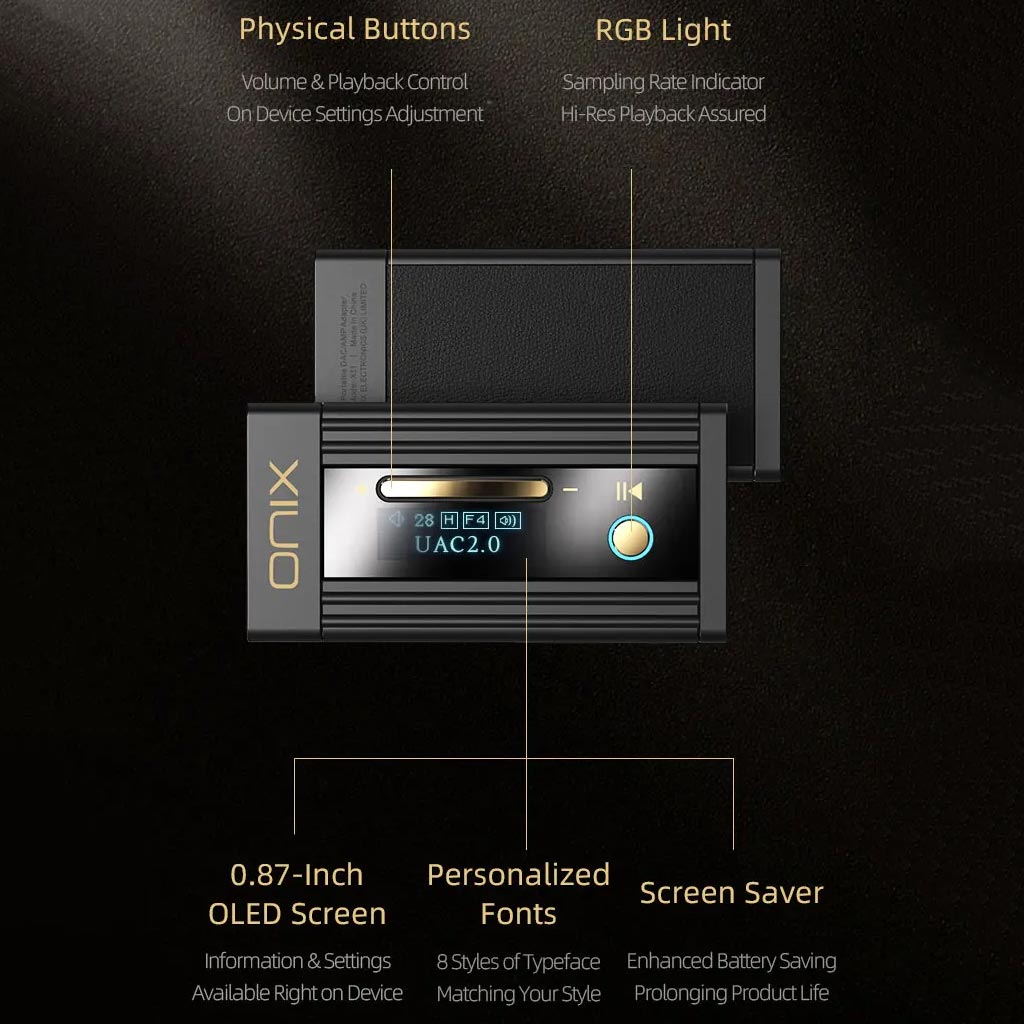

Even the Onix Alpha DAC maintains the high standards of ONIX design and build quality. The hi-res DAC features a sleek deep black finish with golden yellow accents, housed in a sturdy body made from carefully crafted aluminum, glass, and smooth faux leather. Despite its small size, it features a 0.87-inch OLED screen that provides clear navigation and essential information. Additionally, the DAC is equipped with three buttons for intuitive volume control and playback management, including play/pause functionality.

ADVANCED USB DAC WITH SMART POWER MANAGEMENT AND FLEXIBLE CONNECTIVITY

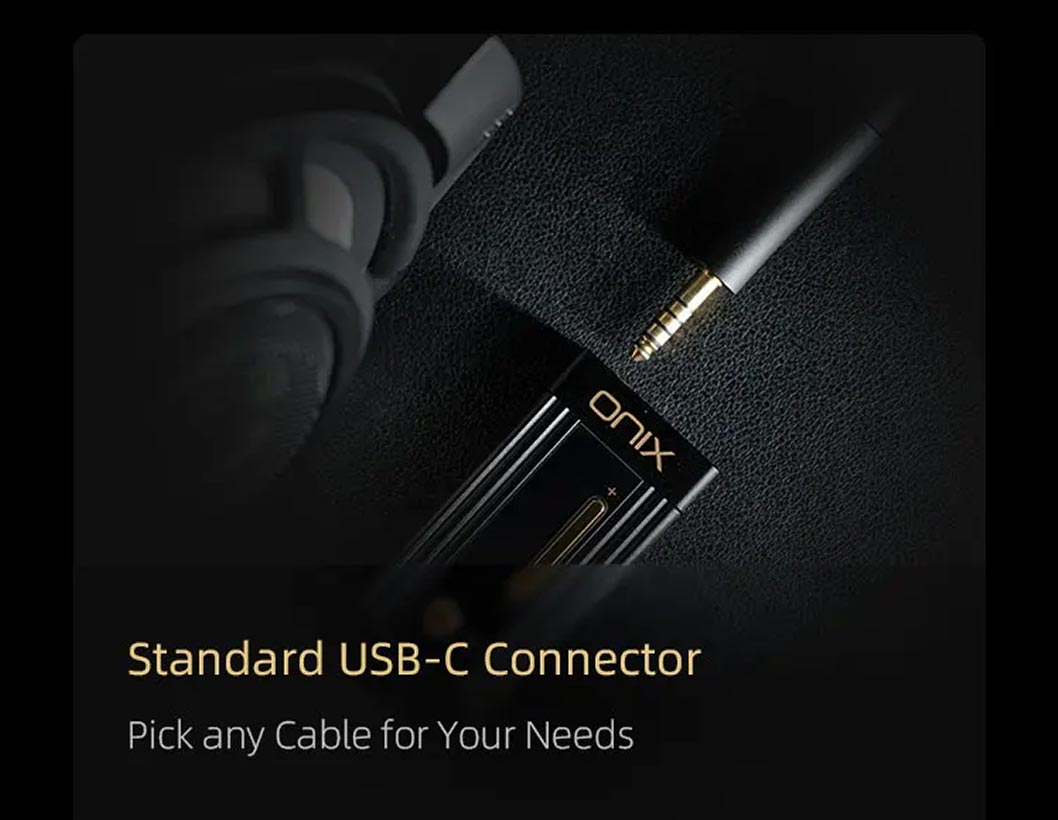

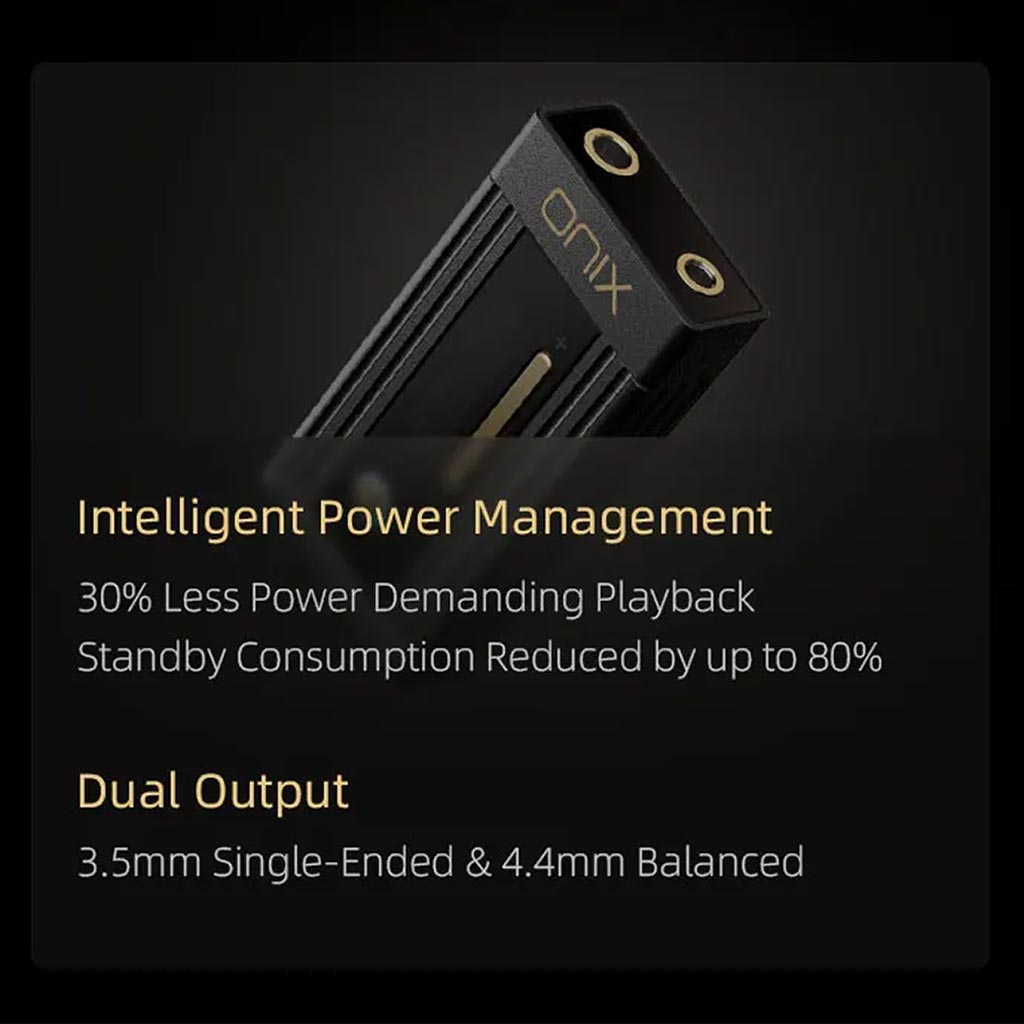

The Onix Alpha XI1 is the best DAC for IEM features advanced USB DAC with a 32-bit ARM processor, enhancing its performance and system features. It has smart power management that makes it 30% more energy-efficient during playback and cuts standby power use by up to 80%. With a standard USB-C connector, you can easily use any compatible cable. The Onix Alpha XI1 mobile dac offers top-notch performance and flexibility, making it perfect for enjoying music on the go.

Specifications

Brand Name
SHANLING
Model
ONIX Alpha XI1
DAC Chip
Dual Cirrus Logic CS43198
Headphone Output
4.4mm (Balanced)
3.5mm (Single-Ended)
Connector Type
USB-C
Support
32bit/ 768 kHz & DSD256
Gain Setting
Low & High
Output Power
3.5mm (Single-Ended): 2.4V @ 32Ω (180mW@ 32Ω)
4.4mm (Balanced): 4.0V @ 32Ω (500mW@ 32Ω)
THD+N
3.5mm (Single-Ended): 0.0004% @ 32Ω (A-Weight @ 2V)
4.4mm (Balanced): 0.0005% @ 32Ω (A-Weight @ 2V)
Dynamic Range
3.5mm (Single-Ended): 125dB @ 32Ω (A-Weight)
4.4mm (Balanced): 129dB @ 32Ω (A-Weight)
Channel Separation
3.5mm (Single-Ended): 71dB @ 32Ω
4.4mm (Balanced): 99dB @ 32Ω
Signal-to-noise ratio
3.5mm (Single-Ended): 71dB @ 32Ω
4.4mm (Balanced): 99dB @ 32Ω
Output impedance
3.5mm (Single-Ended): 0.4Ω
4.4mm (Balanced): 0.8Ω
Digital Filter
5 Different Options
Dimensions
63.8 X 32 X 14mm
Display
0.87-Inch Monochromatic Screen
Weight
37.8g

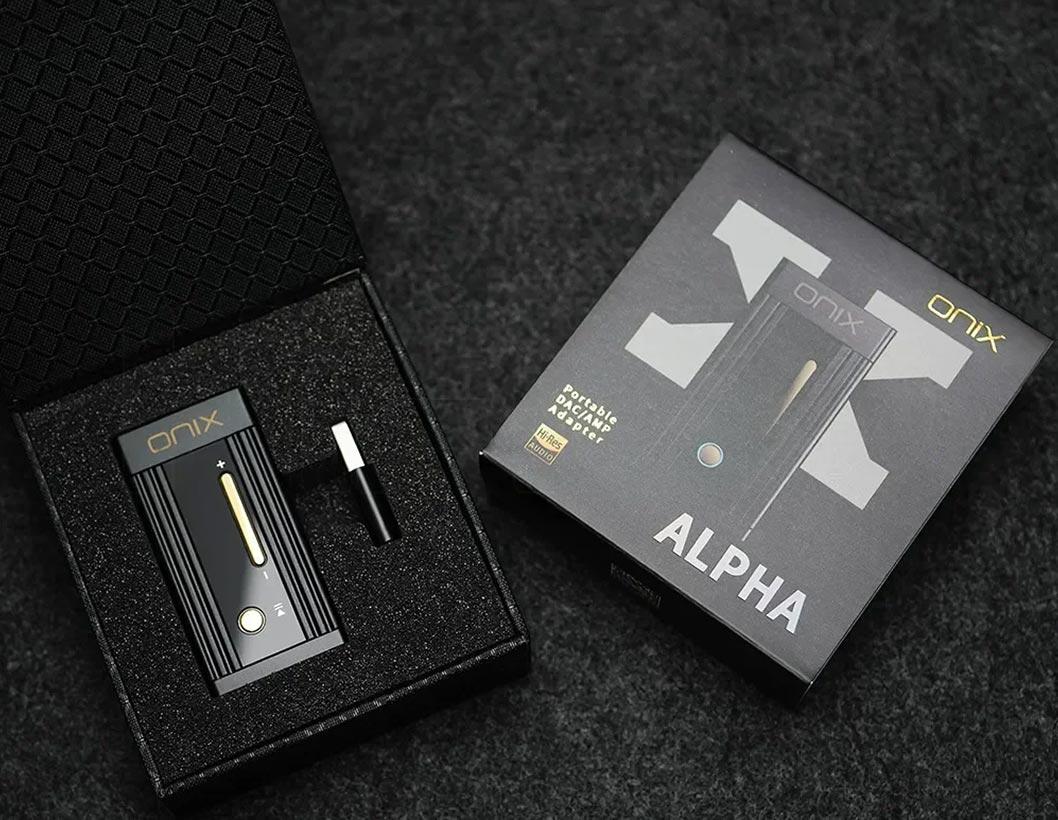

Box Content

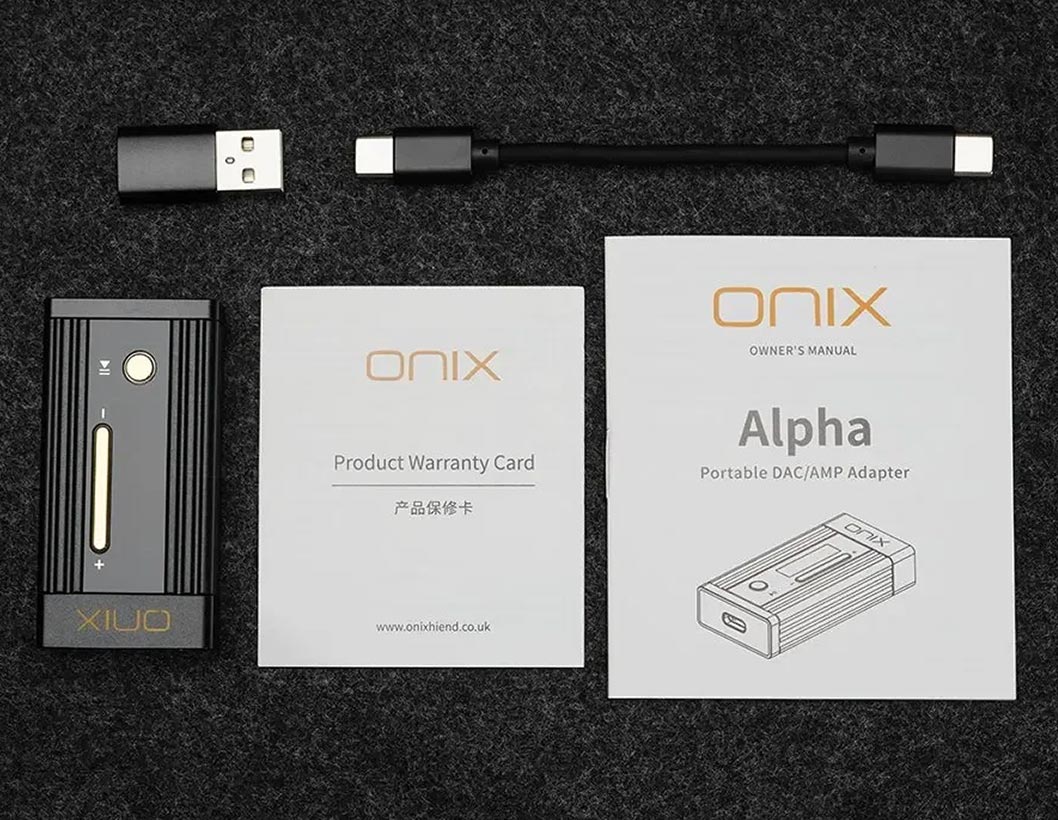

    What will you get
  • 1x ONIX XI1 Dac&Amp
  • 1x USB cable
  • 1x USB-C to USB-A adapter
  • 1x User Manual

    Warranty

    6 MONTHS WARRANTY

    Don't worry, SHANLING ONIX Alpha XI1 DAC & Amp comes with a 6 Months warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.

    Read more about Concept Kart's warranty policy.

    Shipping Policy

    FREE SHIPPING ON ALL PREPAID ORDERS

    We usually ship orders on same day if ordered before 2 pm or within 24 hours if ordered later (except on holidays/sunday, where processing times may be higher) from one of our domestic warehouses based out of Delhi. It normally takes around 1 to 5 business days for delivery. We use premium service partners such as Blue dart, DTDC and Delivery for faster and reliable service. A tracking number will be provided upon shipment.

    In very rare cases when order is not received after 10 business days of shipment (extended by number of days when the govt. Restricts movement of goods due to factors such as coronavirus pandemic), please contact us and we will provide you a support.

    Add a heading

    Add content using the options to the left

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    S
    Savio Dias (Mumbai, IN)

    SHANLING – ONIX Alpha XI1 CS43198 Portable USB DAC & Amp

    A

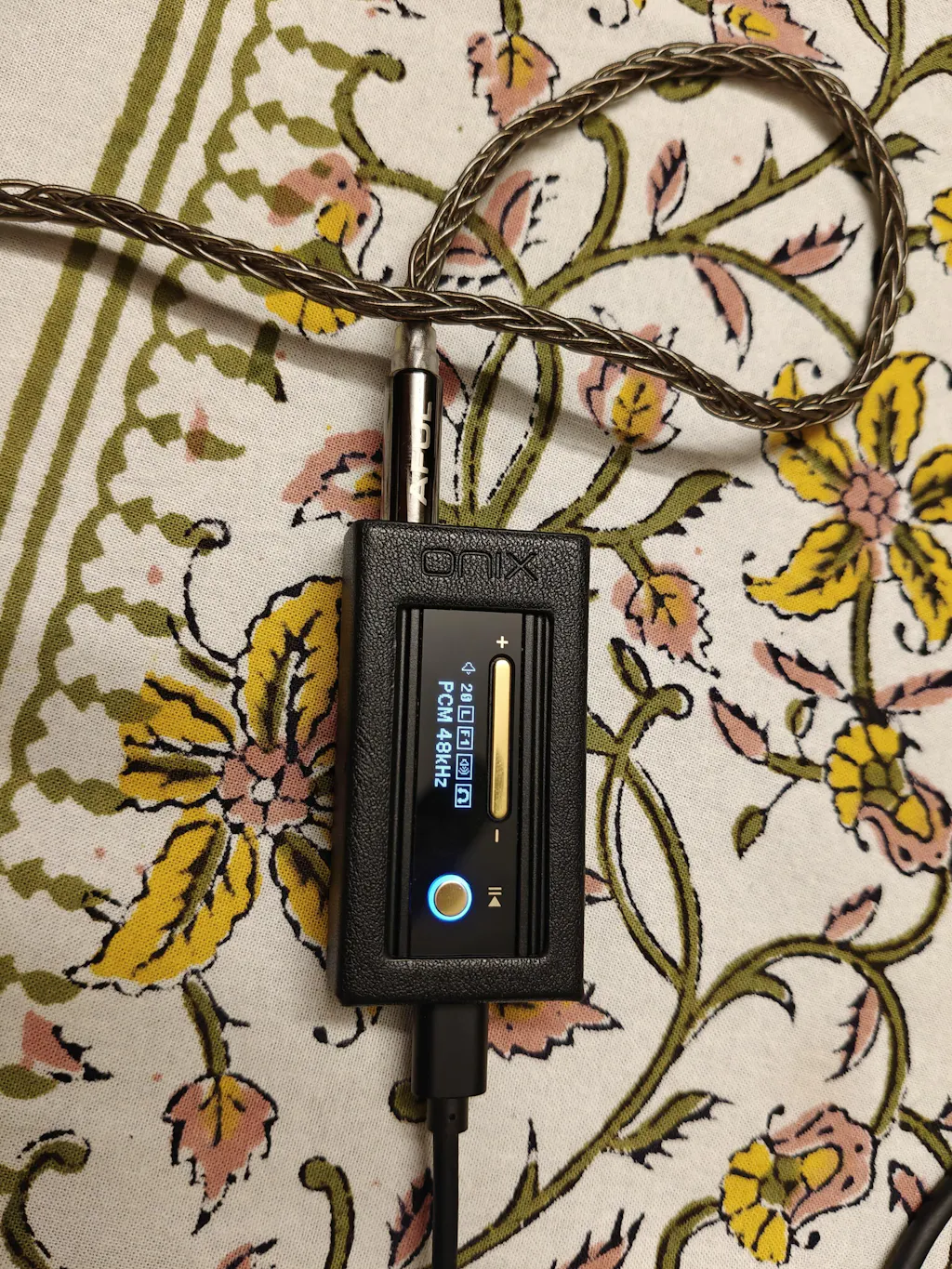

    Alpesh Joshi (Hyderabad, IN)
