SHANLING - H5 Portable DAC & Amp

SHANLING

  • Dual AK4493SEQ DAC Chips)
  • High-Power Amp Section

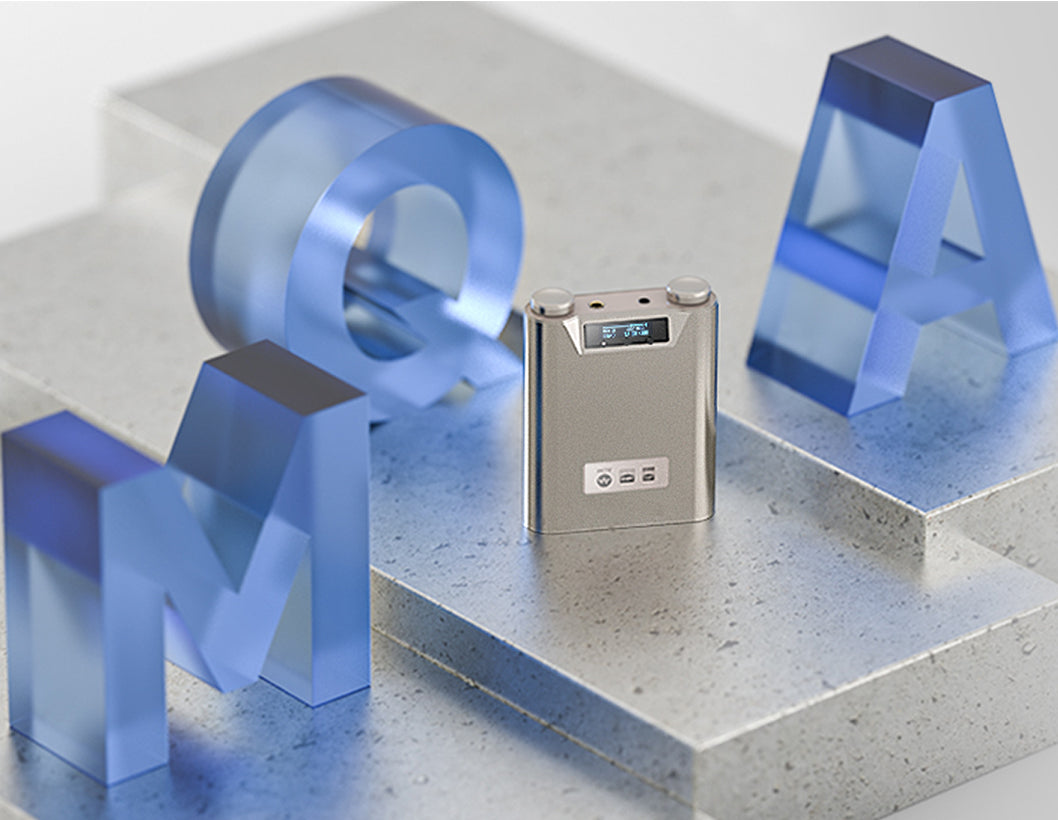

  • Full MQA Decoder
  • Built-in Digital Filters
  • 3.5mm+4.4mm Output
  • Large Capacity 3500mAh Battery

₹ 34,990.00 ₹ 41,999.00 Save ₹ 7,009

Tax & Shipping Included

Tax IncludedShipping Included

Shipping Icon Shipping & Delivery


Delivery might be delayed in areas affected by the farmer's protests

Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

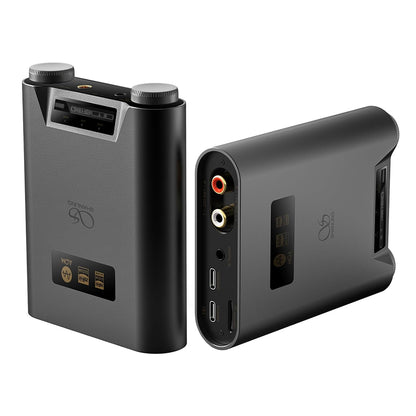

INTRODUCTION OF SHANLING H5

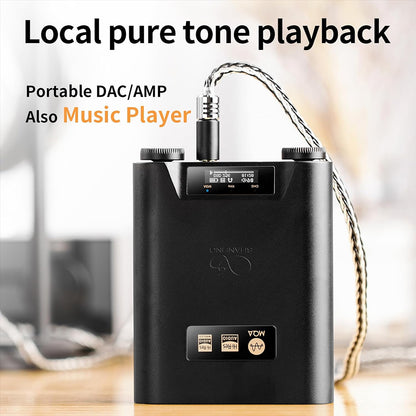

The Shanling H5 is a portable DAC and Headphone Amplifier equipped with a high-performance Dual DAC chipset, featuring AKM's latest AK4493SEQ DAC chips and the XMOS XU316 USB Processor. It supports decoding for high-resolution PCM and DSD audio signals, along with MQA decoding. With a compact design, it offers a convenient and high-quality audio experience for music enthusiasts on the go.

Concept kart shanling h5 portable dac amp 3  4

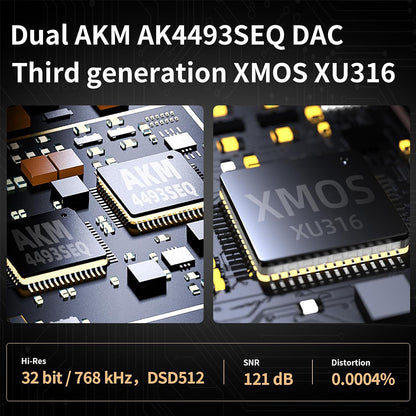

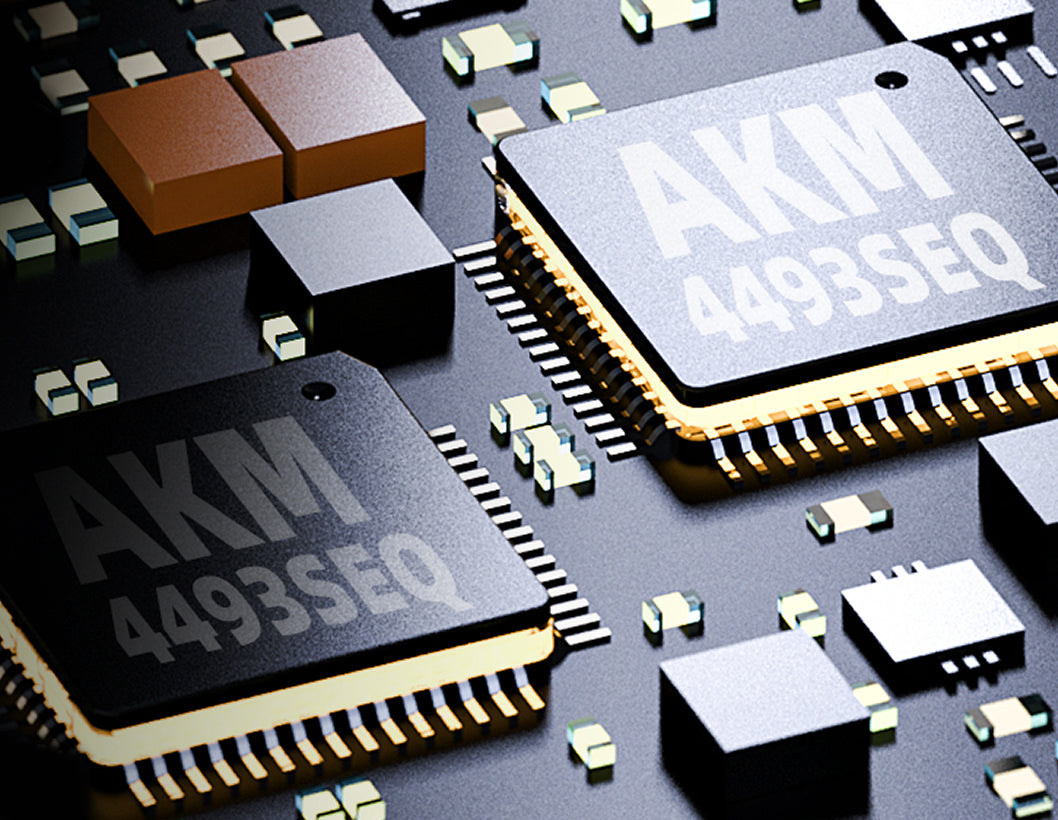

HIGH-PERFORMANCE AKM DACS FOR PREMIUM AUDIO

The Shanling H5 features a cutting-edge Dual DAC chipset, incorporating AKM's top-notch AK4493SEQ DAC chips. These 32-bit DACs deliver exceptional performance, ensuring a rich and clear sound with a high signal-to-noise ratio (SNR) and minimal harmonic distortion for decoding high-resolution audio signals.

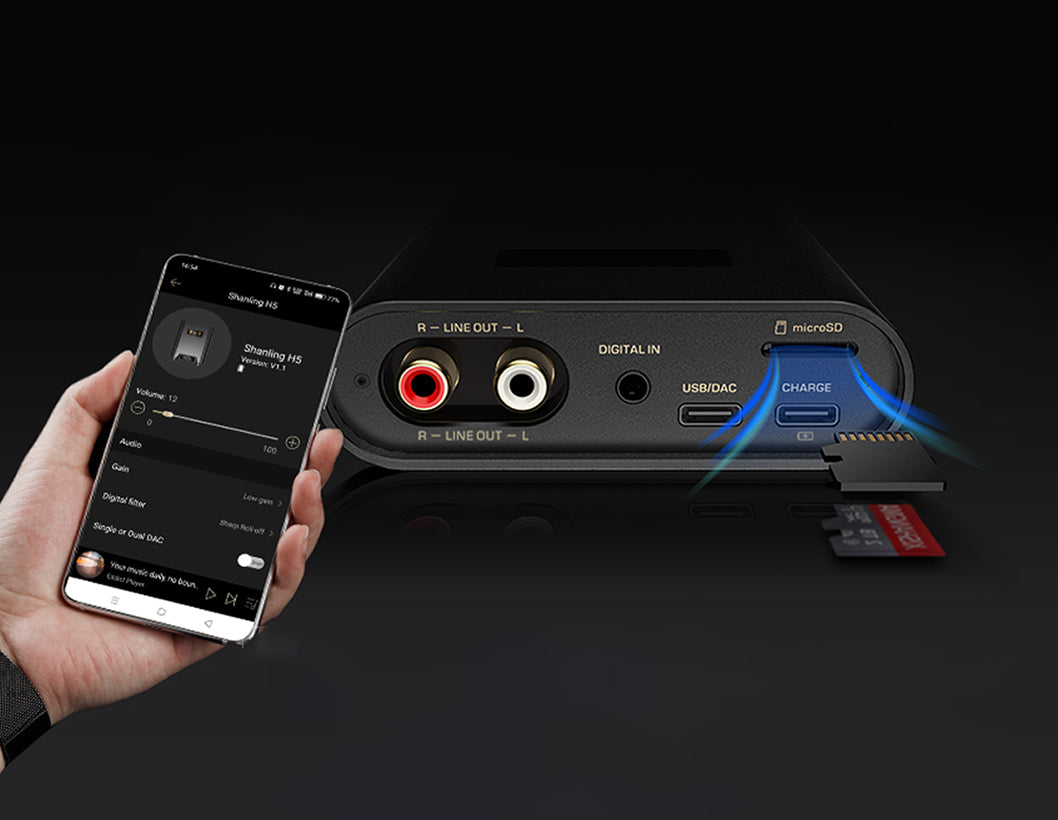

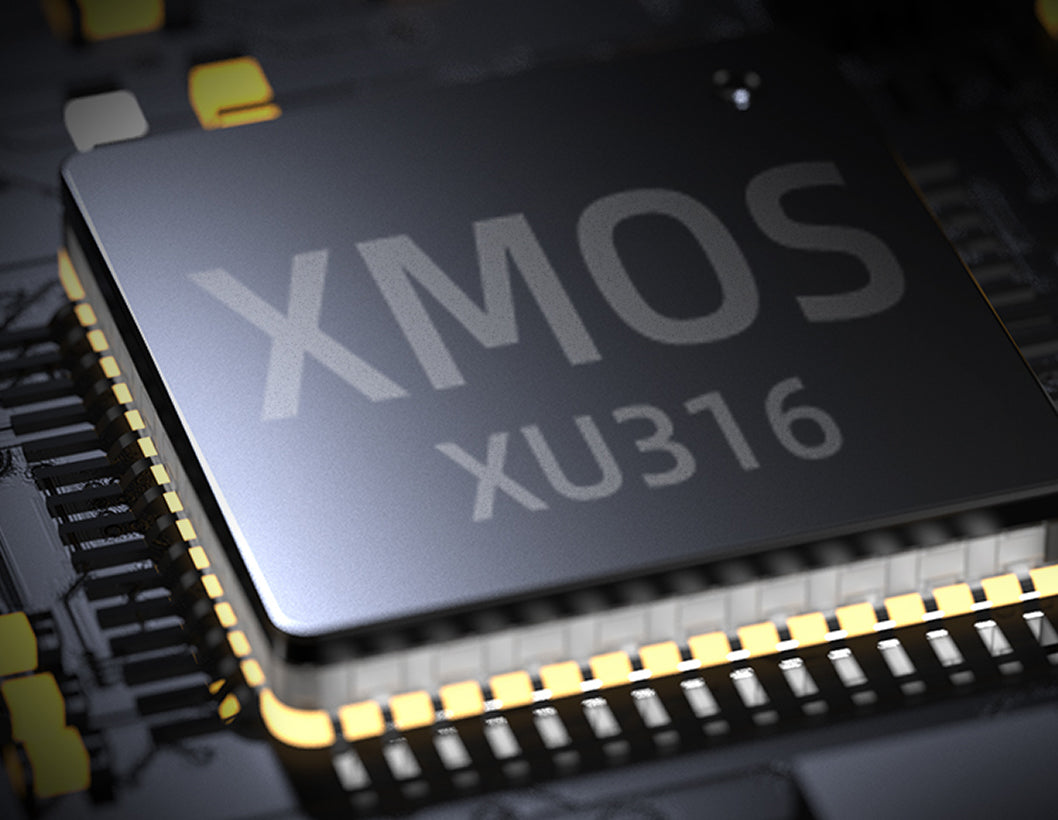

NEW GENERATION XMOS USB PROCESSOR AND MICRO SD CARD SLOT INTEGRATION

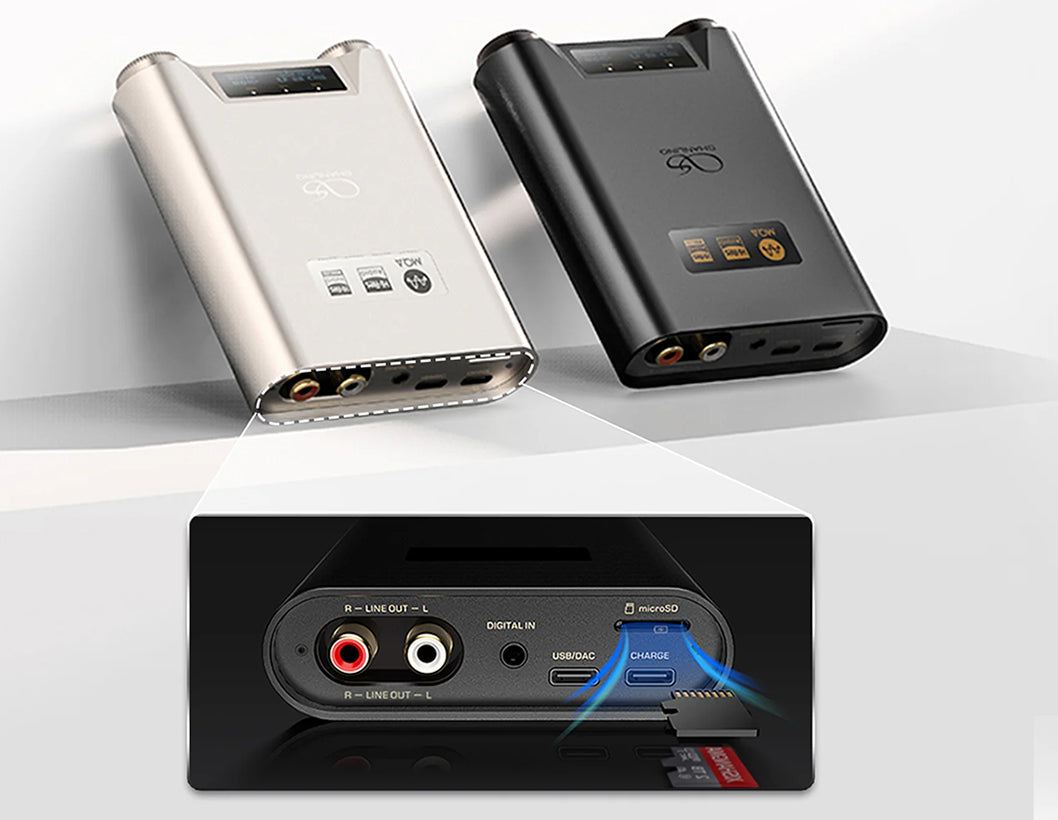

The Shanling H5 features an advanced 16-core XU316 USB processor from XMOS, facilitating high-resolution 32-Bit/768kHz PCM and native DSD support via USB input. Additionally, it offers a convenient microSD card slot with support for up to 2TB capacity. This allows users to remotely control the H5 using the Eddict player on their smartphones and access their music library seamlessly.

INNOVATIVE OPAMP AMPLIFICATION DESIGN

The Shanling H5 features a newly developed OPAMP-based amplification circuit, utilizing dual TPA6120 and OPA1612 OPAMP chips. This design ensures robust signal amplification, delivering an impressive output power of up to 840mW @ 32Ω impedance for an enhanced audio experience.

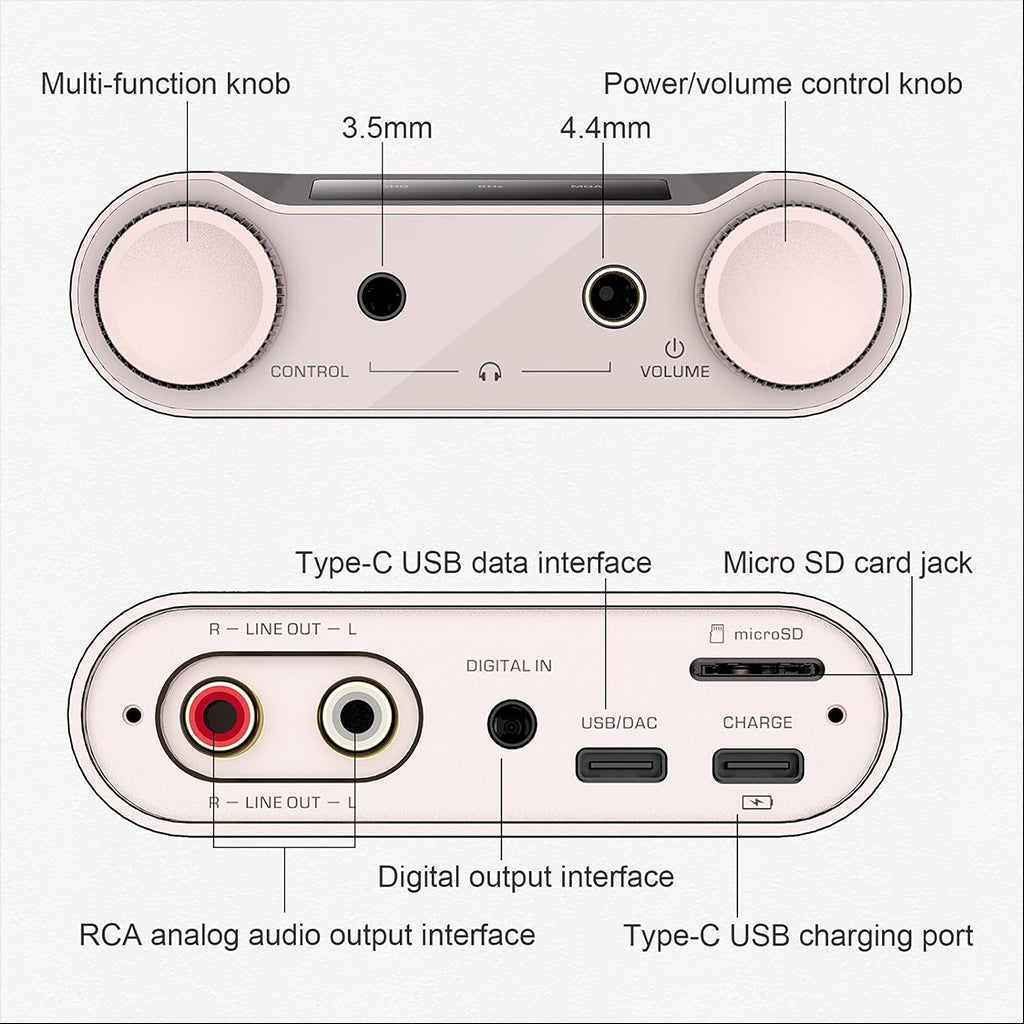

DUAL HEADPHONE PORTS, THREE-LEVEL GAIN, AND IMPRESSIVE POWER OUTPUTS

The Shanling H5 audio device features both single-ended and balanced headphone ports, offering a three-level gain mode for versatile compatibility with various IEMs and headphones. The balanced 4.4mm output provides a maximum power of 840mW at 32Ω, while the 3.5mm single-ended output delivers up to 227mW of clean output. The balanced output has an impedance of 6.6Ω, and the 3.5mm output has an impedance of 4.7Ω.

Concept kart shanling h5 portable dac amp 3  3

HIGH-RESOLUTION BLUETOOTH INPUT

The Shanling H5 offers wireless Bluetooth input in addition to its USB input. Supporting high-definition wireless transmission protocols such as LDAC, AAC, and SBC, it ensures high-quality audio playback over Bluetooth.

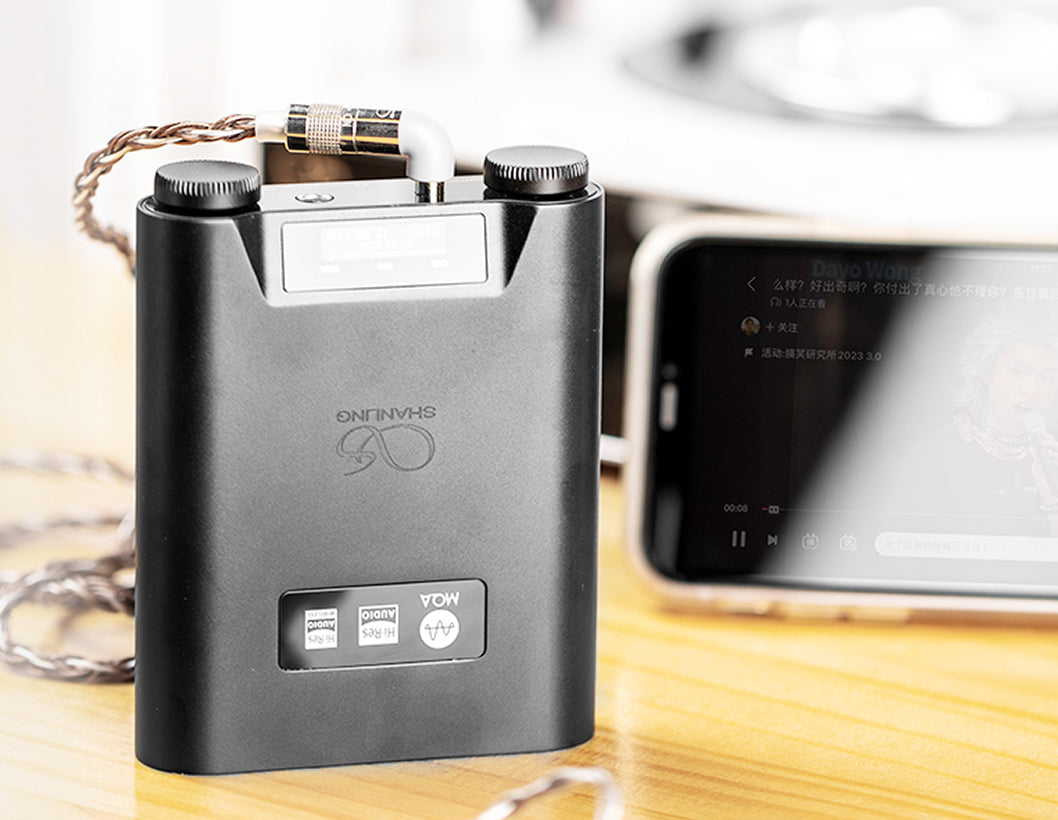

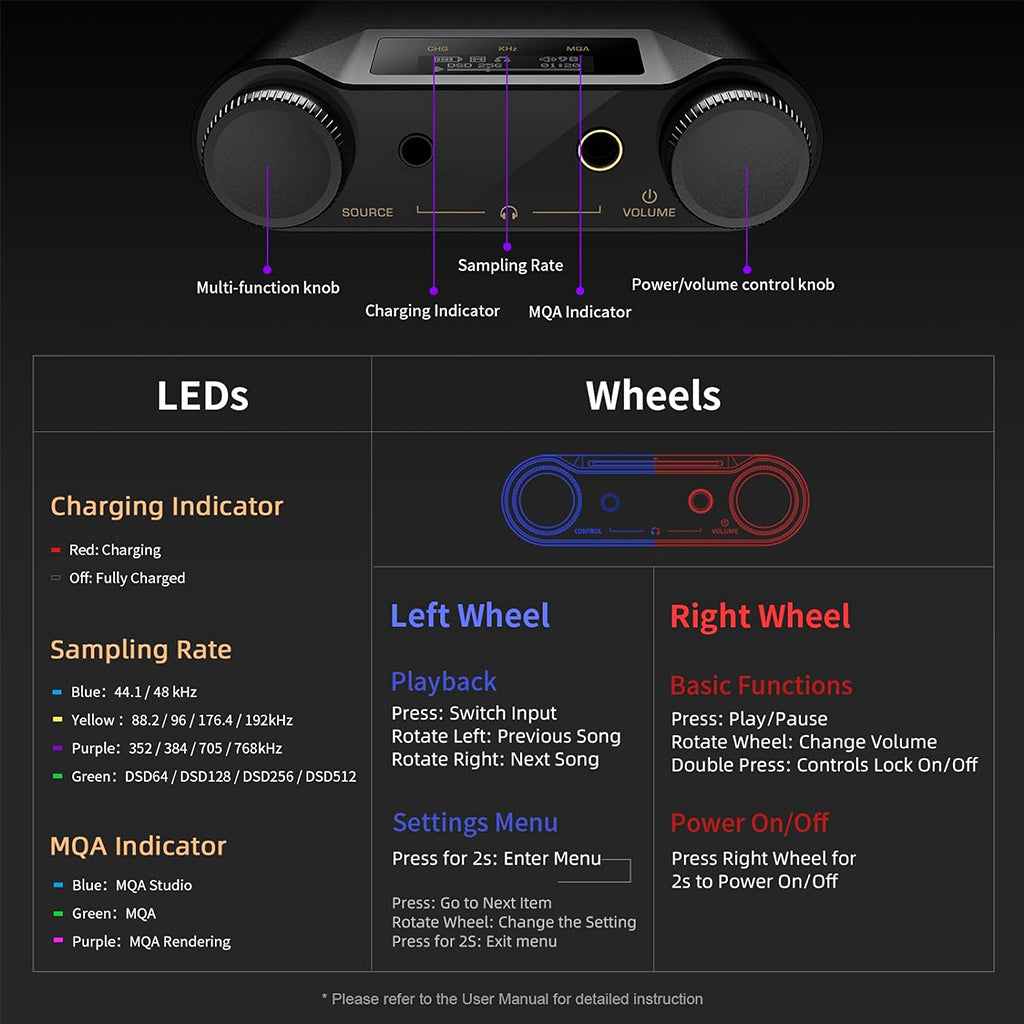

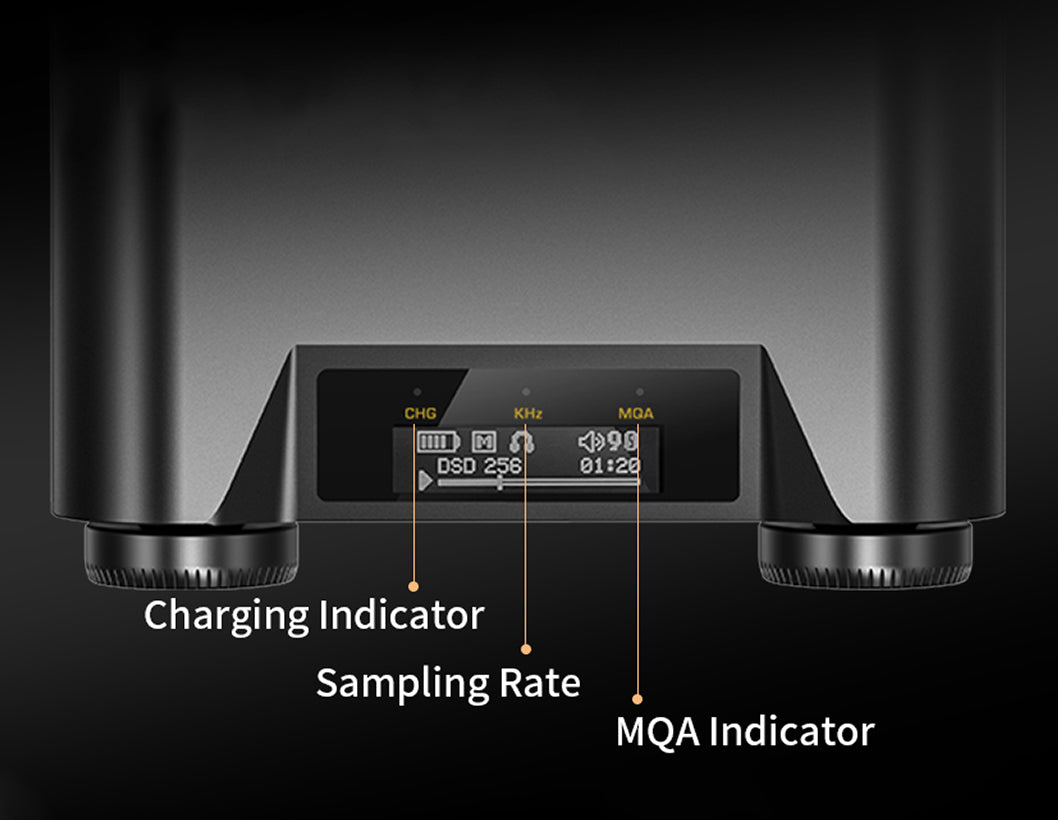

COMPACT SCREEN AND MULTICOLOR STATUS INDICATORS

The Shanling H5 is equipped with a compact 0.87” display screen for easy navigation of settings and playback information. Additionally, three multicolor LED indicators situated alongside the display provide at-a-glance information on active bitrate, charging status, and MQA status.

Concept kart shanling h5 portable dac amp 3  1

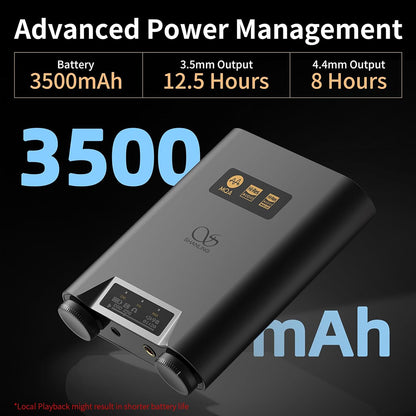

LARGE-CAPACITY BATTERY IN SHANLING H5

The Shanling H5 is equipped with a substantial 3500mAh battery, providing an impressive rated battery life of up to 12.5 hours on a single charge, ensuring extended and uninterrupted usage.

Specifications

Brand Name
SHANLING
Model Name
H5
Product Name
Shanling H5 Portable DAC & Amp
Screen
0.87-Inch Screen
Audio Formats
DSD(".Iso",".Dsf",".Dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS
USB Input Hi-Res Support
32 Bit / 768 KHz, DSD 512
USB Input Hi-Res Support
32 Bit / 384 KHz, DSD 256
Gain Setting
Three-Level Setting
Storage
Micro SD card Slot, Up to 2TB
DAC
2x AKM AK4493SEQ
Digital Filters
6 Preset Filters
Bluetooth
V5.0 Reciever
Bluetooth Codec Support
LDAC/AAC/SBC
Output Power
2.7V@32Ω(227mW@32Ω)
Frequency Response
20 Hz - 40 KHz (-0.7 DB)
THD+N
0.000014
Channel Sepration
80 DB @ 32 Ohm
Dynamic Range
118 DB
Signal to Noise
118 DB
Output Impedance
4.7ohms
Output Power
5.19V@32Ω(840mW@32Ω)
Frequency Response
20 Hz - 40 KHz (-0.7 DB)
THD+N
0.000004
Channel Sepration
105 DB @32Ohms
Dynamic Range
121 DB
Signal to Noise
121DB/Td>
Output Impedance
6.6ohms

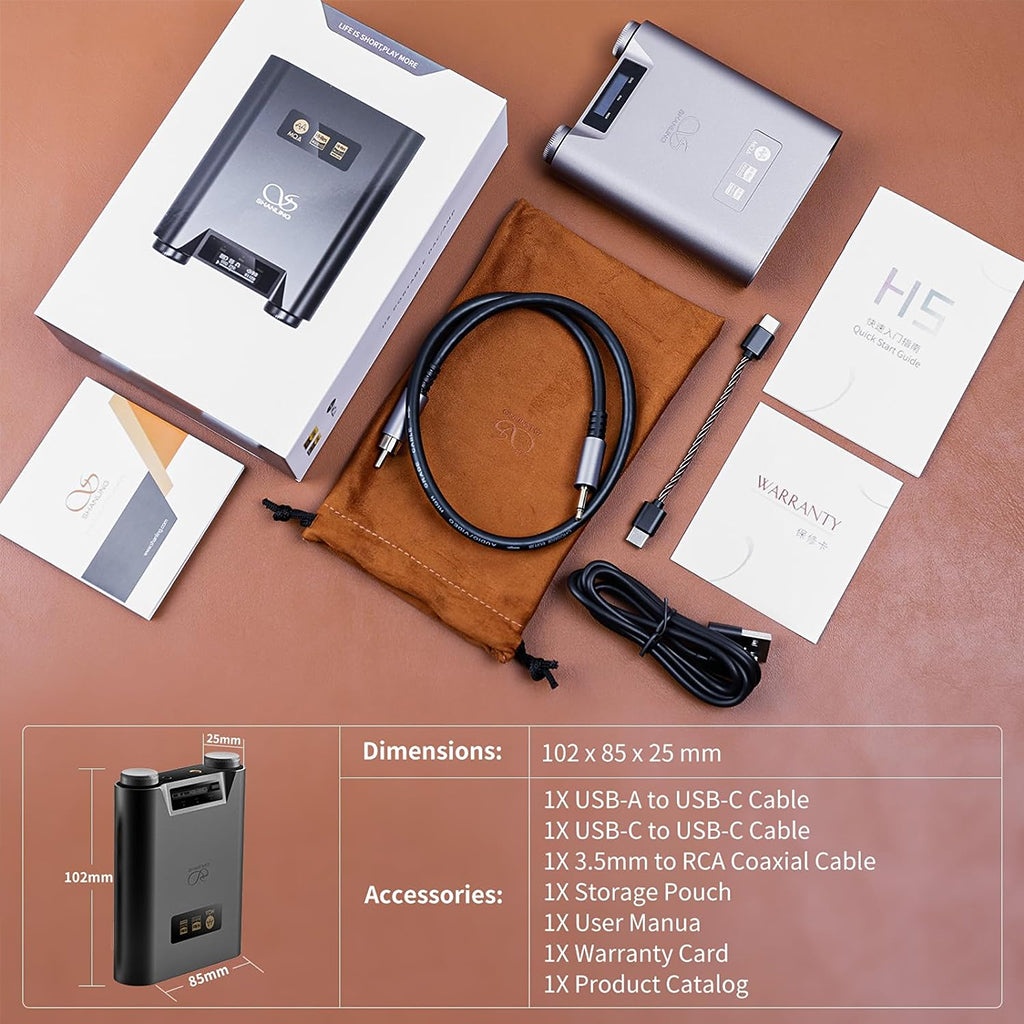

Box Content

    What will you get
  • 1x Shanling H5
  • 1x USB A to USB C Cable
  • 1x USB C to USB C Cable
  • 1x 3.5mm to RCA Coaxial Cable
  • 1x Storage Pouch
  • 1x User Manual
