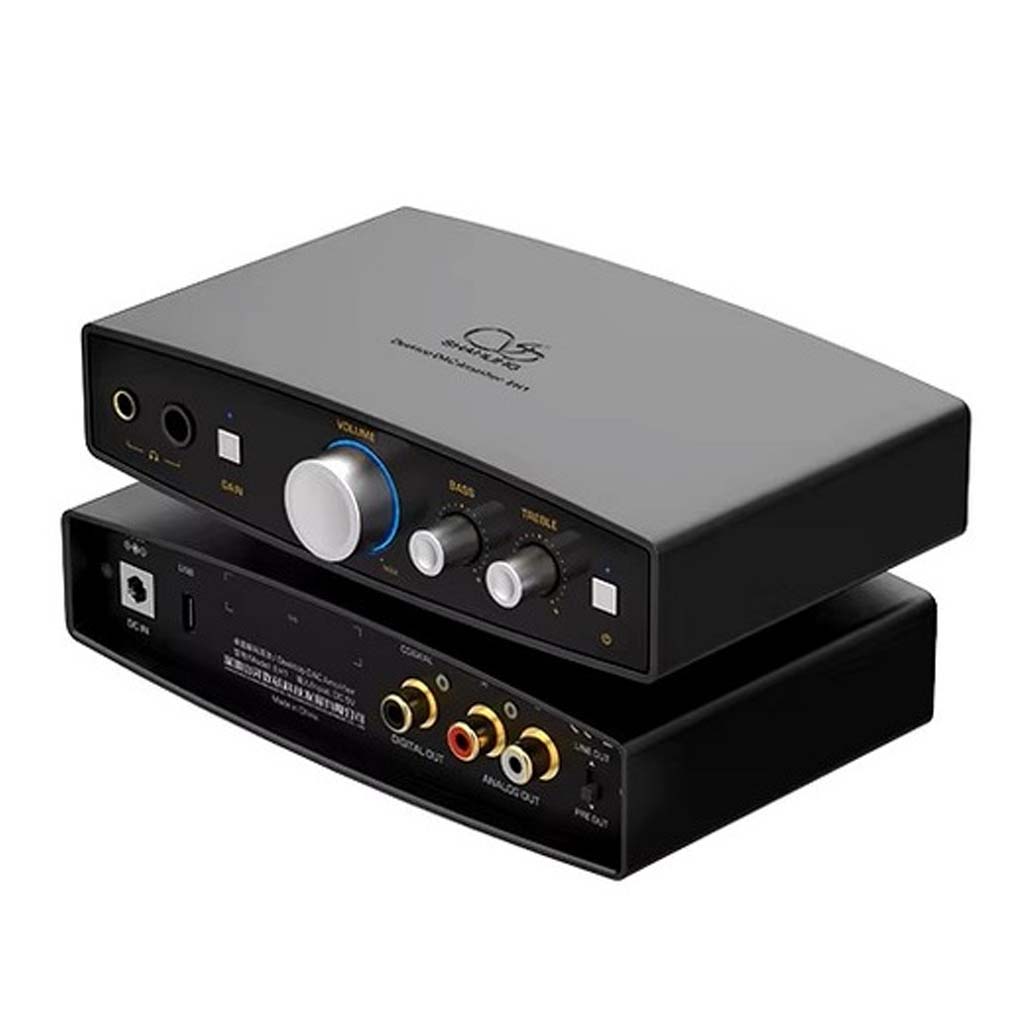

SHANLING - EH1 Desktop DAC and Headphone Amplifier

Sale price₹ 16,990Regular price ₹ 24,999

    Advanced Cirrus Logic CS43198 DAC Chip for Hi-Res Audio

    Dual SGM8262-2 op-amps Chips for superior amplification

    Supports PCM 768kHz/32-bit and DSD512

    Coaxial digital output and USB digital input supported

    6.35mm single-ended and 4.4mm balanced audio outputs

    Bass and Treble Adjustment Knobs

    Elegant Aluminum Frame Featuring a Curved Design

    RCA analog output with preamp and line-out modes

Color
Color: Black
Out of stock

Pickup currently unavailable at Naraina, New Delhi

Description

The Shanling EH1 is a game-changing desktop DAC & AMP, featuring groundbreaking technology and unparalleled audio quality, it sets itself apart from the competition. Shanling EH1 comes loaded with Cirrus Logic CS43198 DAC chipset for ultra-clear sound signal processing. You get full support for 32-bit/768 kHz PCM and DSD512 audio signal processing. With its high-end DAC chipset, the EH1 achieves excellent performance achieving minimal distortion and a high SNR of 122dB. Powered by dual SGM8262 op-amps, it offers balanced output and powerful amplification that allows you to drive your IEMs and Headphones with ease. The device includes 6.35mm single-ended and 4.4mm balanced outputs ports, two-level adjustable gain, Independent Bass and Treble adjustment knobs, and a USB input supporting high-resolution audio. It also features a coaxial USB-to-SPDIF output and a colourful sample rate indicator. Power options include USB-C or DC 5V. Shanling EH1 supports UAC1.0 USB mode ensuring broader device compatibility. The box includes a USB-A to USB-C cable, a USB-A to DC cable, a 6.35mm to 3.5mm adapter, and a manual.

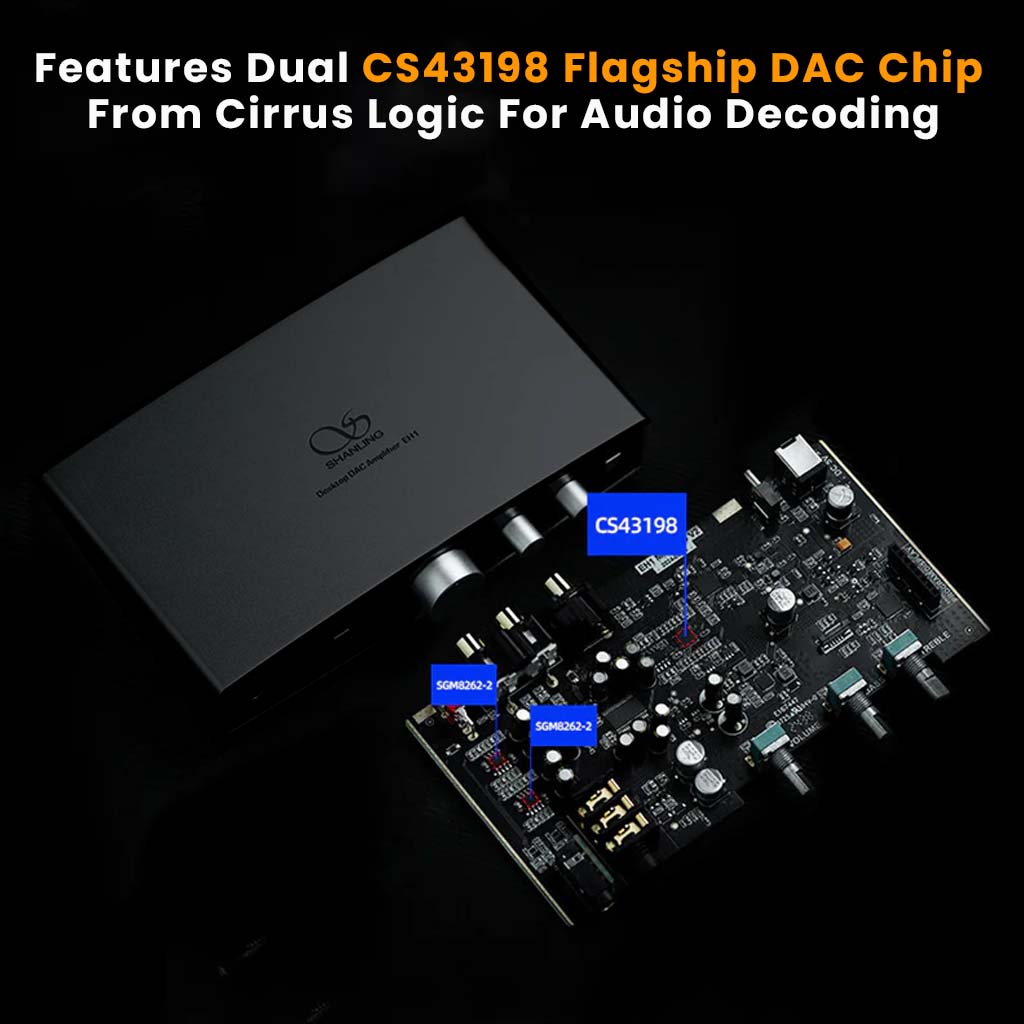

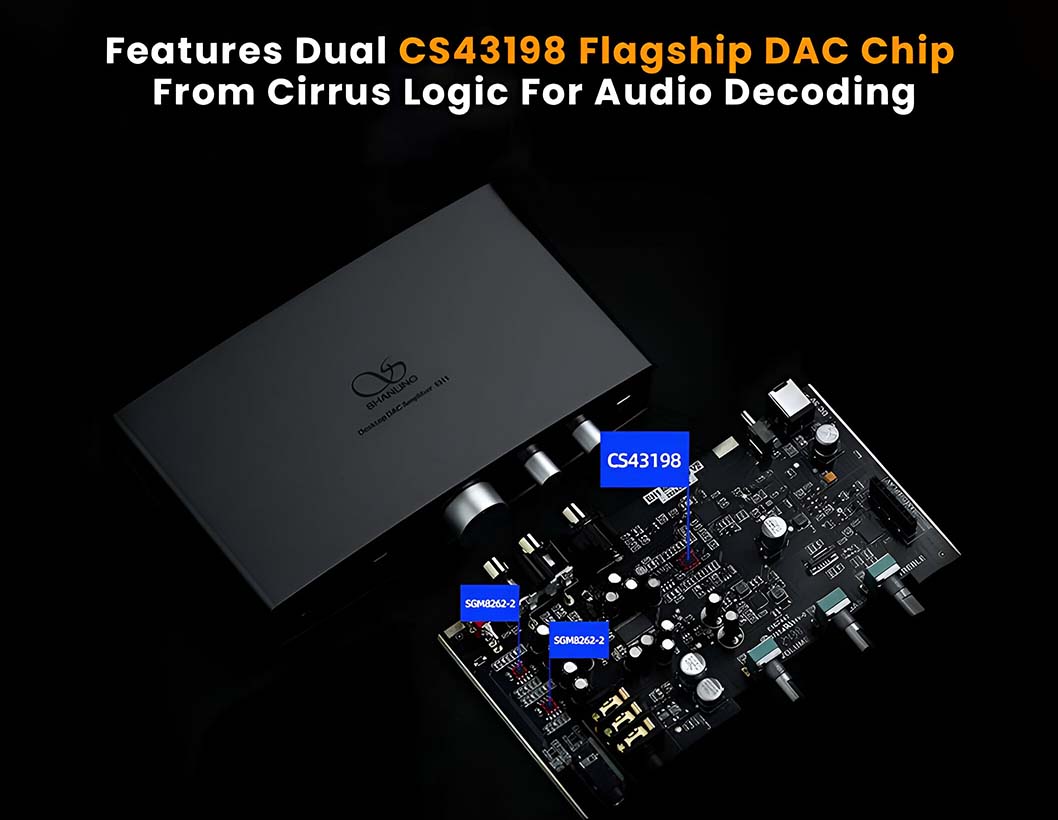

HIGH-PRECISION DECODING WITH SUPERIOR SIGNAL AMPLIFICATION

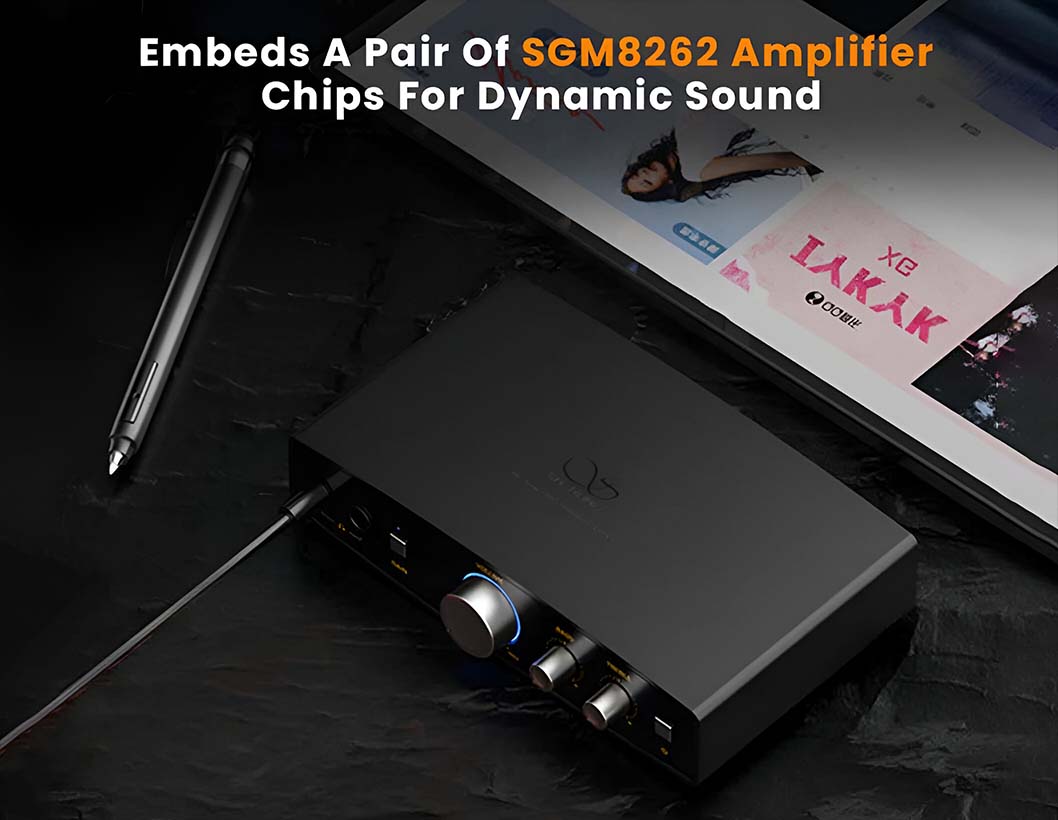

The Shanling EH1 desktop DAC & Headphone Amp is equipped with a Cirrus Logic CS43198 DAC and dual SGM8262-2 operational amplifiers, which work in tandem to ensure unmatched audio performance. The CS43198 cirrus DAC chip supports 32-bit resolution and sampling rates up to 384 kHz, utilizing its 32-bit oversampled multi-bit modulator with mismatch shaping technology to eliminate distortion caused by component mismatches. Meanwhile, the dual SGM8262-2 op-amps deliver ultra-low noise levels of 3.5 nV/√Hz at 100 kHz and a fast slew rate of 33 V/μs, enabling accurate and powerful signal amplification for a rich and immersive listening experience.

HIGH-RESOLUTION USB DAC INPUT AND VERSATILE POWERFUL OUTPUT

SHANLING EH1 DA & Amp is equipped with a high-performance USB chipset, this DAC ensures flawless compatibility across all major computer systems, delivering stable and efficient data transfer. It provides seamless support for High-Resolution PCM and DSD audio formats, preserving the integrity of your music while offering exceptional clarity and detail for an unparalleled listening experience. Additionally, it includes 6.35 mm single-ended and 4.4 mm balanced output ports, providing flexible connectivity options tailored for different headphones and amplifier configurations to suit varied listening preferences.

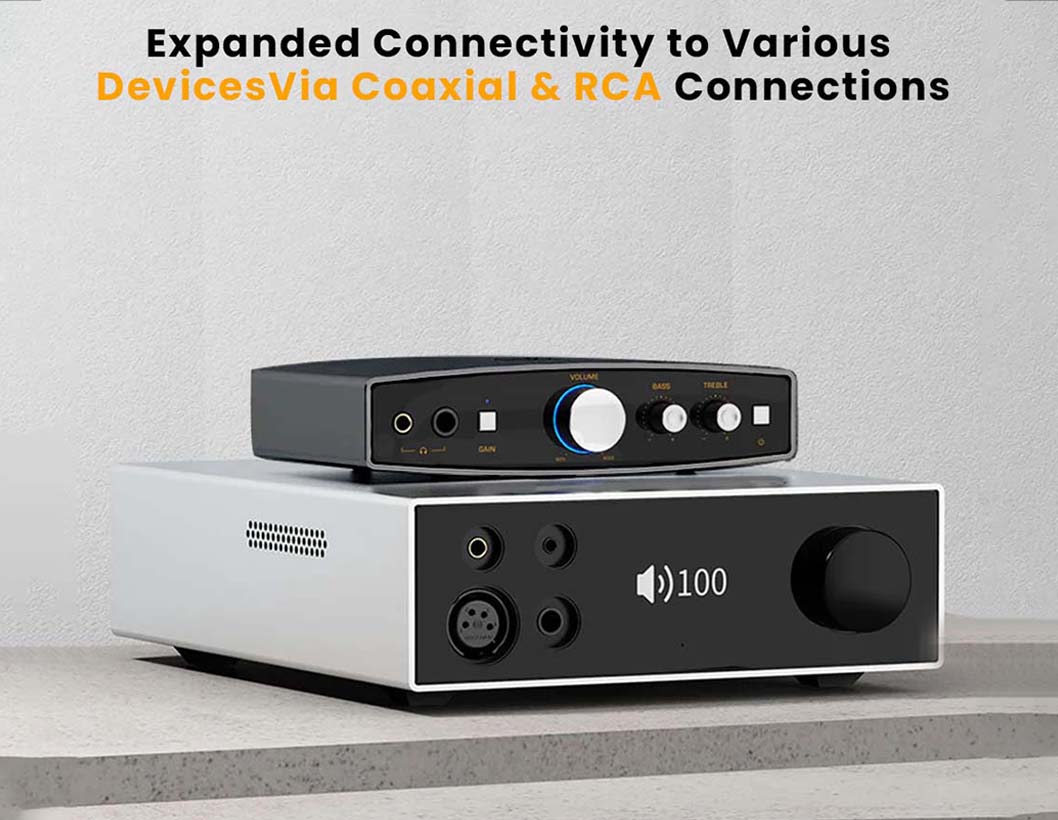

HIGH-FIDELITY USB-TO-SPDIF DIGITAL CONVERTER

The SHANLING Eh1 DAC & Amp features a high-performance USB-to-SPDIF converter for a coaxial digital output, designed for seamless integration with various Hi-Fi systems. It enables standalone digital signal transmission, ensuring compatibility with vintage DACs, high-fidelity receivers, and active speaker systems for enhanced audio connectivity.

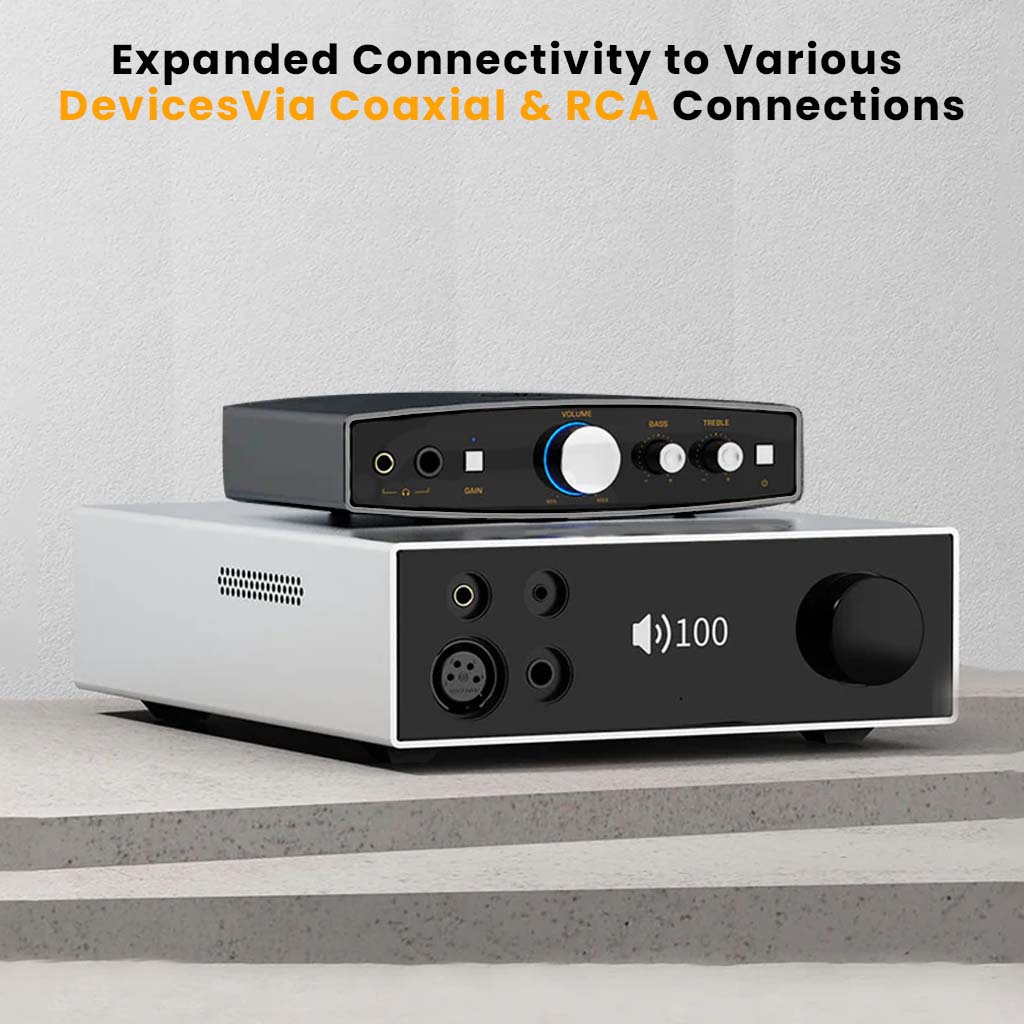

RCA OUTPUT – LINE-OUT/PRE-OUT FLEXIBILITY

Engineered for uncompromised audio performance, the EH1 serves as a high-fidelity DAC with versatile RCA output functionality. In Pre-Out mode, it acts as a precision pre-amplifier, delivering a clean and dynamic signal directly to power amplifiers or active speakers. When switched to Line-Out mode, it ensures a pure, uncoloured signal path, making it the perfect companion for external headphones or integrated amplifiers. Designed for audiophiles, the EH1 preserves every nuance of your music with exceptional clarity and transparency.

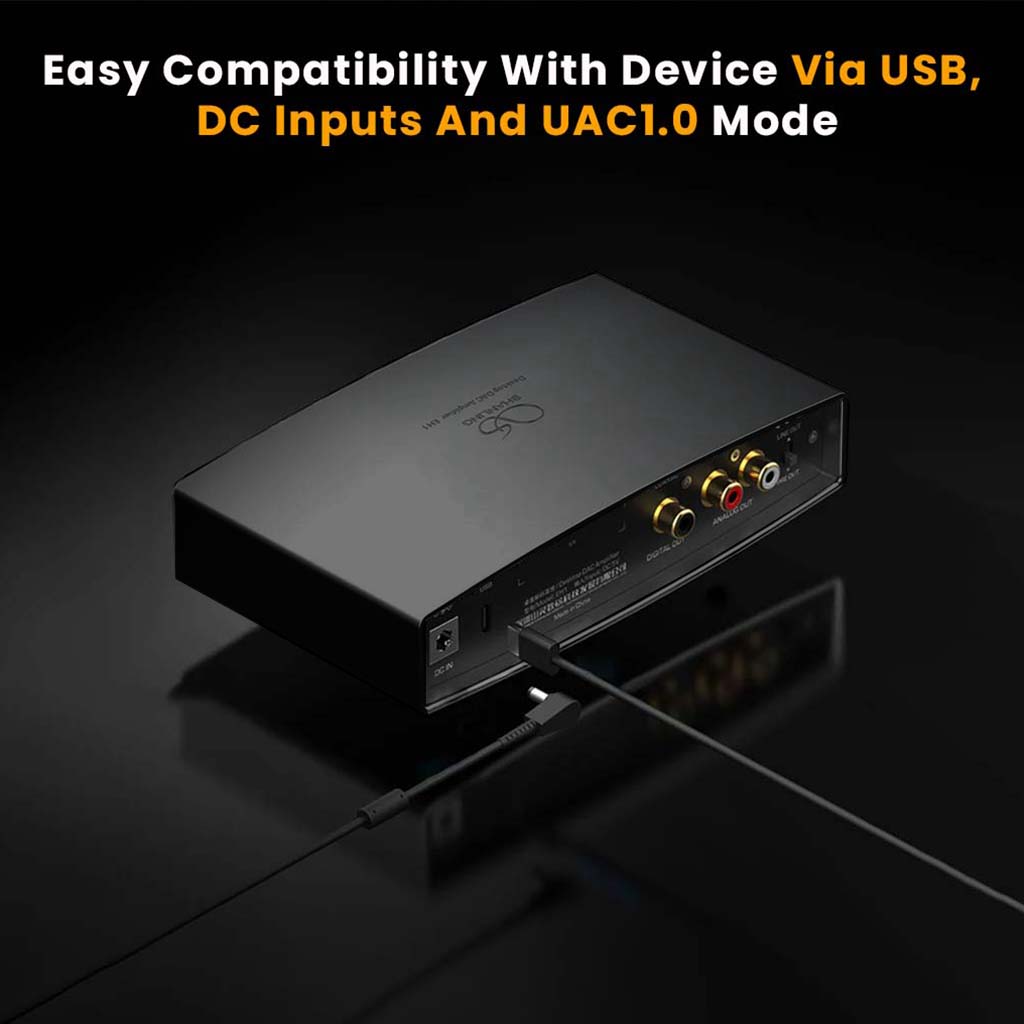

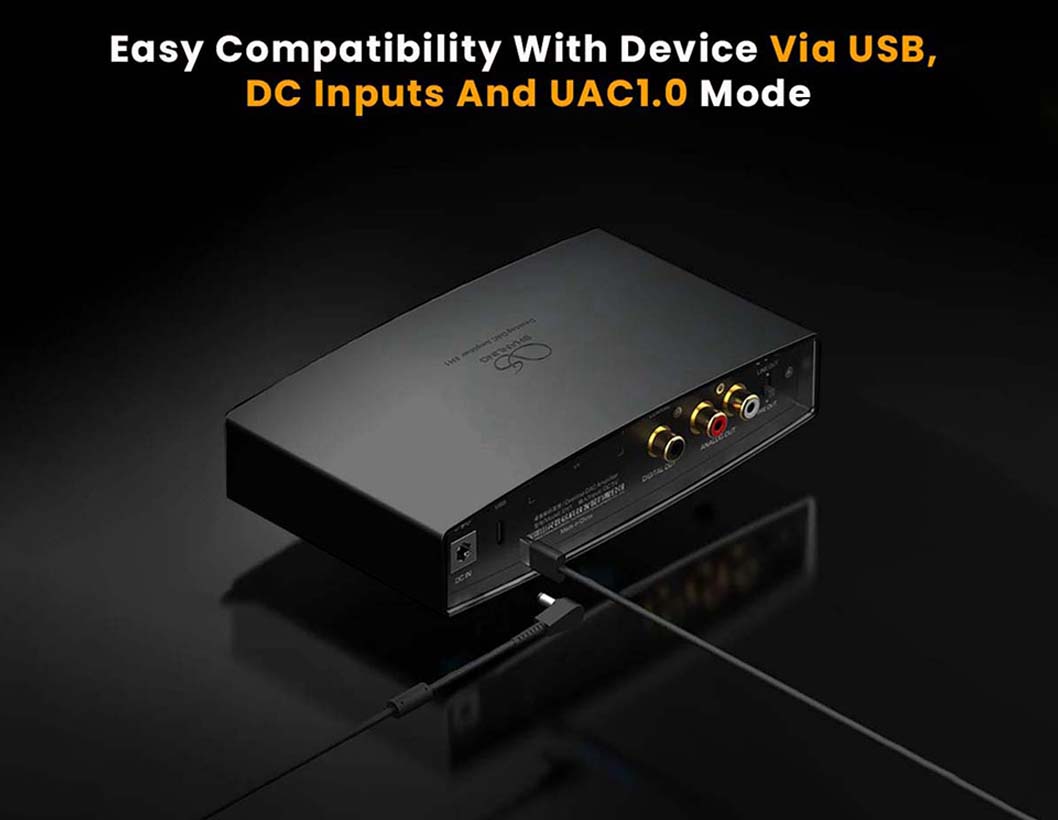

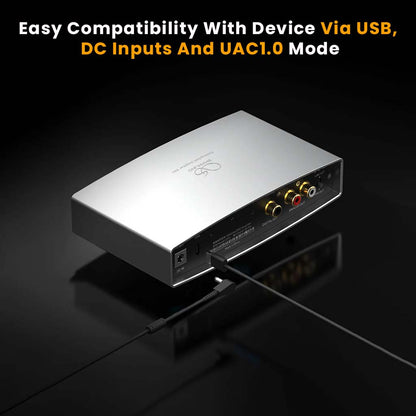

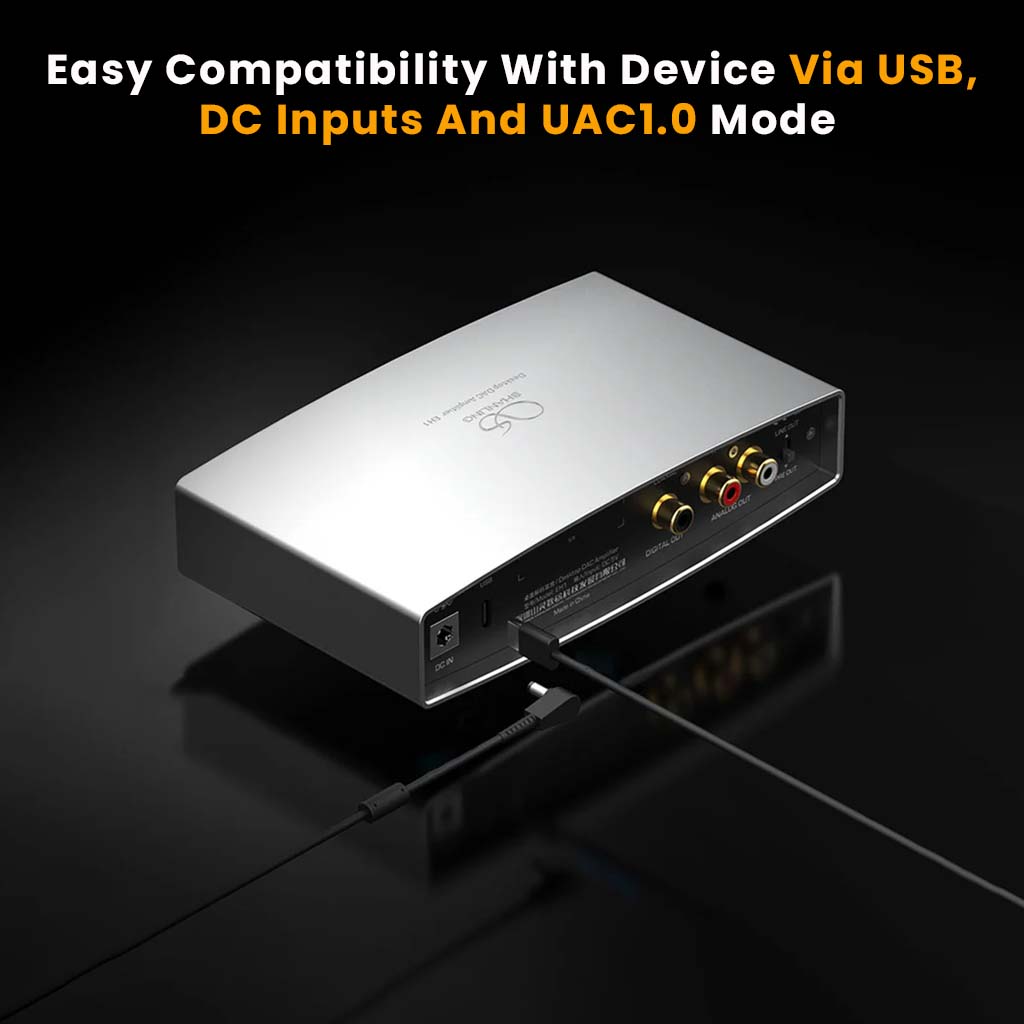

DUAL POWER INPUT OPTIONS FOR FLEXIBILITY: USB-C OR DC POWER

The Shanling EH1 DAC & Headphone Amp offers two distinct power input methods to accommodate varying needs: USB-C and DC power. The USB-C input provides both power and data directly from source devices such as computers, ensuring a straightforward connection. Alternatively, the DC 5V input separates power from data, offering a cleaner and more stable power source for enhanced performance in critical audio applications.

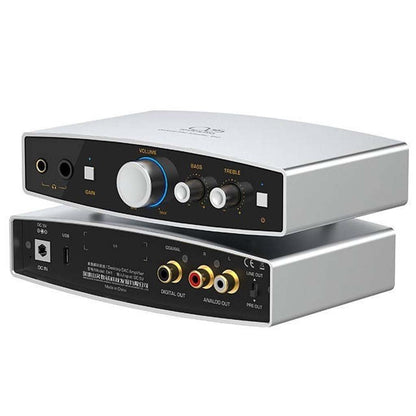

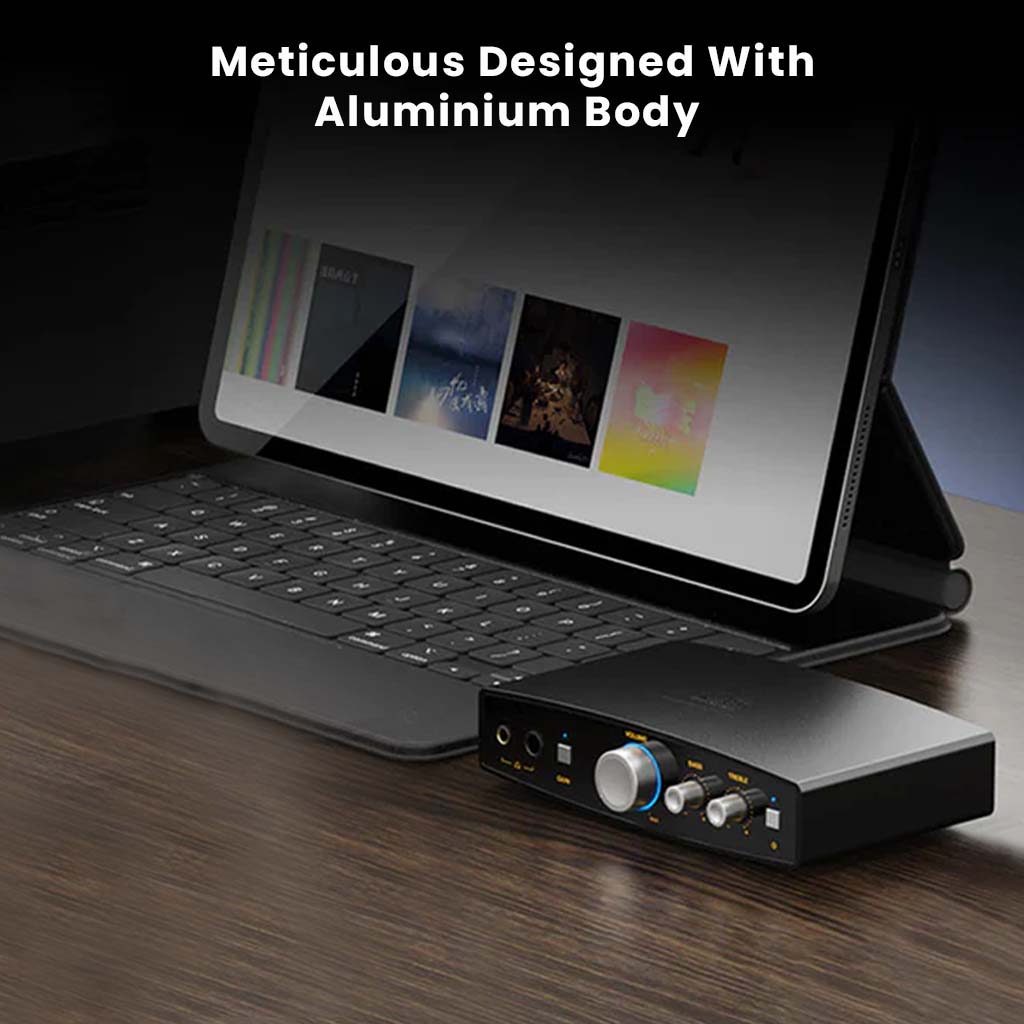

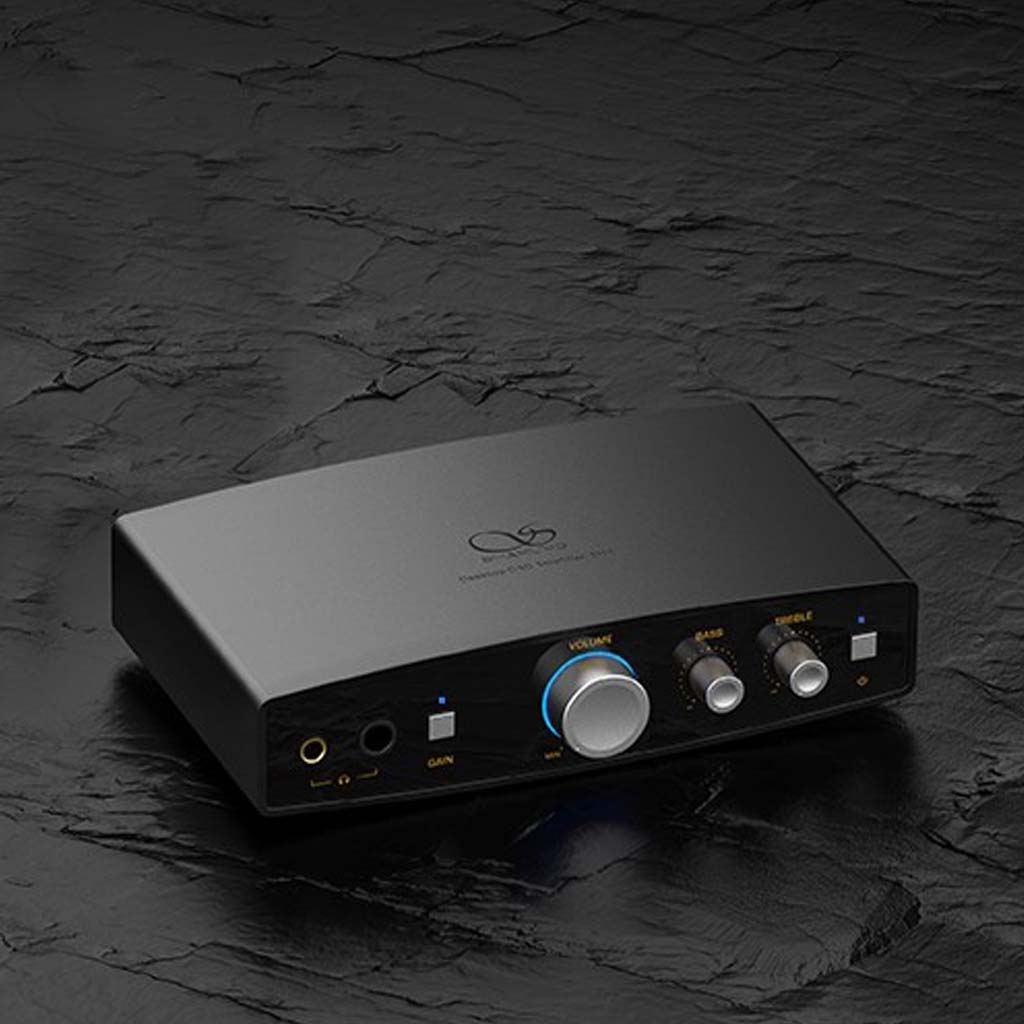

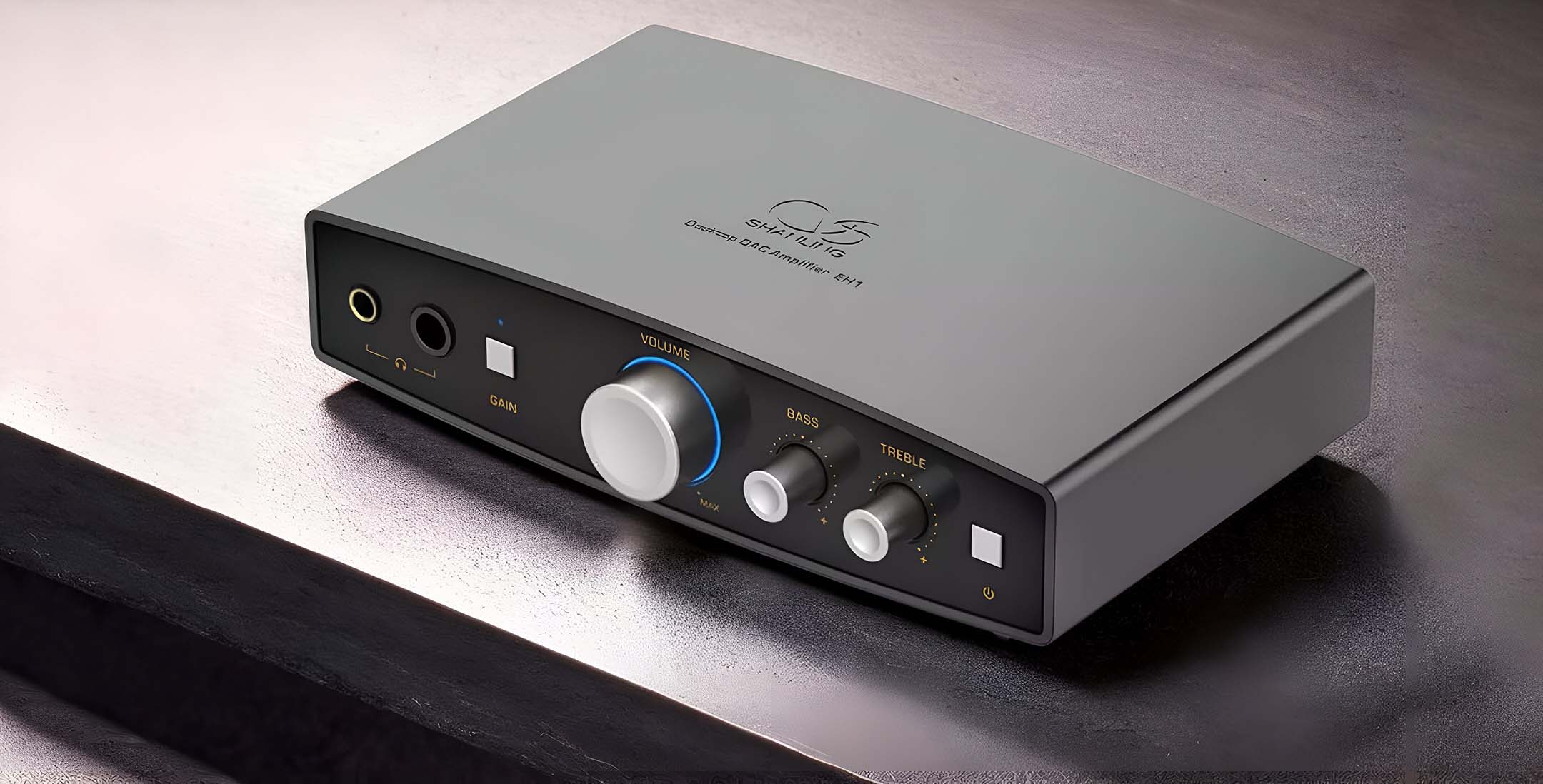

SLEEK AND STYLISH DESIGN

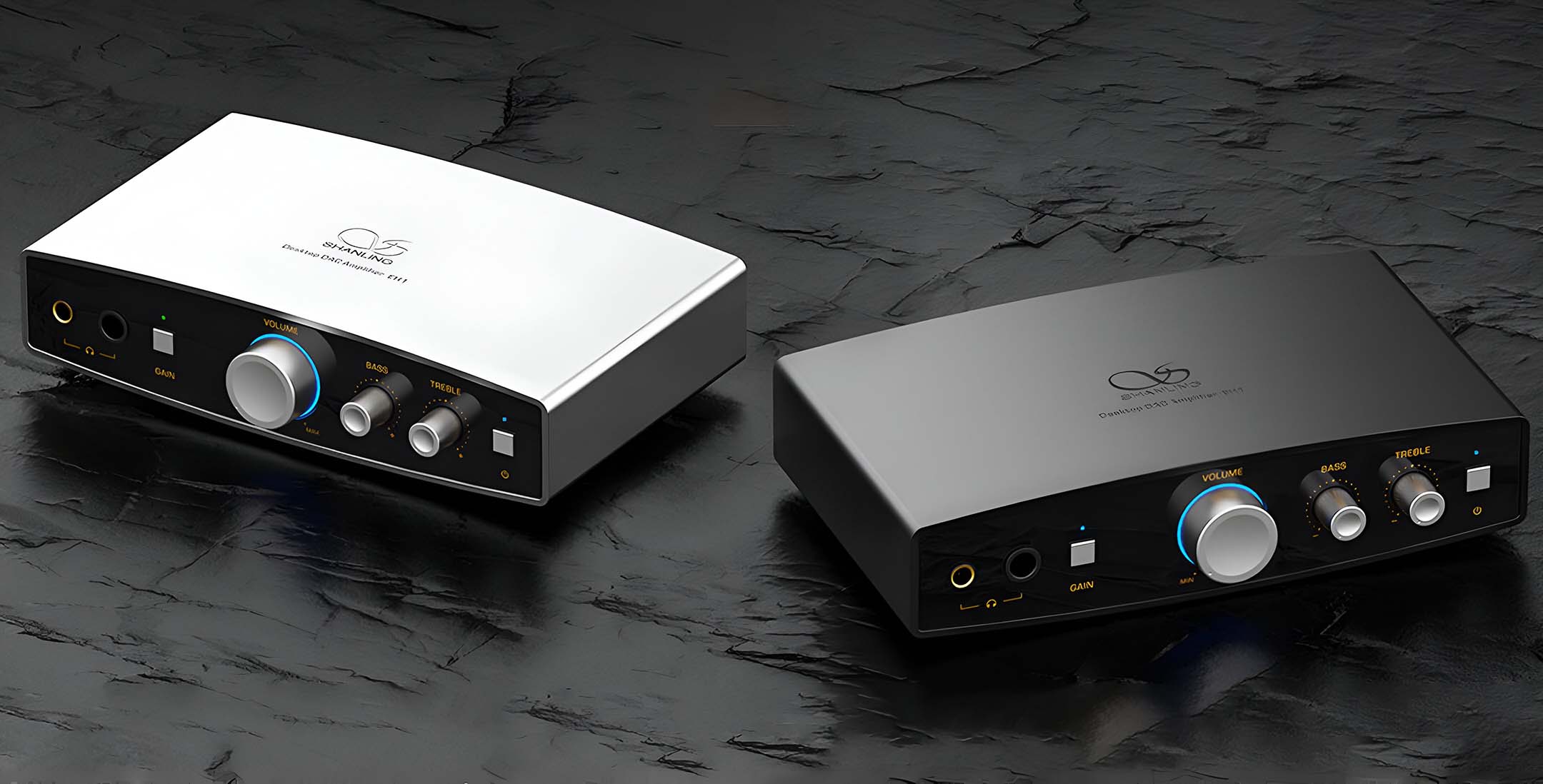

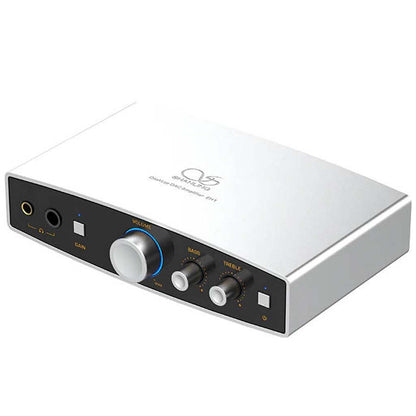

The EH1 Desktop DAC features a fresh, curved design with a sleek aluminium body. Its intuitive buttons and dials make it easy to use. The device's compact form makes it ideal for any desk setup. Available in silver or black anodized finishes, it also offers a dual-tone scheme that blends silver and black elements for a modern, sophisticated look.

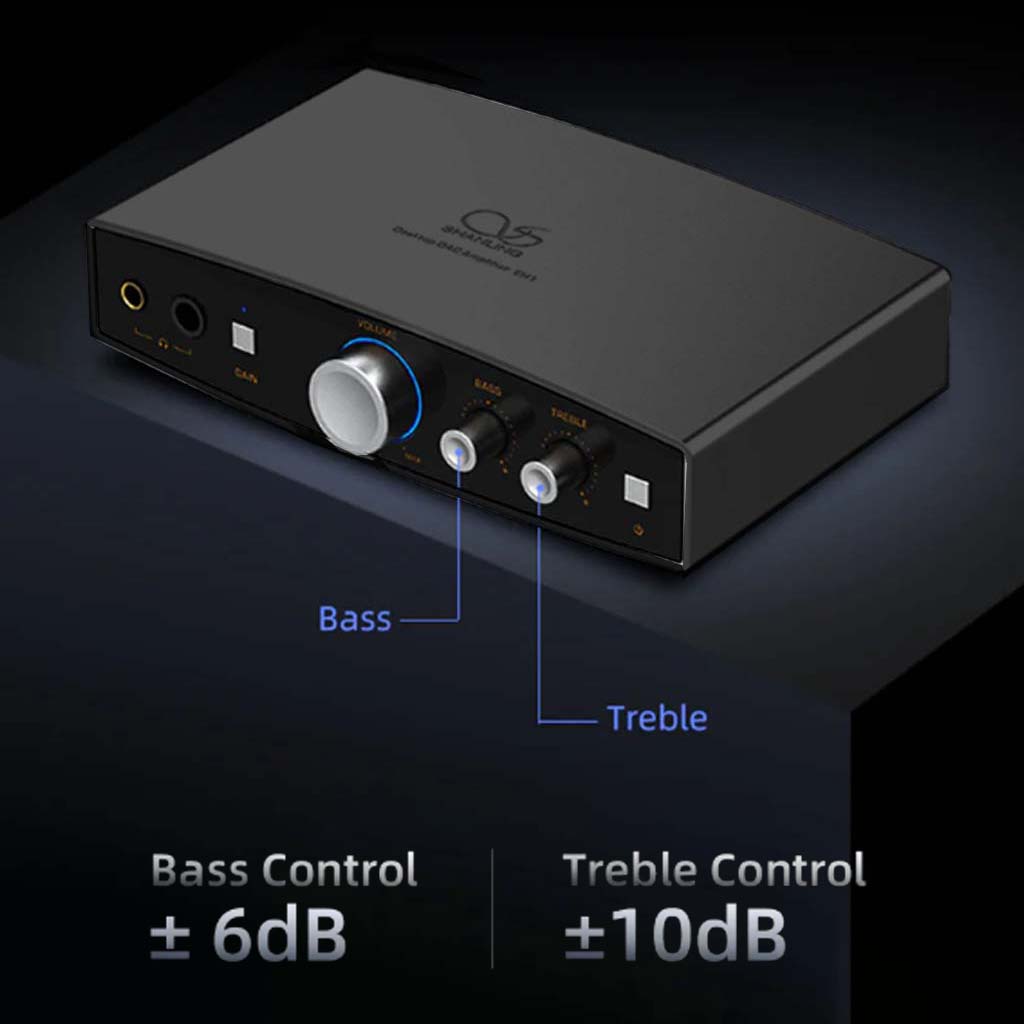

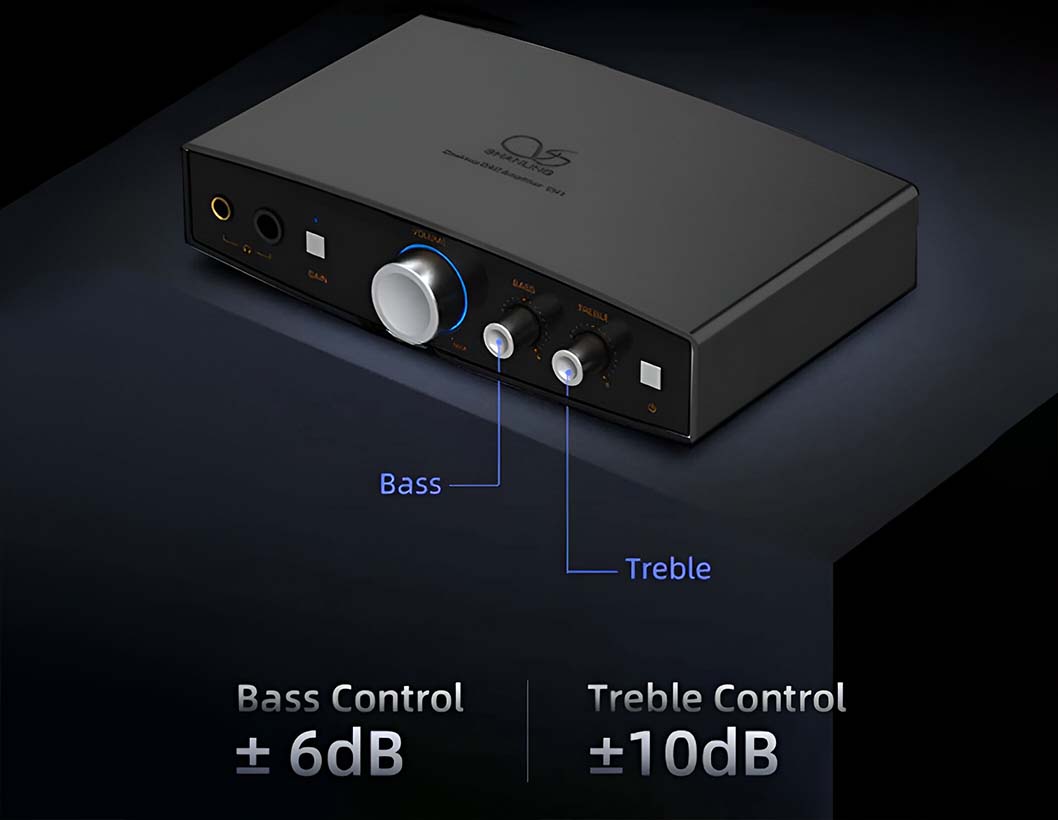

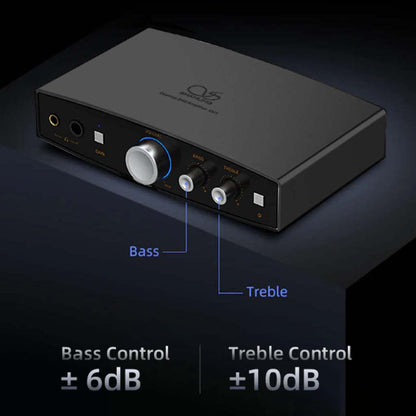

ADVANCED TONE CONTROL CIRCUITRY FOR TREBLE AND BASS ADJUSTMENT

The Shanling EH1 DAC & Amp is equipped with an advanced tone control circuit, the EH1 USB DAC enables direct and precise adjustment knobs for treble and bass frequencies. The system supports ±6dB bass adjustment and +10dB treble control, providing seamless customization of the frequency response to match individual audio preferences

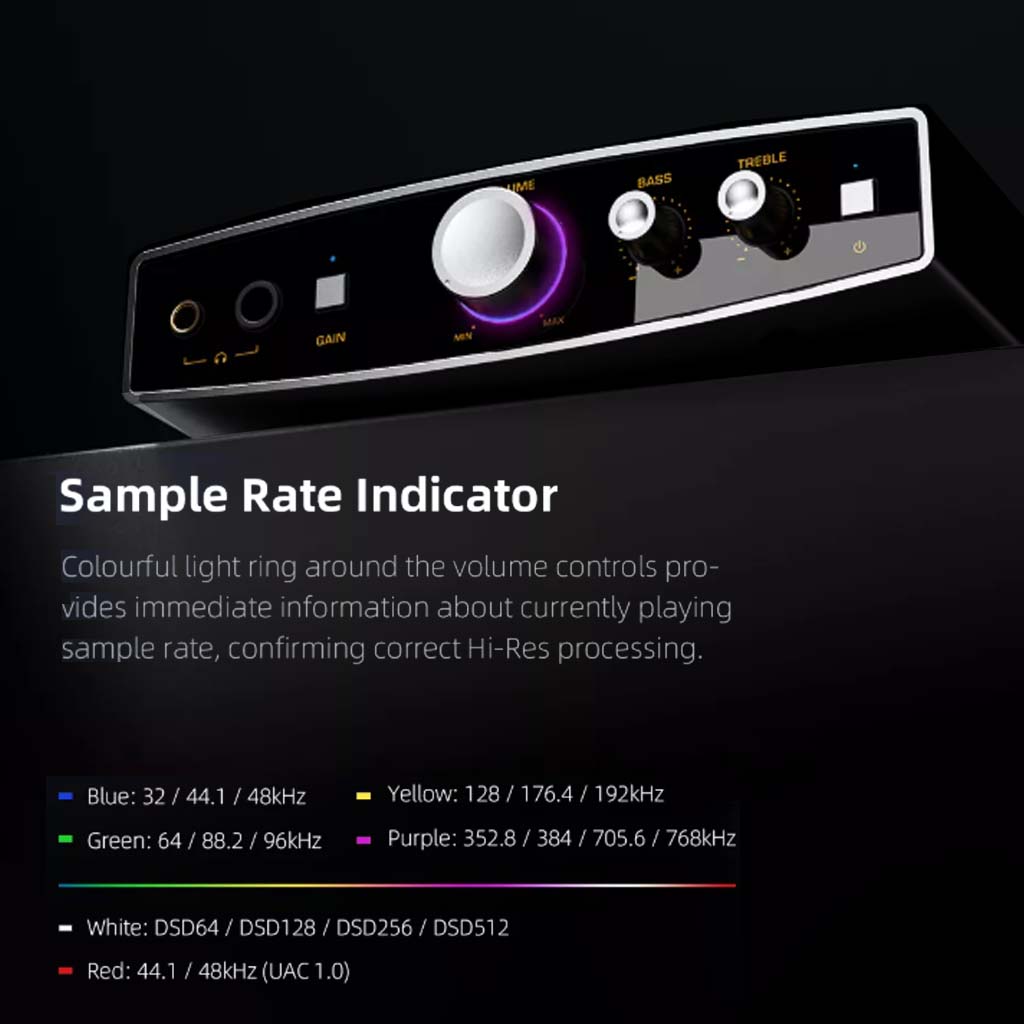

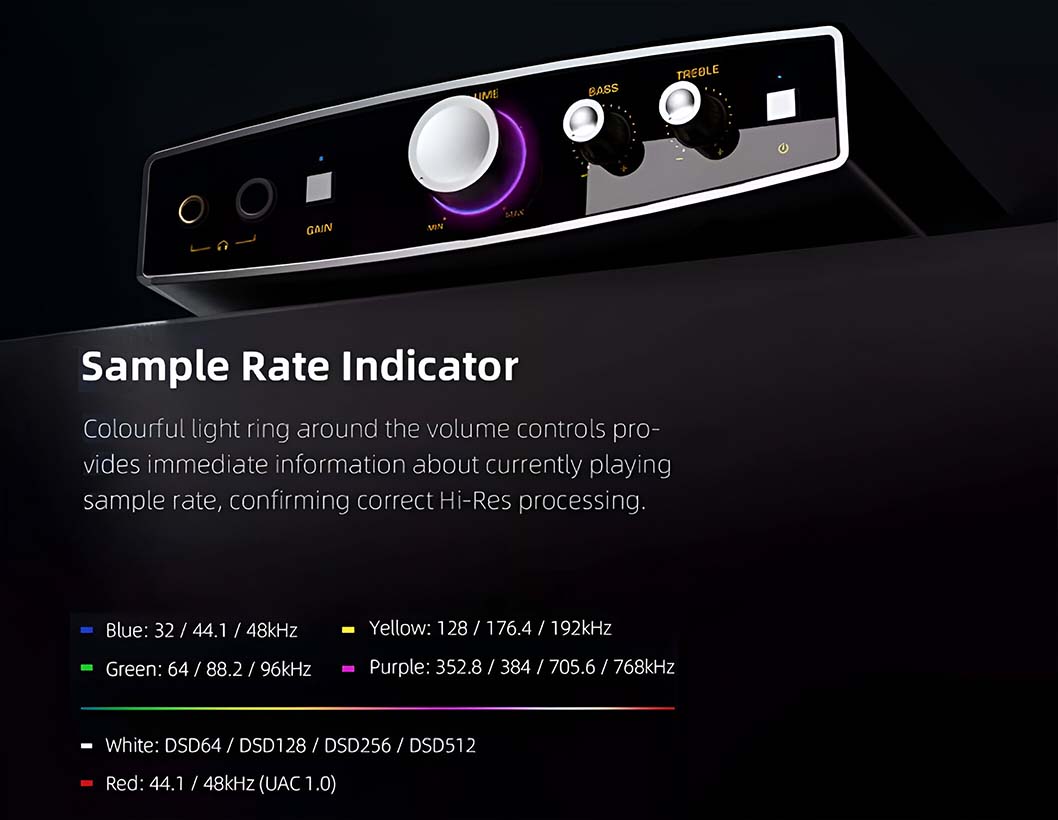

COLOUR-CODED SAMPLE RATE DISPLAY FOR HI-RES AUDIO

The Shanling EH1 desktop DAC & Headphone Amp is equipped with a colour-coded light ring around the volume control, providing immediate visual feedback on the current sample rate to confirm proper Hi-Res audio processing. The ring displays Blue for 32/44.1/48 kHz, Yellow for 128/176.4/192 kHz, Green for 64/88.2/96 kHz, Purple for 352.8/384/705.6/768 kHz, White for DSD64/DSD128/DSD256/DSD512, and Red for 44.1/48 kHz (UAC 1.0). This intuitive system allows users to easily verify the sample rate and ensure high-quality audio playback.

UAC 1.0 MODE FOR EXPANDED COMPATIBILITY

This headphone amp's UAC 1.0 mode offers simplified USB functionality, ensuring compatibility with older devices and gaming systems that support this standard and enabling effortless integration with a wide range of legacy hardware.

Specifications

Brand Name
SHANLING
Model
EH1
Product
SHANLING EH1 Desktop DAC & Amplifier
DAC Chip
CS43198 DAC
RCA Out (Line Out)
Output Level: 2.38V
Frequency Response: 20Hz-40kHz (-1.2dB)
THD+N: 0.0007% (A-Weight High Gain)
Dynamic Range: 123dB
Channel Separation: 114dB
Signal-to-Noise Ratio: 122dB (A-Weight High Gain)
Noise: 116dB
6.35mm Single-Ended Headphone Out
Output Power: High Gain: 250 mW @ 32Ω;
High Gain (DC Power): 399 mW @ 32Ω
Frequency Response: 20 Hz - 40 kHz (-1.5 dB)
THD+N: 0.007% (A-Weight @ 1 Vrms, High Gain @ 32Ω)
Dynamic Range: 119 dB
Channel Separation: 75 dB
Signal-to-Noise Ratio: 119 dB (A-Weight, High Gain)
Noise: 110 dB
Output Impedance: 0.4Ω
4.4mm Balanced Headphone Out
Output Power: Low Gain: 250 mW @ 32Ω;
High Gain: 980 mW @ 32Ω;
High Gain (DC Power): 1015 mW @ 32Ω
Frequency Response: 20 Hz - 40 kHz (-0.5 dB)
THD+N: 0.008% (A-Weight @ 1 Vrms,
High Gain @ 32Ω)Dynamic Range: 119 dB
Channel Separation: 99 dB
Signal-to-Noise Ratio: 119 dB (A-Weight, High Gain)
Noise: 104 dB
Output Impedance: 0.8Ω
Hi-Res Support
768 kHz/32 bit, DSD 512

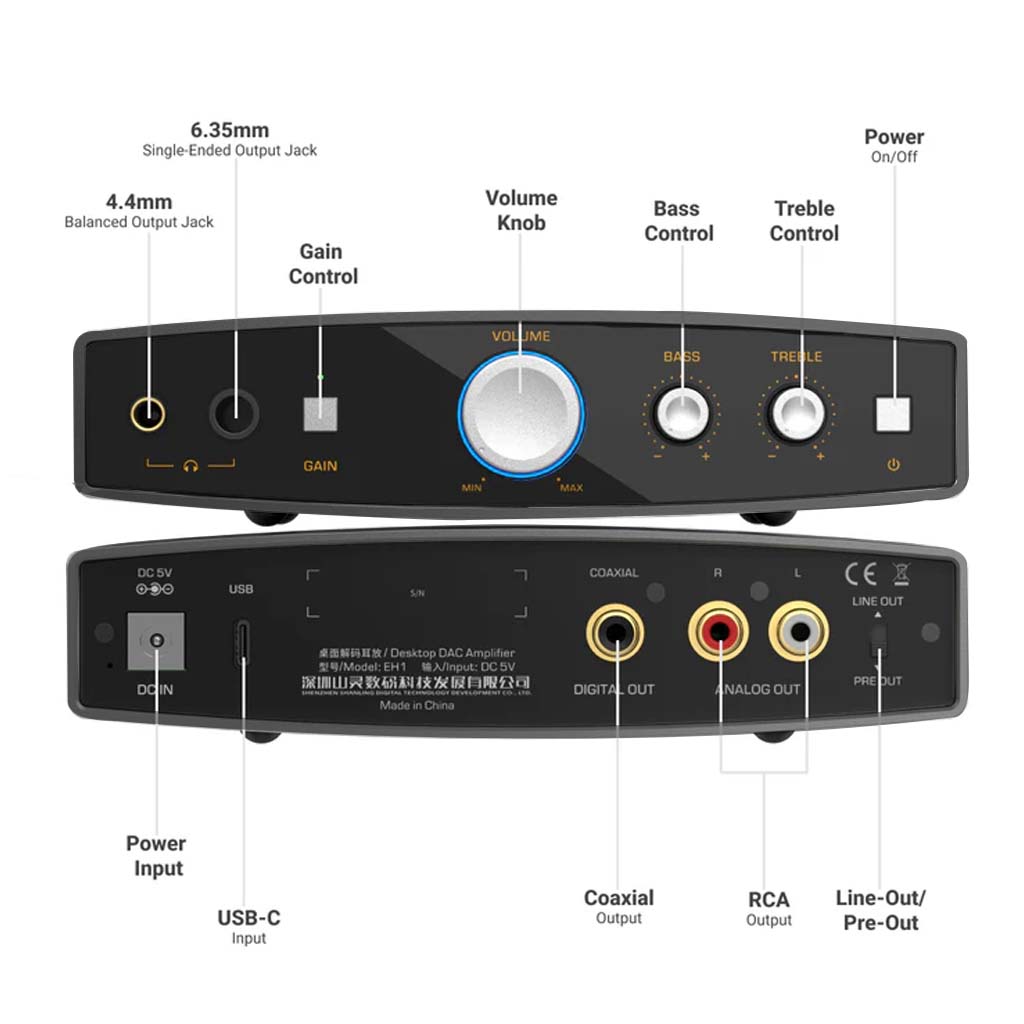

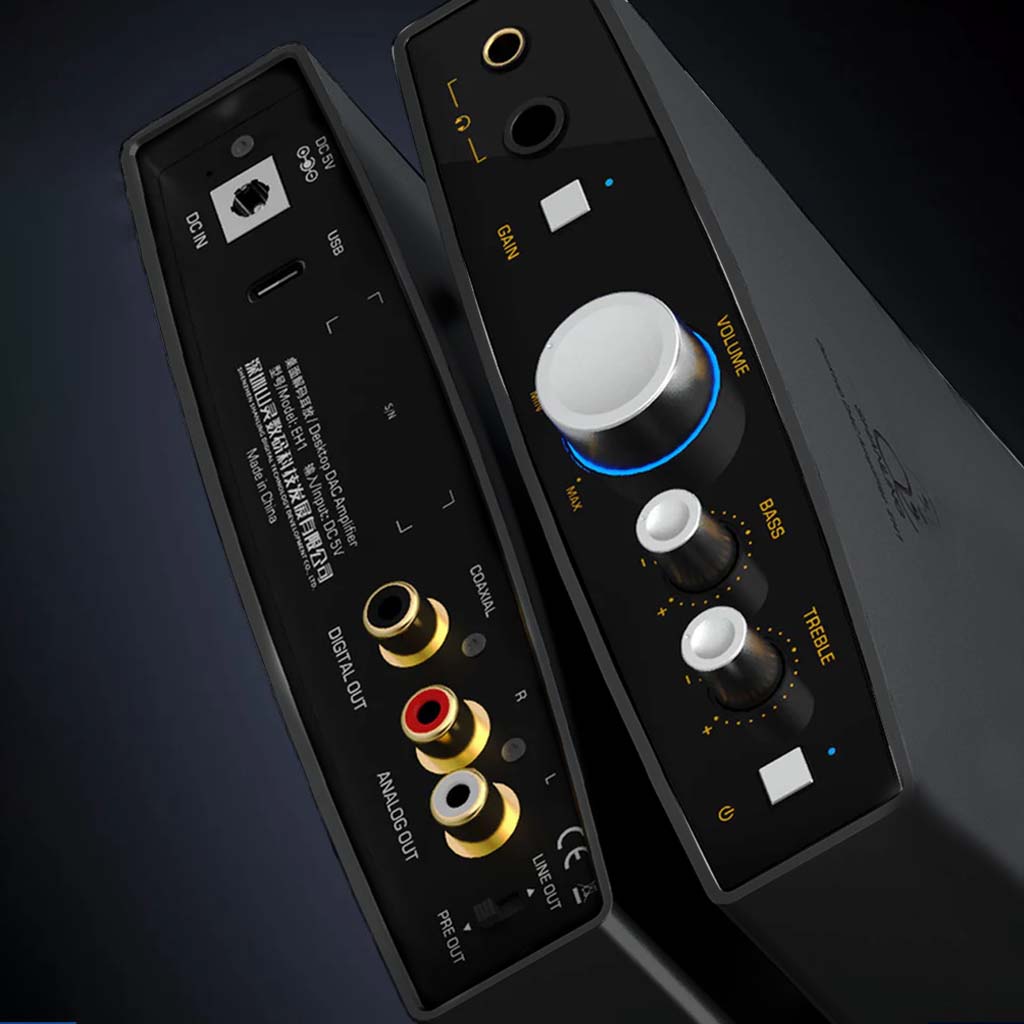

Inputs/Outputs
USB DAC Input: USB-C
Digital Output: RCA Coaxial
Headphone Output: 4.4mm / 6.35mm
Analog Output: RCA (Line Out / Pre-Out)

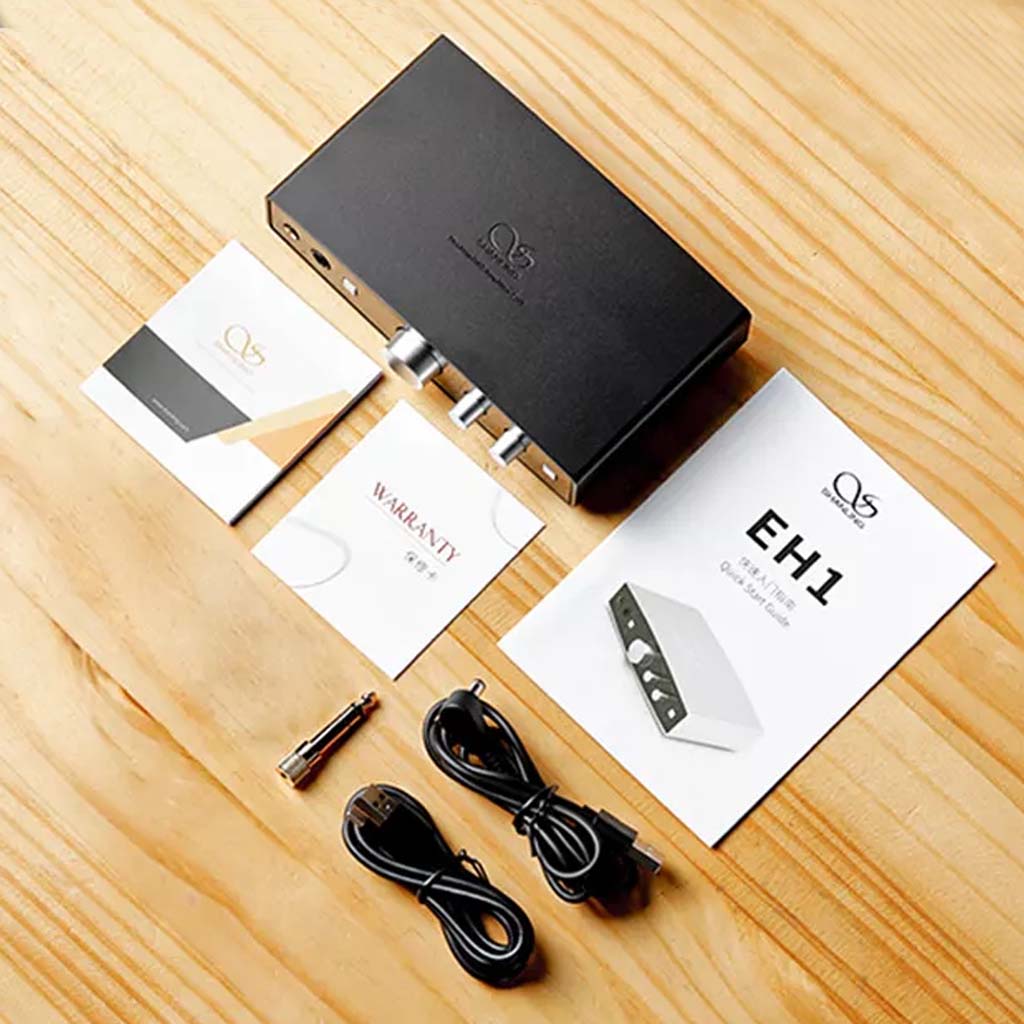

Box Content

    What will you get
  • 1x SHANLING EH1 Desktop DAC and Headphone Amplifier
  • 1x 6.35mm to 3.5mm Audio Adapter
  • 1x USB A to Type-C Cable
  • 1x USB A to DC Cable
  • 1x User Manual
