S.M.S.L - Sanskrit 10th MKII DAC

SMSL

Small desktop Audio DAC | Ultra Tiny shape Design | XMOS Solution | 32bit/384KHz and DSD256 | 2 Piece | Ultra-low phase Noise clocks | AKM's new AK4493 chip | Built-in gravity sensor | CNC Aluminum Alloy Housing | Hi- Res Audio Certification

₹ 12,490.00 ₹ 16,999.00 Save ₹ 4,509

Tax & Shipping Included

Tax IncludedShipping Included

Description

HIGH END DAC DECODER

The USB digital interface uses the XMOS asynchronous processing module. It was customized by Thesycon in Germany. When compared to the public version of the driver, the sound effect has improved, and supports both native DSD and DOP, support up to 32Bit/768Khz and DSD256 decoding, to real DSD Stream to the D / A Chip Decoding, Mac OS System driver-free. The output can be streamed to the D/A Chip, which requires no Mac OS System drivers. It can be configured to output at 32Bit/768kHz. The XMOS Processing module, which supports the OTG Function through the conversion line, can receive digital signals from mobile phones and iPads and realize high-definition decoding of PCM and DSD. Apple uses the Lightning USB Camera Adapter Cable, while Android uses the OTG Cable. We use audio-specific capacitors, low-noise op amps, and high precision low-noise resistors.

AK4493 DAC CHIP

AKM’s latest performance DAC chip AK4493, It has been carefully adjusted by talented engineers to achieve an unprecedented low distortions of 0.0002% (-113Db).2 Japanese NDK ultra-low phase noise clocks, greatly reducing the system Jitter. Low noise power purification system for optimal performance via USB Power only.

KEEP IMPROVING SOUND QUALITY

The professional shape design uses an anodized CNC aluminum alloy housing.

BUILT IN GRAVITY ACCELERATION TRANSDUCER

Sanskrit is designed to take up minimal desktop space. It has three display modes as shown below. In these three display modes, it has built in digital accelerometer, so, it automatically switches the orientation of the display.

WIRELESS REMOTE CONTROL

Standard compact remote control for easily volume control and easy to use.

COMPATIBLE WITH ALL MAJOR AUDIO

Compatible with mobile phones, iPad, Computers and other devices and compatible with Android, Apple System.

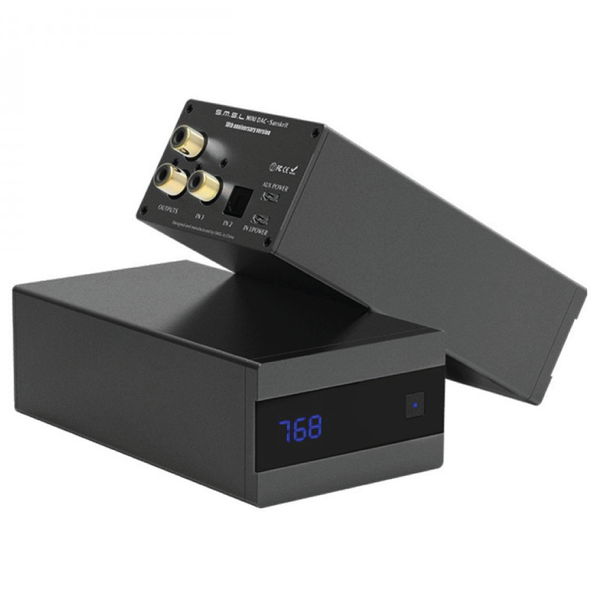

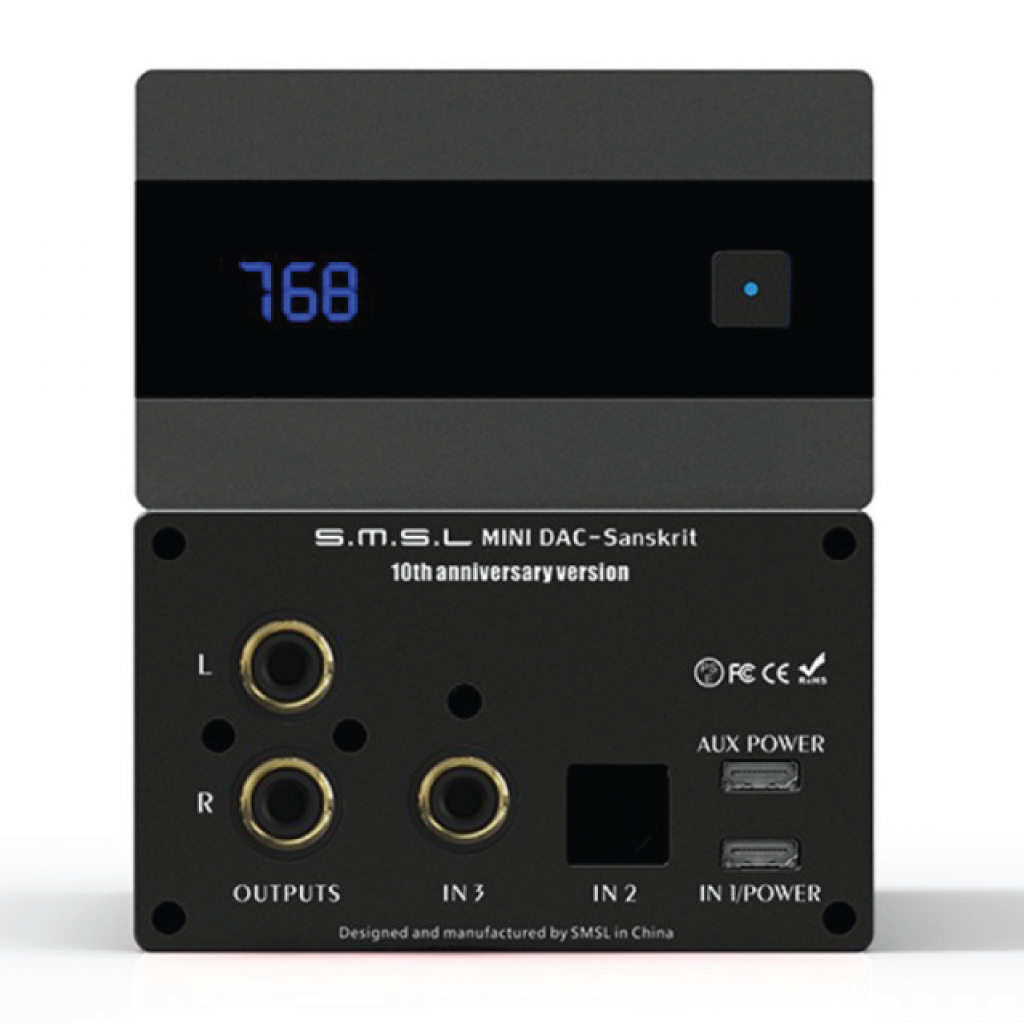

PARTS NAMES

1. Infrared Remote control receiving window
2. Display (Automatic switching)
3. Power/input selection button
4. Audio Output (RCA)
5. Coaxial output
6.Optical Input
7. USB Input
8. Auxiliary power input

Specifications

Brand Name
S.M.S.L
Product Name
S.M.S.L - Sanskrit 10th MKII DAC
Input
USB/Optical/Coaxial
Output Level
2.2Vrms
THD+N
0.000002
Dynamic Range
118dB
SNR
120dB
USB Compatibility
Windows 7/8/8.1/10
Mac OS X10.6 or Later /Linux
Bit Depth
USB: 1 bit ~ 32 bit
16bit ~24bit
Sampling Rate
USB: PCM 44.1~768Khz
DSD 2.8224~22.5792MHz
Optical/Coaxial
32Khz~192Khz
Power Consumption
2W
Standby Power
<0.1W
Size
75x45x144 (WxHxD)

Box Content

    What will you get:
  • 1xSanskrit 10th MK II Desktop DAC
  • 1xRemote
  • 1x USB Cable

Warranty

1 YEAR WARRANTY

Don't worry, S.M.S.L - Sanskrit 10th MKII DAC comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
