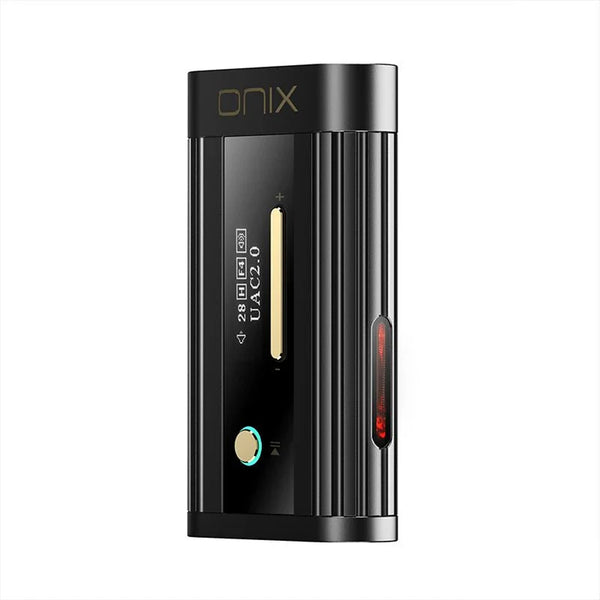

SHANLING - ONIX Beta XI2 Dual CS43198 USB Portable DAC & Amp - 1

SHANLING - ONIX Beta XI2 Dual CS43198 USB Portable DAC & Amp

SHANLING

amps & dacs under 30000

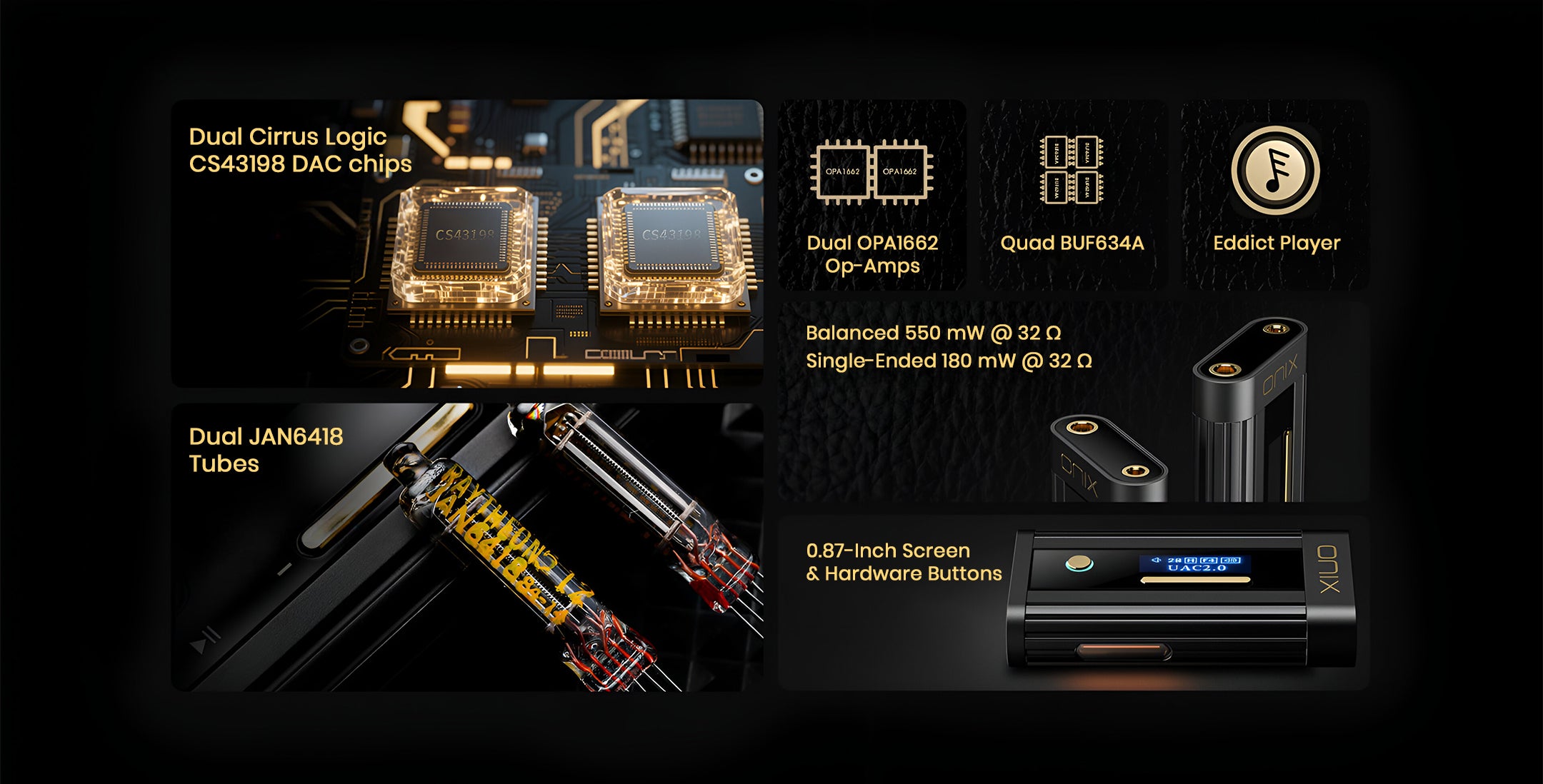

    Features Dual Cirrus Logic CS43198 DAC Chipset

    0.87" OLED Display and Physical Hardware Buttons

    Combines Solid-State Transistor and JAN6418 Tube Output

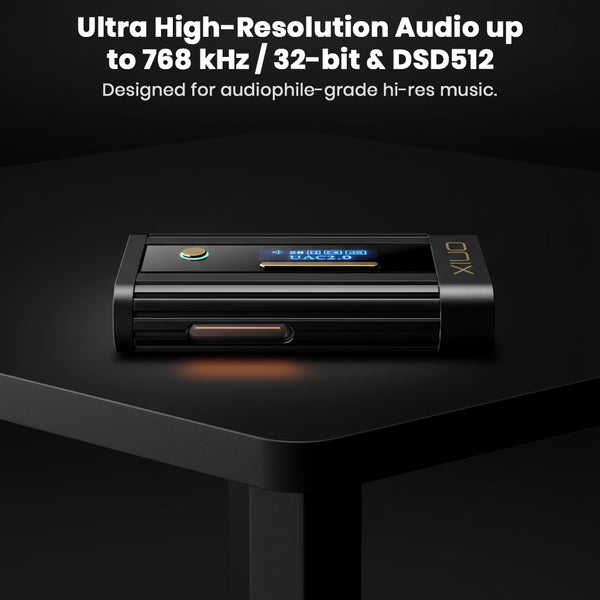

    Supports up to 768 kHz/ 32-bit PCM and DSD512

    Upgraded Amp Architecture Delivers up to 550 mW at 32 Ohm (Balanced)

    3.5 mm Single-Ended and 4.4 mm Balanced Outputs

₹41599   ₹25999

₹ 25,999 ₹ 41,599 Save ₹ 15,600

Tax & Shipping Included

Tax IncludedShipping Included

Add a heading

Add content using the options to the left

Description

The ONIX Beta XI2 elevates the portable listening experience with its rare hybrid architecture, combining the analytical precision of a solid-state amplifier with the warm, musical richness of vacuum tubes. Featuring dual Cirrus Logic CS43198 DACs, the XI2 ensures pristine, high-resolution audio decoding up to 768 kHz / 32-bit and DSD512. Its enhanced amplifier section utilizes dual OPA1662 and quad BUF634 chips, providing robust power and exceptional control for both sensitive IEMs and demanding full-size headphones. The inclusion of dual JAN6418 tubes for the balanced output path allows listeners to seamlessly switch to an organic, analog-like sound signature. Housed in a compact, rugged aluminum body with an intuitive 0.87'' OLED screen and physical controls, the Beta XI2 is a true high-fidelity desktop experience made pocketable.

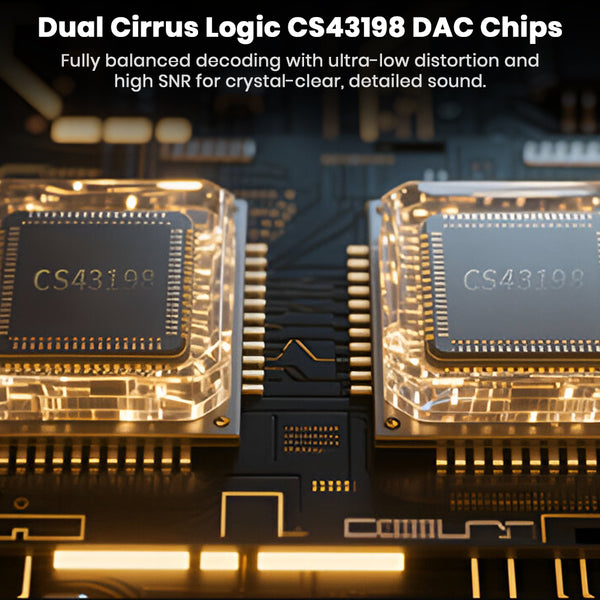

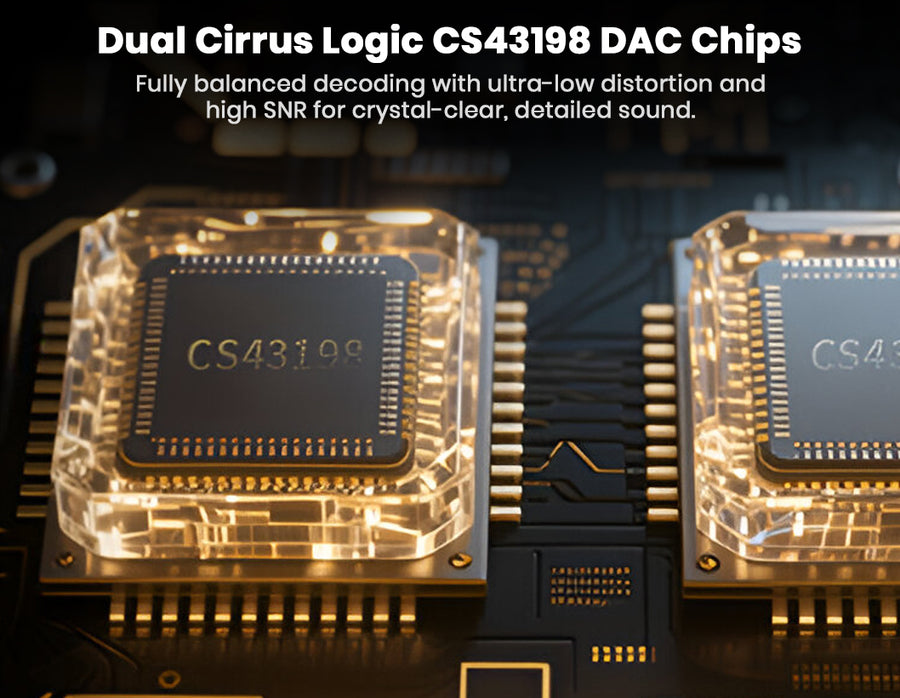

DUAL CS43198 DAC ARCHITECTURE FOR MASTER-GRADE DECODING

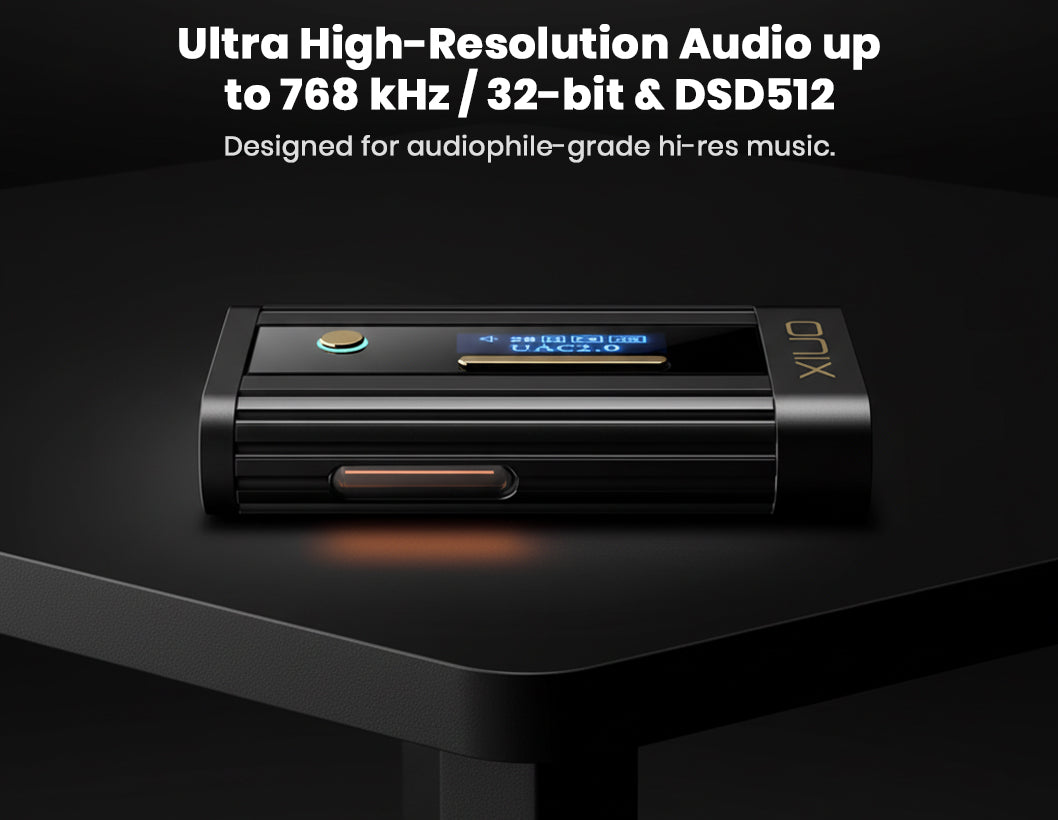

The Beta XI2 is equipped with Dual Cirrus Logic CS43198 DAC chips, providing a fully symmetrical audio path that achieves reference-grade decoding. This chipset is renowned for its excellent Signal-to-Noise Ratio (SNR) and ultra-low Total Harmonic Distortion (THD). It is capable of processing ultra-high-resolution files up to 768 kHz /32-bit PCM and native DSD512, ensuring that every nuance and detail in the recording is faithfully reproduced with exceptional clarity and dynamic range.

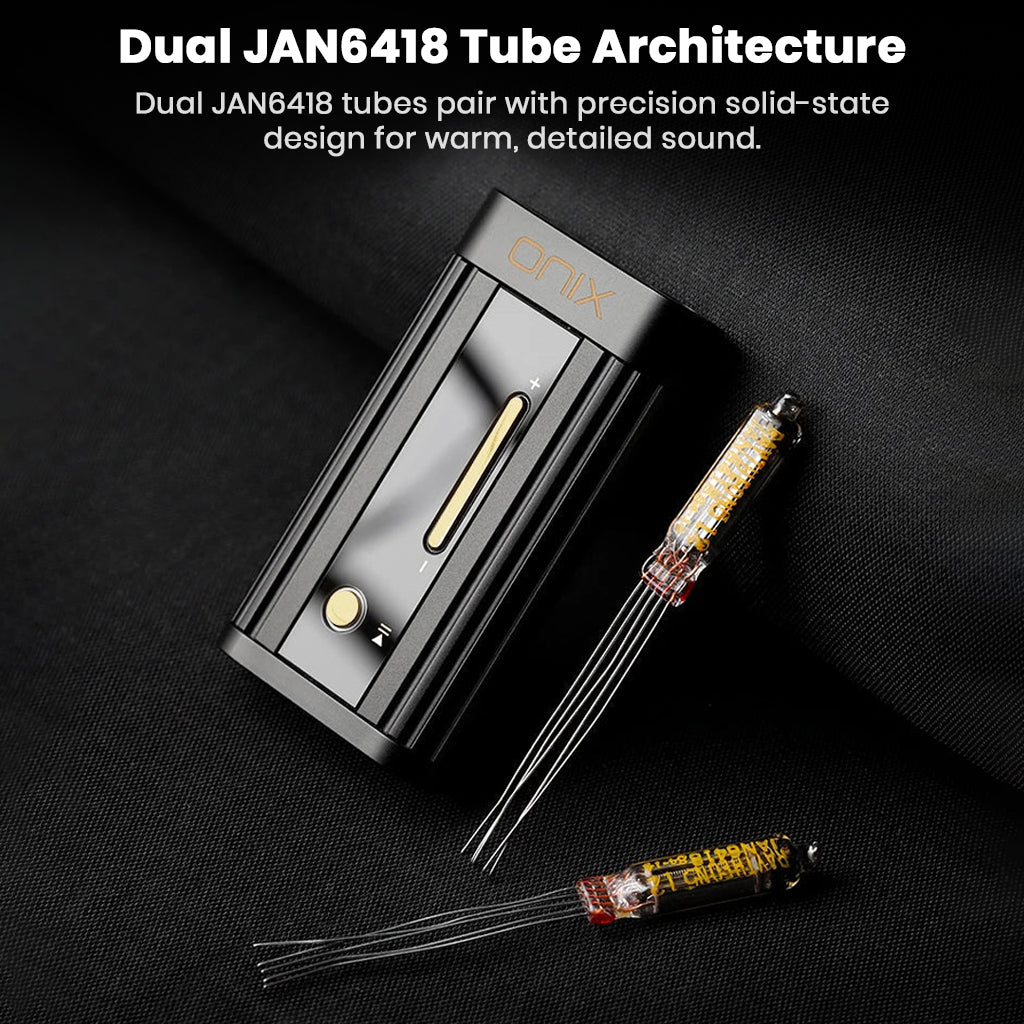

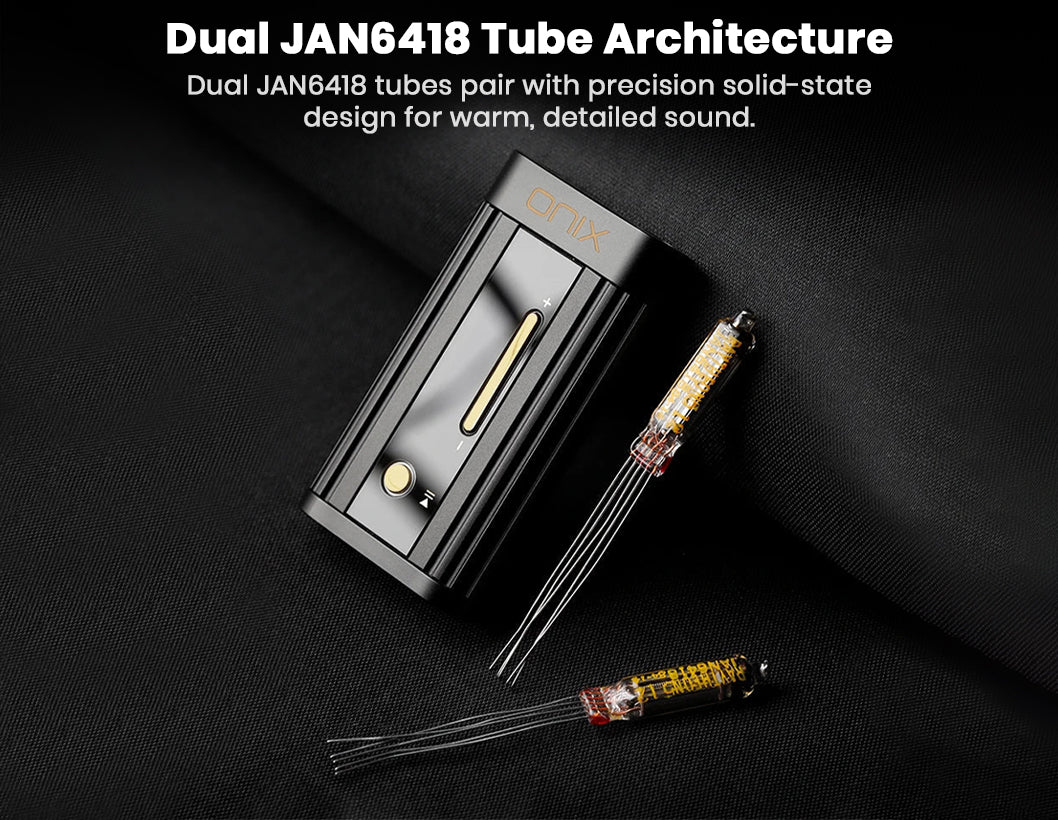

HYBRID JAN6418 TUBE AMPLIFICATION FOR ANALOG WARMTH

Hi-Res Beta XI2 DAC introduces an extra tube output developed in collaboration with Shanling Audio, drawing on their expertise in tube design and the growing demand for portable tube solutions. It integrates a pair of durable, low-heat JAN6418 tubes securely within the chassis, visible through two subtle side windows that reveal their gentle glow. These tubes impart a natural warmth, spatial bloom, and an organic, analog-like timbre to the dedicated 4.4 mm balanced output. A dedicated system setting allows users to instantly switch the tube output on or off, offering the flexibility to match the sound to the mood or the music with ease.

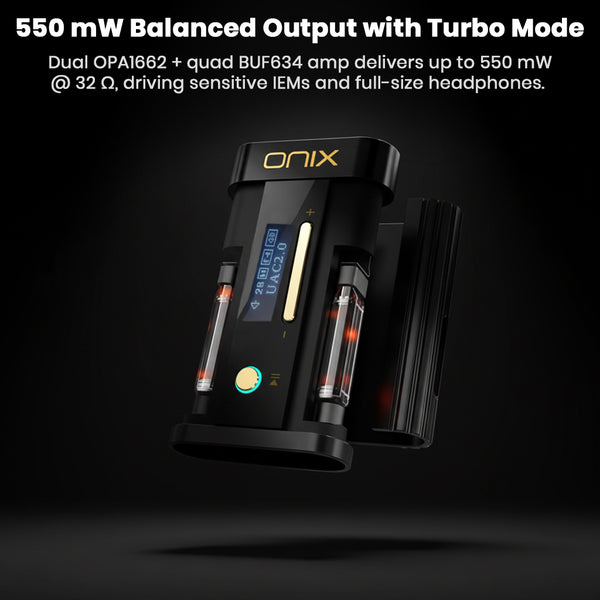

UPGRADED QUAD BUF634 AND DUAL OPA1662 SOLID-STATE POWER ARCHITECTURE

The solid-state amplification path, which is available on both the 3.5 mm single-ended and 4.4 mm balanced outputs, utilizes an enhanced amplifier stage. This architecture features 4 times BUF634 high-speed buffers and 2 times OPA1662 op-amps, delivering a clean, precise, and highly dynamic sound. The Beta XI2 features an upgraded amplifier architecture that delivers authoritative drive and control, with a maximum balanced output power of 550 mW at 32 Ω. This robust power ensures ample dynamic headroom and distortion-free performance across all music genres.

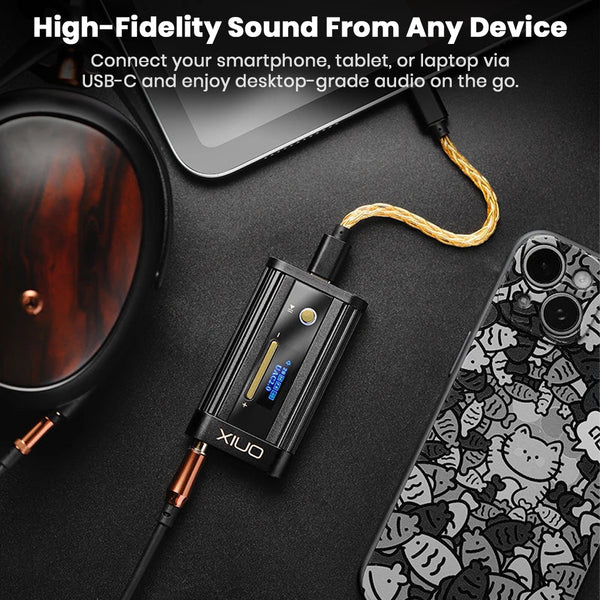

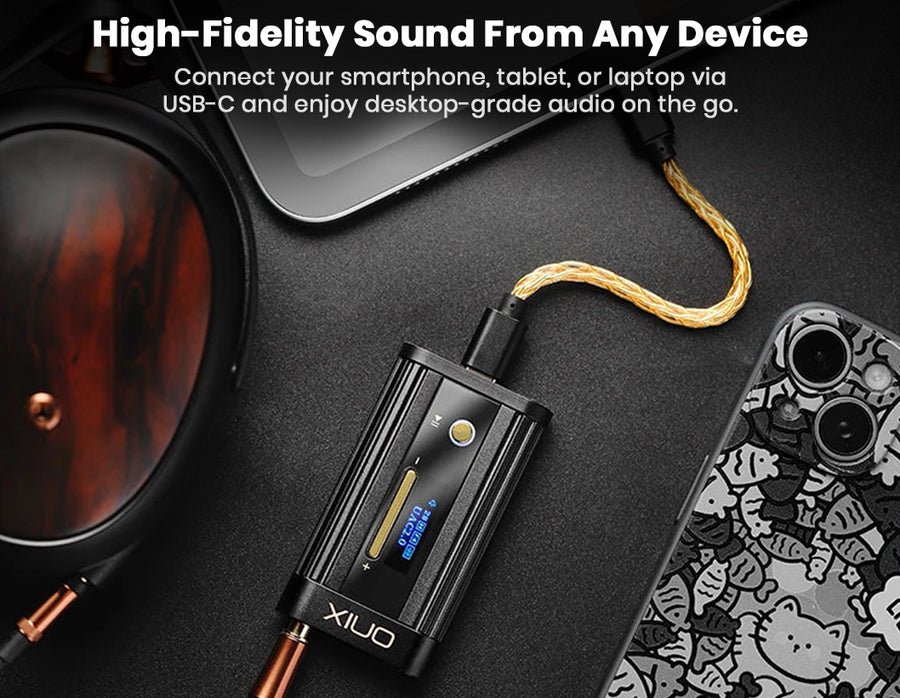

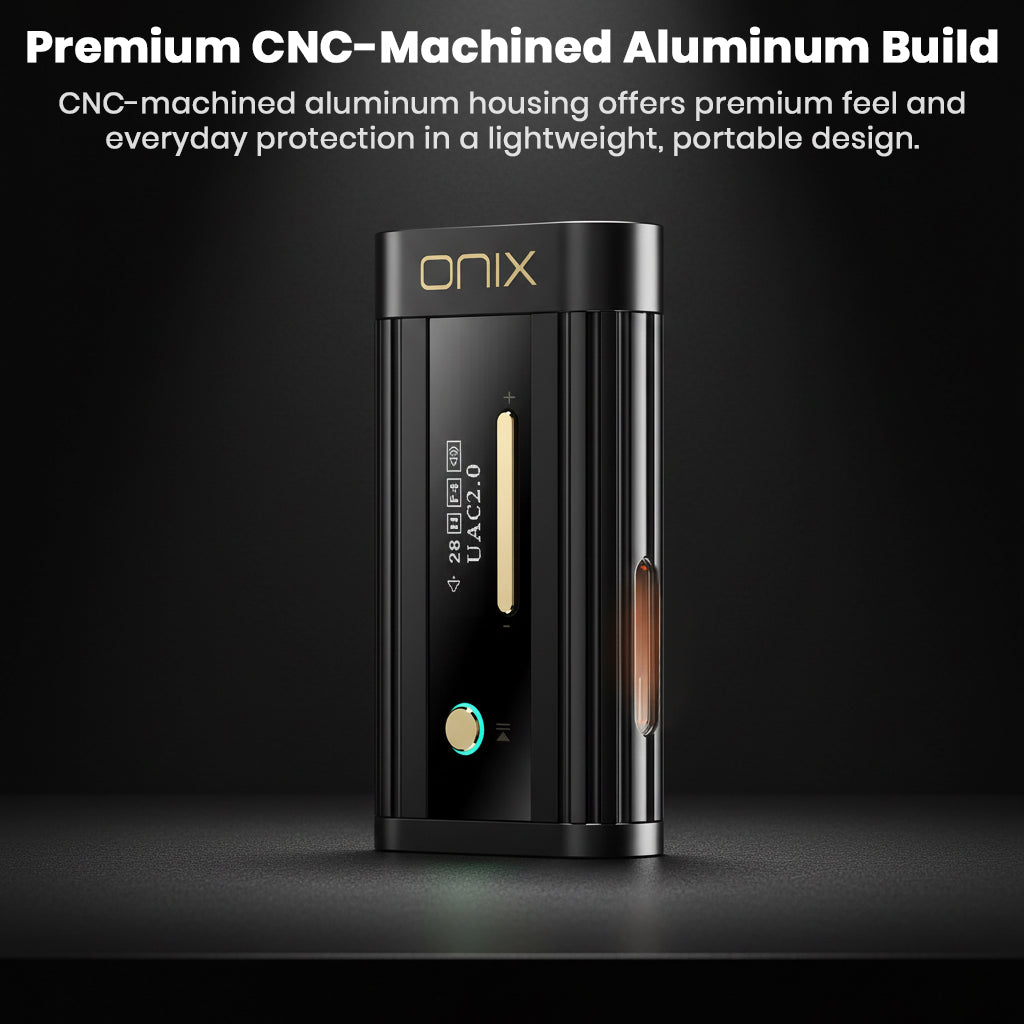

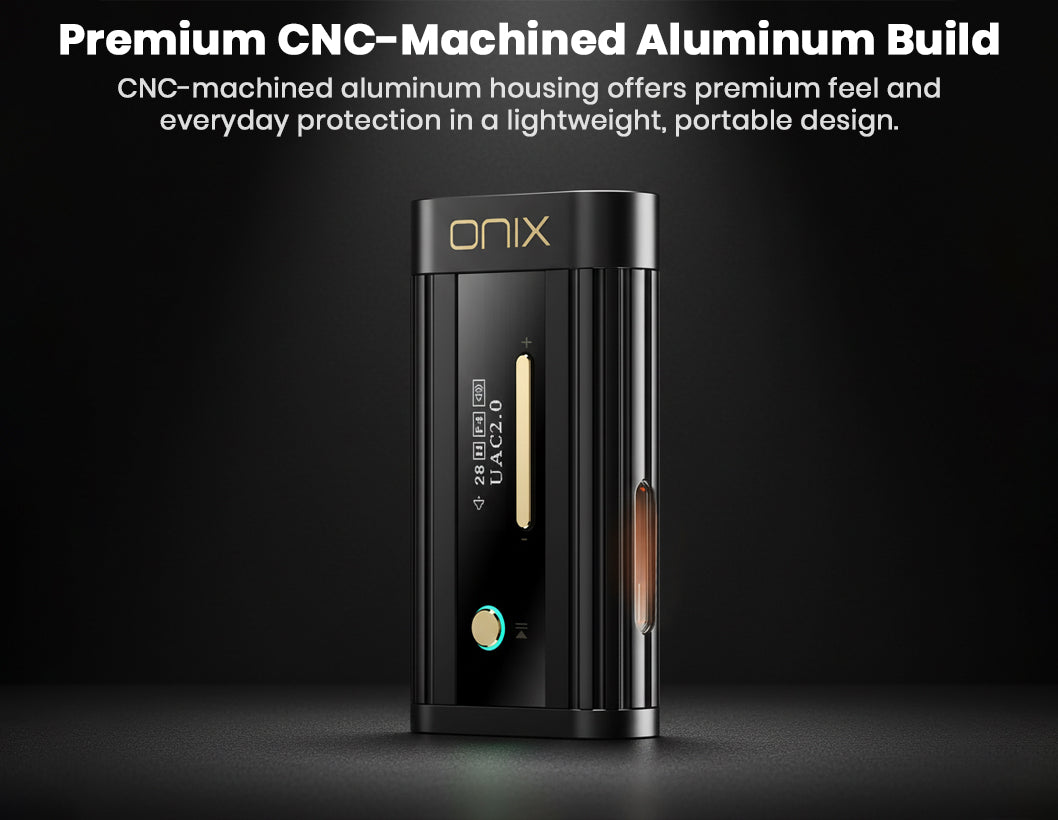

PREMIUM BUILD AND BROAD CONNECTIVITY

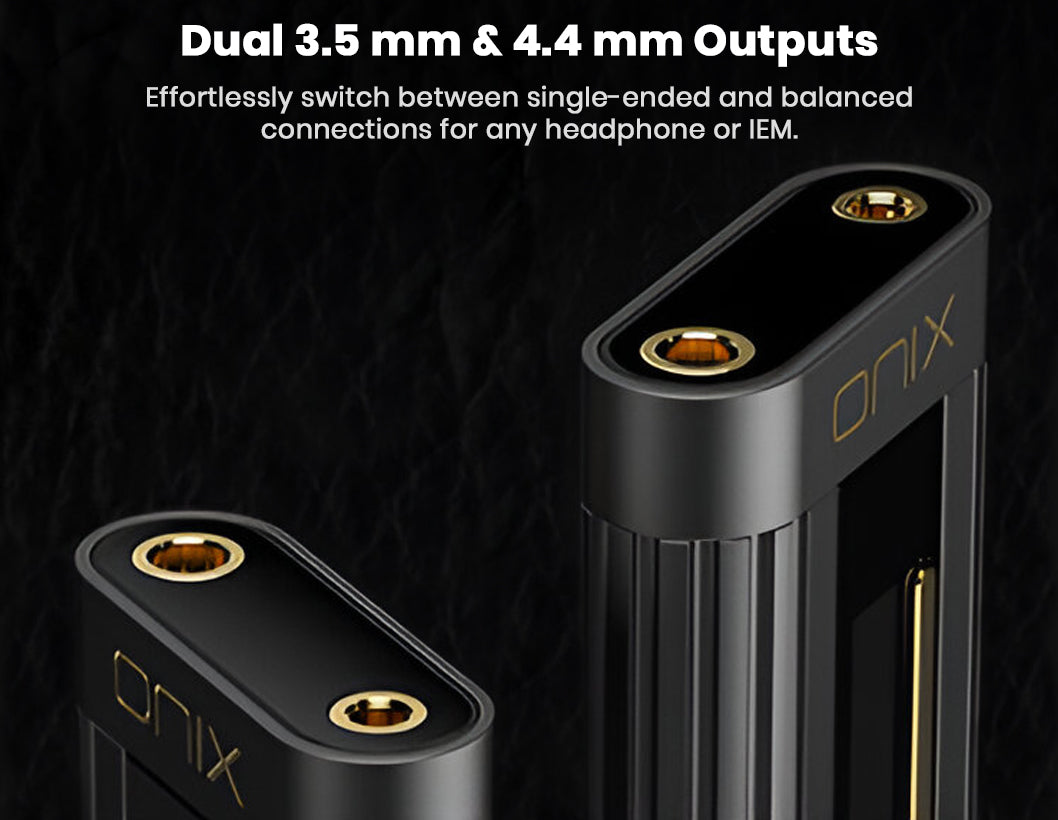

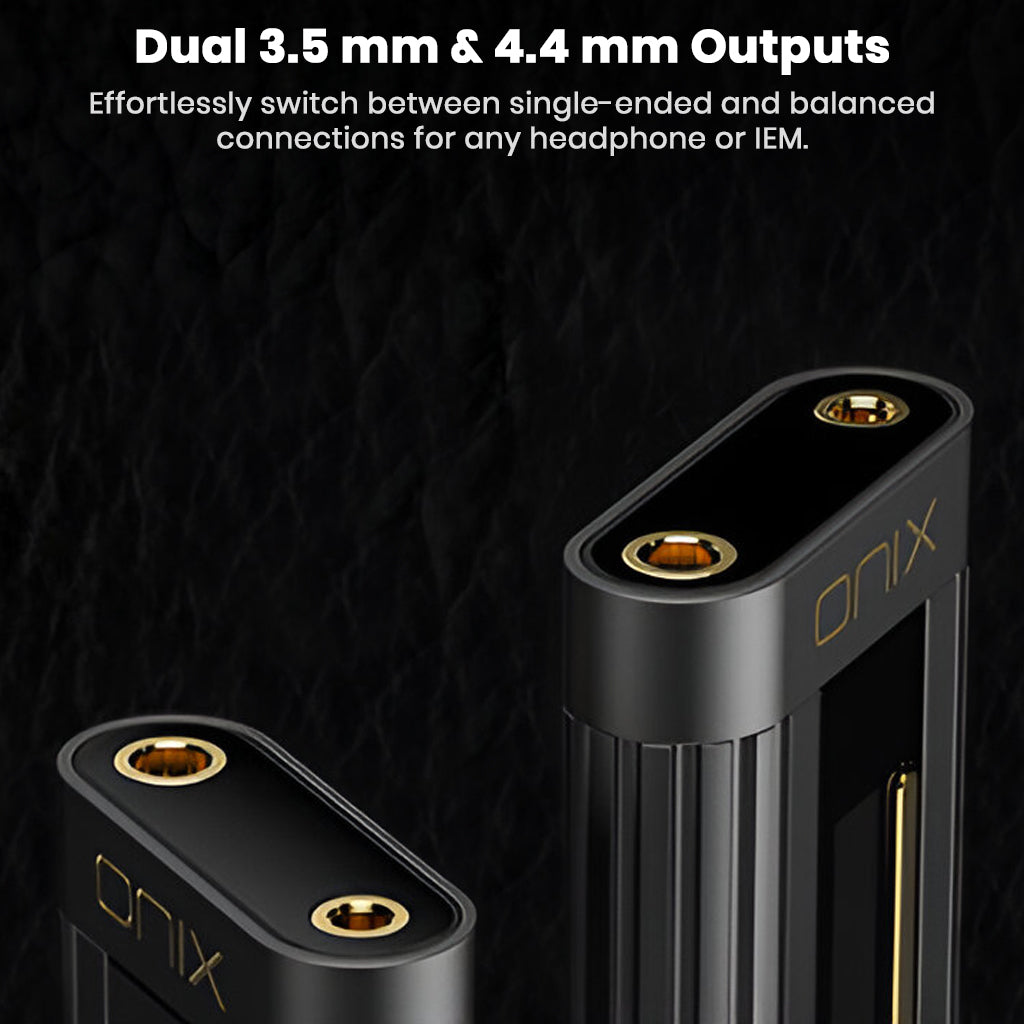

The Beta XI2 Portable DAC is crafted with a rugged, elegant metal body that is CNC-machined from aluminum, providing exceptional durability in a portable form factor (approx. 45.3 g). It offers 3.5mm single-+ended and 4.4 mm balanced headphone outputs for versatile connectivity. The integrated USB-C port enables seamless digital audio transmission across a wide range of devices, including Android, iOS (with appropriate adapter), Windows, and macOS. Furthermore, the DAC/AMP supports switchable UAC 1.0 and UAC 2.0 modes, ensuring universal compatibility with a broad range of systems, including smartphones, tablets, consoles and legacy devices. Included in the package is the signature golden-colored ONIX OL1 USB cable, crafted from high-purity silver-plated copper for superior signal delivery.

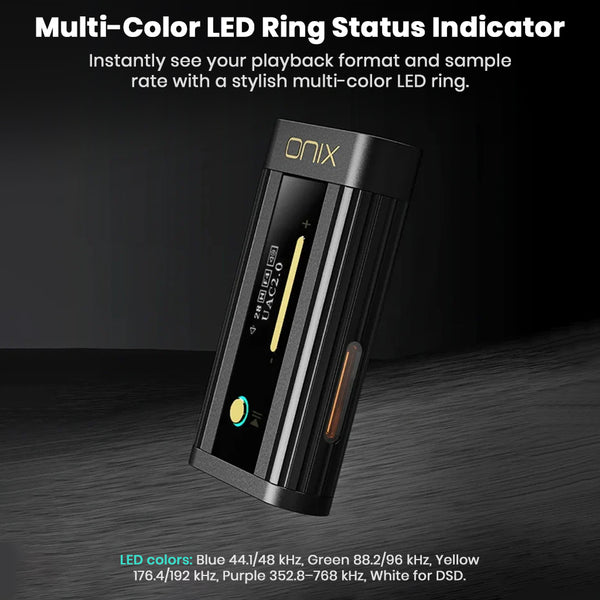

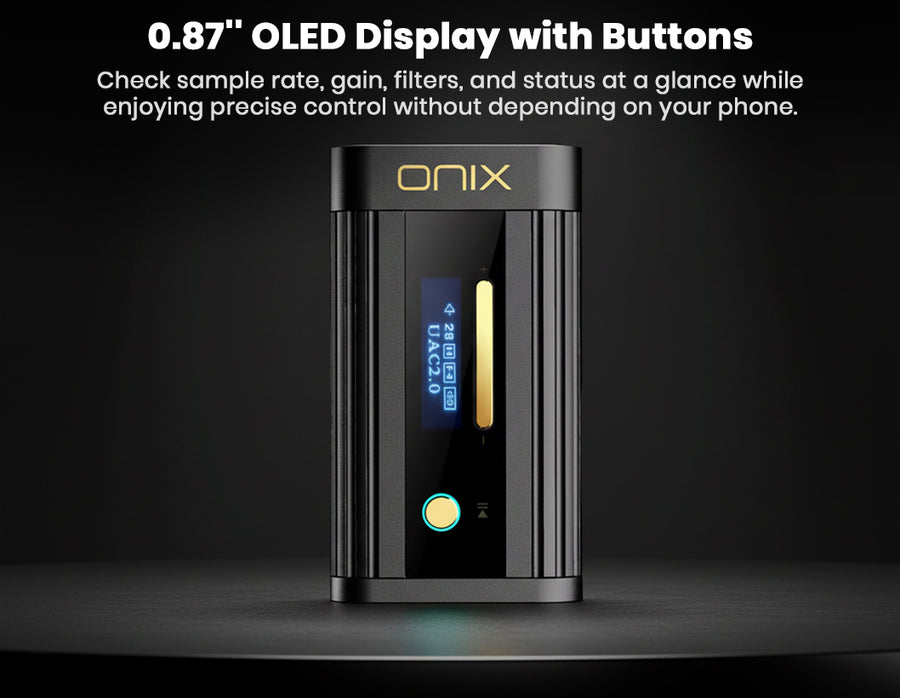

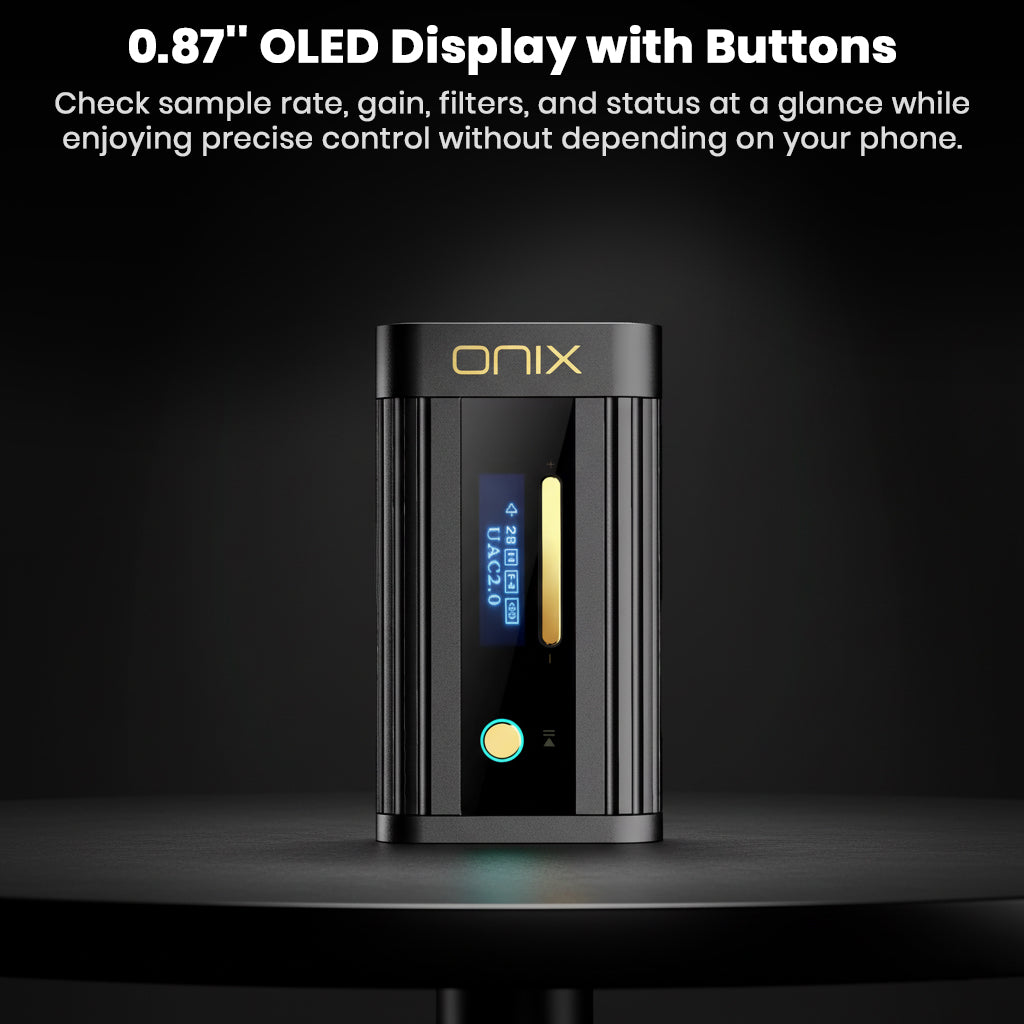

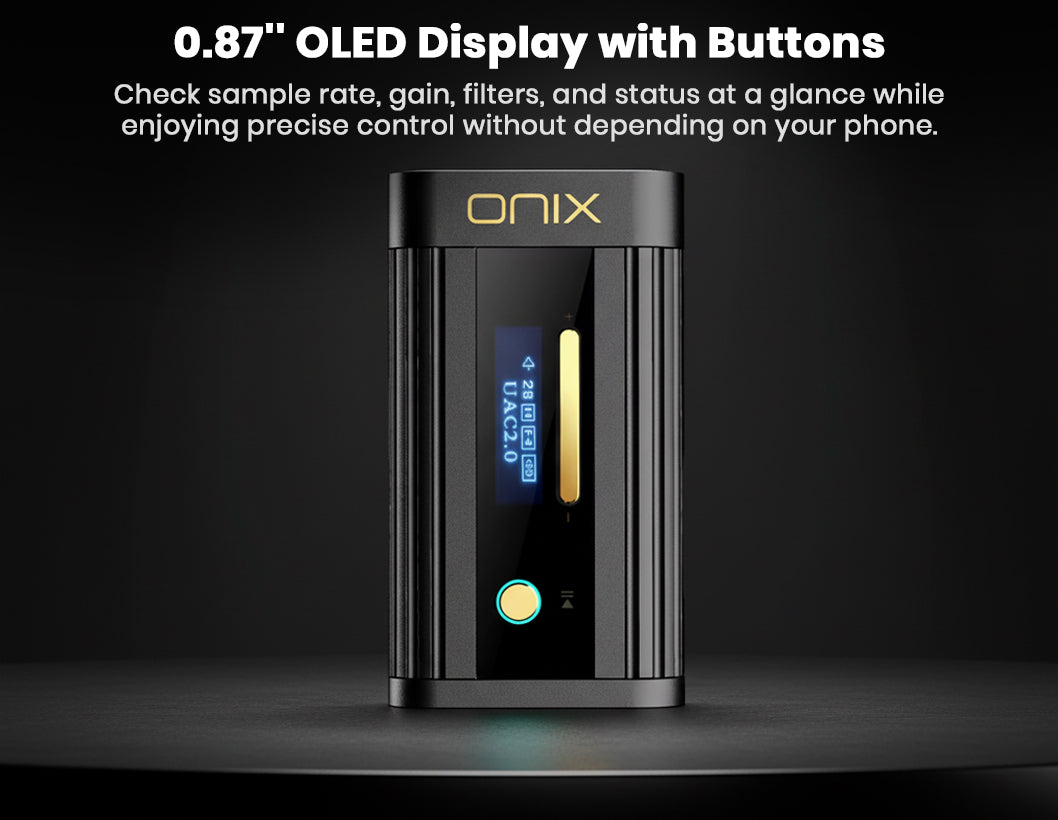

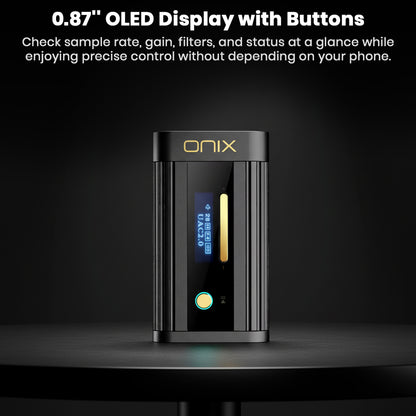

0.87” OLED DISPLAY WITH PHYSICAL BUTTON AND LED INDICATORS

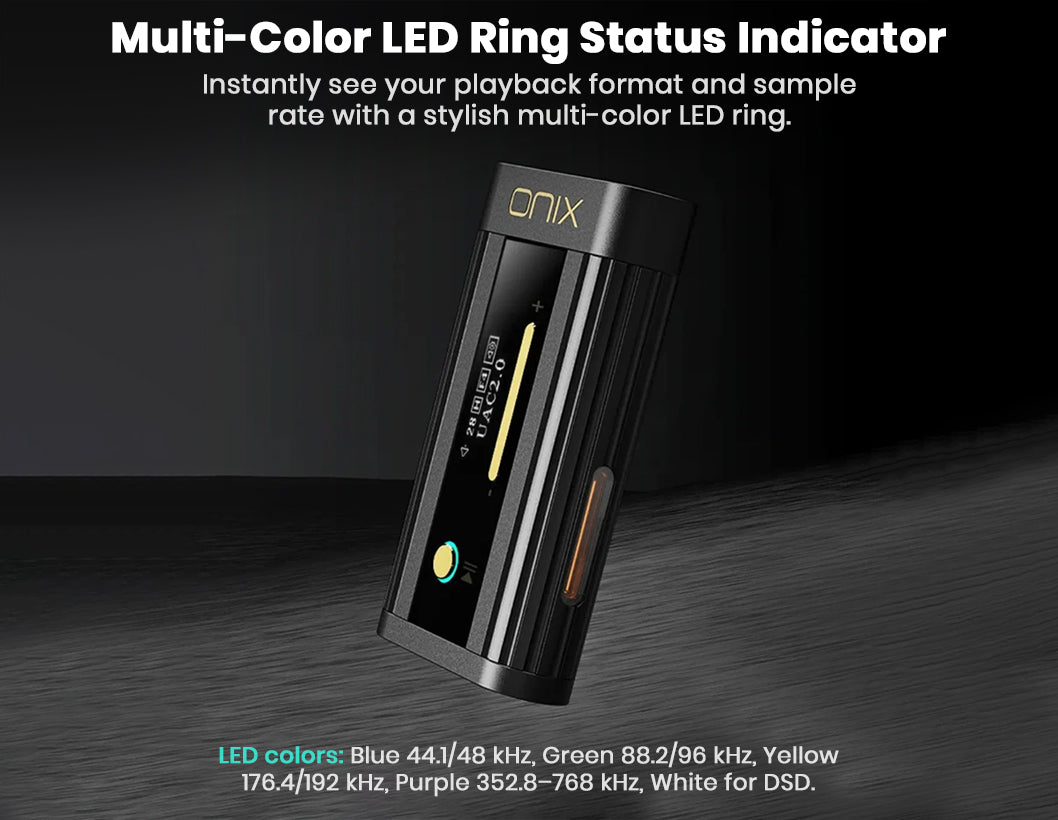

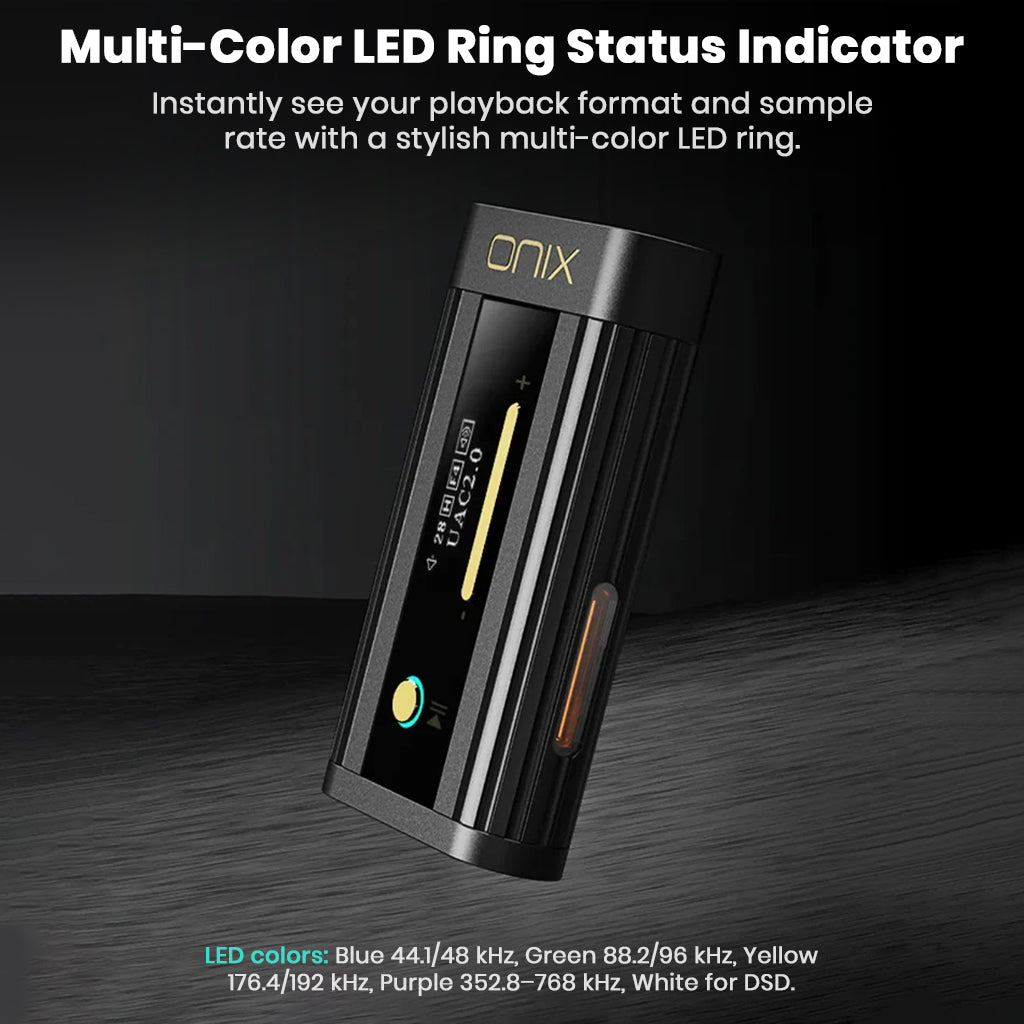

Beta XI2 features a 0.87'' OLED screen that provides instant visibility of key operating parameters. Users can monitor the current sample rate, gain level, output filter, and device status at a glance. Complementing the display, physical hardware buttons offer convenient and tactile control over volume and settings, ensuring seamless daily operation without needing to rely solely on the source device. In addition to the screen, a multi-color LED ring on the device provides a quick visual reference for the active audio format and sample rate. For example, the LED illuminates Blue for 44.1/48 kHz, PCM, Green for 88.2/96 kHz PCM, Yellow for 176.4/192 kHz PCM, Purple for 352.8-768 kHz, and White for DSD formats.

Specifications

Brand Name
ONIX
Model Name
Beta X12
DAC Chipset
Dual Cirrus Logic CS43198 DAC chips
Vaccum Tube
dual JAN6418 pentode tubes
USB Modes
UAC 1.0 / UAC 2.0
Hi-Res Support
768kHz / 32-bit and DSD512
3.5 mm Single-Ended Output (Transistor Mode)
Output Power :
Low Gain: 45 mW @32 Ω
High Gain: 180 mW @32 Ω
Frequency Response : 20 Hz-40 kHz (-0.5dB)
THD+N : 0.0006% (A-Weight@2V)
Dynamic Range : 124 dB
Channel Separation : 73 dB
Signal-to-Noise Ratio : 124 dB
Noise : 116 dB , Output Impedance : 0.3 Ω
4.4 mm Balanced Output (Transistor Mode)
Output Power :
Low Gain: 180 mW @32 Ω
High Gain: 550 mW @32 Ω
Frequency Response : 20 Hz-40 kHz (-0.5dB)
THD+N : 0.0008% (A-Weight@4V)
Dynamic Range : 128 dB
Channel Separation : 107 dB
Signal-to-Noise Ratio : 128 dB
Noise : 114 dB, Output Impedance : 0.6 Ω
3.5 mm Single-Ended Output (Tube Mode)
Output Power :
Low Gain: 37 mW @ 32 Ω
High Gain: 152mW@32 Ω
Frequency Response : 20 Hz-40 kHz (-0.5dB)
THD+N : 0.06% (A-Weight@2V)
Dynamic Range : 122 dB
Channel Separation : 73 dB
Signal-to-Noise Ratio : 122 dB
Noise : 114 dB, Output Impedance : 0.3 Ω
4.4 mm Balanced Output (Tube Mode)
Output Power :
Low Gain: 152 mW @ 32 Ω
High Gain: 550 mW @ 32 Ω
Frequency Response : 20Hz-40kHz (-0.5dB)
THD+N : 0.0006% (A-Weight@4V)
Dynamic Range : 128 dB
Channel Separation : 107 dB
Signal-to-Noise Ratio : 127 dB
Noise : 114 dB, Output Impedance : 0.6 Ω
Dimensions
7 x 4 x 1.5 cm
Weight
45g

Box Content

    What will you get
  • 1x ONIX Beta X12
  • 1x ONIX OL1 Cable
  • 1x User Manual
  • 1x Warranty Card

    Warranty






    1 YEAR WARRANTY



    Don't worry, ONIX - Beta XI2 Portable Tube DAC/AMP comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
