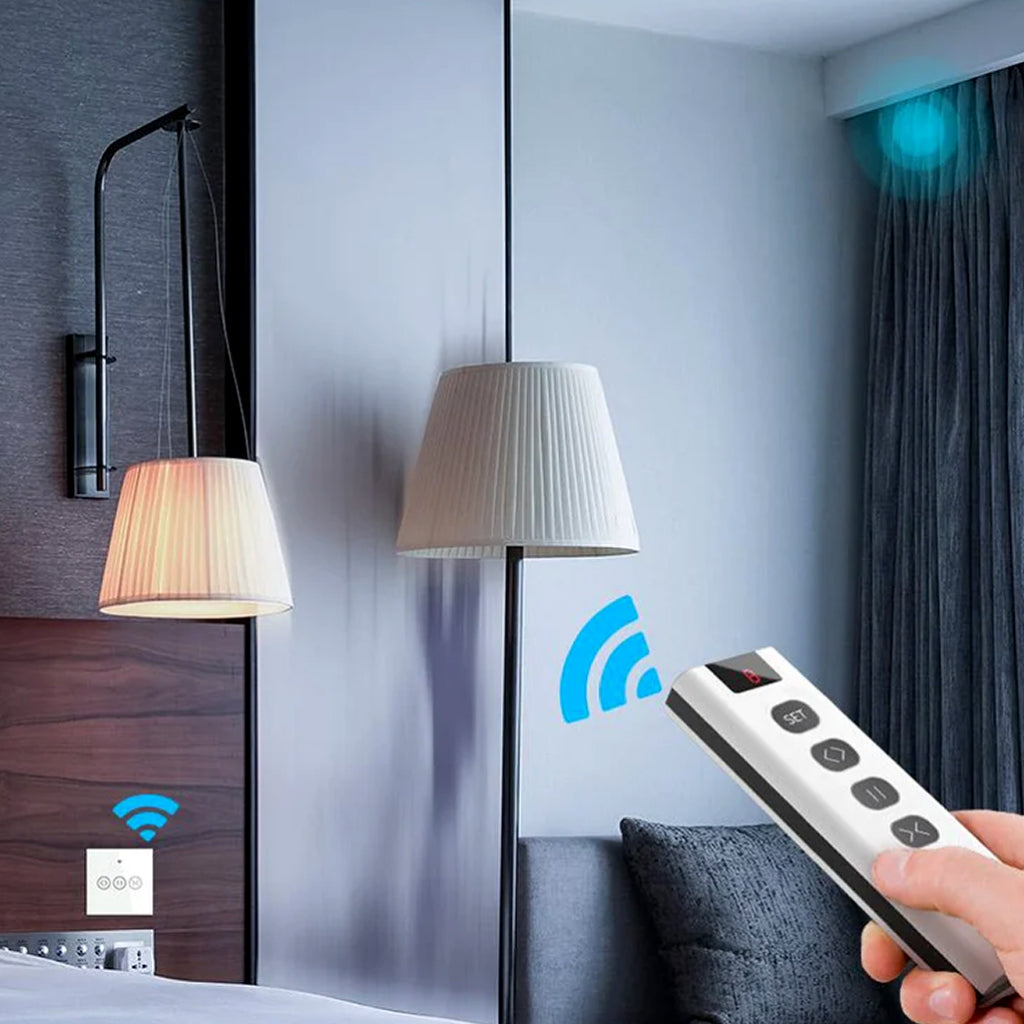

SMART CURTAIN REMOTE CONTROL

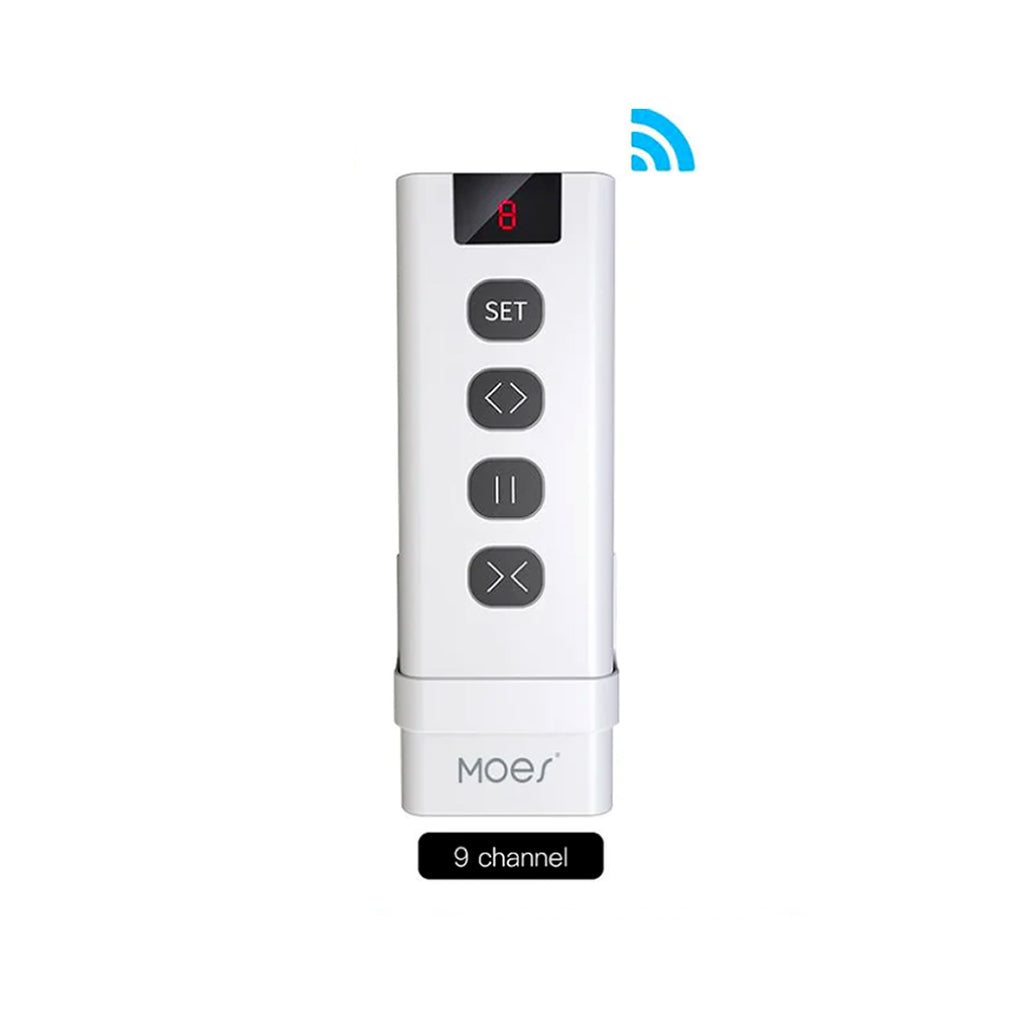

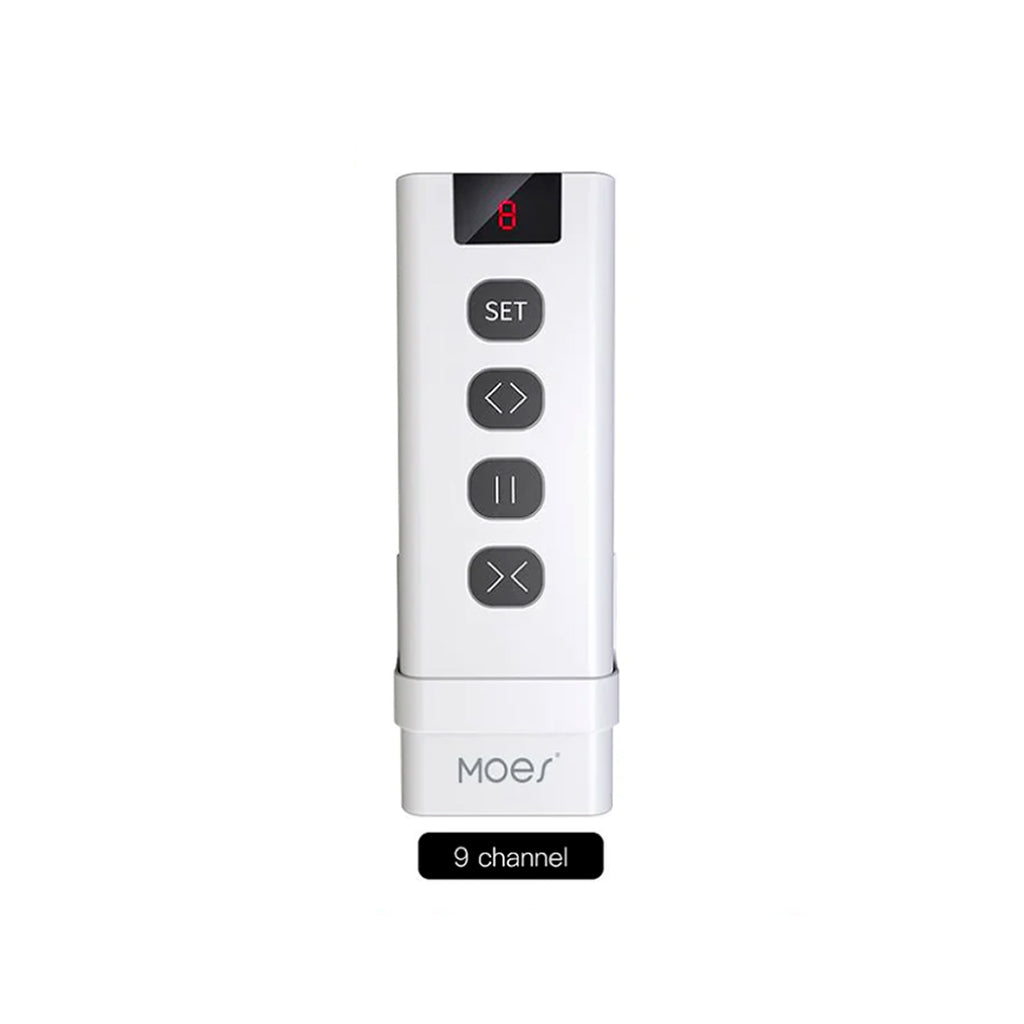

YK2169-9C is a remote control for transmitting RF Signal with a frequency of 433.92 MHz and modulation mode of OOK. The product has a display window of 8-segement digital tube, which can display a total of 9 channels from 0 to 8. Different channels can be freely switched by pressing the button, and different actions can be performed when the receiver receives different code values.
9 CHANNEL RF433 FREQUENCY REMOTE

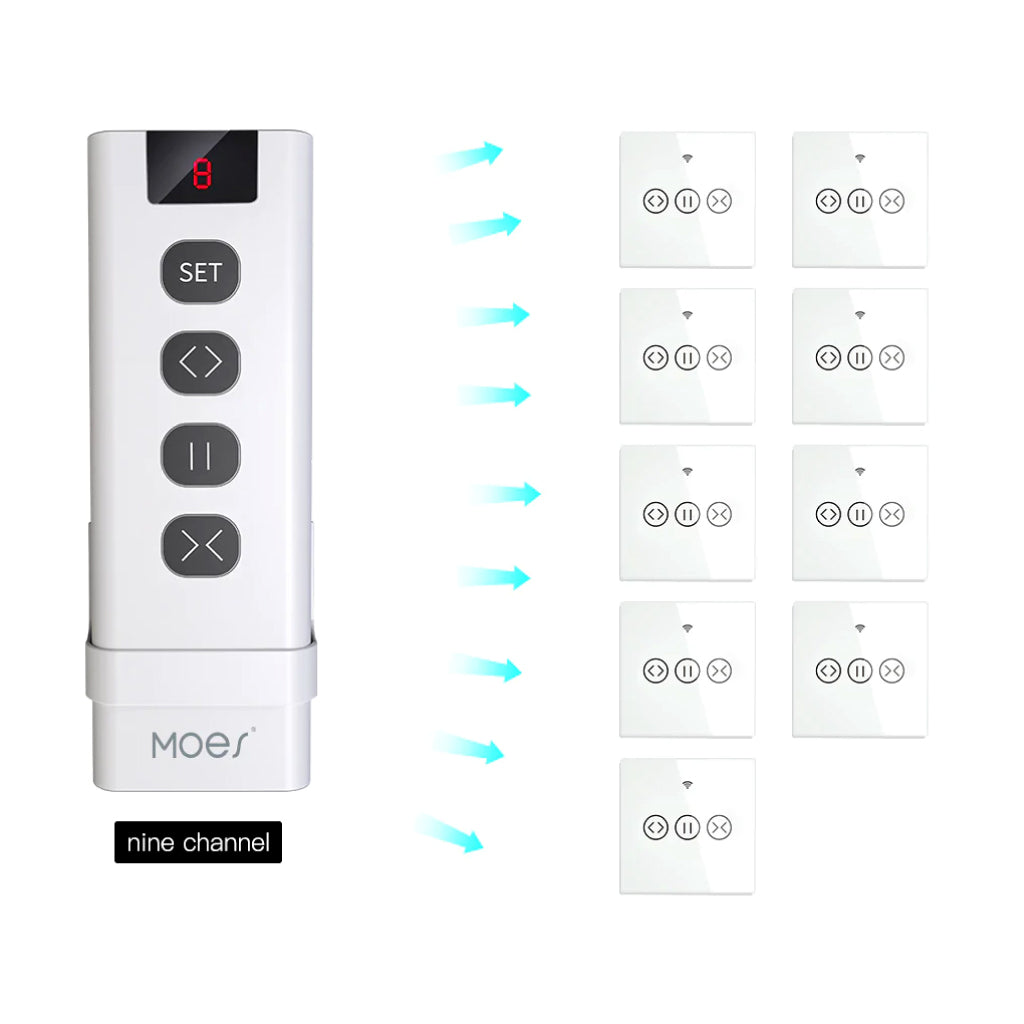

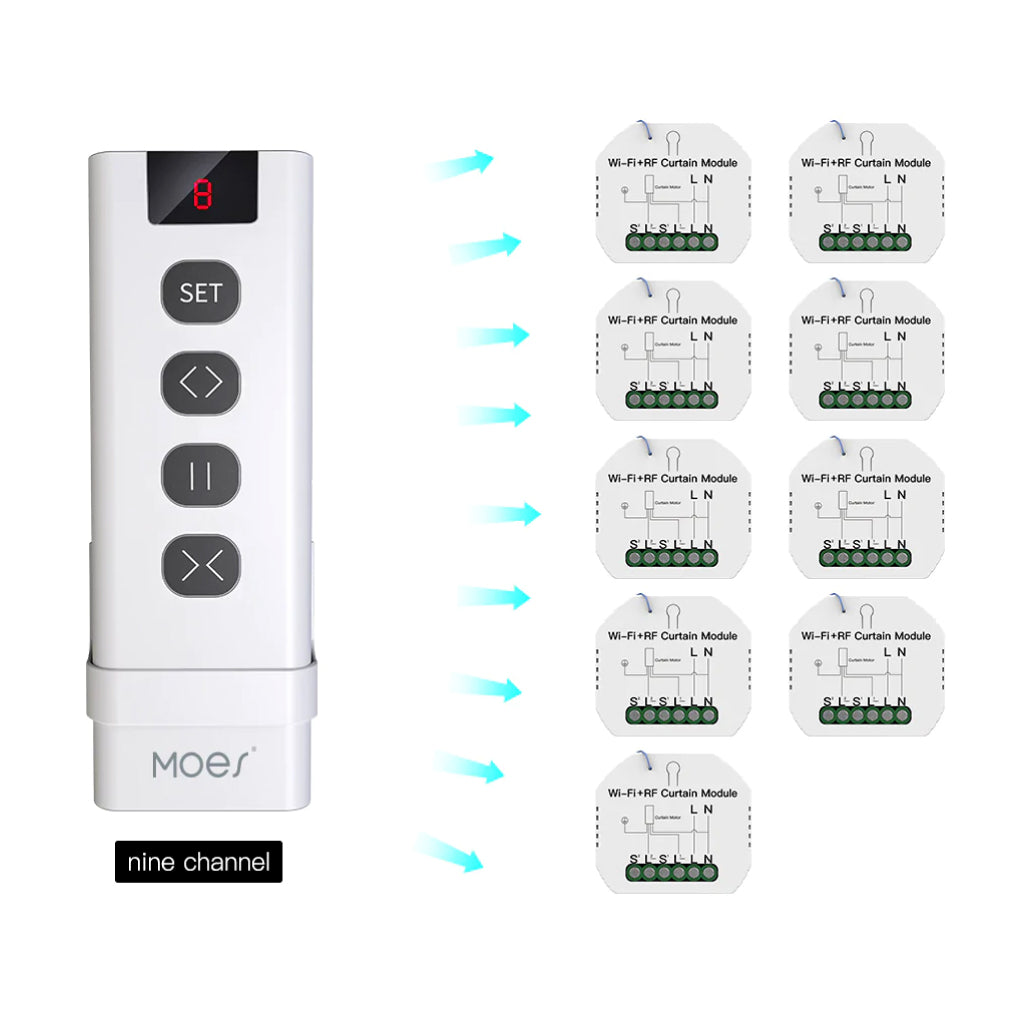

9 Channel RF433 frequency remote is designed for separately controlling our curtain switch and curtain switch module in a much easier way with its maximum controllable quantity of nine; easily achieve another control to the whole house curtains without interference after successfully paired, especially suitable for the old.
PAIR WITH RF433 FREQUENCY WITH 1527 ENCODING
Extremely simple matching way supported for simple use. you need to pair the three buttons (up, down, stop) one by one to the curtain switch or switch module for correct control. With the new added set button for easy channel setting.

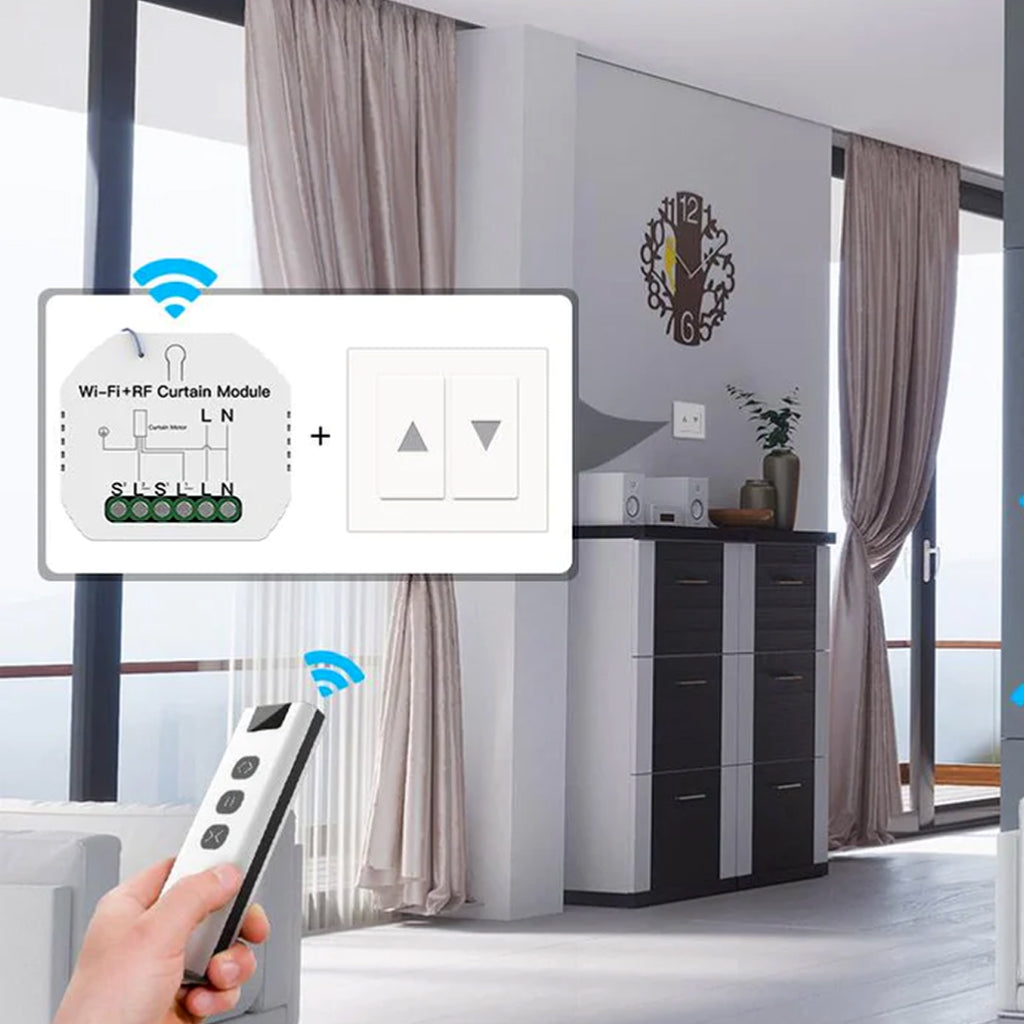

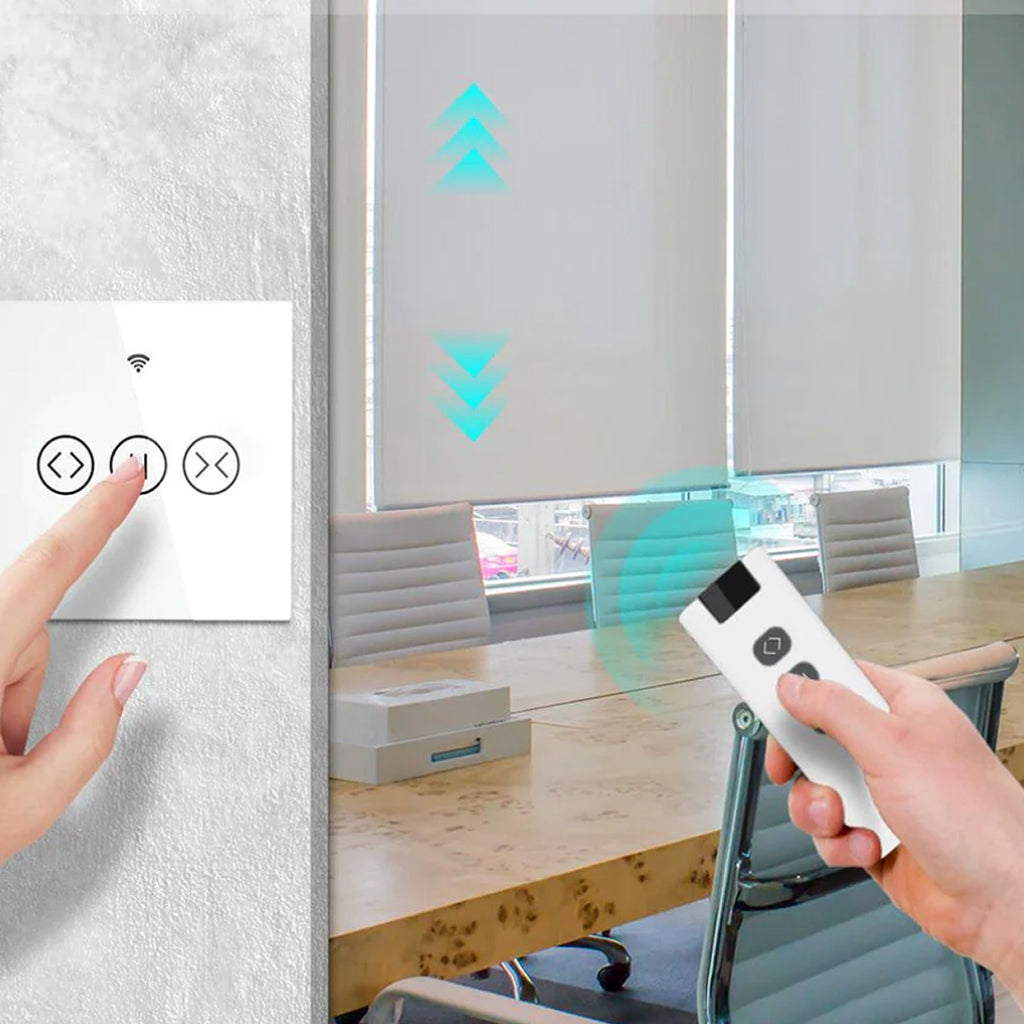

ONLY FOR MOES CURTAIN SWITCHES OR SWITCH MODULE
Remote requires encoding 1527. No other codes are available for this curtain control system. We highly recommend using this special remote to operate our Moes curtain switches or switch modules. Do not use this remote to control other irrelevant devices other than our Moes curtain switch and switch module.
Note: 9 Channel can only be used with our Moes Curtain switch and curtain switch module.
BATTERY POWERED
23A*12V battery required for this remote with long time standby. (Battery not included in the package)

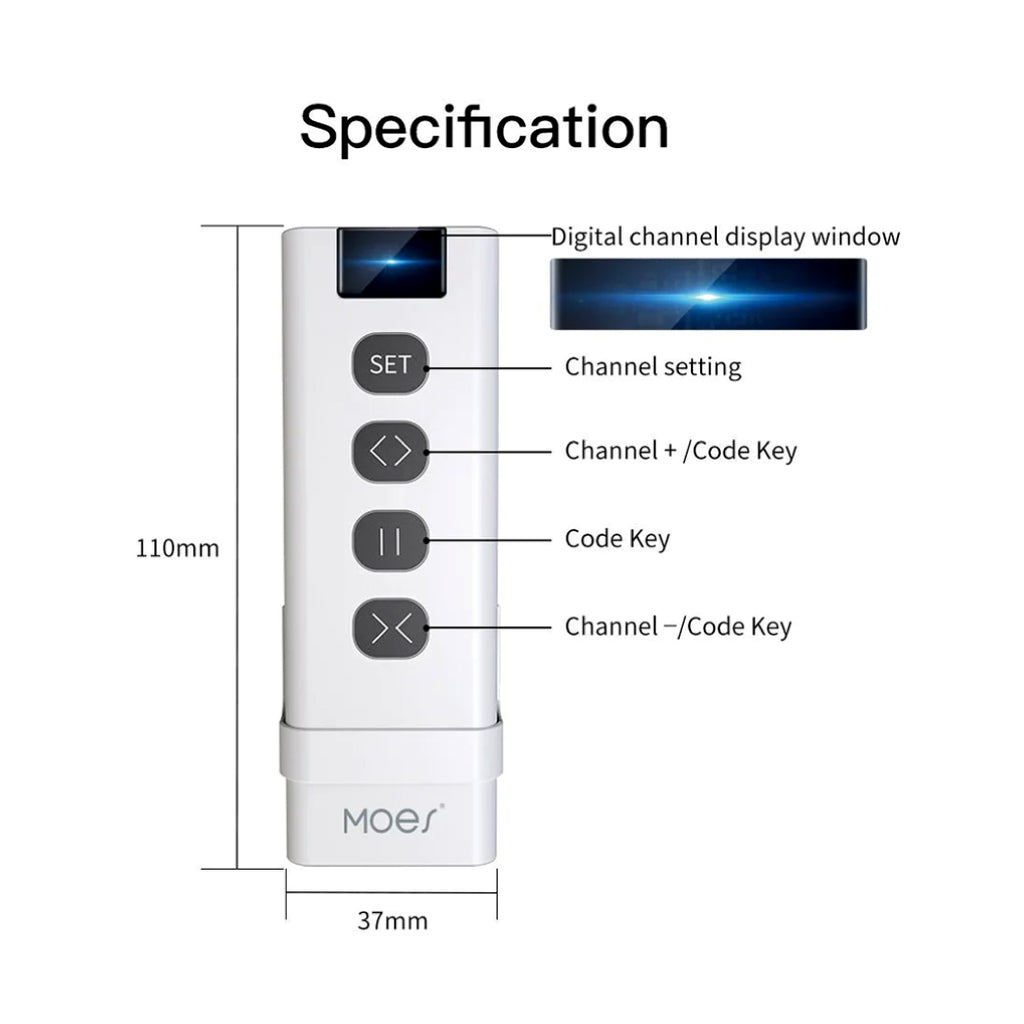

FUNCTIONS DESCRIPTION
1. Channel Setting:
• Press “SET”, digital tube flashes for setup mode.
• Press” <>” in setup mode, channel value increases. When the channel value increases to 8, press the key again to start increasing from 0.
• Press”><” in setup mode, channel value decreases. When the channel value decreases to 0, press the key again to start decreasing from 8.
• Press” SET” in setup mode, the digital tube stops flashing for exiting setup mode.
2. Transmit Code:
• Press any key among “<>” “II” “><” in non-setup mode, then remote starts to transmit signal, the red indicator in the lower right corner flashes fast to indicate it is transmitting. Release the key to stop transmitting and the digital tube stops lighting.
-
What will you get:
- 1x Smart Curtain RF Remote
- 1x User Manual
