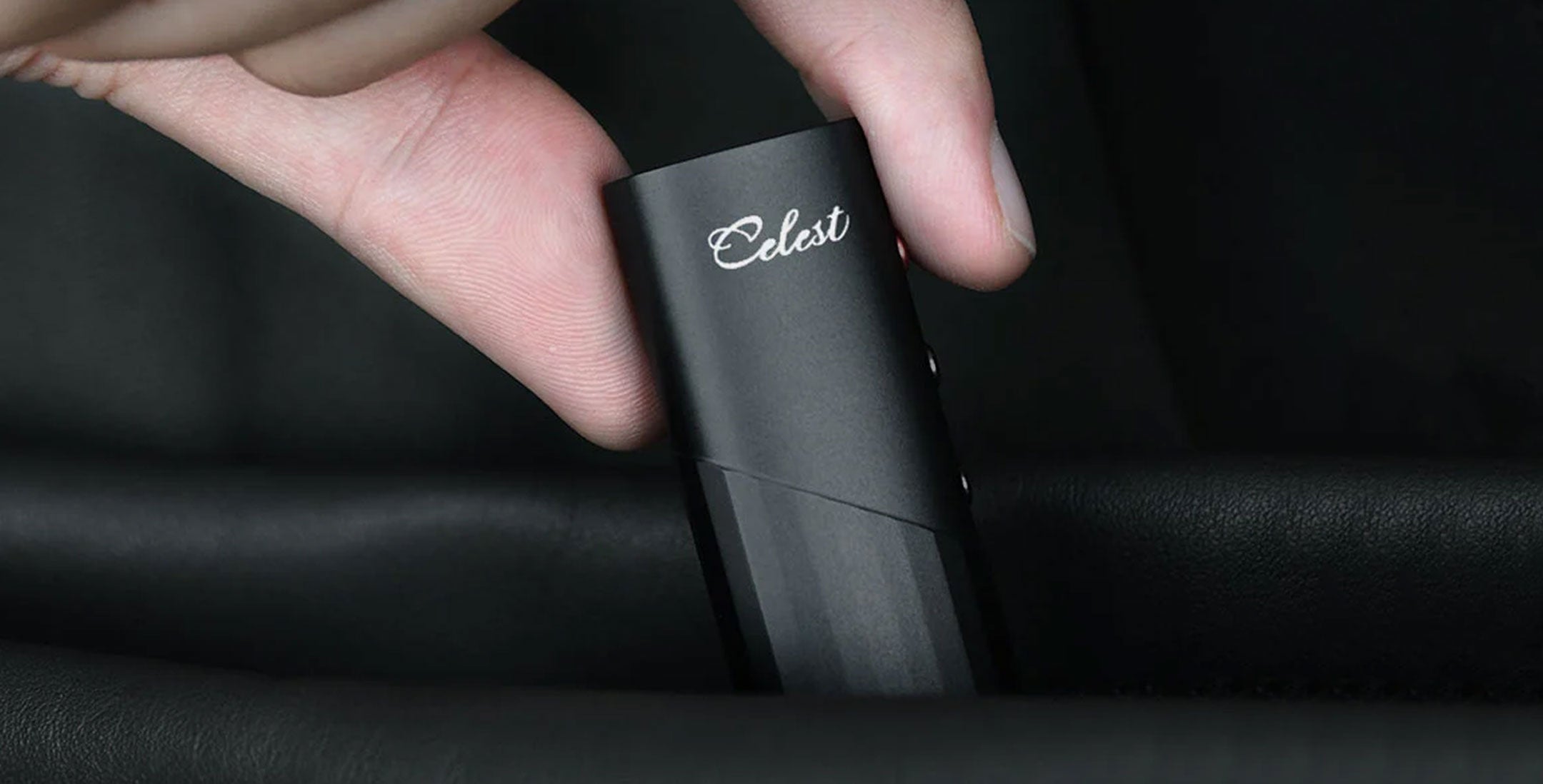

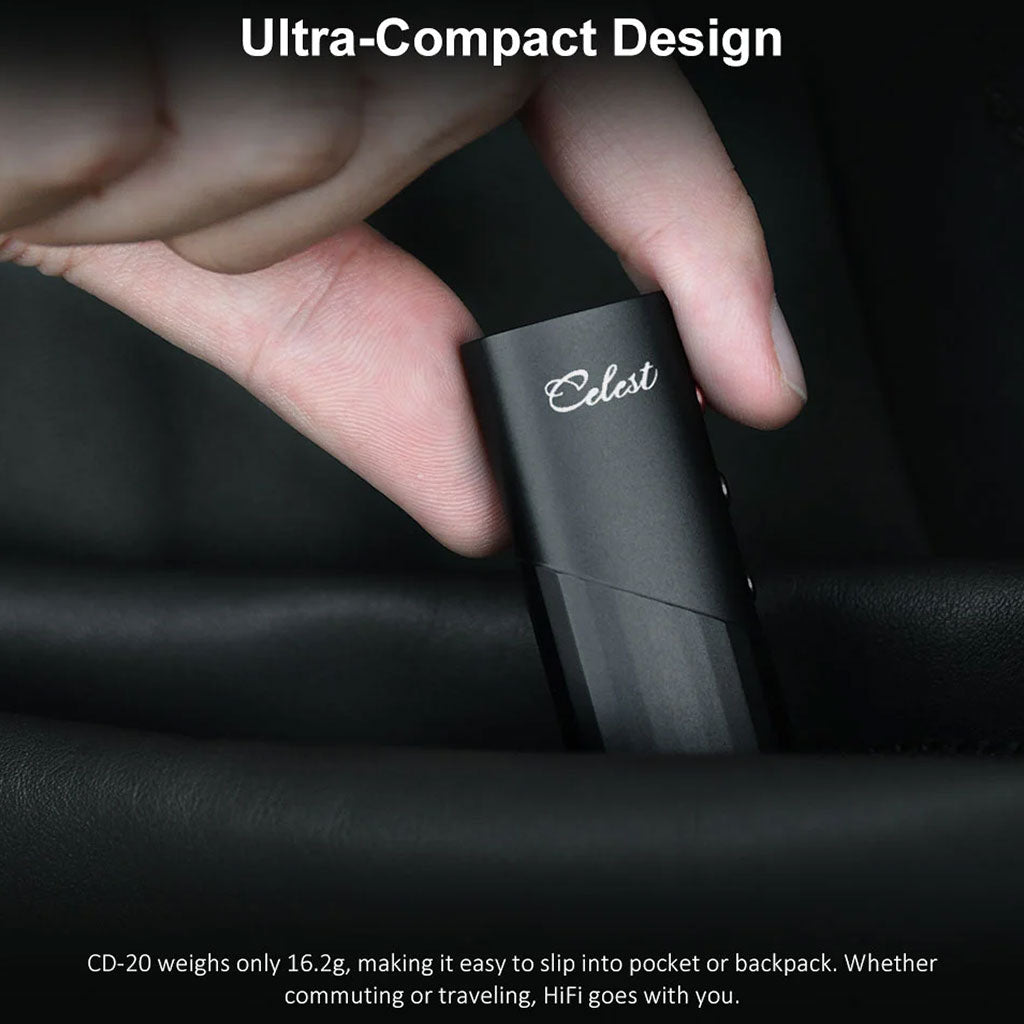

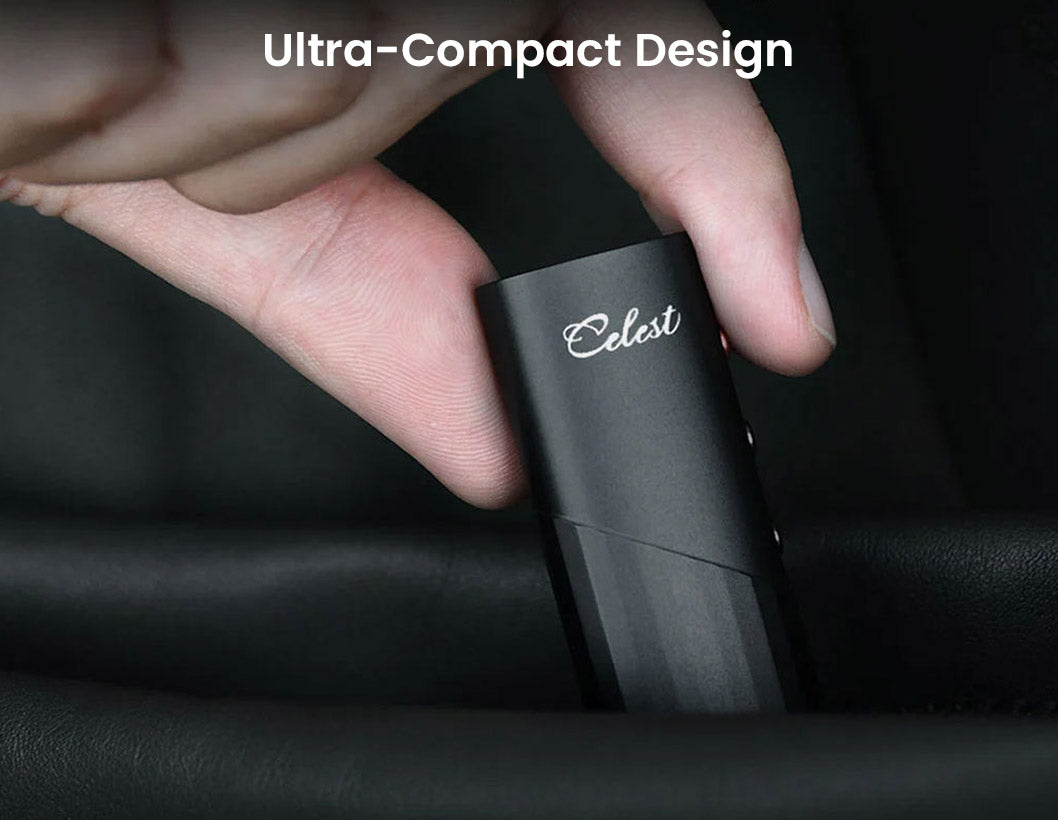

Kinera Celest CD-20 DAC AMP utra compact design

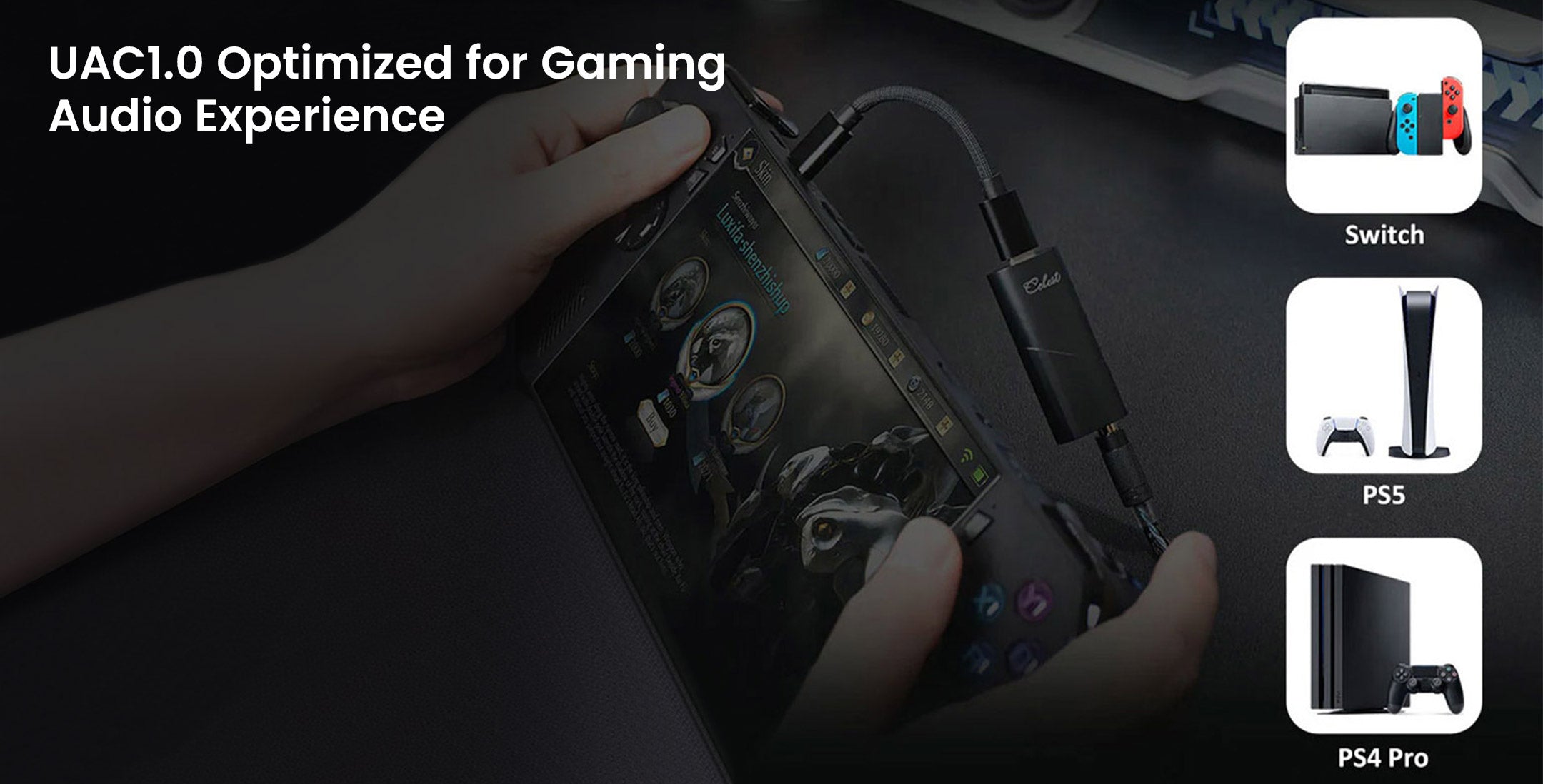

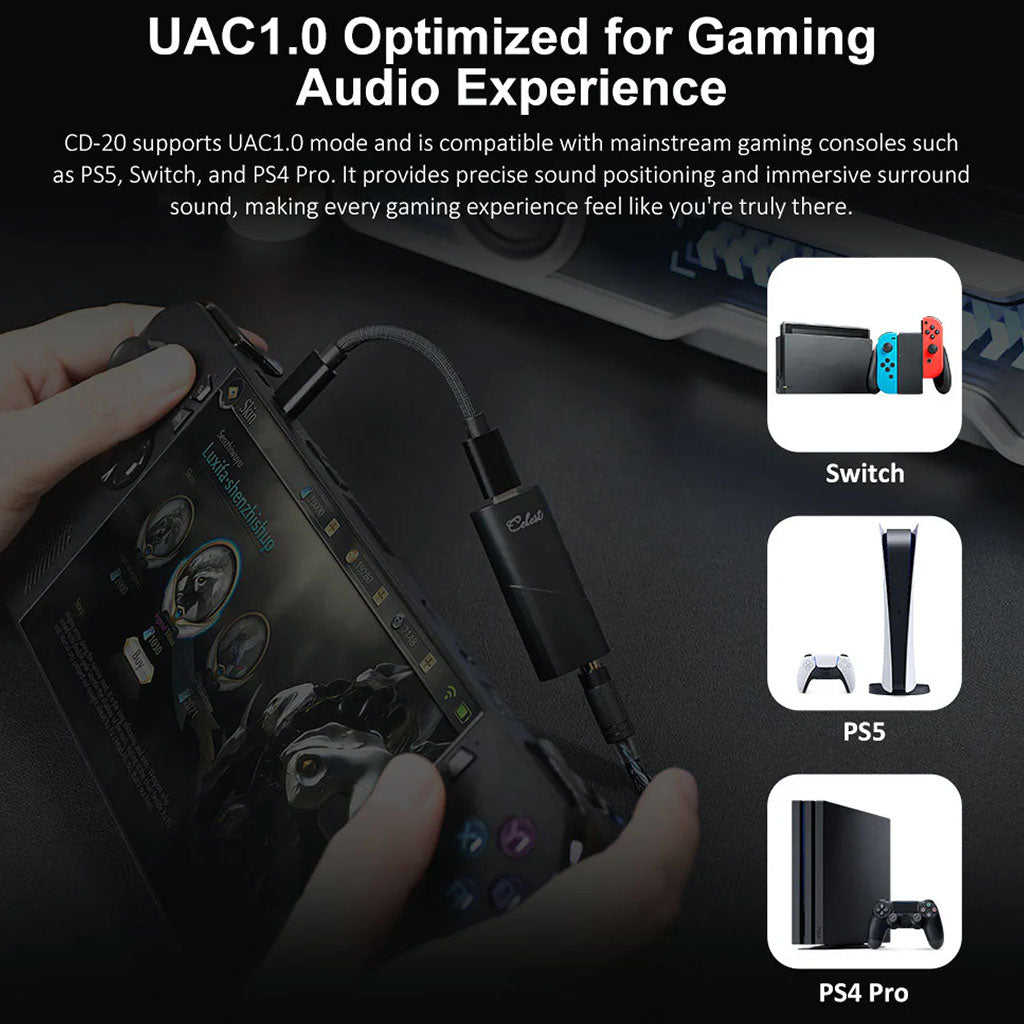

Kinera Celest CD-20 DAC AMP UAC 1.0 Optimized for gaming

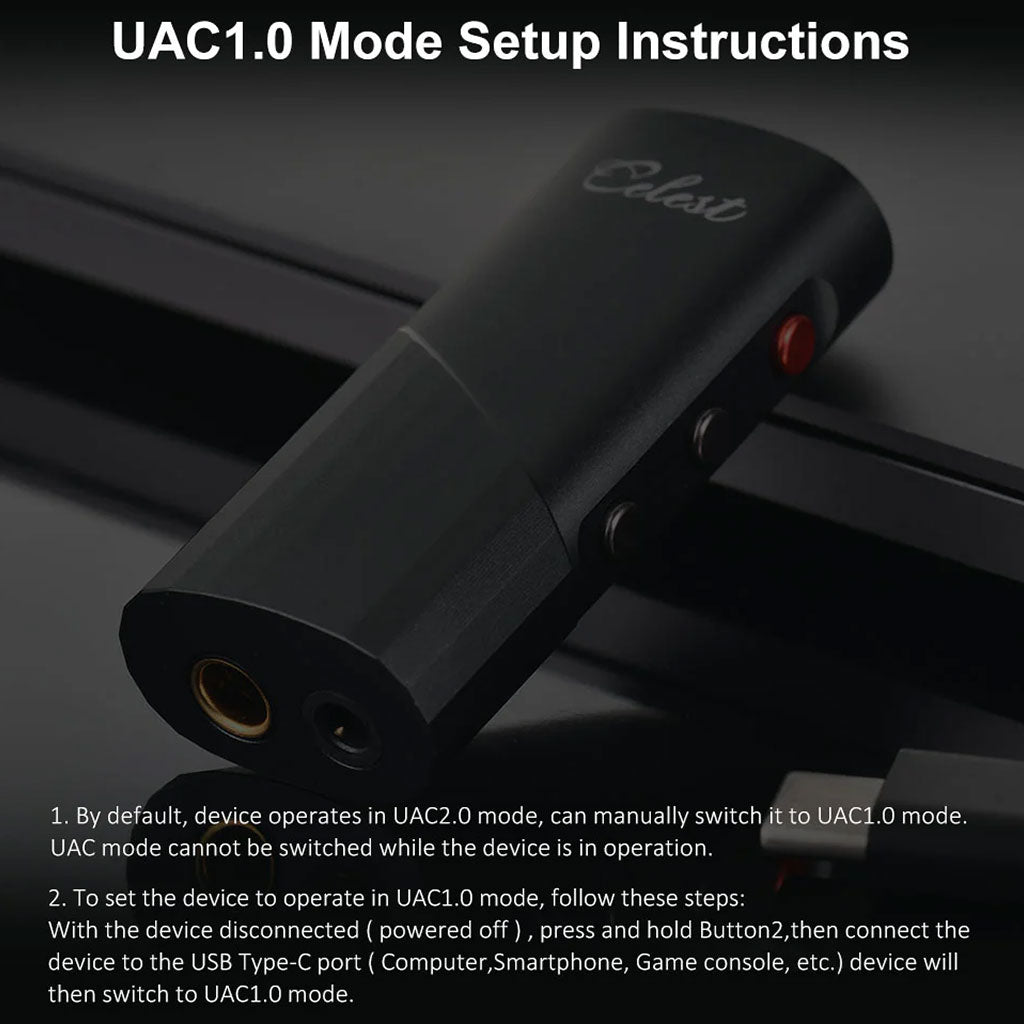

Kinera Celest CD-20 DAC AMP UAC1.0 Mode Setup

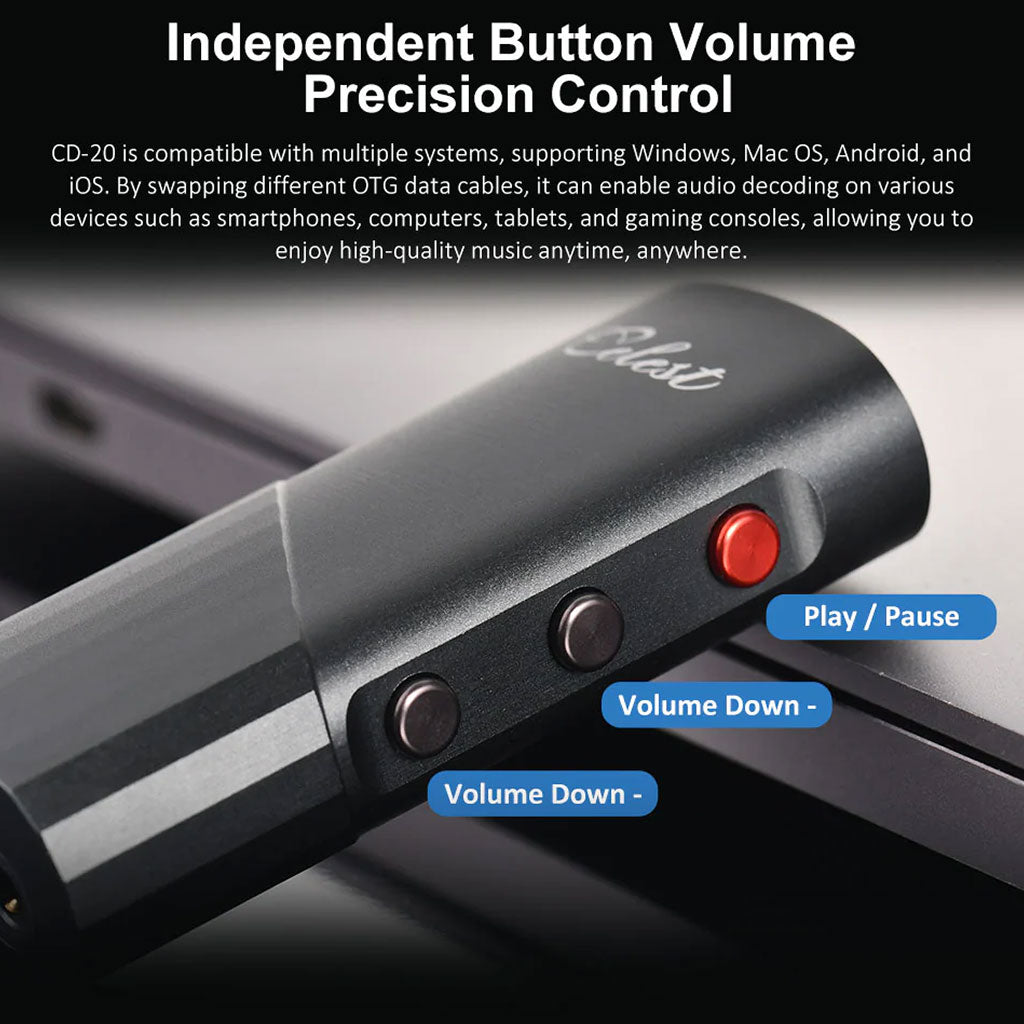

Kinera Celest CD-20 DAC AMP Volume Button

Kinera Celest CD-20 DAC AMP Multi Device Compatibility

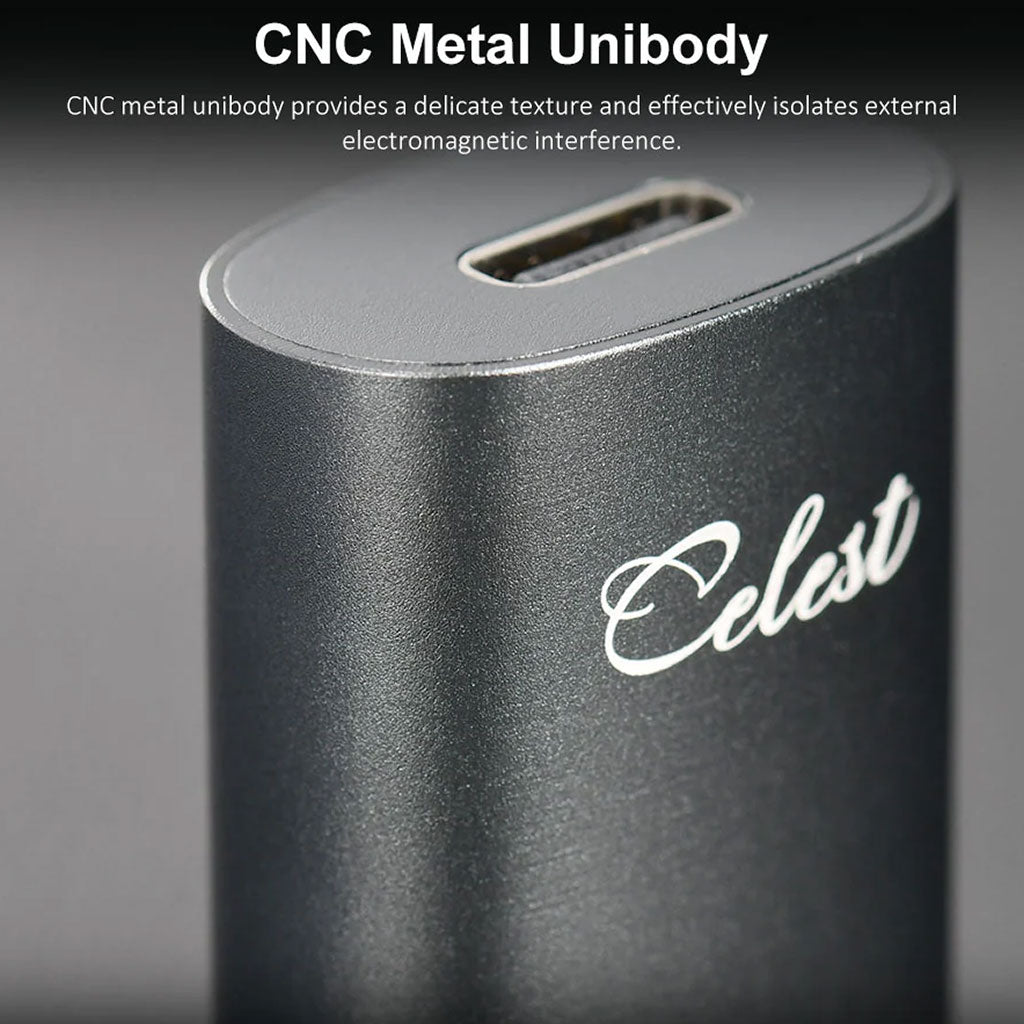

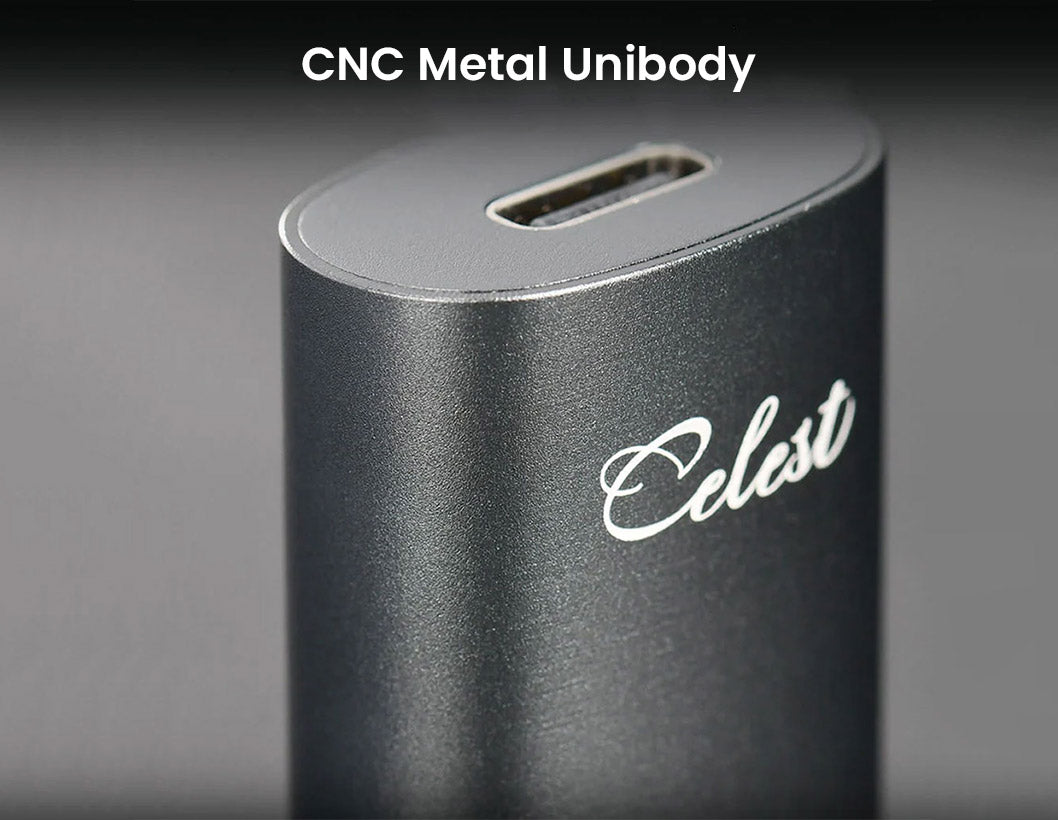

Kinera Celest CD-20 DAC AMP CNC MEtal Unibody

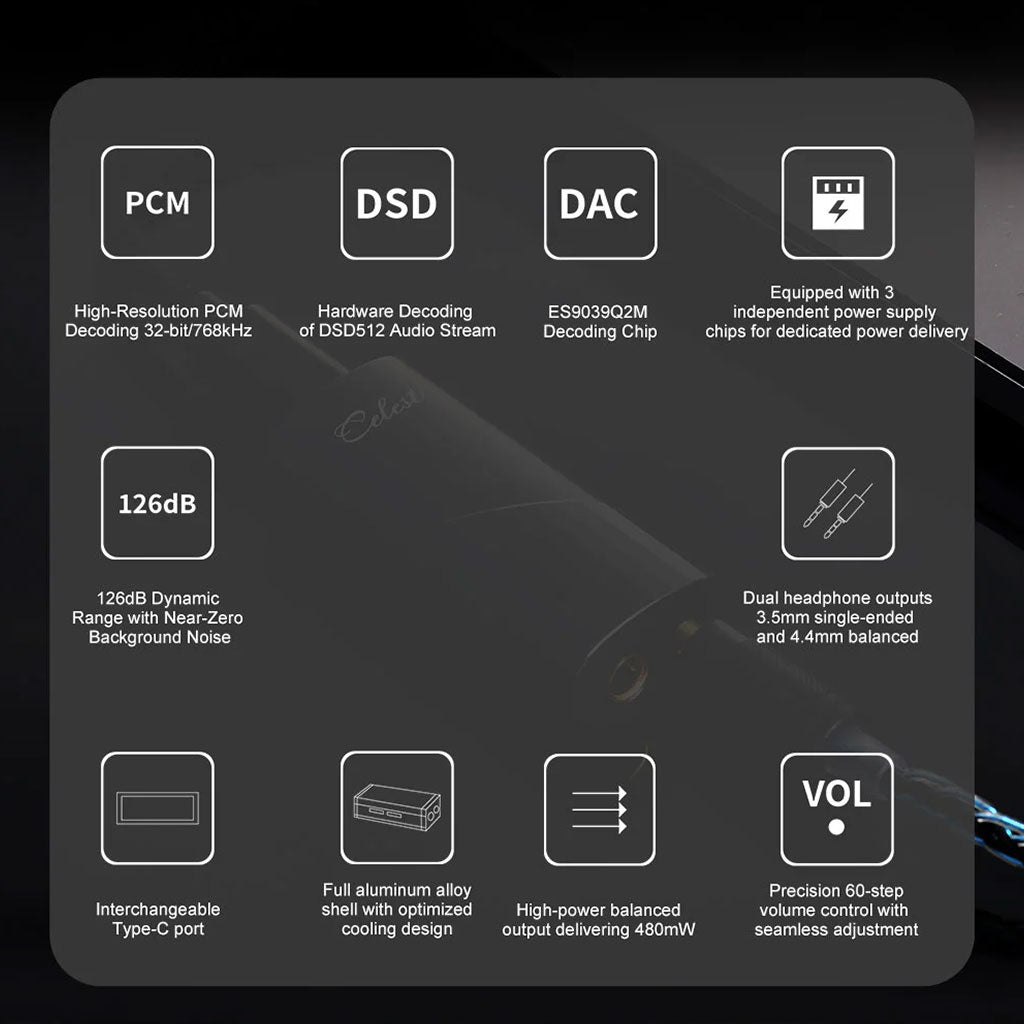

Kinera Celest CD-20 DAC AMP Outstanding Performance

Kinera

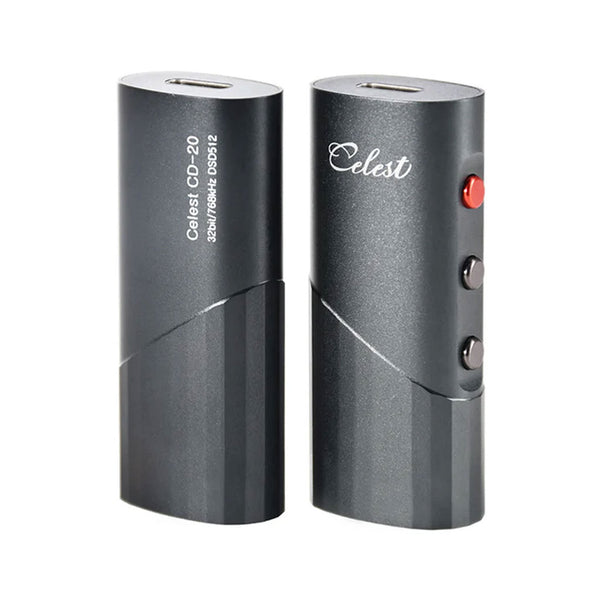

KINERA - Celest CD-20 ES9039Q2M Portable DAC & AMP

Name: KINERA Celest CD-20 ES9039Q2M Portable DAC & AMP
Brand: Kinera
SKU: Kinera-celest-CD-20-DAC-Gry
Price: 7490.0 INR
Availability: OutOfStock

₹ 7,490 MRP:₹ 12,299

Outstanding Performance with ES9039Q2M DAC Chip

Support PCM 32-bit/768kHz and DSD512 for Hi-Res Audio Decoding

Dual Headphone Output(3.5mm/4.4mm)

High-Powerful Balanced Output Upto 480mW

Ultra-Low Background Noise with 128dB Dynamic Range

Multi-Device Compatibility with Type-C to Type-C Cable

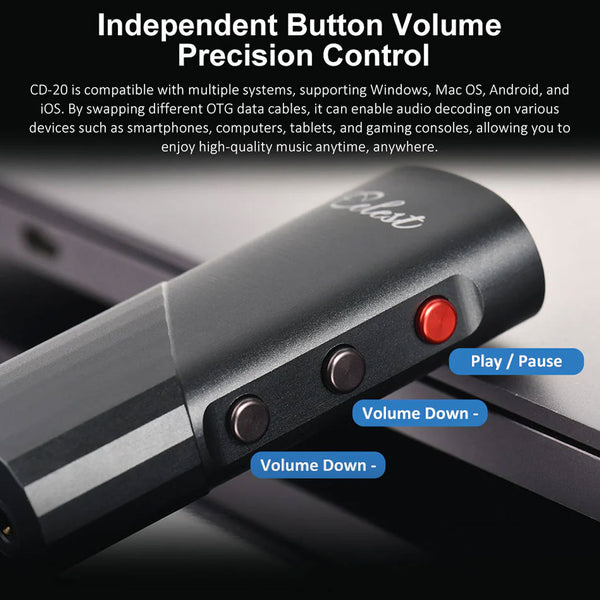

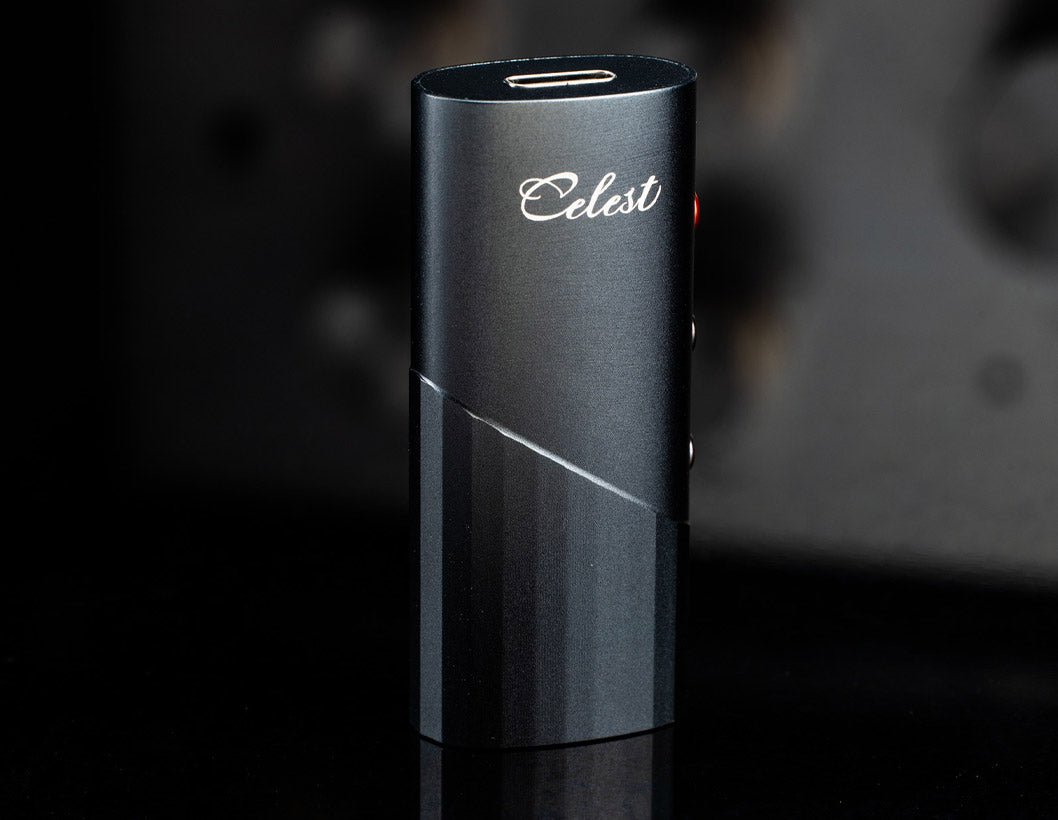

CNC-Machined Metallic Unibody with Volume Control Buttons

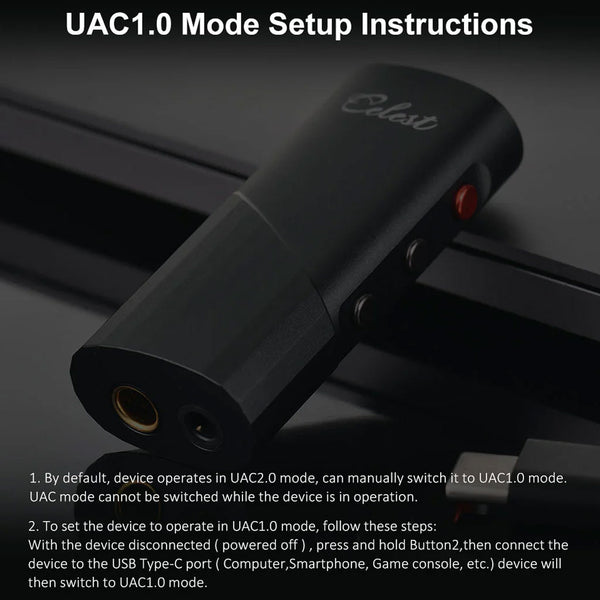

UAC1.0 Mode Compatibility

Product variants

Out of stock

Pickup currently unavailable at Naraina, New Delhi

Share:

Share

Description

The KINERA CELEST CD-20 is a versatile Portable USB DAC & AMP Dongle engineered for high-resolution audio across Windows, macOS, Android, iOS, and gaming consoles like PS5, Switch, and PS4 Pro. Featuring the flagship ES9039Q2M DAC chip from ESS Sabre, it delivers an outstanding 126 dB dynamic range with crystal-clear sound and low noise. With support for PCM up to 32-bit/768kHz and DSD512, it ensures accurate playback of studio-quality audio files. Dual headphone outputs—a 3.5mm single-ended jack and a 4.4mm balanced jack—offer flexibility and up to 480mW at 32 ohms or 4Vrms in balanced mode, enabling it to power demanding high-impedance headphones. The robust CNC metal unibody construction ensures durability and interference-free performance, while the lightweight 16.2g design enhances portability. UAC1.0 mode compatibility further extends its usability for immersive gaming audio, and independent volume controls provide precise adjustments. This portable DAC & AMP includes Type-C to Type-C cable and optional OTG support making it an ideal companion for premium audio on the go.

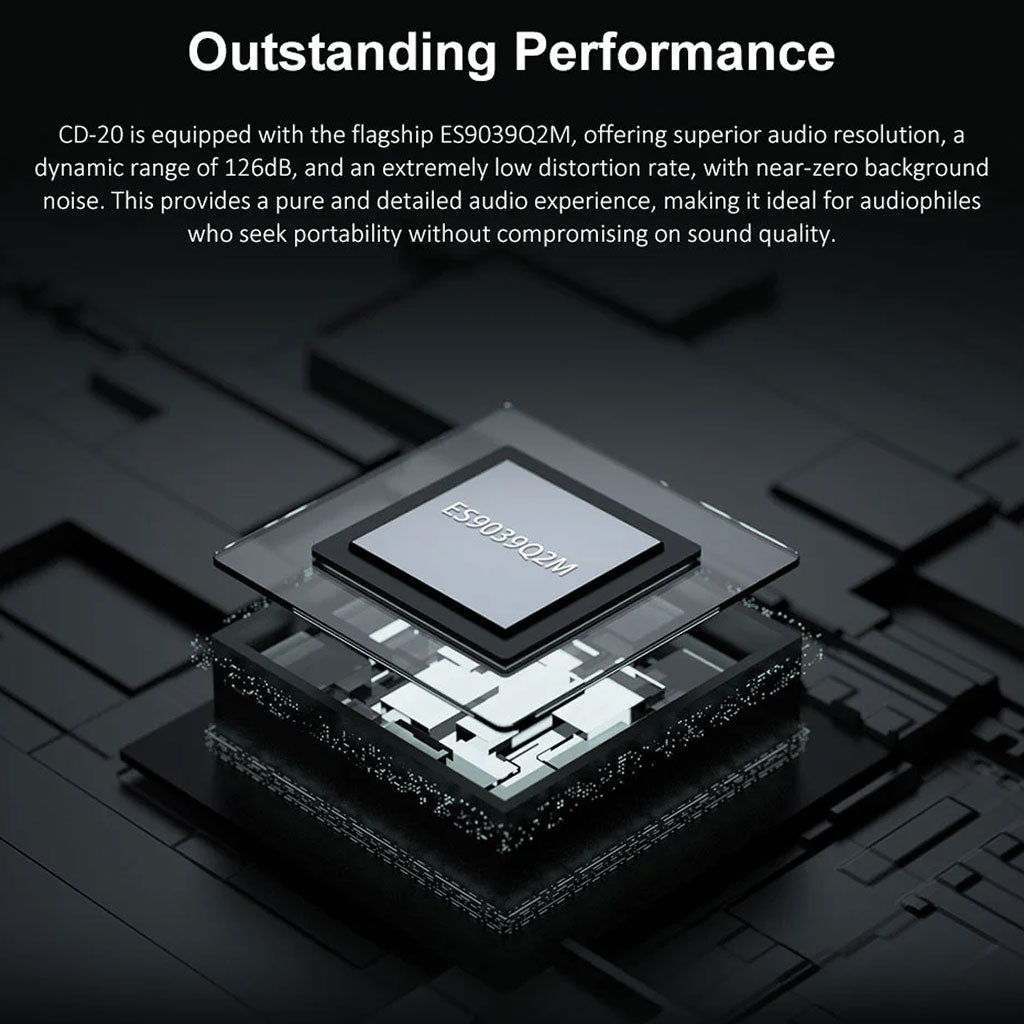

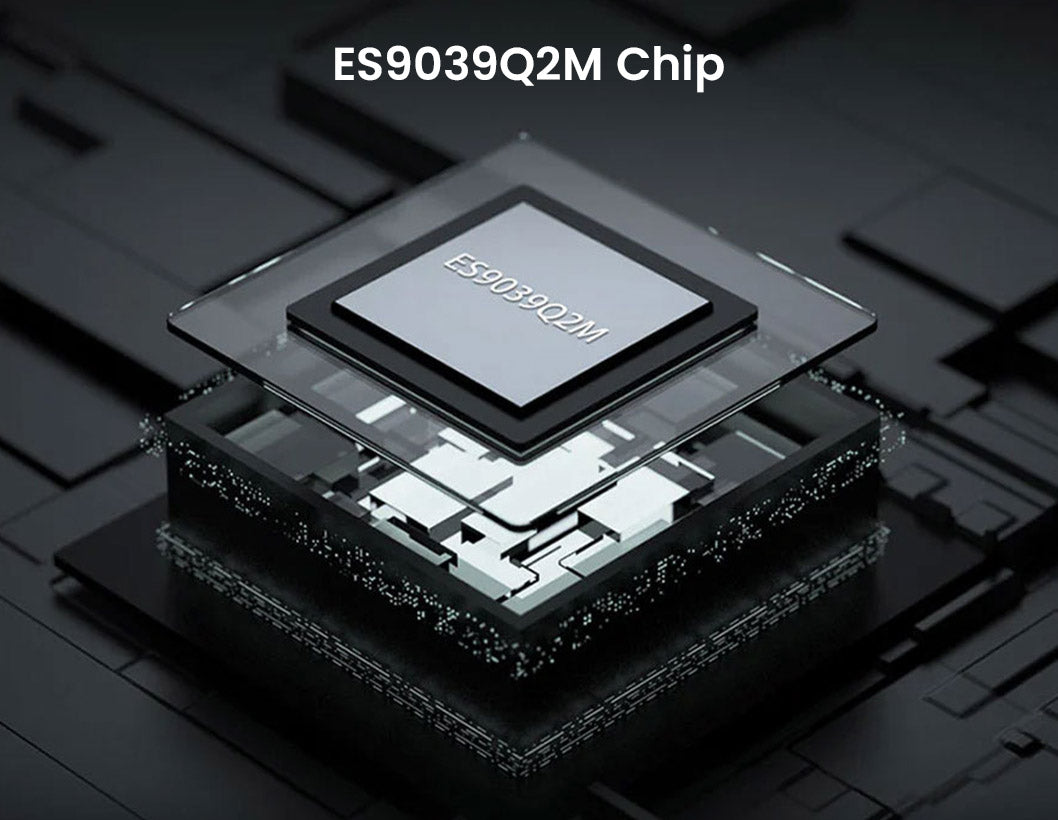

ADVANCED ES9039Q2M ESS SABRE DAC CHIP FOR HI-RES AUDIO

The KINERA CELEST CD-20 is a high-performance Portable DAC & AMP designed to elevate your audio experience. Equipped with the flagship ES9039Q2M decoding chip from ESS Sabre, this DAC Dongle achieves an exceptional dynamic range of 126dB. The result is crystal-clear sound with stunning detail and depth. As a USB DAC and AMP Dongle, the CD-20 effectively suppresses background noise, delivering pristine audio clarity and preserving the finest details in your music.

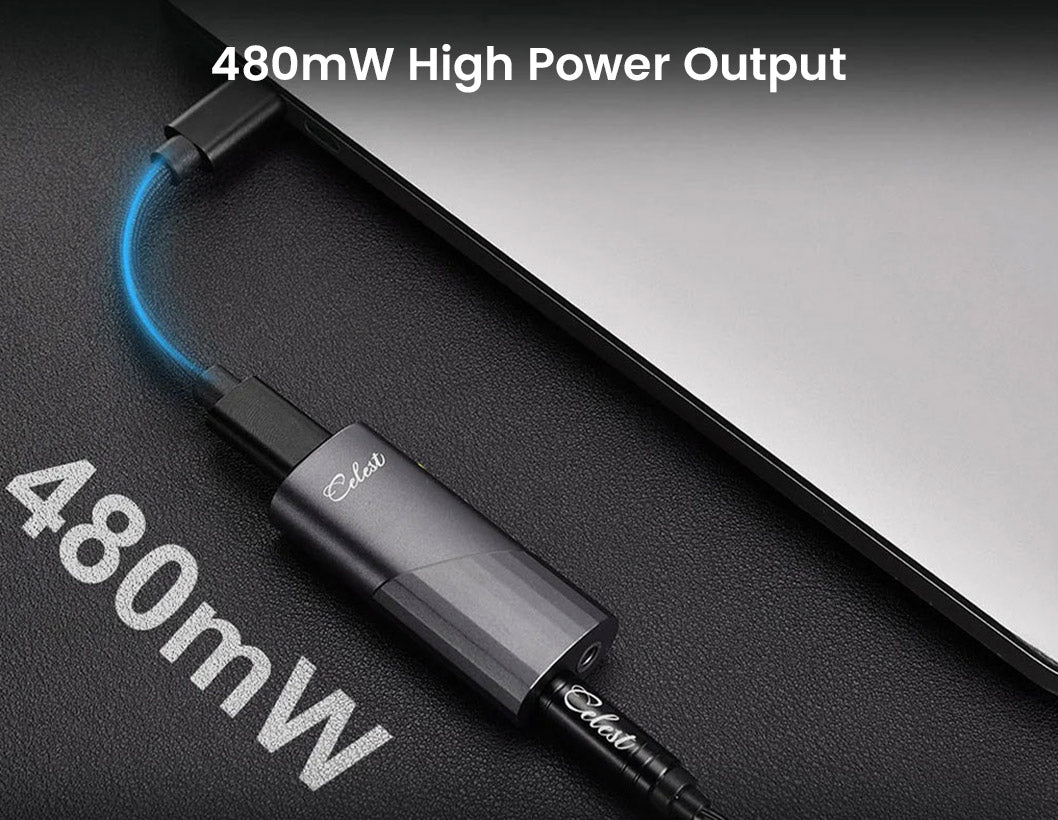

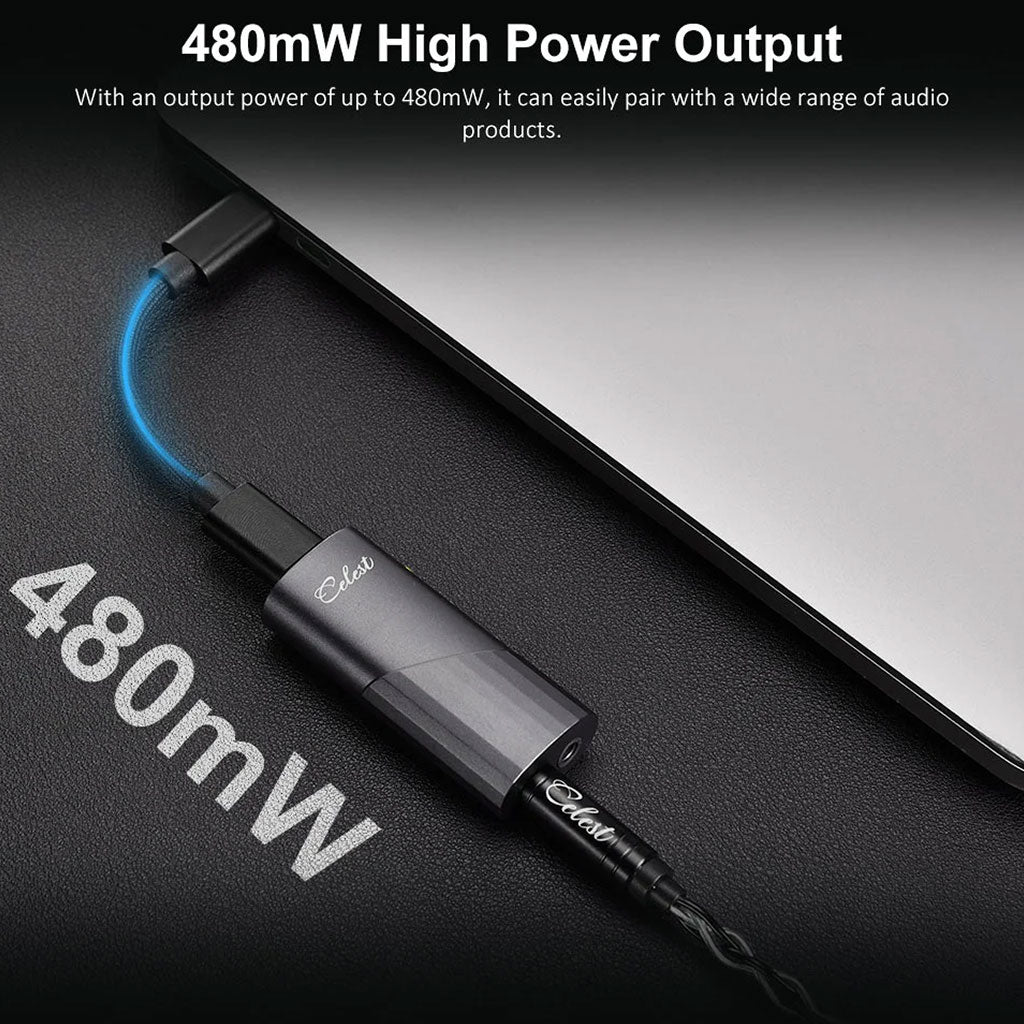

480mW HIGH POWERFUL BALANCED OUTPUT

The KINERA CELEST CD-20 portable DAC & AMP is engineered to handle demanding audio loads. With a balanced output of 480mW at 32 ohms, it can supply the necessary power for high-impedance headphones, delivering clear, dynamic sound without distortion. This ensures full-range audio performance, from low frequencies to high, for a balanced and detailed listening experience.

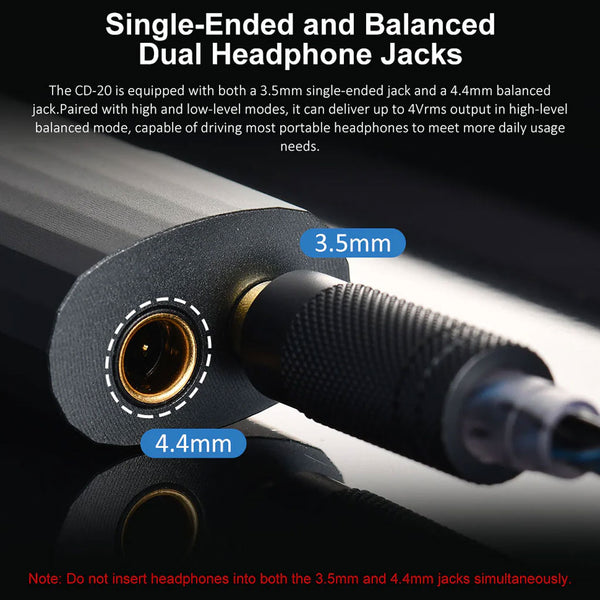

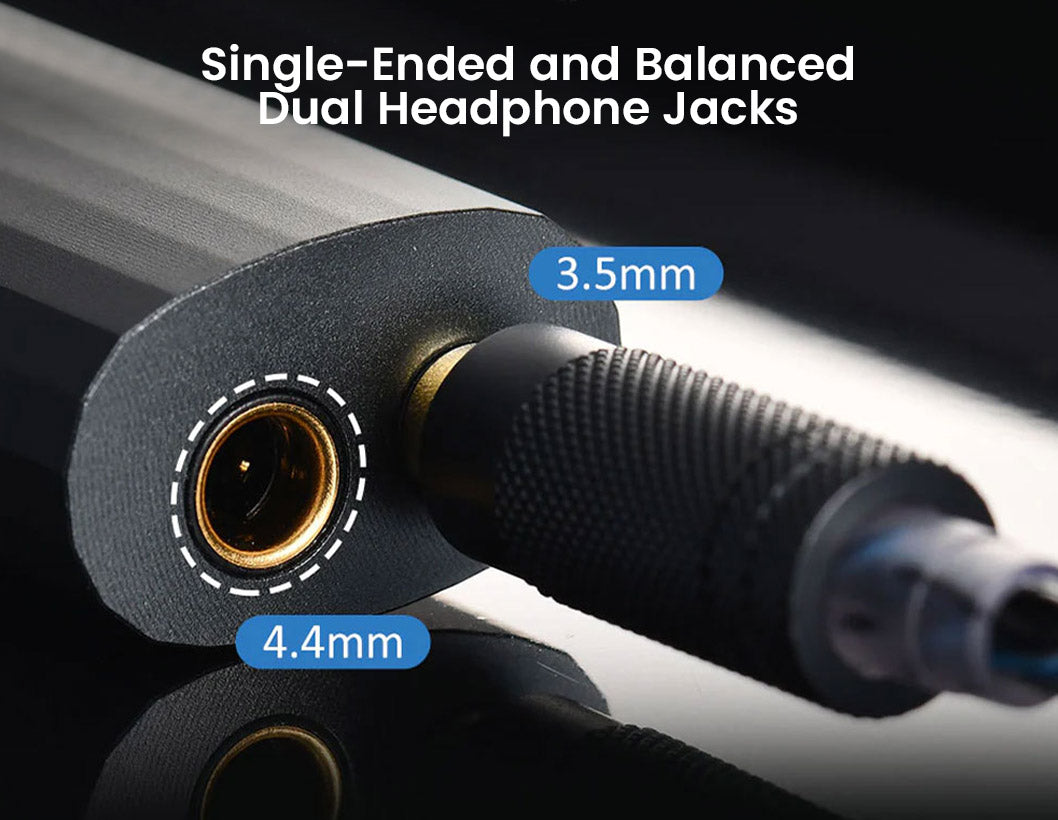

DUAL POWERFUL HEADPHONE OUTPUT

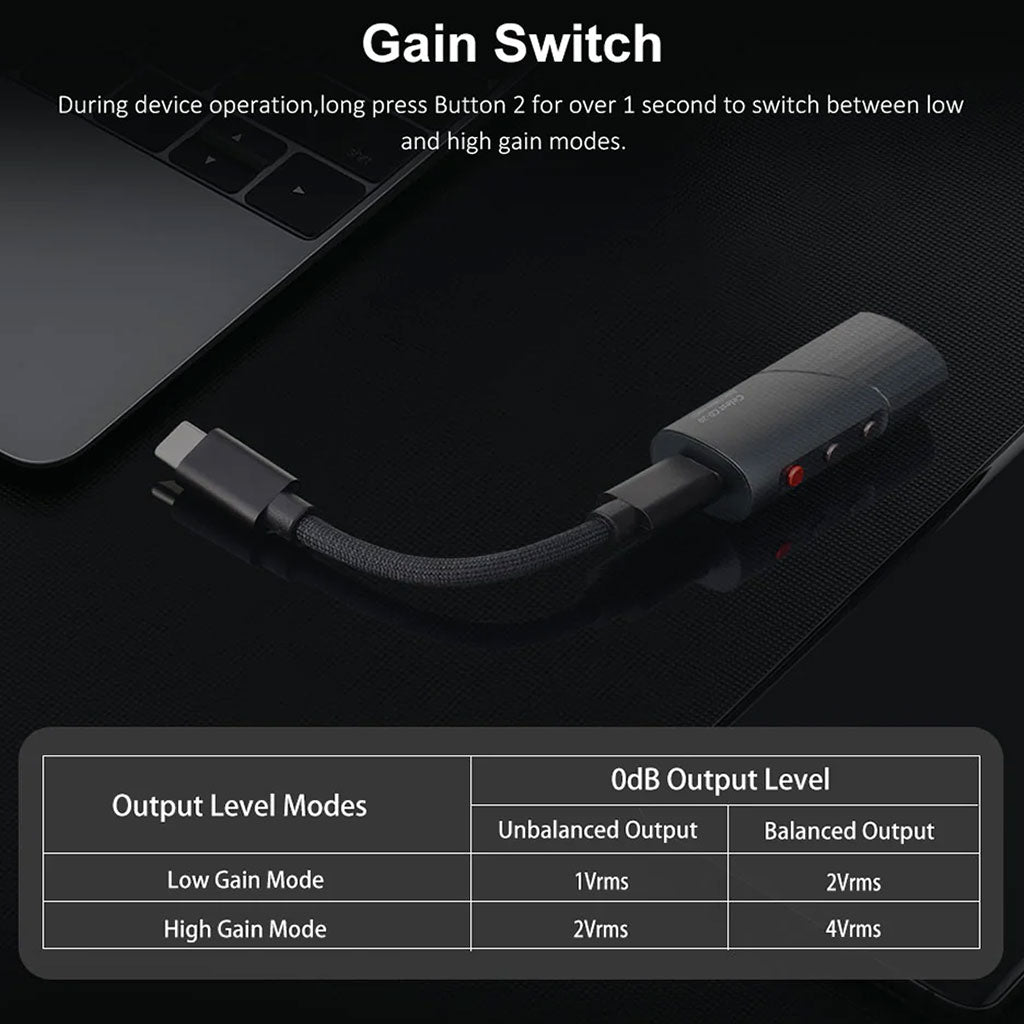

With both a 3.5mm single-ended and a 4.4mm balanced jack, the CELEST CD-20 offers flexible options for different headphone configurations. The 3.5mm single-ended jack for standard headphones, while the 4.4mm balanced jack enhances audio performance by delivering a balanced signal, which reduces crosstalk and provides clearer sound. The CELEST CD-20 portable DAC features two output modes—high and low-level—to accommodate a wide range of headphones. In high-level balanced mode, it can deliver up to 4Vrms, making it capable of driving headphones that require more power, such as high-impedance models. This ensures both portable and more demanding headphones are supported with clean, distortion-free audio.
Note: It is recommended to only connect headphones to one jack at a time to ensure proper signal flow and avoid any performance issues.

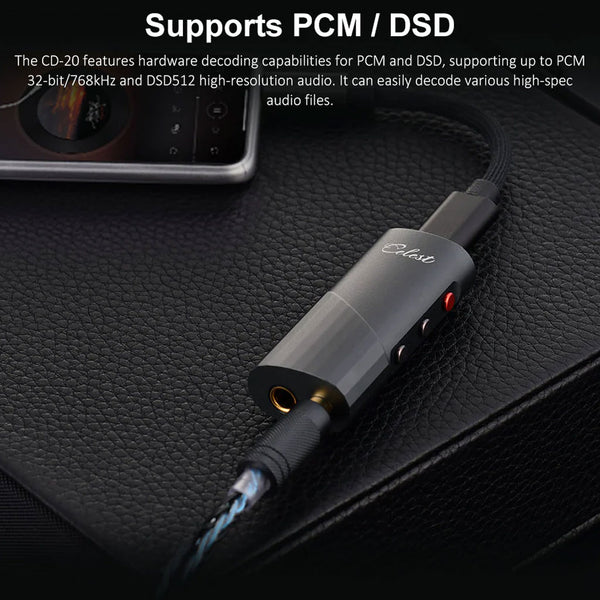

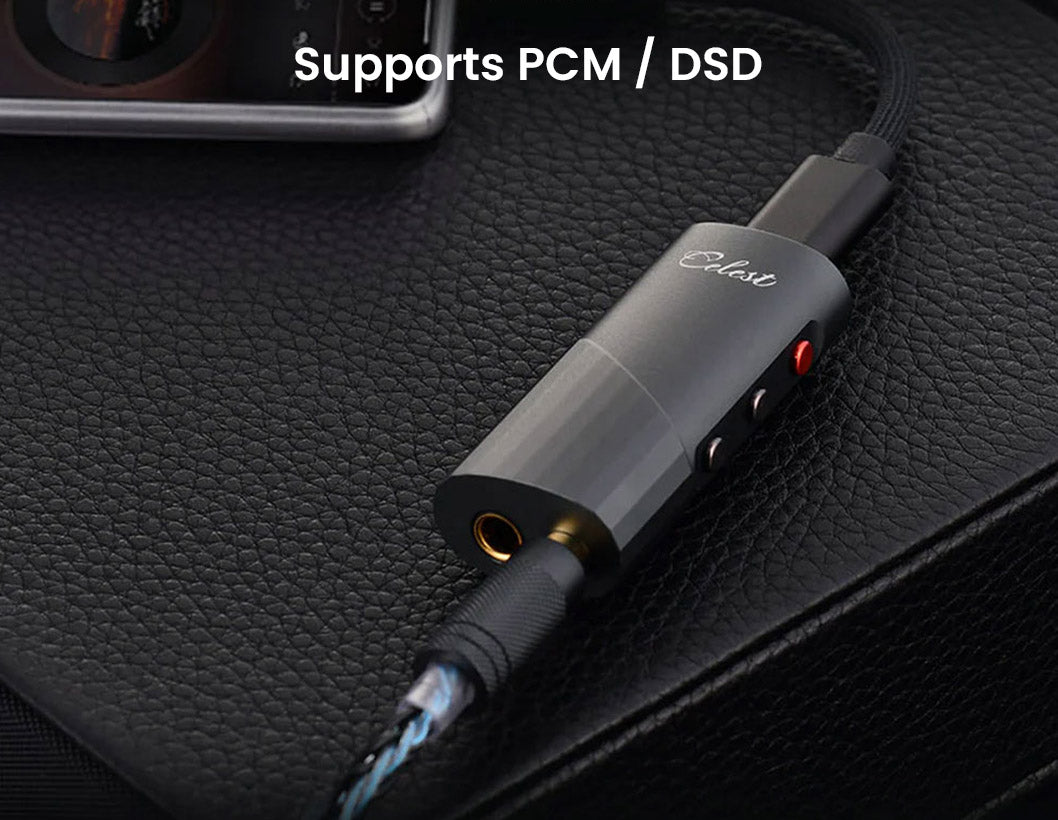

SUPPORTS PCM AND DSD AUDIO FORMATS

The CELEST CD-20 portable DAC & Amp is engineered to handle high-resolution audio formats with precision. It supports hardware decoding for PCM audio up to 32-bit/768kHz and DSD up to DSD512, ensuring accurate and detailed sound reproduction. This capability allows the CD-20 to process a wide range of high-spec audio files, delivering studio-quality sound across various devices.

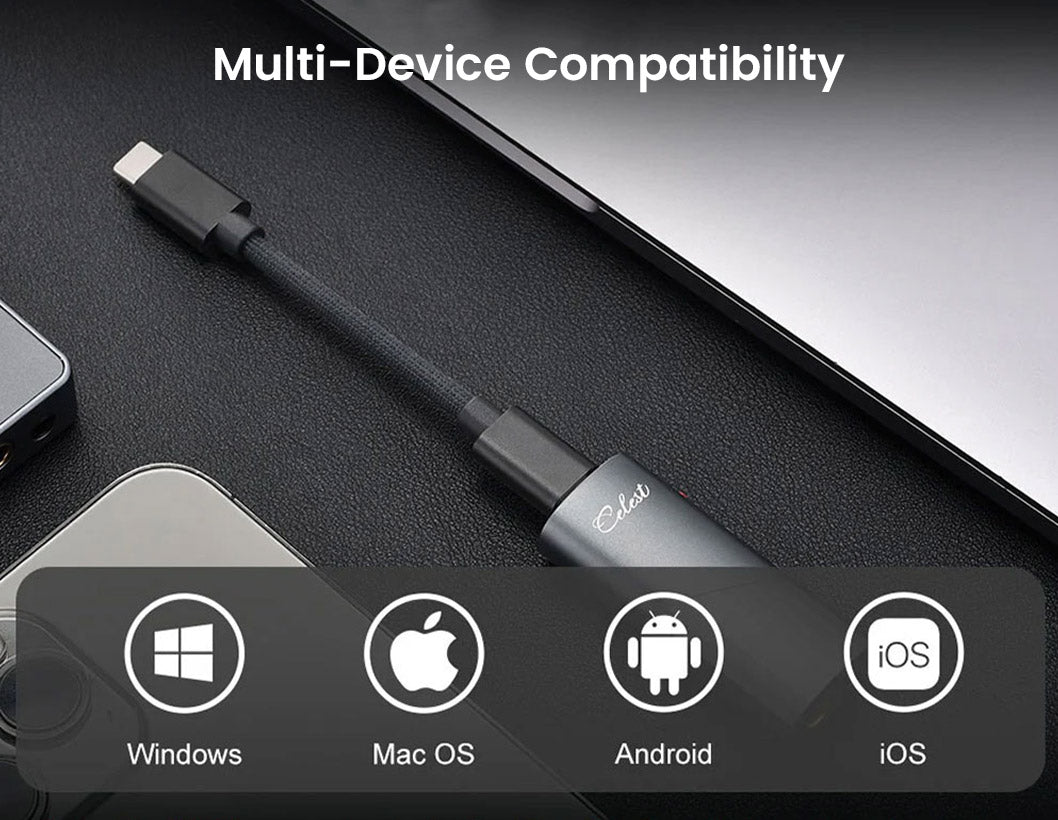

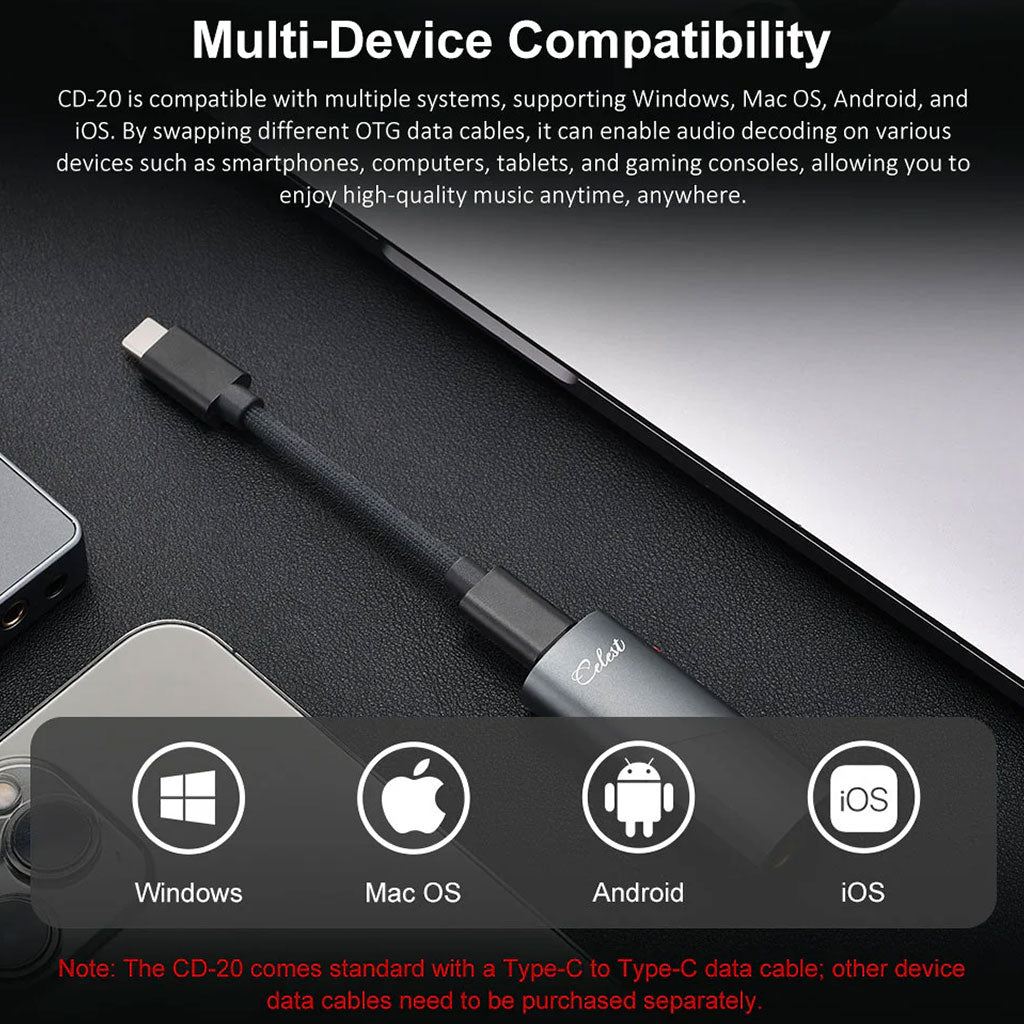

UNIVERSAL TYPE-C TO TYPE-C COMPATIBILITY

The CD-20 is compatible with Windows, macOS, Android, and iOS devices, allowing easy connection to a wide range of platforms like smartphones, tablets, computers, and gaming consoles. It comes with a Type-C to Type-C cable, and you can purchase additional OTG cables for other device connections.

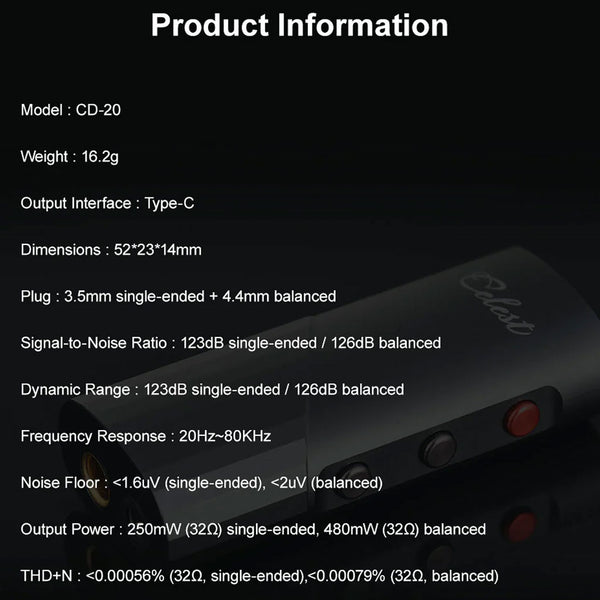

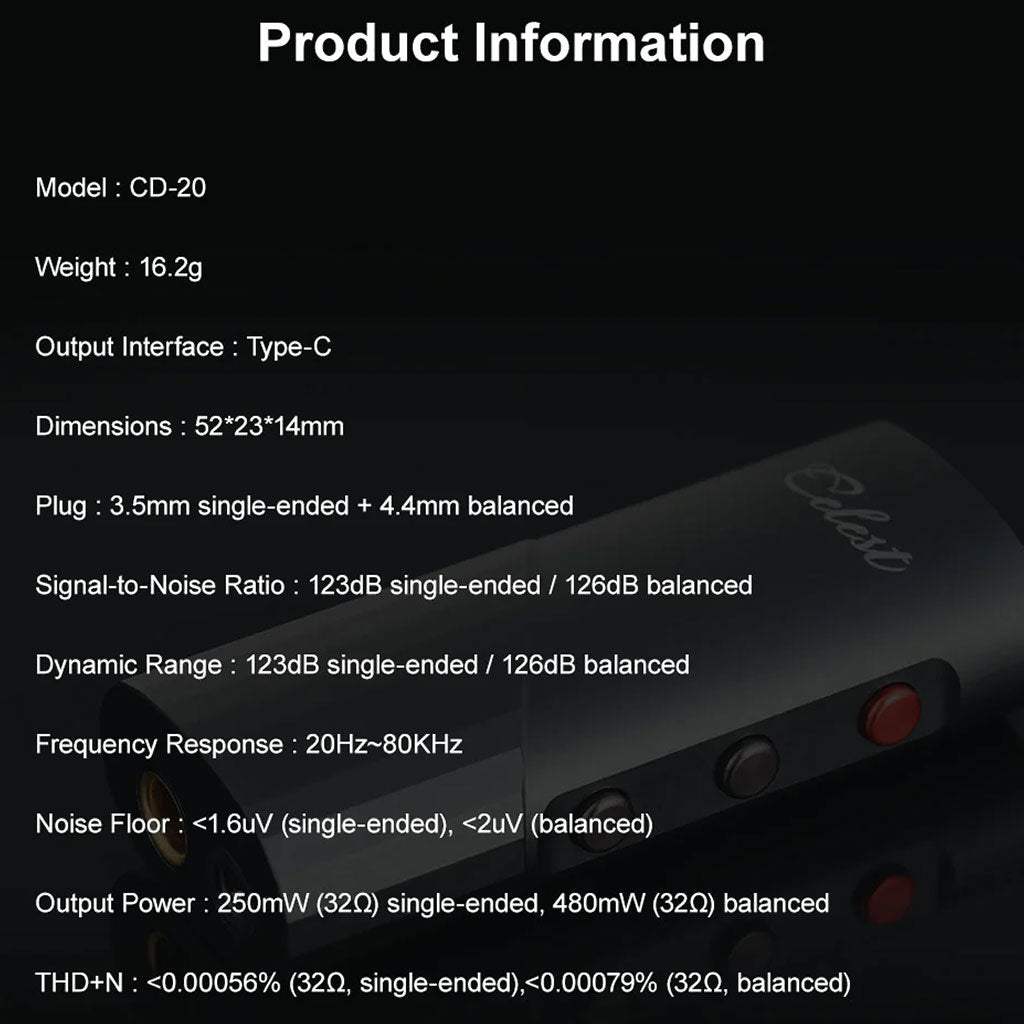

Specifications

Brand Name

KINERA CELEST

Model

CD-20

Product

KINERA CELEST CD-20 Portable DAC & Amp

DAC

ES9039Q2M

Signal-to-Noise Ratio

123dB single-ended / 126dB balanced

Dynamic Range

123dB single-ended / 126dB balanced

Frequency Response

20Hz~80KHz

Noise Floor

<1.6uV (single-ended), <2uV (balanced)

Output Power

250mW (32Ω) single-ended, 480mW (32Ω) balanced

THD+N

<0.00056% (32Ω, single-ended), <0.00079% (32Ω, balanced)

Plug

3.5mm single-ended + 4.4mm balanced

Output Interface

Type-C

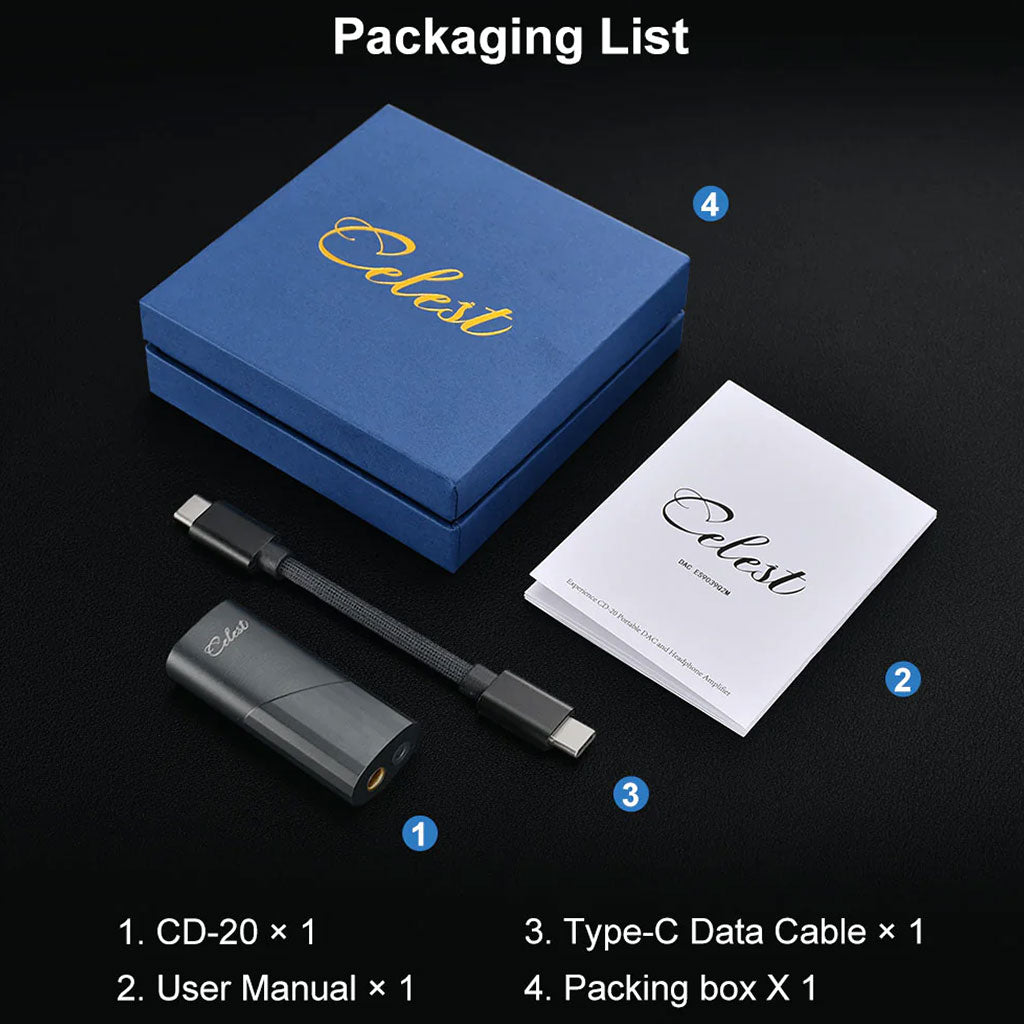

Box Content

1x KINERA CELEST CD-20 DAC & AMP
1x Type-C to Type-C Cable
1x User Manual

Warranty

1 YEAR WARRANTY
