GUSTARD

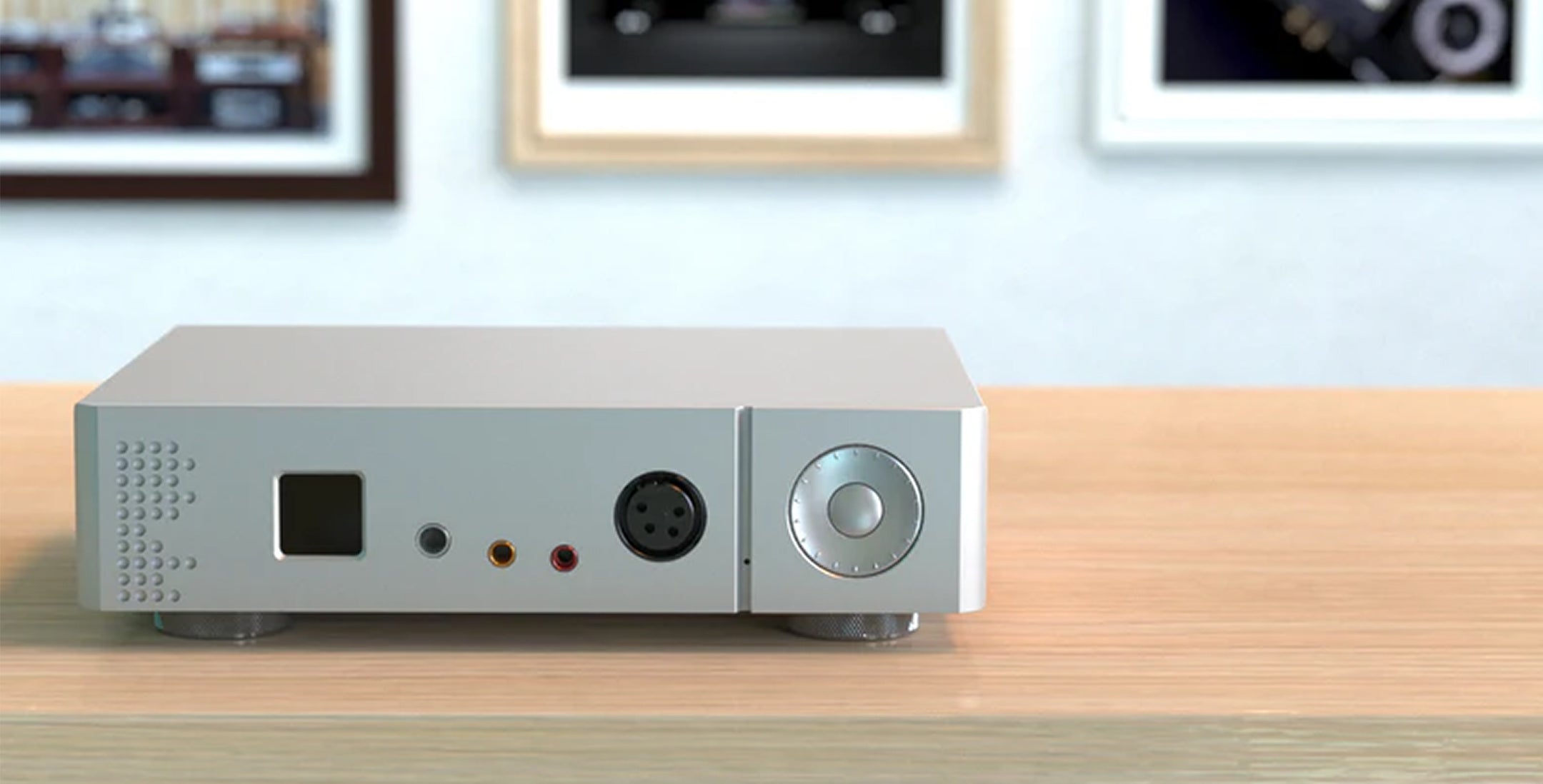

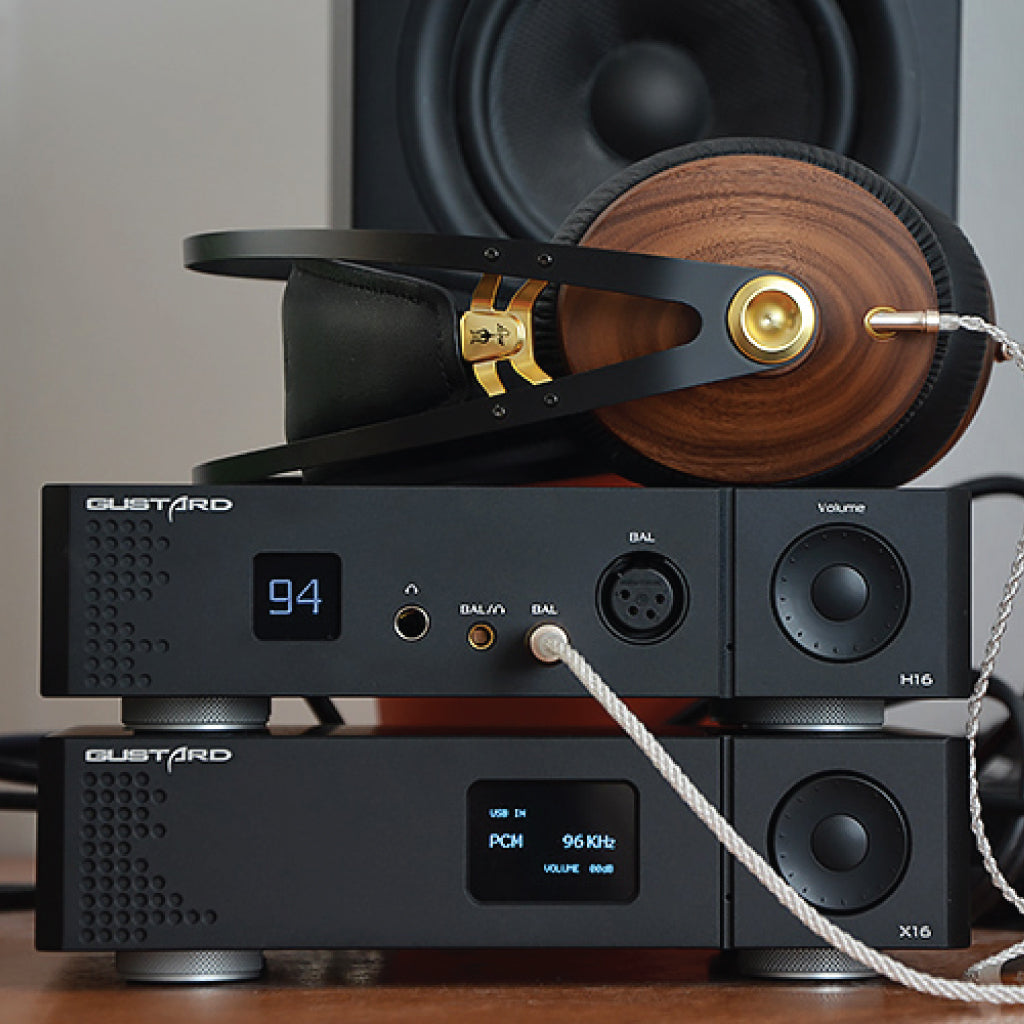

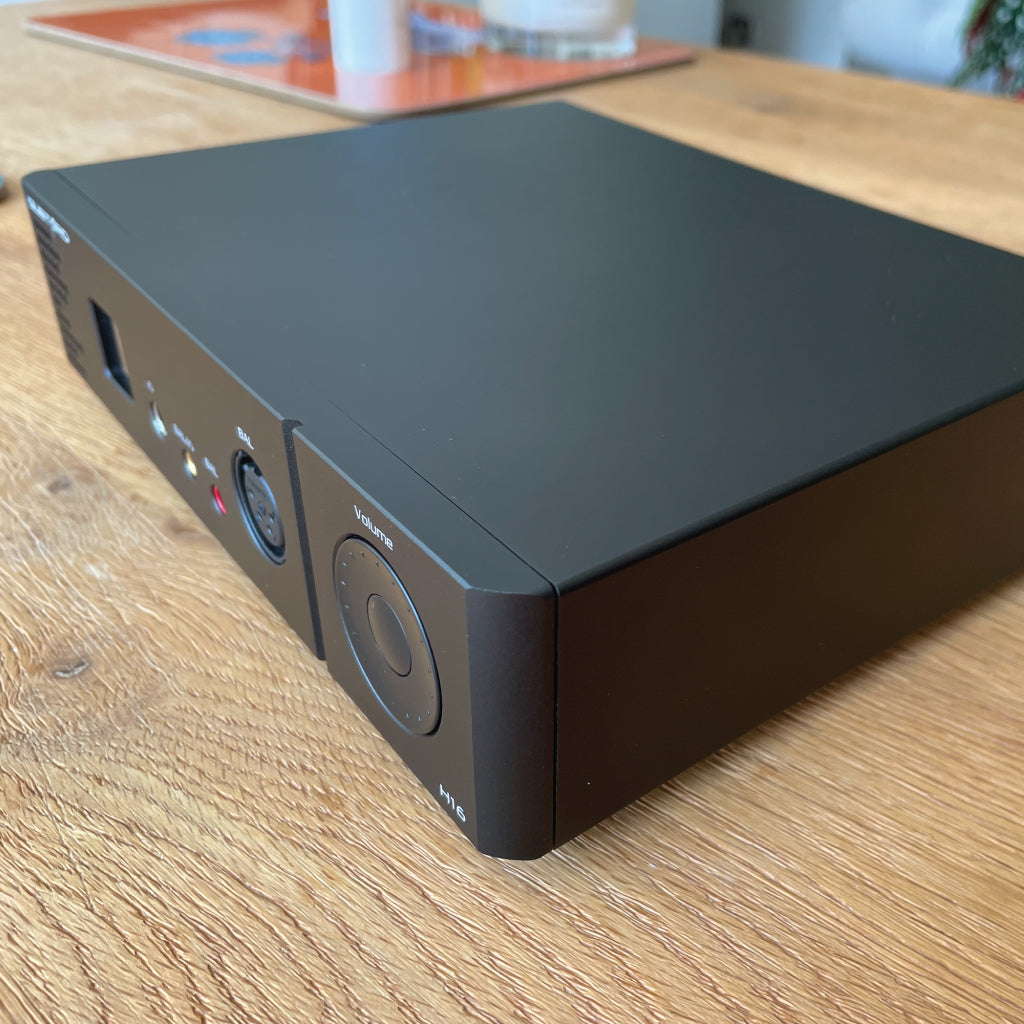

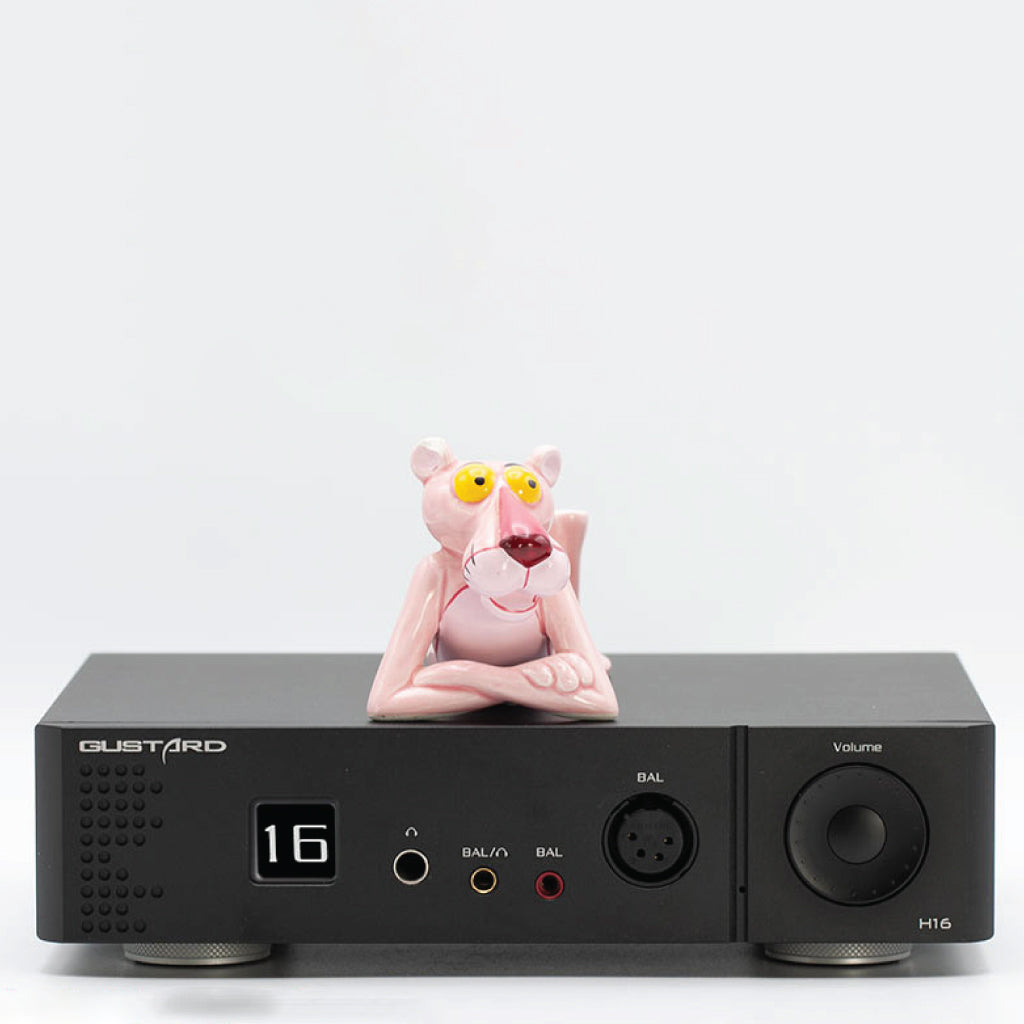

GUSTARD - H16 Desktop Headphone Amplifier

Sale price₹ 29,990Regular price MRP:₹ 45,999

  • Headphone Amp with Bal & Unbal
  • 3 Stage Gain Adjustment
  • Reliable, Noise-Free Operation
  • Matrix Relay-Powered Volume Control
  • OPA1642 and OPA1678 for impedance matching
  • Built-in Linear Power Supply
Out of stock

Pickup currently unavailable at Naraina, New Delhi

Description

PRECISION 3-STAGE GAIN CONTROL FOR BALANCED AND SINGLE-ENDED HEADPHONES

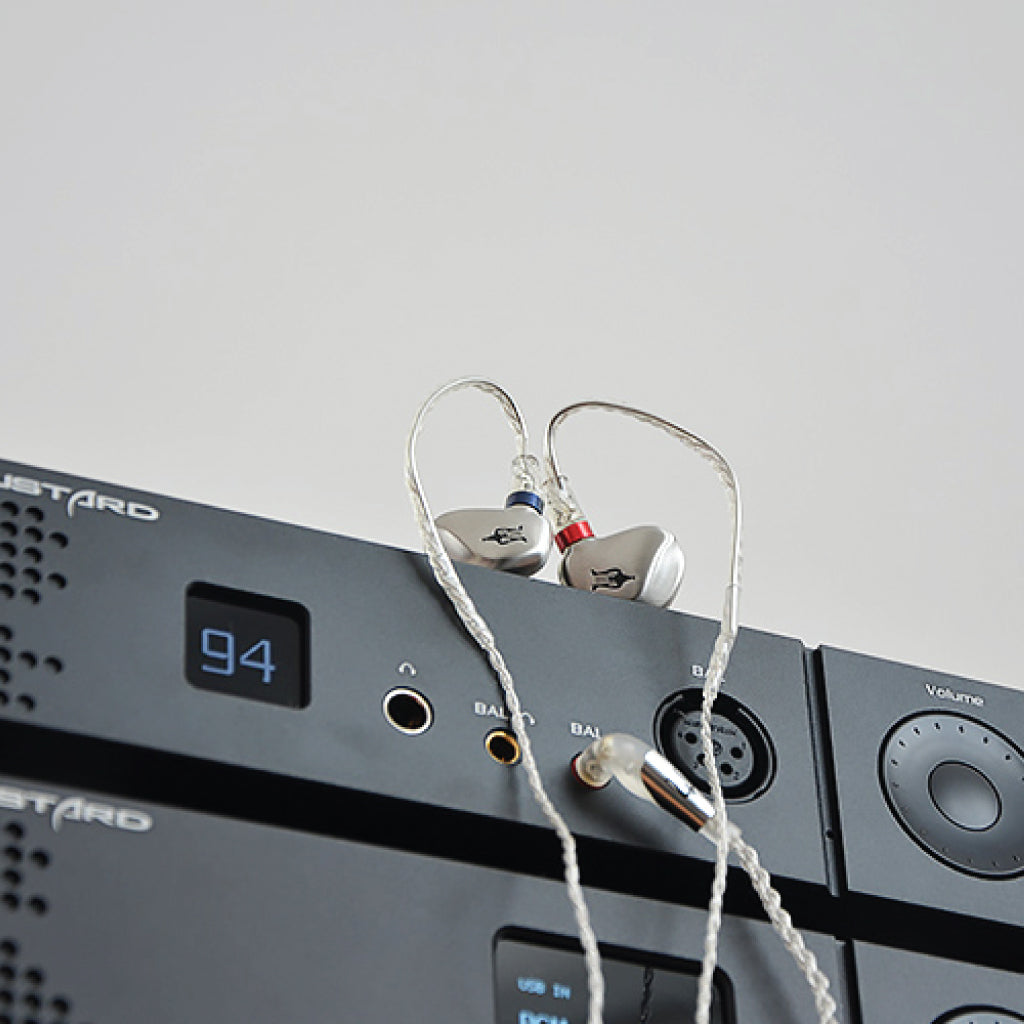

The GUSTARD H16 amplifier is versatile, offering a 3-stage gain adjustment setting that allows seamless pairing with both small earphones and large headphones. It is designed to drive both balanced and single-ended high-impedance headphones, ensuring optimal performance for various audio setups.

MASTERFUL SOUND CONTROL AND VERSATILE OUTPUT OPTIONS

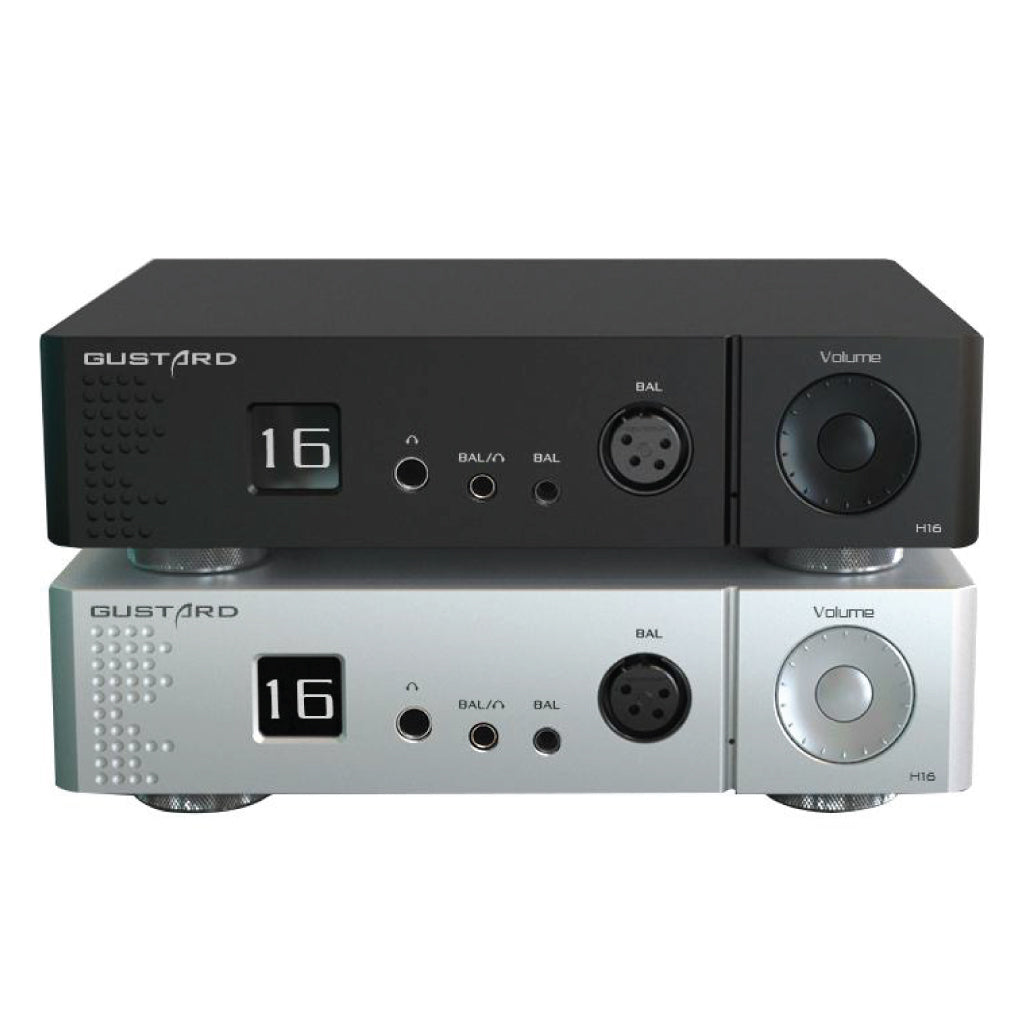

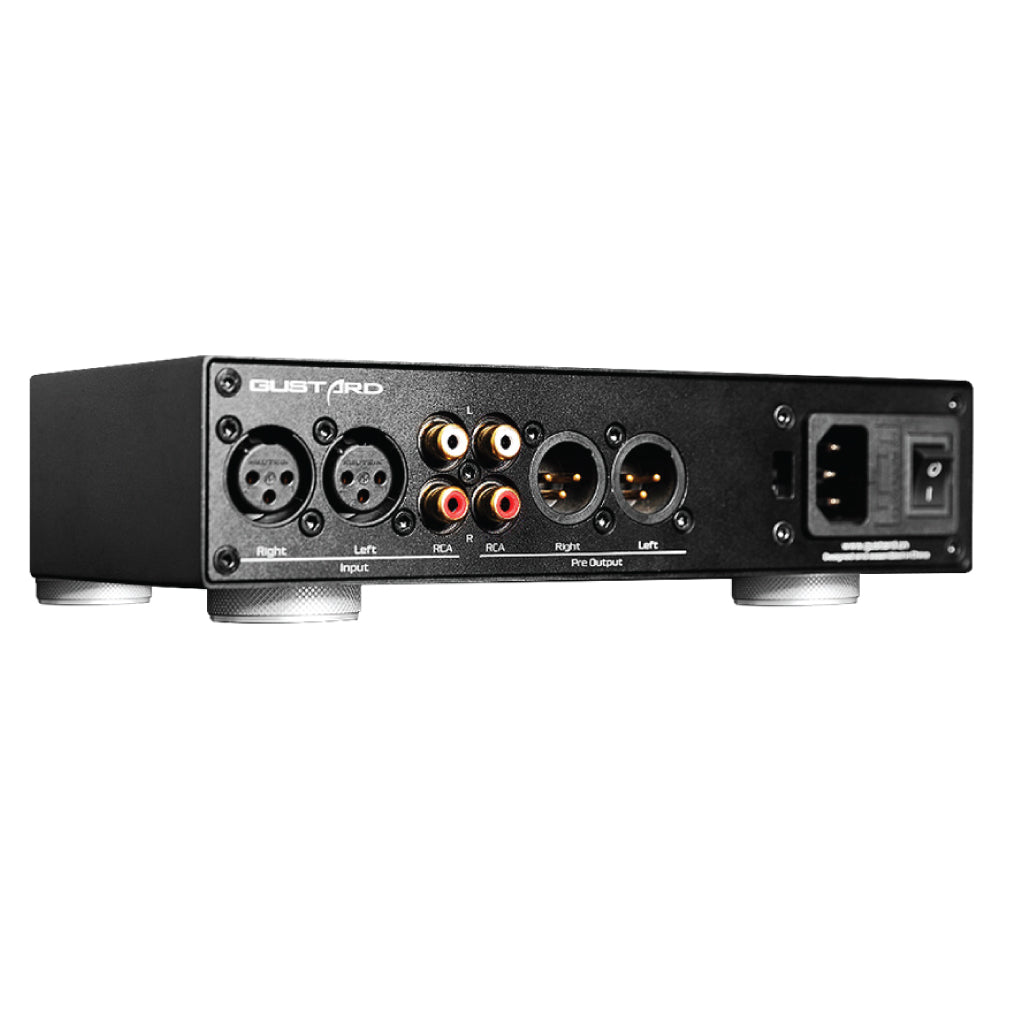

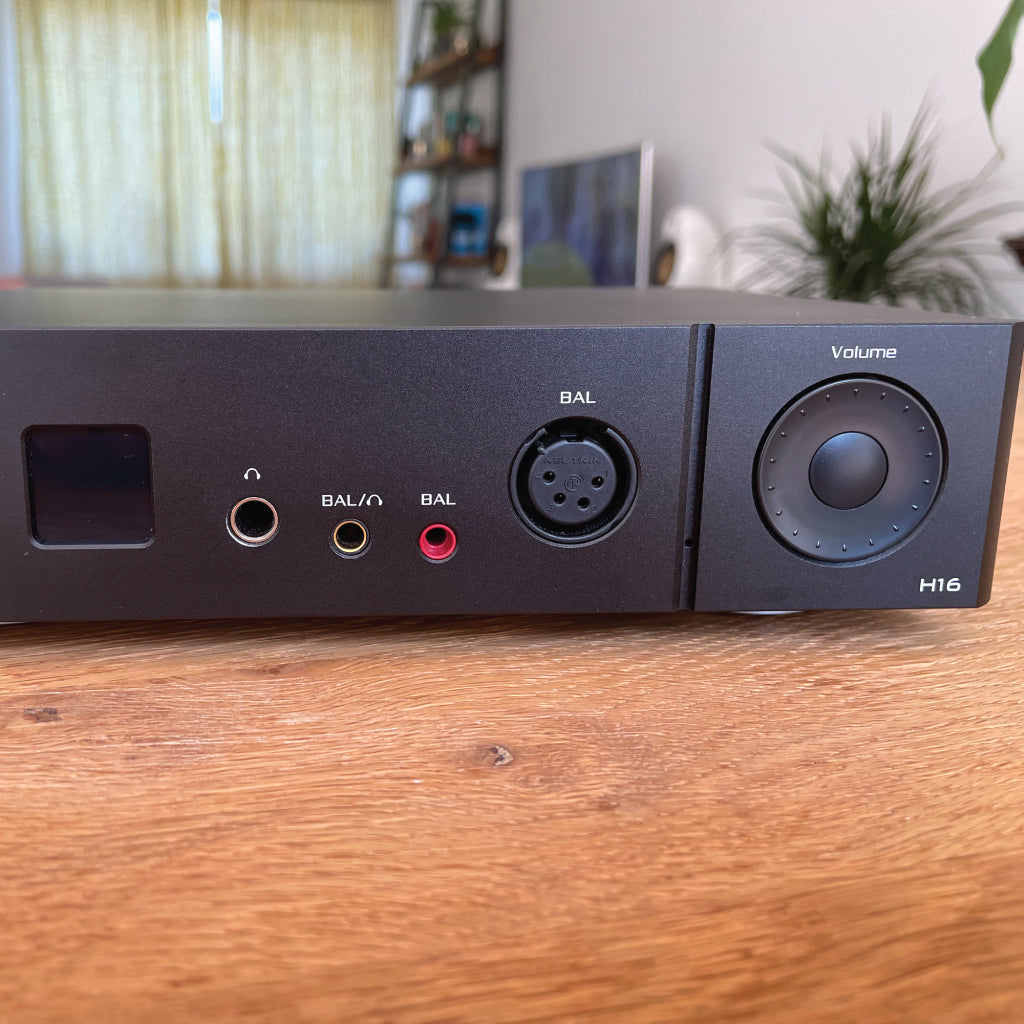

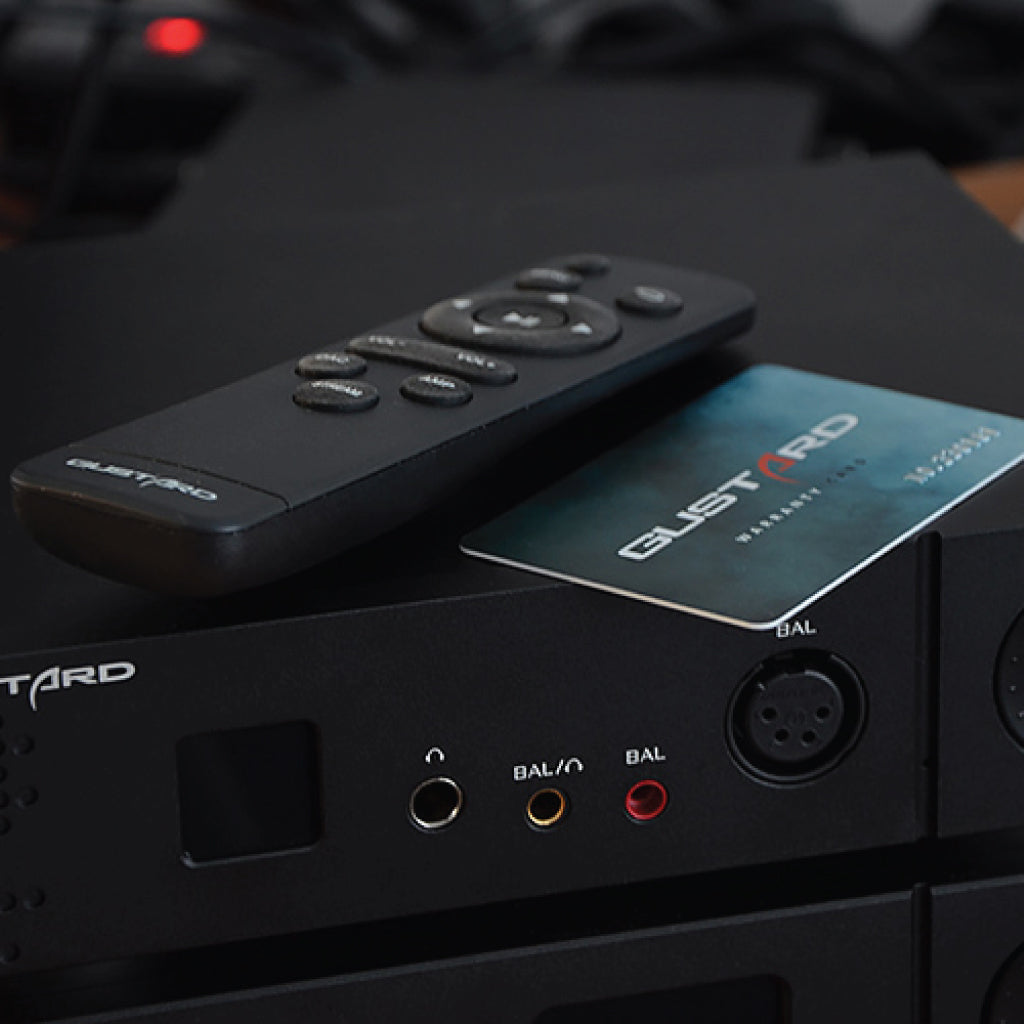

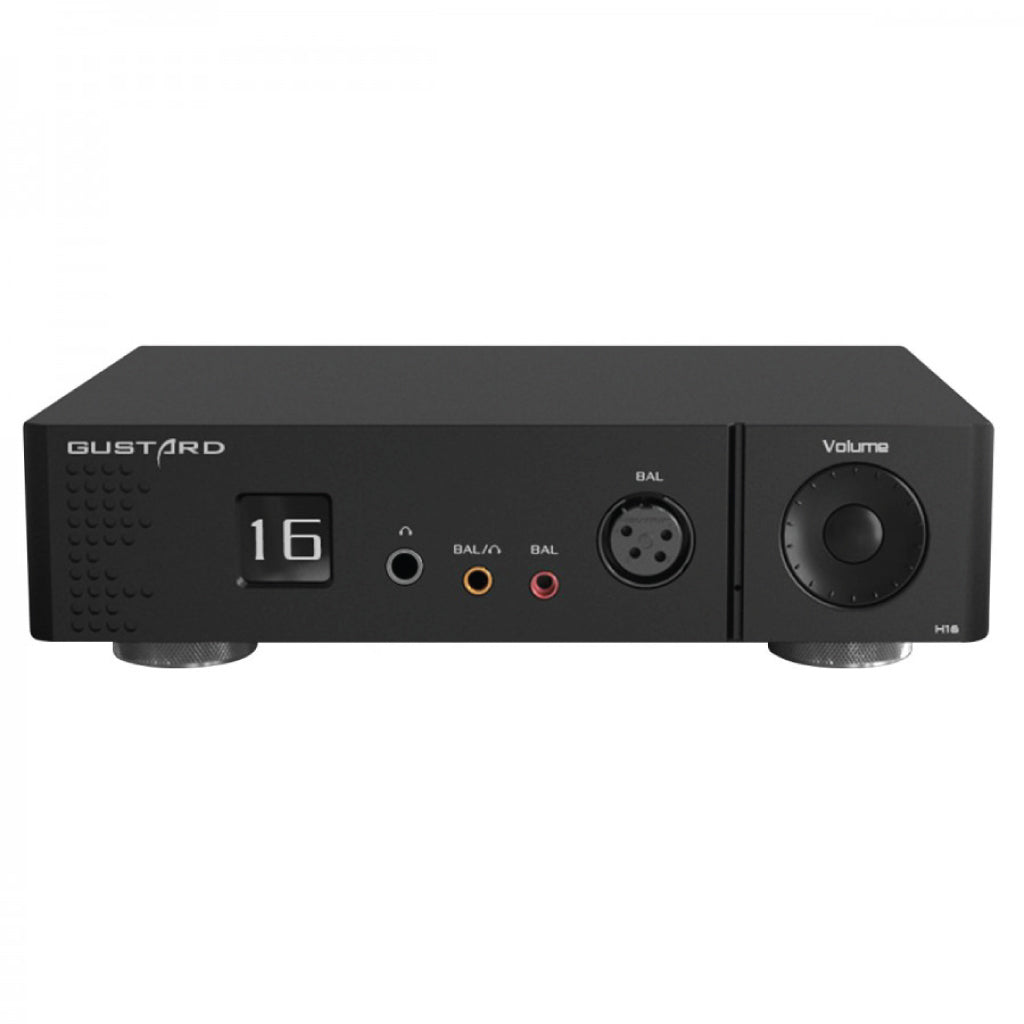

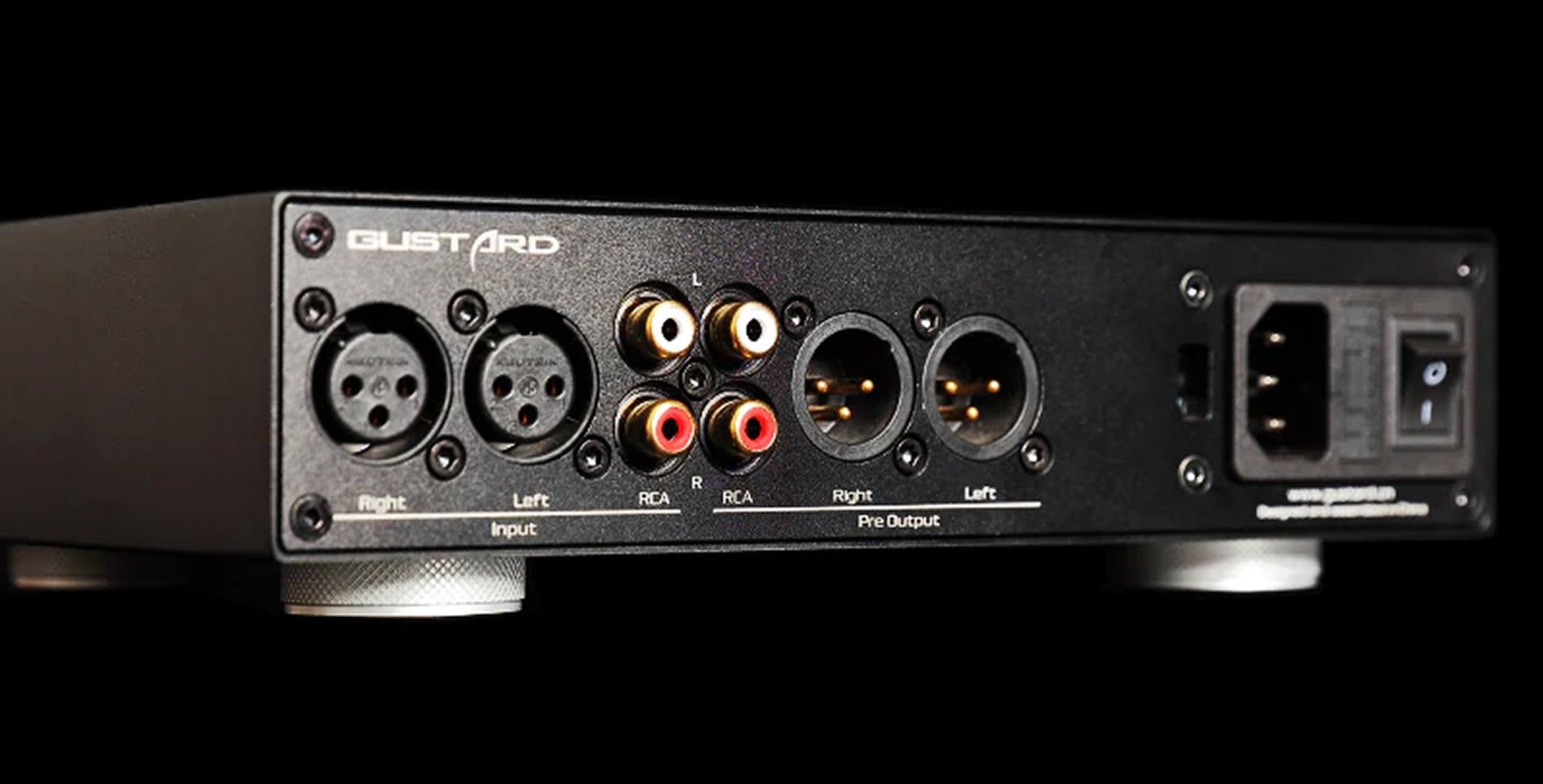

The GUSTARD H16 features versatile volume control and a variety of balanced/unbalanced outputs. With a pre-amplifier output and remote control, it can serve as a volume controller for active speakers. The amplifier's separate design for balanced and single-ended configurations provides multiple output options, including 6.35mm, 3.5mm, 4.4mm, and XLR, offering flexibility for different audio setups.

ENSURE RELIABLE, NOISE-FREE OPERATION WITH VOLUME CONTROL AND A TAIWAN-MADE DECODER

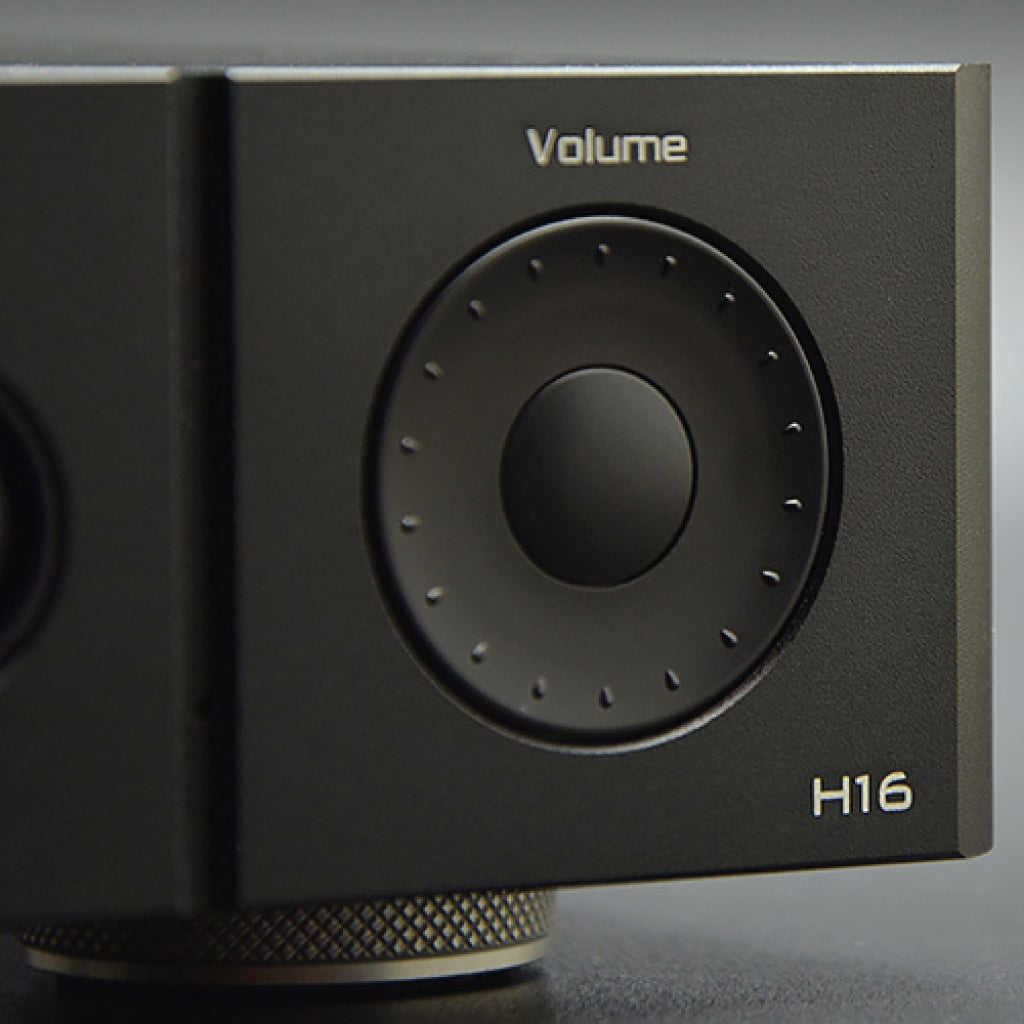

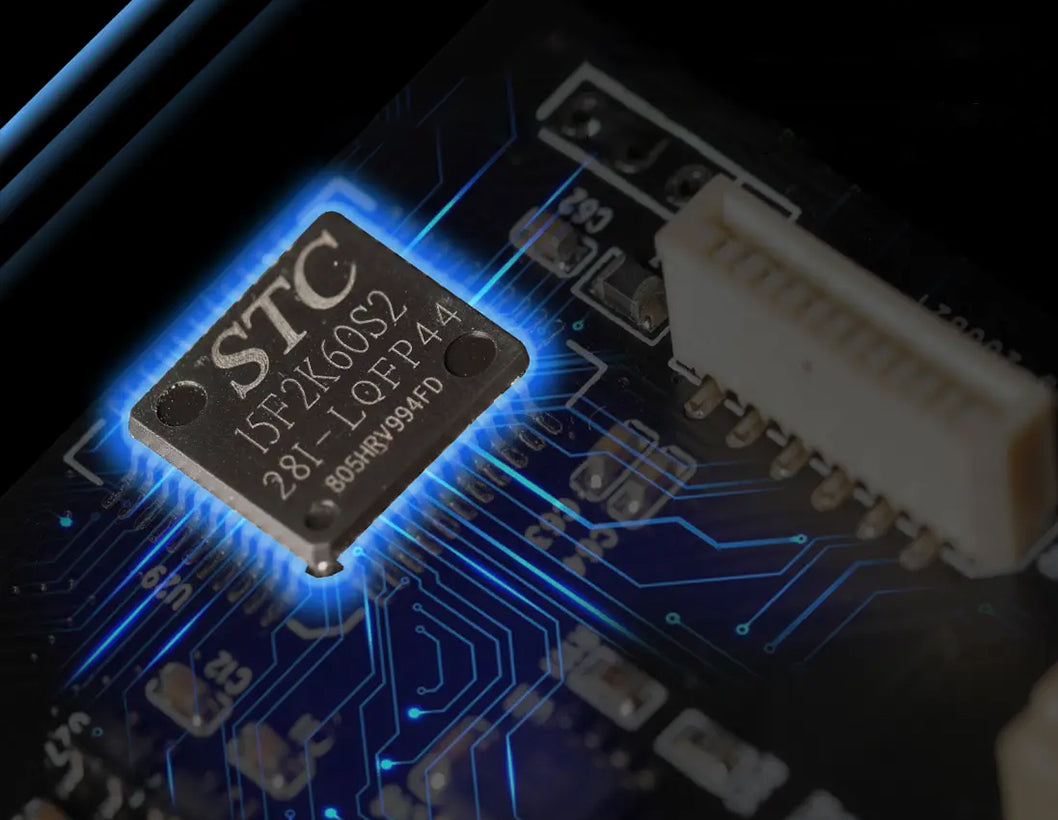

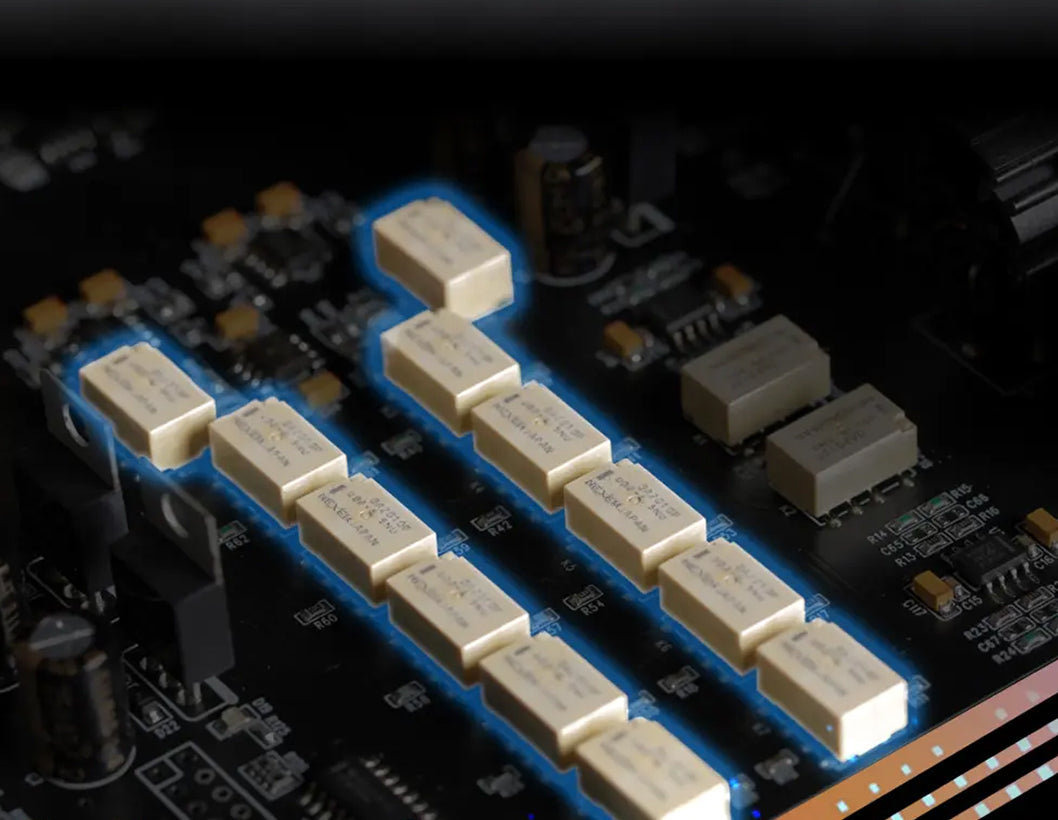

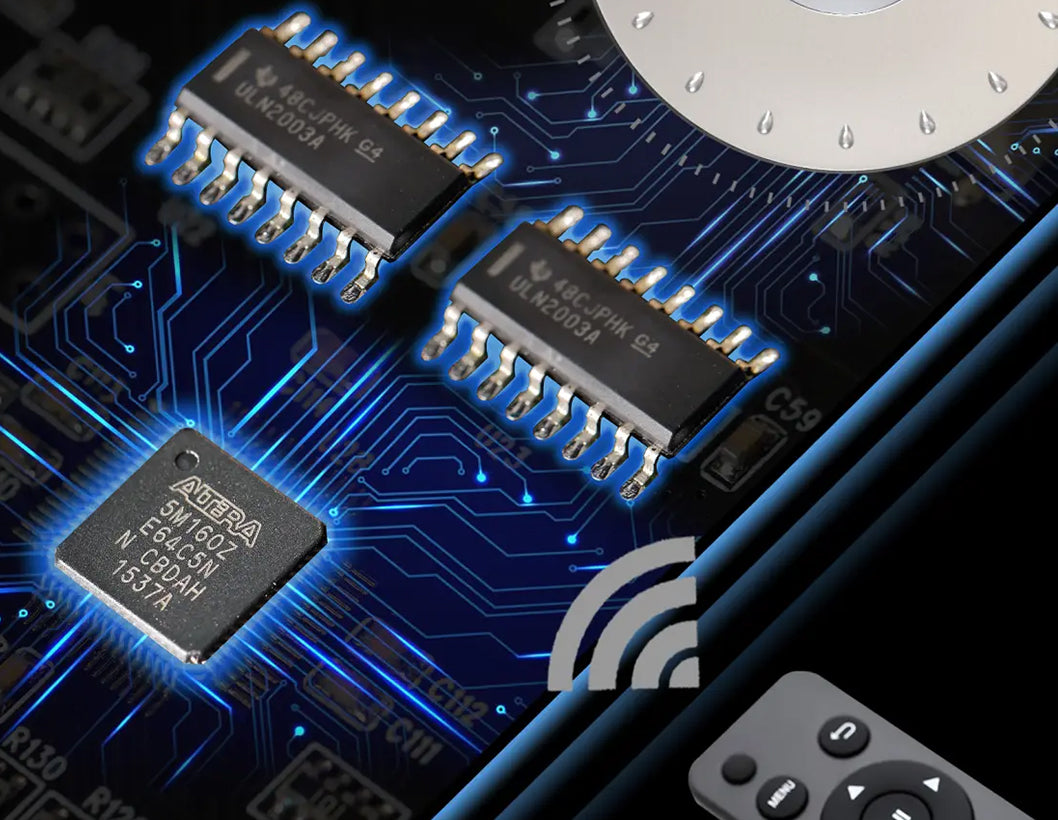

The GUSTARD H16 ensures noise-free and reliable operation with its matrix relay-powered volume control, guaranteeing balanced and quiet audio. Featuring a Taiwan-made mechanical decoder, the amplifier offers smooth, accurate, and stable performance. The human-computer interaction system further enhances user-friendly operation.

SUPERIOR PERFORMANCE WITH TOROIDAL TRANSFORMER & IMPEDANCE MATCHING CIRCUITRY

Experience top-notch audio quality and a linear power supply featuring a toroidal transformer in the Gustard H16. The device incorporates OPA1642 and OPA1678 for impedance matching, making it compatible with various front ends. The pre-amplification and drive circuit utilize LME49724+LME49722 for outstanding performance.

Specifications

Brand Name
GUSTARD
Model Name
H16
Product Name
Gustard H16 Desktop Headphone Amplifier
OP-Amp
LME49724+LME49722

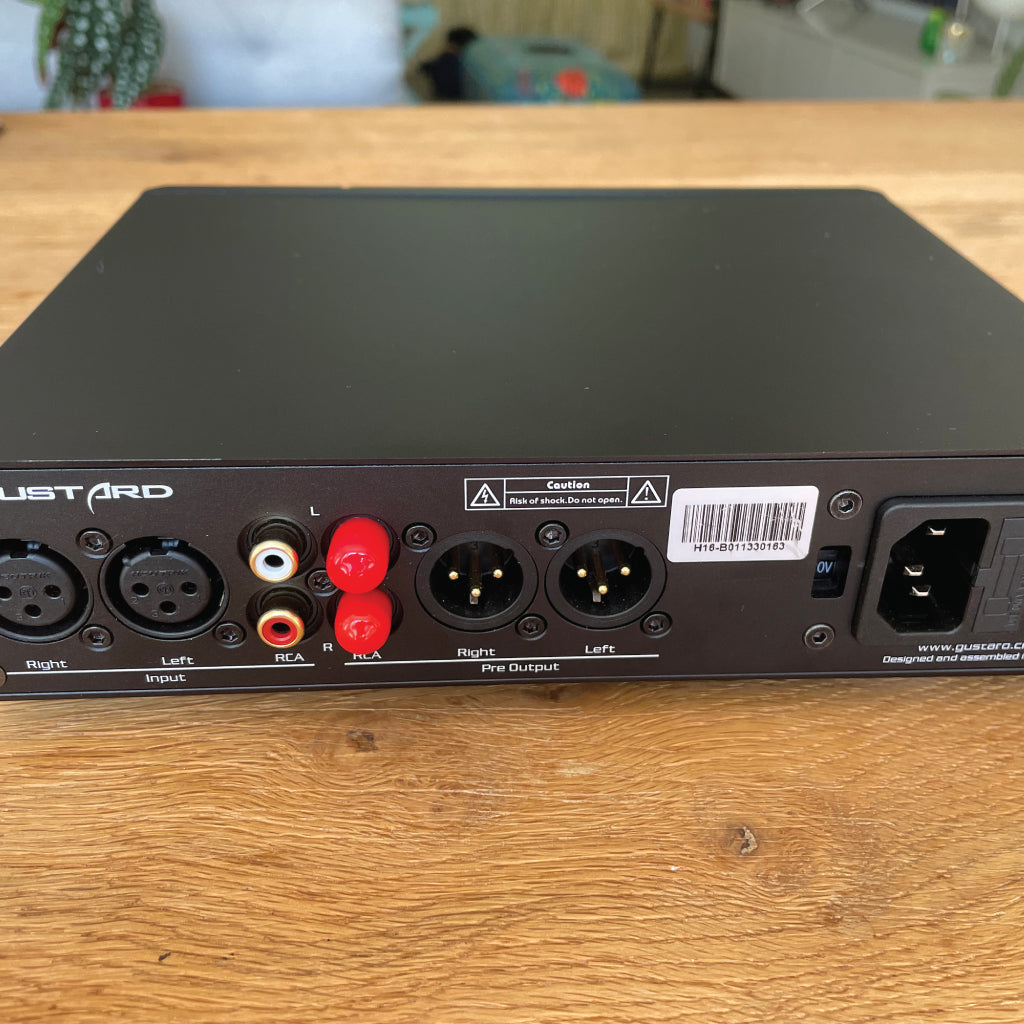

One Set of RCA Standard Input, Typical Input Sensitivity
2Vrms; Input Impedance 4.7kΩ
One Set of XLR Balanced Input, Typical Input Sensitivity
18dBu Maximum + 26dBu;Input Impedance 10kΩ
Frequency Response
20-80kHz/-0.1dB
Signal to Noise Ratio
120DB
THD+N
<0.0004%
IMD
<0.0004%
Channel Crosstalk
-120 DB@1 KHz
Signal Port Output Impedance (6.35 mm)
0.1 Ω
Balanced Port Output Impedance
0.2Ω
Frequency Response
20-80kHz/-0.1dB
Signal to Noise Ratio
>118dB
THD + N (1kHz)
<0.0005%@3700MW Into 640 Load
IMD
<0.0005%@3700 MW Into 640 Load
Channel Crosstalk
-118dB@1 KHz
Maximum Undistorted Output Power
3700 MW Into 64Ω LOAD Balanced Output
AC Power Supply
AC 115V/230V 50/60Hz
Power Consumption
<20W
Load Power
64Ω 3700 MW
150Ω 2268mW
300Ω 1133mW
600Ω 566mW
