FrankEver - GW-2W Ghost Flat Speaker Wire

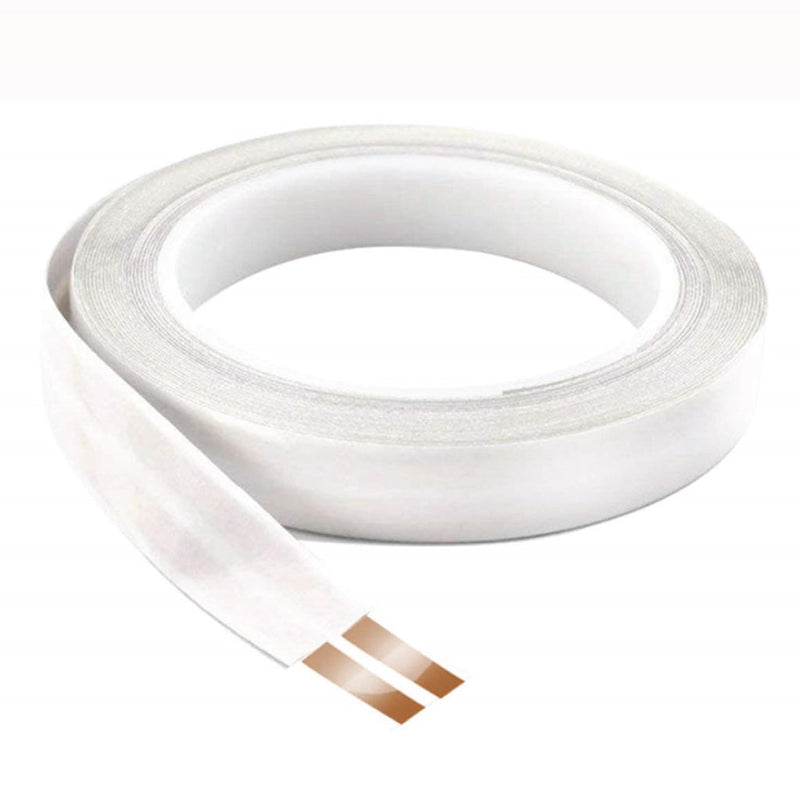

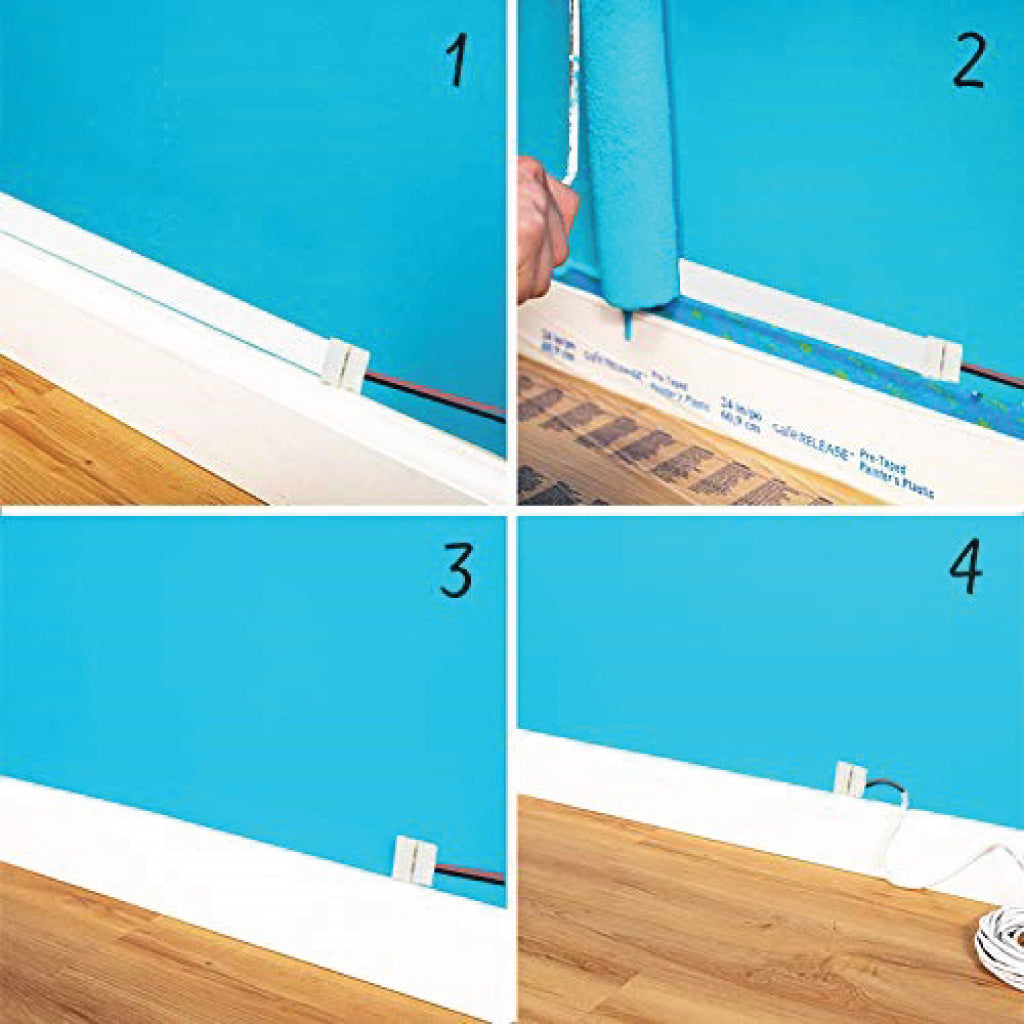

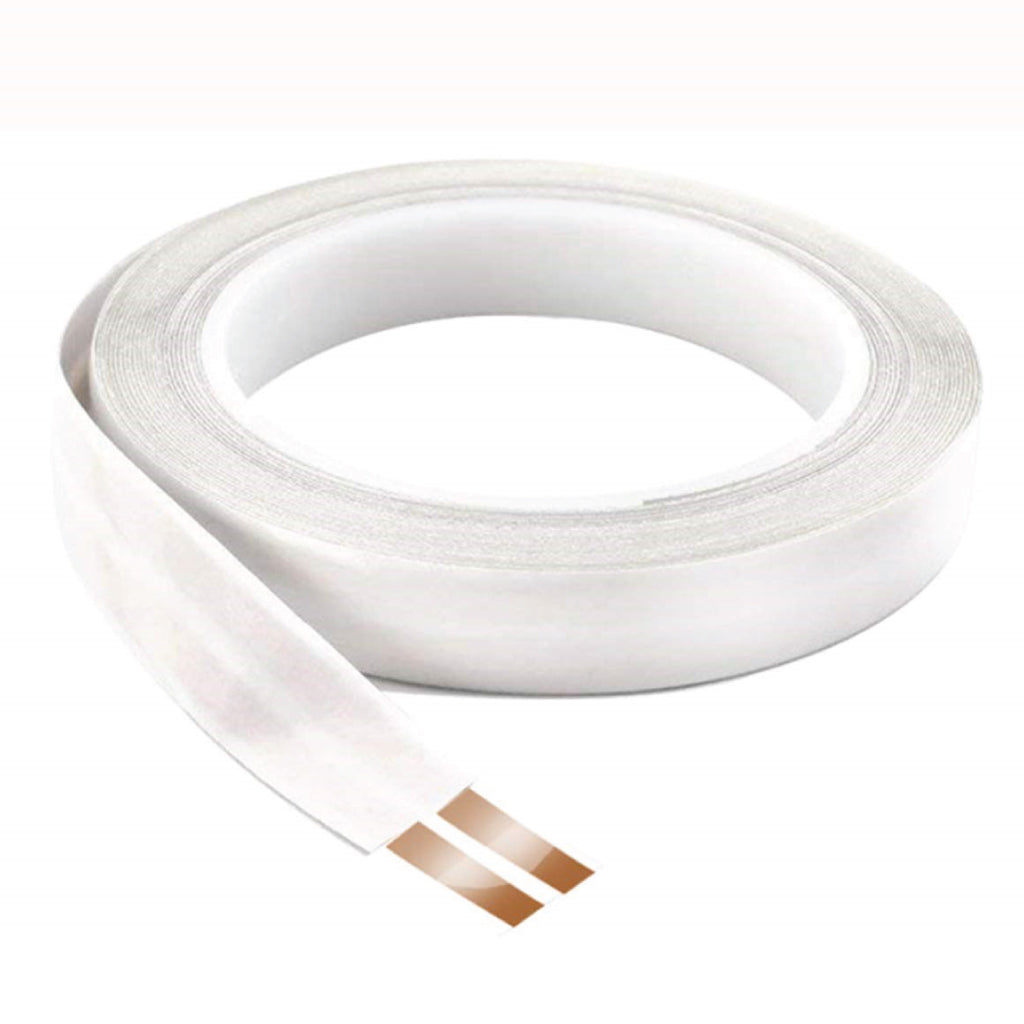

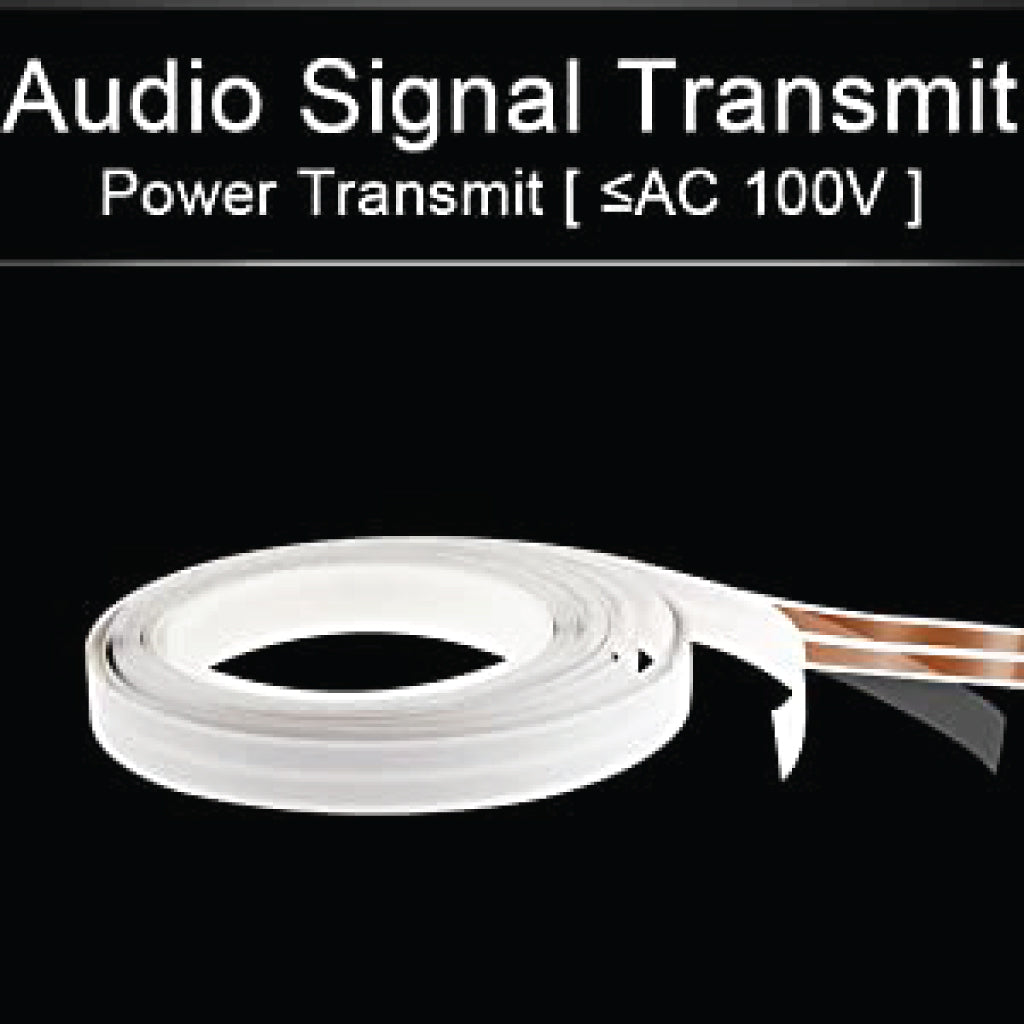

Make speaker wires disappear right on the wall or under the carpet with FRANKEVER Adhesive audio Wire. This super flat audio wire can be used on almost any flat surface. Perfect for running stereo signals across rooms, around corners, in automobiles, under flooring, or any situation where wires cannot be run through walls.

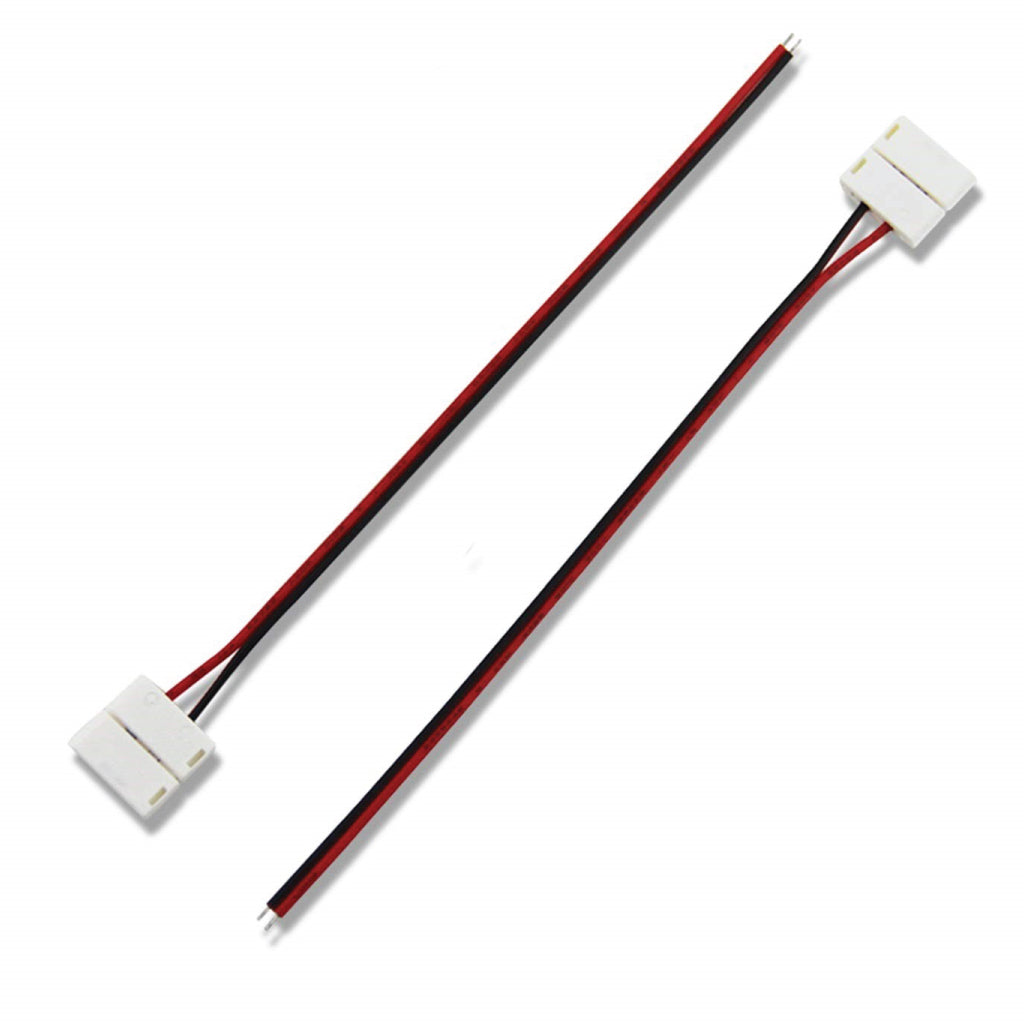

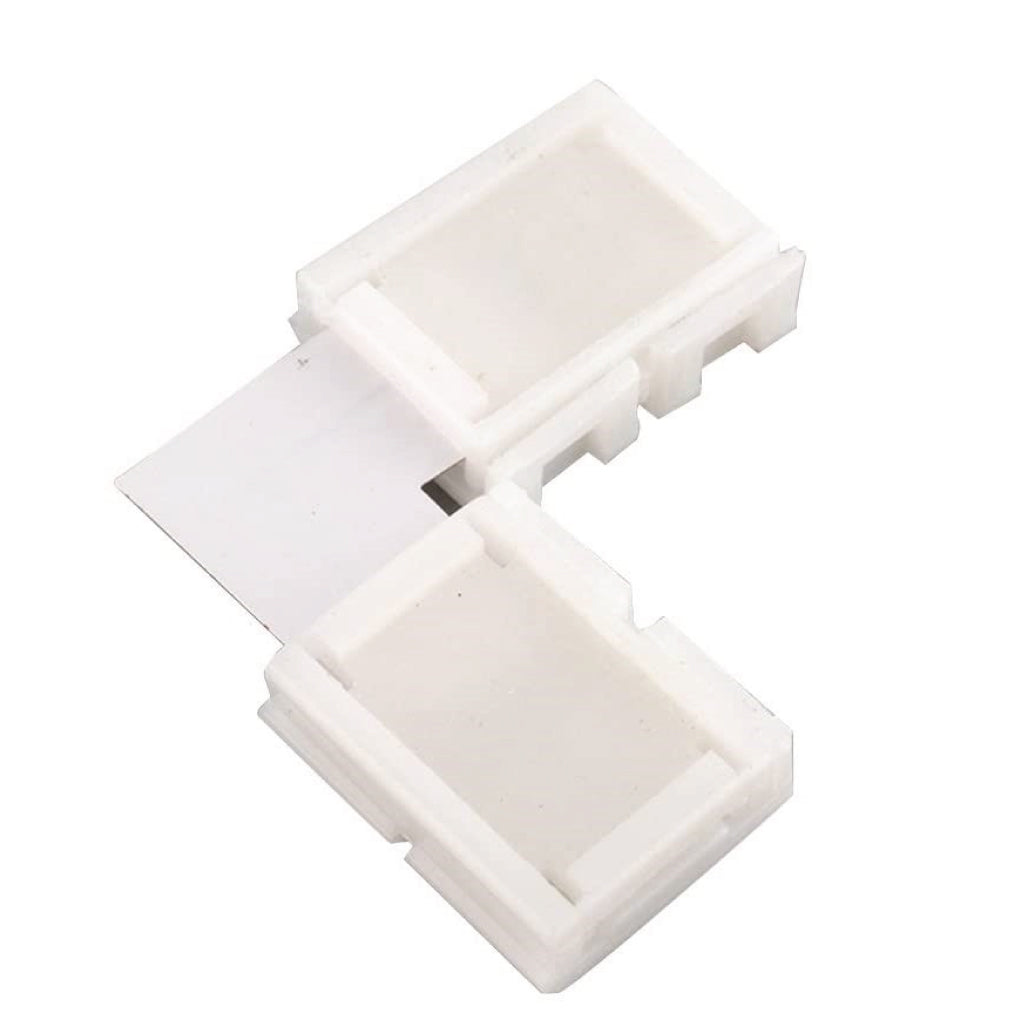

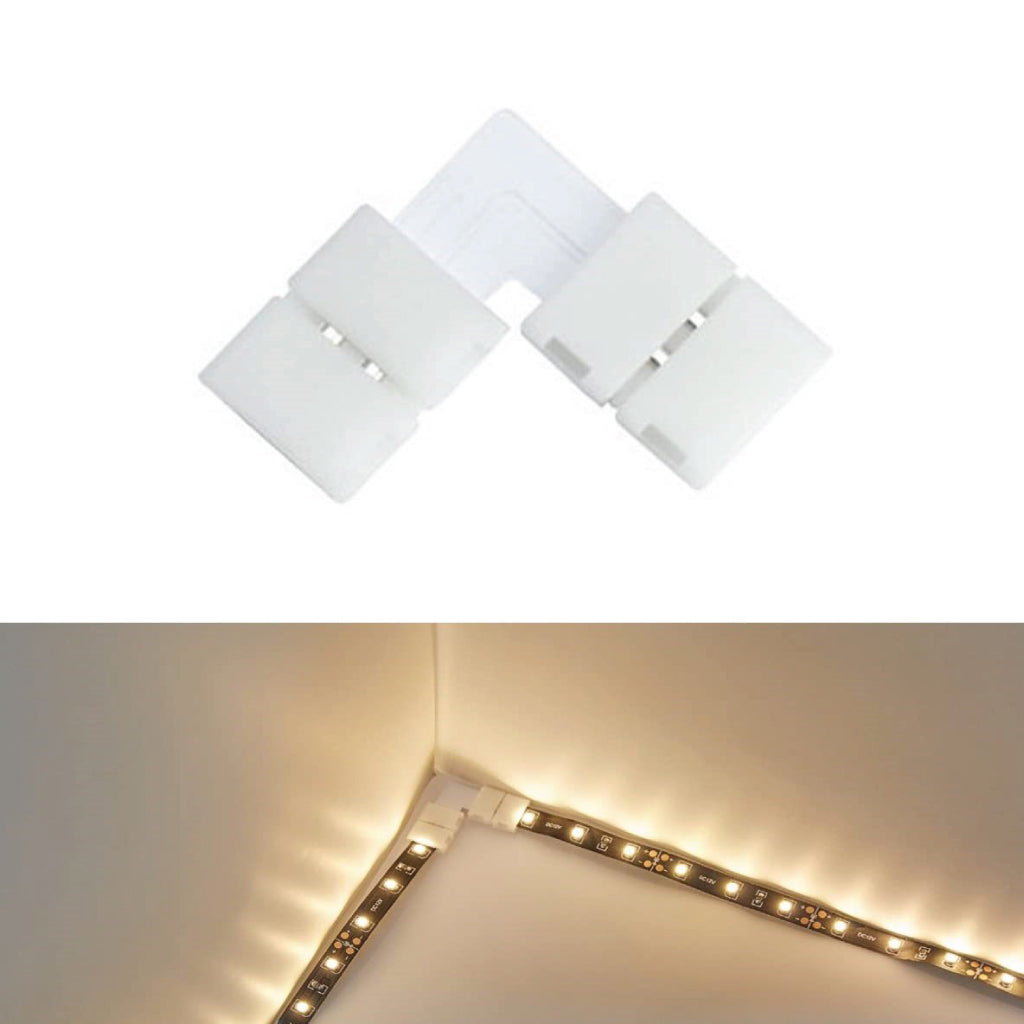

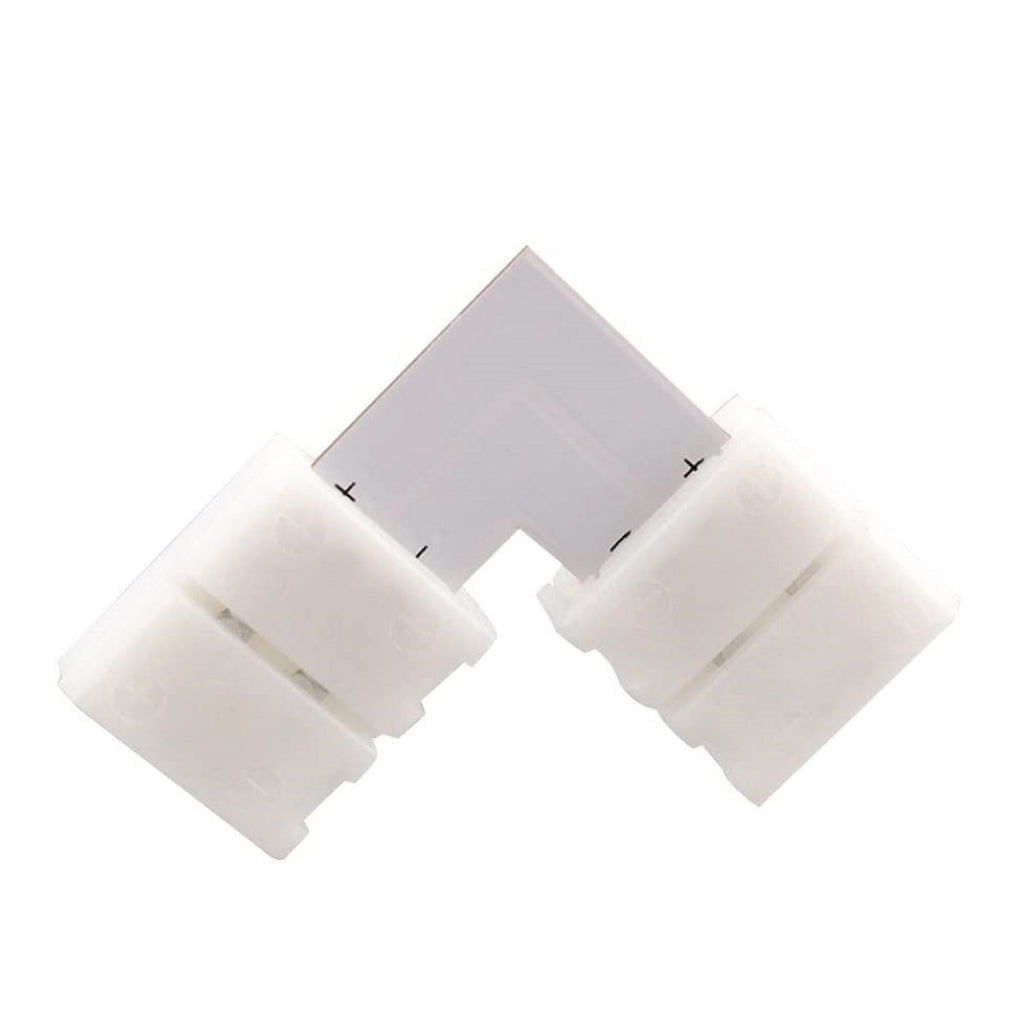

Simply peel back the adhesive covering and stick the industrial strength self-adhesive side wherever you want it. We also have Flat Wire to Round wire Connector Blocks for splicing wires


INSTALLATION GUIDE:

★ Peel off and trim the adhesive liner to expose about 1 inch of adhesive at the bottom of the flat wire .
★ Cut the exposed conductor and remove the liner.
★ Separate the white backing from the top of the conductor to expose a clean copper surface, and place the removed white backing on the bottom (adhesive surface) of the conductor.
★ Use alcohol or other solvents to remove the remaining adhesive on the top of the conductor.
★ Trim the tip of the conductor so that you get a clean conductor tip.

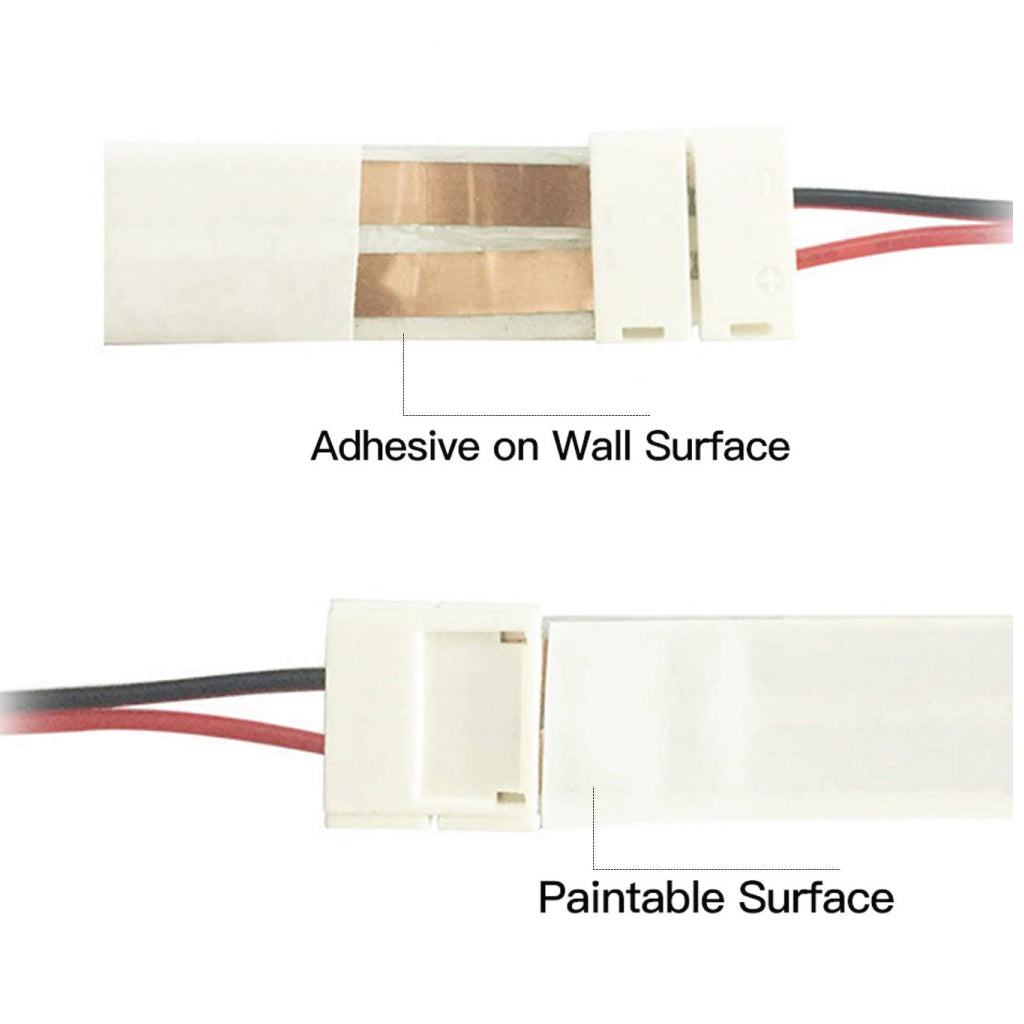

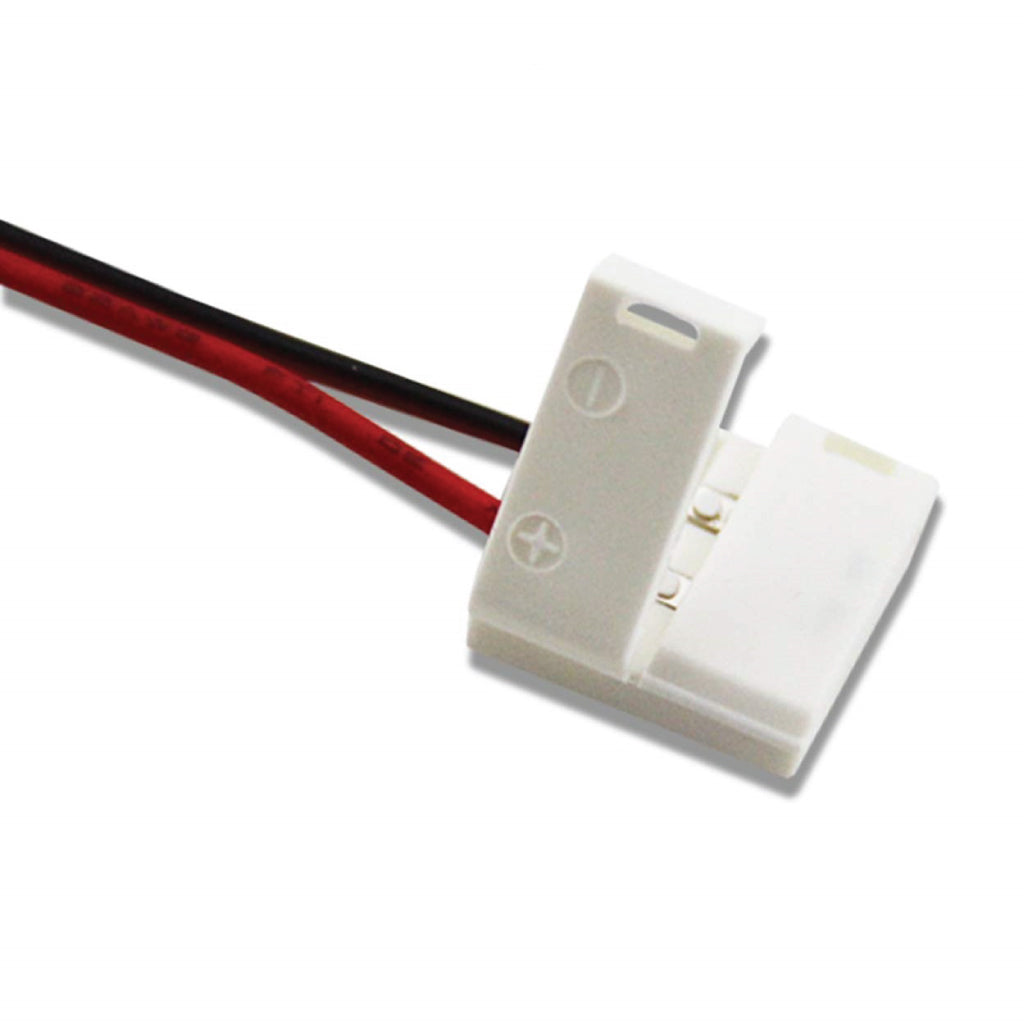

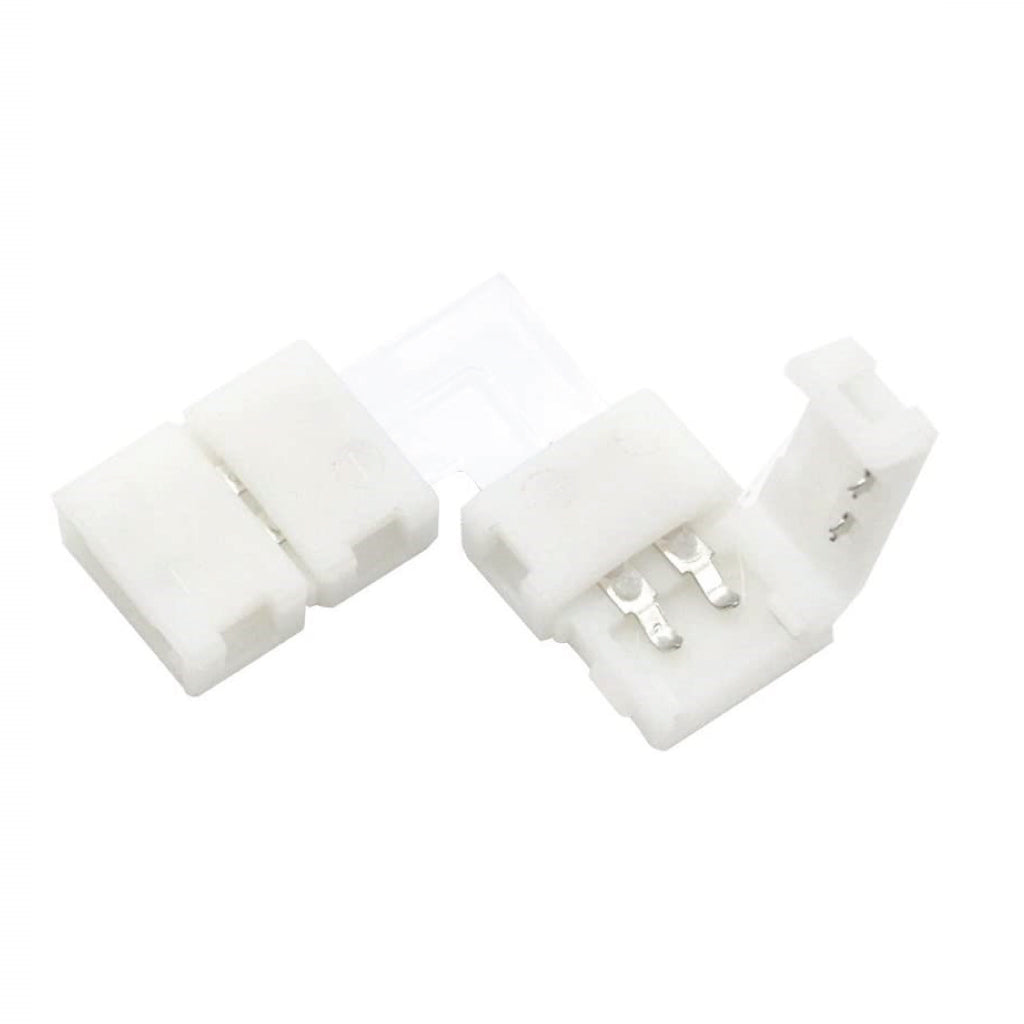

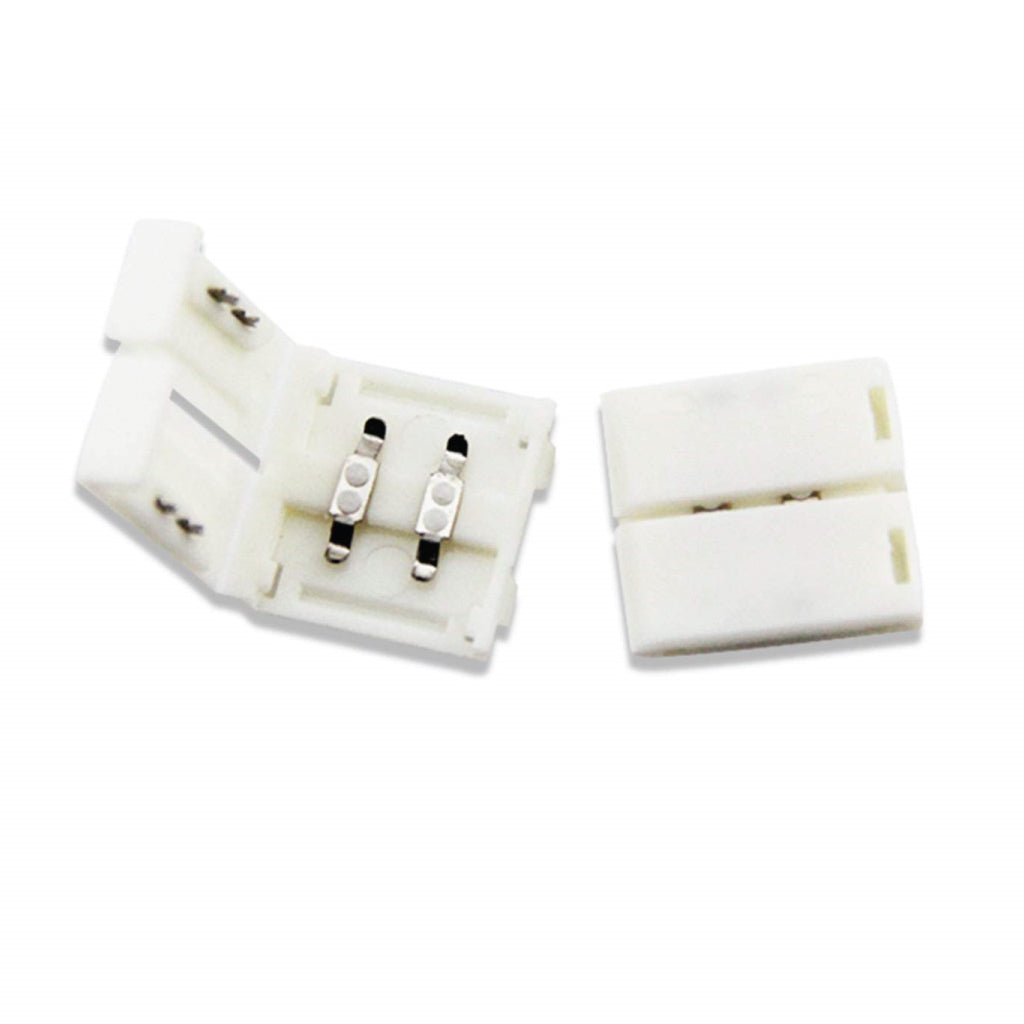

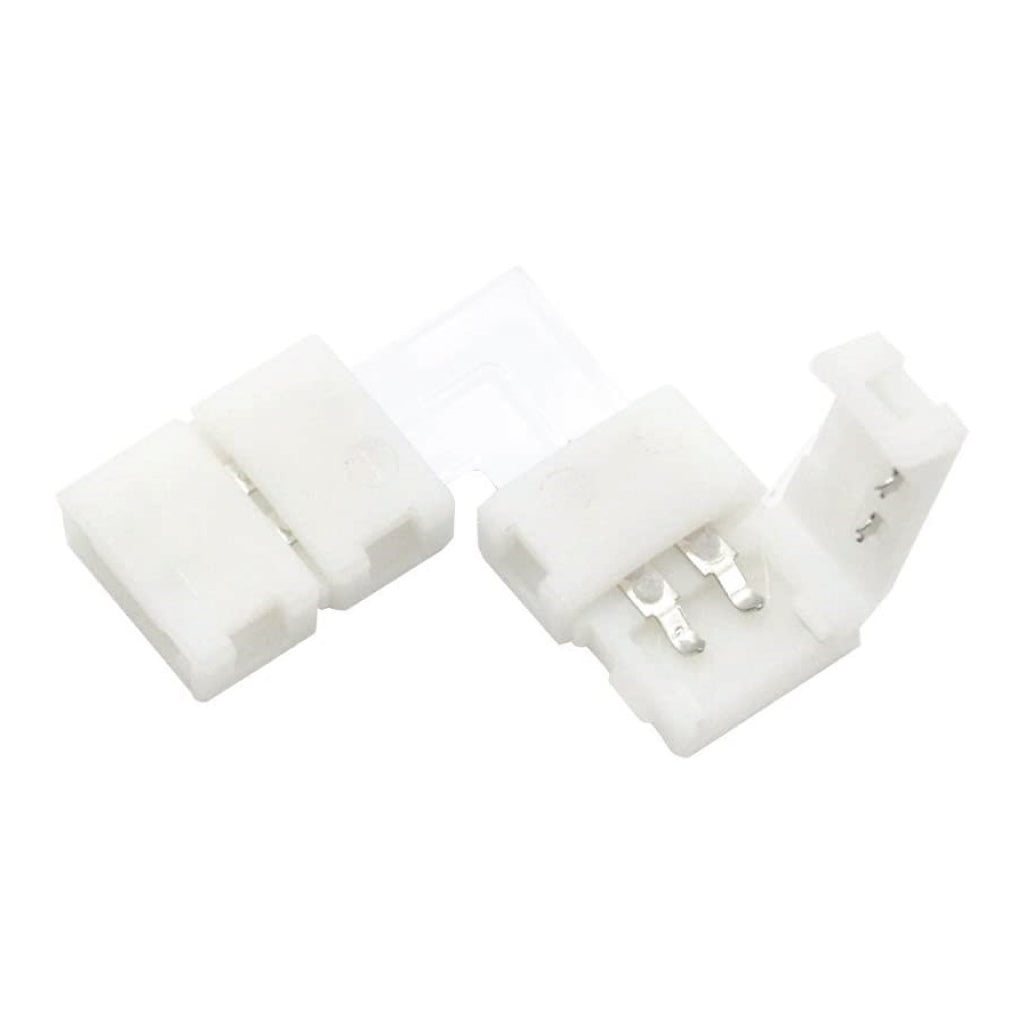

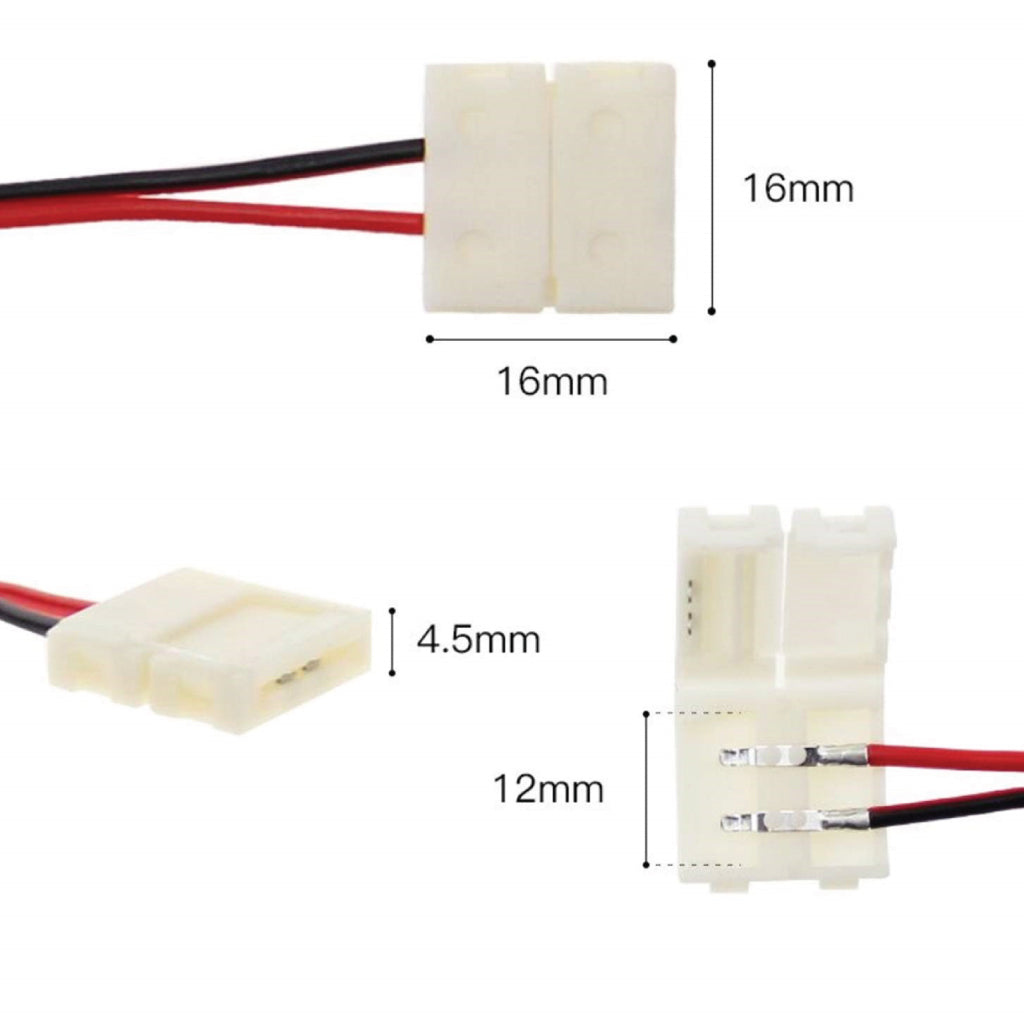

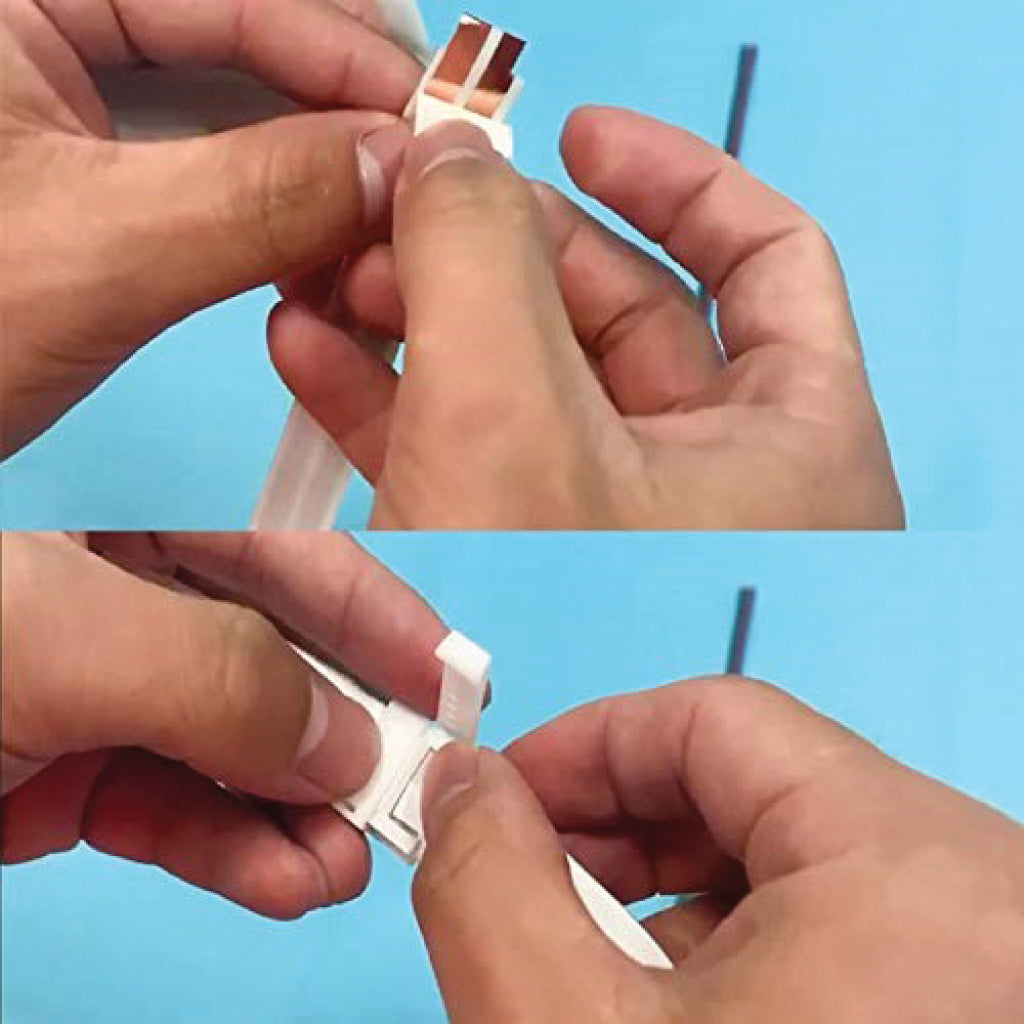

★ Slide the conductor into the clamp on the junction box, and then clamp the junction box tightly.

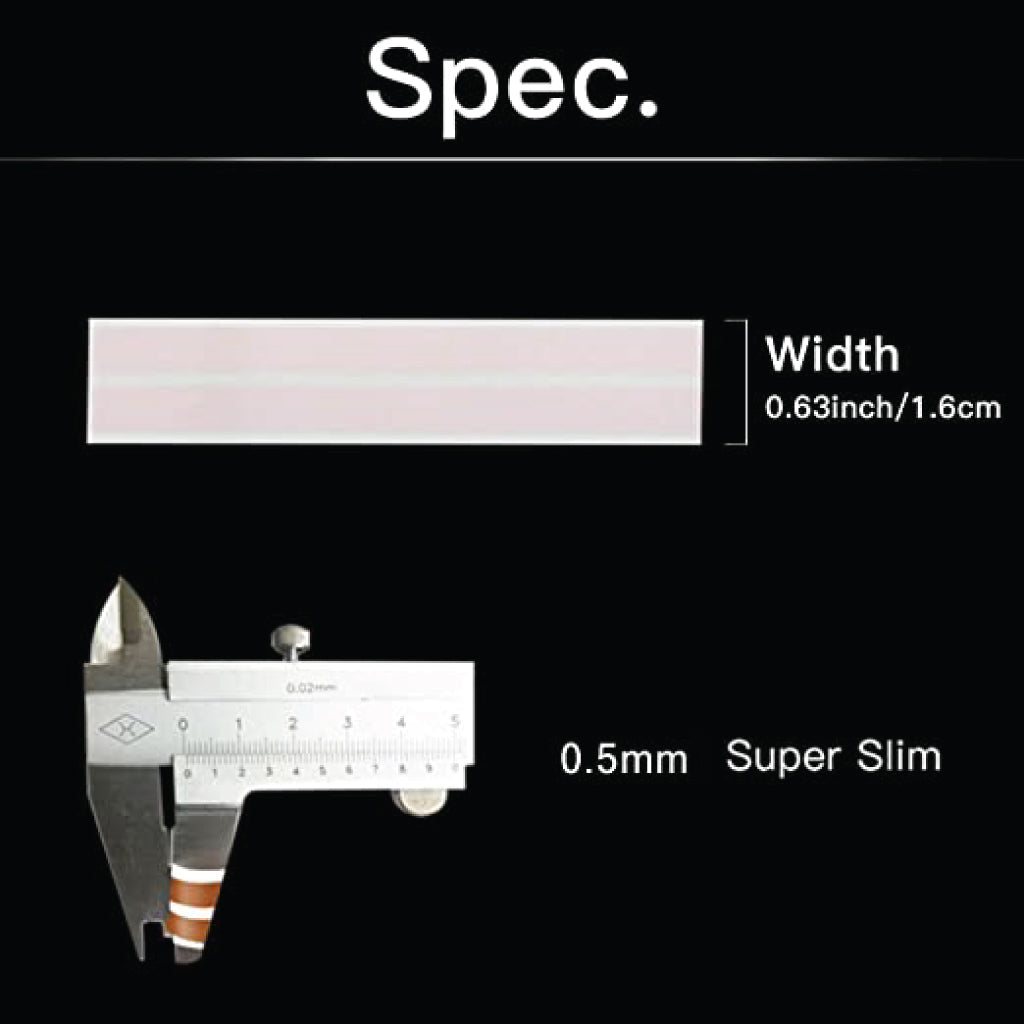

SPECIFICATIONS:

Material: Copper
Thickness: 5mtr X 0.016 mtr width
Package: 5mtr/roll
Working temperature: 20 to 100'C
Structure：White PVC sheath on one side with adhesive layer, can be stick on wall directly or put under carpet.
Suitable :speaker connection, LED lighting connection and other low voltage appliance connection.

FEATURES：

Patented technology.
Invisible after mounting，
Low capacitance and excellent conductivity.
No skin effect and transmit big power audio signals in a more efficient way than any coaxial, stranded or twisted construction.
