Fosi Audio ZD3 Fully Balanced Desktop DAC with Preamp Functionality

Sale price₹ 16,999Regular price ₹ 18,999

    Audiophile-Grade DAC With Exceptional Clarity

    ES9039Q2M Chip For PCM 32-Bit/768kHz And DSD512

    Fully Balanced Design For Interference-Free Sound

    Features Op-Amp Rolling, OLED Display, And Remote Control

    Multiple Inputs: USB, HDMI ARC, Optical, Coaxial, Bluetooth 5.0

    Balanced XLR And RCA Outputs

Hurry, only 5 items left in stock!

Pickup available at Naraina, New Delhi

You will be notified once the product is available for pickup, as per the pre-order timeline.

Description

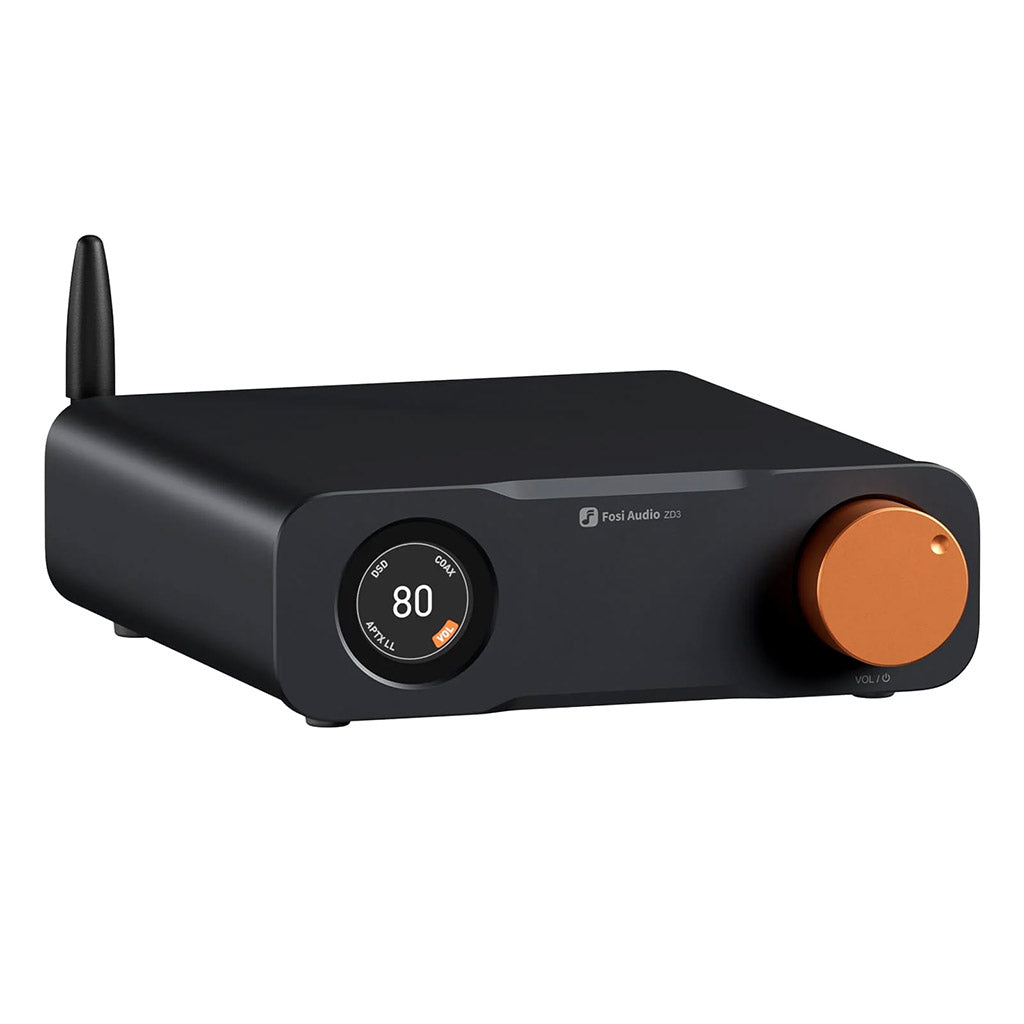

The Fosi Audio ZD3 Fully Balanced Desktop DAC is a high-performance digital-to-analog converter that delivers audiophile-grade sound quality with advanced features. Equipped with the ES9039Q2M DAC chip and XMOS XU316 USB interface, it offers pristine playback, a fully balanced design for interference-free sound, and versatile connectivity options, including Bluetooth 5.0 with aptX HD. The ZD3 also features op-amp rolling, a 1.5-inch OLED display, and a compact design that is perfect for home audio systems or desktop setups where space is limited.

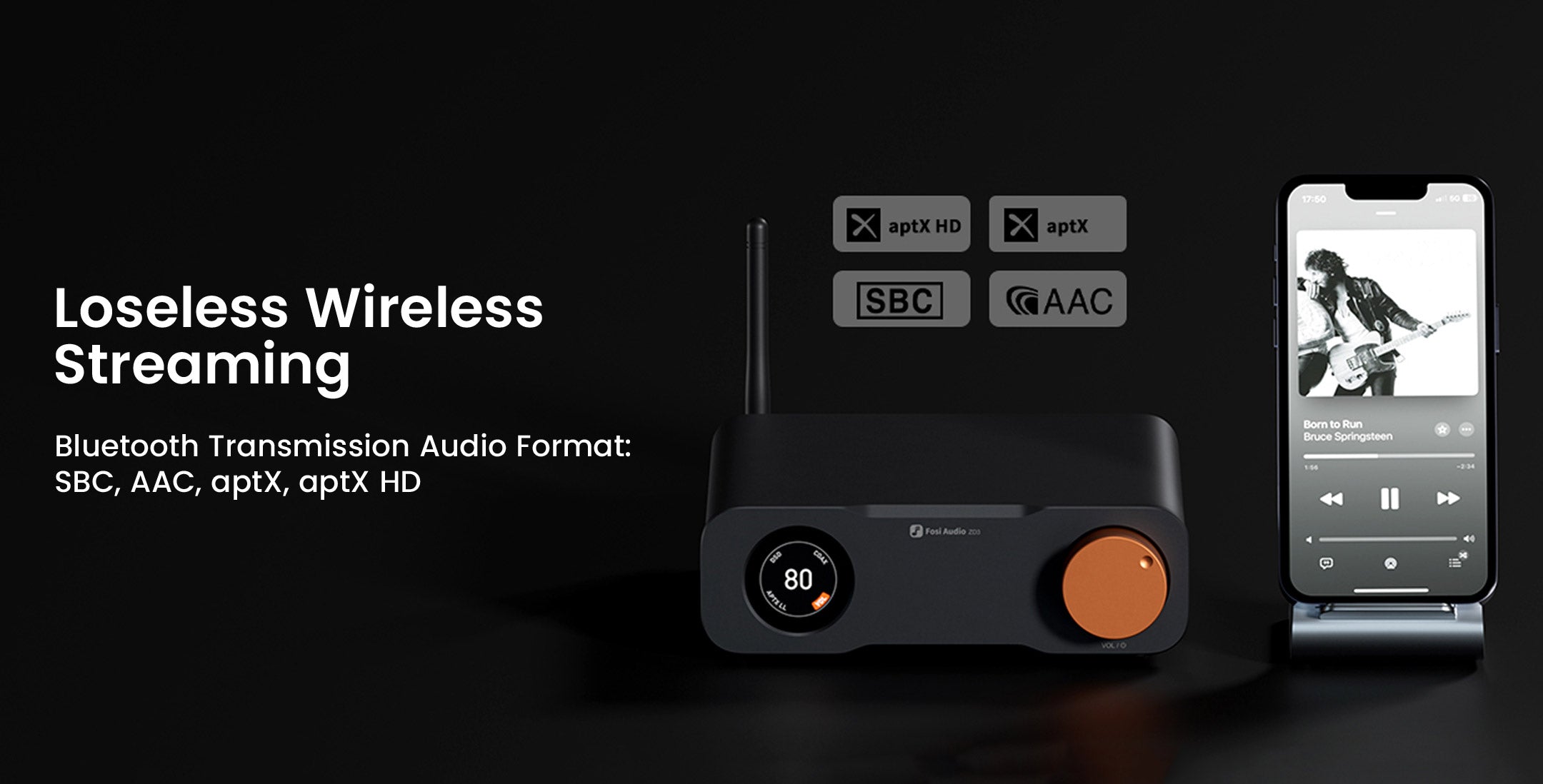

ADVANCED BLUETOOTH CAPABILITIES

Equipped with Bluetooth 5.0 and aptX HD, the ZD3 allows for high-quality wireless streaming from compatible devices. The QCC3031 chip ensures robust wireless performance, supporting various codecs such as SBC, AAC, aptX, and aptX HD for an enhanced listening experience.

SUPERIOR AUDIO PRECISION WITH ES9039Q2M DAC CHIP

The ZD3 is powered by the high-performance ES9039Q2M DAC chip combined with the XMOS XU316 USB interface. This setup supports PCM sampling rates of up to 32-bit/768kHz and DSD512, ensuring crystal-clear audio playback with minimal noise and distortion.

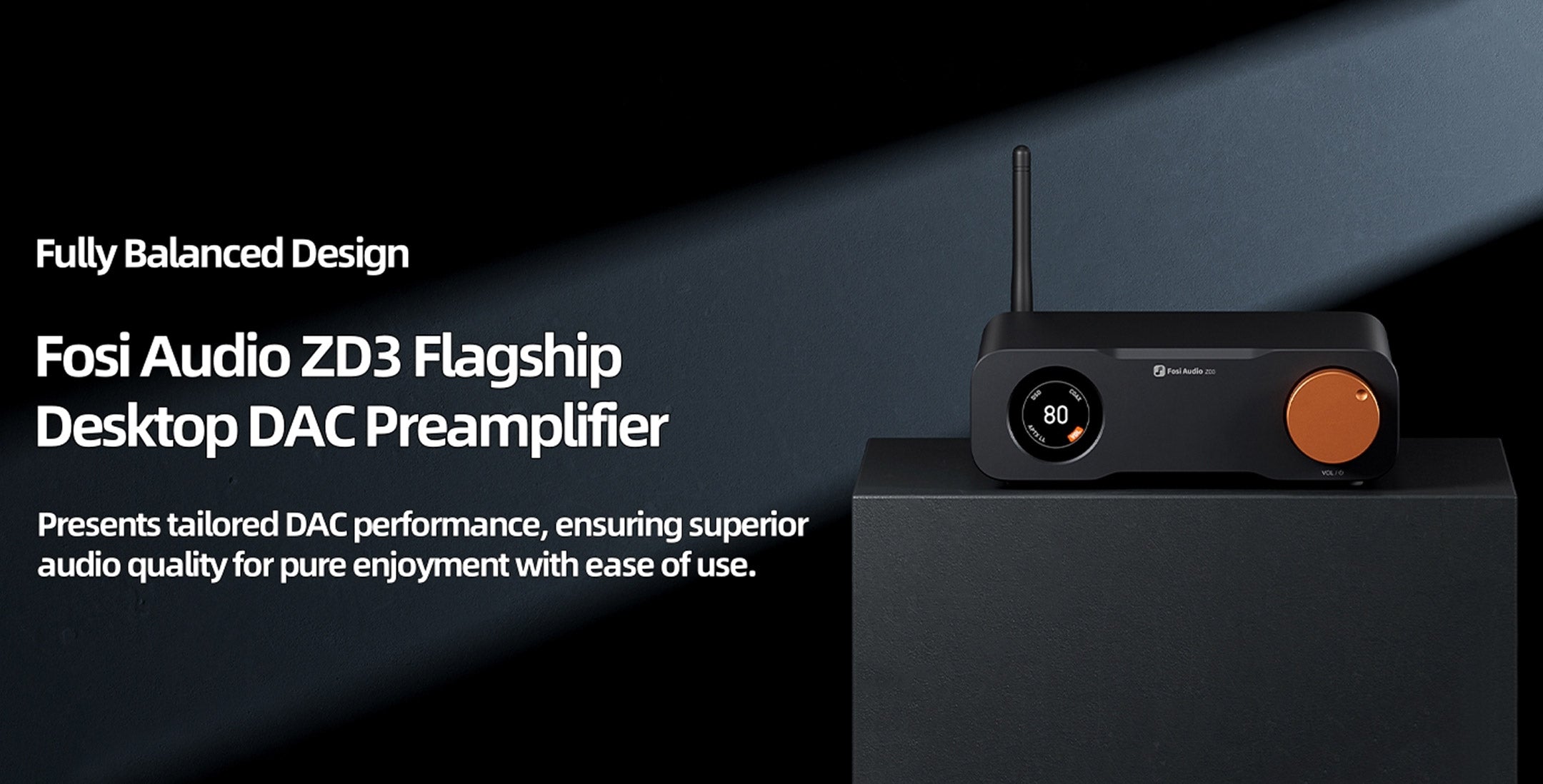

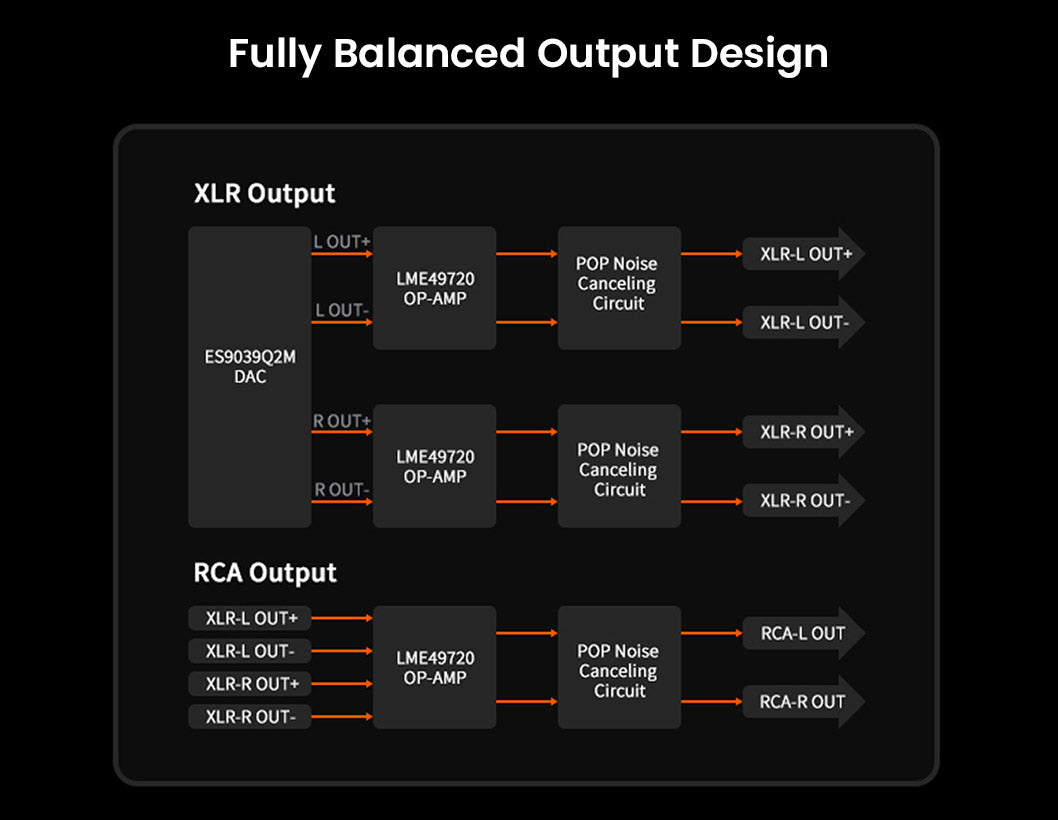

FULLY BALANCED DESIGN

The ZD3's fully balanced architecture significantly reduces interference and enhances audio clarity, providing users with a clean and rich sound experience. This design ensures dynamic sound reproduction, making the DAC suitable for both stereo and surround sound configurations. With its compact and exquisite appearance, the ZD3 features the same design language as the ZA3 amplifier, making it an ideal pairing for a robust home audio system.

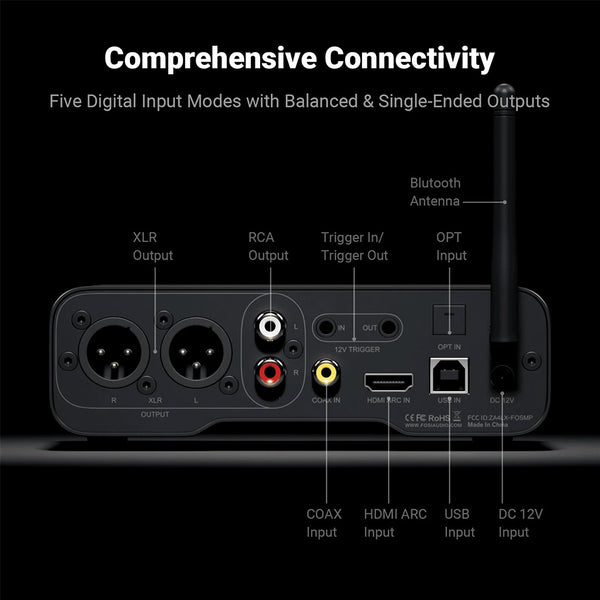

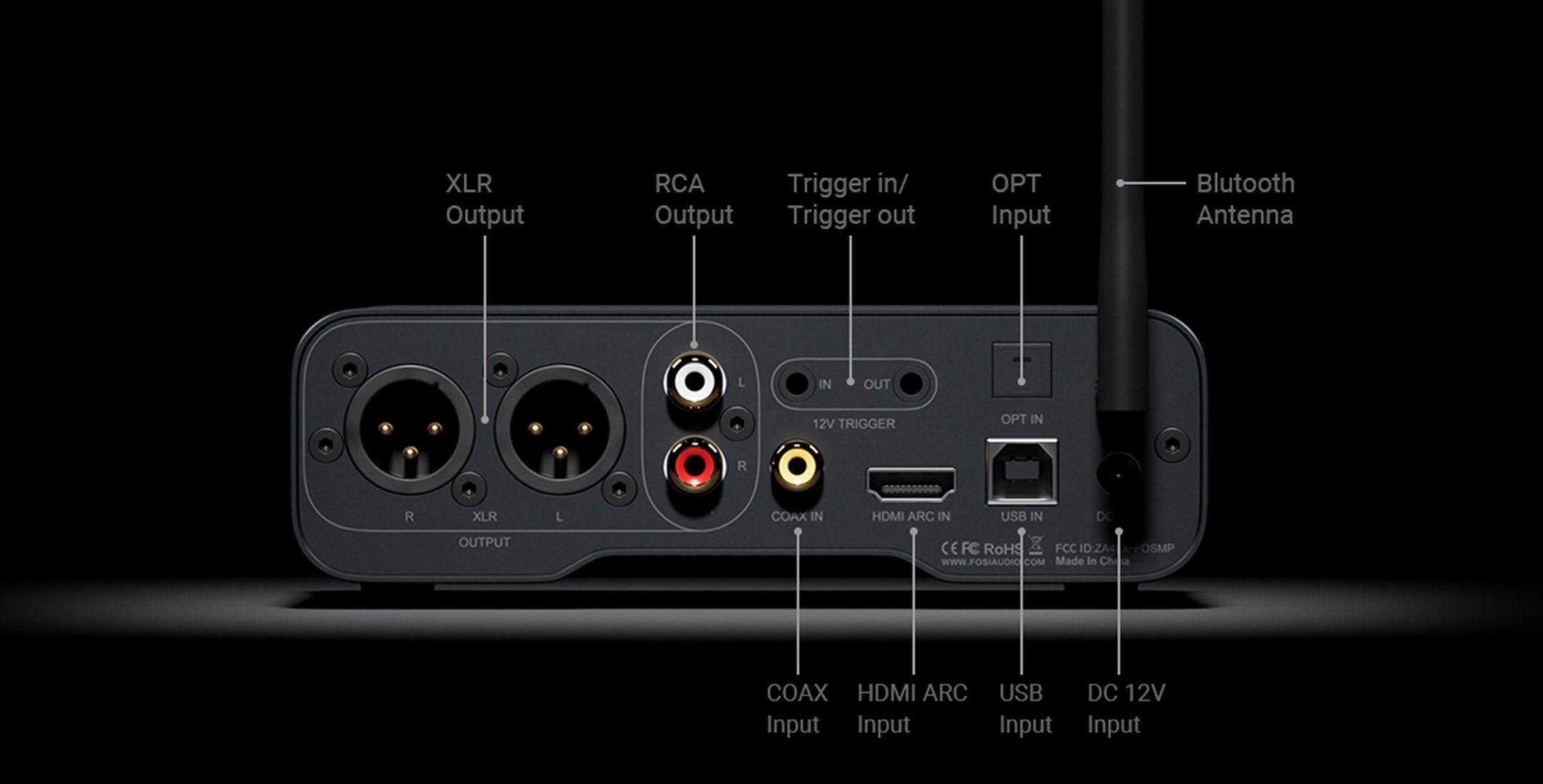

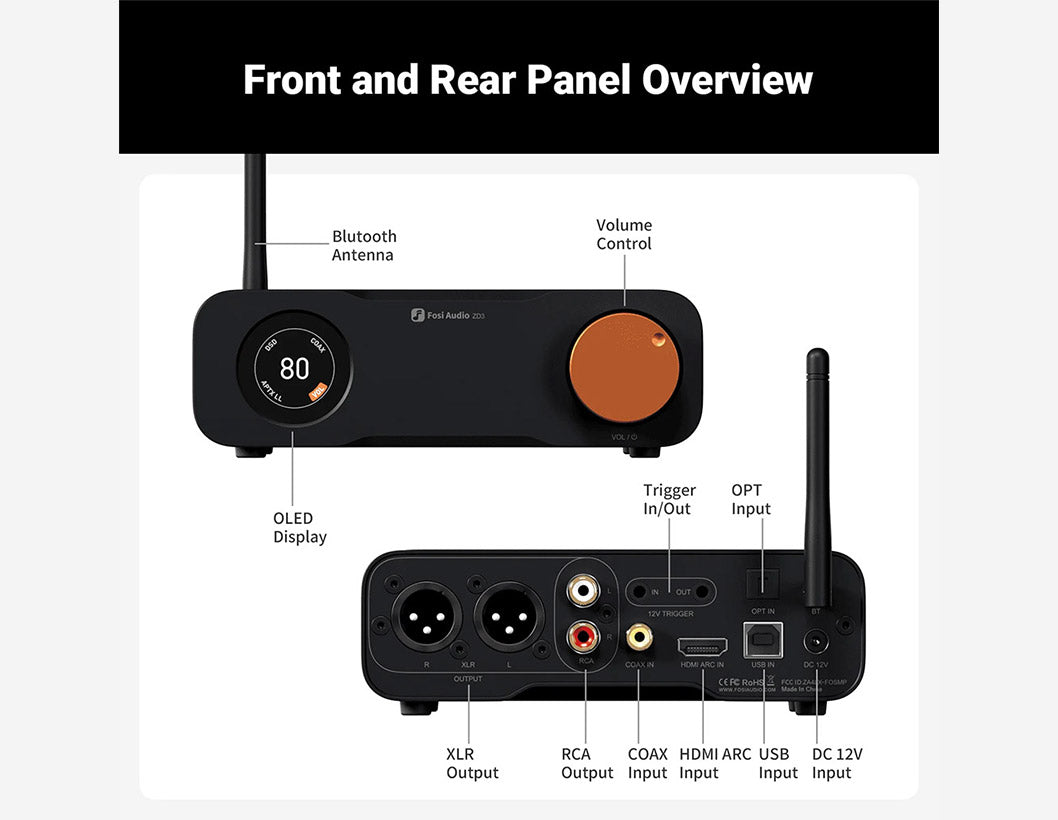

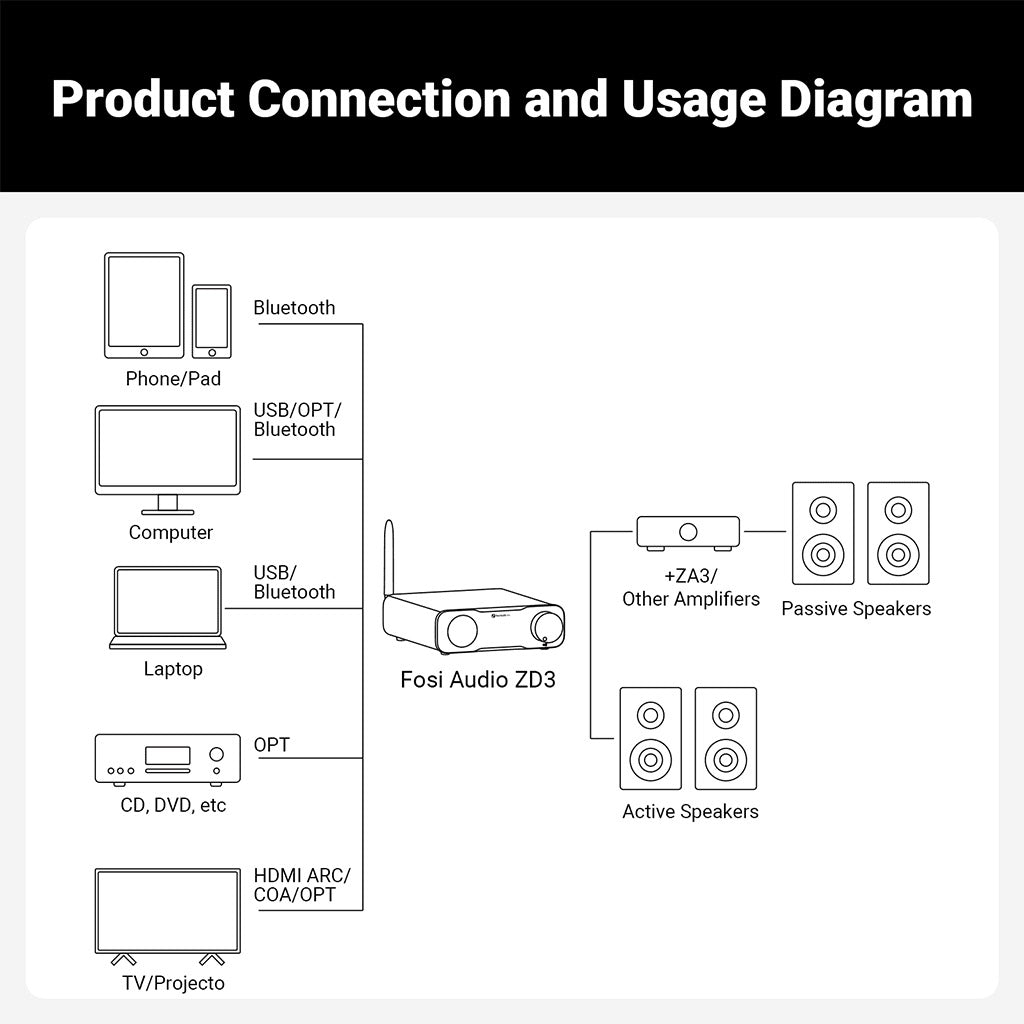

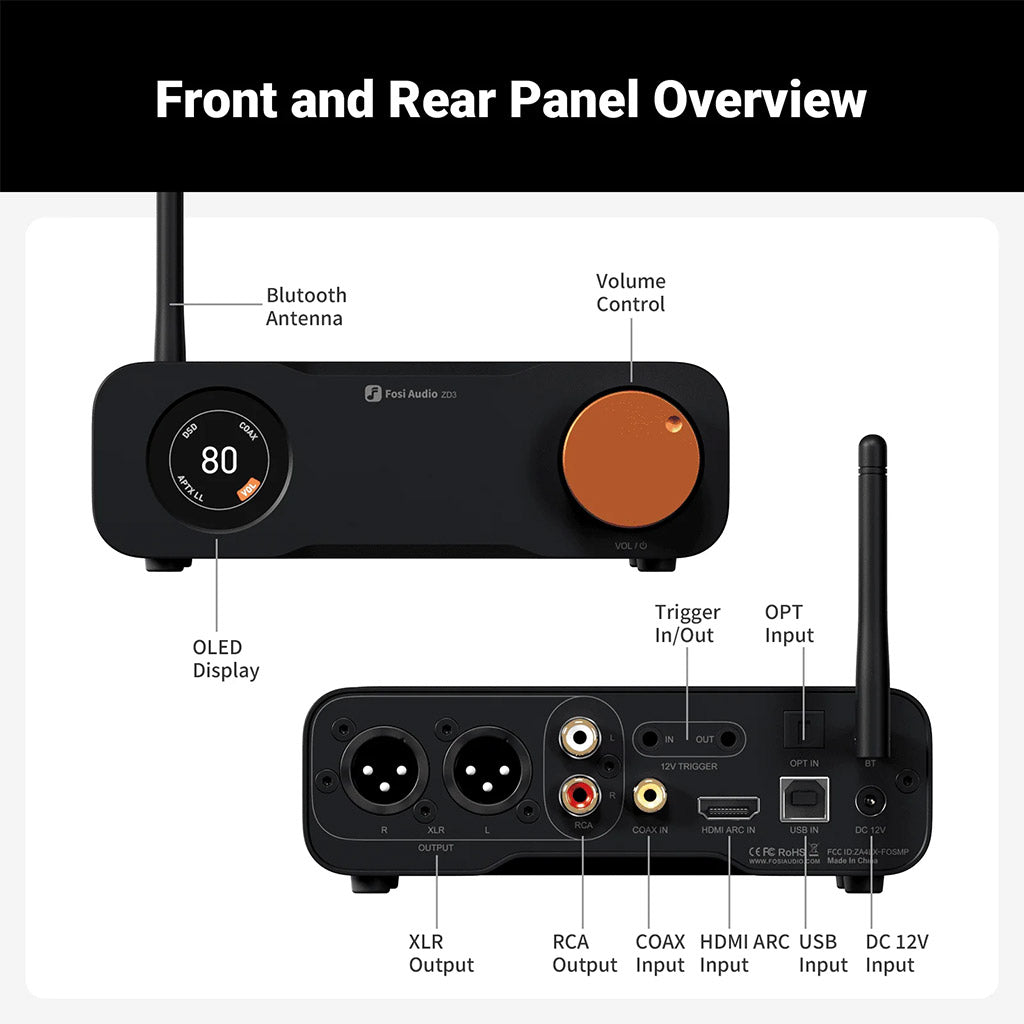

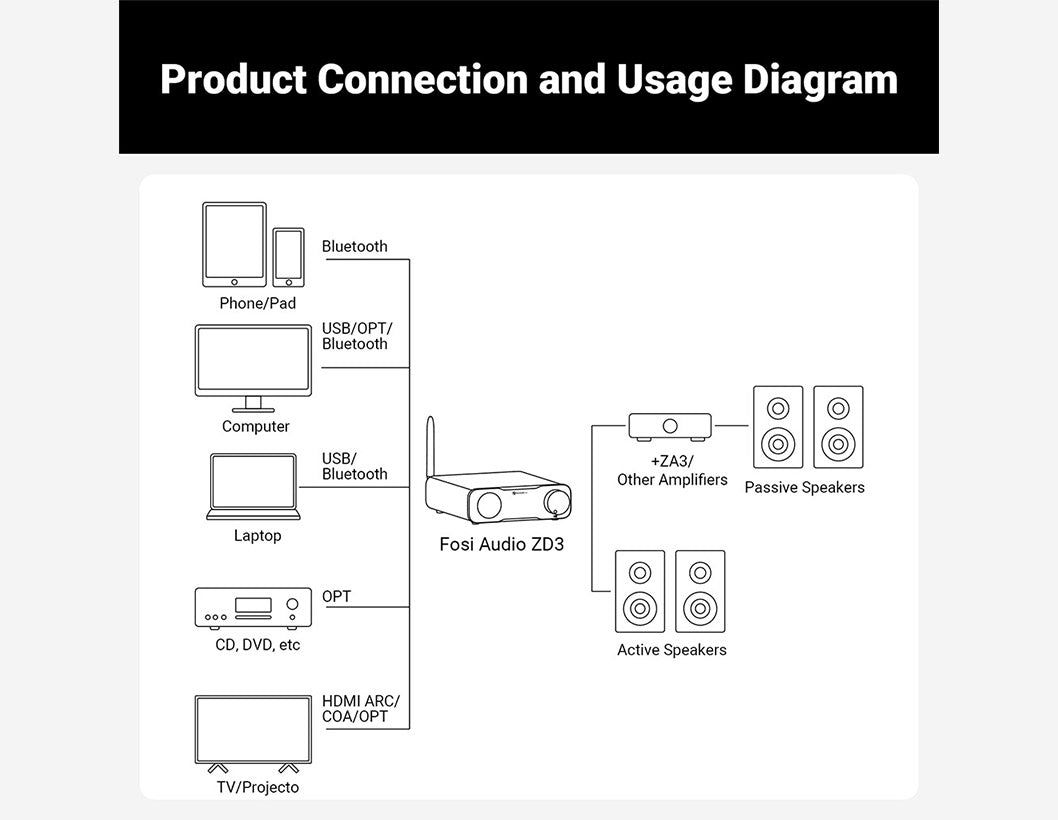

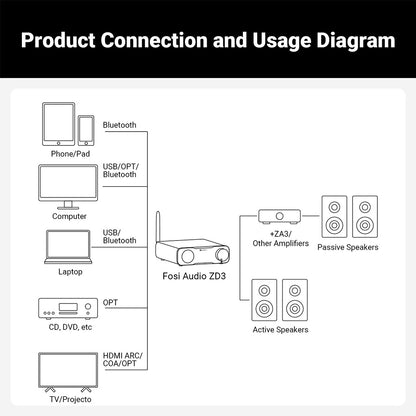

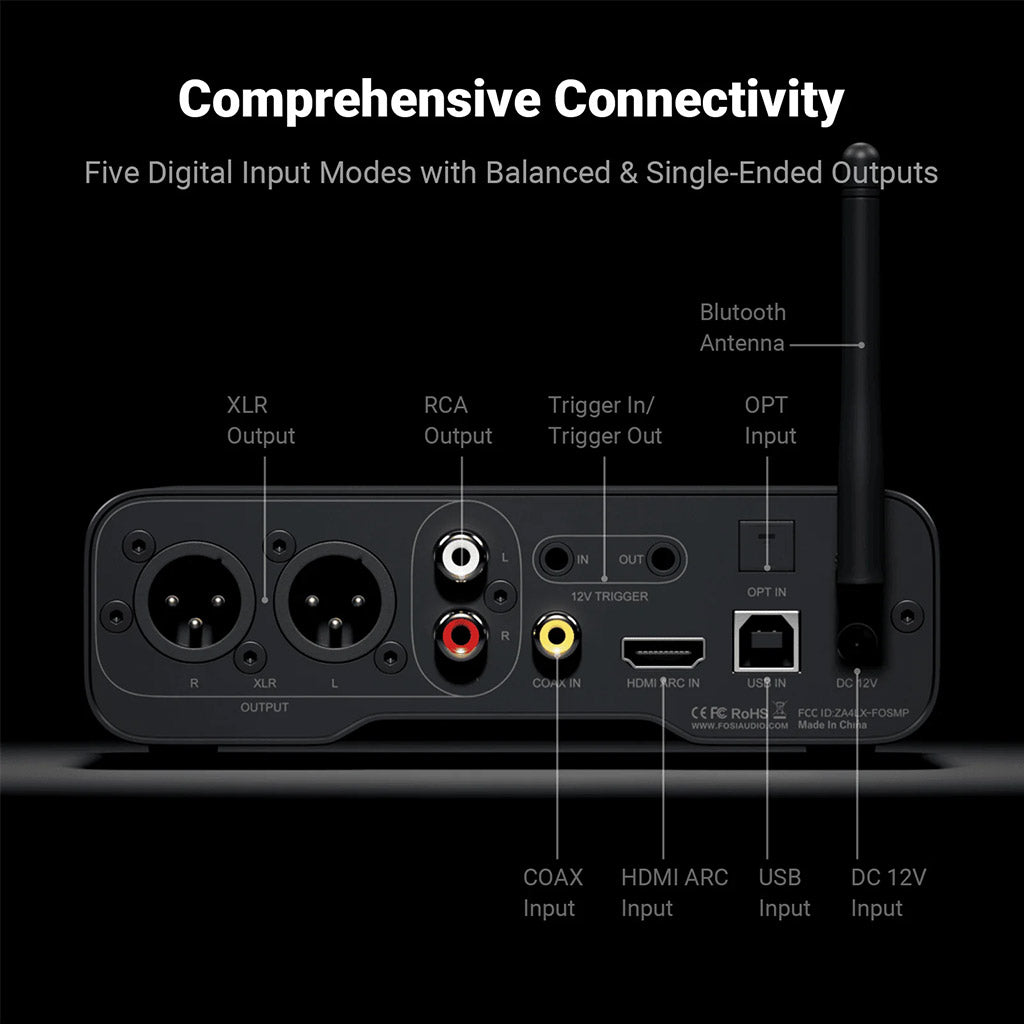

VERSATILE CONNECTIVITY OPTIONS

The Fosi Audio ZD3 Desktop DAC offers a wide range of connectivity options to accommodate various devices. It features USB inputs for digital sources, HDMI ARC for easy integration with TVs (note: it does not support eARC), and Optical and Coaxial inputs for traditional audio setups. For outputs, the ZD3 provides balanced XLR outputs for professional audio equipment and RCA outputs to ensure compatibility with standard devices.

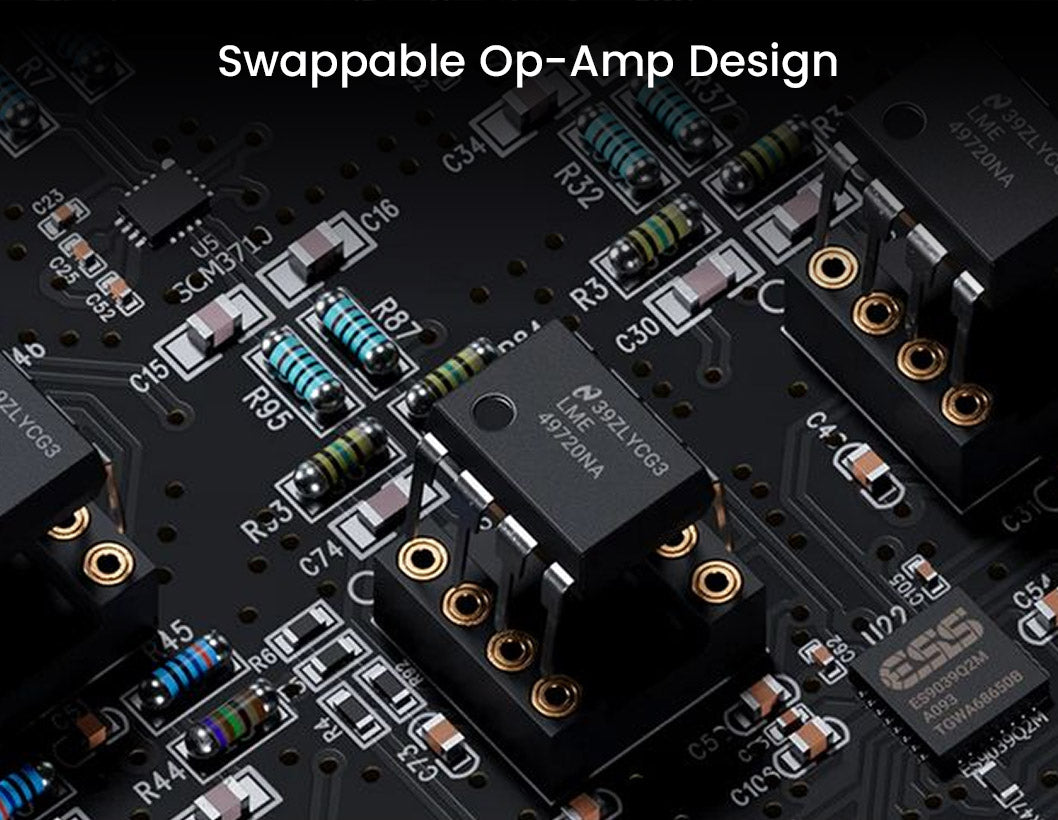

CUSTOMIZABLE AUDIO WITH OP-AMP ROLLING

Tailor your listening experience with the ZD3 op-amp rolling feature, which allows users to swap out DIP8 op-amps to achieve their desired sound signature. Compatible op-amps include LME49720, NE5532, MUSES02, and SS3602. This customization lets you adjust tonal characteristics—whether you prefer warmer tones, brighter highs, or a neutral balance—making it easy to match the DAC's output to your personal preferences or audio gear.

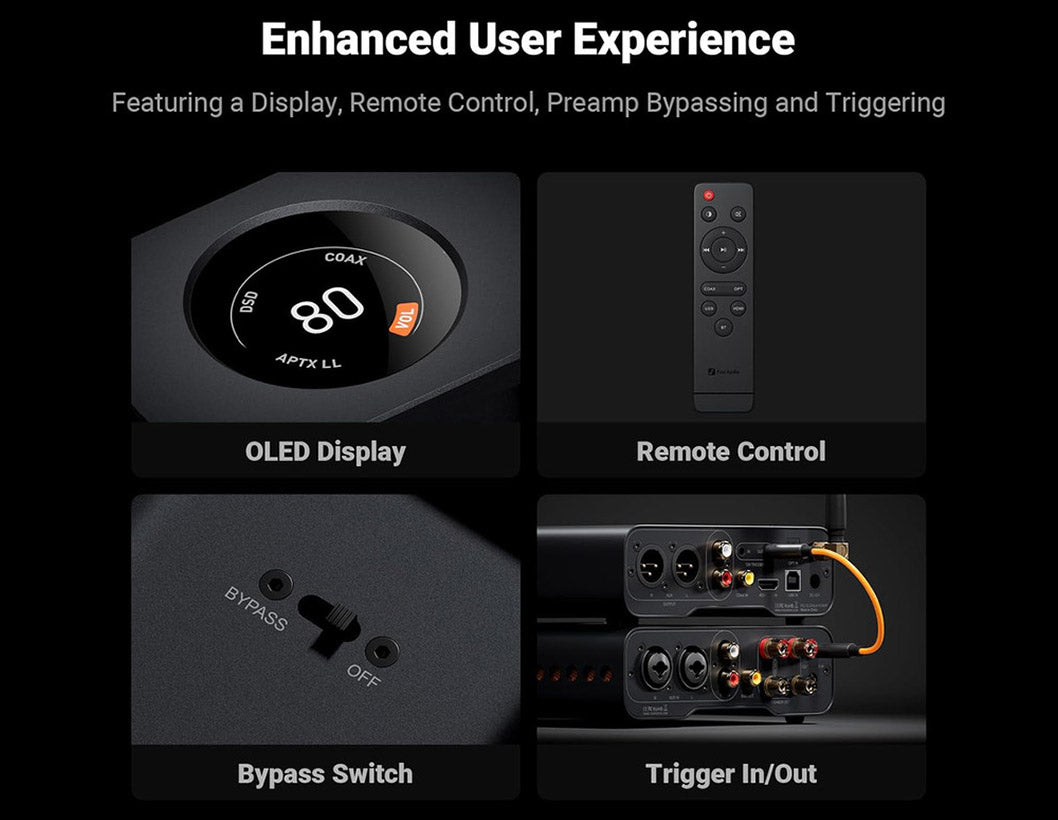

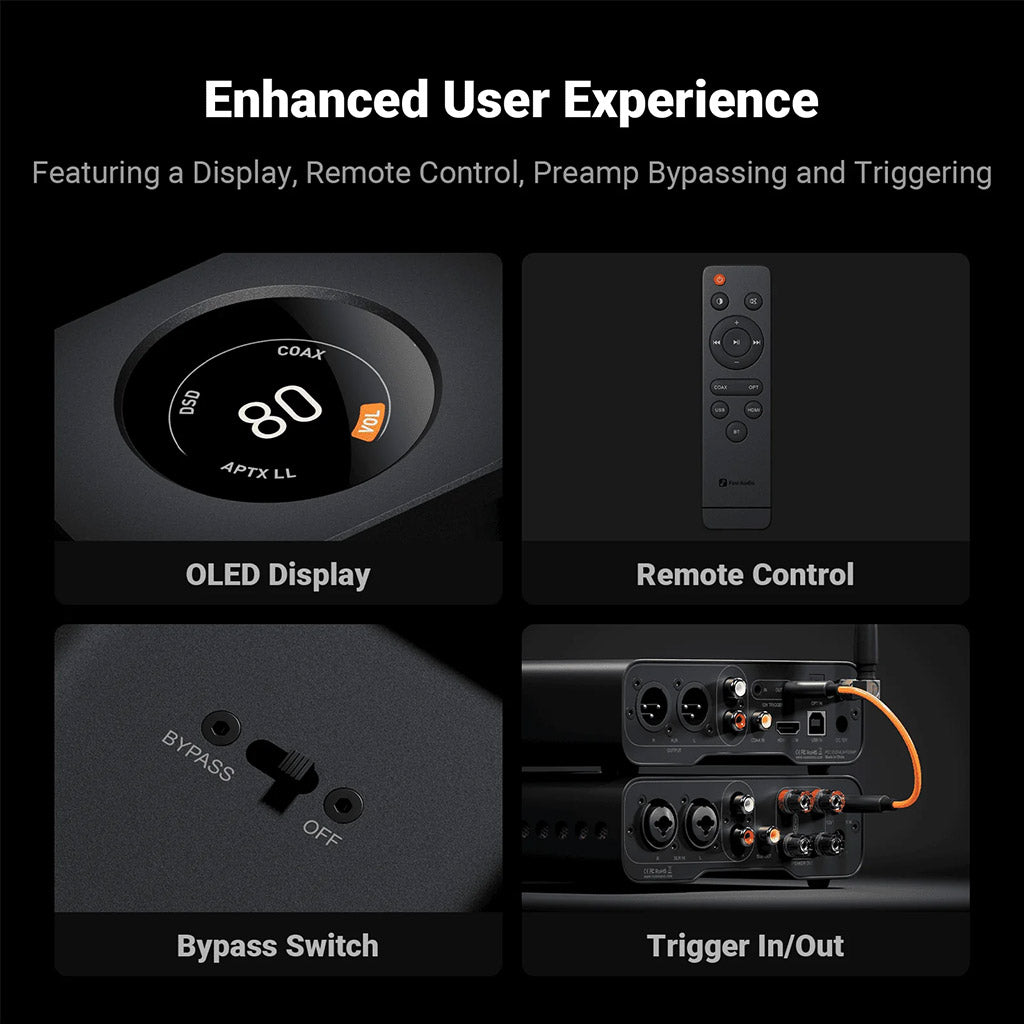

PREAMP BYPASS SWITCH FOR PURE DAC OUTPUT

The ZD3 includes a dedicated preamp bypass switch that lets you use the device purely as a DAC without any preamp processing. This feature ensures an unaltered signal path for purists seeking the cleanest audio output possible. To get you started right away, the ZD3 comes with essential accessories, including a 12V power adapter, infrared remote control, USB-A to USB-B cable, and a 3.5mm trigger cable, ensuring seamless integration with your existing audio setup.

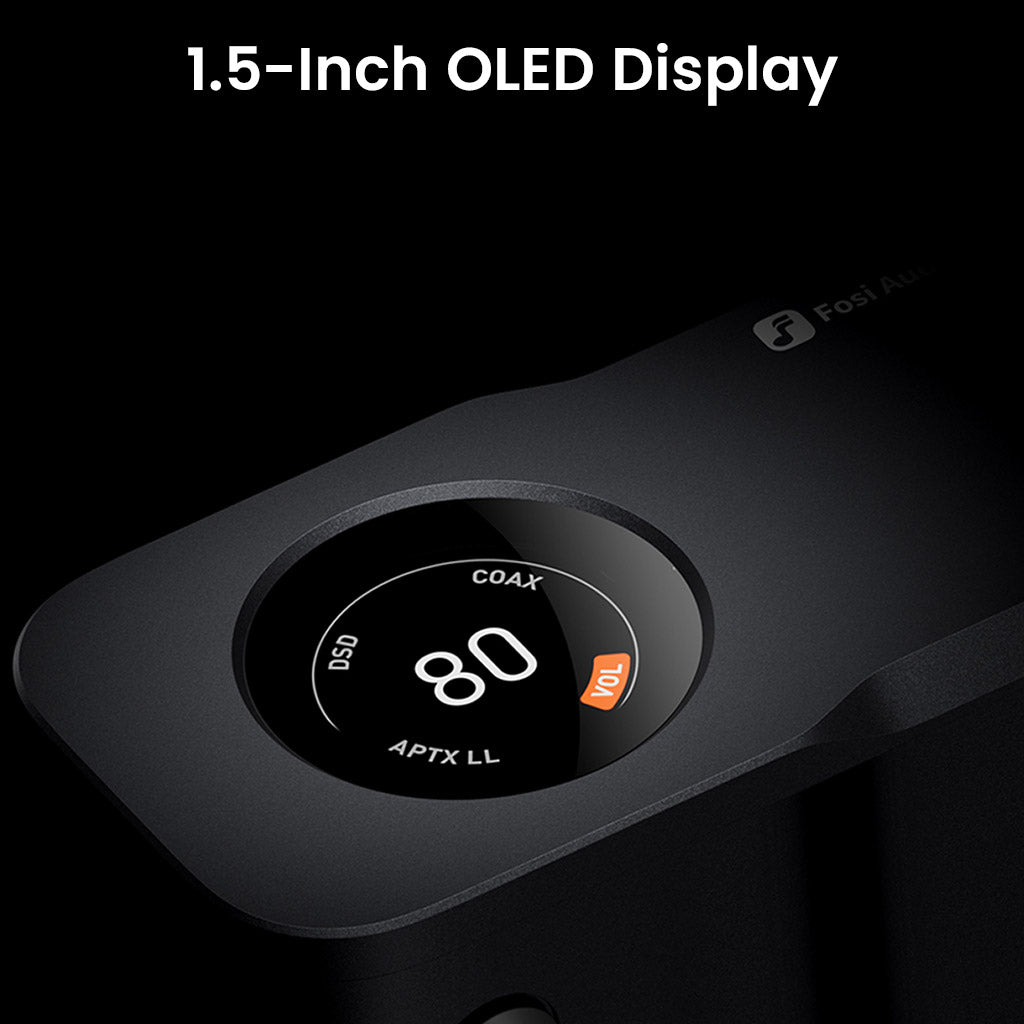

USER-FRIENDLY FEATURES FOR SEAMLESS CONTROL

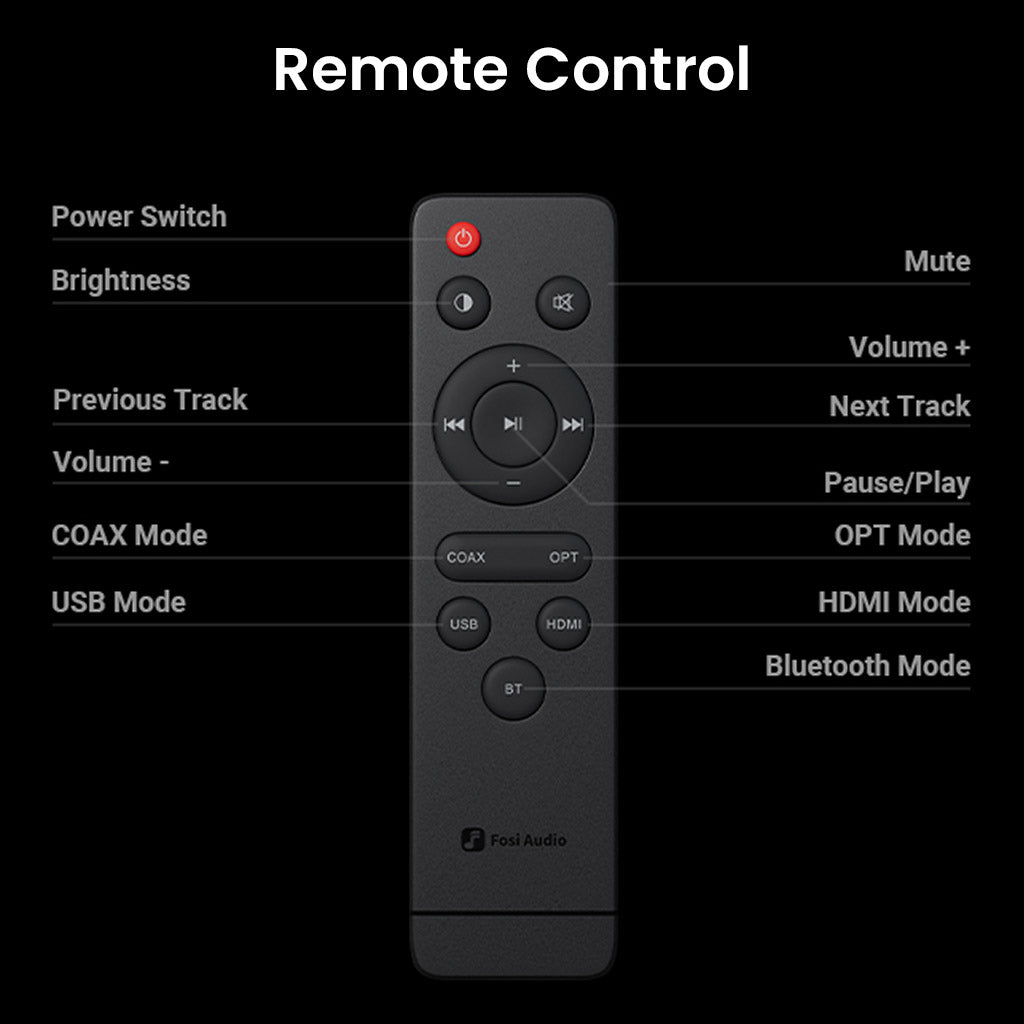

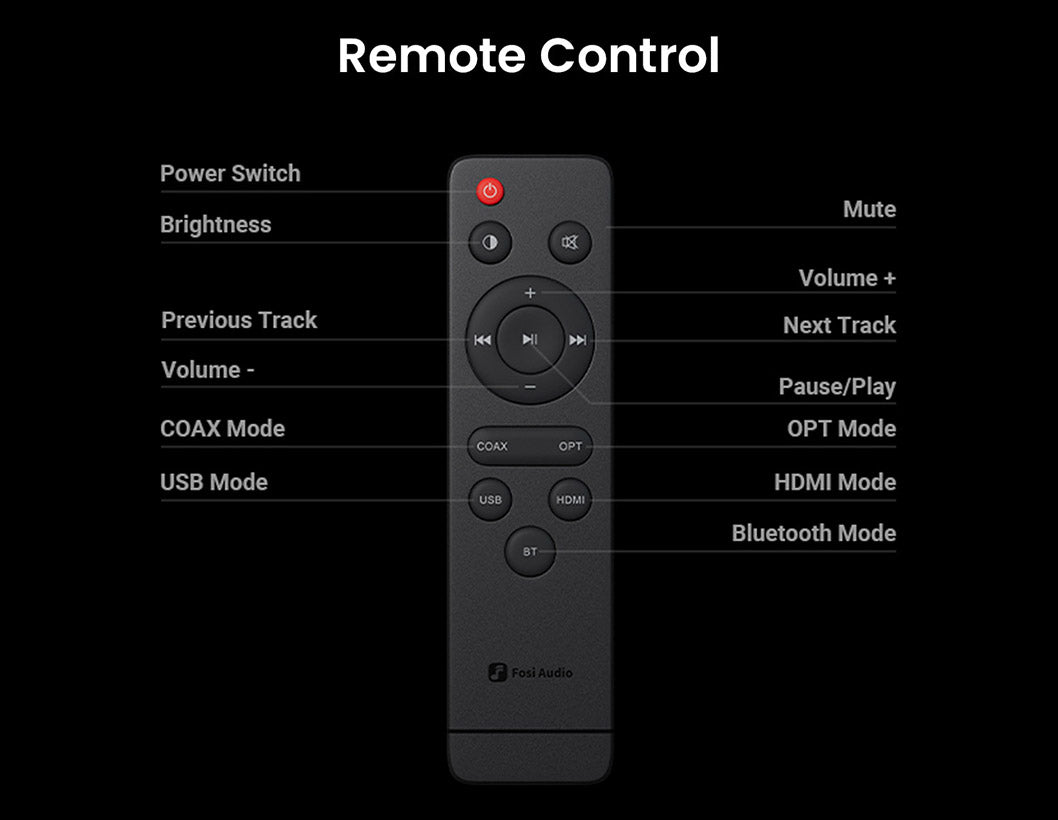

Equipped with a user-friendly 1.5-inch OLED display that provides clear visual feedback on settings and inputs, the ZD3 also features a distinctive orange knob for intuitive volume and menu navigation. It comes with an infrared remote control that simplifies operation from a distance.

Specifications

Brand Name
Fosi Audio
Model Name
ZD3 Dekstop DAC
Product Name
Fosi Audio ZD3 Fully Balanced Desktop DAC with Preamp Functionality
Chips
ESS Sabre ES9039Q2M (DAC) + XMOS XU316 (USB) + Qualcomm QCC3031 (Bluetooth) + LME49720 (op-amps)
Audio Support
USB: PCM 32-bit/768kHz, DSD512 || Optical/Coaxial: PCM 24-bit/192kHz || HDMI ARC: PCM 24-bit/192kHz || Bluetooth: PCM 24-bit/48kHz |
Bluetooth Trasmission Audio Format
SBC, AAC, aptX, aptX HD
Signal-to-Noise Ratio (SNR)
≥126 dB (super quiet)
Power
12V External Adapter
Distortion (THD+N)
<0.00008% (almost none)
Inputs
USB-B, HDMI ARC, Optical, Coaxial, Bluetooth, 12V Trigger In
Outputs
XLR (Balanced), RCA (Single-Ended), 12V Trigger Out
Op-Amps
3 x LME49720 (replaceable; 2 for XLR, 1 for RCA)
Dynamic Range:
≥123dB
Display
1.5-inch OLED
Bluetooth Version and Connection Distance
5.0, ∼13m
Frequency Response
20Hz - 20kHz
Color
Black
Dimensions (LxWxH)
16 x 15.5 x 4.8 cm
USB Compatible Devices
Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual) | Mac OS X, Linux (No driver required) |

Box Content

    What will you get
  • 1x DAC ZD3
  • 1x 12V Power Adapter
  • 1x Infrared Remote Control
  • 1x USB-A to USB-B Cable
  • 1x 3.5mm Trigger Cable
  • 1x User Manual

Warranty

1 YEAR WARRANTY

Don't worry, Fosi Audio ZD3 Fully Balanced Desktop DAC comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
