01.Package list
1* Cable
1* User's manual
1* Warranty
02. Cable features
Adopts the pure-cooper HiFi wire imported from Japan, with warm-thick and extension sound.
6mm braided shielded wire made by2-Core Single-Channel audio wire.
The copper density is up to 94%, which can barrier
electromagnetic noise effectively.
Each wire is twisted by 60pcs extremely exquisite and durable 0.08mm copper wire.
The protector adopts flexible polyvinylchloride
(Embrittle temperature-49℃)
Insulated layer: Polyethylene processed radiation
Insulation voltage: 500VAC/min without damage

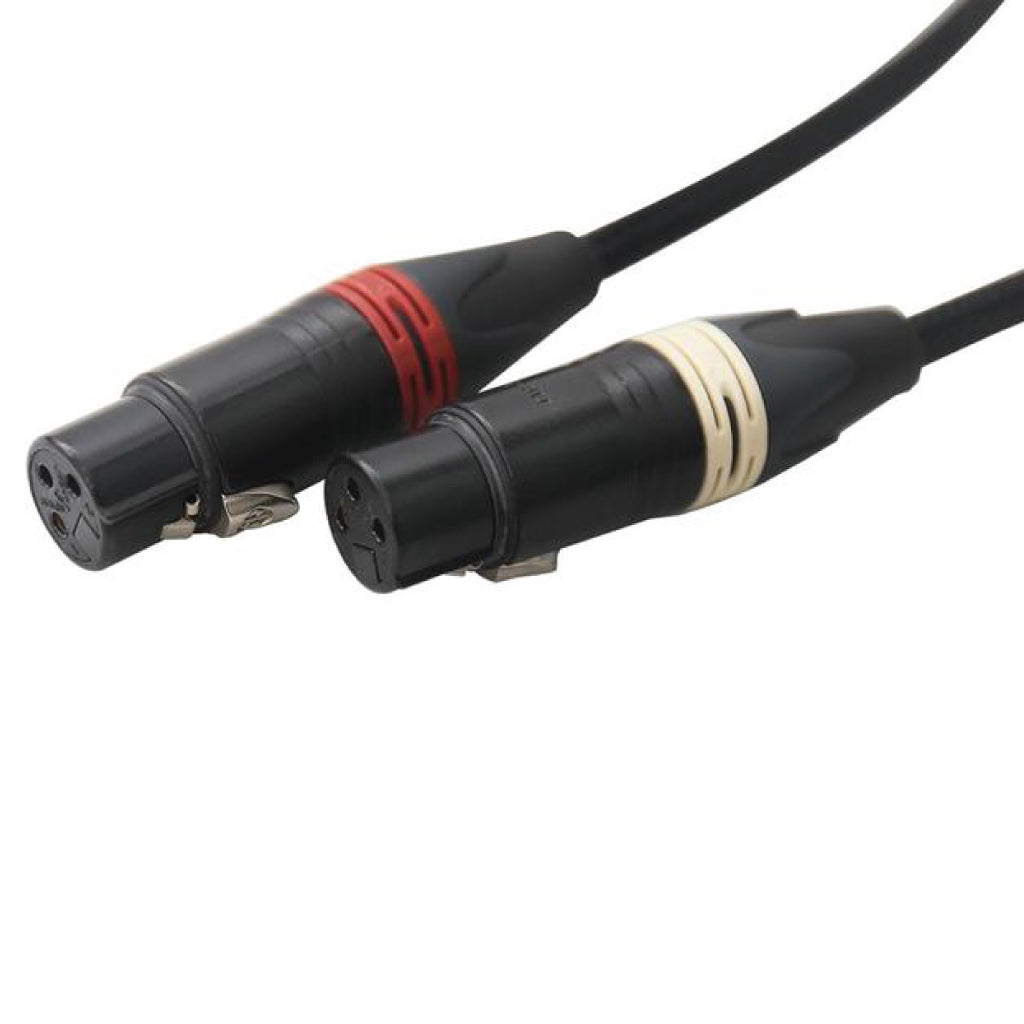

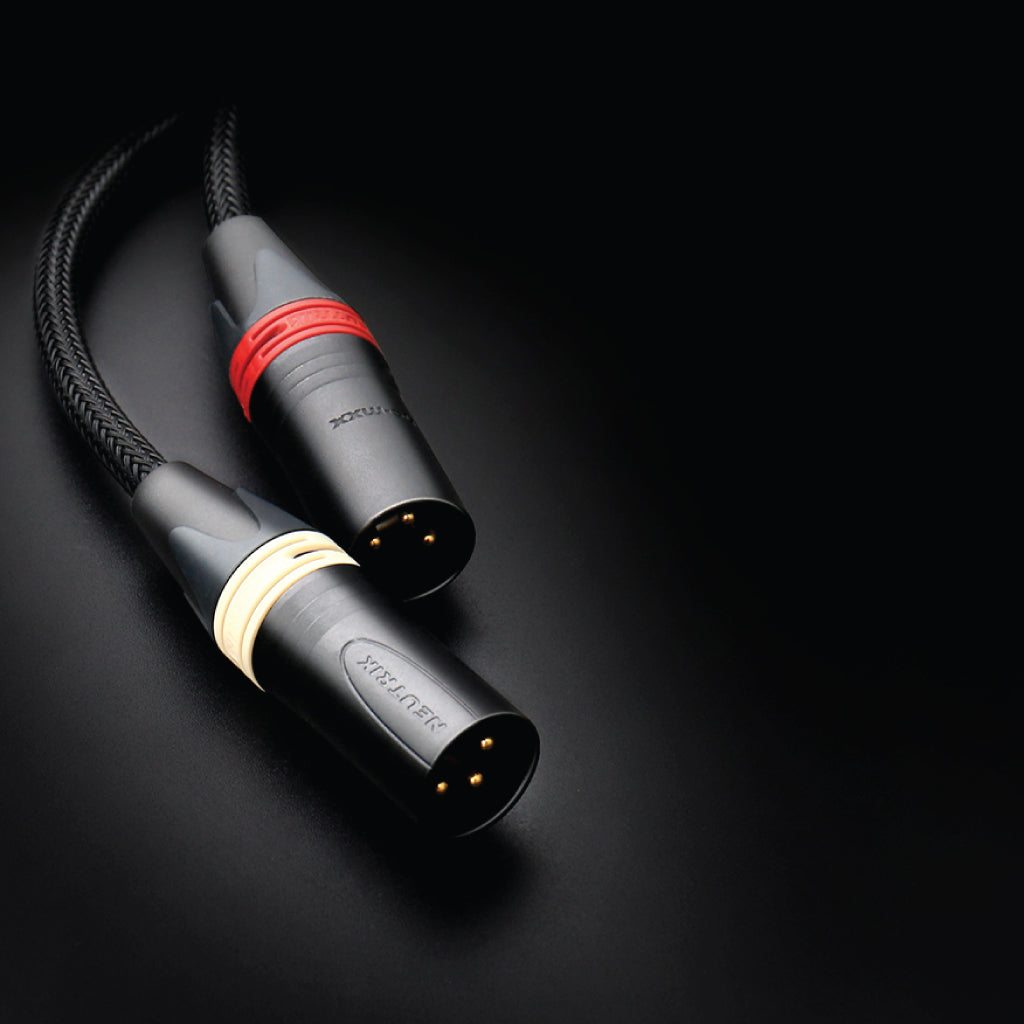

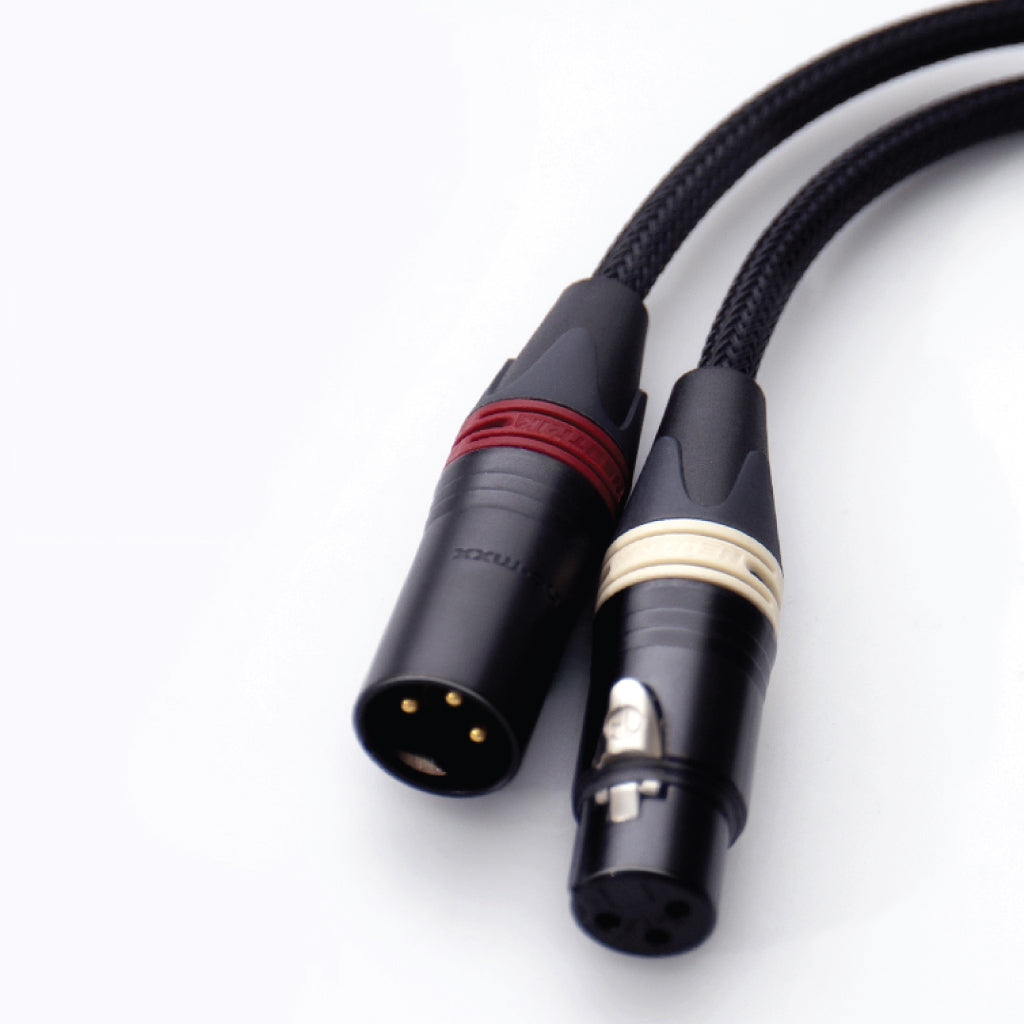

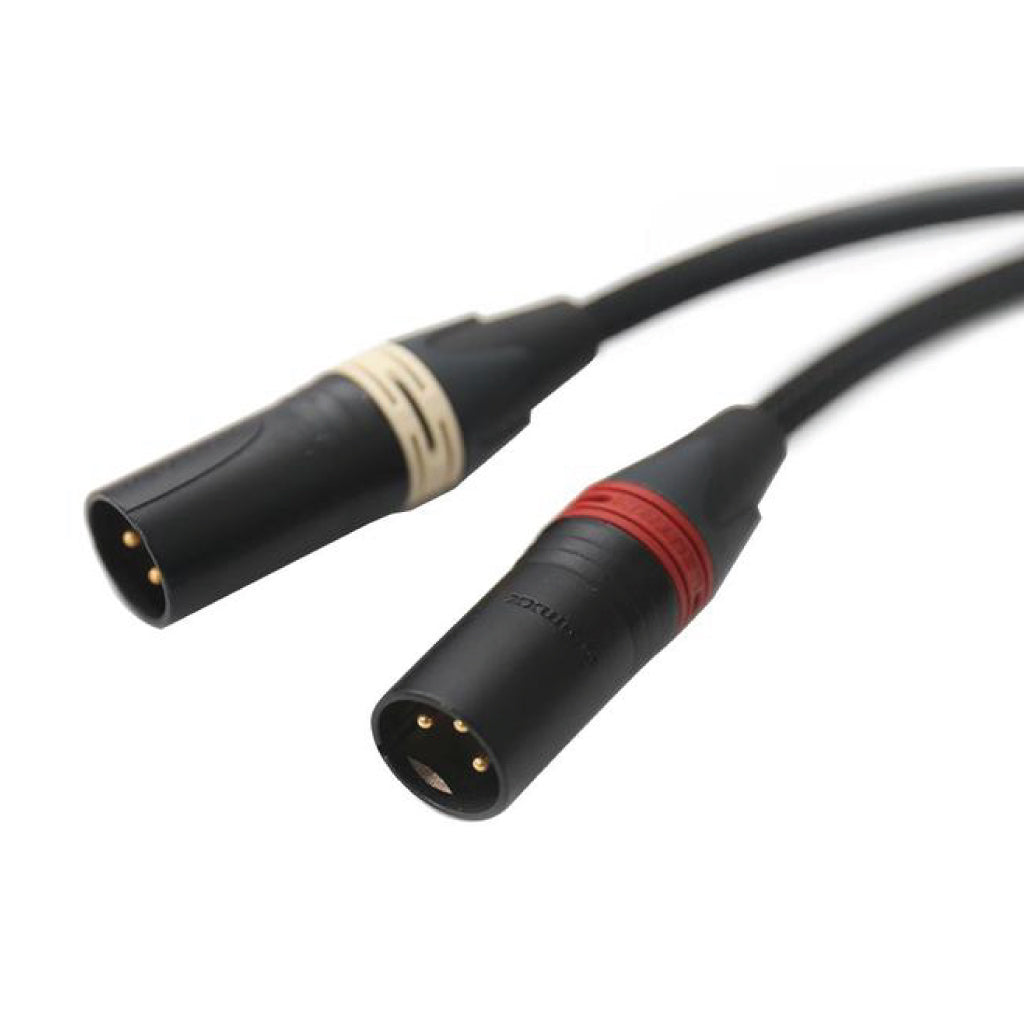

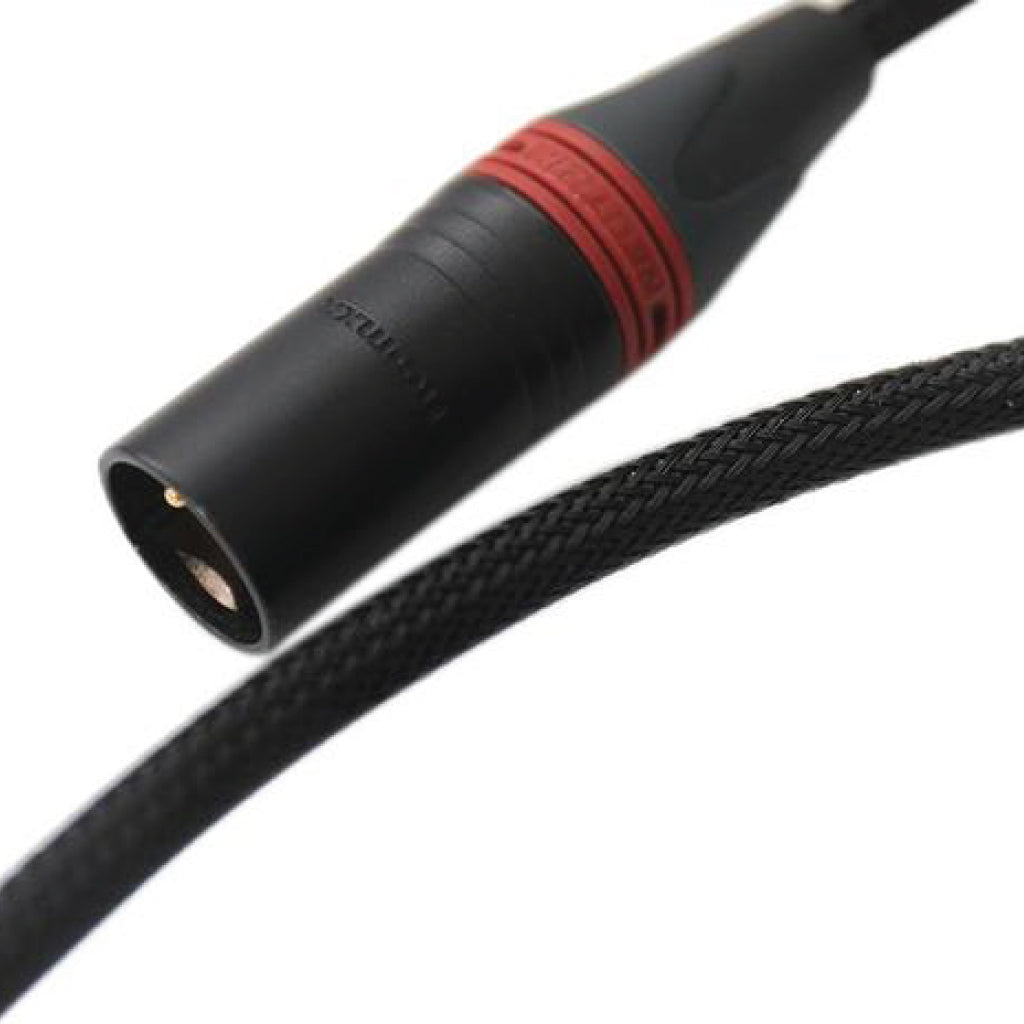

The Canon head is made of black gold-plated NC3MXX-B AND NC3FXX-B of NEUTRIK imported from Switzerland.
Unique cage type jack design lowers contact resistance and improves contact integrity.
The jack contains a welding barrier which can prevent solder from entering the connection with the socket.

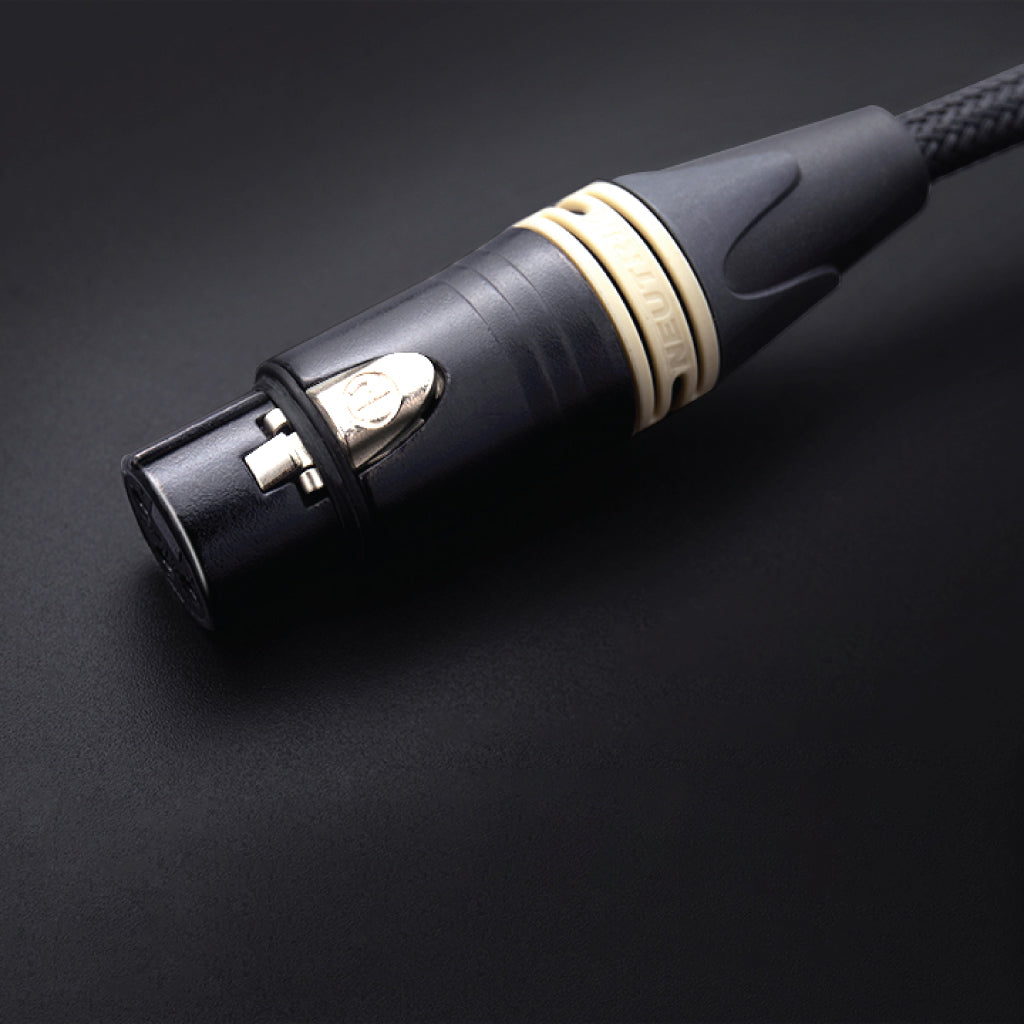

Terminal Female connector attaches an enlarged metal latch for easy operation.
The additional grounding spring pieces provide better continuity of the shell.
The upgraded chuck type clamping sleeve provides bigger tension resistance for more convenient to assemble.
The polyurethane sealing cover of the tail sleeve avoids the cable being influenced by bending pressure to the greatest extent.

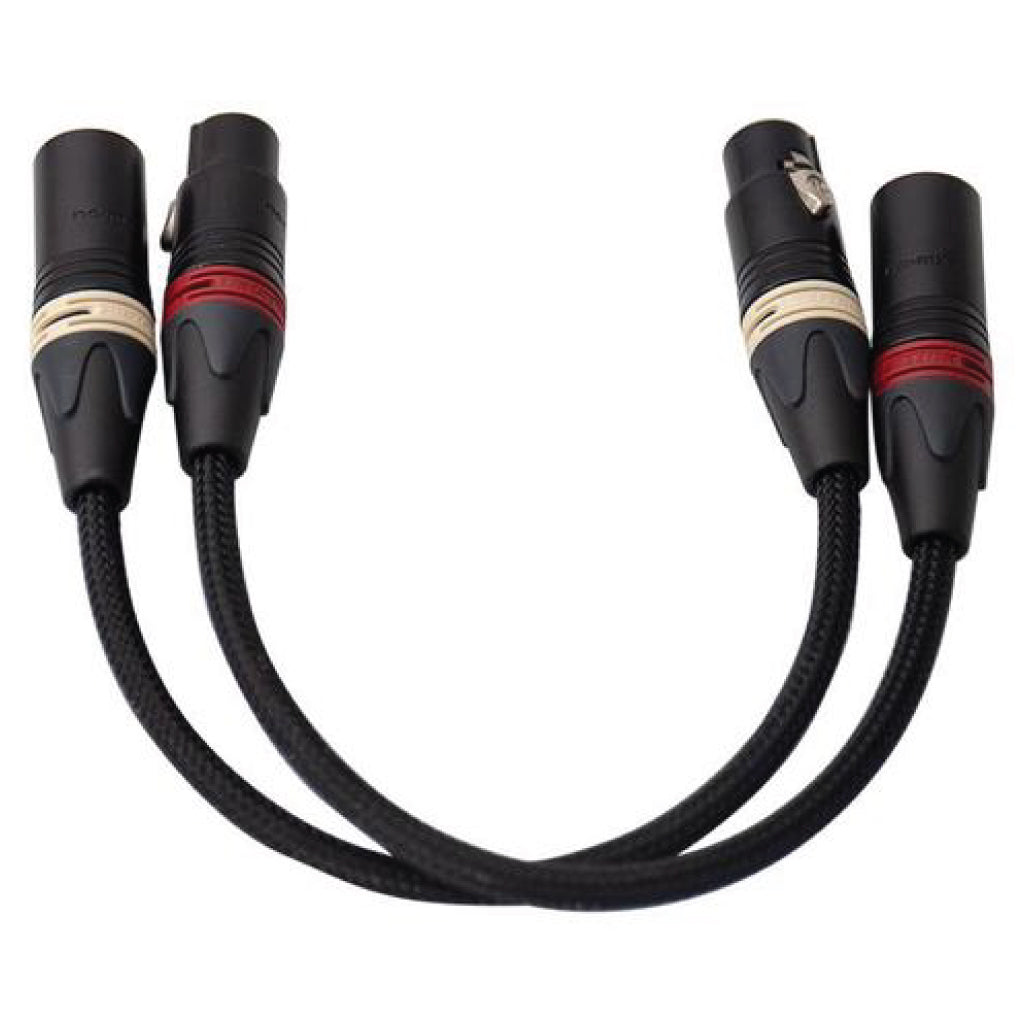

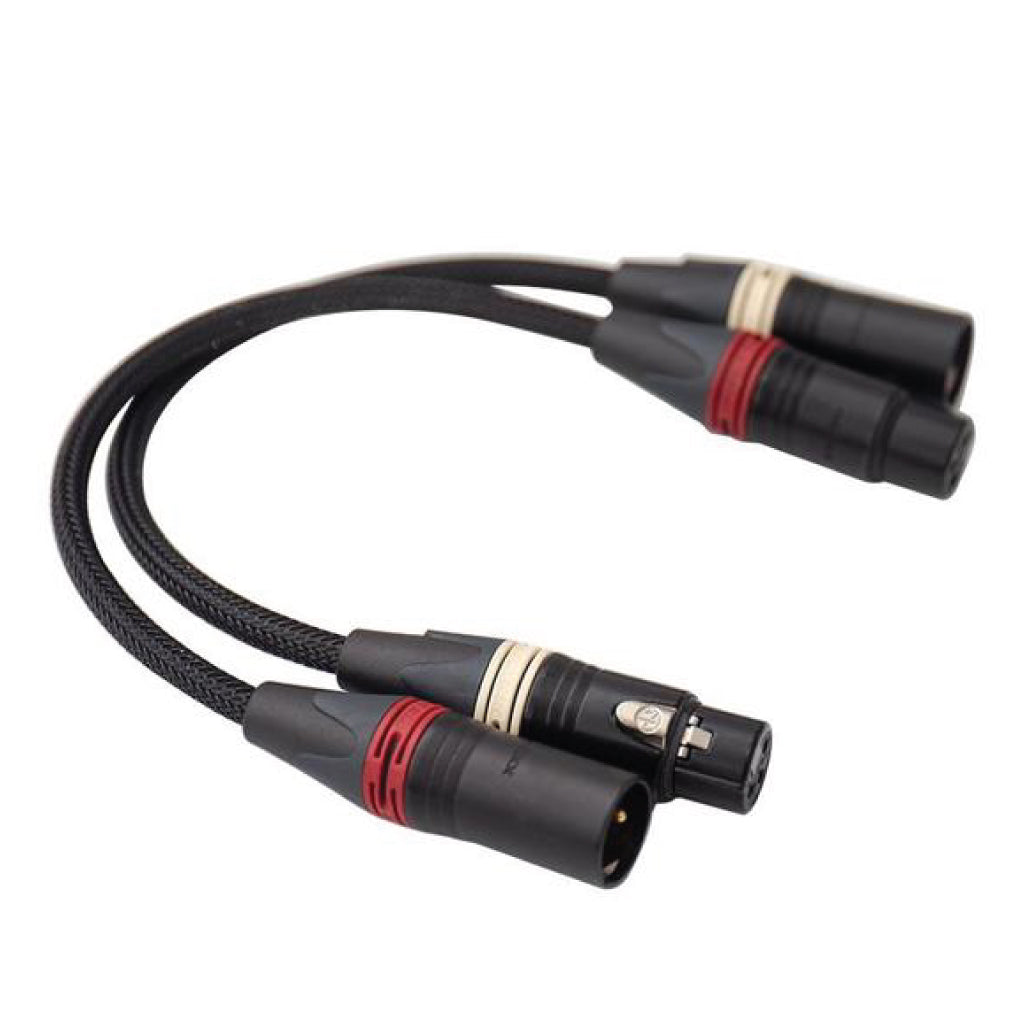

Color ring and tail sleeve are used for coding and identification.
Smooth and friendly ergonomic design for easy operates and more valuable.
The defense zinc diecasting shell to make a long life and high reliability.
The inside of shell combines with screw threads to keep away any damage effectively.
03.Specification

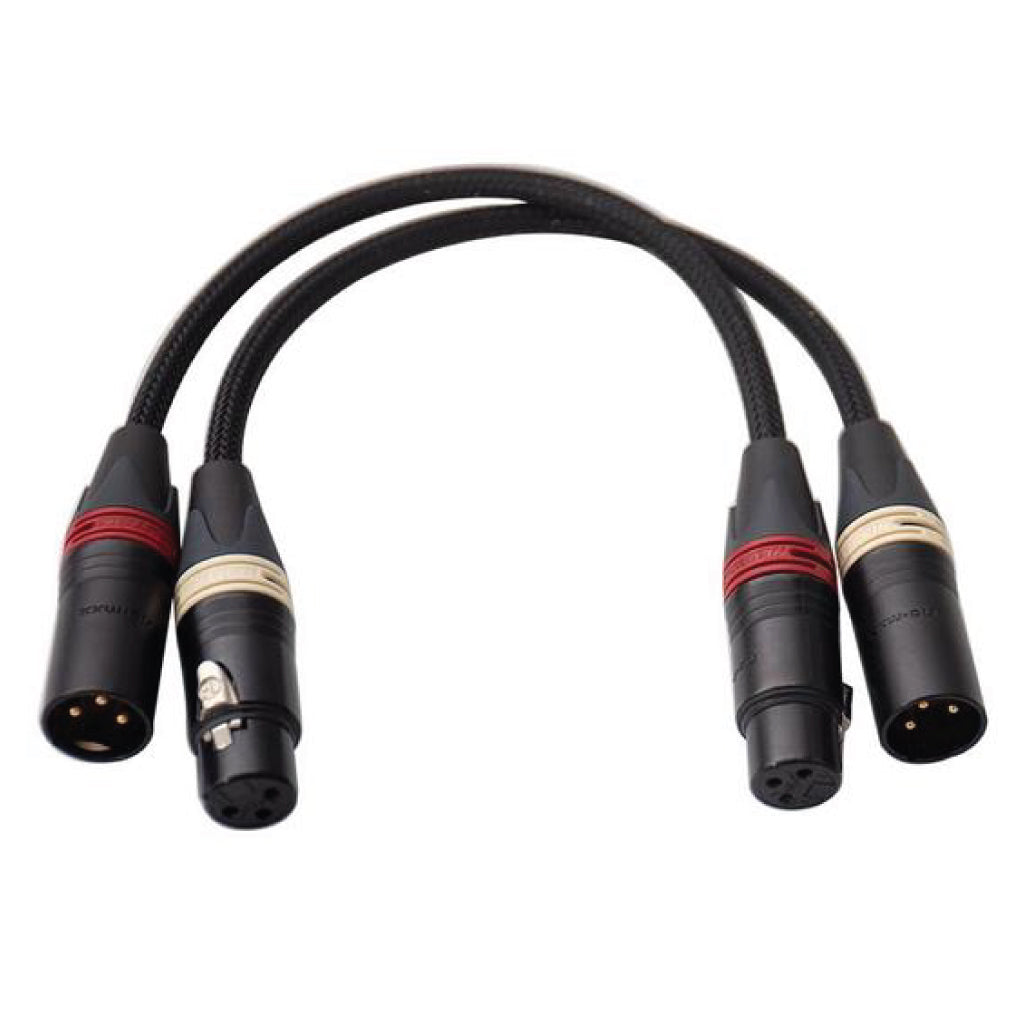

Model: Fanmisic C006
Material: Black gold-plated NC3MXX-B and nc3fxx-b of NEUTRIK; Two-core braided HiFi line L-2T2S of CANARE;
Plug: Black gold-plated NC3MXX-B and nc3fxx-b of NEUTRIK
Number of conductors: 2pcs;
Standard cable diameter: 6mm+0.15
Conductor cross-sectional area: 0.30mm/23AWG
Quantity of conductor copper wires: 60pcs
Diameter of conductor copper wire: 0.08mm
Torque: 20mm
Core DC Resistance: 6.40/100m
Shielded DC Resistance: 3.10/100m
Thermal shock: 120 CX for 1 hour, no crack;
Voltage Test: 1000 Vdc X 1 Minute,OK
Conductor impedance: <900/km
Conductor insulation layer: XLPE polyethylene
Shielding material: 80*0.1mm braided copper wire
Shell material: soft PVC/neoprene
