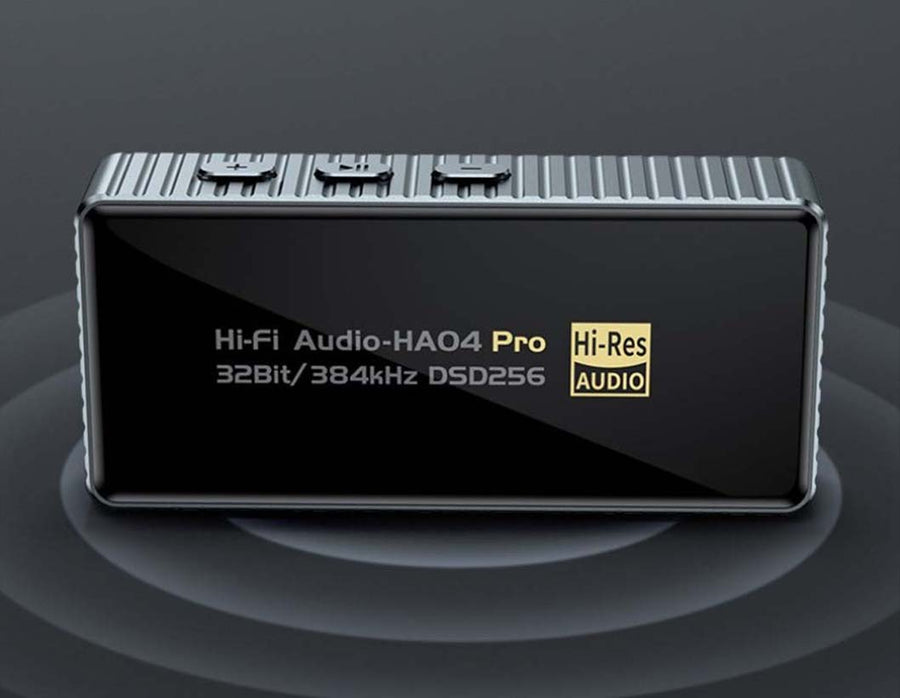

AUDIOCULAR x KinMax - HA04 Pro Dual CS43131 Portable DAC/Amp - 1

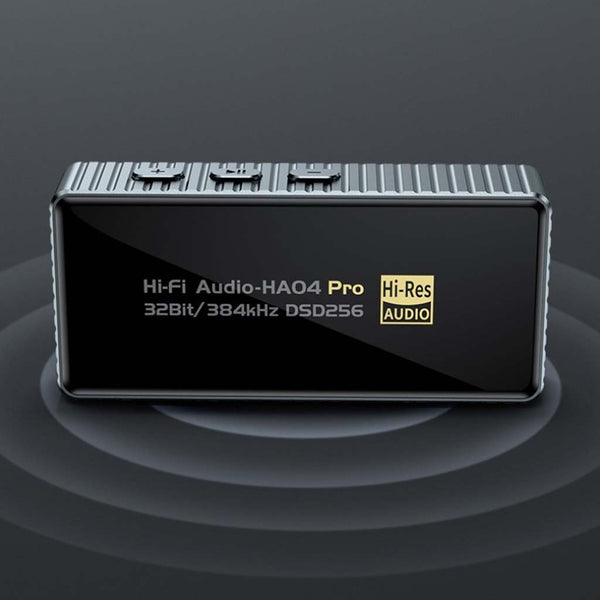

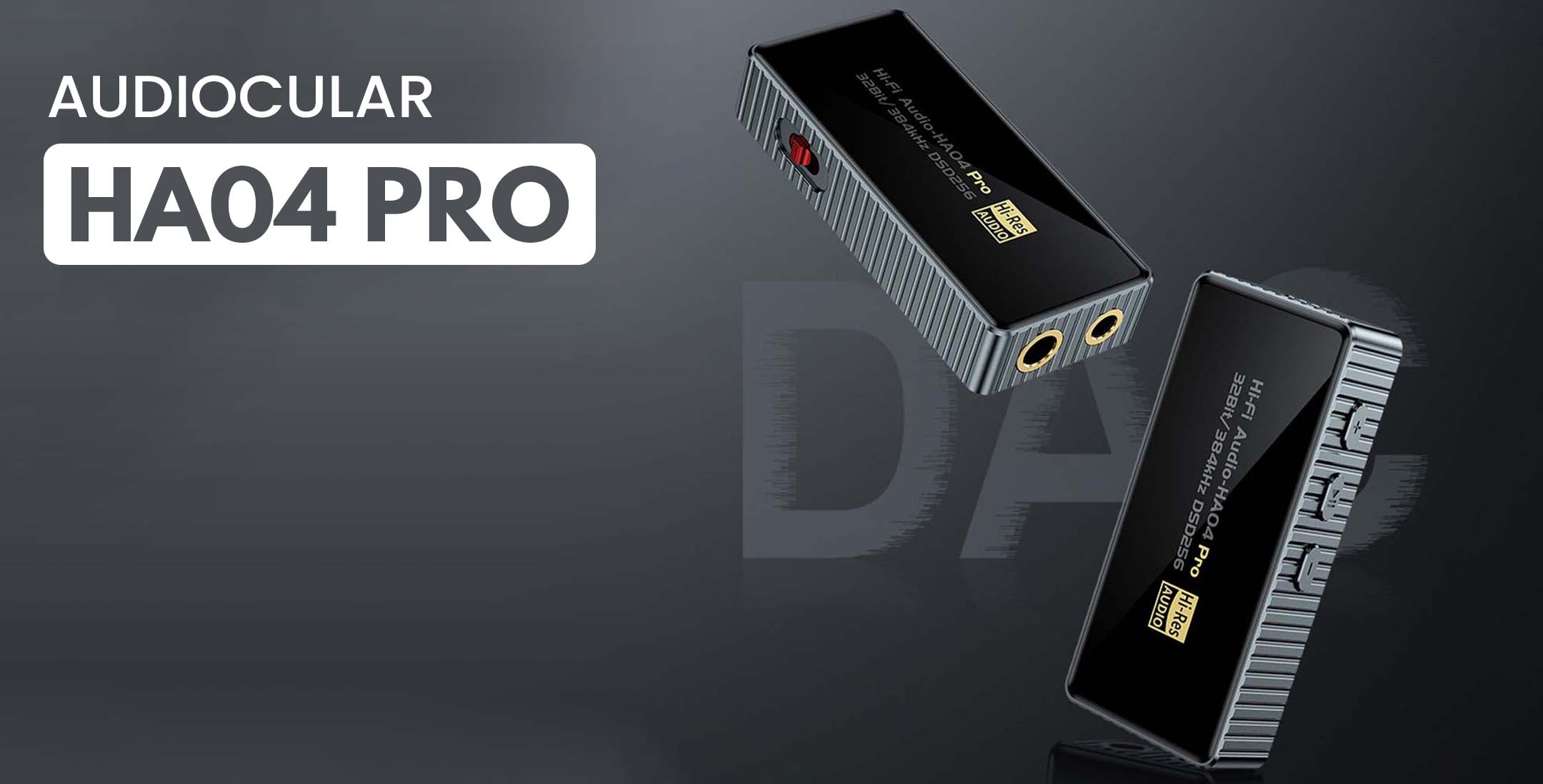

AUDIOCULAR x KinMax - HA04 Pro Dual CS43131 Portable DAC/Amp

AUDIOCULAR

amps & dacs under 5000

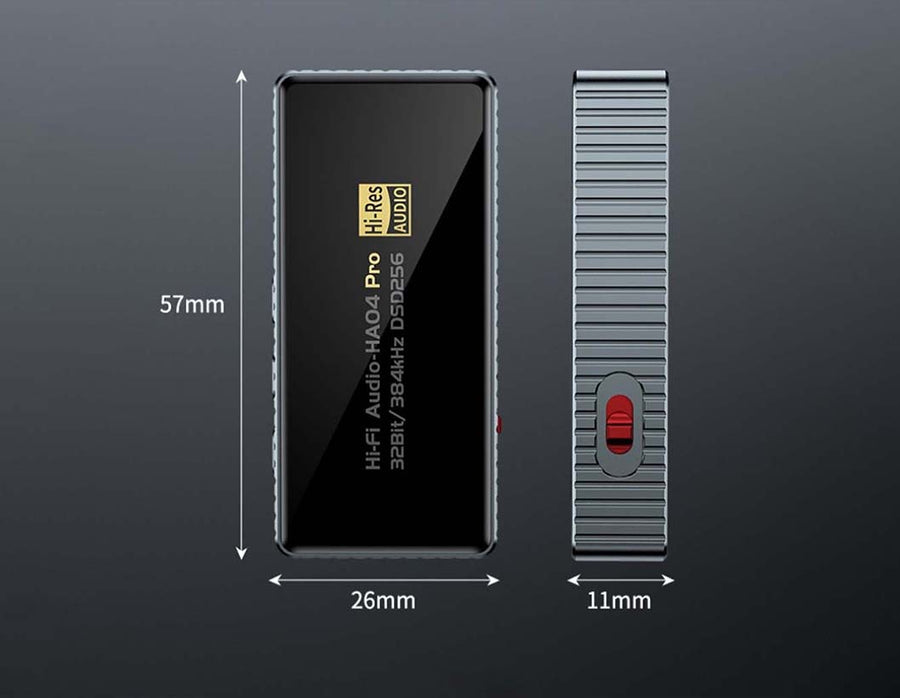

    Ultra-Compact Portable Design

    High/Low Gain Mode Switch

    Dual 3.5mm & 4.4mm Outputs

    Official Support for Walkplay App

    DSD 256 Hi-Res Audio Output

    500mW of Extreme Power Output

₹7399   ₹4590

₹ 4,590 ₹ 7,399 Save ₹ 2,809

Tax & Shipping Included

Tax IncludedShipping Included

Add a heading

Add content using the options to the left

Description

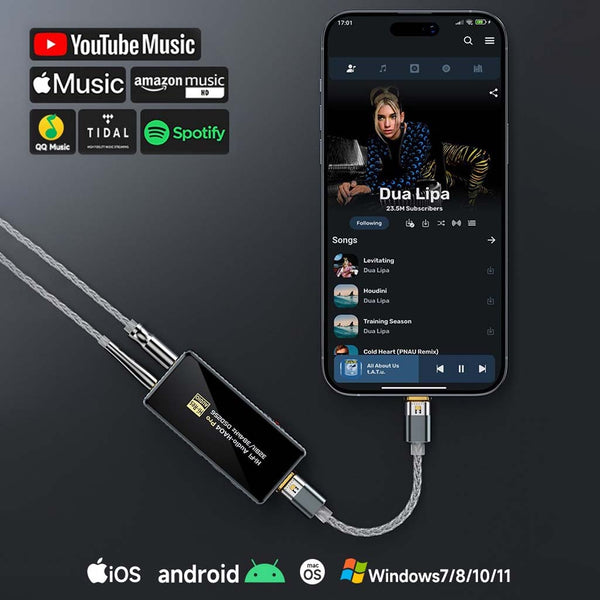

Unlock top-tier audio anywhere with the all new AUDIOCULAR x KinMax HA04 Pro; a compact DAC/amp packed with power and versatility. Featuring both 3.5mm and 4.4mm headphone jacks, Type-C and USB-A compatibility, this DAC connects seamlessly to your phones, tablets, computers and many other audio sources. Now effortlessly drive your In-Ear Monitors and Headphones with 500mW of output, low noise, and pristine clarity. Use dedicated buttons to control volume and playback, plus enjoy full PEQ and mic support via the Walkplay app. Also, experience crisp, detailed sound with PCM 32bit/384kHz and DSD256 decoding.

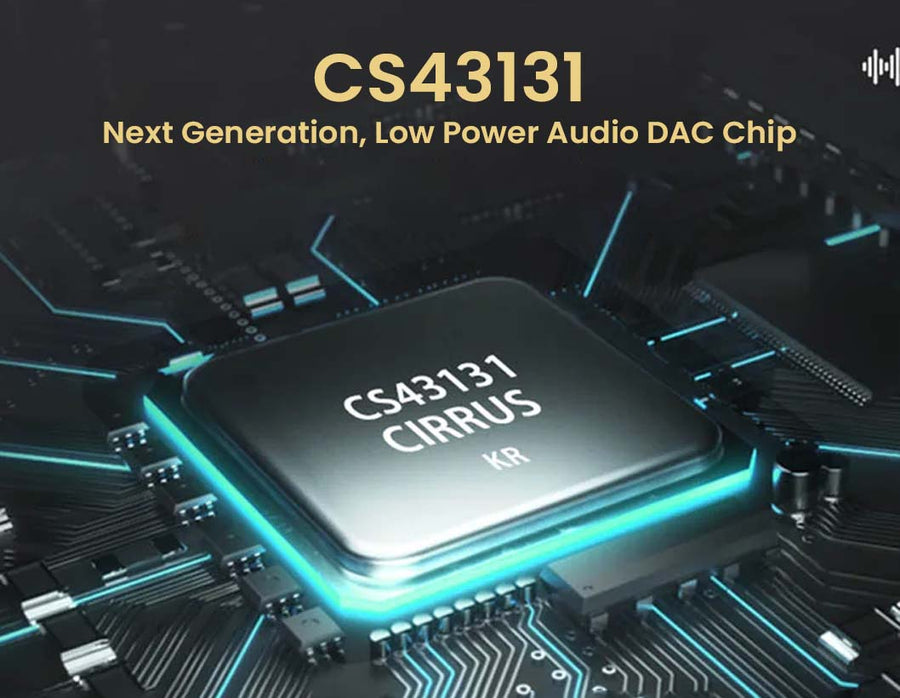

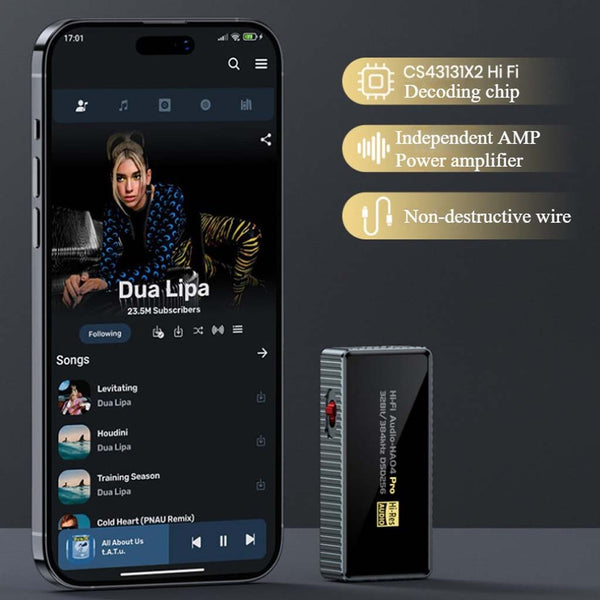

DUAL CS43131 DAC CHIP ARCHITECTURE

Experience powerful and pristine sound with the HA04 Pro. This DAC packs two Cirrus Logic CS43131 DAC chips for crystal-clear, true Hi-Res sound. Effortlessly drive anything from sensitive IEMs to full-size headphones, with up to 500mW of output. Also, two SCM8262 Amp chipsets push the DAC chips to their maximum potential. Easily switch between high and low gain modes for perfect pairing with any gear. Enjoy deep bass, clear mids, and detailed highs with ultra-low distortion (-115dB THD+N), wide frequency response (20Hz–80kHz), and PCM 32bit/384kHz/DSD256 decoding.

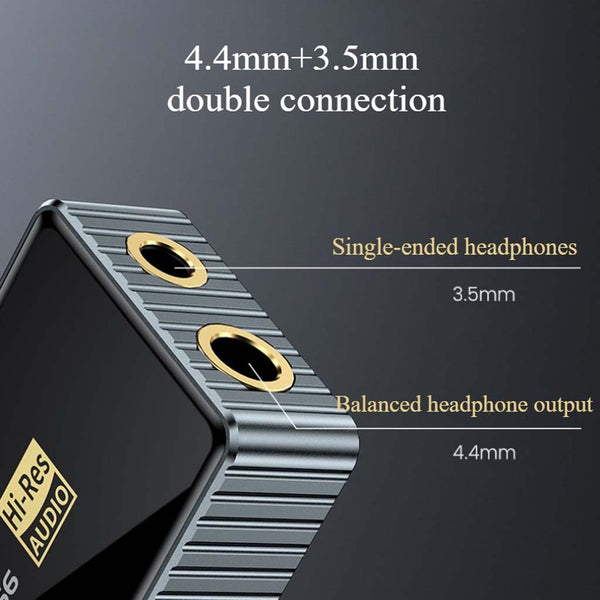

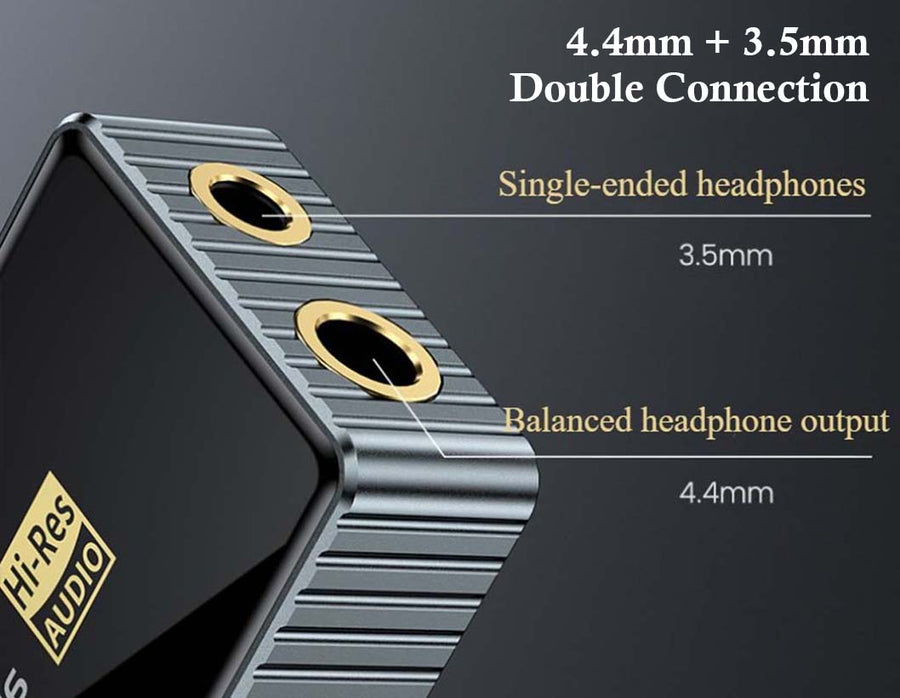

VERSATILE DUAL OUTPUTS WITH 3.5MM & 4.4MM JACKS

Unlock the full potential of your audio gear with the AUDIOCULAR x KinMax HA04 Pro featuring dual headphone outputs. Whether you prefer availability of single-ended 3.5mm or the power of balanced 4.4mm connection, this DAC delivers flawless compatibility with a wide range of headphones and in-ear monitors. Casually switch between your favorite pairs without any need of external adapters. With both outputs available, you get maximum flexibility at home, in the studio, or on the move.

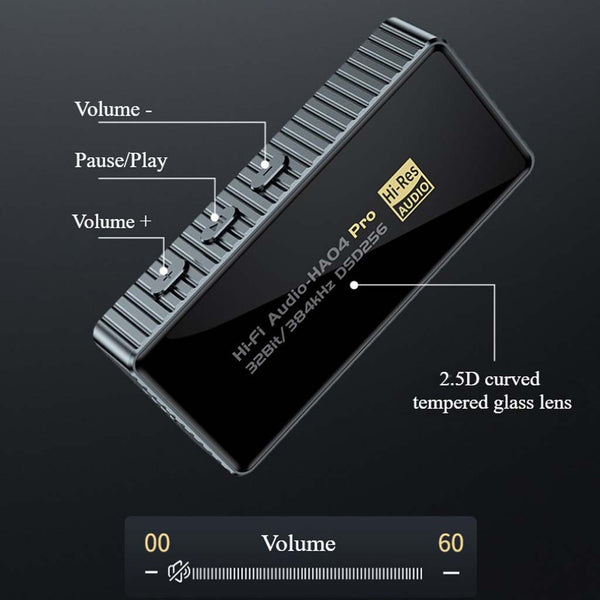

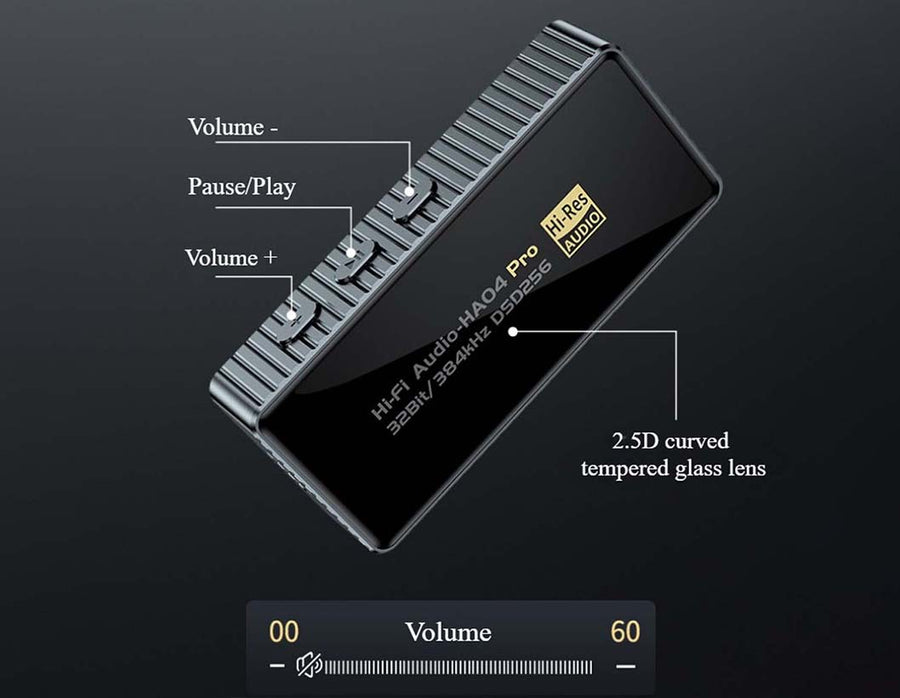

SMART THREE-BUTTON CONTROL FOR TOTAL CONVENIENCE

Take full command of your music with the smart onboard controls. Three conveniently placed buttons allow you to adjust volume up or down and play or pause your music; all without needing to touch your phone or computer. Enjoy uninterrupted flow, easy adjustments, and a truly convenient portable audio experience wherever you go.

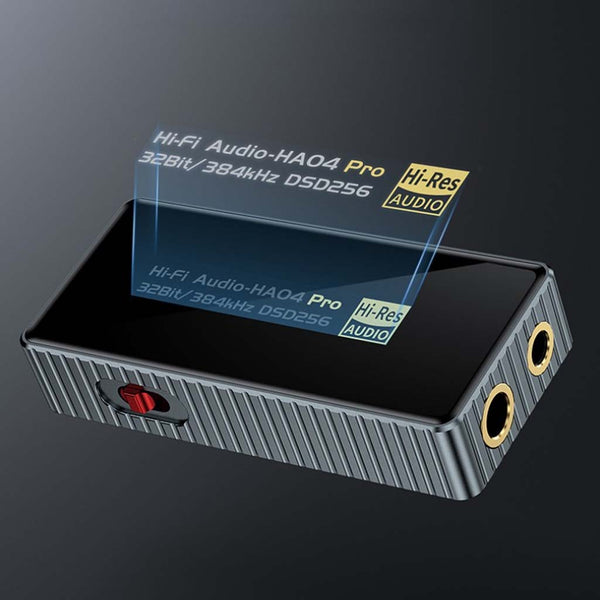

INSTANT POWER CONTROL WITH PHYSICAL GAIN SWITCH

Easily optimize your listening with the dedicated high/low gain toggle switch. The physical switch lets you instantly adjust output for any headphone or IEM. Now choose high gain for demanding, high-impedance models, or low gain for sensitive earphones on-the-go. No touchscreen interaction is needed to enjoy seamless, distortion-free audio tailored to your gear with just a quick flip of the switch.

ADVANCED WALK PLAY APP SUPPORT

Enhance your listening experience with full Walk Play app support on the HA04 Pro. Access advanced features like parametric EQ (PEQ) for precise sound customization and test microphone compatibility right from your device. Fine-tune your audio to match your preferences, unlock more control, and ensure your DAC/amp stays versatile for music, calls, and gaming, all through an easy-to-use app.

Specifications

Brand Name
AUDIOCULAR x KinMax
Model
HA04 Pro
Outputs
3.5mm, 4.4mm
Input
USB Type-C
Power Output
500mW @ 32Ω
Impedance Range
16Ω – 600Ω
Gain Modes
High / Low
Decoding
PCM 32bit/384kHz, DSD256
SNR (3.5mm/4.4mm)
>124dB / >131dB
DNR (3.5mm/4.4mm)
>125dB / >131dB
THD+N
-115dB (0.0001%)
Freq. Response
20Hz – 80kHz

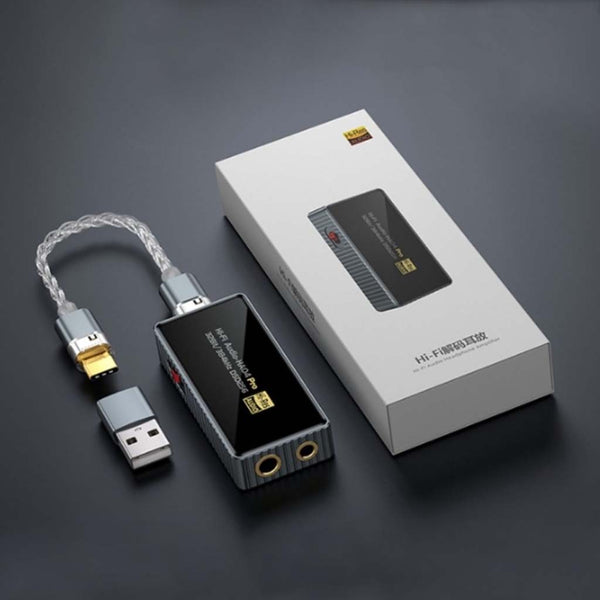

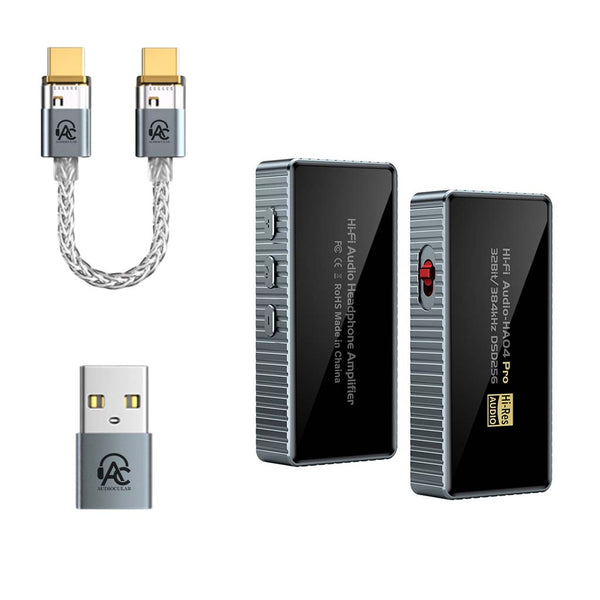

Box Content

  • 1x Audiocular x KinMax HA04 Pro

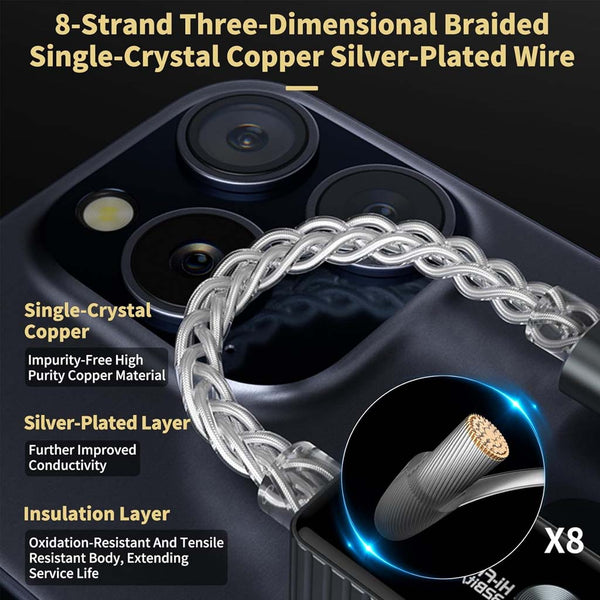

  • 1x Type C to Type C Cable
  • 1x USB A adapter
  • 1x User Manual

Warranty

1 YEAR WARRANTY
