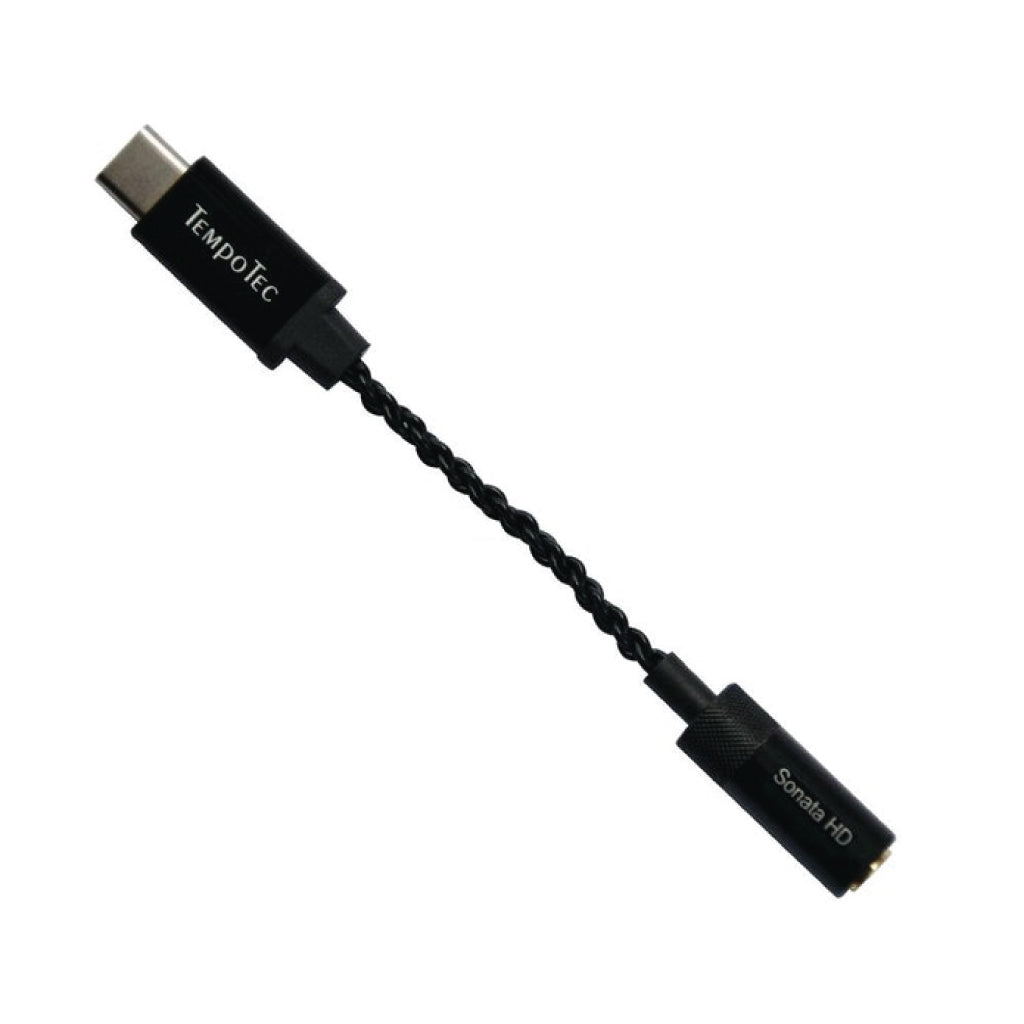

TempoTec - Sonata HD II Headphone DAC & Amp

【SPECIFICATIONS】 Input: TYPE-C. Output: 3.5mm earphone port. Product length: 4.45 inch. SNR: 116dB. OUTPUT POWER: 70mw/32ohm. SUPPORT: PCM 32bit/384khz, DSD 128 (DOP). SUPPORT: 2VRMS/600ohm.

【SONATA HD II】 A new generation of TYPE-C to 3.5 mm earphone port decoding headphone amplifier audio cable. Using 4-core 6N single crystal copper HIFI cable, Play 32bit/384khz HD music. Adopt ES9270 high-performance audio chip. Support PCM 32bit/384 and DSD128 decoding at the same time

【FREE SWITCHING BETWEEN TWO MODES】 Two mode of Sonata HD II can be selected, either “Call mode” or "Pure music mode". No need to change firmware when you want to switch between “Call mode” and “Pure music mode”, just use different earphones. 1、When connected with an earphone with MIC (Microphone), it enters the “Call mode”. You can answer phone call through Sonata HD II. 2、When using an earphone without MIC, it enters the "Pure music mode"

【SUPPORT MULTIPLE SYSTEMS】 Connect via USB-C to your Android Phones. Connect your PC/Laptop directly or via USB Adapter. For PC, it just supports Window10 now

【TIPS TO BE USED】 Connection Steps: First, connect the earphone and Sonata HD II. Secondly, connect to smart mobile phone or computer. This order cannot be reversed. Here are serval tips to be used: 1. Please make sure you have turned" USB Debugging" mode on of your phone. 2. Please confirm that your phone supports "OTG" function. 3. if you have done the first 2 tips and it still doesn't work, please try to download professional music app, such as power amp, hiby music and so on.

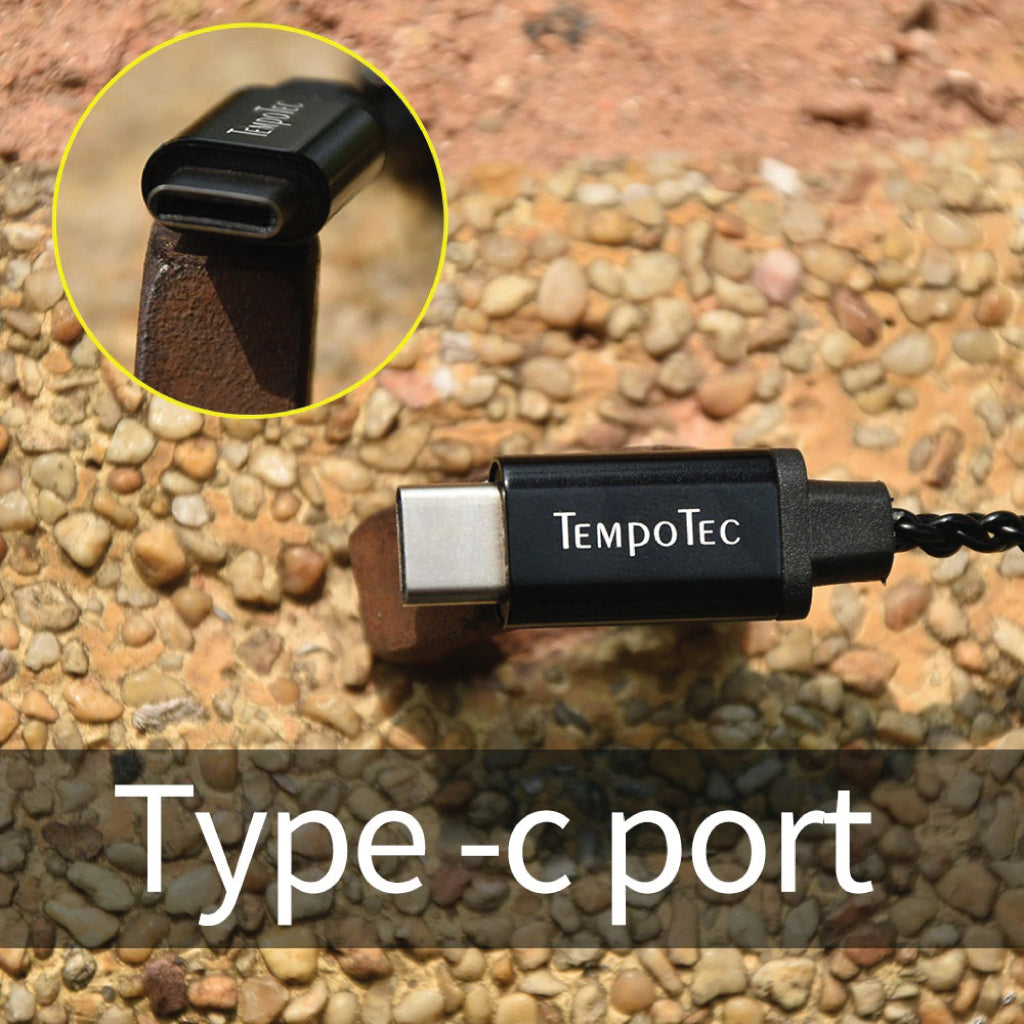

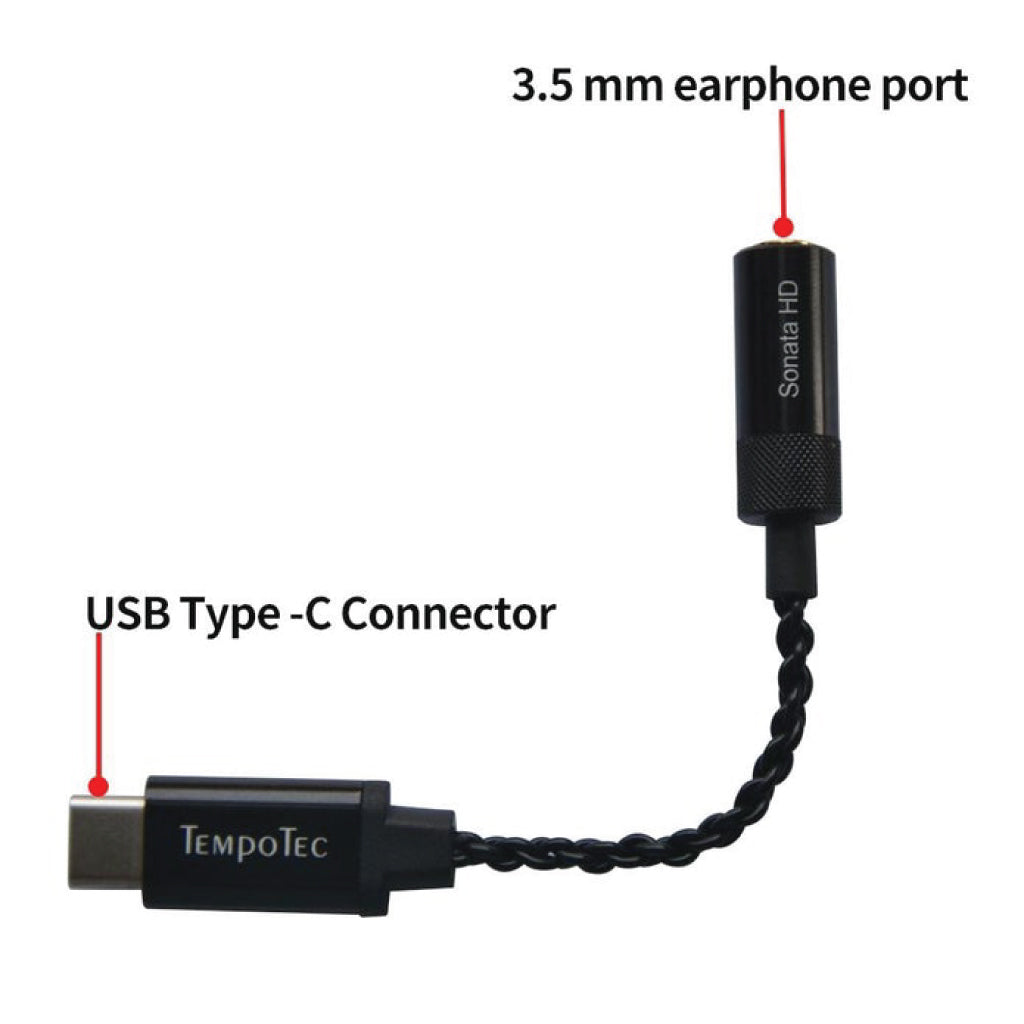

Input: TYPE-C

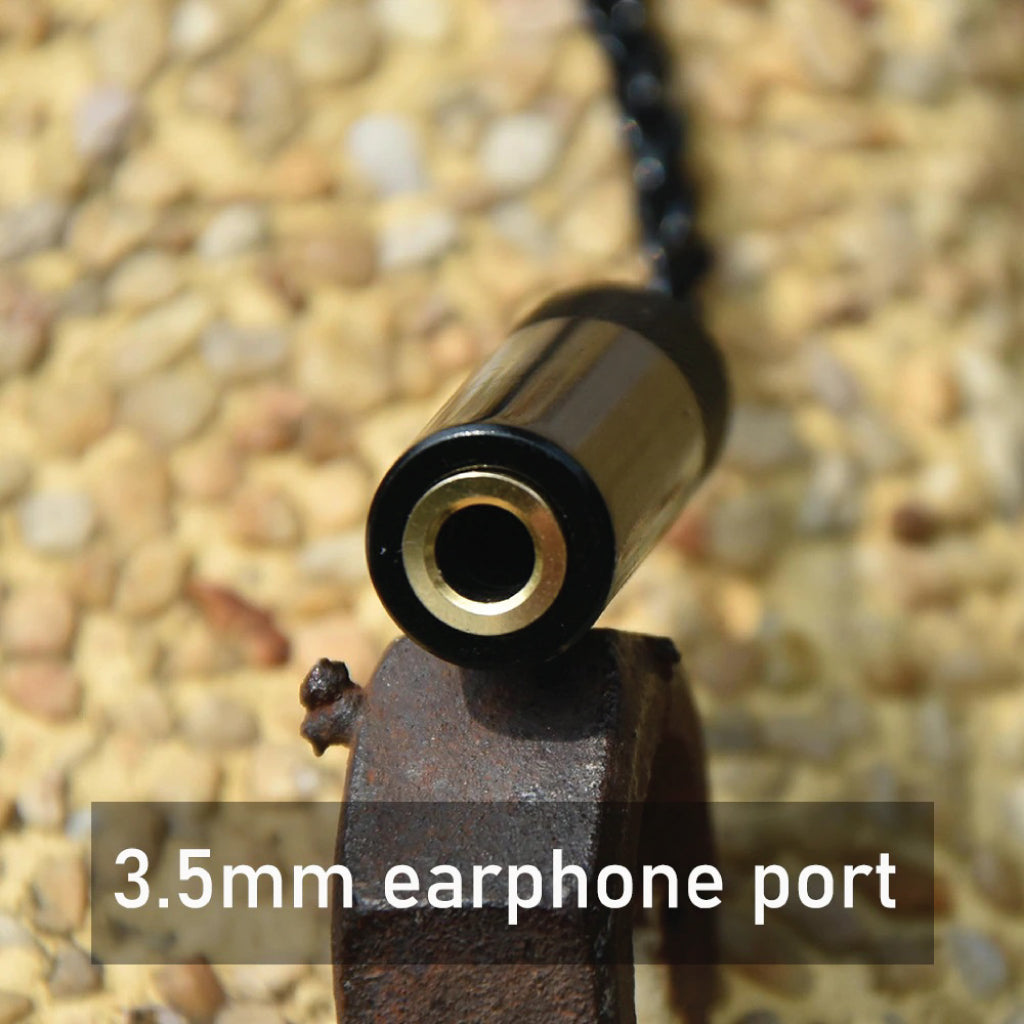

Output: 3.5mm earphone port
Product length: 11.3cm
SNR: 116dB
OUTPUT POWER: 70mw/32ohm
SUPPORT: PCM 32bit/384khz, DSD 128 (DOP)
SUPPORT: 2VRMS/600ohm

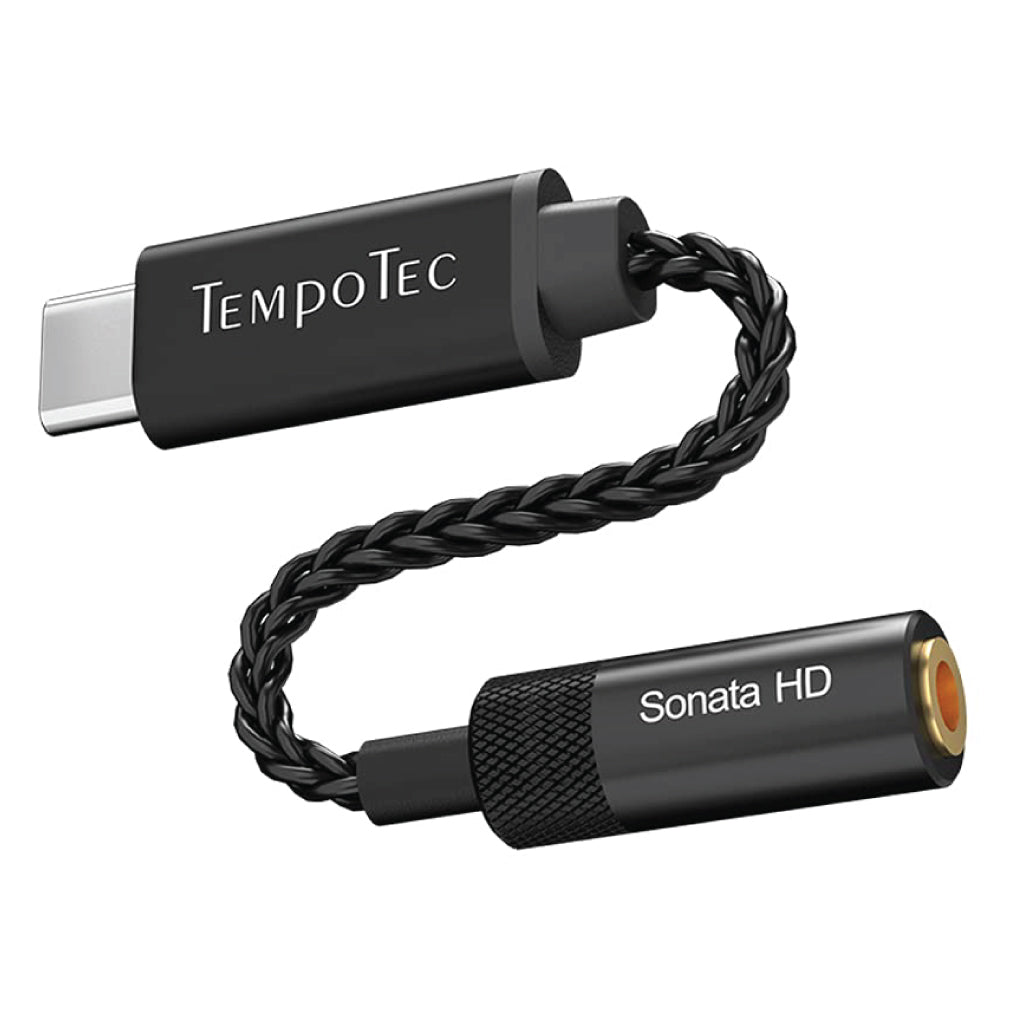

A new generation of TYPE-C to 3.5 mm earphone port decoding headphone amplifier audio cable

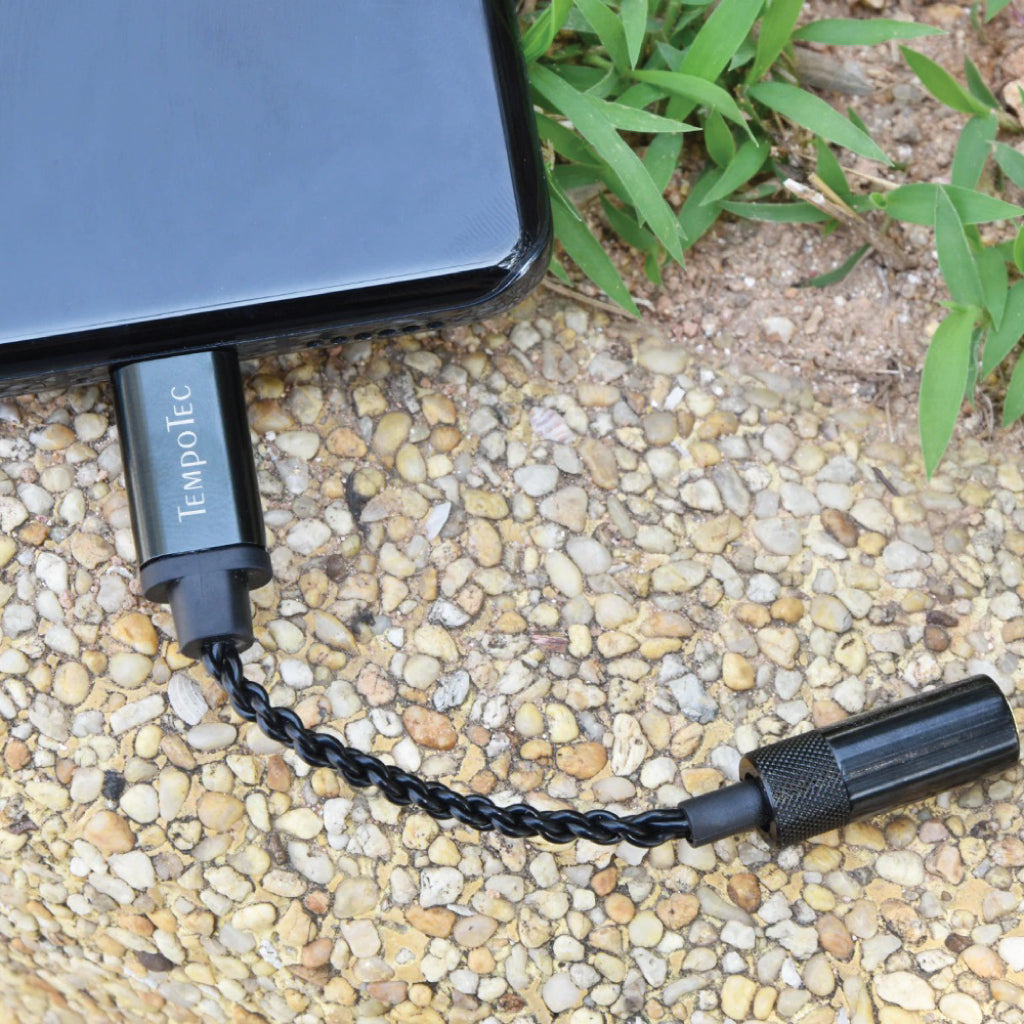

Connect via USB-C to your Android Phones

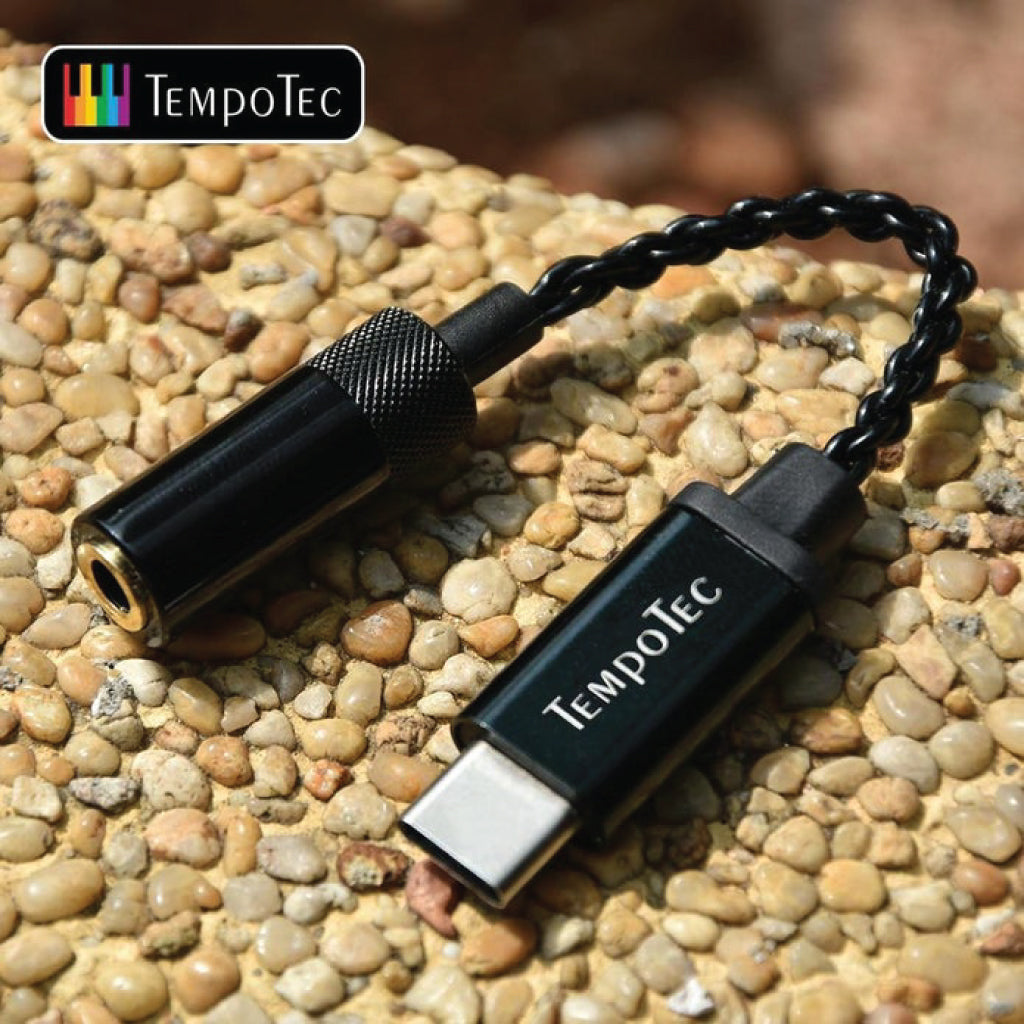

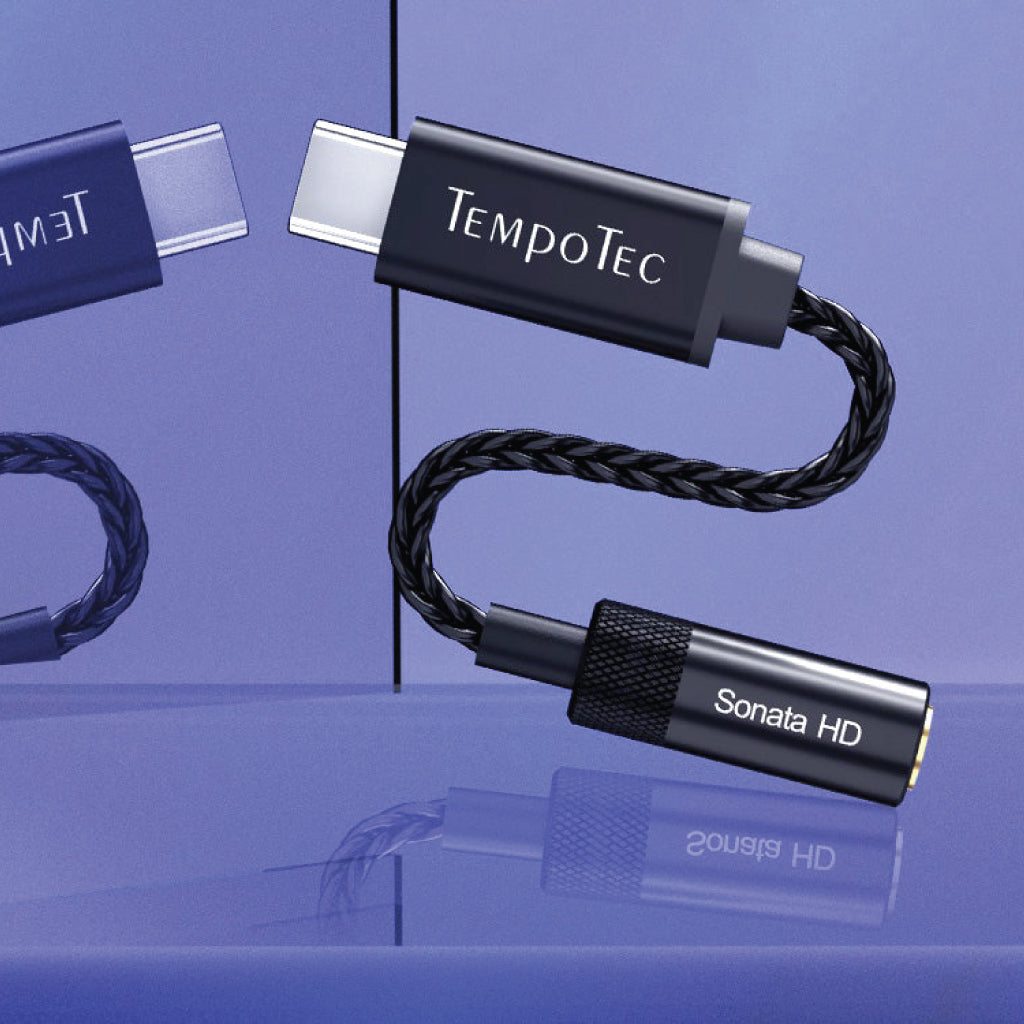

4-core 6N single crystal copper HIFI cable
Using 4-core 6N single crystal copper HIFI cable, higher sound quality transmission, more robust and durable

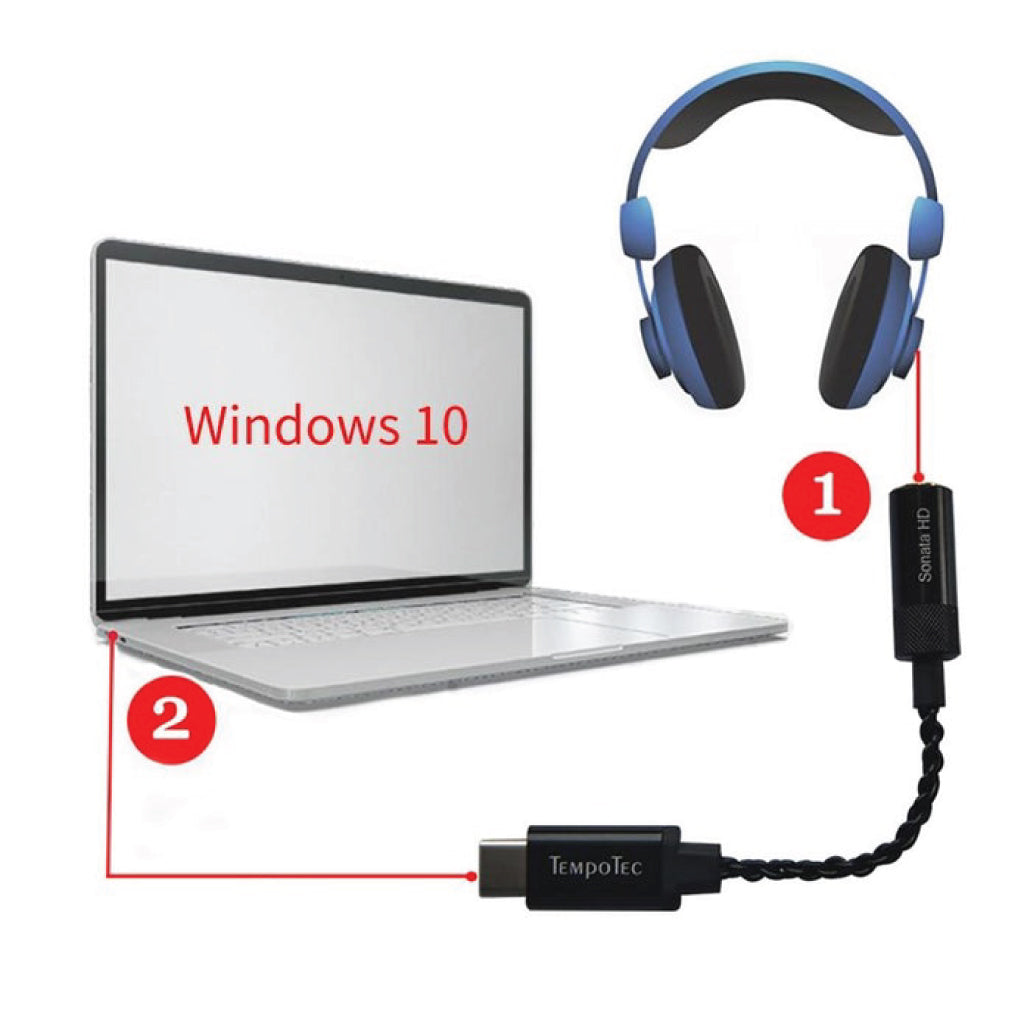

Connection Steps

First, connect the earphone and Sonata HD Ⅱ. Secondly, connect to smart mobile phone or computer. This order cannot be reversed

Play 32bit/384khz HD music

Connect your PC/Laptop directly or via USB Adapter
For PC, it just supports Window10 now

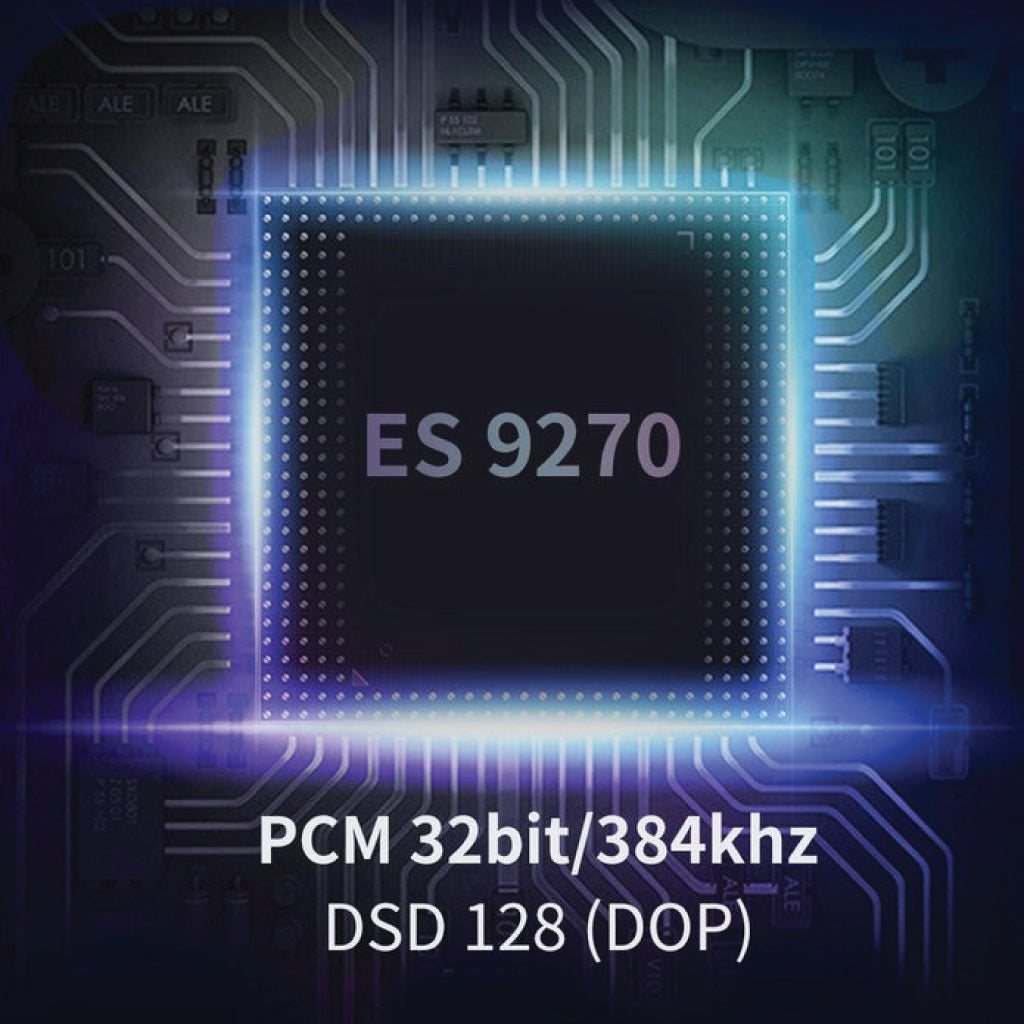

Adopt ES9270 high-performance audio chip
Support PCM 32bit/384 and DSD128 decoding at the same time

Free switching between two modes
Two mode of Sonata HD II can be selected, either “Call mode” or "Pure music mode".

When connected with a pair of earphones WITH Microphone, it is under the “Call mode”, you can answer phone call through Sonata HD II. if use a pair of earphones WITHOUT Microphone, it enters the “Pure music mode”.

Tip: Please plug your earphones into Sonata HD II first, then put them together into your mobile phone or computer.

No need to change firmware when you want to switch between “Call mode” and “Pure music mode”, just use different earphones.

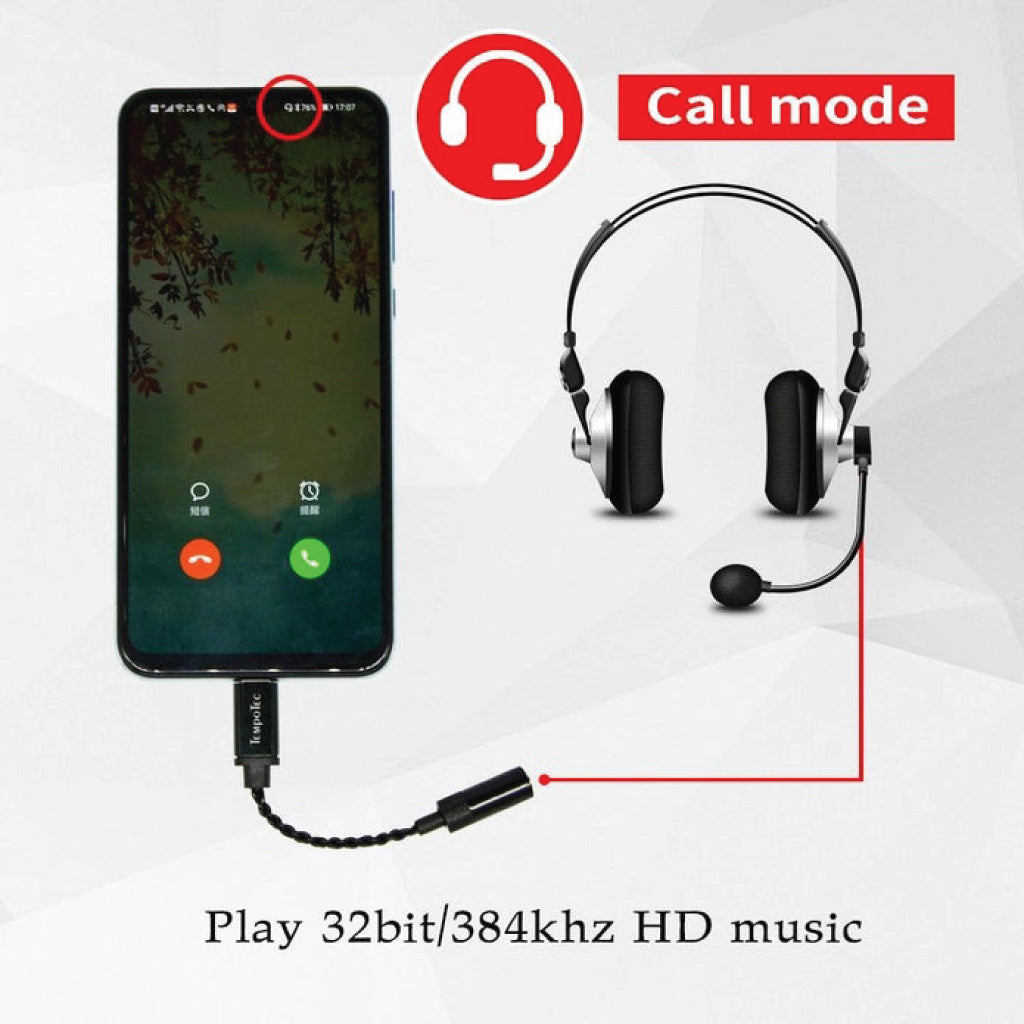

1、When connected with an earphone with MIC, it enters the “Call mode”

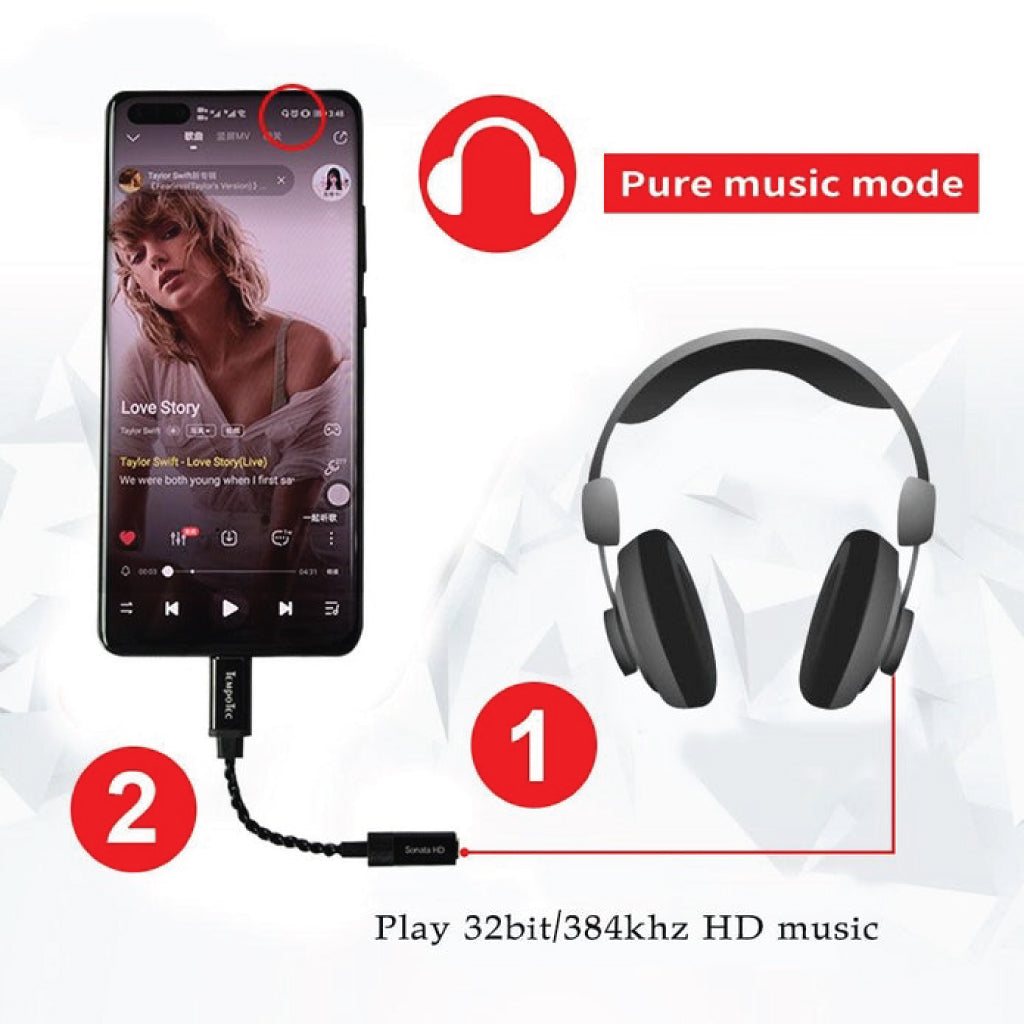

2、When using an earphone without MIC, it enters the "Pure music mode"
