SHANLING - UA3 Portable USB DAC & Amp - 1

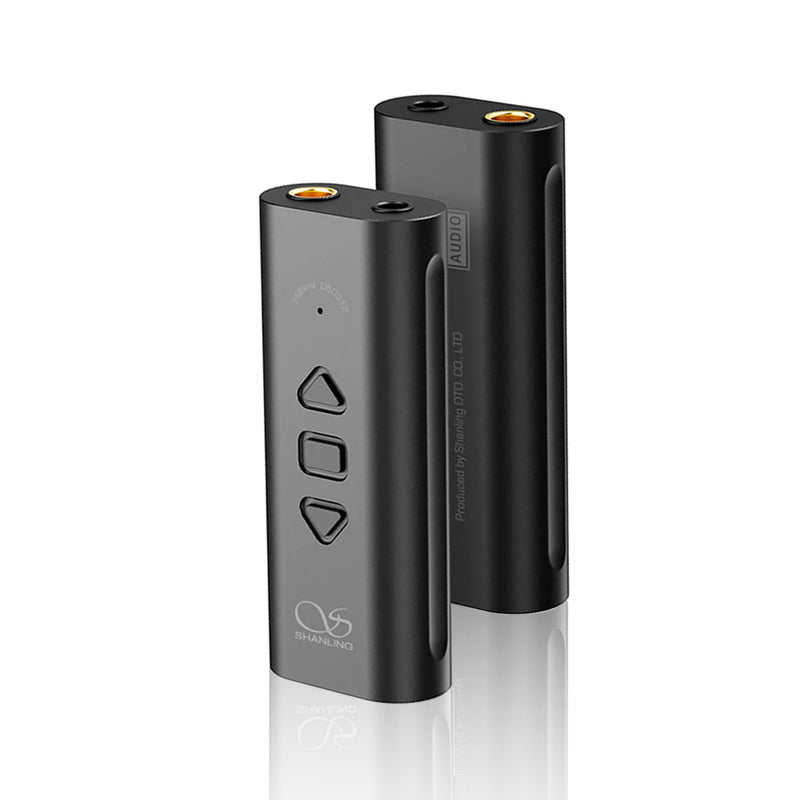

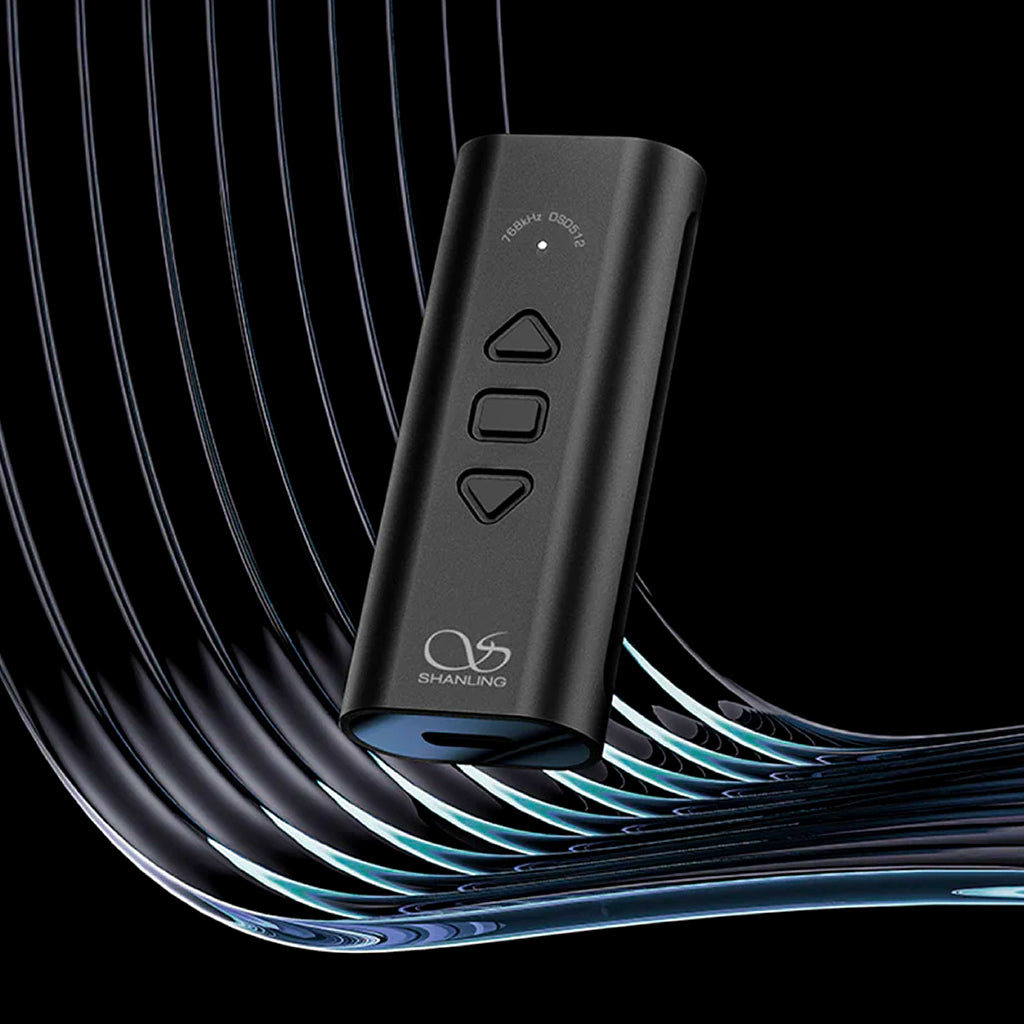

SHANLING - UA3 Portable USB DAC & Amp

SHANLING

amps & dacs under 10000

Dual AK4493SEQ DAC Chipset | Dual RiCore RT6863 Amp Chipset | 3.5mm+4.4mm Headphone Output | Hi-Res PCM & DSD Signal Decoding | 32-Bit/768kHz PCM Decoding | Native DSD512 Decoding | Clean Sound Output with Low Noise-Floor | Compact Design | Powerful Output Thrust | Rated Power: Up to 211mW @ 32Ω | Dual USB Operating Mode (UAC 2.0 & UAC 1.0) | Physical Volume & Play/Pause Keys

₹ 8,990 ₹ 12,999 Save ₹ 4,009

Tax & Shipping Included

Tax IncludedShipping Included

Description

Premium DAC with Latest Generation AKM DAC Chip

IMPRESSIVE SOUND WITH PREMIUM DUAL DAC CHIPSET

Shanling UA3 brings the goodness of high-resolution audio with its premium dual DAC arrangement. Shanling has trusted the UA3 with AKM’s latest generation AK4493SEQ DAC chips. They offer a rich and smooth sound experience with rich tonality and clean, noise-free background.

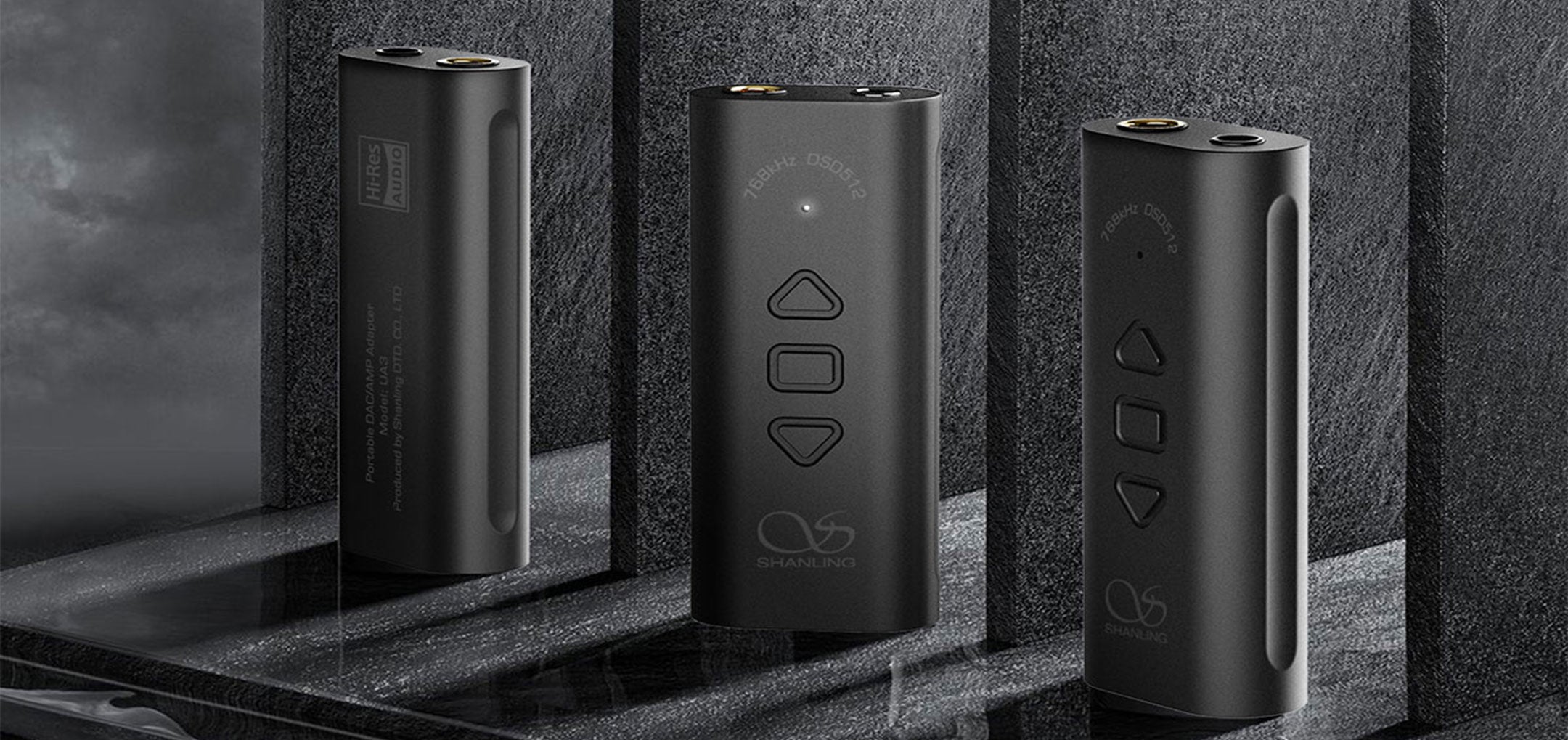

7 34cad181 d6a9 43e4 96e9 0390d01b1b62

HIGH-POWER AMP SECTION WITH DUAL RT6863 CHIPS

The Shanling UA3 is designed with specially developed headphone amplification circuitry. It features dual independent RiCore RT6863 amplification chips that produce a strong output of up to 211mW @ 32Ω of impedance load. This means the UA3 can easily drive most in-ear monitors (IEMs) and some headphones that don't need a lot of power, making it an excellent choice for portable use.

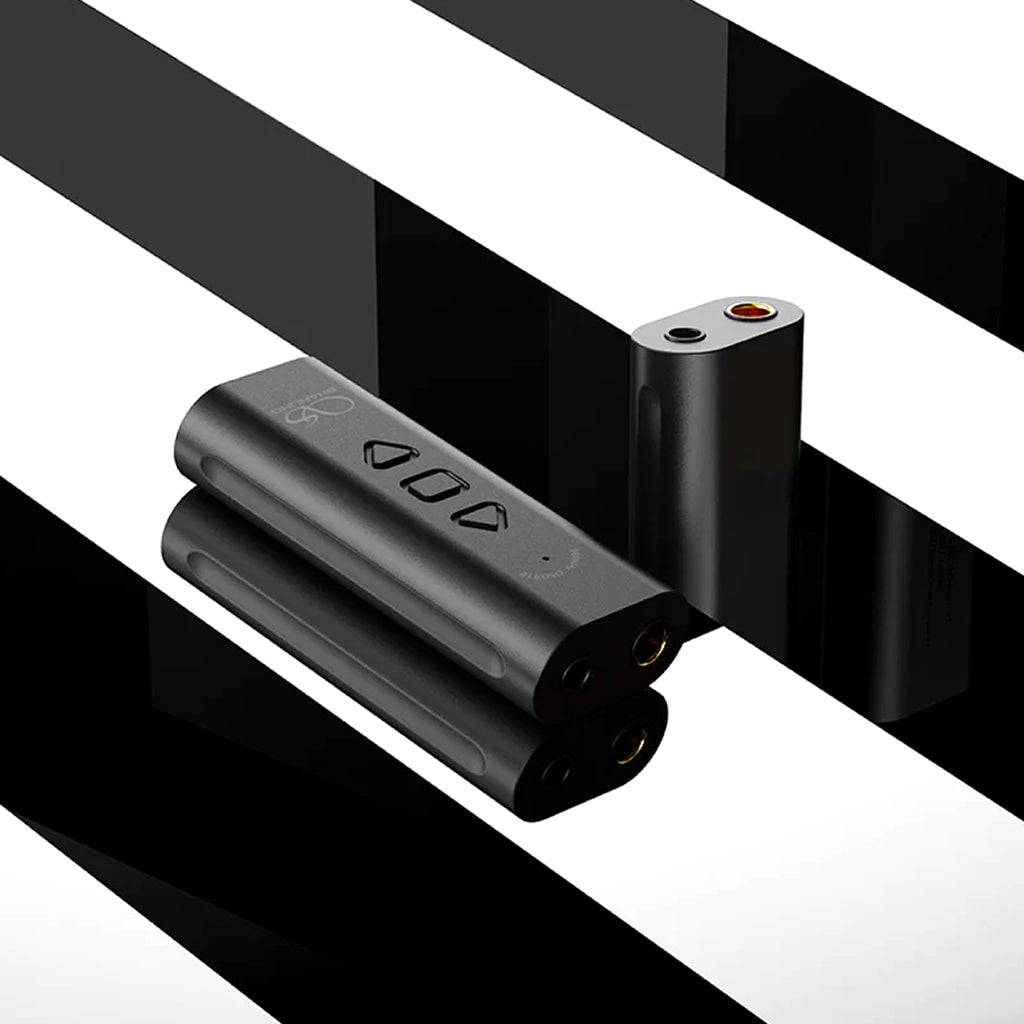

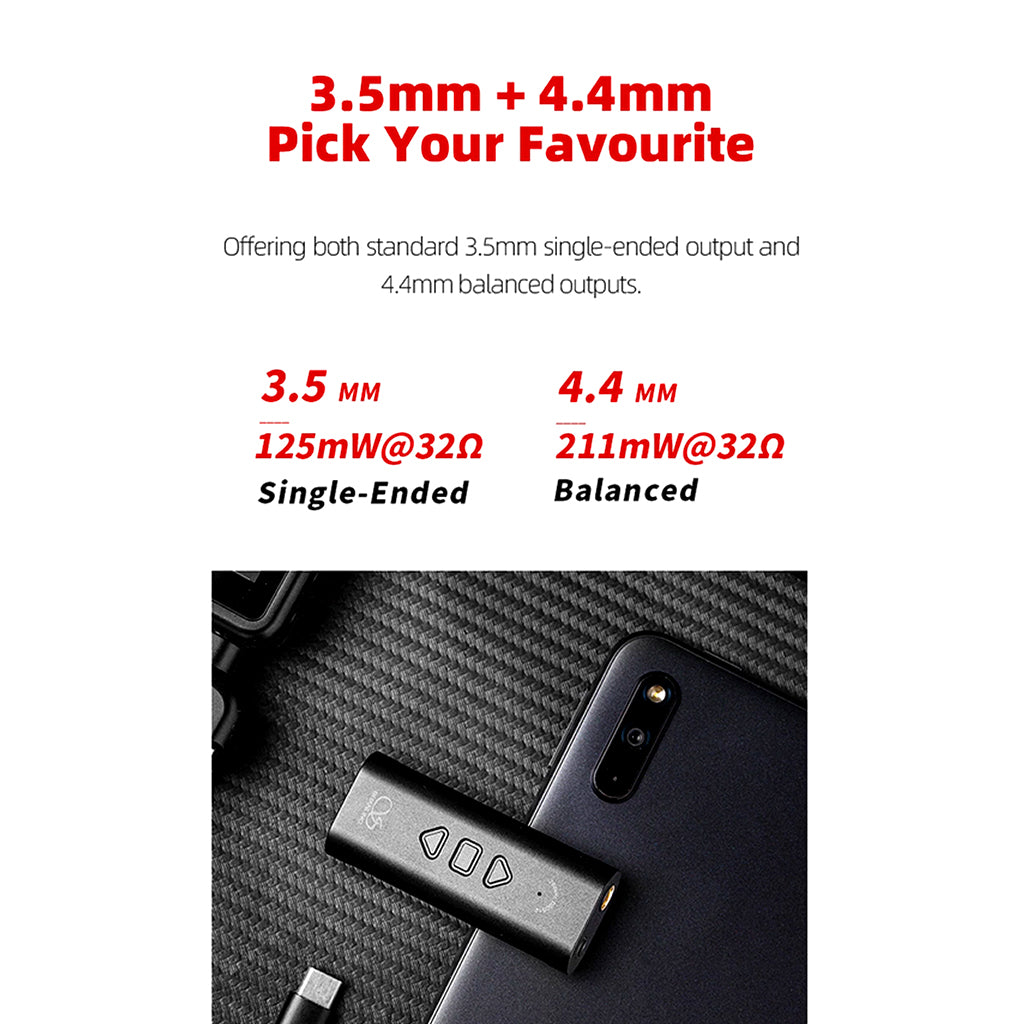

SINGLE-ENDED & BALANCED HEADPHONE OUTPUT

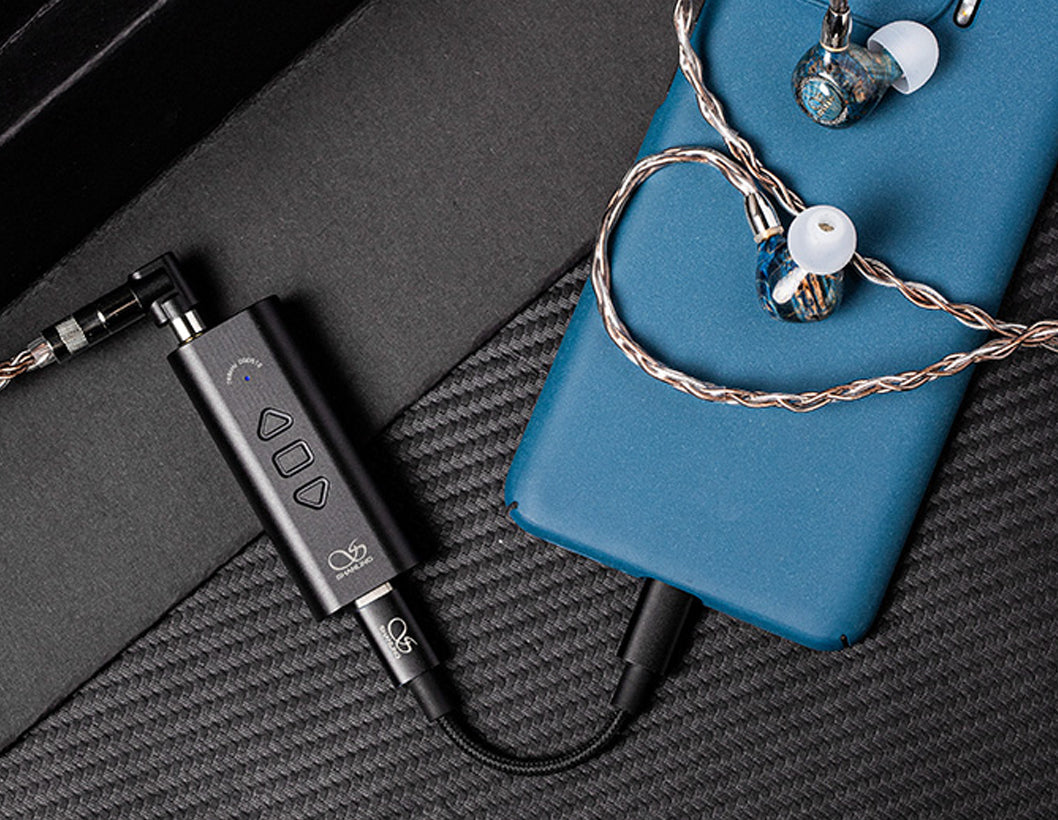

Shanling UA3 features both single-ended and balanced headphone output ports. It houses a 3.5mm port for single-ended connections and a 4.4mm port for balanced headphone connections. It’s a perfect match for a wide range of IEMs and Headphones since most new models come with 3.5mm or 4.4mm terminated cables as stock

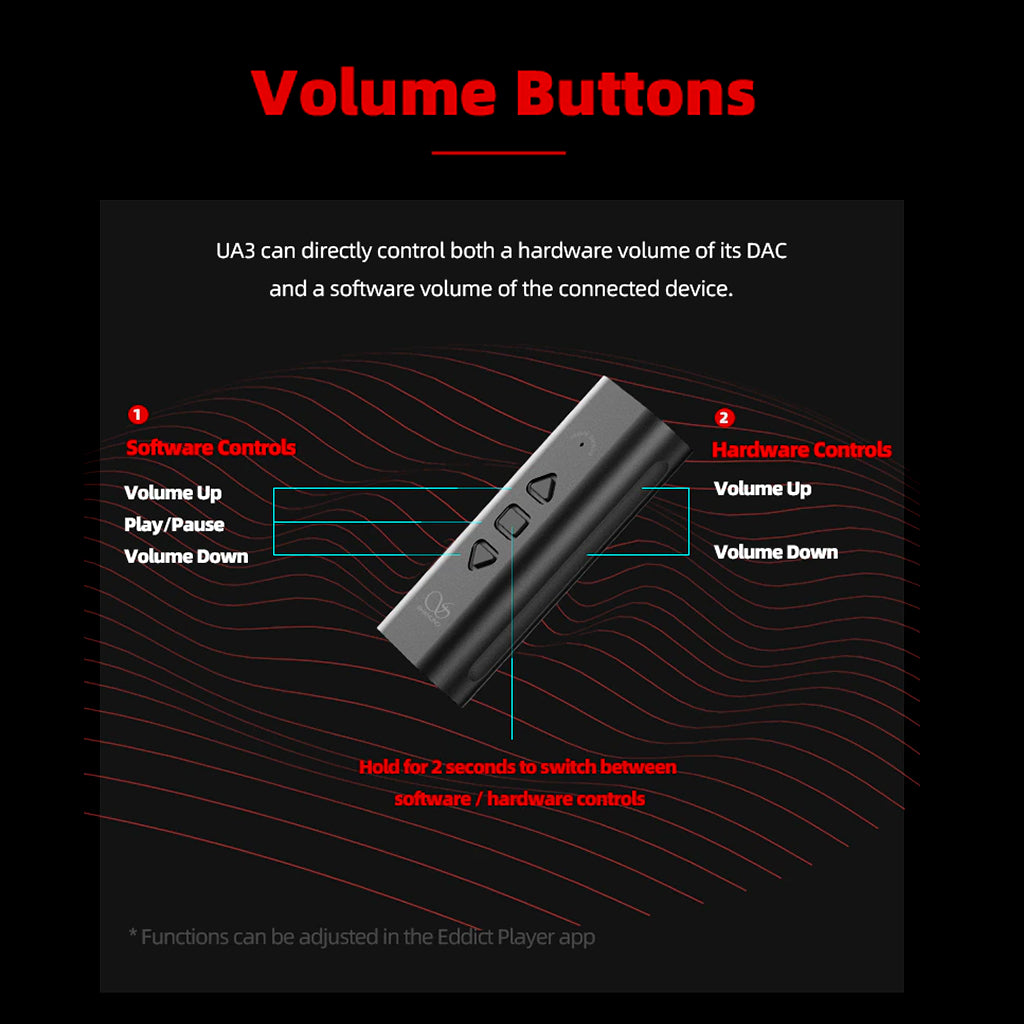

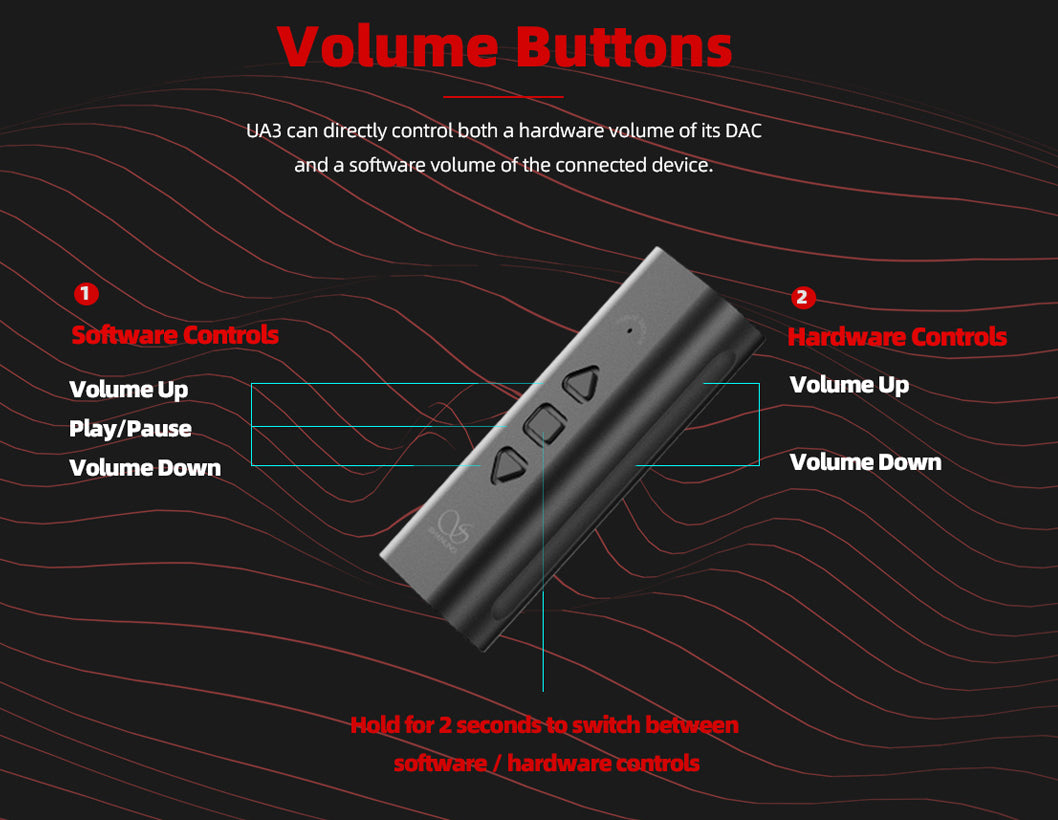

PHYSICAL VOLUME KEYS

Users can easily adjust the volume of the playback using physical volume keys on the Shanling UA3. The DAC also has a play/pause key that helps you control the media playback. The keys are placed right on the front of the device merging successfully into its design theme.

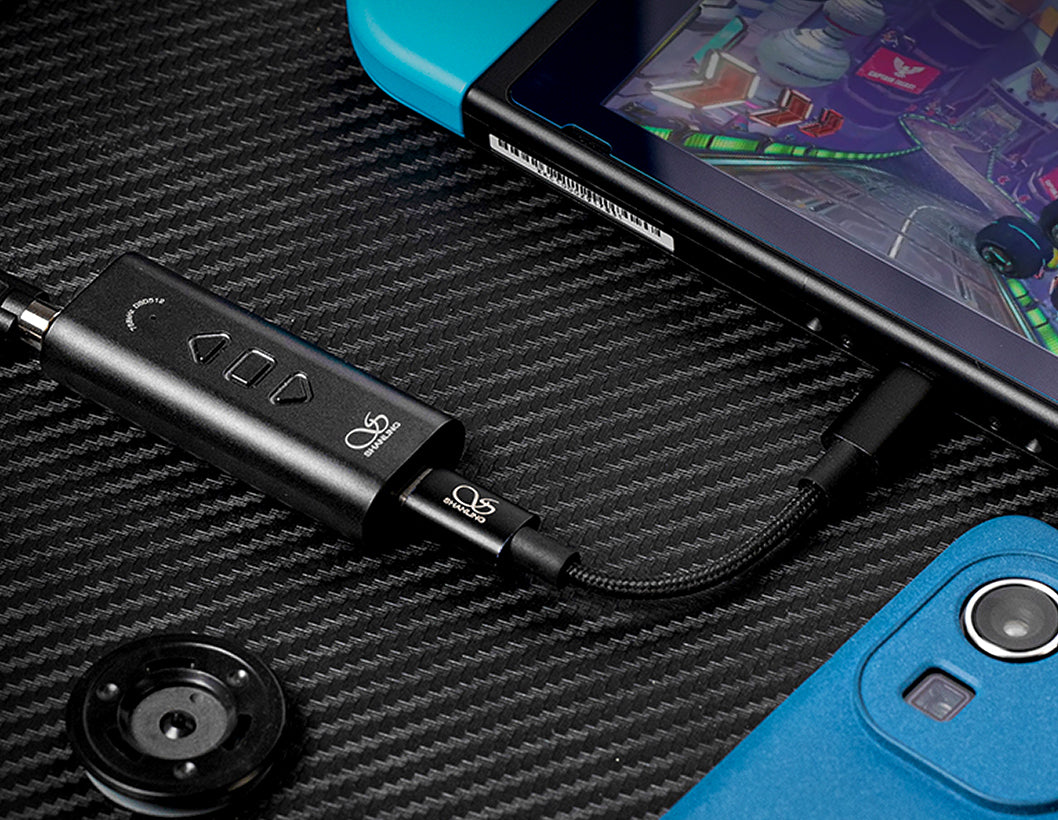

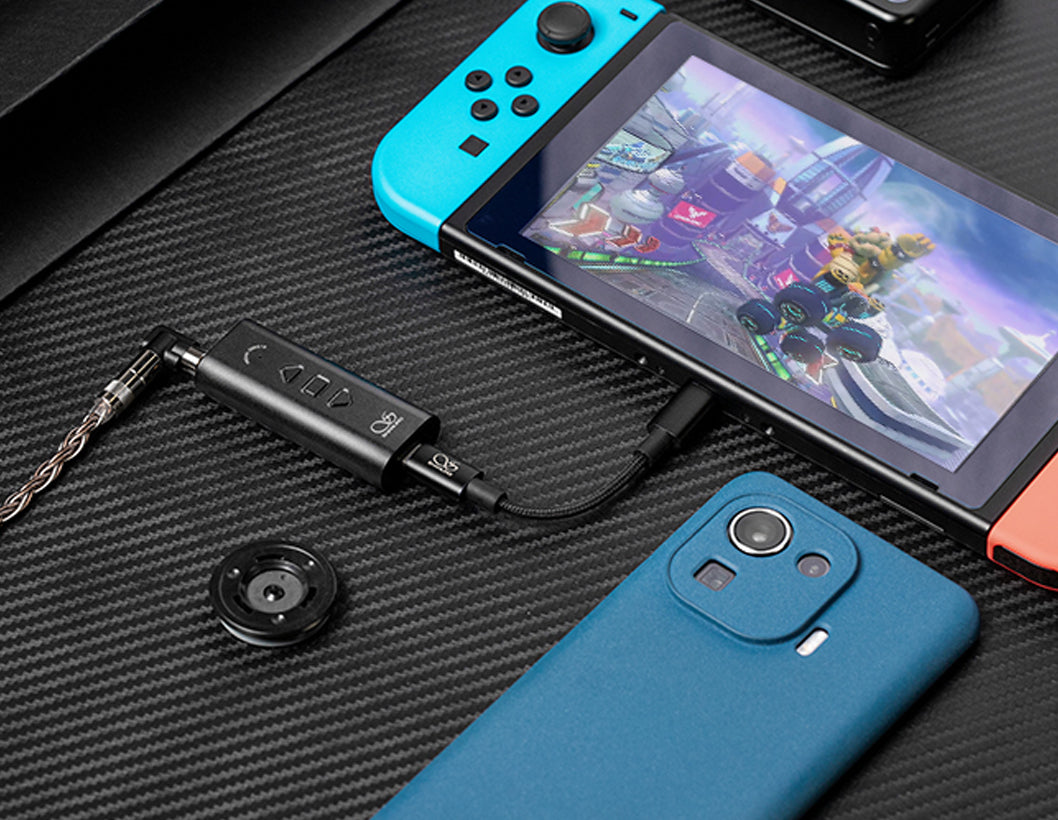

COMPATIBLE WITH NINTENDO SWITCH

Shanling UA3 supports two operating modes, UAC2.0 and UAC1.0. The 2.0 mode is suitable for new-generation devices such as smartphones, Laptops, etc while the UAC1.0 mode is suitable for low-output devices such as Nintendo Switch, previous-generation Smartphones, etc.

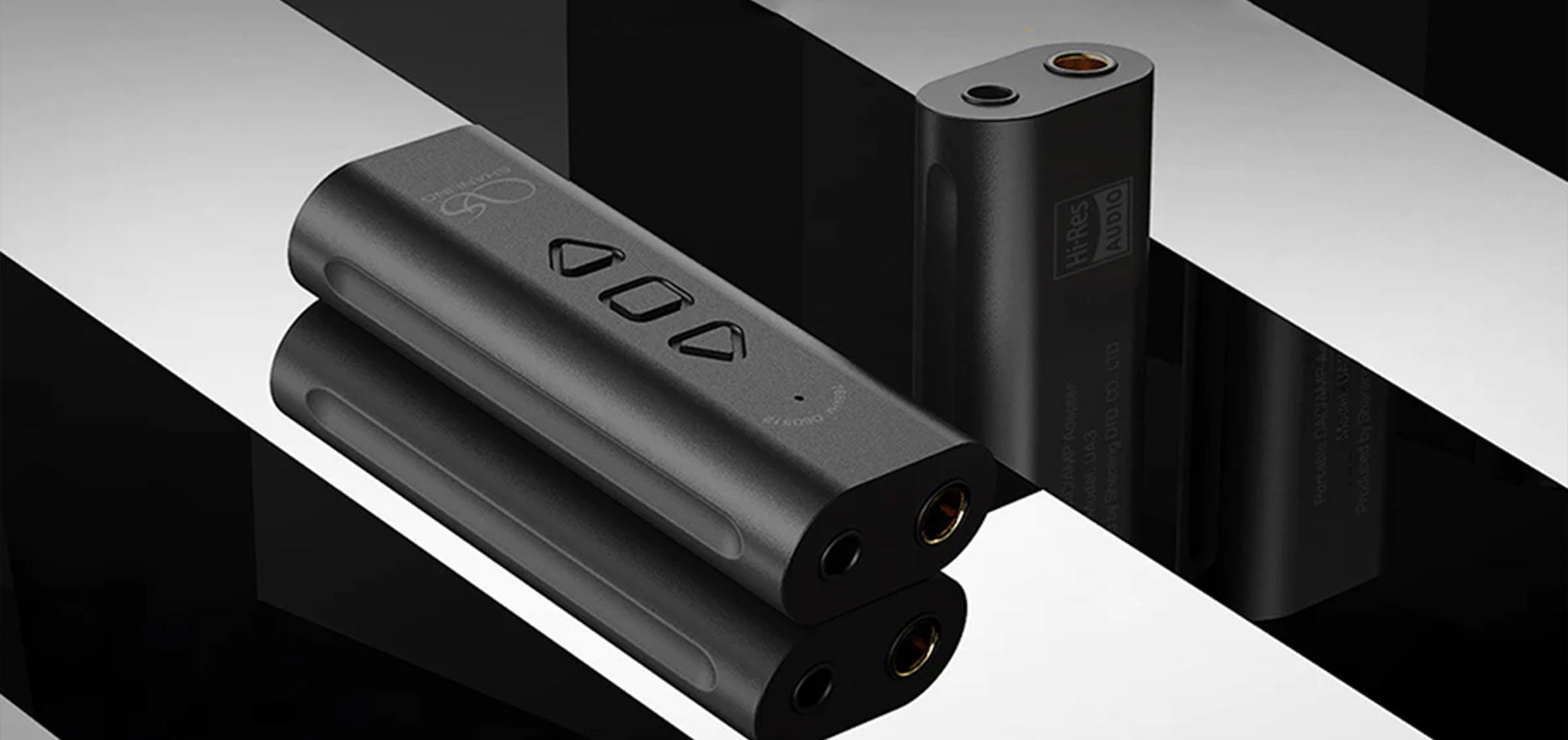

8 1e554137 2275 4439 8ea0 6419a11e0177

PURE HIGH-RESOLUTION AUDIO EXPERIENCE

Shanling UA3 is a high-performance DAC/AMP designed for enhancing your music listening experience with simple day-to-day devices such as smartphones, laptops, etc. The UA3 is designed with high-quality components that ensure a quality listening experience. It supports decoding for high-resolution audio signals including PCM support up to 32-Bit/768kHz and Native DSD512 audio signals!!

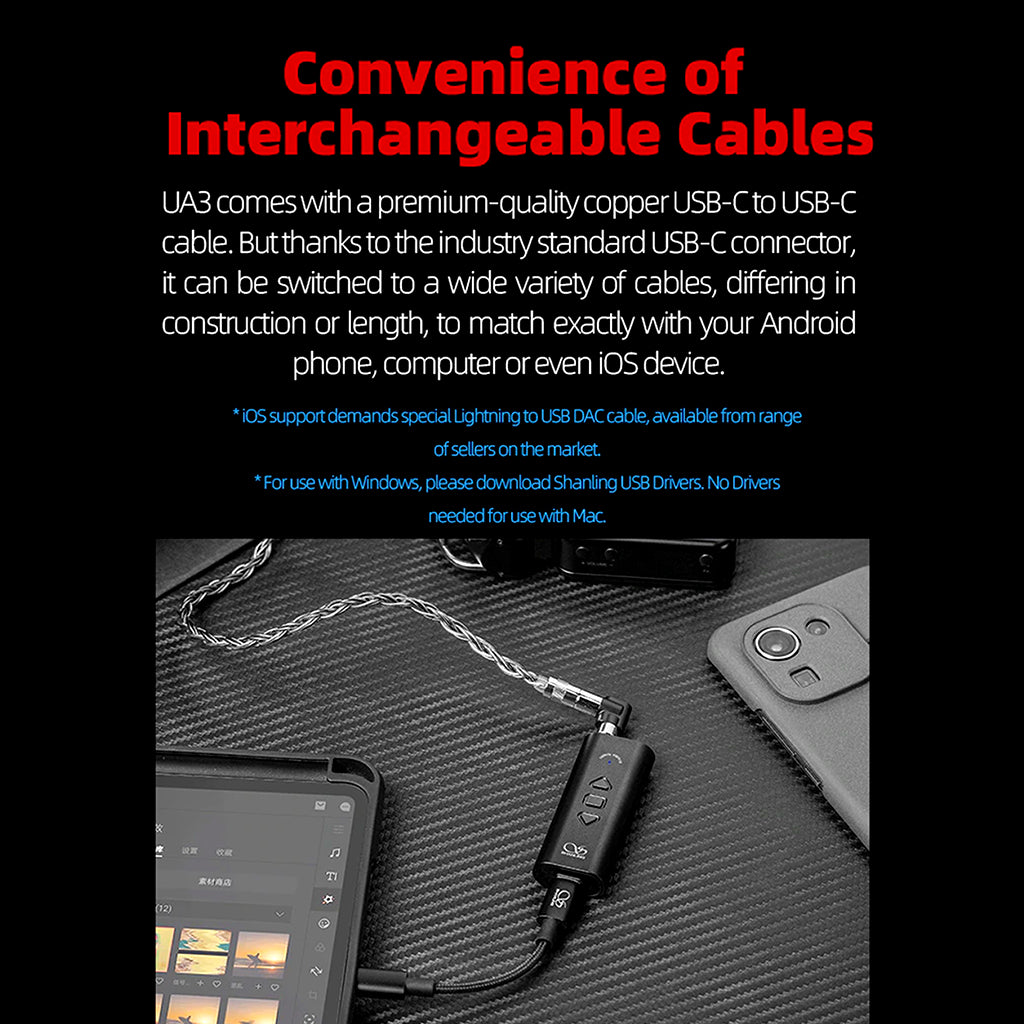

COMPATIBLE WITH A WIDE RANGE OF DEVICES

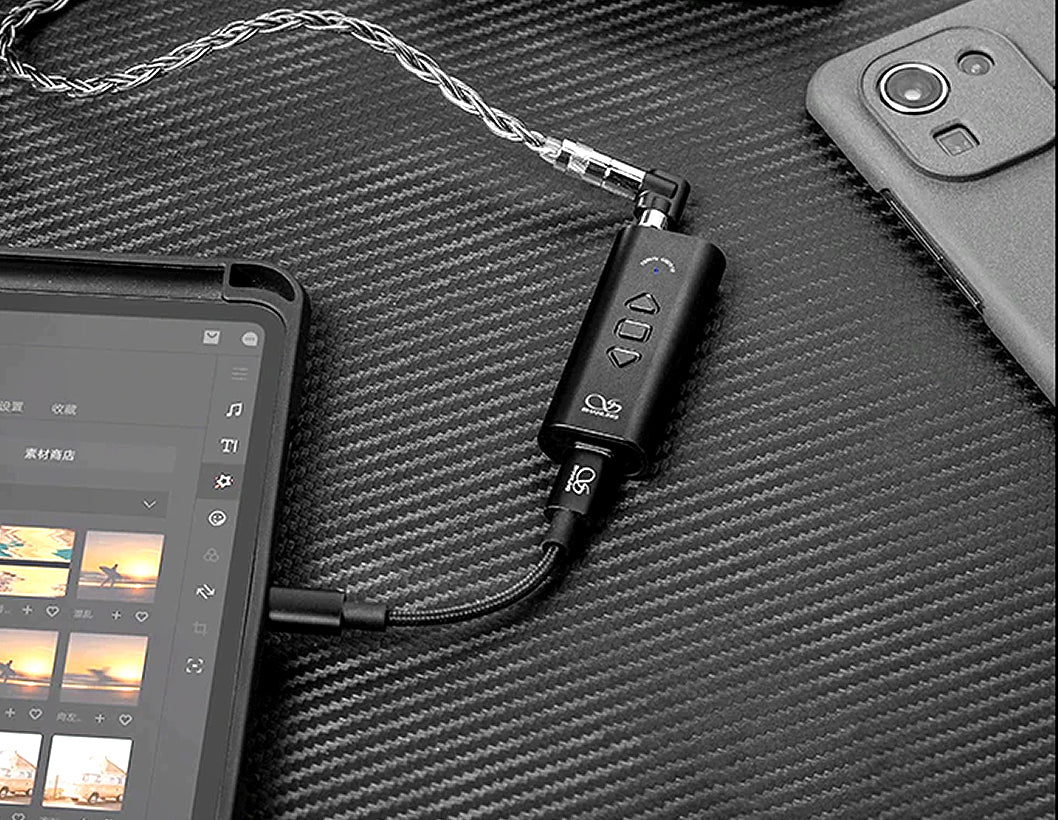

Shanling UA3 is a device that is widely suitable for a wide range of devices. This includes Android, iOS, MacOS, and Windows devices. You don’t need to have a dedicated driver installed on your PC, you can enjoy music with a simple plug-and-play method. Using Hi-Res software such as USB Audio Player Pro, Neutron Player, Tidal, Apple Music Lossless, etc. is recommended for the best sound experience with your smartphones.

Specifications

Brand
SHANLING
Model
UM3
Product Name
SHANLING UA3 USB DAC & Amp
Color
Black
DAC Chip
AKM AK4493SEQ
Connectivity
USB Type-C
3.5mm Single Ended Output
"OUTPUT POWER: 2V @ 32Ω (125mw @ 32Ω)
FREQUENCY RESPONSE: 20Hz - 40khz (-0.7db)
THD+N: 0.0004% @ 32Ω (A-Weighting @ 1V)
DYNAMIC RANGE: 119db @ 32Ω (A-Weighting)
SIGNAL TO NOISE RATIO: 119db @ 32Ω (A-Weighting)
CHANNEL SEPARATION: 80db @ 32Ω
OUTPUT IMPEDANCE: <0.4Ω
"
4.4mm Balanced Output
OUTPUT POWER: 2.6V @ 32Ω (210mW @ 32Ω)
FREQUENCY RESPONSE: 20Hz - 40kHz (-0.7dB)
THD+N: 0.0003% @ 32Ω (A-Weighting @ 1V)
DYNAMIC RANGE: 120dB @ 32Ω (A-Weighting)
SIGNAL TO NOISE RATIO : 120dB @ 32Ω (A-Weighting)
CHANNEL SEPARATION: 110dB @ 32Ω
OUTPUT IMPEDANCE: <0.8Ω
Decoding Support
Xmos XU208
Output Power
Up to 211mW@32Ω
Headphone ports
4.4mm balanced+3.5mm single-ended
Standby Mode
Yes
Compatible with
Android, Windows, Mac and iOS
Hi-Res support
up to 32/768 and DSD512

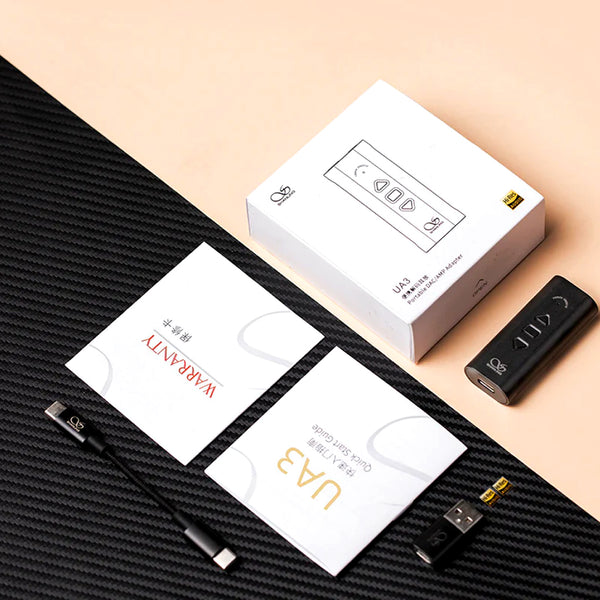

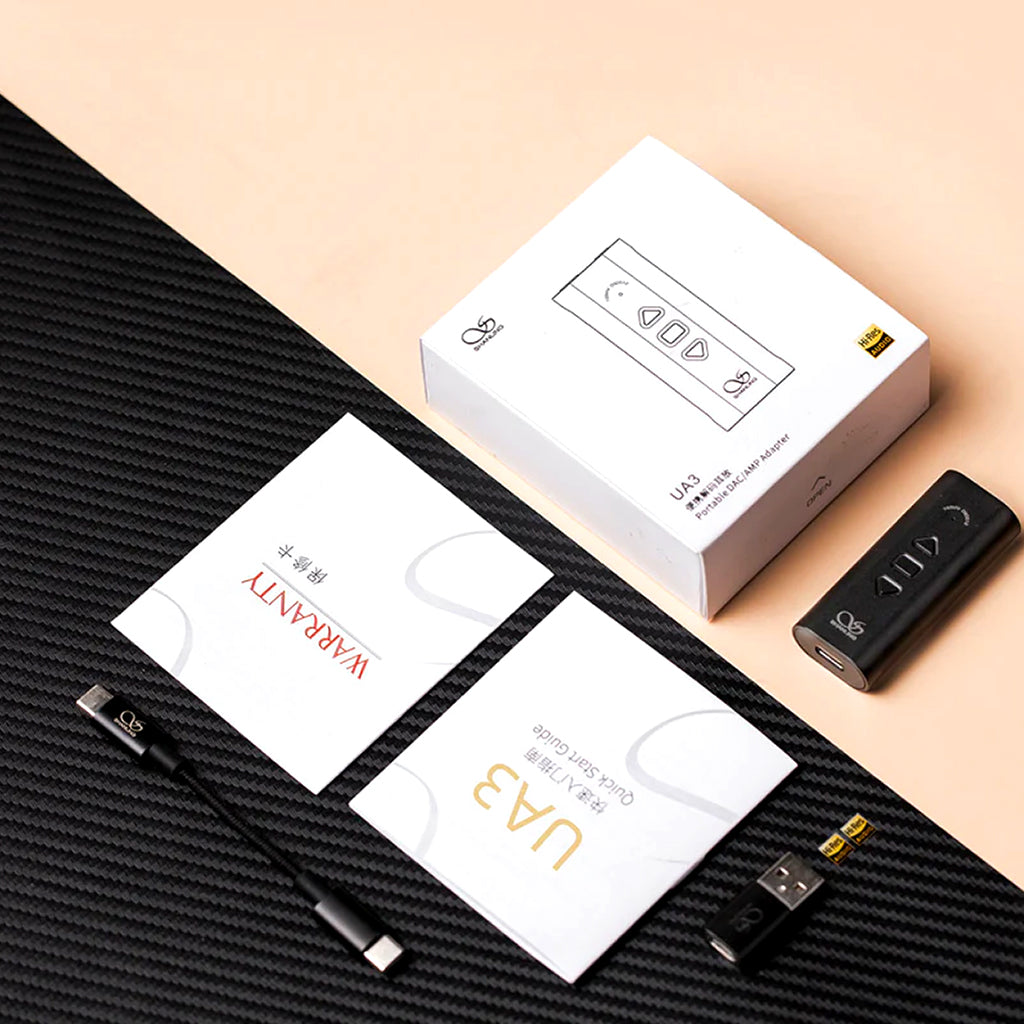

Box Content

    What will you get
  • 1x Shanling UA3 DAC & Amp
  • 1x USB-C To C Cable
  • 1x USB-C To A Adapter
  • 1x User Manual
  • 1x Warranty Card

Warranty

1 YEAR WARRANTY

Don't worry, SHANLING - UA3 Portable USB DAC & Amp comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
