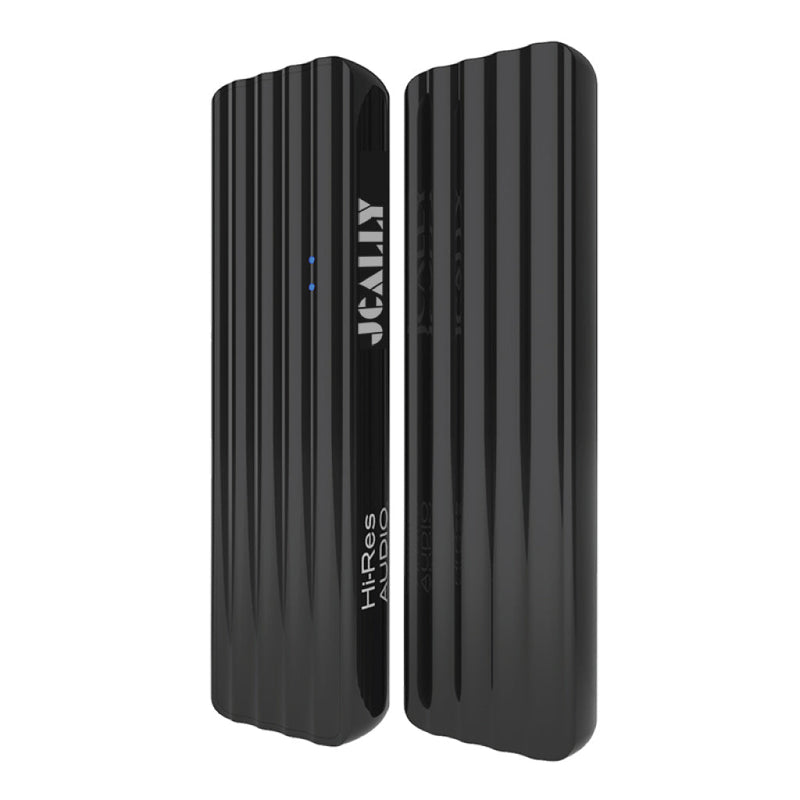

JCALLY JM10 HEADPHONE AMPLIFIER DAC WITH TYPE C TO TYPE C CABLE or Lightning to TYPE C CABLE

• Fill in special Audio USB Bridging chip: SA9302, Support PCM 384KHz 32bit and DSD256 the highest.
• Using latest generation cirrus logic HiFi DAC chip CS43131, you will enjoy high fidelity sound quality. DN-R>120dB, THD+N<102dB.
• Dynamic adaptive earphone impedance: 16 ohm – 600ohm, more powerful driver capability.
• Using polycrystalline vibration and independent LDO power design, let the music sound quality become purity.
• This amplifier is compatible with main media software APP support 384KHz sampling the highest Support various chapter music model, enjoy lossless sound quality.

FEATURES:

• Flagship Grade Codes CIRRUS LOGIC CS43131 code chip Support highly sampled signal
• Be equipped with high SNR and low distortion Accurate digital to analog conversion is realized for different sampling rates.
• Outstanding performance Support original DSD
• Listen to music in any Direction Unblocked
• Be Compatible with overall Music APP

SPECIFICATION

• DAC Chip: CIRRUS LOGIC CS43131
• Resolution: 32Bit- 384KHz
• Output: 1Vrms@32ohm / 2vrms@300ohm
• Input Voltage: 3.3V-5V DC
• THD: 0.0006% (-102dB)
• SNR: 120dB
• DNR: 120dB
• Crosstalk: -91 db

PACKAGE CONTENT

1x JM10 Headphone Amplifier

1x Type C to Type C Cable or Lightning to Type C
