Fosi Audio

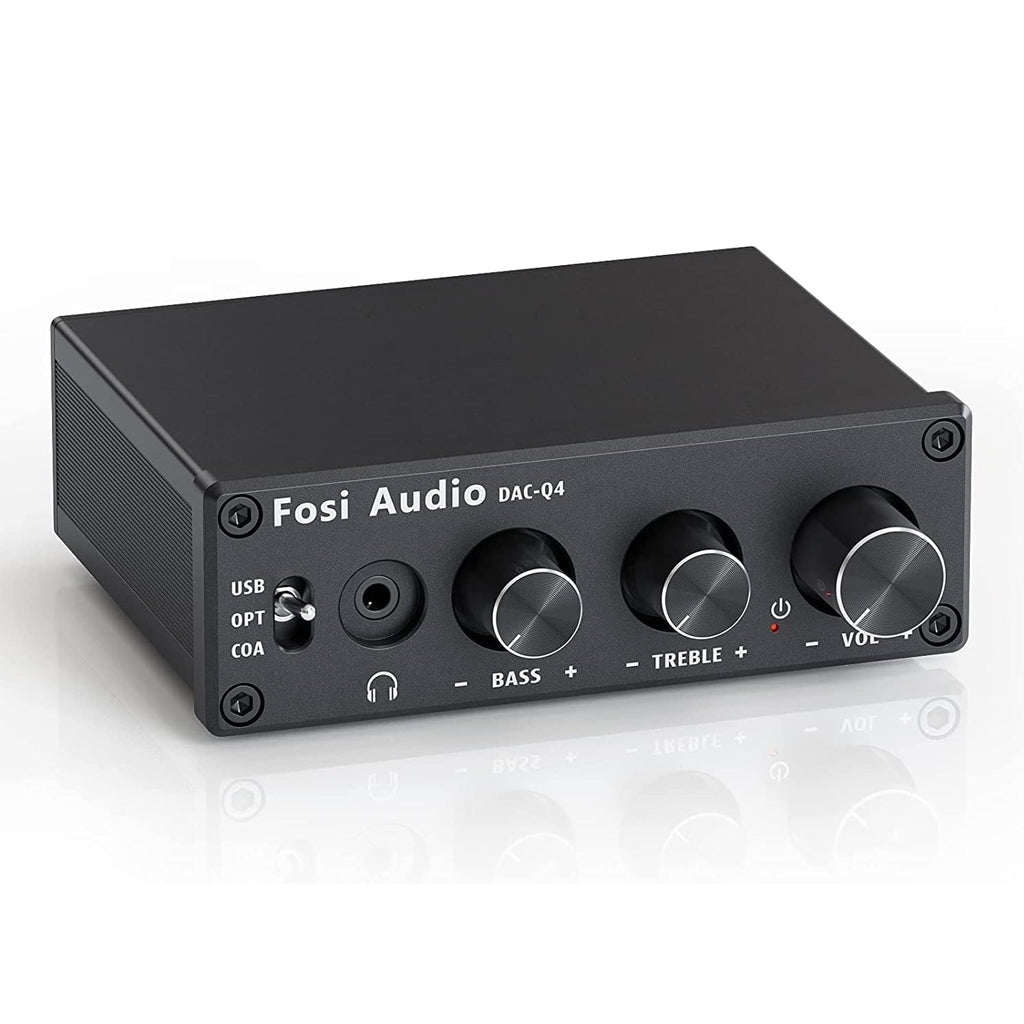

Fosi Audio - Q4 Mini Stereo Gaming DAC & Amp

Sale price₹ 4,990Regular price ₹ 7,199

  • High-Performance Headphone Amplifier Chip 97220+NE5532

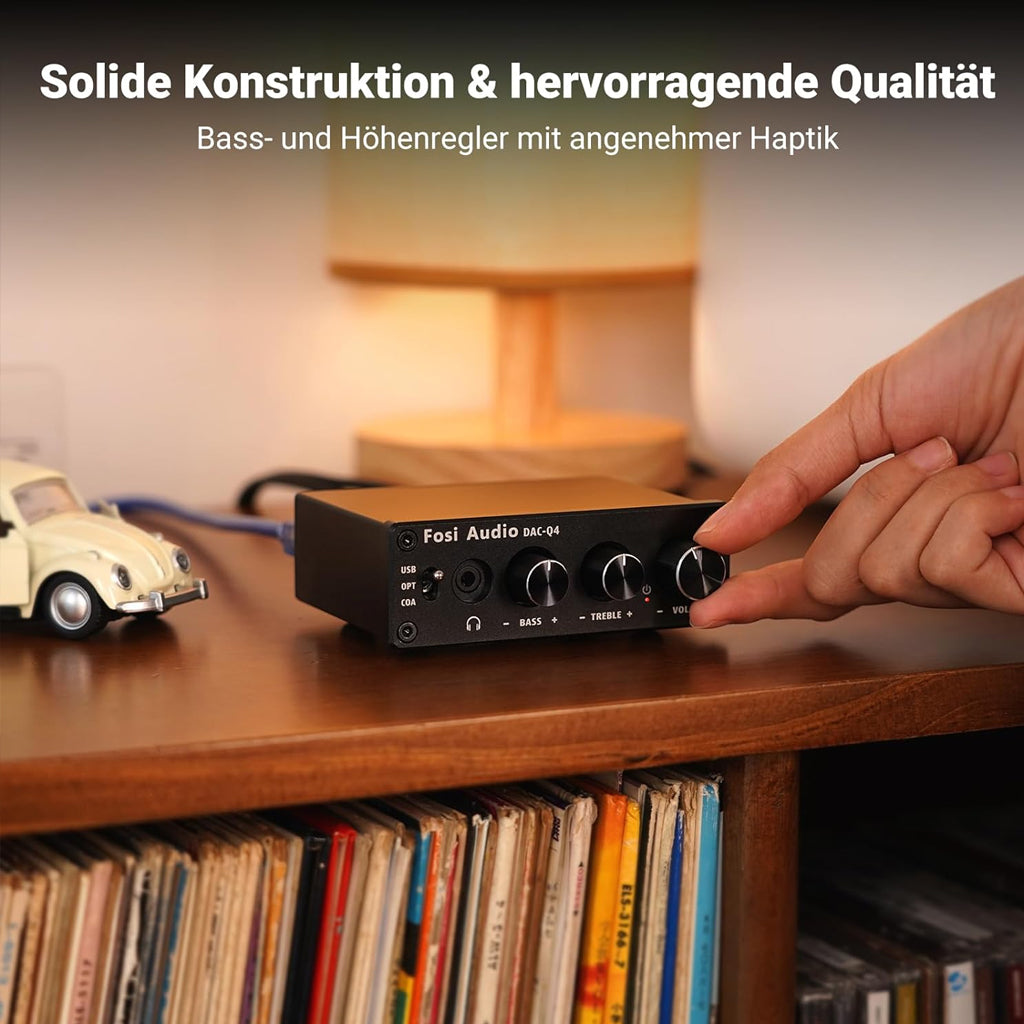

  • Multi-Knob Sound Adjustment
  • Aluminum Metal Shell
  • Preamp or Volume Controller
  • Mini Compact D/A Converter
  • Compatible with Most of Playback Sources
Out of stock

Pickup currently unavailable at Naraina, New Delhi

Description

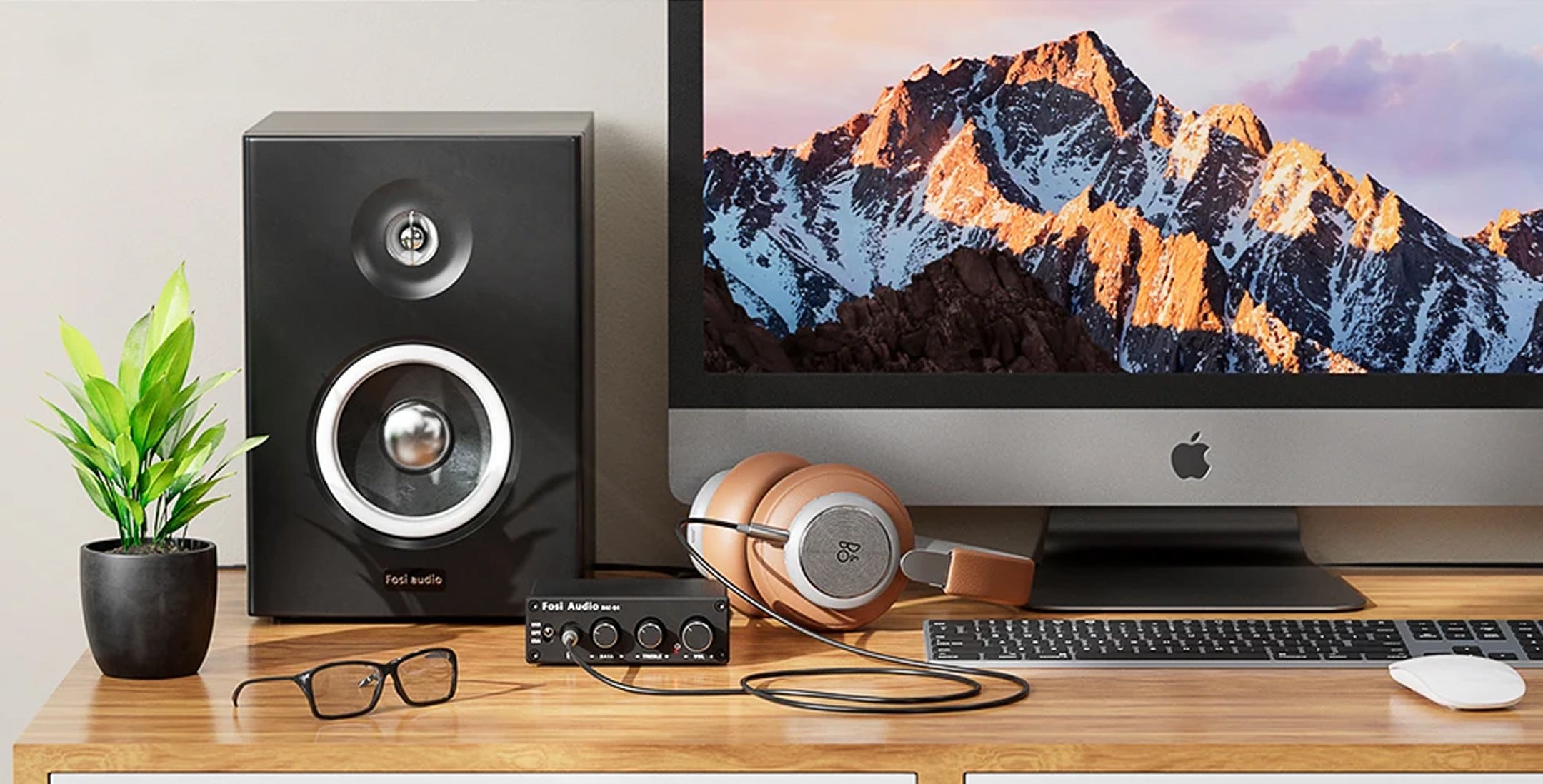

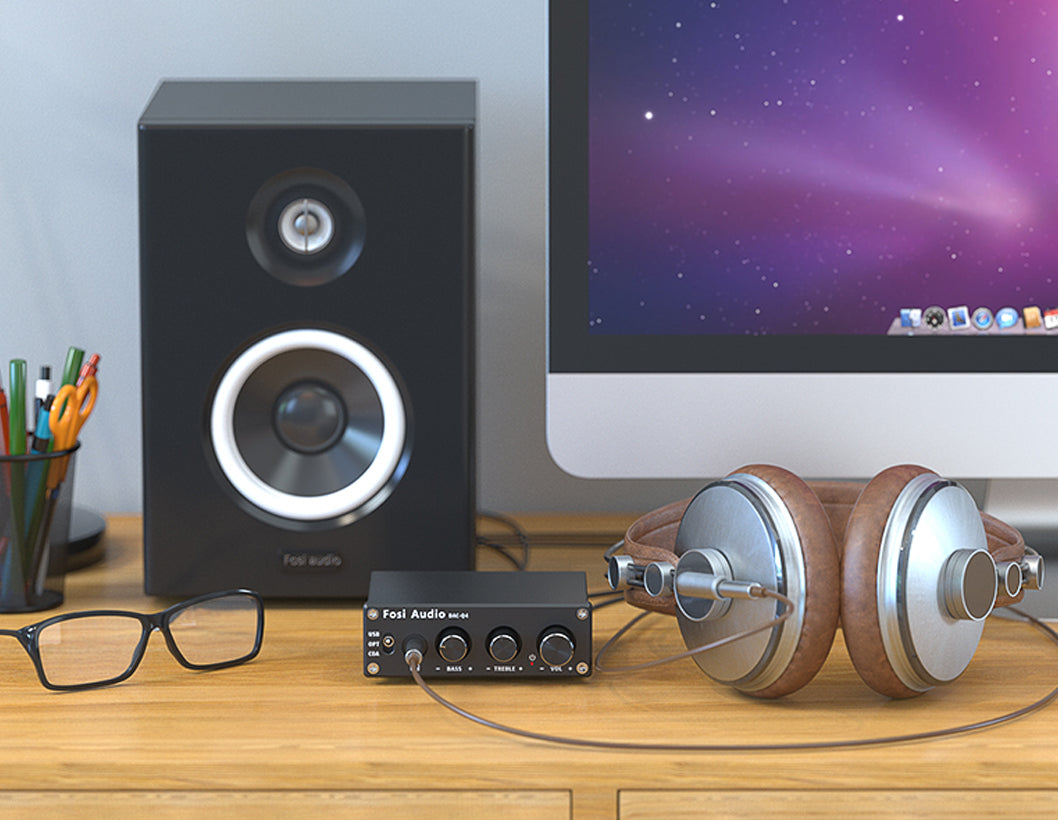

VERSATILE AUDIO HUB FOR HOME SYSTEM AND HEADPHONES

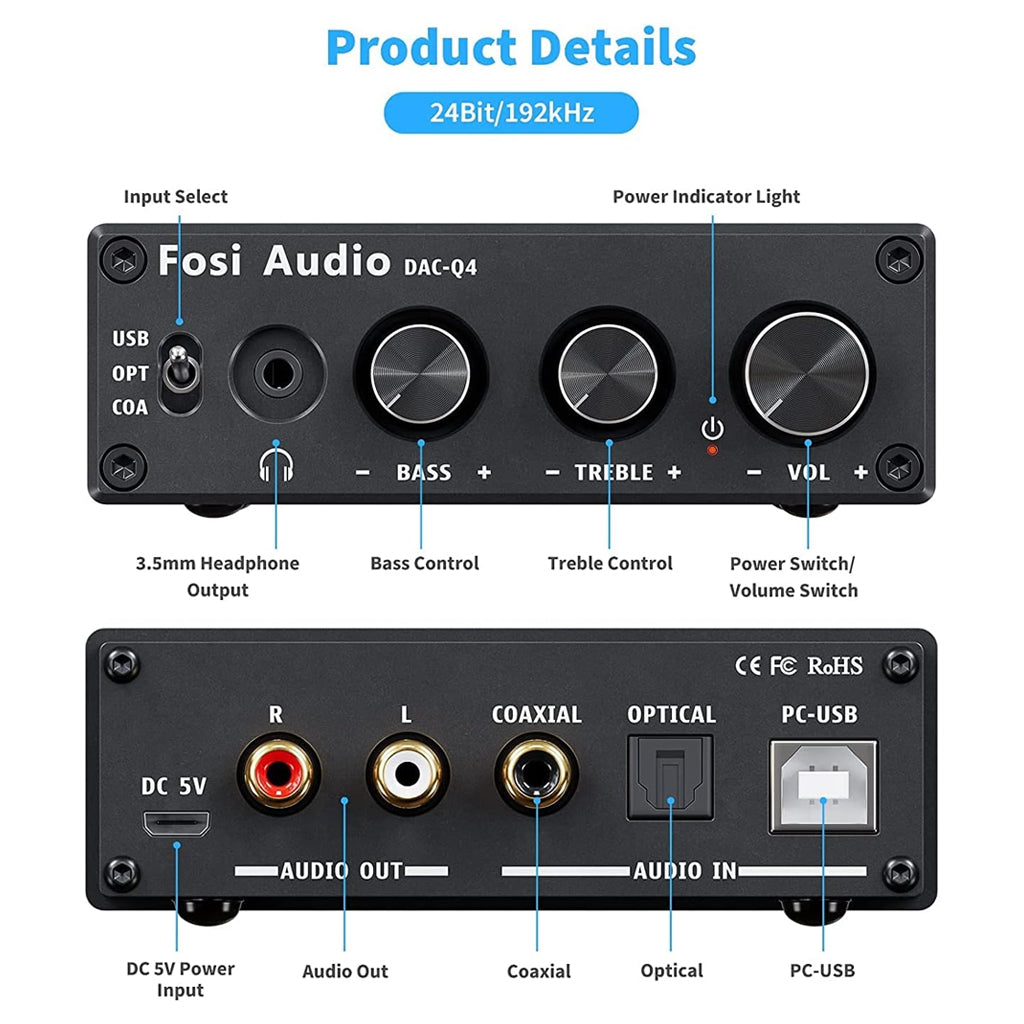

Fosi Audio Q4 DAC Stereo Amplifier is a versatile audio device designed for home audio systems and headphones. It features RCA, PC-USB, optical, and coaxial inputs, as well as a 3.5mm headphone output (Note: Q4 does not support a Microphone). The RCA output can be connected to amplifiers or powered speakers on desktops. The built-in Hi-Fi headphone amp chip can drive headphones with impedance ranging from 16 Ohms to 200 Ohms.

HIGH-PERFORMANCE WITH TEXAS INSTRUMENTS NE5532 OPERATIONAL AMPLIFIERS

The Q4 headphone USB DAC utilizes the Texas Instruments NE5532 high-performance operational amplifier chip, known for its low noise, high output-drive capability, unity-gain, and wide bandwidth. It features low distortion, high slew rate, input protection, and output short-circuit protection. Q4 specifies maximum limits for equivalent input noise voltage.

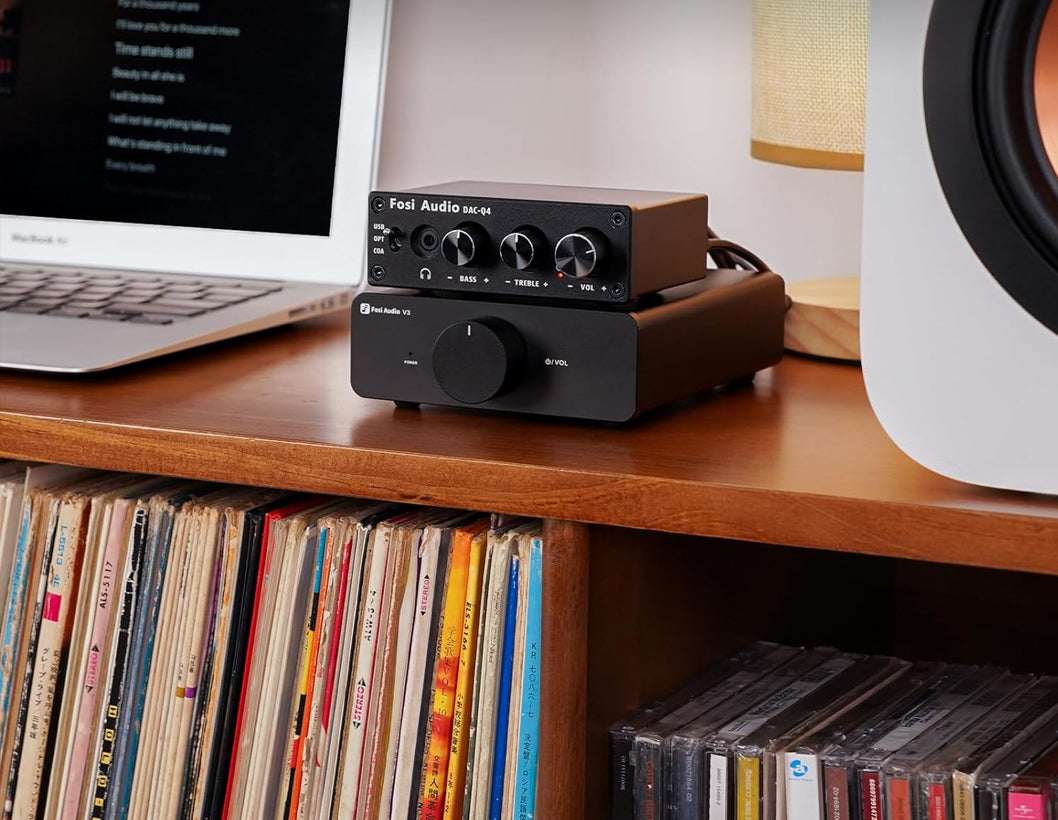

VERSATILE PRE-AMP OR VOLUME CONTROLLER

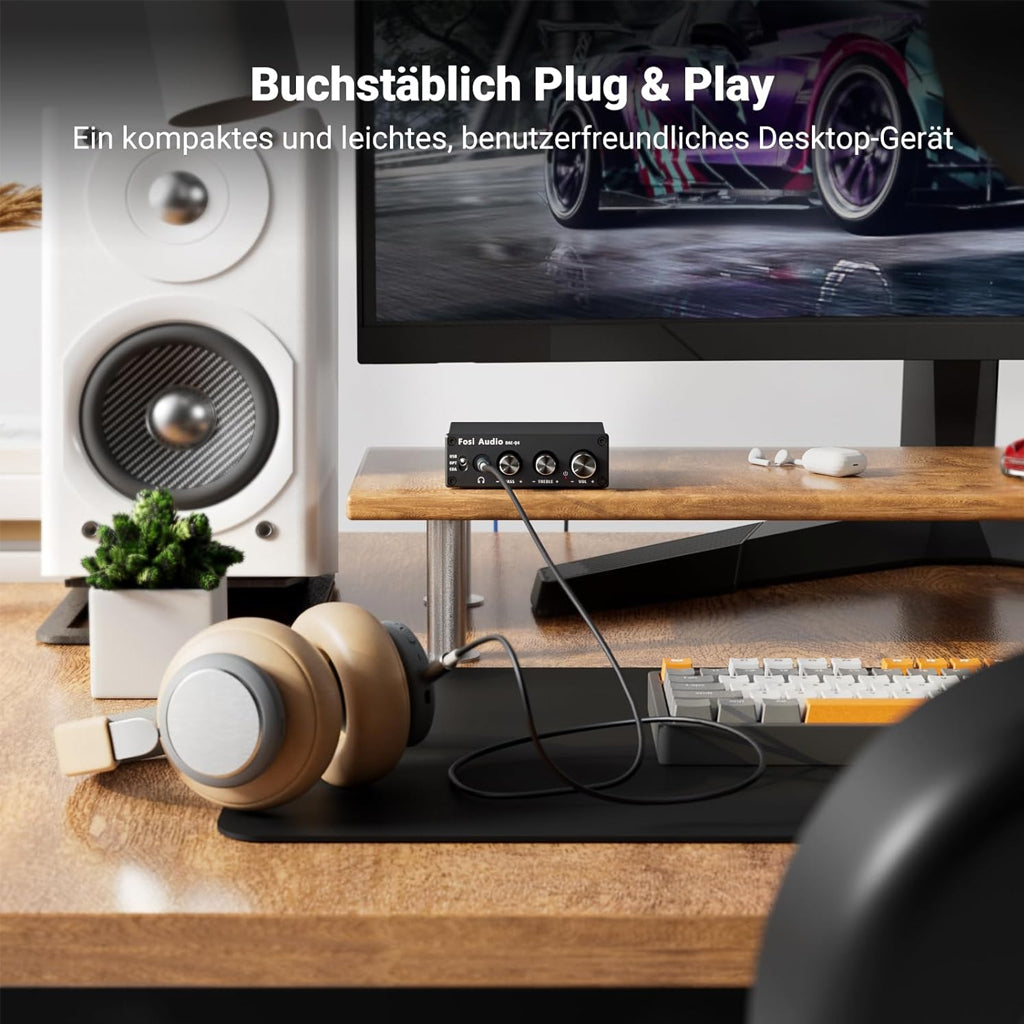

The Q4 delivers 160mW RMS power (32 ohms, 20 Hz - 20 KHz, 0.01% THD) with bass and treble control. It functions as a versatile preamp or volume controller for PC, Mac, headphones, and speakers. Easy setup with no need for special software or drivers, making it a true plug-and-play digital audio adapter. The BOX Q4 features a 3.5mm AUX headphone and RCA output, adding exceptional utility to its design.

COMPATIBILITY

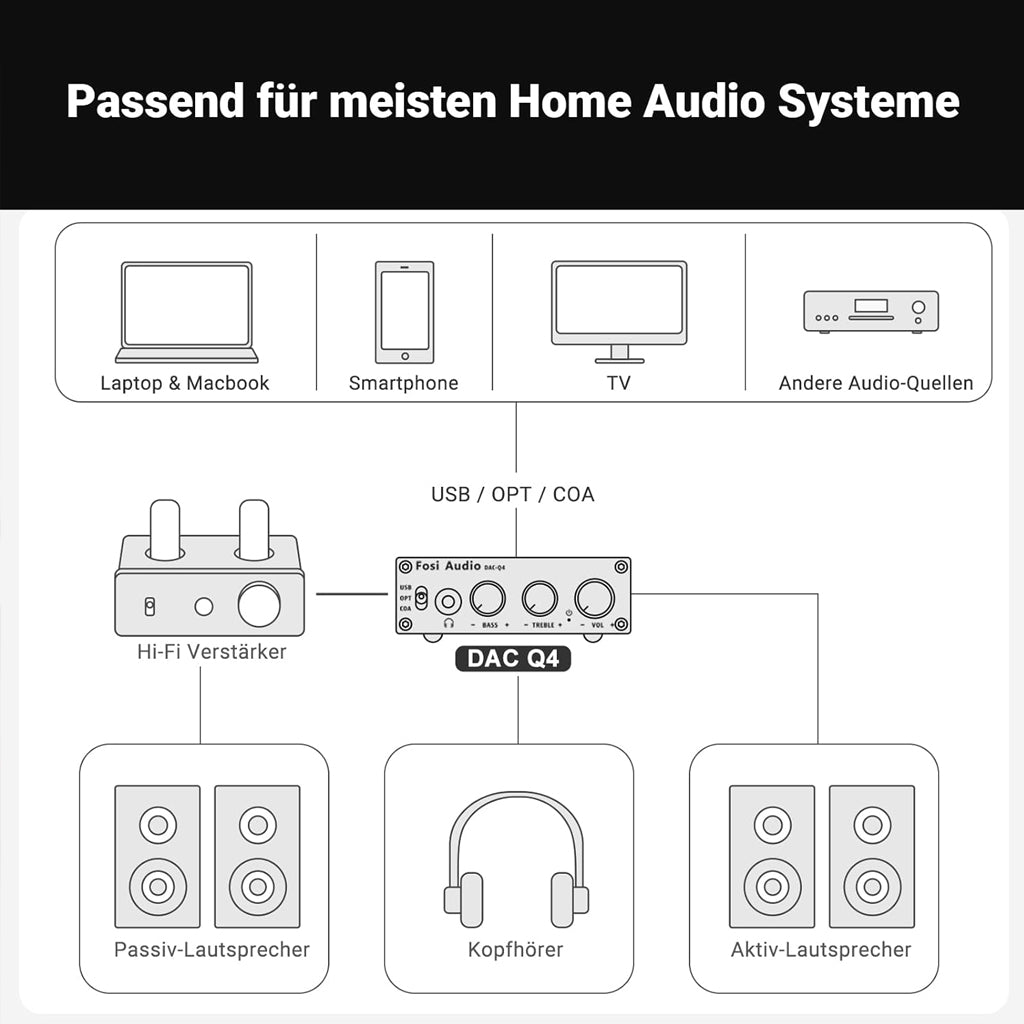

Q4 Can Work with most playback sources with a USB, Optical, or Coaxial Digital Audio Output Such as Digital and HD Televisions, Satellite Receivers, CD/DVD/Blu-Ray Players, and PS4 Xbox Consoles.

HIGH-QUALITY COMPACT D/A CONVERTER

Experience audio excellence with our mini compact D/A converter featuring a full metallic shell for superior quality. Stream flawless 24bit/192KHz HD audio with minimal jitter, ensuring a bit-perfect experience. Equipped with an output protection circuit, it's a safe choice for your valuable audio system. Elevate your audio with compact perfection.

Specifications

Brand Name
Fosi Audio
Model Name
Q4
Product Name
Fosi Audio Q4 Mini Stereo Gaming DAC & Amp
PC-USB supports input sampling rate
24Bit/96kHz
High and low sound adjustment range
±6dB
Fiber/coaxial support input sampling rate
24Bit/192kHz
Frequency Response
20Hz-20kHz (±3dB)
PC-USB support operating system
XP/W7/W8/W10/MAC/Linux
Distortion
0.0001
SNR
≥105dB
Amp Output Maximum Power
100mW 32Ω load
Headphone Matching Impedance
16Ω-200Ω
Working Voltage
16Ω-200Ω
RCA
2.3V
Size (L*W*H)
73.5*98*33MM (without knobs and terminals)

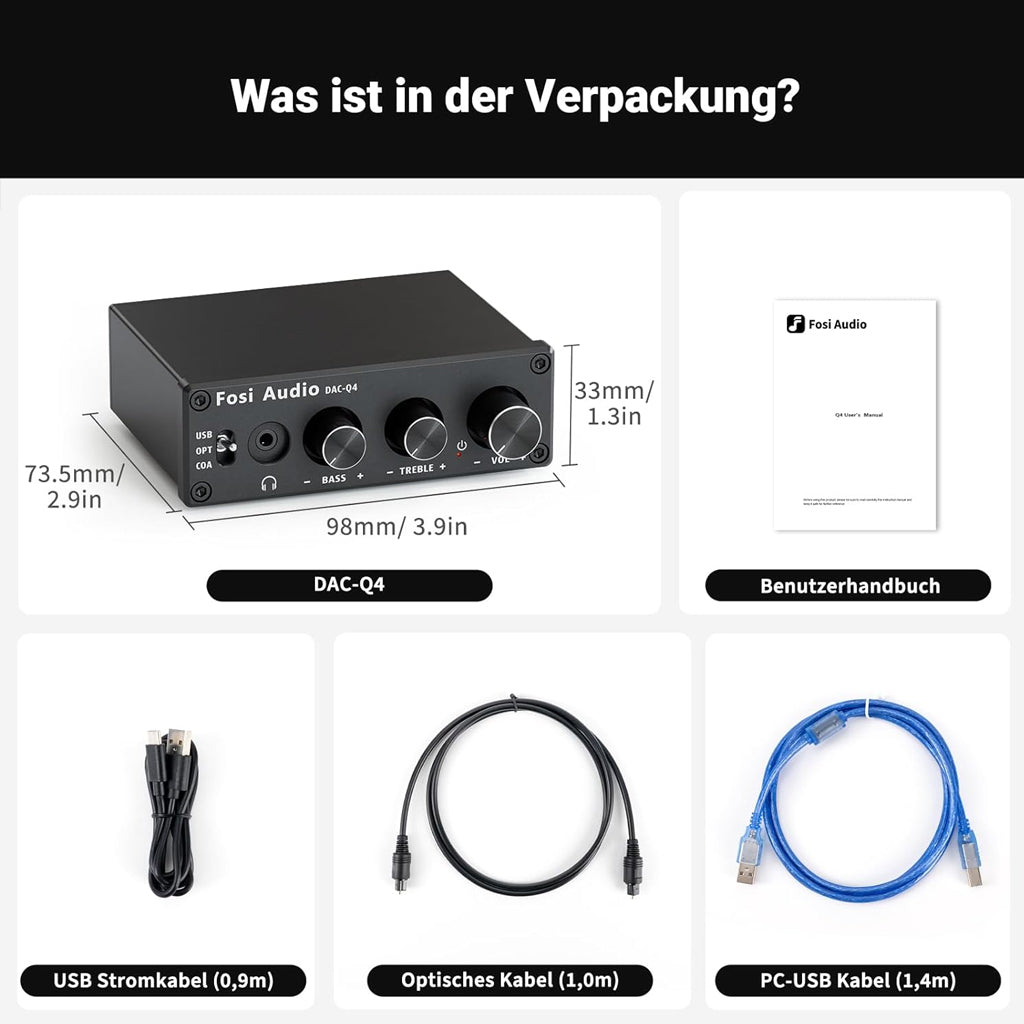

Box Content

    What will you get
  • 1x Fosi Audio DAC-Q4
  • 1x USB Charging Cable
  • 1x Optical Cable
  • 1x PC-USB Cable
  • 1x User Manual
