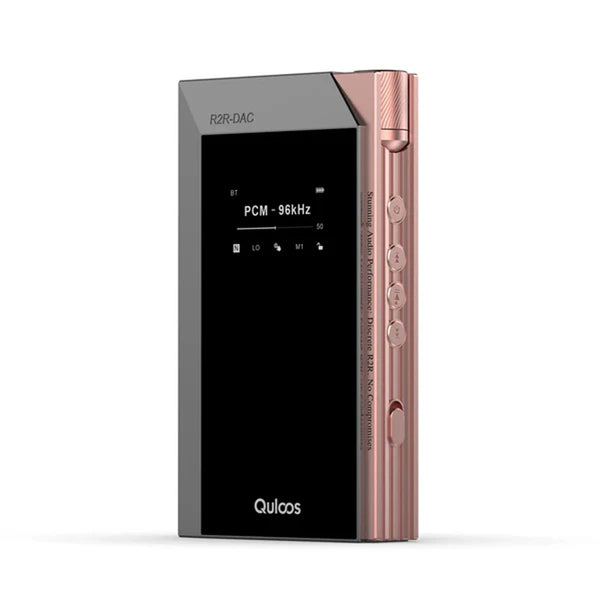

QULOOS - MUB5 Portable R2R DAC/AMP - 1

QULOOS - MUB5 Portable R2R DAC/AMP

QULOOS

amps & dacs above 100000

    Discrete 19+5 Bit Segmented R2R DAC For Natural Analog Sound

    Supports USB, Coaxial, Optical & Bluetooth Inputs

    Powerful 2.5W Per Channel Headphone Amplifier

    7–8 Hours Playtime On Battery & DC Bypass Option

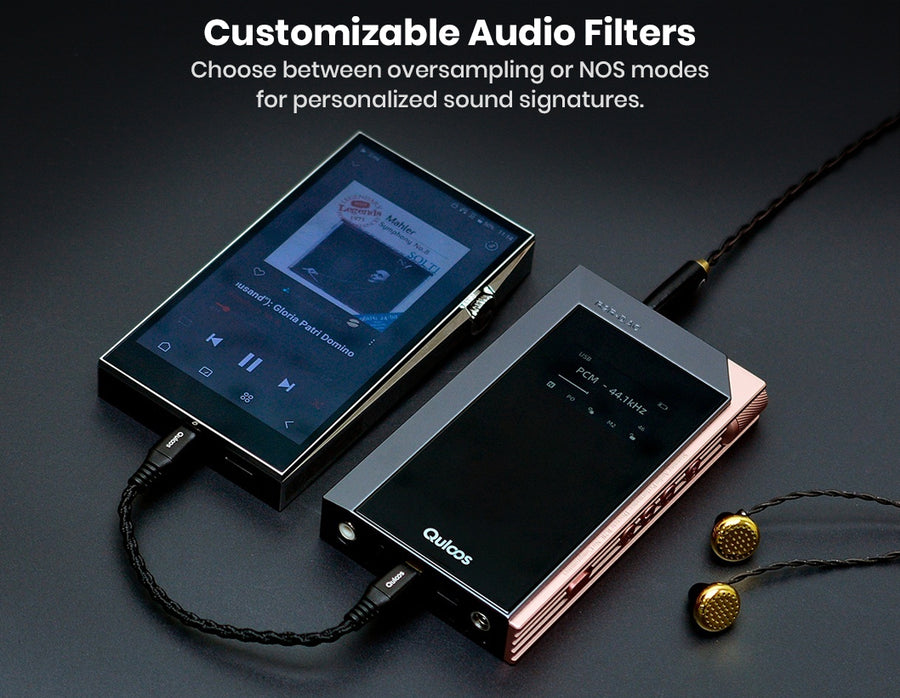

    Multiple Filter Modes Including Custom OS And NOS

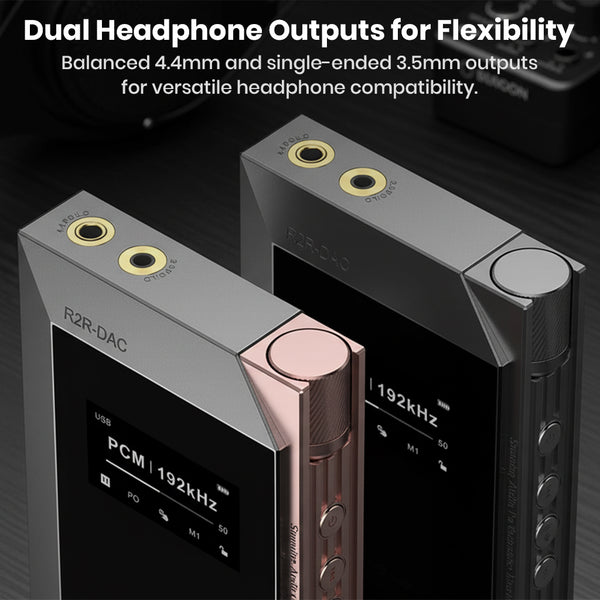

    Balanced 4.4mm And Single-Ended 3.5mm Headphone Outputs

₹184699   ₹116999

₹ 116,999 ₹ 184,699 Save ₹ 67,700

Tax & Shipping Included

Tax IncludedShipping Included

Arriving by January 2026

Pre-Order

Shipping Icon Shipping & Delivery

Rainy weather may cause minor delays — thank you for understanding!

Arriving by January 2026

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

WARRANTY

1 Year Manufacturer's Warranty

Description

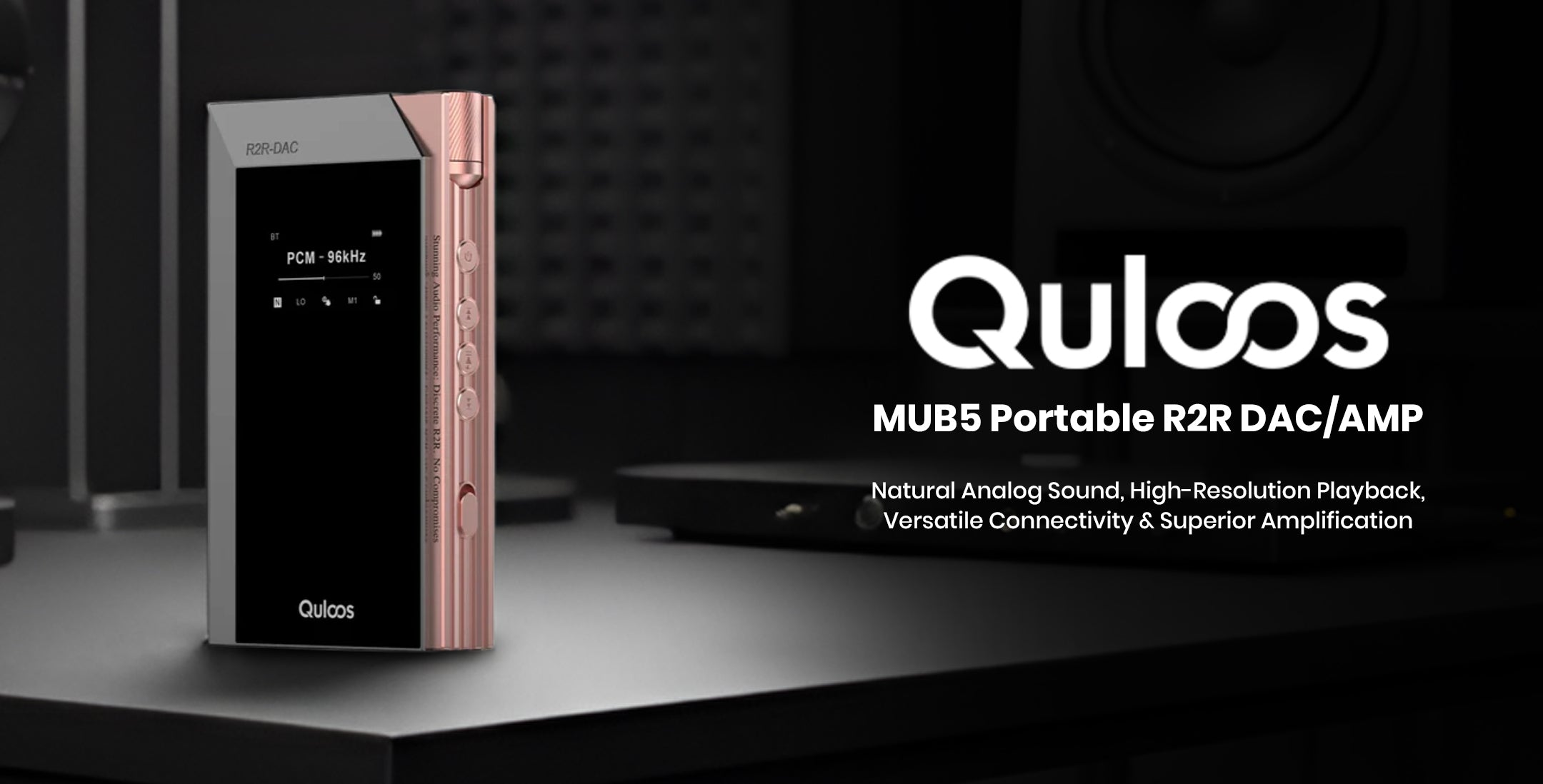

The QULOOS MUB5 is a premium portable DAC and Headphone Amplifier featuring a discrete 19+5 bit segmented R2R ladder architecture with 178 custom resistors for true analog-like sound. It supports high-res PCM and DSD playback with customizable oversampling and NOS filter modes. Power is supplied via 20 isolated LDO groups and LTC6655 references, ensuring ultra-low noise. The amp uses an OPA627 output buffer and discrete FZT transistors, offering selectable gain and up to 2500mW of power at 32Ω. Multiple inputs include USB, coaxial, optical, Line-in and Bluetooth (LDAC, aptX-HD). A 5000mAh battery offers 8 hours playtime, and user can also bypass it via 12V DC input. The CNC-machined chassis features advanced shielding for interference-free audio.

Image 1 a2e03a65 b696 487f bb00 ce731dad055a

DISCRETE R2R LADDER DAC ARCHITECTURE

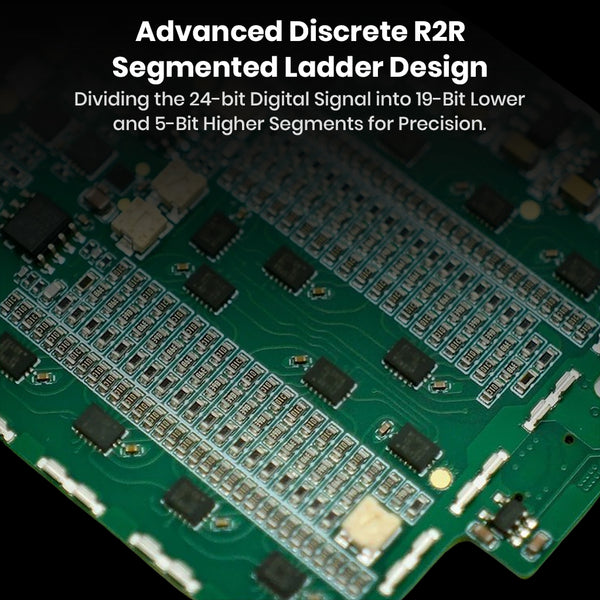

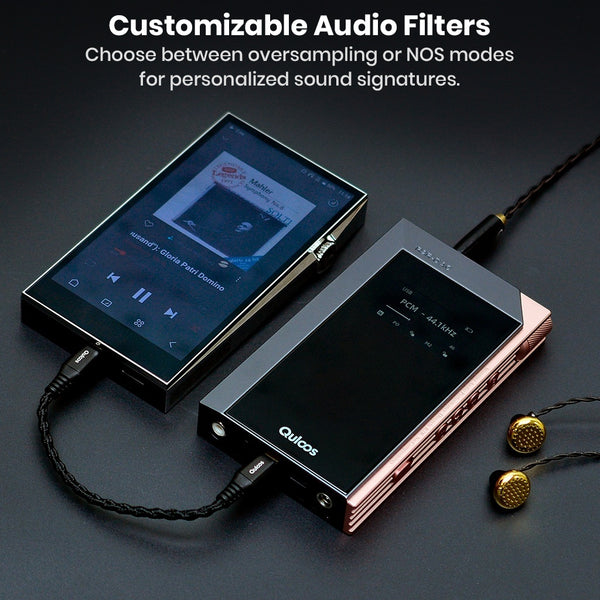

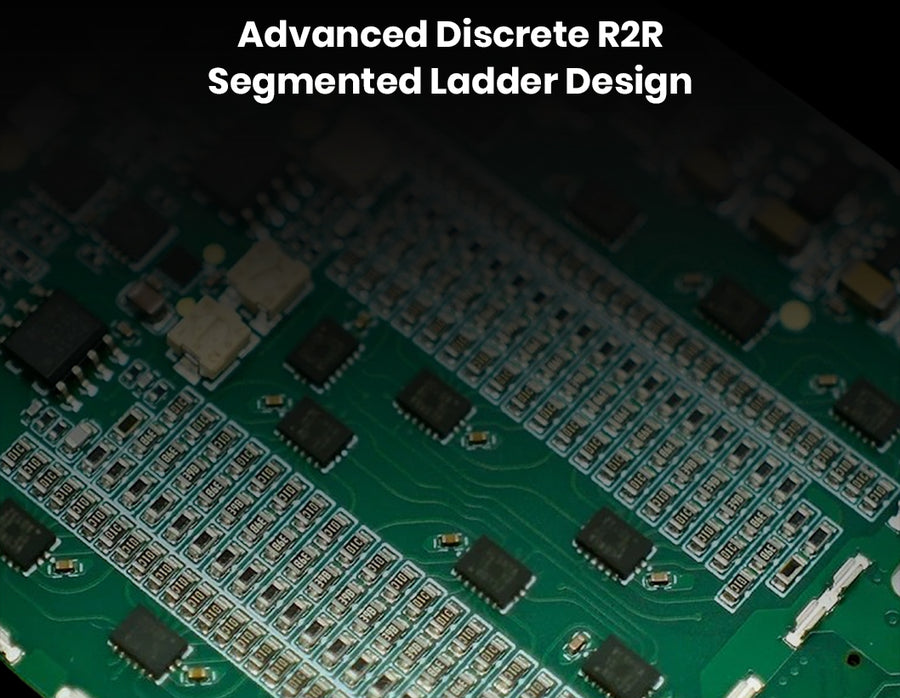

The MUB5 features an advanced discrete R2R segmented ladder DAC architecture that divides the 24-bit digital audio signal into a 19-bit lower segment and a 5-bit higher segment. This design uses 178 ultra-precise resistors matched to a tight 0.01% tolerance, along with 40 dedicated resistors to eliminate internal switch resistance, ensuring highly accurate and natural digital-to-analog conversion. Supporting high-resolution PCM and DSD playback, the DAC offers customizable sound tuning with its programmable oversampling (OS) and no-oversampling (NOS) filter modes. Additionally, DXD x2 upsampling minimizes signal loss and group delay, while ultralow jitter and zero-crossing distortion designs deliver clear audio reproduction with exceptional dynamic fidelity.

ADVANCED POWER SUPPLY & COMPONENTS

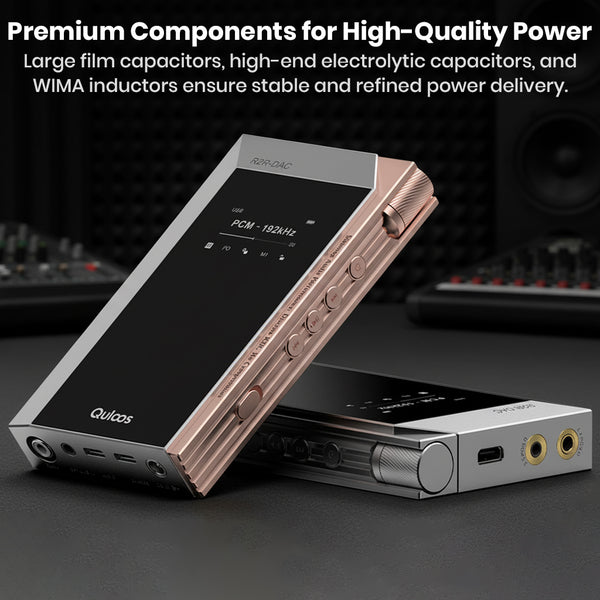

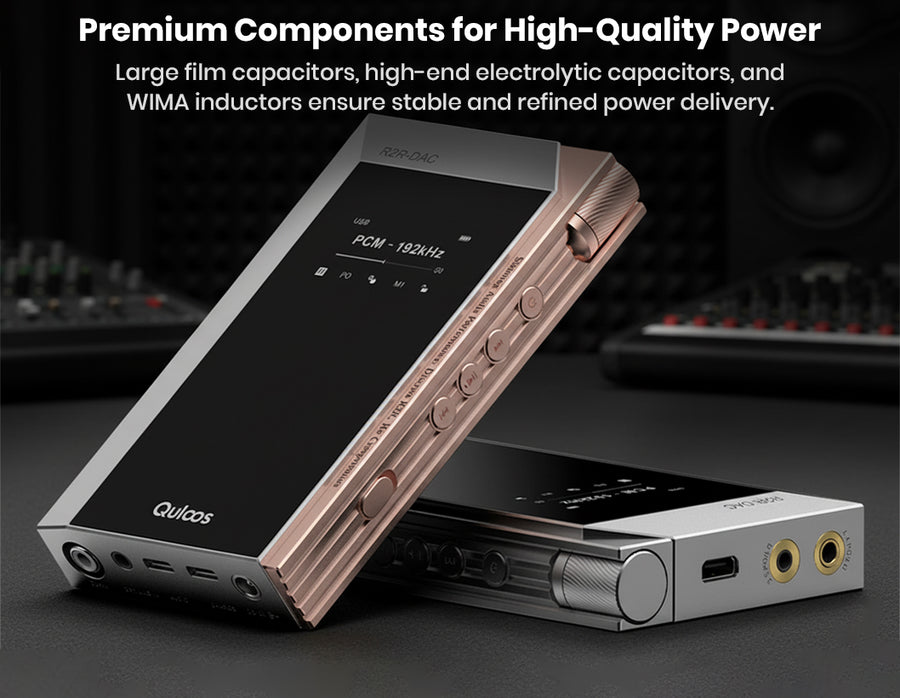

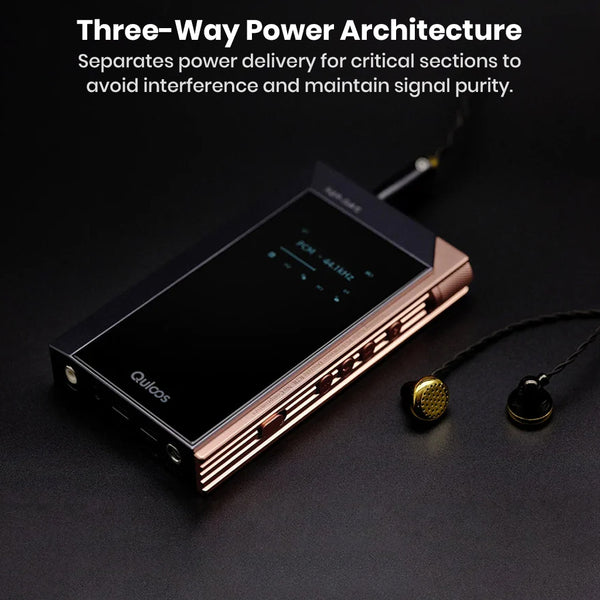

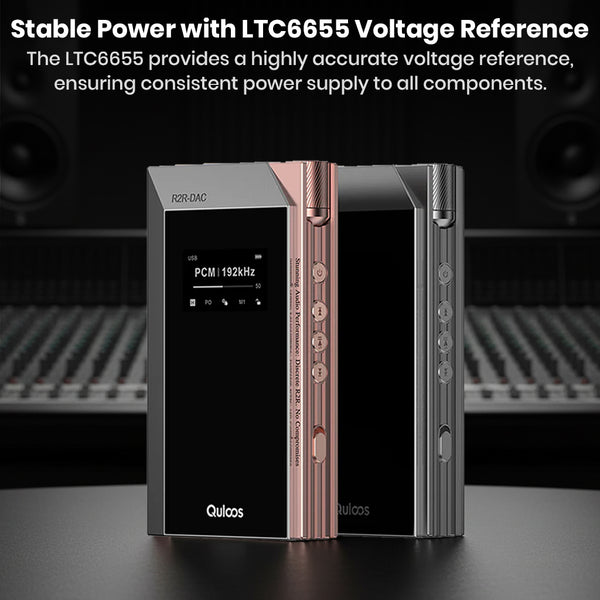

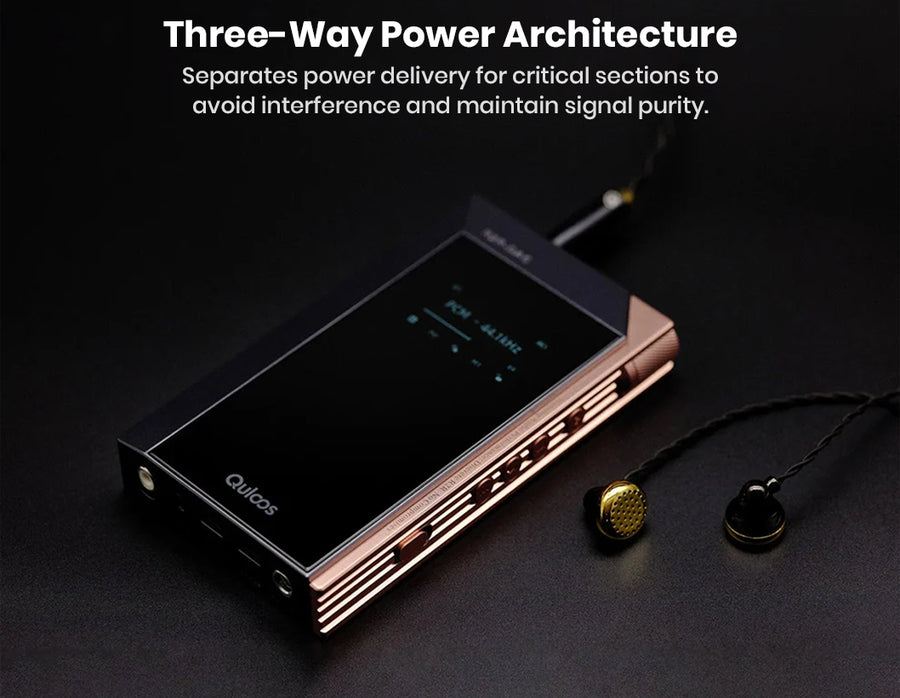

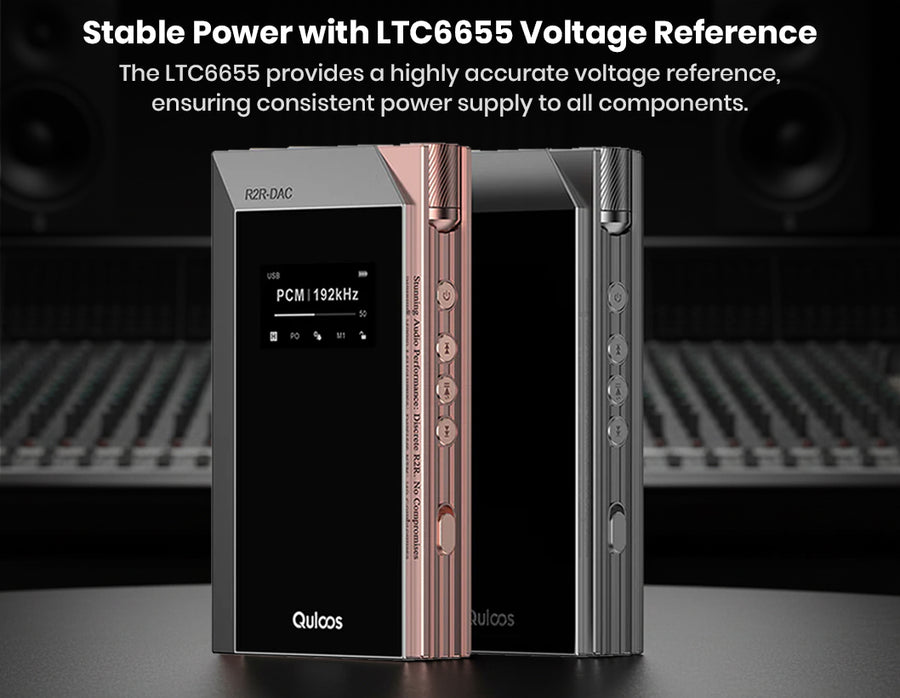

This Premium DAC/Amp incorporates 20 groups of isolated LDO power supplies, each independently powering different sections of the device to minimize noise and interference. It uses an LTC6655 voltage reference for exceptional power stability, ensuring clean and accurate signal reproduction. Multiple NDK/QA661 oscillators provide highly precise clocking, reducing jitter for improved audio clarity. A three-way power supply architecture separates power delivery for the R2R ladder and clock sections, preventing cross-contamination. The USB input is housed in an all-metal isolated casing to shield the audio path from USB noise. The design also features premium components such as large film capacitors, high-end electrolytic capacitors and WIMA inductors, all contributing to a high-quality power environment for refined sound performance.

SUPERIOR AMPLIFICATION & OUTPUT FLEXIBILITY

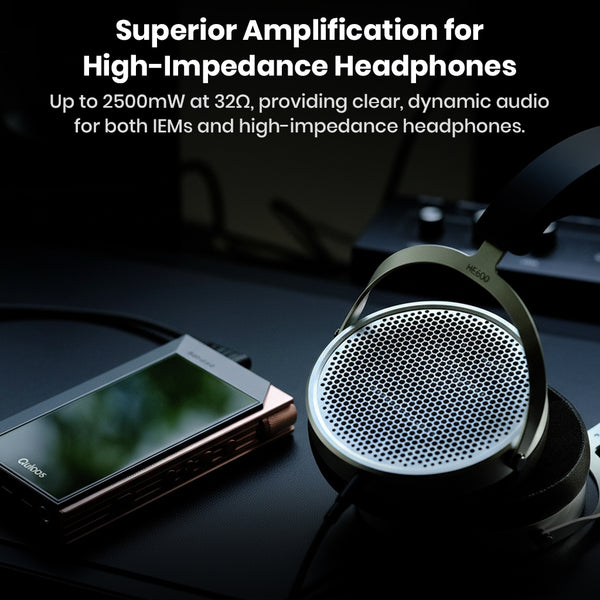

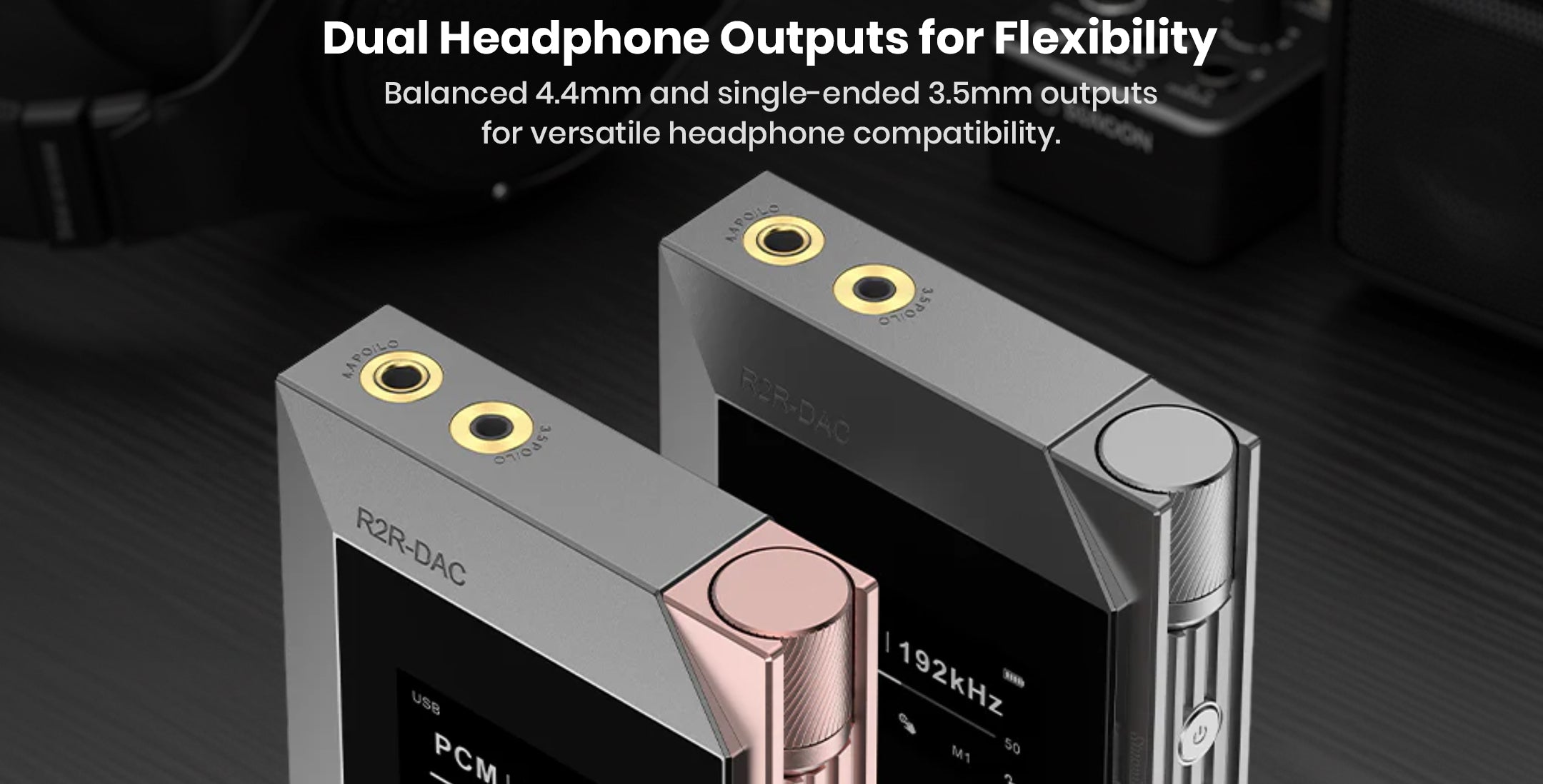

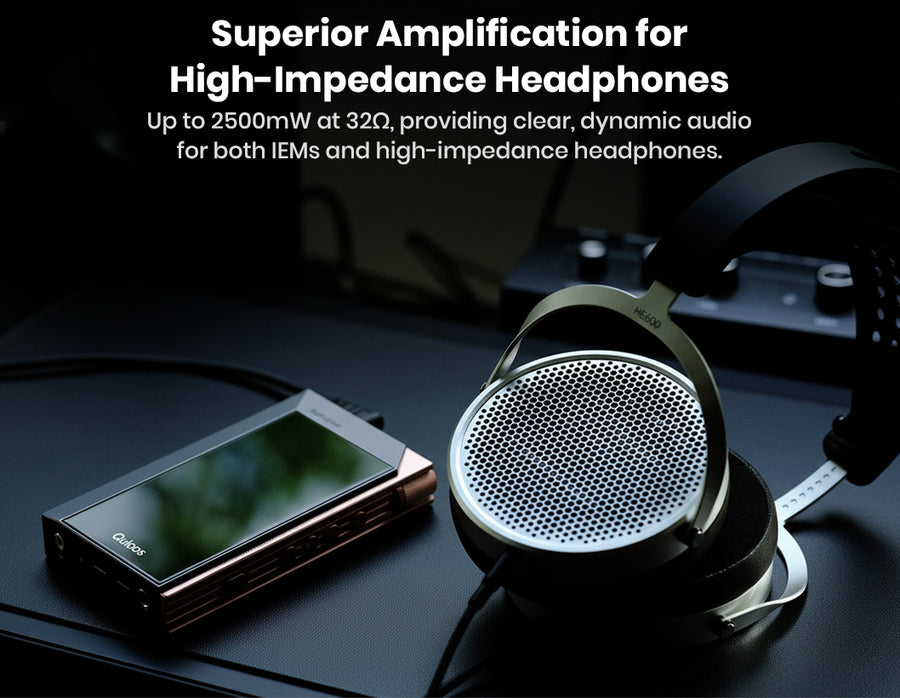

QULOOS has equipped MUB5 with OPA627 operational amplifier which delivers clean, powerful and detailed audio signals to connected IEM’s/Headphones. Its discrete FZT transistor headphone amplifier provides dynamic capabilities suitable for a wide range of headphone types. Users can select from Low, Medium, and High gain stages in accordance to the sensitivity and impedance of their headphones. This feature ensures optimal performance and volume control. The MUB5 is capable of delivering up to 2500mW of power into 32Ω loads, making it compatible with both sensitive in-ear monitors and demanding full-size headphones. For connectivity, it offers multiple output options including a 4.4mm balanced jack, a 3.5mm single-ended jack and a preamp-level output.

VERSATILE INPUTS & CONNECTIVITY

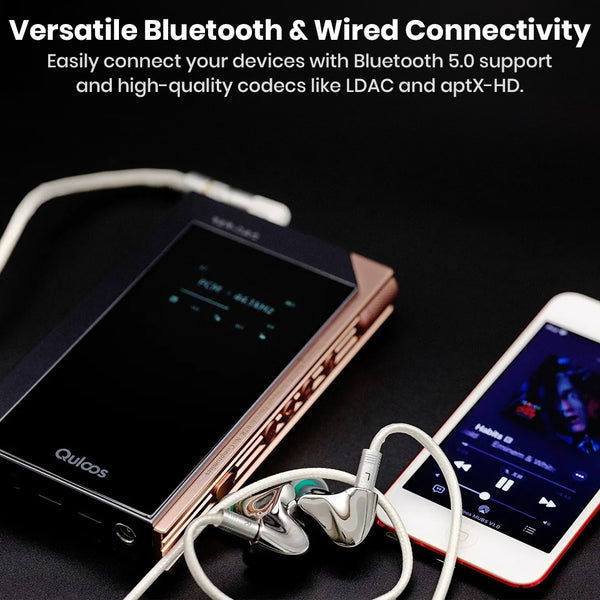

The newest offering from QULOOS features versatile input options including USB Type-C, coaxial RCA, optical and analog 3.5mm Line-In inputs. This allows seamless connection MUB5 with various digital and analog sources. It supports Bluetooth audio input with high-quality codecs such as LDAC, aptX, SBC, aptX-HD, and AAC for wireless streaming convenience. A professional-grade PLL (phase-locked loop) ensures jitter suppression, maintaining signal integrity across all inputs. The device supports dual power sources with 12V DC and USB input, also supporting seamless switching between them. This broad connectivity makes the MUB5 highly adaptable for both portable and home audio setups.

Image 2 acf4c100 ffe2 4235 9fbf f319855ca813

ROBUST BUILD QUALITY & SHIELDING

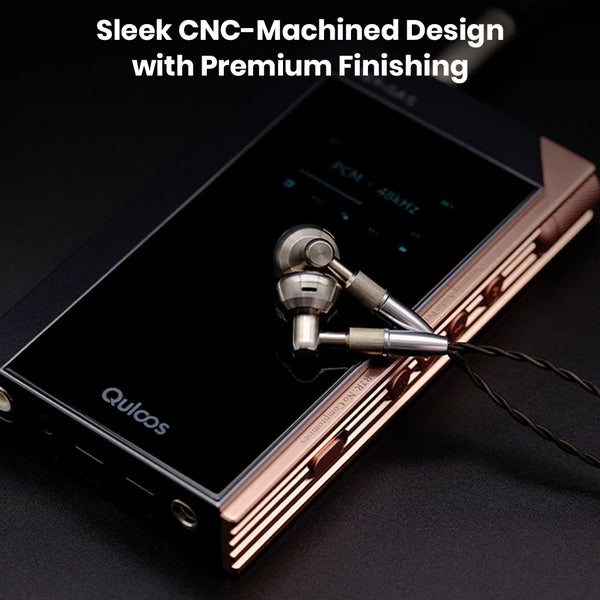

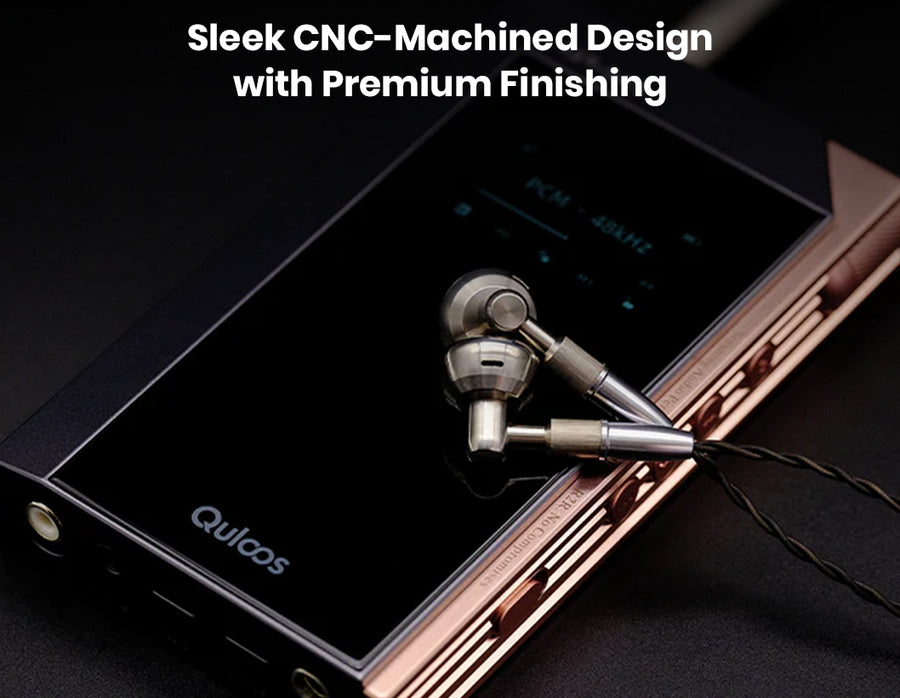

Crafted with a CNC-machined enclosure, the MUB5 available in premium “Ti-Gold” finish, which provides both durability and a refined aesthetic. Its design incorporates NDCS (Noise-Displacement and Conversion Shielding) electromagnetic interference protection to minimize external noise and maintain signal purity. Inside, extensive shielding is implemented with large-area film capacitors, thick power delivery wires and secure connectors to ensure consistent and reliable audio performance. The solid build and high-quality hardware contribute to the product's longevity, making it a dependable choice for demanding audiophiles seeking both performance and resilience.

EXTENSIVE BATTERY LIFE & USER CONTROL

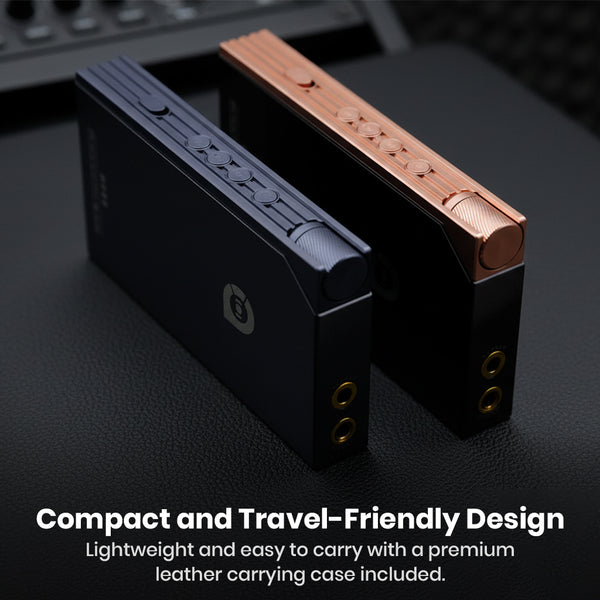

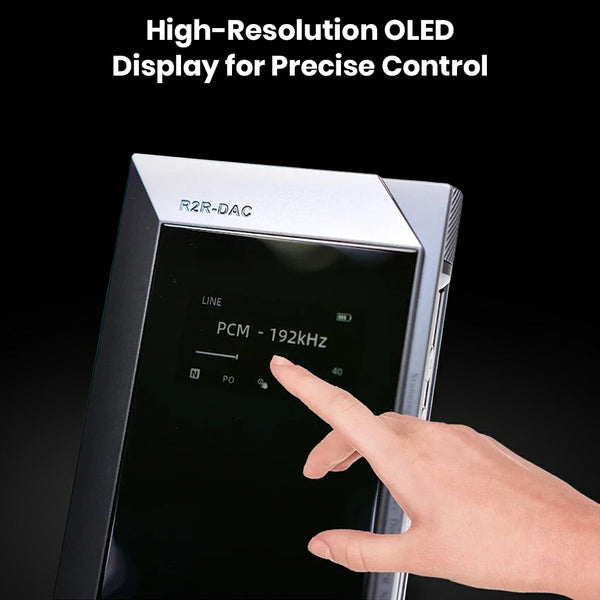

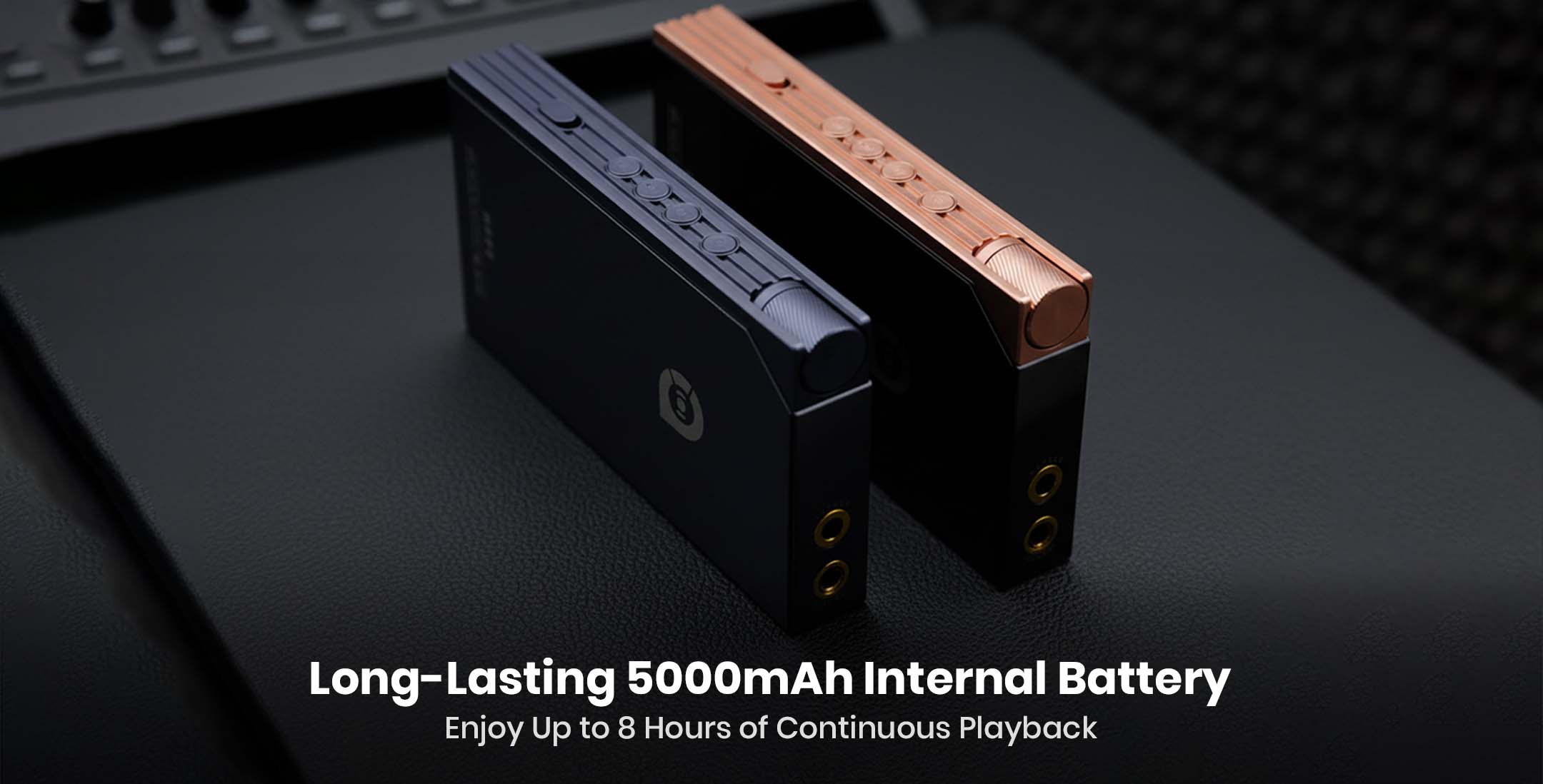

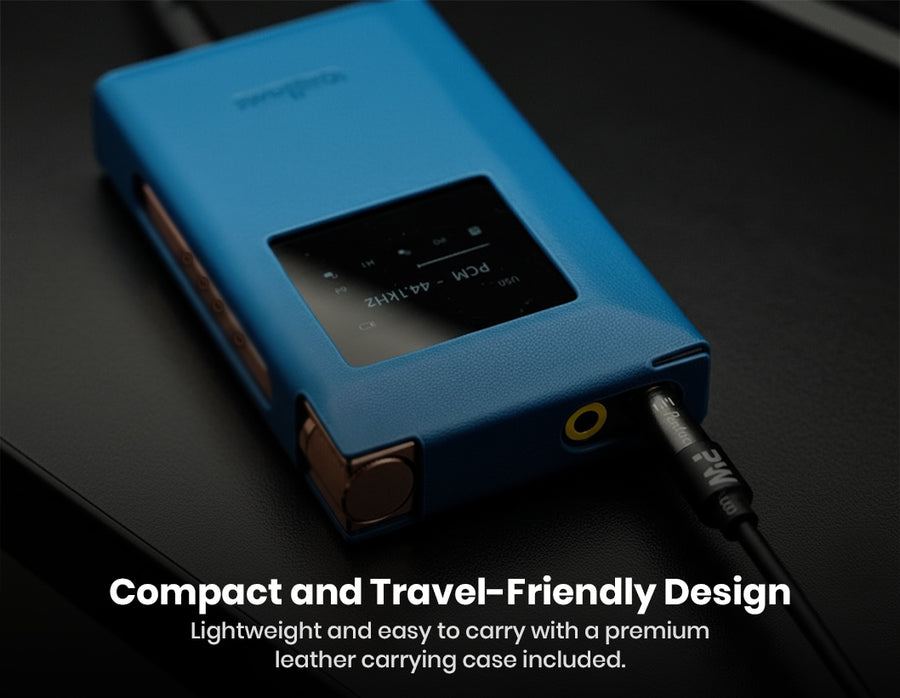

The DAC boasts a large 5000mAh internal battery that offers up to 8 hours of continuous playback, which allows extended listening sessions on-the-go. This battery can be bypassed by connecting a 12V DC power supply, enabling higher output power and uninterrupted usage. The device features an intuitive OLED Display and allows for adjustable line-out voltage to suit various audio setups. It comes equipped with a premium leather carrying case and a comprehensive accessory kit, making it convenient and stylish for on-the-go audiophiles.

Image 3 9593e676 a6d3 4e8d 9ad2 87e0476fae7d

Specifications

Brand
Quloos
Model
MUB5
Dimensions
Approx. 138 × 80.5 × 23 mm
Weight
Approx. 360 g

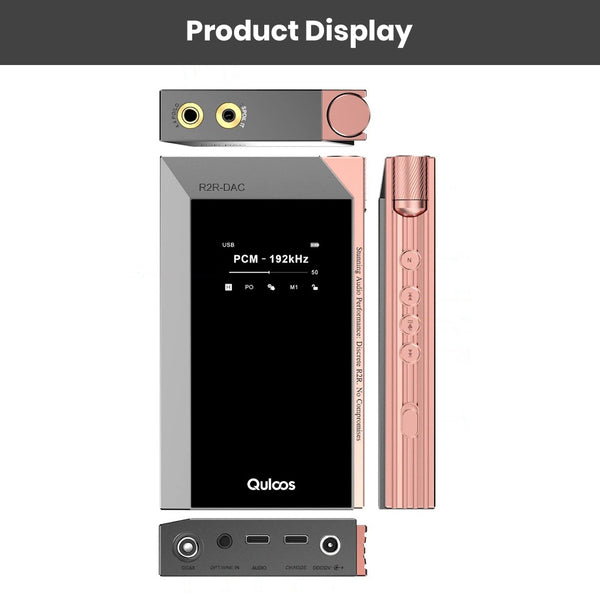

Audio Inputs
USB Type-C, RCA Coaxial, Optical, 3.5mm Line-In, Bluetooth
Bluetooth Version
Bluetooth 5.0
Bluetooth Codecs
LDAC, APTX, APTX-HD, AAC, SBC
Bluetooth Transmission
One-way, MUB5 as Bluetooth receiver
USB Protocol
UAC1.0 / UAC2.0, compatible with Windows, Mac, Android, iOS
USB Sampling Rate
Up to PCM 32Bit 384kHz, DSD512
Optical & Coaxial Sampling
Up to PCM 24Bit 192kHz, DSD64 (DoP)
Line-In Level
≤ 2.6V rms
Line-In Level
3.5mm SE / 4.4mm Balanced (switchable PO/LO)
DAC Chip
Proprietary segmented R2R decoding
R2R Buffer
OPA627
Headphone Amp
FZT discrete power transistor amp
Line Out Output Level
Adjustable: BAL 4V & SE 2V; BAL 2.8V & SE 1.4V; BAL 2V & SE 1V; Output adjustable
Frequency Response
20Hz – 20kHz ±0.5dB
Distortion+Noise
0.003% (AES17 20kHz, Gain=N, Mode=M2)
Signal-to-Noise Ratio (SNR)
116 dB
Dynamic Range
112 dB
Channel Separation
104 dB (Idle)
Channel Separation (32Ω)
93 dB (Balanced), 64 dB (Single-ended)
Noise Floor
Balanced: 5.5 Vrms @ VOL=120 (Gain=N) / 2.7 Vrms @ VOL=30 / 7.0 Vrms @ VOL=20 (Gain=H) Single-ended: 2.5 Vrms @ VOL=120 / 1.1 Vrms @ VOL=30 / 4.0 Vrms @ VOL=20
Output Power (Battery)
Balanced: 1500mW+1500mW @ 32Ω (Peak), 320mW+320mW @ 300Ω (Sustained) Single-ended: 500mW+500mW @ 32Ω (Peak), 80mW+80mW @ 300Ω (Sustained)
Output Power (DC 12V 2A)
Balanced: 2500mW+2500mW @ 32Ω (Peak), 530mW+530mW @ 300Ω (Sustained)Single-ended: 900mW+900mW @ 32Ω (Peak), 120mW+120mW @ 300Ω (Sustained)
Supported Headphone Impedance
8Ω – 600Ω
Battery Life
Approx. 8 hours (Music: 16bit/44.1kHz, IEM DM7ti)
Charging Time
Approx. 4–5 hours (Type-C normal), Approx. 3 hours (Type-C fast), Approx. 3 hours (DC12V 2A)
External Power Input
Type-C: 5V 2A normal, 12V 1A QC2.0 fast; DC 12V: 12V 2A

Box Content

    What will you get
  • 1X MUB5 DAC
  • 1X Premium leather casel
  • 1X USB-C to USB-C cable
  • 1X USB-A to USB-C cable
  • 1x Charging cable
  • 2x Screen Protectors
  • 1x User Manual
