MOONDROP – LAN II REF/POP Dynamic Driver IEM - 1

MOONDROP – LAN II REF/POP Dynamic Driver IEM

Concept Kart

For Beginner Audiophiles iem under 10000

    10mm Dynamic Driver with Glass Dome Composite Diaphragm

    Reference Tuning for Enhanced Mid-High Frequencies

    High-Efficiency Dual N52 Magnetic Circuit

    Premium Stainless Steel Shell Made From MIM Powder

    High-Purity OFC Detachable Cable with 4.4mm Balanced Plug

    Ultra-Low Distortion Performance (THD 0.08% @1kHz, 94dB)

β‚Ή8799   β‚Ή5499

β‚Ή 5,499 β‚Ή 8,799 Save β‚Ή 3,300

Tax & Shipping Included

Tax IncludedShipping Included

Style: REF
REF
POP
(Choose the right variation carefully)

Get a Free Case Worth β‚Ή 249

Shipping Icon Shipping & Delivery


Rainy weather may cause minor delays β€” thank you for understanding!

Free Shipping on Prepaid Orders

Same day dispatch, if ordered before 2:00 PM. Info Order Placed before 2:00 PM will be shipped within 24 hrs. (Except Sunday and Holidays)

Cash on Delivery Available Info Cash on delivery applicable for order from β‚Ή 500 to 15000

Cash on Delivery Available Info Cash on delivery applicable for order from β‚Ή 500 to 15000

Piggy icon EXTRA SAVINGS & Rewards

Earn upto 5% of order value

With GST invoice, save up to 28% on business purchases

RETURN POLICY

10 Days Replacement Policy for Manufacturing defects. Info All products are covered by 10 Day Replacement Guarantee. This product is eligible for a free replacement, in case you receive a damaged, defective or different item. Please keep the product in its original condition with all accessories & packaging for a successful return. We may contact you to assess the damage or defect before issuing a replacement. Accessories like cables and eartips are not backed up the manufacturer's warranty.

Please note that physical damage cases need to be brought to our notice within 24 hours.

Simply Contact us through the chat window if you find any issues with your order.

Add a heading

Add content using the options to the left

Description

The MOONDROP LAN II is a refined single dynamic driver IEM, offered as a significant upgrade to the original acclaimed LAN model. It is engineered for audiophiles seeking exceptional acoustic precision and technical performance at an accessible level. The LAN II features a new-generation 10mm dynamic driver with an advanced Glass Dome composite diaphragm and a high-efficiency dual magnetic circuit. The Reference (REF) variant is specifically tuned for a clean and detailed sound with enhanced spatial depth, making it ideal for instrumental and classical music. The POP version enhances Mid Bass attack as well as increases the clarity by pushing forward vocals. Both variants boast a durable and premium metallic build using MIM powder metallurgy stainless steel. It comes equipped with a high-purity oxygen-free copper cable terminated in a 4.4 mm balanced plug, ensuring high-quality signal transfer for devices that support balanced output.

An advertisement image for the MOONDROP LAN II in-ear monitors (IEMs). Four silver-colored earpieces, two on the left and two on the right, are arranged diagonally on a dark, textured surface that suggests a vinyl record's groove. Each earpiece has a laser-engraved design resembling stylized leaves or stars.

NEW-GENERATION GLASS-DOME DYNAMIC DRIVER UNIT

The LAN II has a brand-new 10 mm dynamic driver featuring an innovative Glass Dome composite diaphragm structure. This solid glass dome measures just 0.05 mm in thickness and is produced using a high-precision mold and specialized glass-making process. The material's ultra-high Young's modulus and exceptional internal resistance coefficient deliver outstanding high-frequency extension and true high-fidelity resolution. This advanced design promises excellent performance with ultra-low distortion.

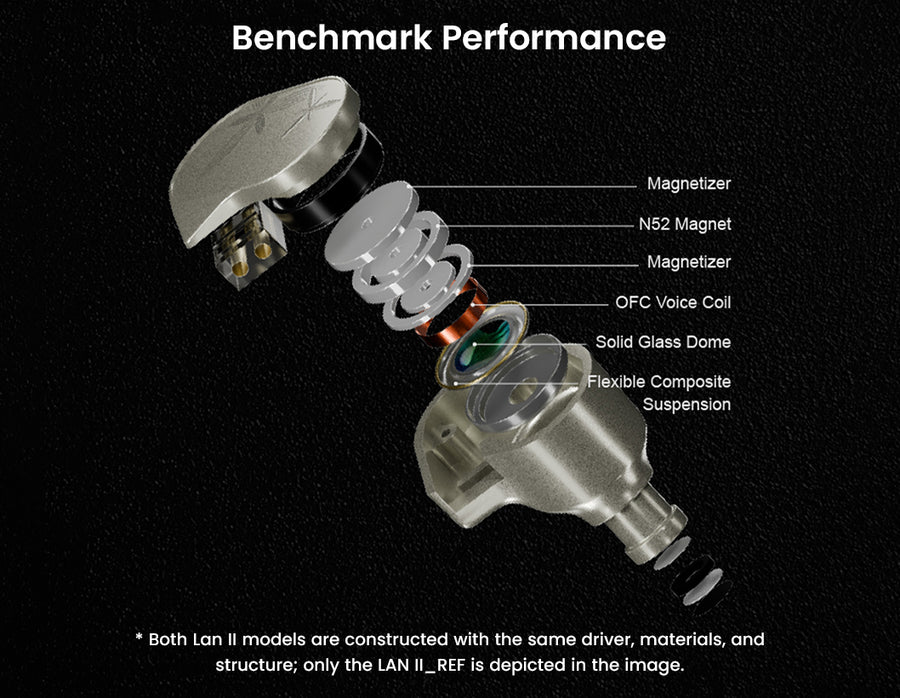

Exploded diagram showing the internal components of the LAN II in-ear monitor, detailing the driver structure including the N52 magnet, voice coil, and Solid Glass Dome.

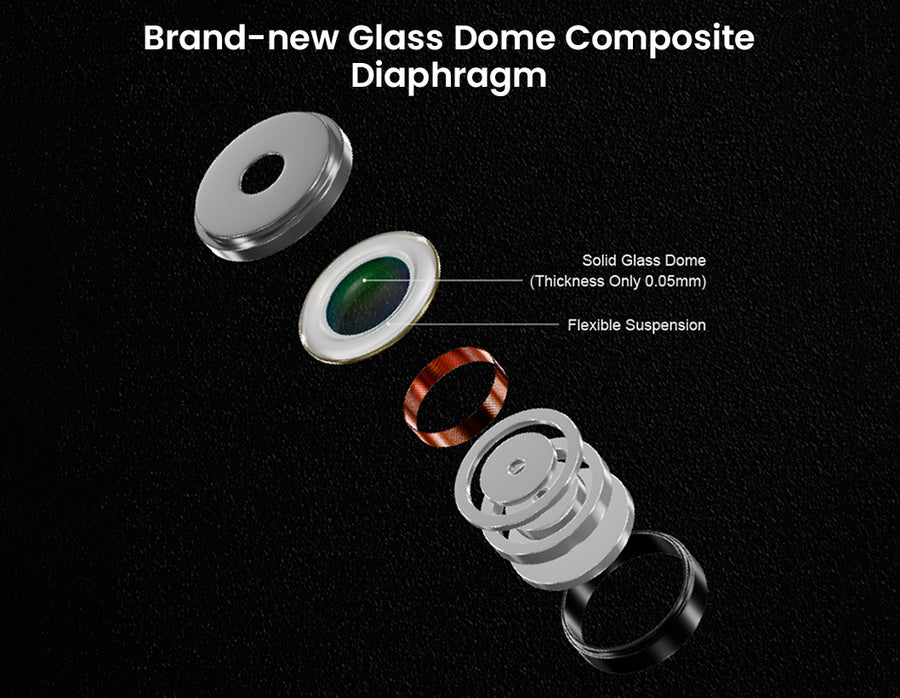

Exploded view illustrating the components of the Brand-new Glass Dome Composite Diaphragm, highlighting the 0.05 mm thick Solid Glass Dome.

REFERENCE TUNING FOR CLEAN, DETAILED SOUND

The LAN II REF version is precisely tuned to Moondrop's VDSF Target Response, focusing on reference-grade sound performance. This tuning brings a clean, detailed presentation with a focus on the mid-high frequency band and instrumental part, which enhances spatial performance. It delivers exquisite detail and clean presentation, making it an excellent choice for critical listening of instrumental and classical music where enhanced instrument separation is key.

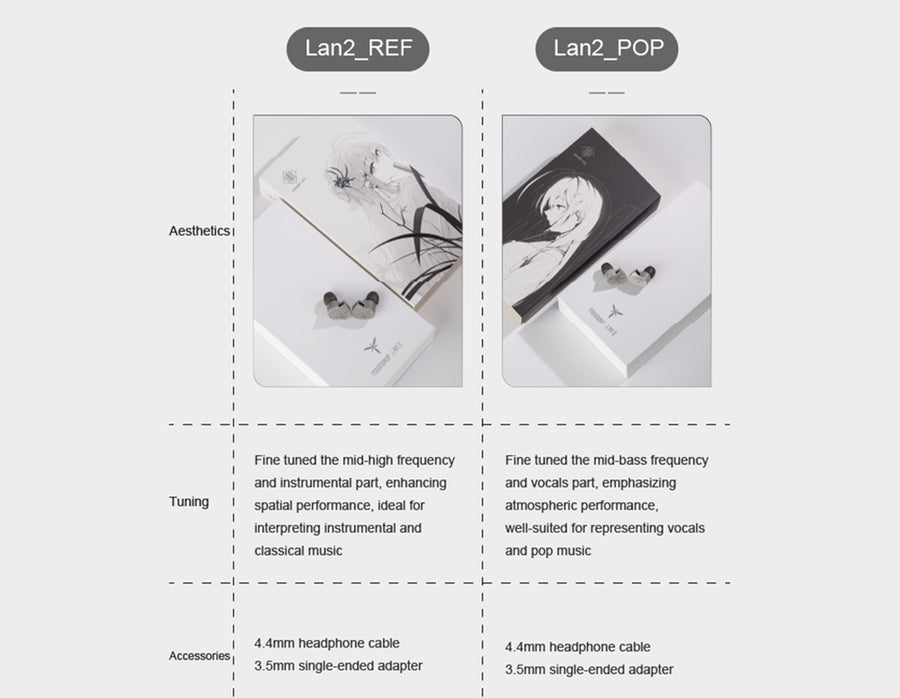

Comparison chart detailing the differences between LAN II REF and LAN II POP models, covering Aesthetics, Tuning (instrumental/classical vs. vocals/pop), and Accessories.

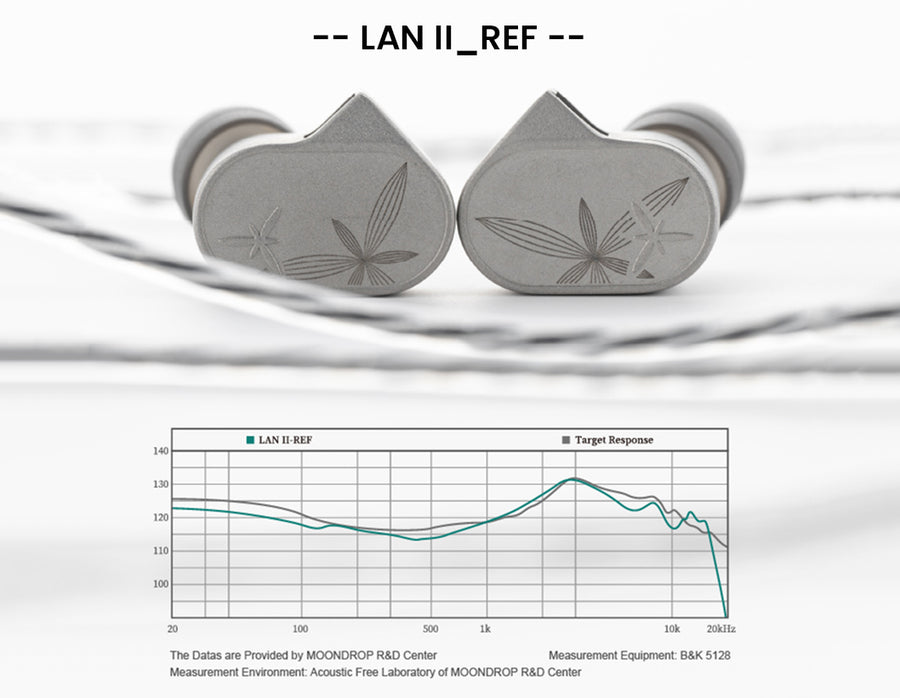

Close-up of the MOONDROP LAN II REF earpieces with their frequency response curve graph shown underneath, compared to a Target Response.

HIGH-EFFICIENCY DUAL MAGNETIC DRIVER

the LAN II features a high-efficiency 10β€―mm dual-magnetic driver circuit. This advanced setup integrates both internal and external magnetic components, featuring two concentric N52 magnets. Optimized through finite element simulation, the design generates a uniform magnetic flux density exceeding 1β€―T, delivering high sensitivity of 118β€―dB/Vrms @1β€―kHz and exceptionally fast transient response. The combination of high efficiency and strong magnetic flux allows the voice coil to drive the diaphragm with remarkable precision and control, ensuring both dynamic accuracy and clarity across the frequency range.

Four MOONDROP LAN II in-ear monitors with silver-grey housings, connected to a silver and black braided cable, showcasing the design and listing key features like the Internal and External Composite Magnetic Circuit and Glass Dome Diaphragm.

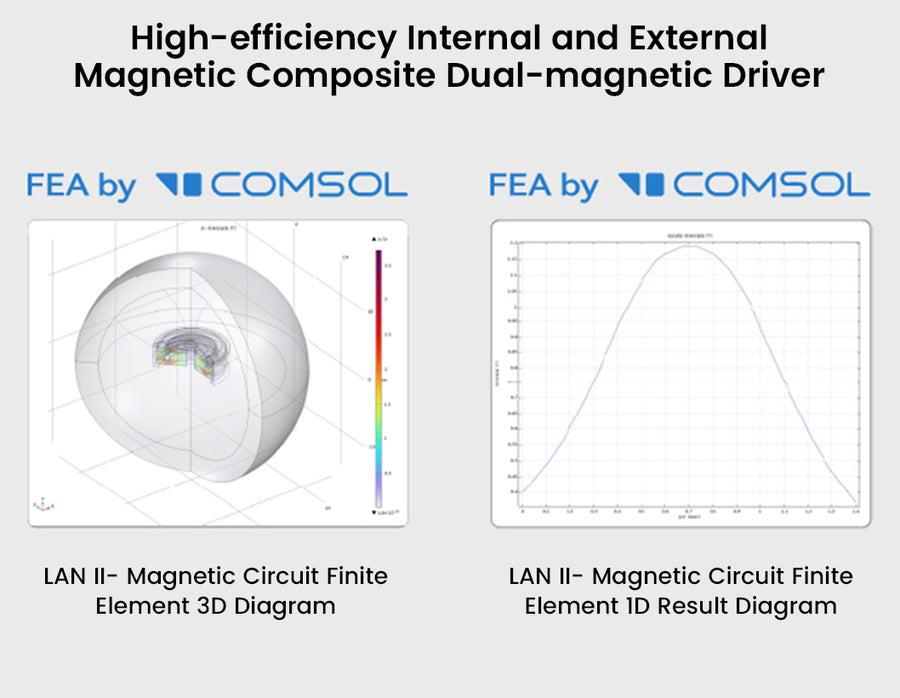

Technical diagrams from COMSOL Finite Element Analysis (FEA) illustrating the 3D and 1D results for the LAN II's Internal and External Magnetic Composite Dual-magnetic Driver.

PREMIUM MIM STAINLESS STEEL SHELL CONSTRUCTION

The LAN II features a spectacular build quality with ear shells completely made up of high-quality stainless steel material. The solid housing is crafted using advanced MIM (Metal Injection Molding) powder metallurgy technology, which involves precise molding and high-temperature sintering. This process ensures a clean, textured, and durable finish. The shells also have an ergonomic shape, ensuring a comfortable wearing experience, while the metallic construction contributes to a sleek, premium, and refined aesthetic.

A close-up shot of two MOONDROP LAN II earpieces, one on the left and one on the right, resting on a pile of dark, out-of-focus plastic components. The image focuses on the housing material and design variants. The text states the material: MIM Powder Stainless Steel Housing, explaining that the Lan II uses MIM powder metallurgy for a compact stainless steel housing with laser-engraved panels.

BALANCED CABLE WITH 4.4 MM TERMINATION

This version of the LAN II REF comes equipped with a high-purity oxygen-free copper (OFC) cable for superior signal clarity and conductivity. The cable is fully detachable and uses standard 0.78 mm 2-pin connectors, ensuring wide compatibility with other cables and earphones. Notably, it features a 4.4 mm balanced termination, enabling enhanced audio performance and improved channel separation when paired with compatible balanced sources.

A simple, elegant shot of two MOONDROP LAN II earpieces resting on a beige-colored surface, possibly the interior packaging or case. The earpieces are in focus, showcasing their silver color and the laser-engraved designs (one appearing more star-like, the other more leaf-like).

Specifications

Brand Name
MOONDROP
Model Name
LAN II
Product Name
MOONDROP – LAN II REF Dynamic Driver IEM
Driver
10mm Double-cavity High-performance Dynamic Driver
Frequency Response
12Hz~60kHz.
Effective Frequency Response Range
20Hz~20kHz.
Impedance
30Ω±15%.
Sensitivity
118dB/Vrms
Connector Type
0.78 mm 2-pin
Plug Type
4.4mm Balanced Plug
Cable
High Purity Oxygen-free Copper

Box Content

    What will you get
  • 1X LAN II
  • 1X 4.4mm Balanced Cable
  • 3X Pairs of Eartips
  • 1X Storage Case
  • 1X Anime-girl Card
  • 1x Warranty Card
  • 1x User Manual

Warranty

1 YEAR WARRANTY

Don't worry, MOONDROP – LAN II REF comes with a 1 Year warranty against manufacturing defects. We guarantee that every product on Concept Kart is genuine and backed by the Manufacturer's warranty.
